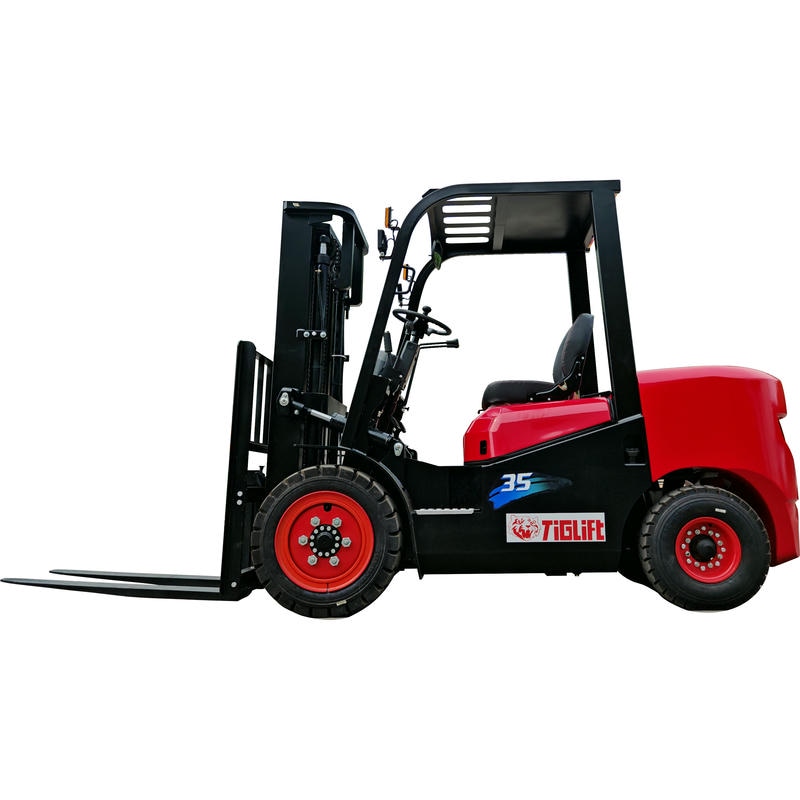

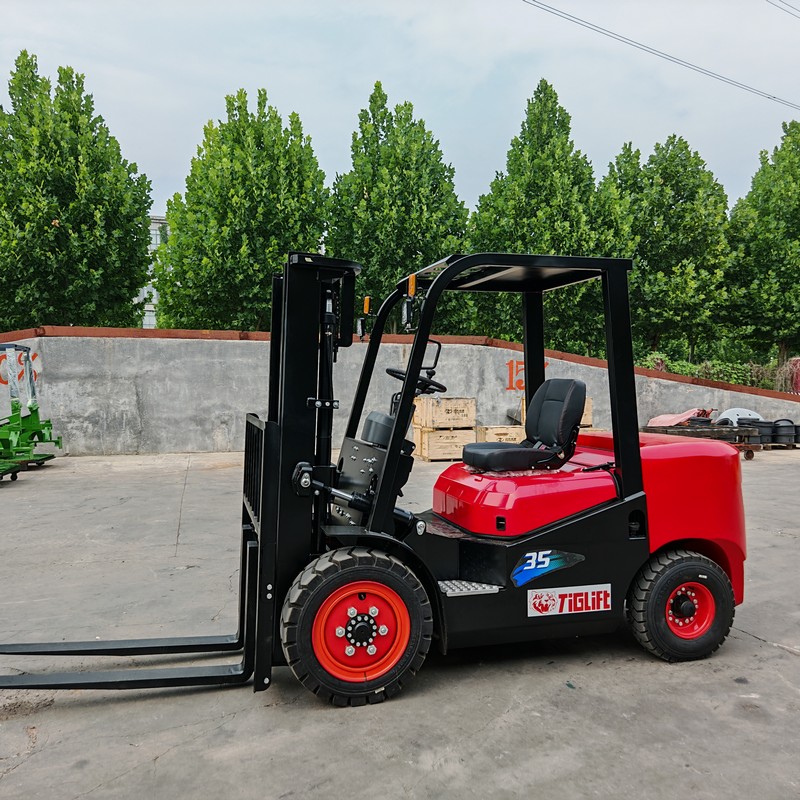

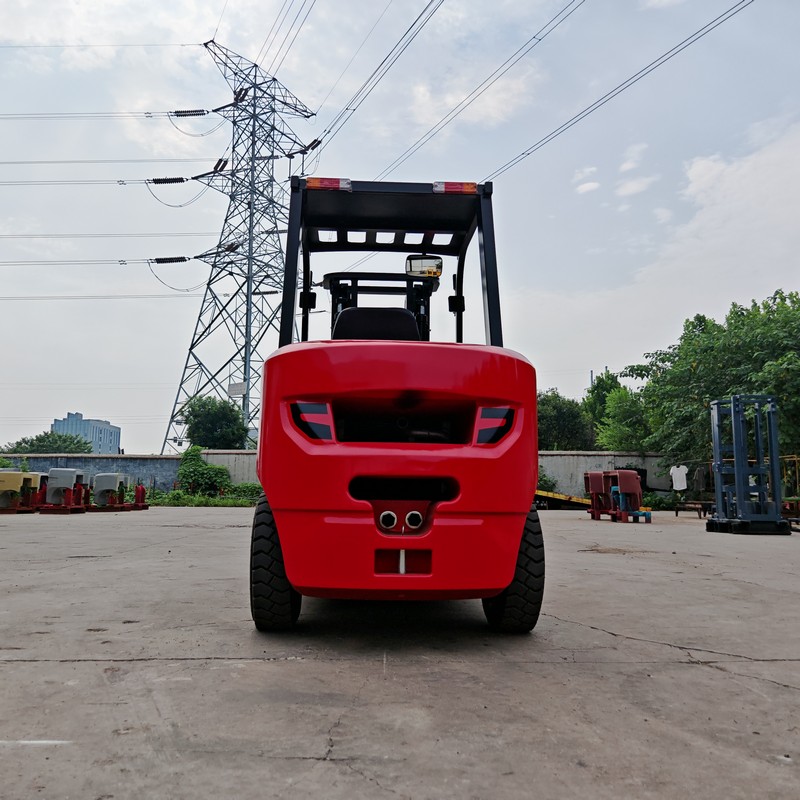

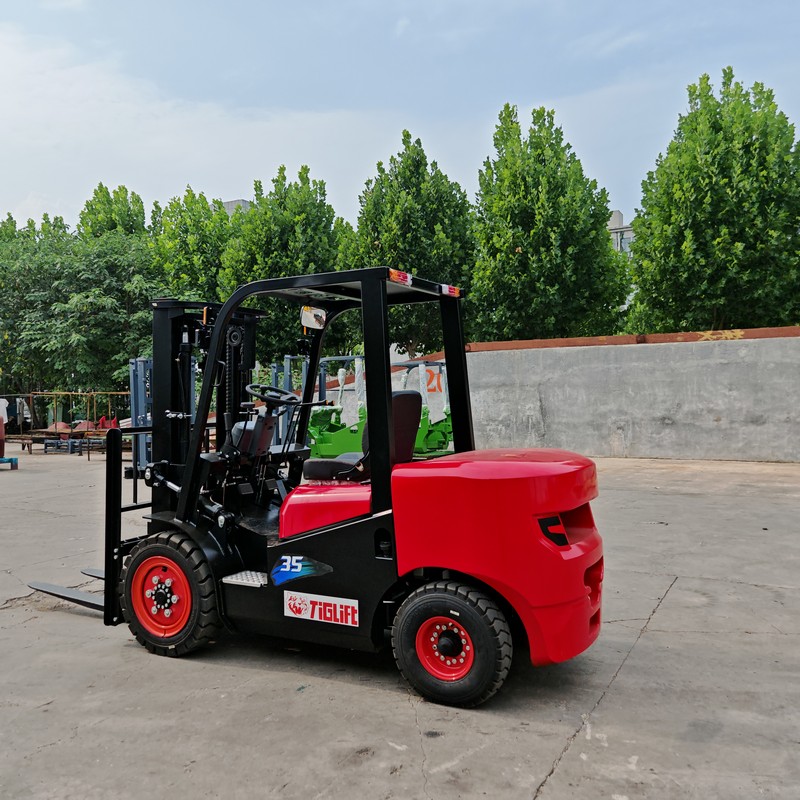

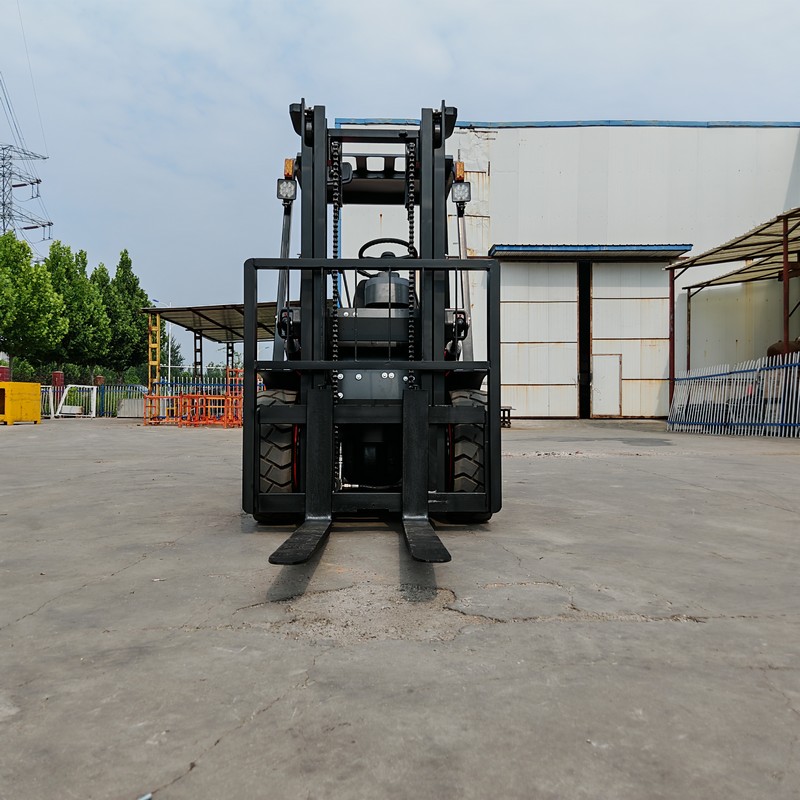

Lift Truck
Diesel forklifts offer a wide load range, with flexible options from 3 to 10 tons;
Refueling takes just 5 minutes, which is 10 times faster than charging;
The engine has a long lifespan, up to 10,000 hours;
Adapt well to rough roads, with wear-resistant and durable tires.
Durability tests show that when diesel forklifts operate 10 hours a day for 3 consecutive years, major components (such as the frame and forks) suffer no structural damage; the overhaul interval of the diesel engine exceeds 8,000 hours; the tire wear resistance index is 25% higher than that of electric forklifts, making them suitable for heavy-load and high-frequency handling.
Product Parameter
| TECHNICAL SPECIFICATIONS | |||||
| Performance | Model | CPC35 | CPCD35 | ||
| Rated Capacity | kg | 3500 | 3500 | ||
| Load Center | mm | 500 | 500 | ||
| Power Type | Diesel | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450∕420 | 450∕420 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 18∕20 | 18∕20 | ||
| Max. Towing Capacity | kN | 16∕11 | 16∕11 | ||
| Gradeability (Full-Load / No-Load) | % | 15∕20 | 15∕20 | ||
| Lifting Height | (H1) | mm | 3000 | 3000 | |
| Free Lift Height | mm | 80 | 80 | ||
| Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | 6∕12 | ||
| Min. Turning Radius | mm | 2540 | 2540 | ||
| Min.Right Angle Aisle Width | mm | 2050 | 2050 | ||
| Min. Ground Clearance | mm | 135 | 135 | ||
| Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 | 4170 |
| Overall Width | (B) | mm | 1230 | 1230 | |
| Overall Height (Mast Lowered) | (H) | mm | 2110 | 2110 | |
| Overall Height (Mast Extended) | (H2) | mm | 4270 | 4270 | |
| Overall Height to Overhead | (H3) | mm | 2105 | 2105 | |
| Front Overhang | (A1) | mm | 465 | 465 | |
| Wheelbase | (A2) | mm | 1760 | 1760 | |
| Front Tread | (B1) | mm | 1000 | 1000 | |
| Rear Tread | (B2) | mm | 970 | 970 | |
| Tire | Front Wheel | mm | 28*9-15 | 28*9-15 | |
| Rear Wheel | mm | 6.50-10 | 6.50-10 | ||
| Fork | Fork Width | (B3) | mm | 122 | 122 |
| Fork Thickness | (H4) | mm | 45 | 45 | |
| Backrest Height | mm | 1225 | 1225 | ||
| Fork Length | (A3) | mm | 1220 | 1220 | |
| Engine | Engine Model | C490BPG | C490BPG | ||
| Rated Power | kW | 40 | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | 2650 | ||
| Max. Torque | Nm | 162 | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800～1900 | 1800～1900 | ||
| Type of Power Shift | Mechanical | Hydraulic | |||
| Self-Weight | kg | 4400 | 4400 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT Diesel Forklift？
Product Advantages (Designed for Manufacturing Plants):
Tailored for manufacturing facilities (such as auto parts and machinery processing plants), it flexibly adapts to operations both inside and outside workshops—no additional modifications are needed for switching between indoor and outdoor use, and the fork width can be quickly adjusted to fit different pallet sizes. The power system features low vibration and low noise (below 75 decibels), ensuring no disruption to the workshop production environment. The hydraulic system responds sensitively, with adjustable fork lifting speed (enabling precise control over stability when handling precision parts). Tires can be optionally solid (puncture-proof) or inflatable (for comfort) to meet the needs of different surfaces (concrete/epoxy/steel plates). Maintenance costs are low, as filter and oil replacement operations are simple, allowing ordinary workers to complete them after training.
Factory Strength:
With 20 years of focus on industrial forklift manufacturing, the factory is equipped with automated welding lines and precision machining centers. The quality inspection center simulates complex workshop environments (such as high temperatures of 80℃ and dusty conditions) to ensure equipment durability. The R&D team regularly communicates with manufacturing enterprises to optimize functions. It has obtained ISO 14001 environmental certification, ensuring green and low-carbon production processes.

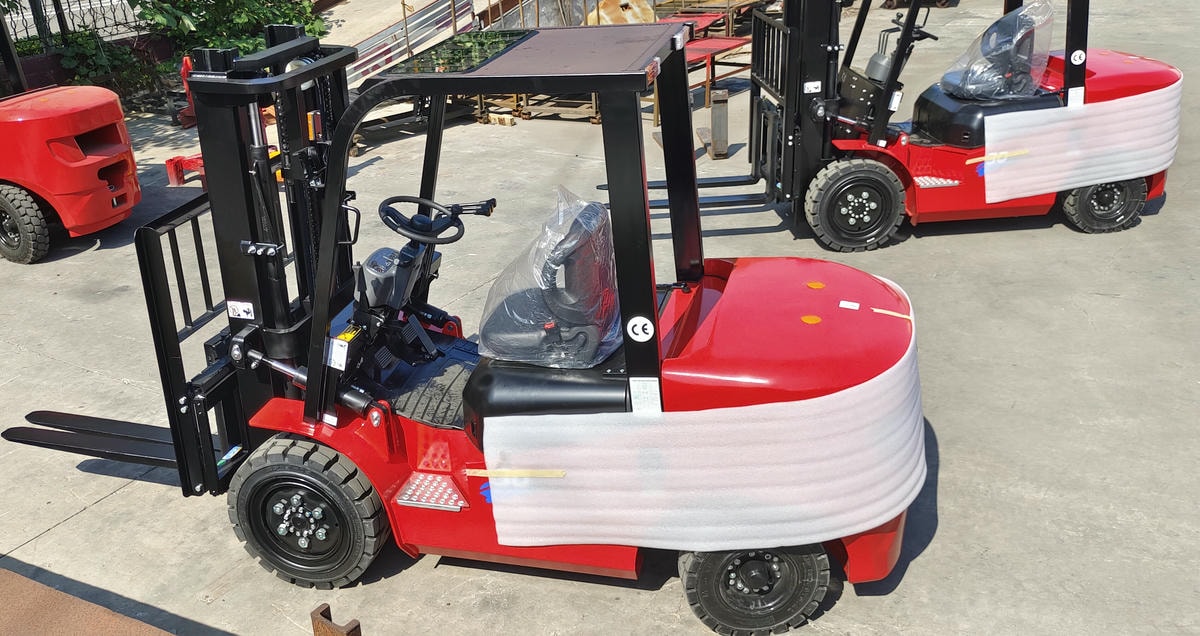

Delivery Photos
Shipping:
Flexible packaging solutions are available—standard forklifts are shipped in full containers, while customized models (such as widened forks) are disassembled into components, packed in boxes, and labeled with assembly sequences. During sea freight, key components (such as hydraulic valve groups) are individually protected, and assembly video guidance is provided upon arrival at the port. To meet the short-distance transportation needs of manufacturing plants in Europe, railway container transportation is supported (reducing the impact of road congestion).
After Service
Warranty: 2-year warranty period (universal for manufacturing scenarios), with over 80 cooperating industrial equipment service providers worldwide.
Manuals: Multi-language operation manuals (including illustrations of workshop safety regulations) are available.
Parts Supply: Common parts (such as filters and oil pipe joints) are stocked in the parts warehouse, with delivery to factory warehouses within 10 working days.
Remote Assistance：The remote team can guide workers via video to complete basic maintenance (e.g., cleaning the air filter).
