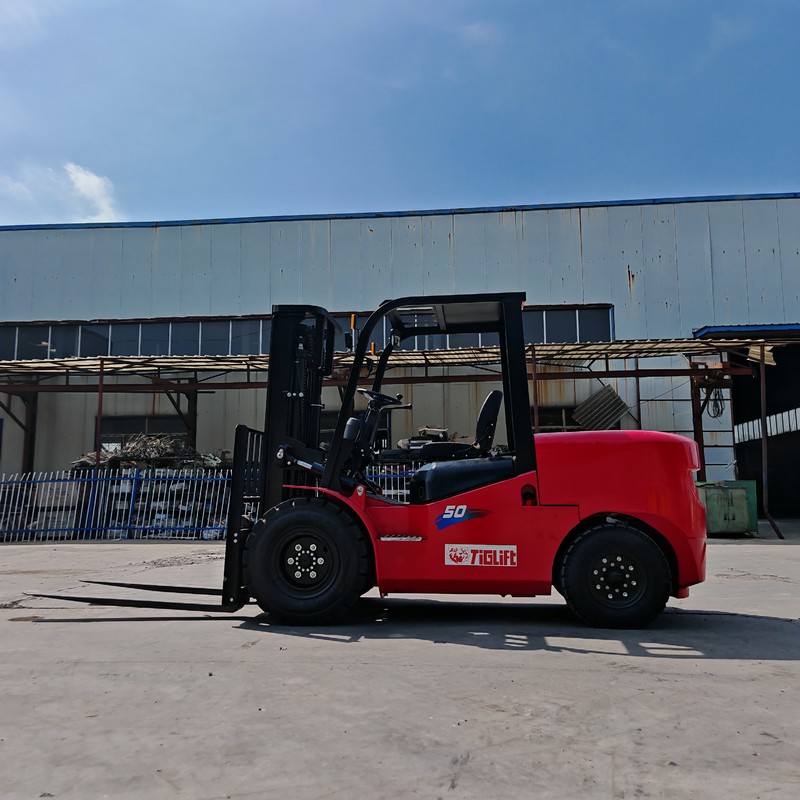

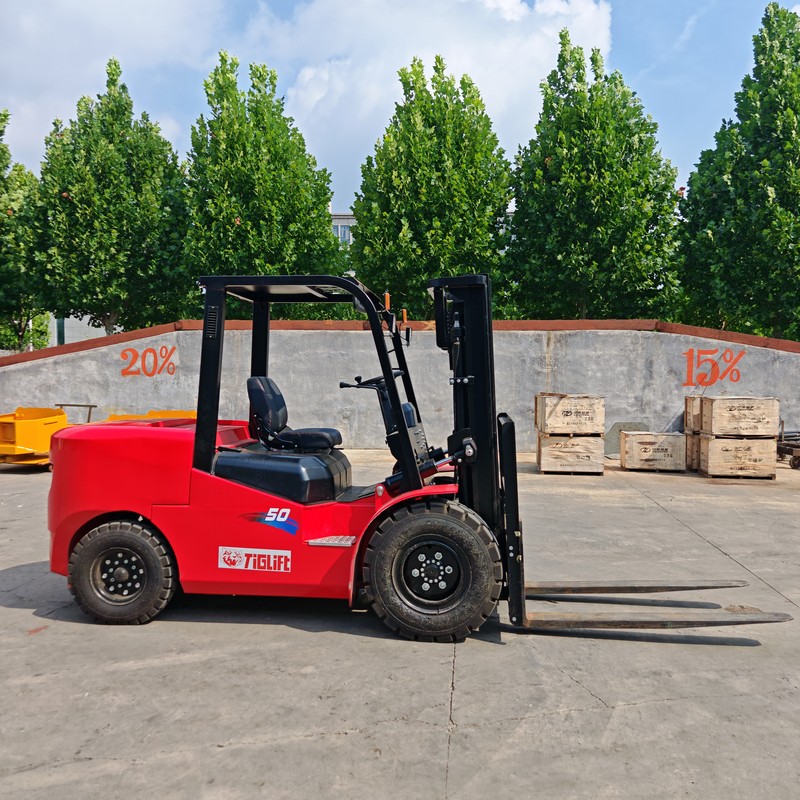

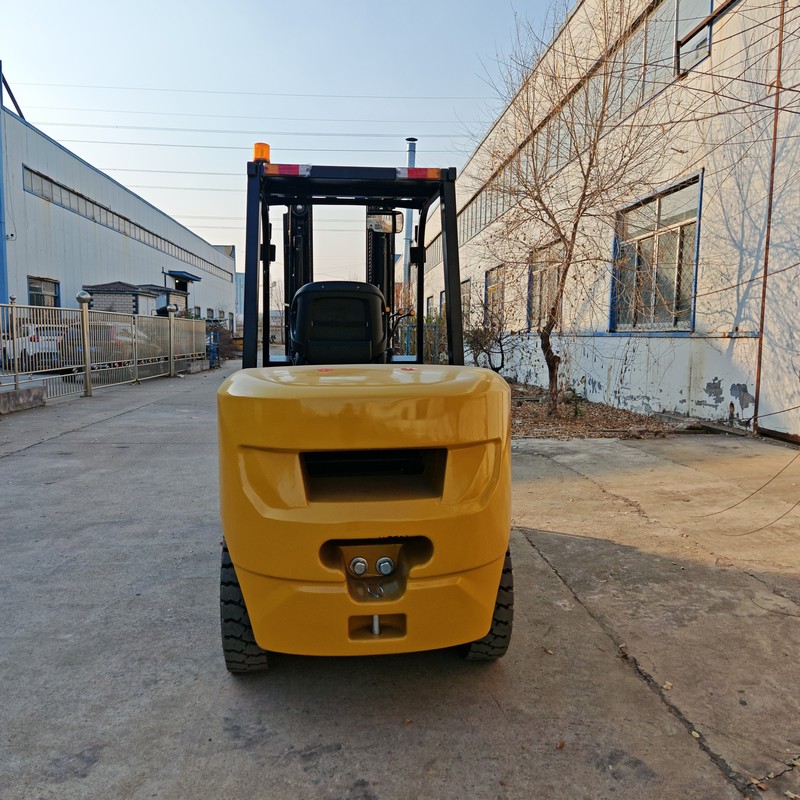

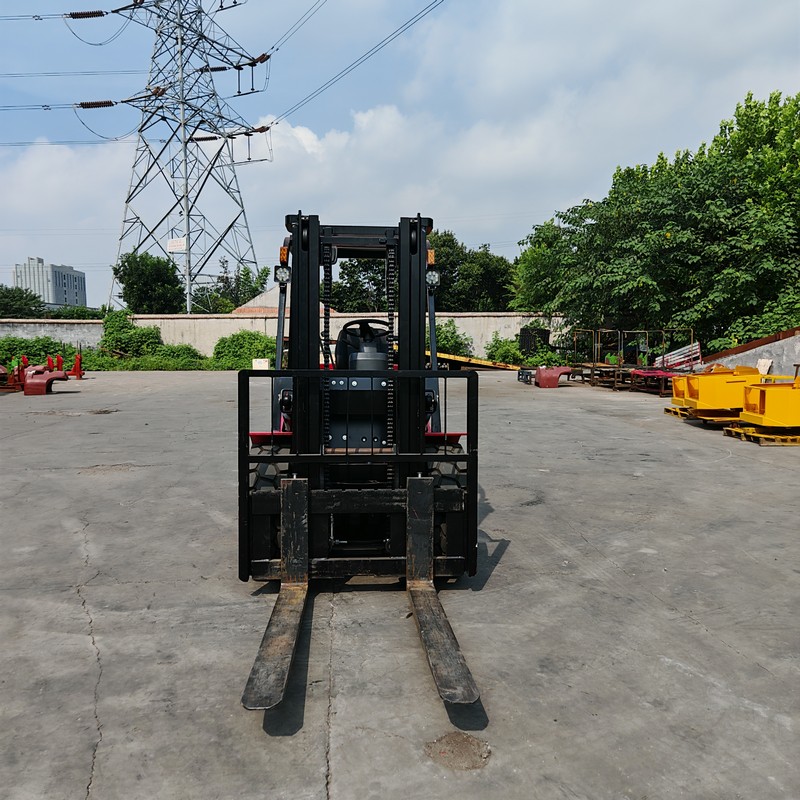

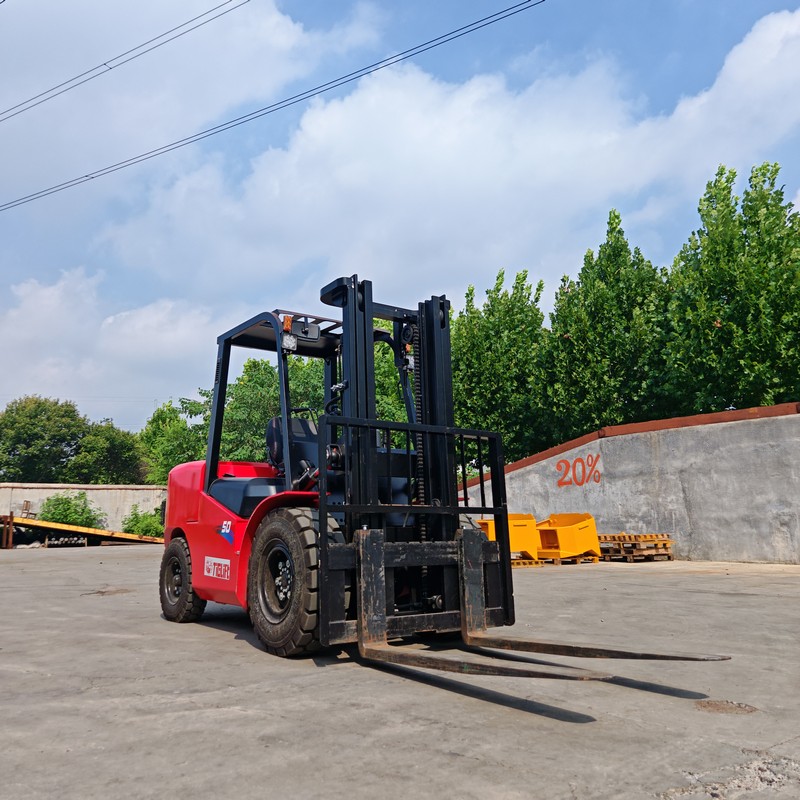

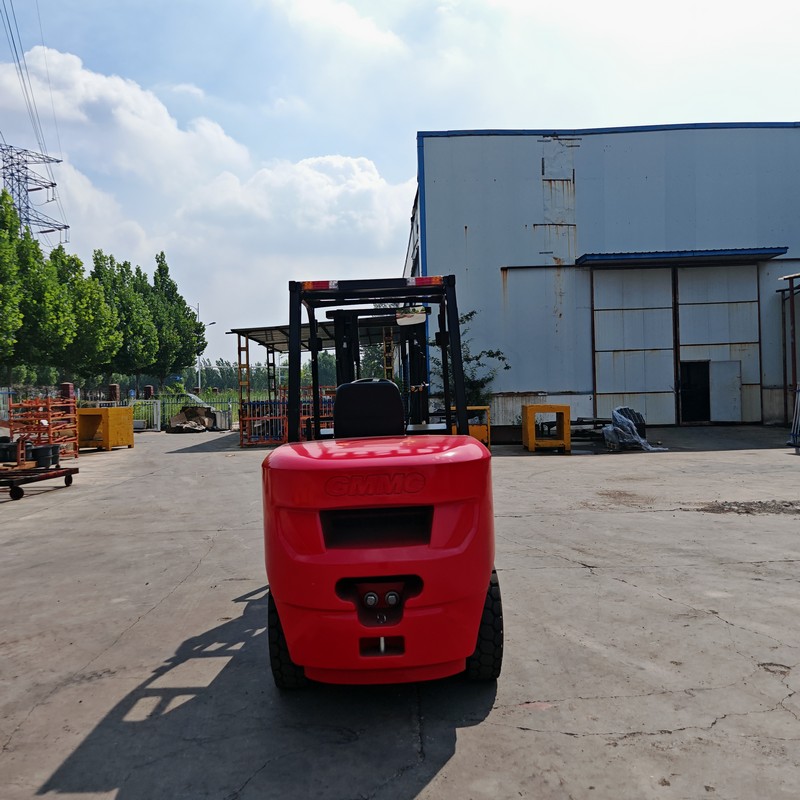

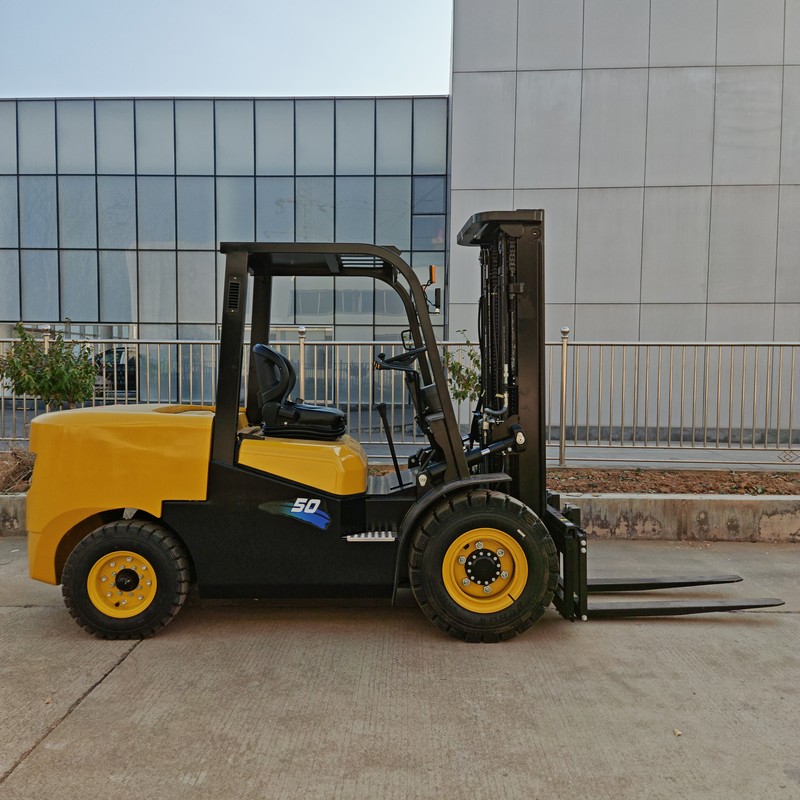

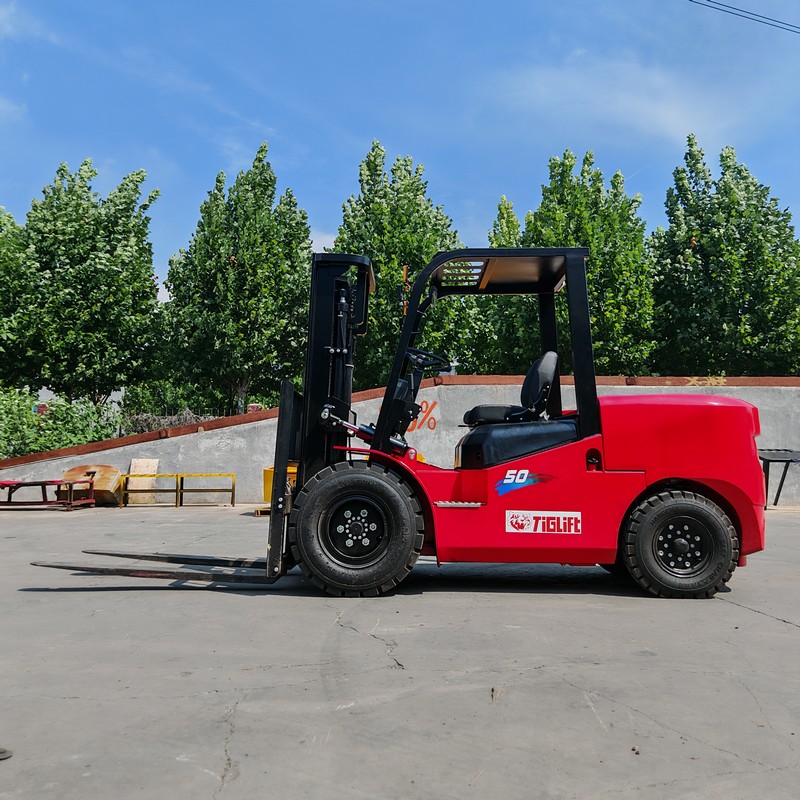

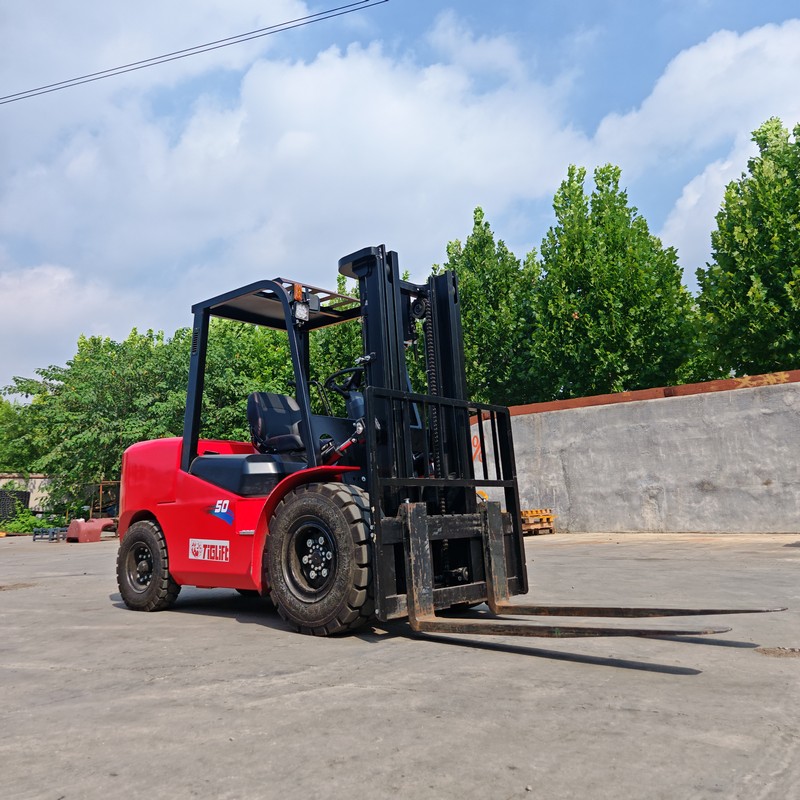

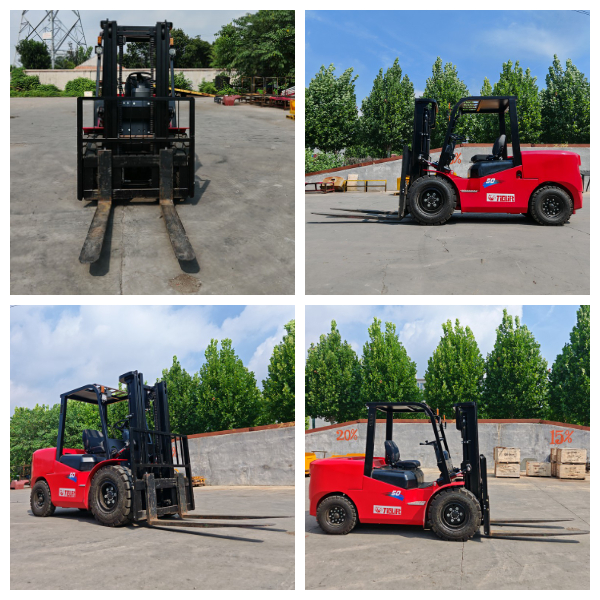

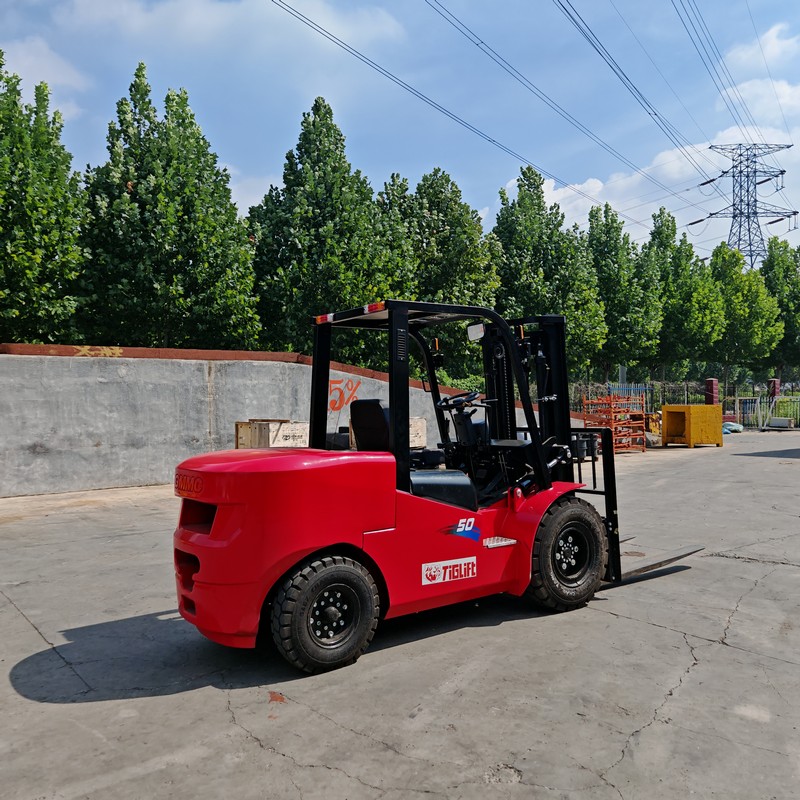

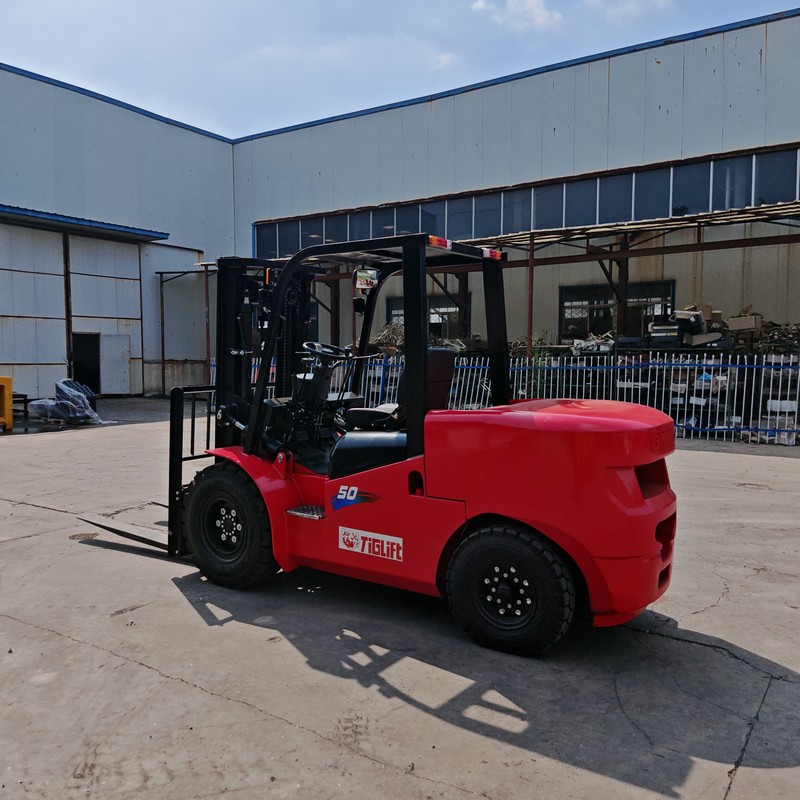

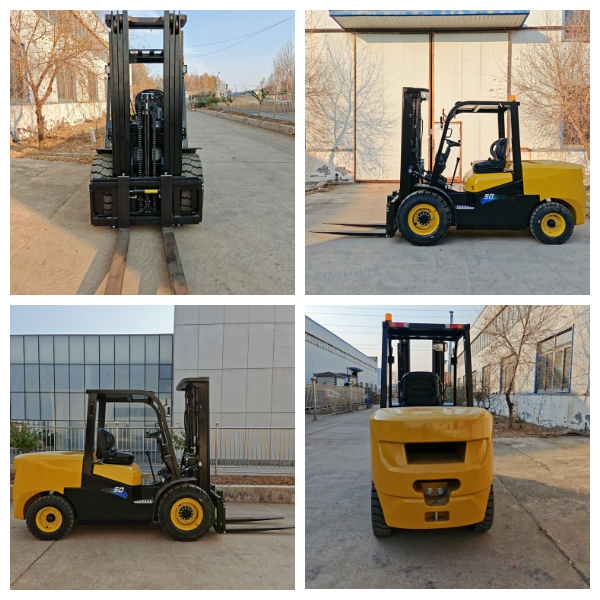

5T Diesel Forklift
Precise Load Upgrade: Increases transport capacity by 12%–15% compared with 4-ton models; avoids redundant costs of 5-ton units. 15% overload tolerance ensures stable operation on ramps or with overweight loads.
Optimized Power for All Working Conditions: Custom diesel engine delivers high torque at low RPM; full-load gradeability up to 20°. Operates reliably from –25 ℃ to 48 ℃, supporting 24-hour continuous operation.
Durable & Economical: High-strength frame + wear-resistant mast extends service life by 25%. Failure rate <0.5%; refuel in 5 minutes for 10+ hours of operation, raising utilization by 30%.
Flexible Adaptation to Multiple Scenarios: Compatible with various attachments. One machine covers loading, unloading, stacking, and transfer at low cost.
Small 5-Ton Diesel Forklift: Golden Tonnage for Heavy-Duty — Strong & Agile Pioneer
Ideal for 4.5–5-ton loads, this compact 5-ton diesel forklift bridges the gap between 4-ton (underpowered) and larger 5-ton (clumsy) models. It shines in engineering machinery, large warehousing, steel & building materials—delivering effortless heavy lifting, all-terrain reliability, and cost-efficient flexibility.
Advanced Load, Higher Efficiency
5-ton rating cuts trips by 10%–12% vs. 4-ton models; handles steel structures, machinery chassis, dense pallets with ease. 10%–15% overload tolerance ensures stability on ramps or surges—no production halts.
Powerful Drive, All-Terrain Ready
Large-displacement diesel delivers high low-RPM torque, climbs 22°+ fully loaded, conquers steep docks & gravel roads. Hits 25 km/h unloaded / 18 km/h loaded, speeding yard/long-haul cycles. Reliable from –20 ℃ to 45 ℃, runs 24/7.
Durable & Low-Maintenance
Reinforced frame & mast last 30%+ longer (fatigue-tested). Mature diesel = few faults. Routine upkeep slashes annual costs 40% vs. electric. 5-min refuel = all-day work, +25% utilization.
Agile & Versatile
Compact-yet-stable with 3.0 m turning radius fits aisles/racks. Works with side shifters, clamps, rotators for pipes, coils, odd shapes. Single machine covers loading, stacking, transfer—cuts equipment costs.
Best Bridge to Heavy-Duty
More relaxed lifting, stronger power, economical & reliable—this small 5-ton diesel forklift powers the shift from mid-heavy to heavy-duty handling with solid capability.
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC50K/CPCD50K | ||
| Rated Capacity | kg | 5000 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (Full-Load) | mm/s | 330 | ||
| Max. Driving Speed (Full-Load) | km/h | 22 | ||
| Max. Towing Capacity (Full-Load) | kN | 15.5 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 1500 | ||
| Mast Tilting Angle (Forward-Backward) | Deg | 6/12 | ||
| Min. Turning Radius | mm | 2850 | ||
| Min.Right Angle Aisle Width | mm | 2350 | ||
| Min. Ground Clearance | mm | 180 | ||

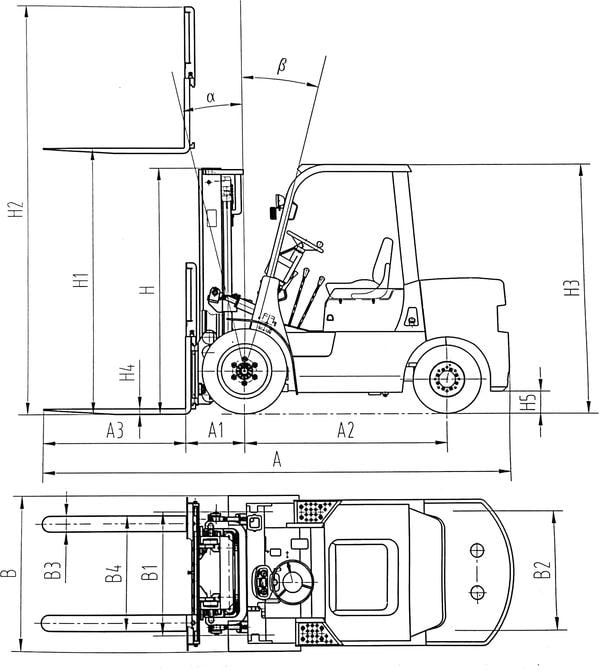

| Dimensions | Overall Length (Including Fork) | (A) | mm | 4410 |
| Overall Width | (B) | mm | 1380 | |
| Overall Height (Mast Lowered) | (H) | mm | 2180 | |
| Max. Lifting Height | (H2) | mm | 4320 | |
| Overall Height to Overhead | (H3) | mm | 2200 | |
| Front Overhang | (A1) | mm | 545 | |
| Wheelbase | (A2) | mm | 1980 | |
| Front Tread | (B1) | mm | 1080 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | 300-15 | ||
| Rear Wheel | 700-12 | |||
| Fork | Fork Width | (B3) | mm | 150 |
| Fork Thickness | (H4) | mm | 50 | |
| Backrest Height | mm | 1275 | ||
| Fork Length | (A3) | mm | 1220 | |
| Engine | Model | XINCHAI A498BPG | ||
| Rated Power | kW/r.p.m | 45/2300 | ||
| Max. Torque | Nm/r.p.m | 193/1600-1800 | ||
| Number of Cylinders | 4 | |||
| Displacement | L | 3.168 | ||
| Shift | Type of Power Shift | Mechanical/Hydraulic | ||
| Shift (Forward/Reverse) | 2/2 | |||
| Fuel Tank Capacity | L | 70 | ||
| Battery Capacity | V/Ah | 12V/80Ah | ||
| Curb Weight | kg | 5550 | ||
Optional

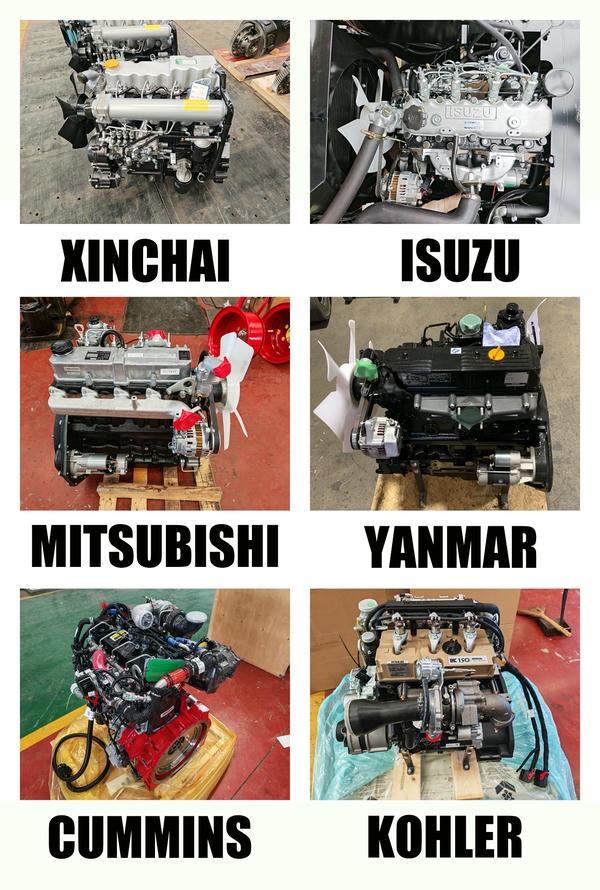

1. Engine：
•Standard: Xinchai
•Optional: ISUZU (Japan), Mitsubishi (Japan), KUBOTA (Japan), YANMAR(Japan), Kohler (USA), Cummins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard: 1220mm fork
•Optional: 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

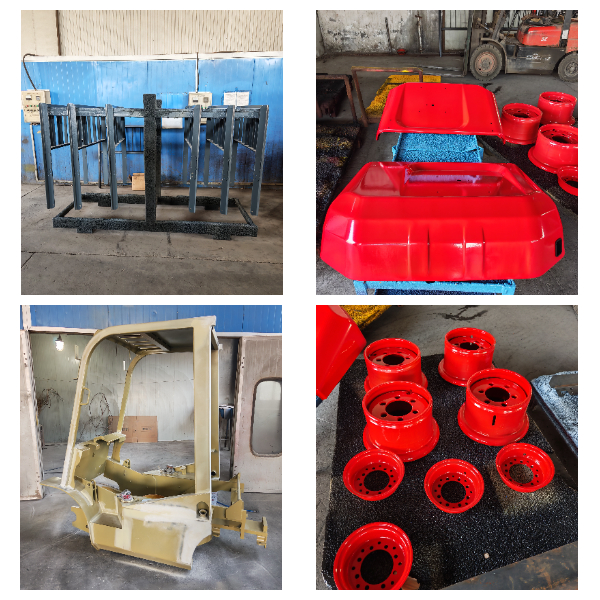

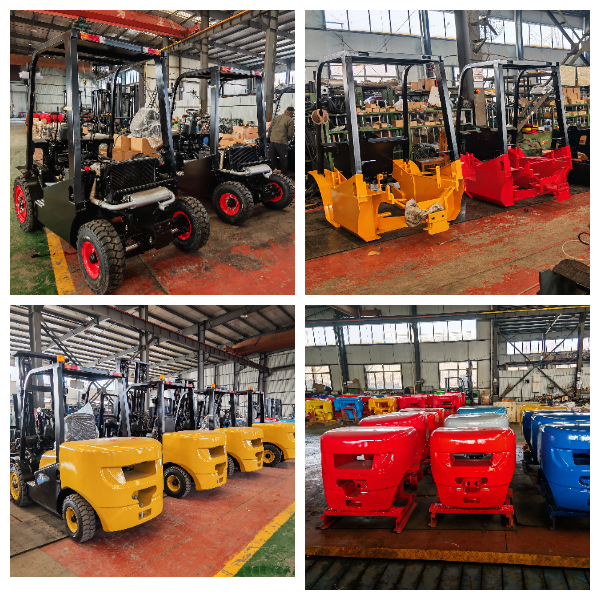

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.

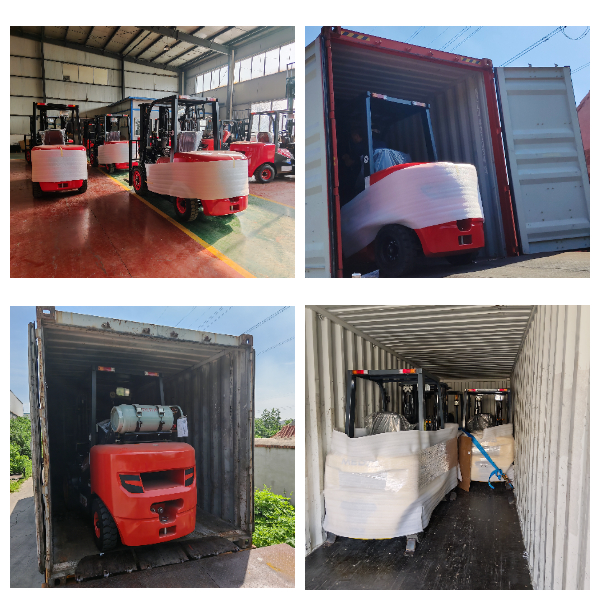

All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
