Paper Roll Clamp

Paper Roll Clamp Introduction

The paper roll clamp is a forklift attachment specifically designed to efficiently and safely handle various types of paper rolls (such as kraft paper rolls, whiteboard paper rolls, corrugated paper rolls, and plastic film rolls) with a cylindrical shape. It secures the paper rolls by mechanically clamping their centers or surfaces, preventing issues like rolling, slipping, or deformation during transport. Widely used in paper mills, printing and packaging factories, logistics warehouses, and port terminals, it ensures stable and damage-free material handling.

Structural Components

The paper roll clamp primarily consists of the following core parts:

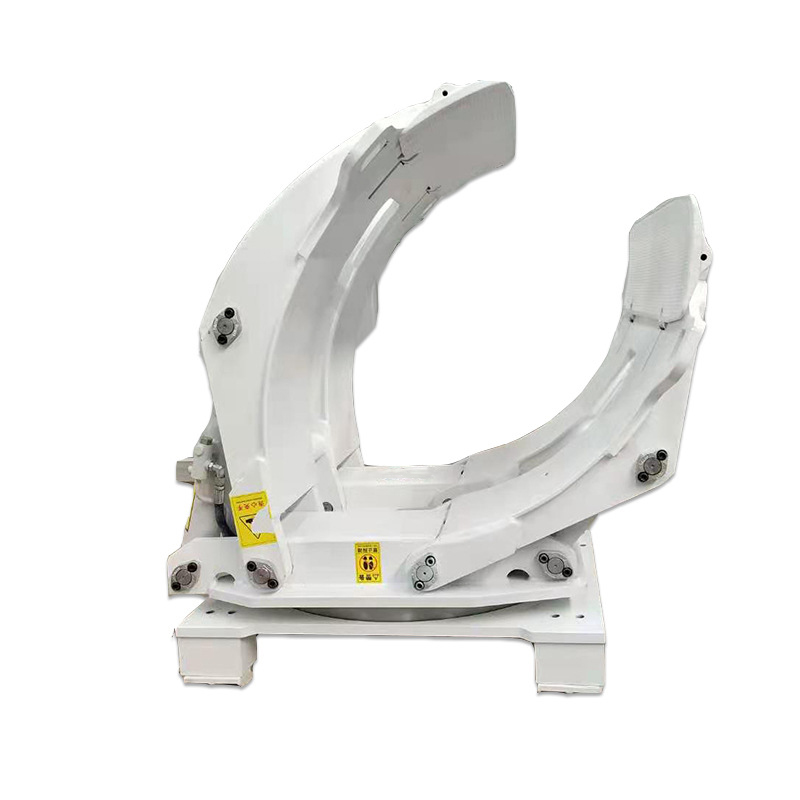

• Clamping Arms: The parts that directly contact and grip the paper rolls. Typically designed as two symmetrical arc-shaped or flat plates (adjustable to different roll diameters), they are made of high-strength steel, with anti-slip pads (such as polyurethane or rubber) often added to the surface to enhance friction and prevent slippage during transport.

• Hydraulic System: Includes hydraulic cylinders (to drive arm movement), pipelines, and control valves. It utilizes the forklift’s hydraulic system to supply oil, enabling precise adjustment of clamping force (commonly capable of generating several tons of pressure to accommodate rolls of varying weights).

• Rotation Mechanism (optional in advanced models): Allows the clamped paper roll to rotate freely within a certain angle (e.g., ±90° or 360°), facilitating directional adjustments (such as aligning roll labels or cut edges before printing). This enhances operational flexibility.

• Connection Frame: Secures the clamp to the forklift’s fork carriage, ensuring a stable attachment and transmitting hydraulic power from the forklift.

• Adjustment Device: Some models feature diameter self-adaptation (e.g., via linkage mechanisms or hydraulic assistance) to automatically accommodate rolls of different sizes (typical range: 500mm–2200mm), eliminating the need for frequent manual adjustments.

Working Principle

During operation, the forklift operator activates the hydraulic system via a control handle:

1. Clamping Action: Hydraulic oil enters the clamping cylinder, driving the two arms to close inward and grip the ends (or surface) of the paper roll. Mechanical pressure and anti-slip pads secure the cargo firmly.

2. Transport Process: Once clamped, the forklift can lift and move the roll smoothly to its destination (e.g., shelves, production lines, or transport vehicles).

3. Release Action: Upon arrival, reversing the hydraulic operation retracts the cylinder, opening the arms to safely release the roll onto the ground or stack it.

(For models with a rotation mechanism, operators can further adjust the roll’s angle via auxiliary controls to meet specific placement needs.)

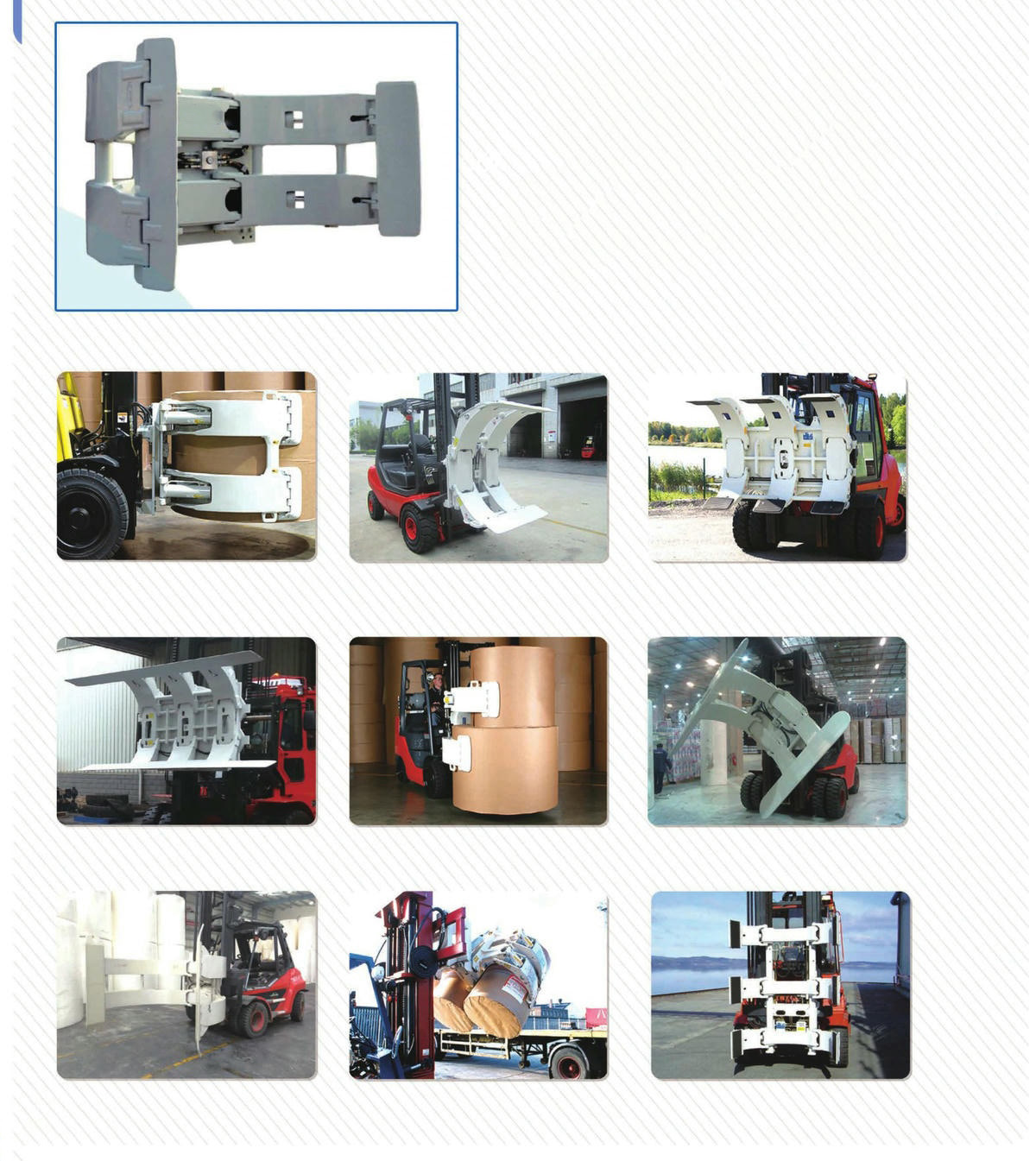

Typical Application Scenarios

• Paper Mills: Transporting freshly produced paper rolls (e.g., kraft paper, newsprint) from production lines to warehouses or delivery vehicles.

• Printing & Packaging Factories: Handling rolls of printing paper (e.g., coated paper, whiteboard paper) or plastic film rolls (used for packaging materials).

• Logistics Warehouses: Storing or sorting paper rolls of different specifications, enabling dense stacking with forklifts (e.g., in high-bay racking).

• Port/Terminal Operations: Rapidly loading/unloading large paper rolls (weighing several tons) from containers or ships, enhancing import/export logistics efficiency.

By replacing traditional manual bundling or lifting methods with mechanical clamping, the paper roll clamp significantly improves the safety, efficiency, and precision of paper roll handling. It is an essential tool in the warehousing and logistics operations of paper-related industries.
