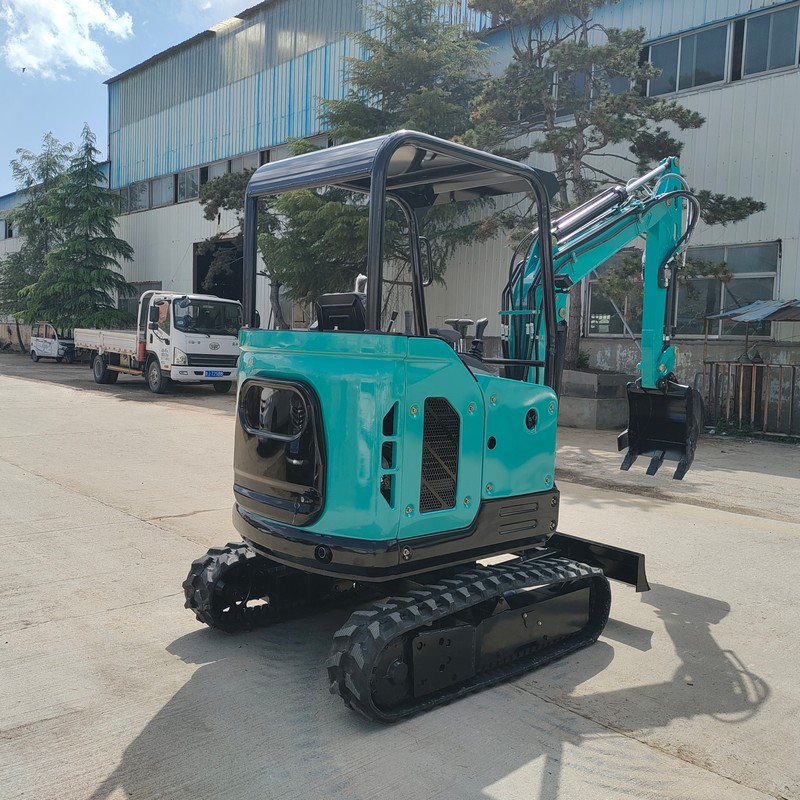

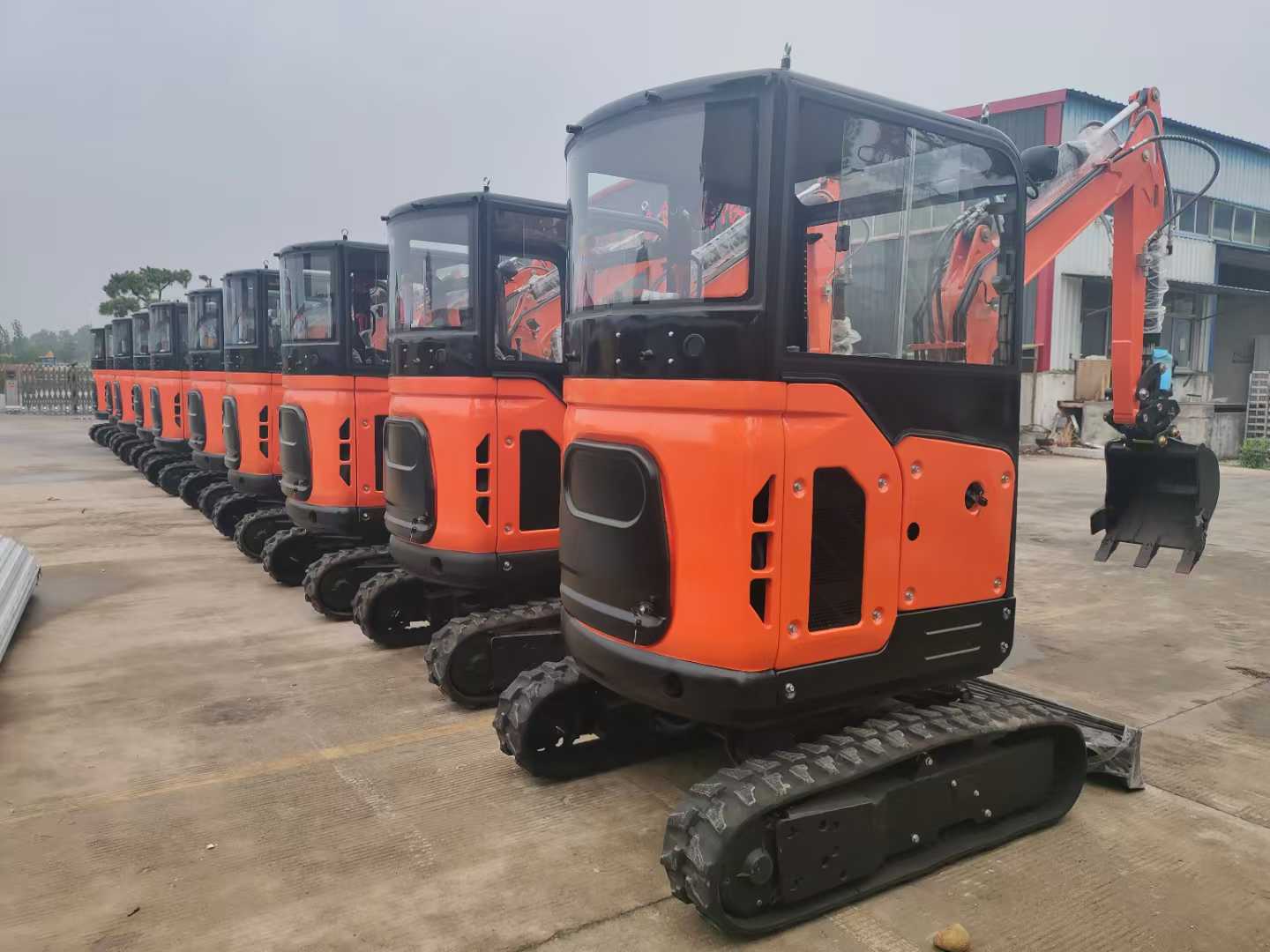

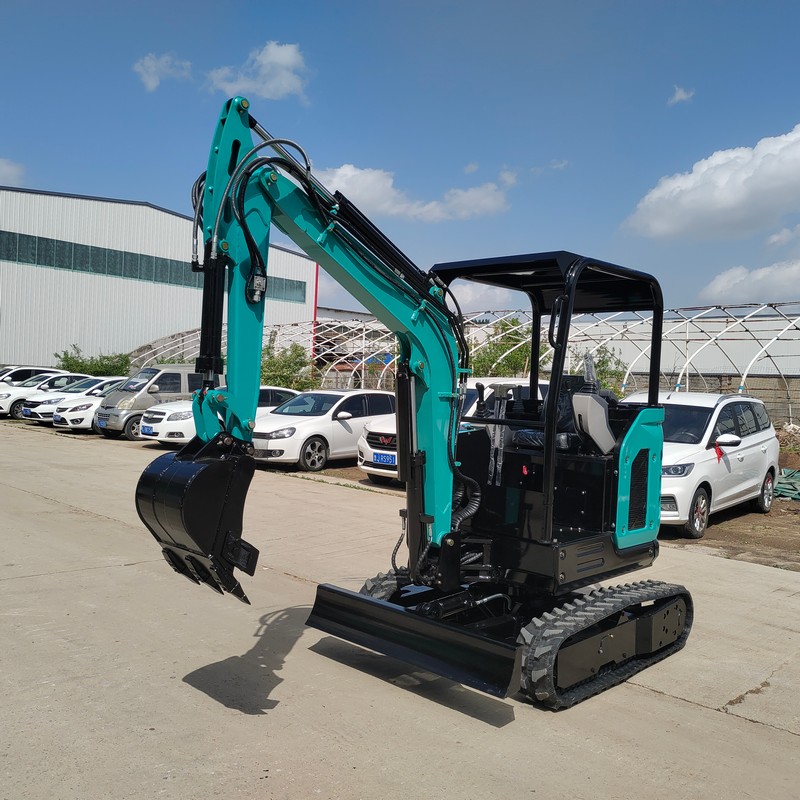

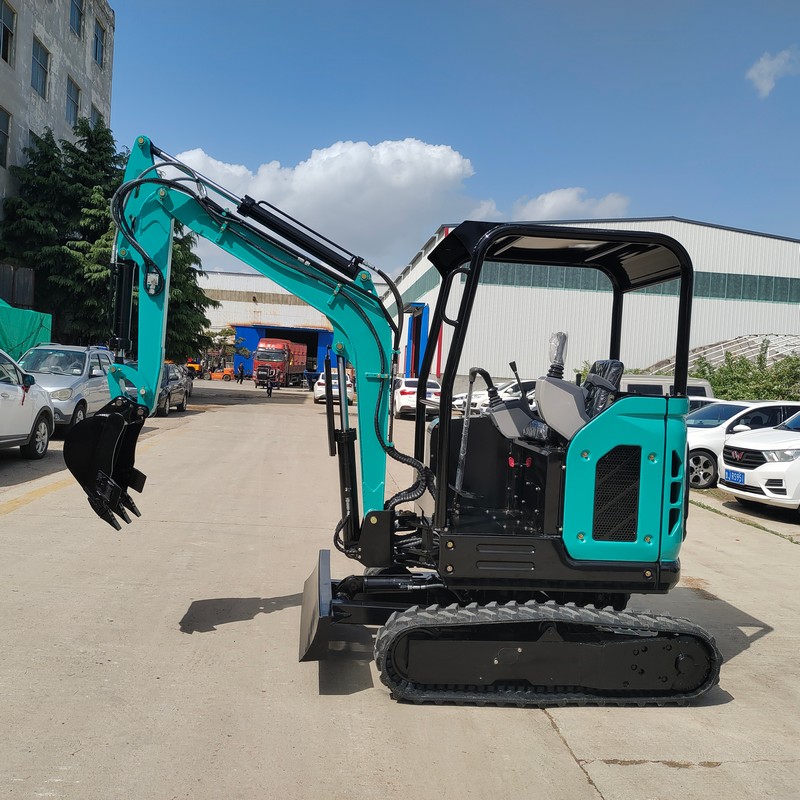

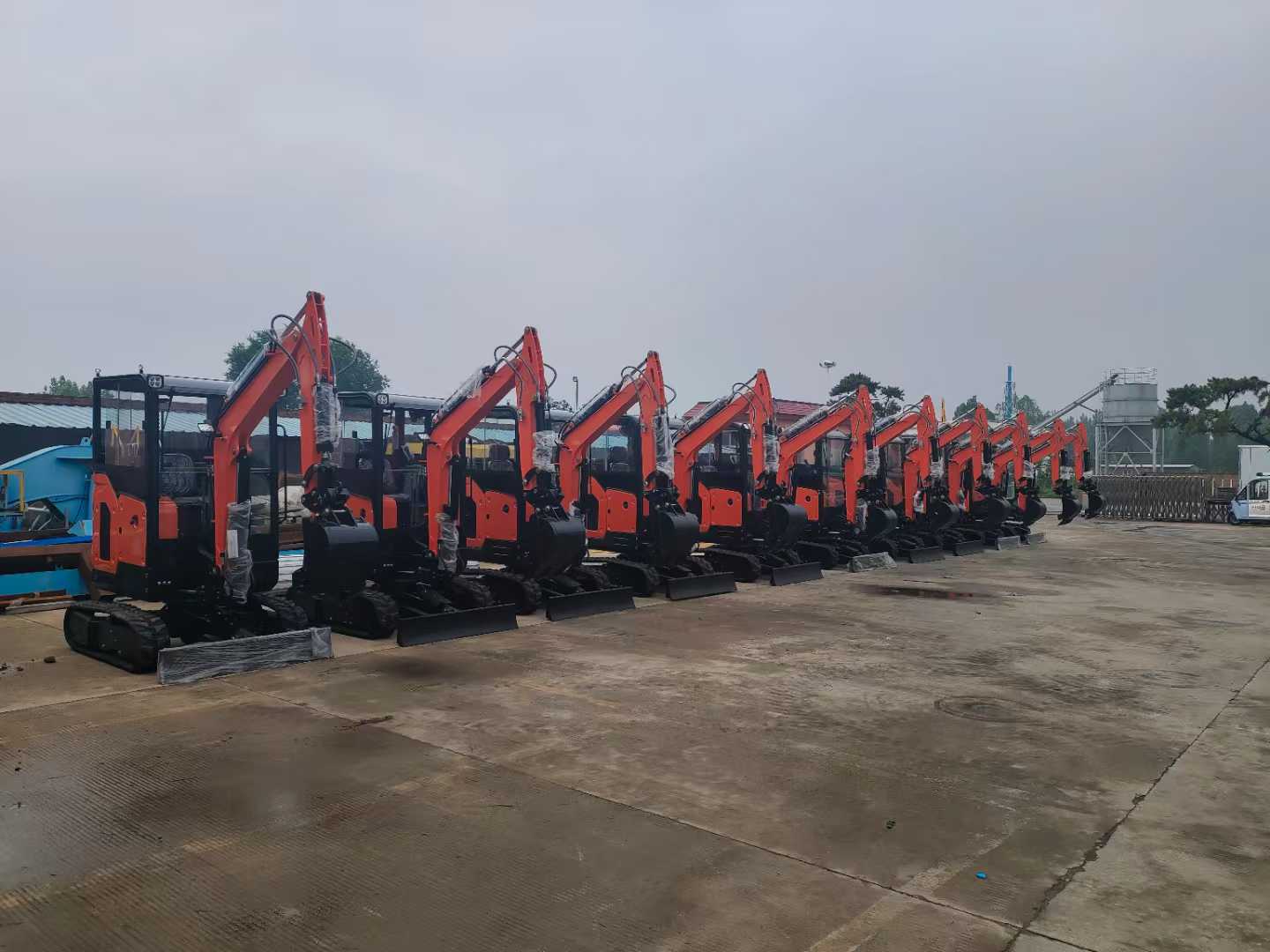

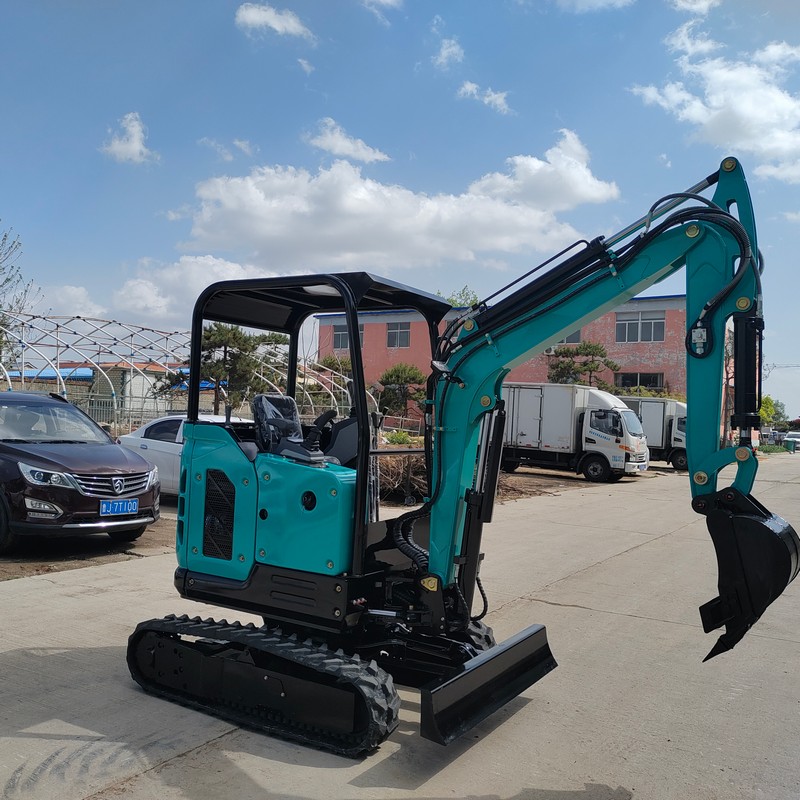

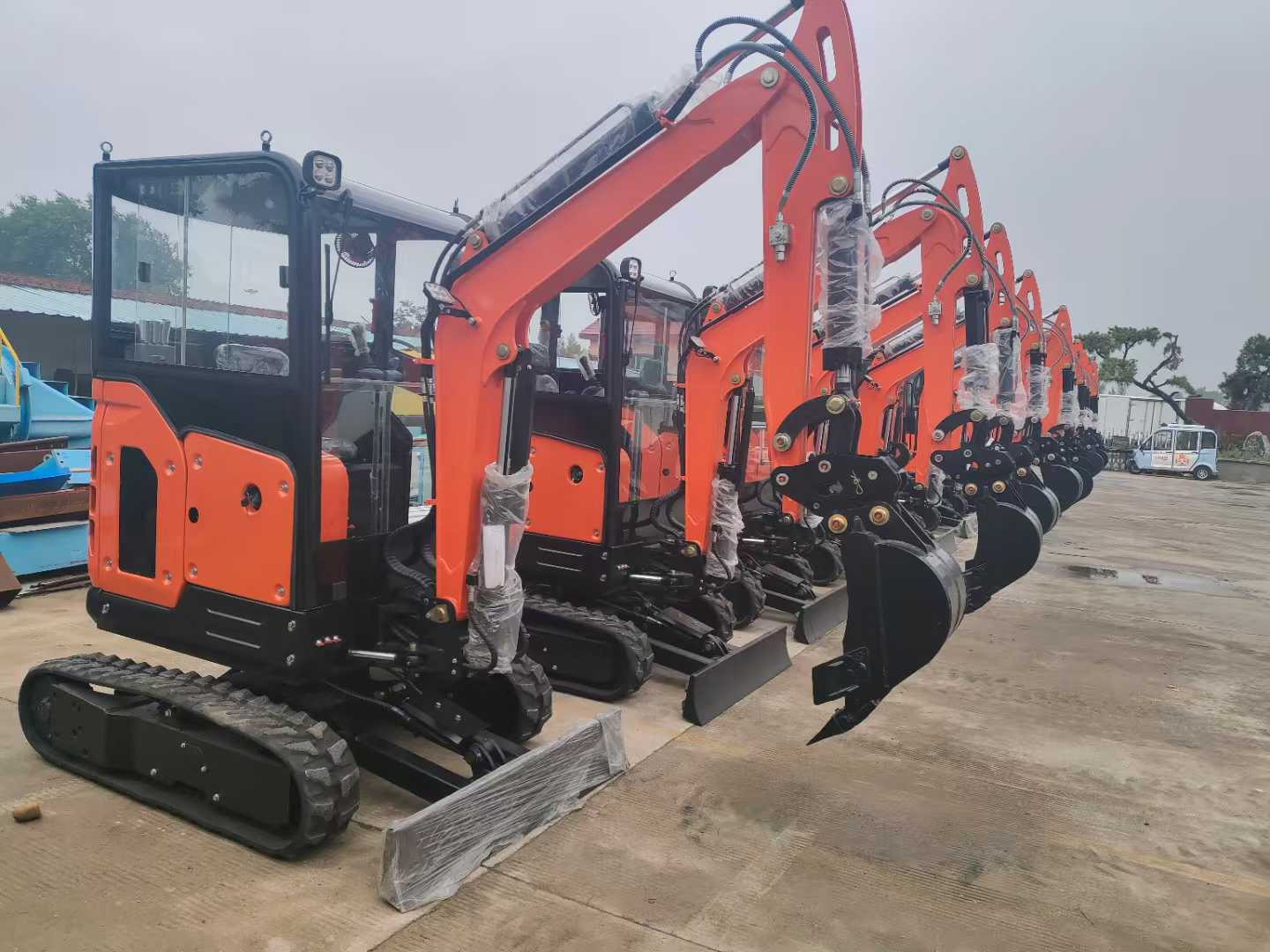

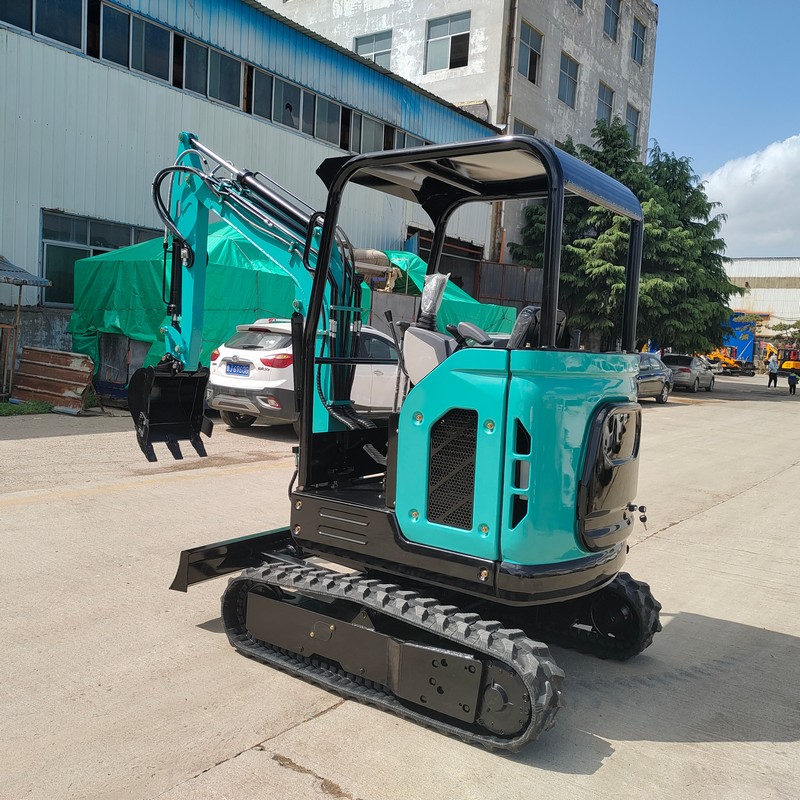

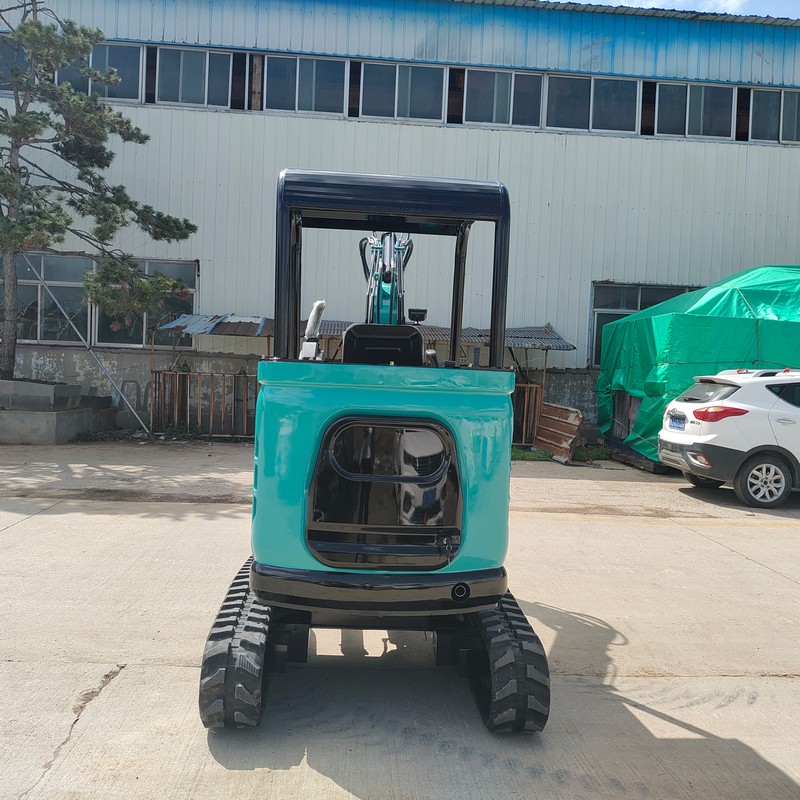

Micro Digger
Exceptional Durability of This Mini Excavator:
• Long-Lasting Structural Components – Key structural parts are built to last up to 10,000 operating hours, ensuring long-term reliability.
• Superior Rust Protection – Advanced anti-corrosion treatment ensures optimal performance in humid and wet environments.
• Extended Track Life – The undercarriage tracks last 1.5 times longer than those of competing models, reducing replacement frequency.
• Highly Clean Hydraulic System – Maintains low contamination levels, resulting in fewer hydraulic failures and enhanced efficiency.
• Full-Body IP65 Waterproof Rating – Provides complete protection against dust and water jets, making it ideal for harsh working conditions.
Outstanding Mobility of This Mini Excavator:
• Impressive Climbing Ability – Can handle slopes up to 30 degrees, making it ideal for steep terrains.
• Adjustable Track Width – The telescopic undercarriage adapts to various ground conditions for enhanced stability.
• Zero-Tail-Swing Design – Prevents accidental collisions with obstacles in tight workspaces.
• Fuel-Efficient Operation – Consumes only 3–5 liters of fuel per hour, reducing operating costs.
• Perfect for Terraced Orchard Work – Especially suited for mountainous orchards and stepped farmland.
| SPECIFICATION | Operation Weight | t | 2.5ton |
| Engine Brand | Changchai 390 | ||
| Rated Power | Kw | 20 | |
| Digging Bucket Capacity | cbm | 0.075 | |
| Bucket Width | mm | 500 | |
| Traveling Motor | LKC | ||
| Travel Speed | km/h | 3.1/2 | |
| Swing Motor | LKC | ||
| Swing Speed | r/min | 12 | |
| Hydraulic System | Plunger Pump | ||
| Body Swing Radius | mm | 883 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 16 | |
| Hydraulic Fluid Chamber | L | 26 | |
| MAIN DIMENSIONS | Overall Length | mm | 4185 |
| Overall Width | mm | 1500 | |
| Overall Height | mm | 2280/2450 | |
| Track Width | mm | 250 | |
| Track Length | mm | 2044 | |
| Body Width | mm | 1260 | |
| WORKING RANGE | Max. Digging Radius | mm | 4350 |
| Max Digging Depth | mm | 2745 | |
| Max. Digging Height | mm | 3457 | |
| Max. Unloading Height | mm | 2366 | |
| Min. Swing Radius | mm | 2159 | |
| Max. Digging Depth Of Dozer Blade | mm | 293 | |
| Max. Lifting Height Of Dozer Blade | mm | 191 |
Strength of the Manufacturing Facility:
• With 20 years of experience in engineering machinery manufacturing, the factory is equipped with heavy-duty presses and a wear-resistant materials lab.
• The R&D team optimizes machine structures for different working conditions—such as shock-absorbing suspension systems—to extend equipment lifespan.
International Shipping Solutions:
• For full-container shipments, key components (like the frame and boom) are separately secured (with welded steel frame supports) to prevent transport damage or deformation.
• Customized packaging is provided, including inner anti-collision foam + outer steel cage reinforcement for maximum protection.
• After arrival at the port, remote assembly and commissioning support are available to ensure quick startup.
International After-Sales Service:
• One-year warranty with detailed maintenance guidelines (e.g., regular pin and bushing lubrication).
• Short lead times for spare parts—commonly used wear-resistant components are well-stocked, with delivery possible in as little as 3 working days.
• The remote technical team is well-versed in safety standards and can guide operators in handling issues such as equipment overheating.
