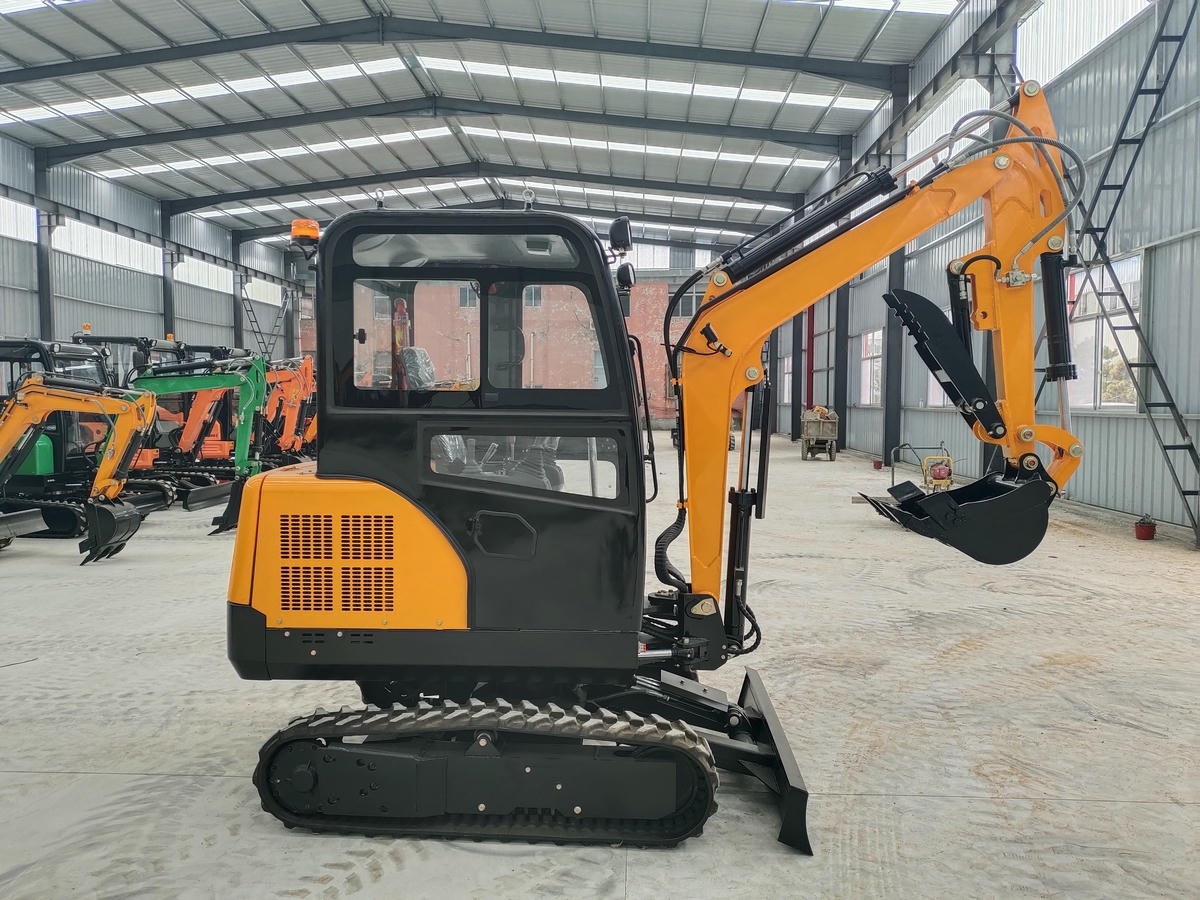

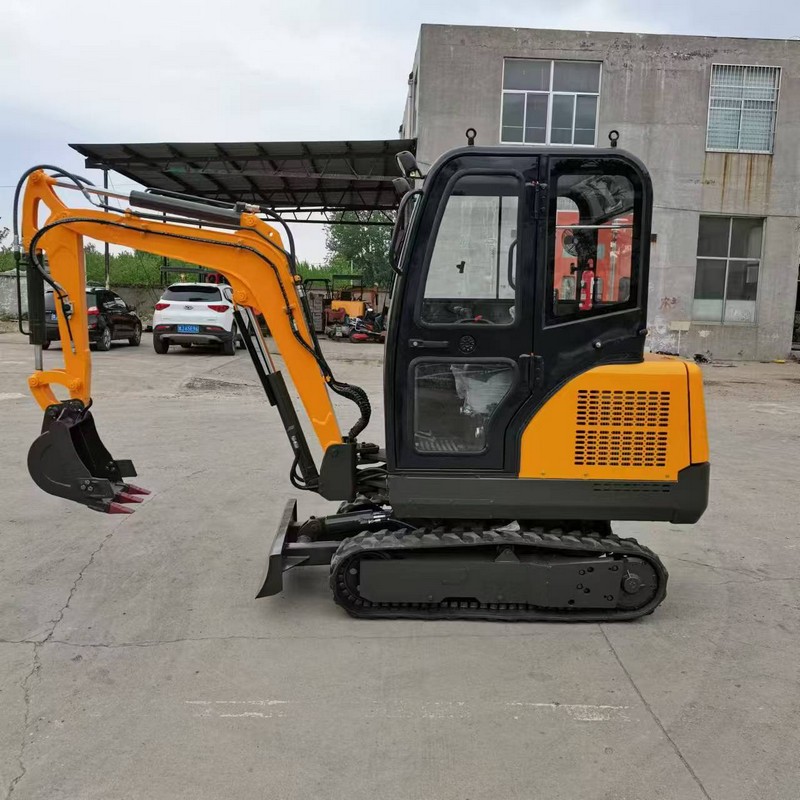

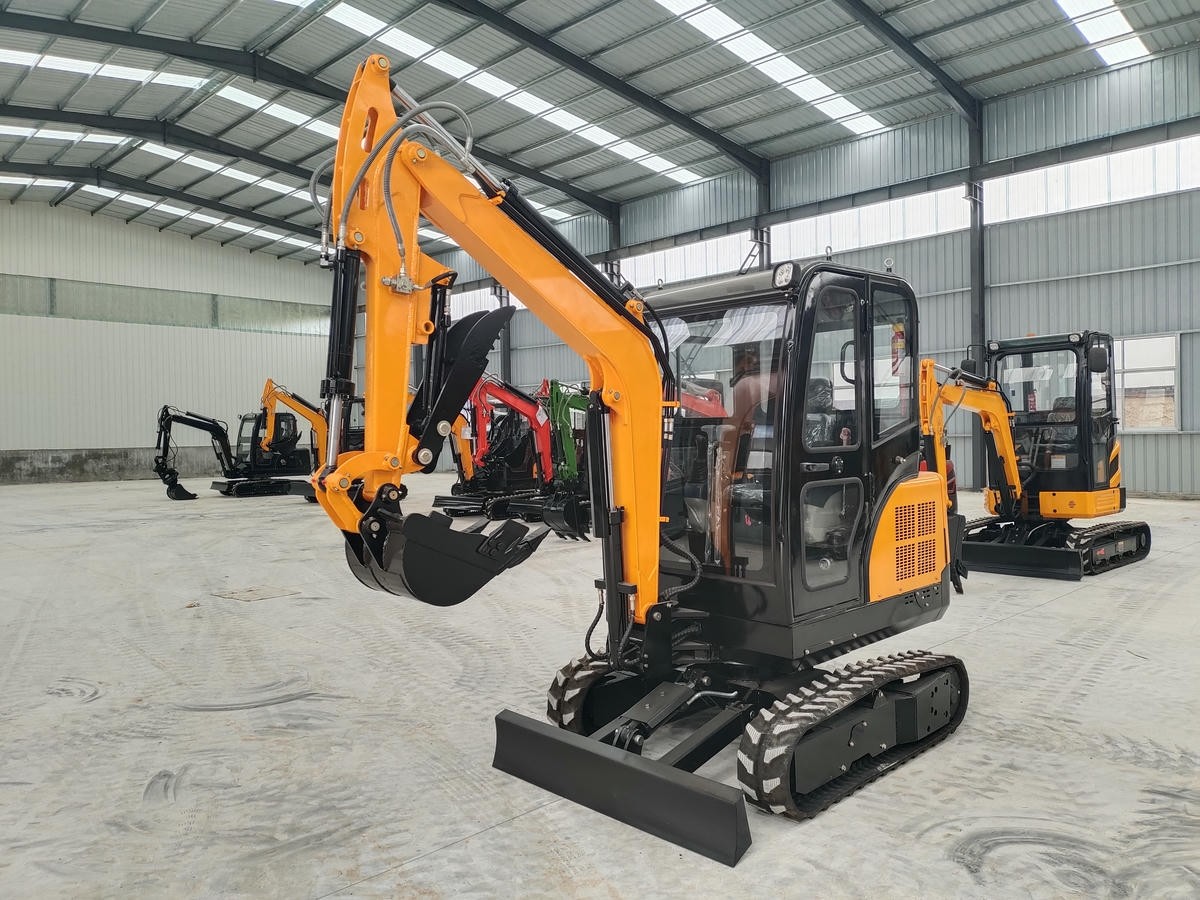

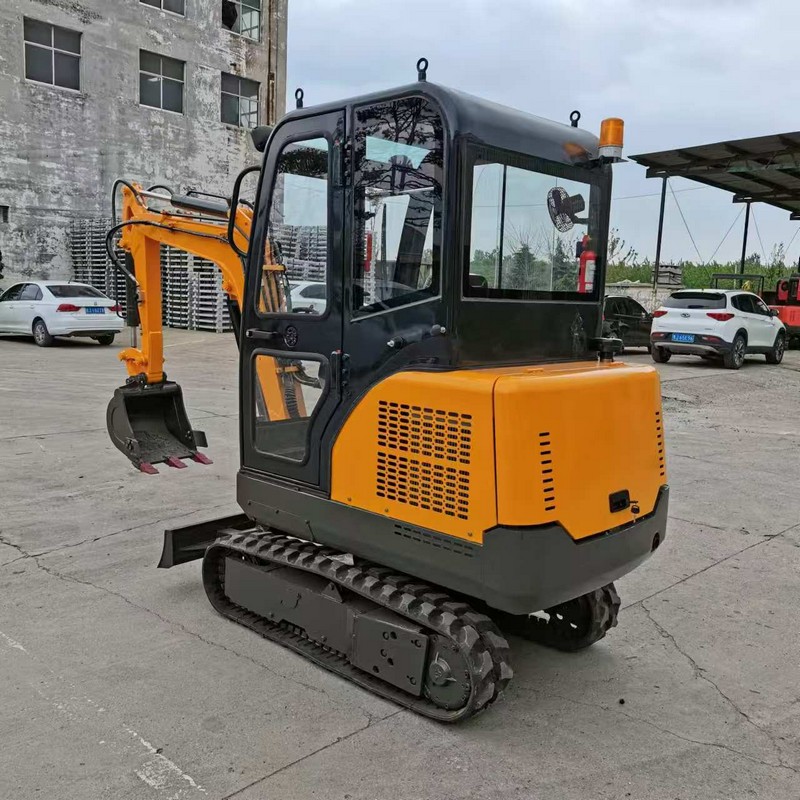

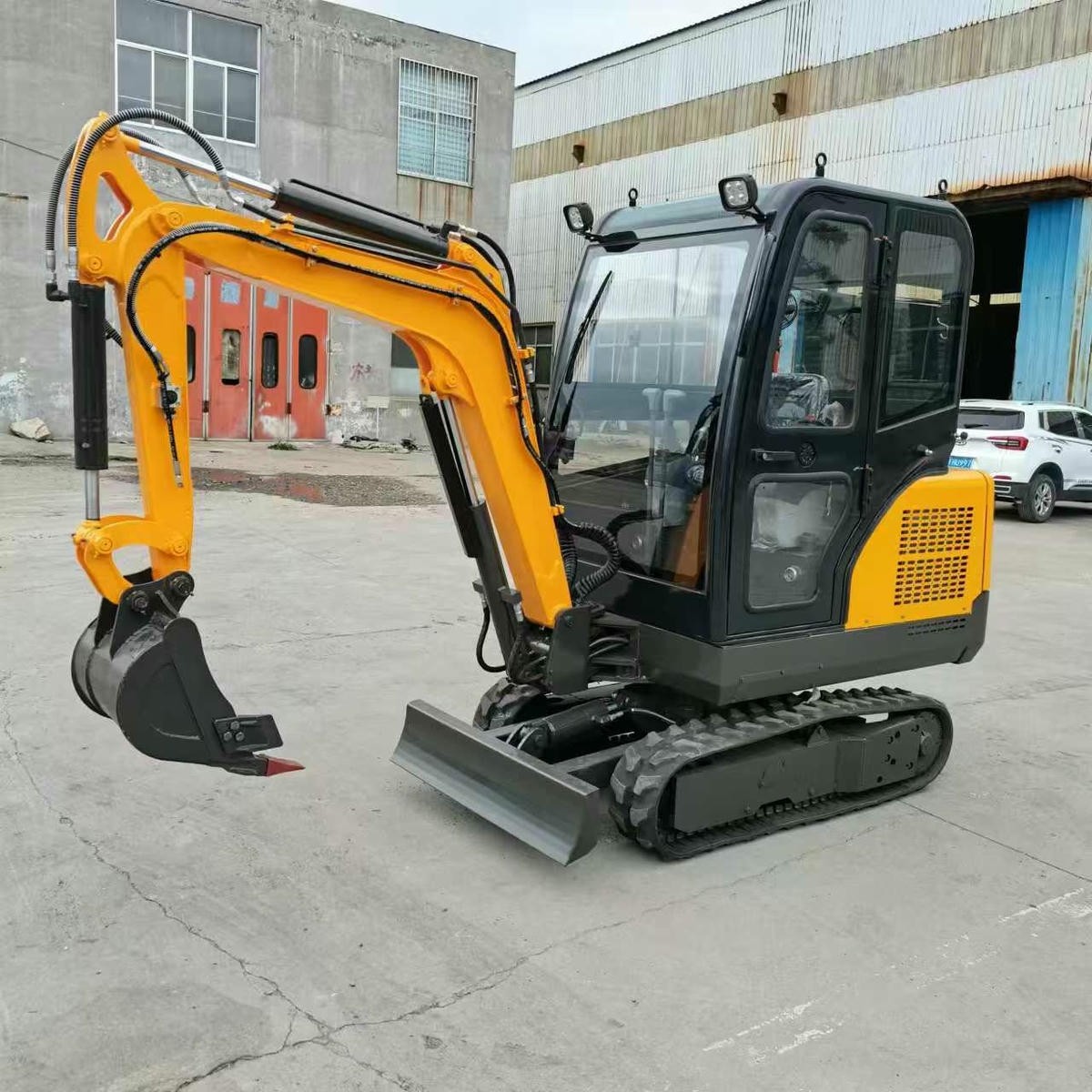

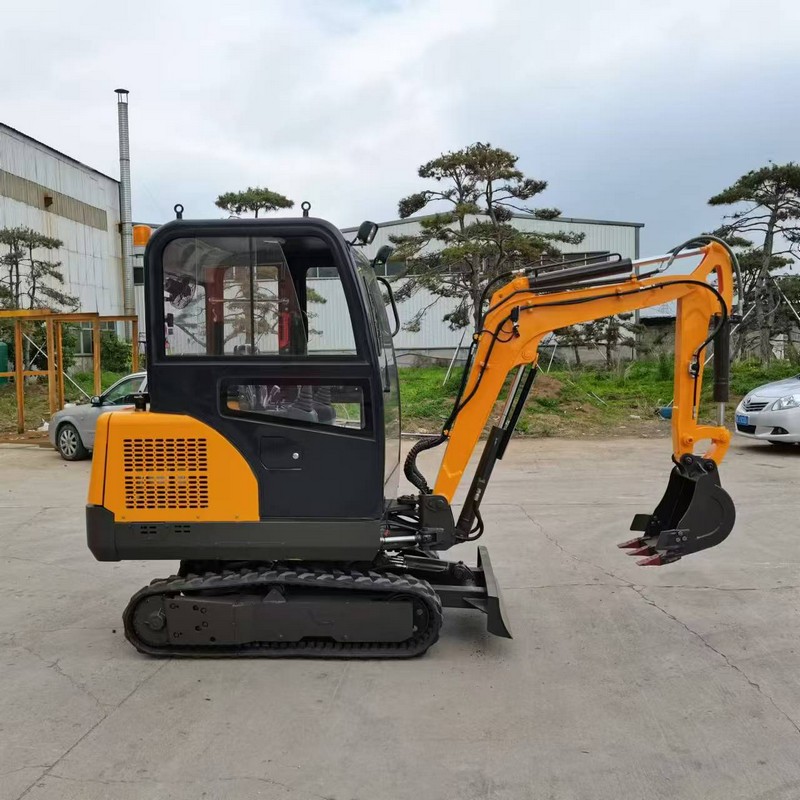

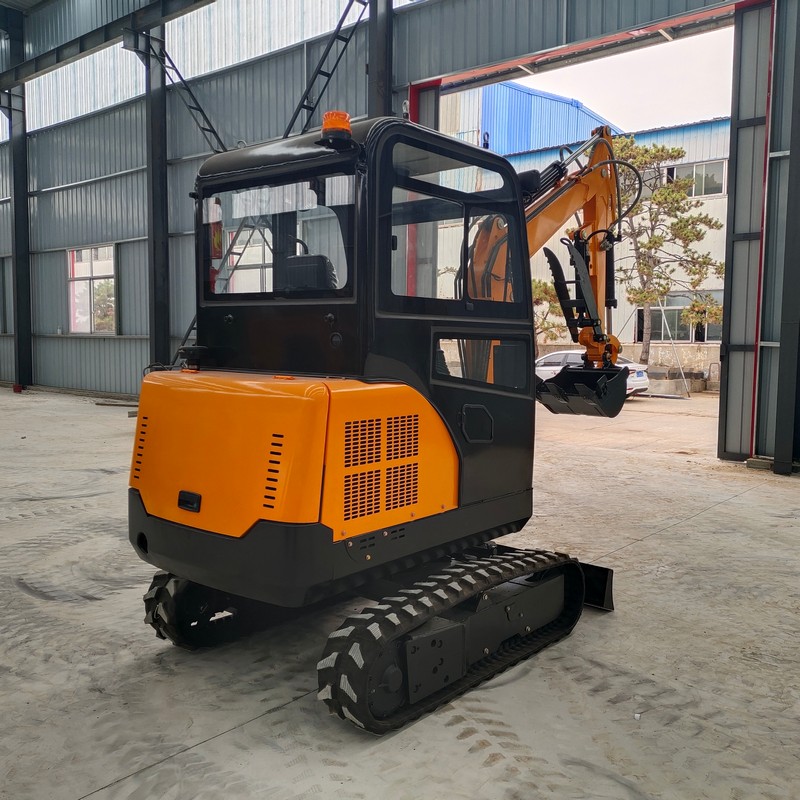

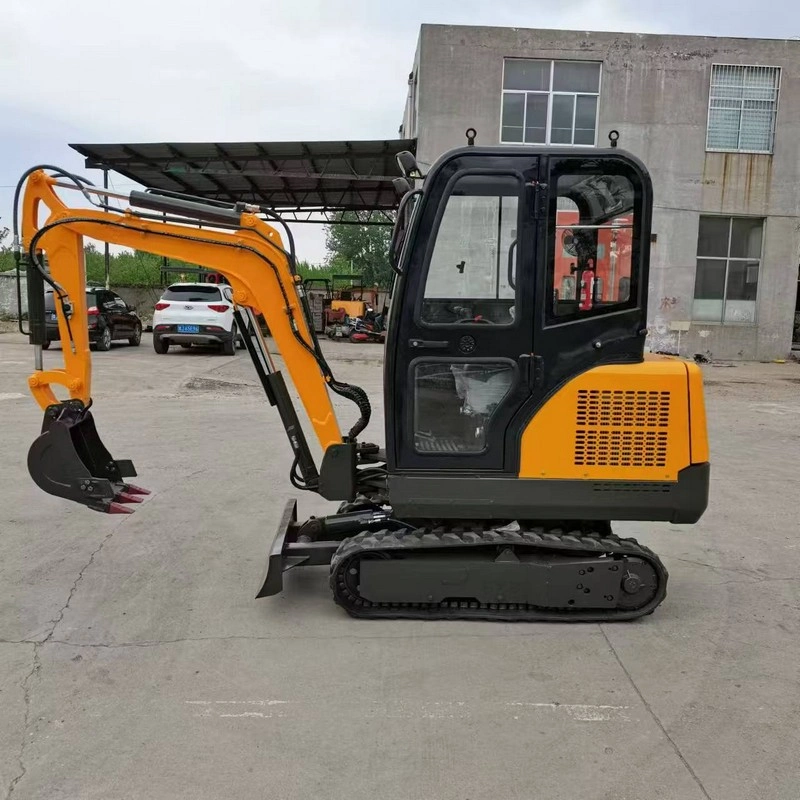

Miniature Excavator

Five Reasons to Choose a Mini Excavator:

1. Low Purchase Cost – The acquisition cost is only 1/5 that of large excavators, making it a cost-effective choice.

2. Easy Transportation – Compact and lightweight, it can be towed by a pickup truck without the need for heavy transport equipment.

3. Adaptable to Complex Terrain – With a climbing ability of up to 30 degrees, it performs well on slopes and uneven surfaces.

4. Versatile Functionality – Quickly switch between different attachments such as breakers and hydraulic shears for diverse tasks.

5. Fast Return on Investment – Achieve a full return on investment in just 6–12 months, delivering strong profitability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Convenient Maintenance for Mini Excavators:

The engine compartment features three-sided access, putting all service points within easy reach.
Standardized design ensures wide availability of spare parts.
Key components are sourced from internationally renowned brands, guaranteeing high reliability.
An intelligent diagnostic system quickly identifies fault locations for fast troubleshooting.
Extended maintenance intervals of up to 500 hours reduce downtime and service costs.

SPECIFICATION	Operation Weight	t	1.8ton	2.1ton
	Engine Brand		Laidong	Laidong
	Rated Power	Kw	18.1	18.1
	Digging Bucket Capacity	cbm	0.06	0.07
	Bucket Width	mm	430	430
	Traveling Motor		Danfoss	Danfoss
	Travel Speed	km/h	2.5	3.4
	Swing Motor		Danfoss	Danfoss
	Swing Speed	r/min	10	10
	Hydraulic System		Gear Pump	Gear Pump
	Body Swing Radius	mm	1132	894
	Body Swing Angel	deg	360	360
	Boom Swing Angel(L/R)	deg	55/45	55/45
	Max. Grade Ability	deg	35	35
	Fuel Tank	L	29	16
	Hydraulic Fluid Chamber	L	36	22
MAIN DIMENSIONS	Overall Length	mm	3900	3675
	Overall Width	mm	1060	1060
	Overall Height	mm	2145	2280
	Track Width	mm	230	230
	Track Length	mm	1650	1650
	Body Width	mm	1060	1060
WORKING RANGE	Max. Digging Radius	mm	4112	4112
	Max Digging Depth	mm	2418	2418
	Max. Digging Height	mm	3210	3210
	Max. Unloading Height	mm	2125	2125
	Min. Swing Radius	mm	2148	2148
	Max. Digging Depth Of Dozer Blade	mm	297	297
	Max. Lifting Height Of Dozer Blade	mm	230	230

Miniature Excavator

Strength of the Manufacturing Facility:

With 20 years of experience in engineering machinery manufacturing, the factory operates an independent testing platform.
Production lines use corrosion-resistant materials, and critical components (such as track pins) undergo carburizing treatment to significantly enhance wear resistance.

International Shipping Solutions:

For full-container shipments, tracks and hydraulic hoses are individually protected to ensure the equipment is ready for immediate operation upon arrival.
Tailored moisture-proof packaging upgrades (including inner vacuum sealing) are available for transport during Southeast Asia’s rainy season.

International After-Sales Service:

A two-year warranty is provided, along with a maintenance guide (e.g., regular cleaning of track gaps).
Dedicated spare parts warehouses stock job-specific components for quick supply.
The remote technical support team is well-versed in safety protocols and can guide operators in responding to unexpected changes or emergencies.
