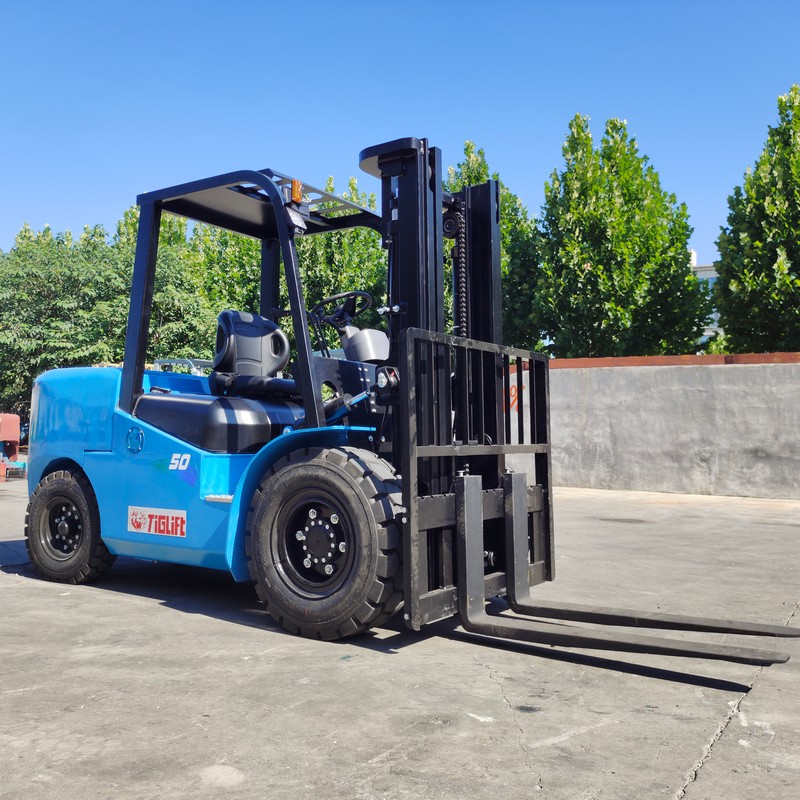

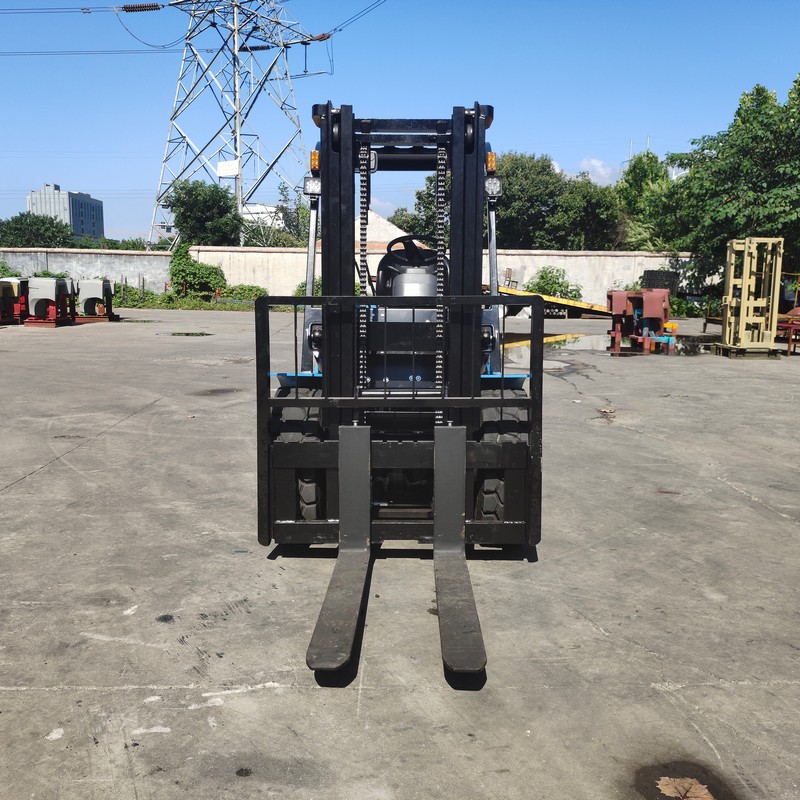

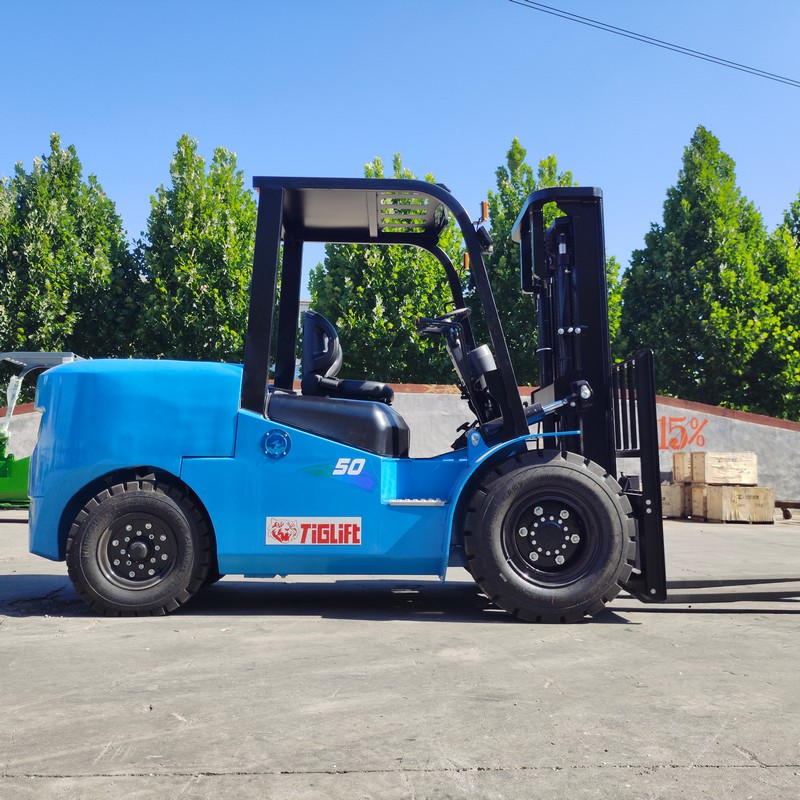

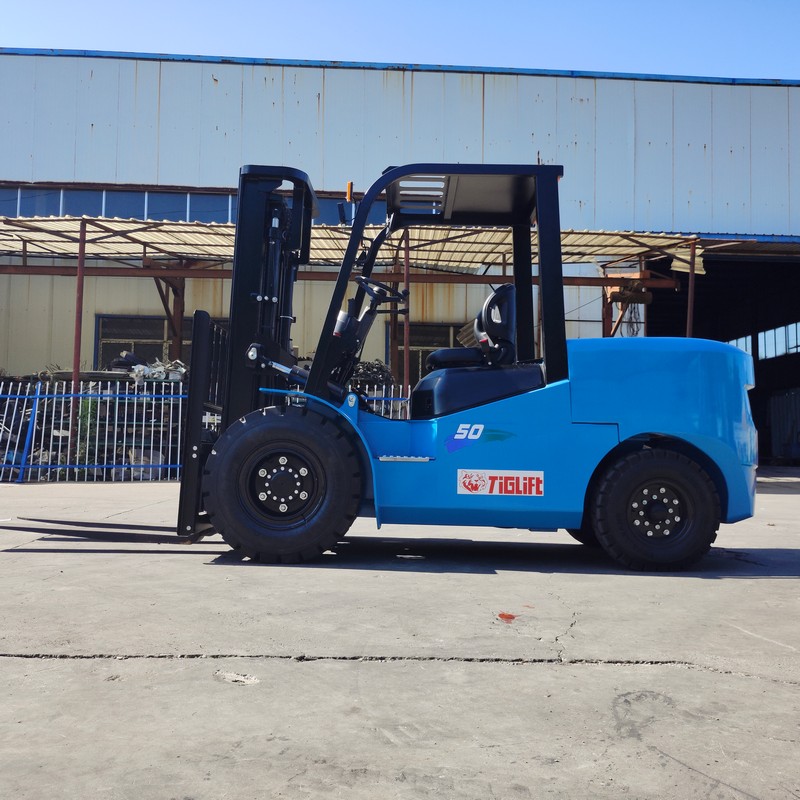

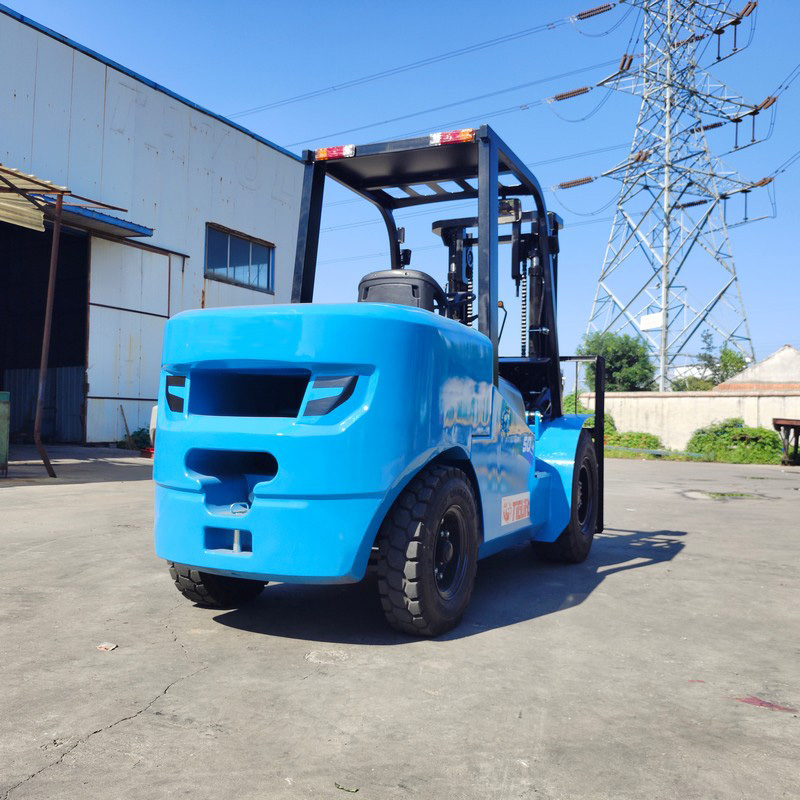

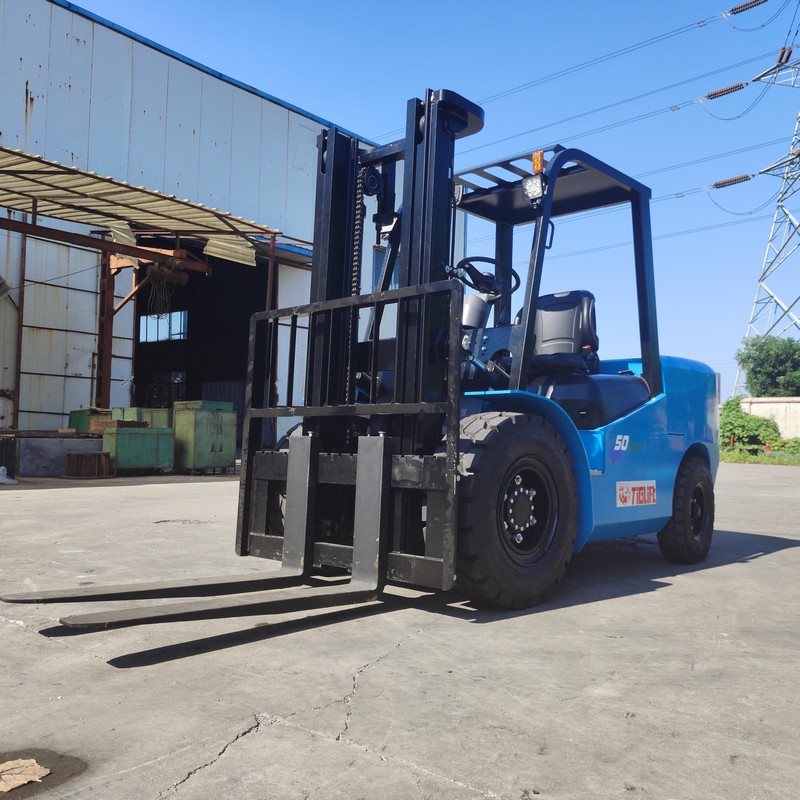

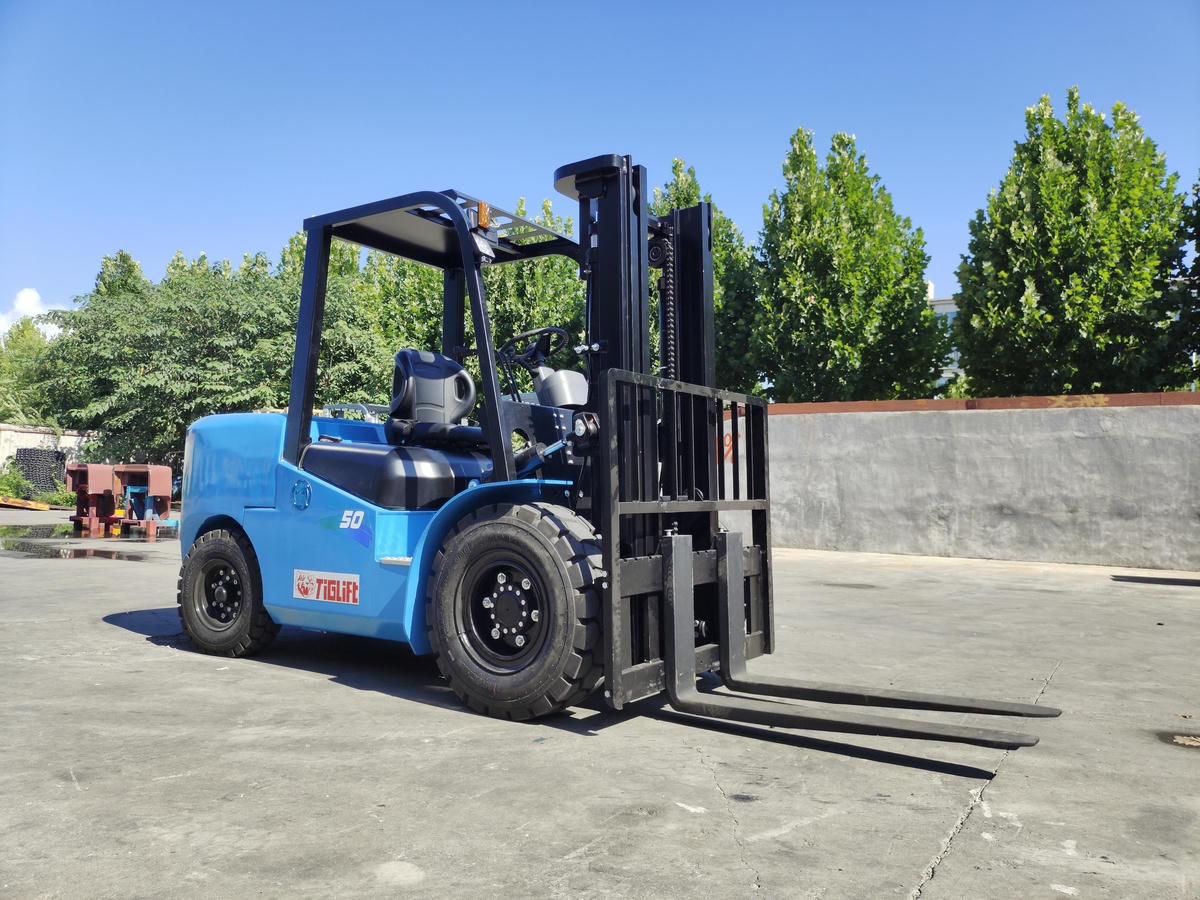

Electric Counterbalance Truck
No exhaust emissions, healthier and suitable for indoor use;
Low energy consumption, low cost, and strong economy;
Fast charging, high efficiency, without delaying production;
Maintenance-free, less worry, and labor-saving;
Adaptive to multiple scenarios, flexible and durable.
Lithium-ion forklifts are new-type electric forklifts driven by lithium-ion batteries. By replacing traditional fuel oil or lead-acid batteries with electric energy, they have redefined the efficiency and environmental protection standards of warehousing and handling. Essentially, they take lithium-ion battery packs (commonly lithium iron phosphate or ternary lithium) as the core power source and combine with motor control systems to realize pollution-free and low-noise operation of forklifts, serving as an important tool for the implementation of logistics automation and the "dual carbon" goals.
TECHNICAL SPECIFICATIONS | |||

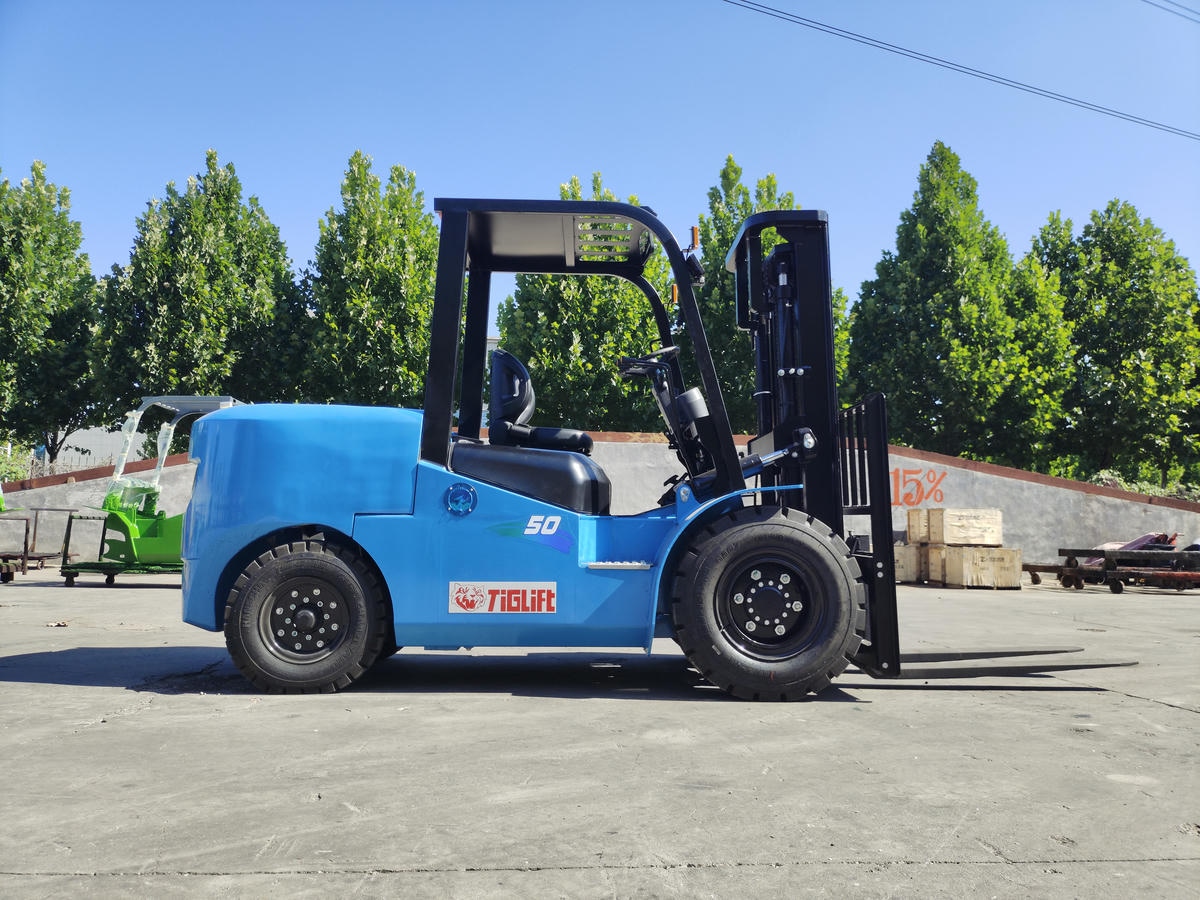

Model | CPD50 | ||
Rated Capacity | kg | 5000 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||

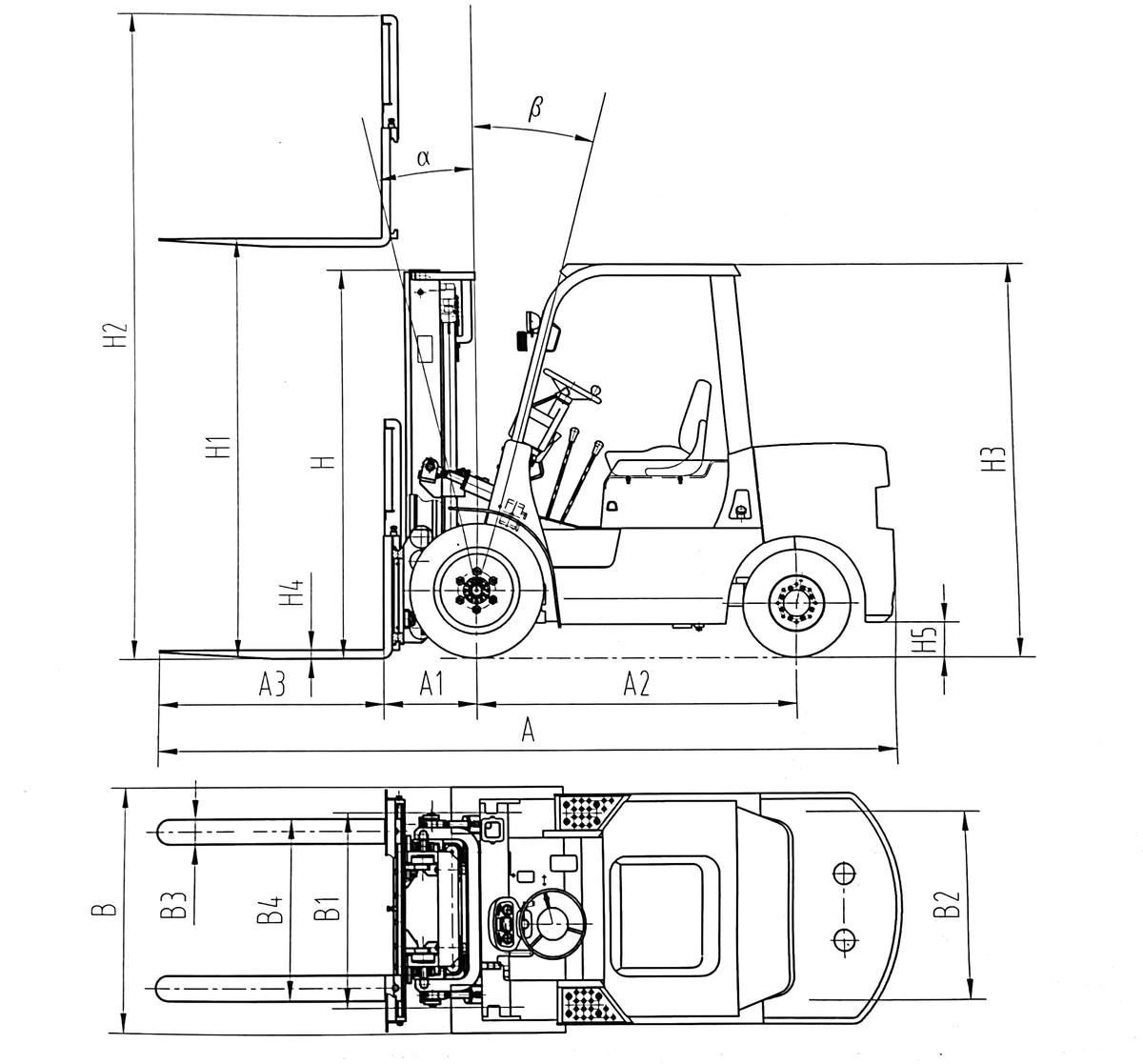

Wheelbase | (A2) | mm | 1980 |
Front Tread | (B1) | mm | 1080 |
Rear Tread | (B2) | mm | 970 |
Front Overhang | (A1) | mm | 545 |
Mast Tilting Angle(Forward-Backward) | deg | 6∕12 | |
Max. Lifting Height | (H1) | mm | 3000 |
Free Lift Height | mm | 80 | |
Overall Height(Mast Lowered) | (H) | mm | 2200 |
Overall Height(Mast Extended) | (H2) | mm | 4320 |
Overall Height to Overhead | (H3) | mm | 2200 |
Overall Length(Including Fork) | (A) | mm | 4410 |
Overall Width | (B) | mm | 1380 |
Min. Ground Clearance | mm | 180 | |
Min. Turning Radius | mm | 2850 | |
Fork Dimensions(L×W×T) | mm | 122×50×1220 | |
Max. Driving Speed(No-Load) | km/h | 15 | |
Max. Driving Speed(Full-Load) | km/h | 14 | |
Max. Lifting Speed(Full-Load / No-Load) | mm/s | 350∕270 | |
Gradeability(Full-Load / No-Load) | % | 15∕15 | |
Self-Weight | kg | 5300 | |
Number of Wheels(X = Driving Wheels(Front/Rear)) | 2∕2 | ||
Tire Type(Front/Rear) | Pneumatic Tire | ||
Tire Size(Front/Rear) | 3.00-15∕7.00-12 | ||
Driving Brake | Hydraulic-Foot Step Type | ||
Parking Brake | Mechanical-Manual | ||
Drive Motor Power(S2-60min) | kW | 20KW | |
Lifting Motor Power(S3-15%) | kW | 30KW | |
Drive Motor Type | AC | ||
Lifting Motor Type | AC | ||
Hydraulic System Pressure | MPa | 18.5MPa | |
Battery(Voltage/Capacity) | V/Ah | 76.8V∕410AH | |
Charger | 76.8V∕150A |
Compared with traditional models, lithium-ion forklifts have significant differentiated competitiveness: In terms of environmental protection, they achieve zero emissions throughout operation (no exhaust gas, no carbon dioxide) and have a noise level close to that of daily conversations (≤70 decibels), completely solving the problems that internal combustion forklifts are prohibited for indoor use and lead-acid battery forklifts have indirect carbon emissions; In terms of performance, lithium-ion batteries support high-current charging and discharging. In fast charging mode, 80% of the power can be restored in 1 hour (lead-acid batteries require 8-10 hours of slow charging). Moreover, their power output is stable, with the maximum lifting speed and driving speed increased by about 30% respectively, making them suitable for high-frequency continuous operations; In terms of economy, the battery life is as long as 5-10 years (lead-acid batteries only last 2-3 years), and the maintenance-free design reduces labor costs, resulting in lower comprehensive costs in long-term use.
At present, mainstream applications cover scenarios such as high-density warehousing in e-commerce (narrow-aisle forklifts), cold storage in the food and pharmaceutical industry (low-temperature resistant models), and precision material handling in manufacturing. Some high-end models are also equipped with intelligent monitoring systems that can feedback real-time power, faults, and operation data. As the global logistics industry accelerates electrification, relying on the comprehensive advantages of "cleanliness, high efficiency, and intelligence", lithium-ion forklifts are transforming from "optional configurations" to "standard tools".
