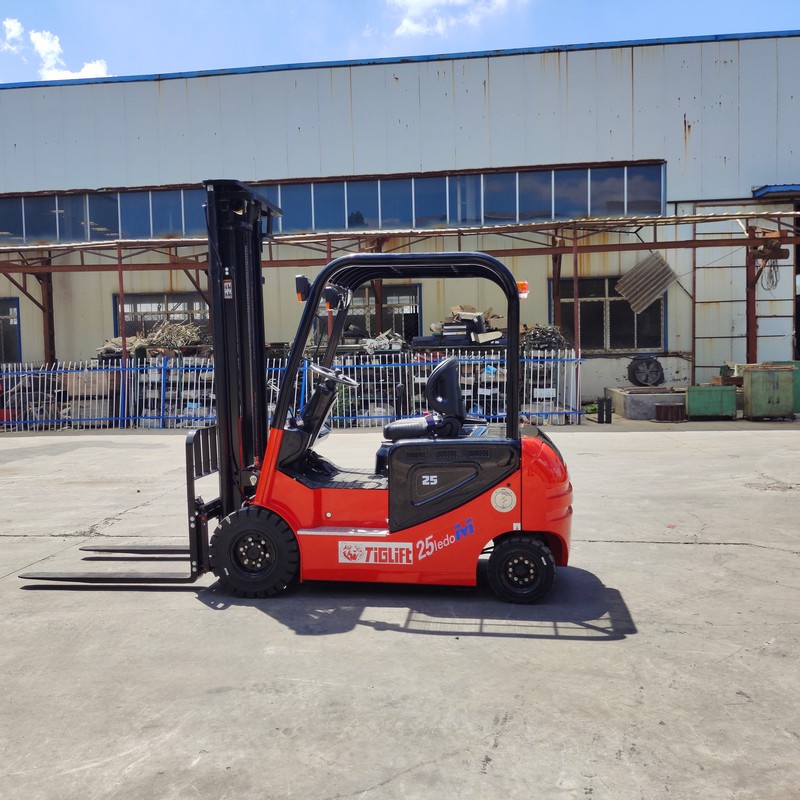

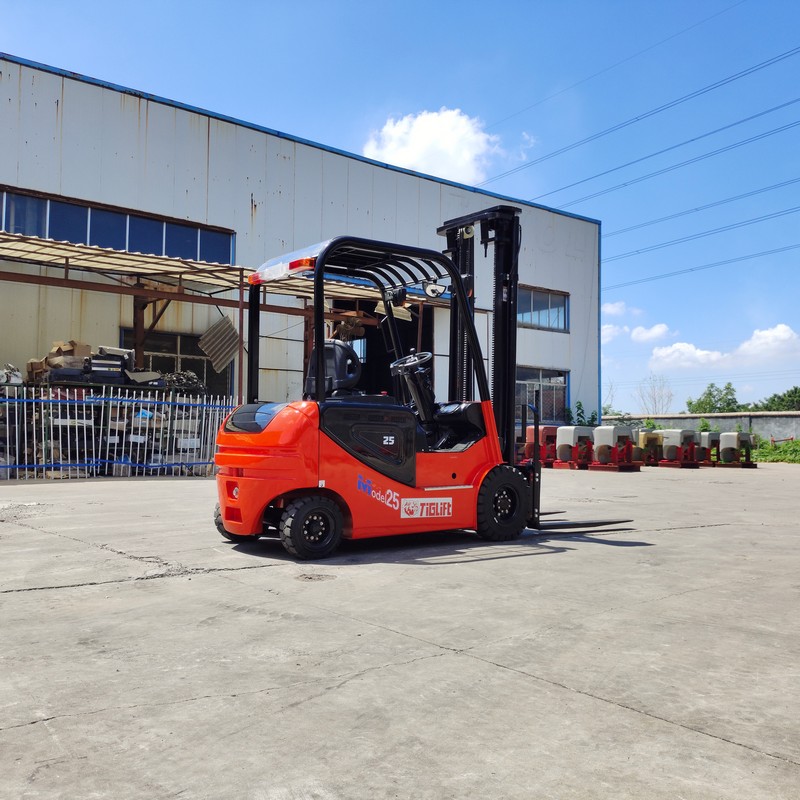

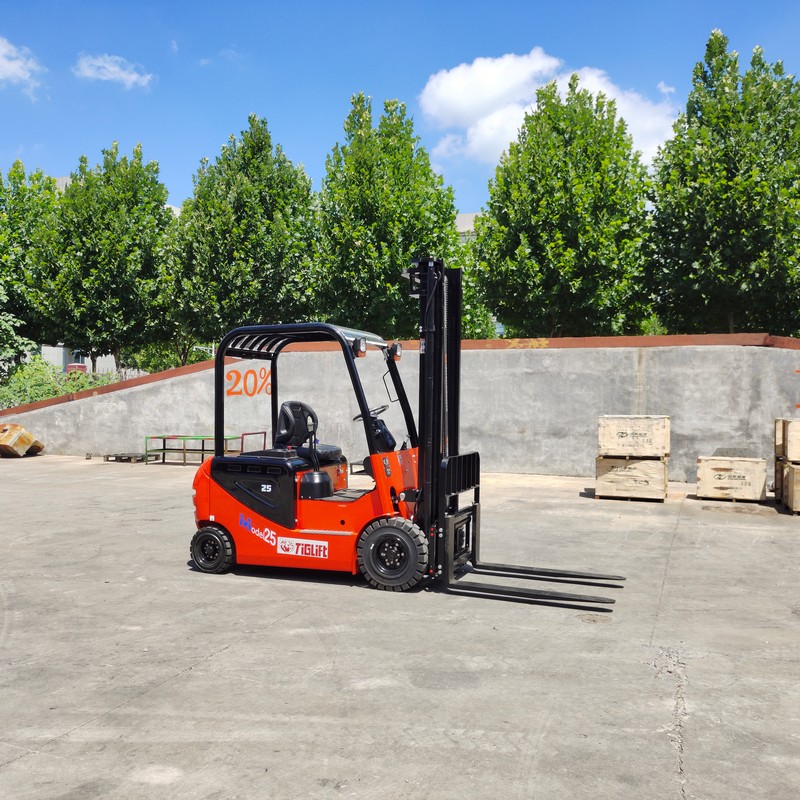

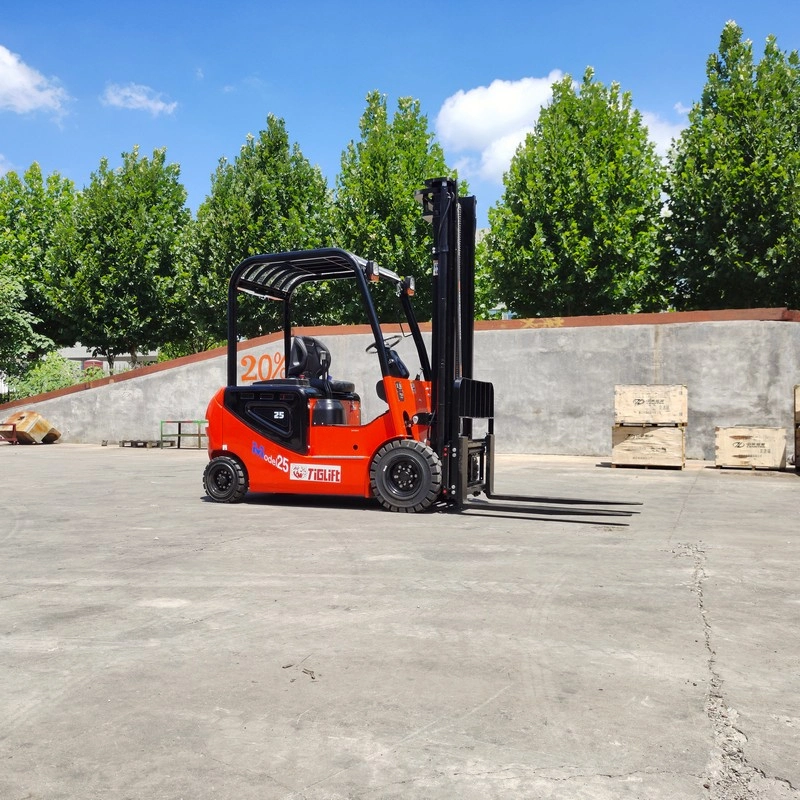

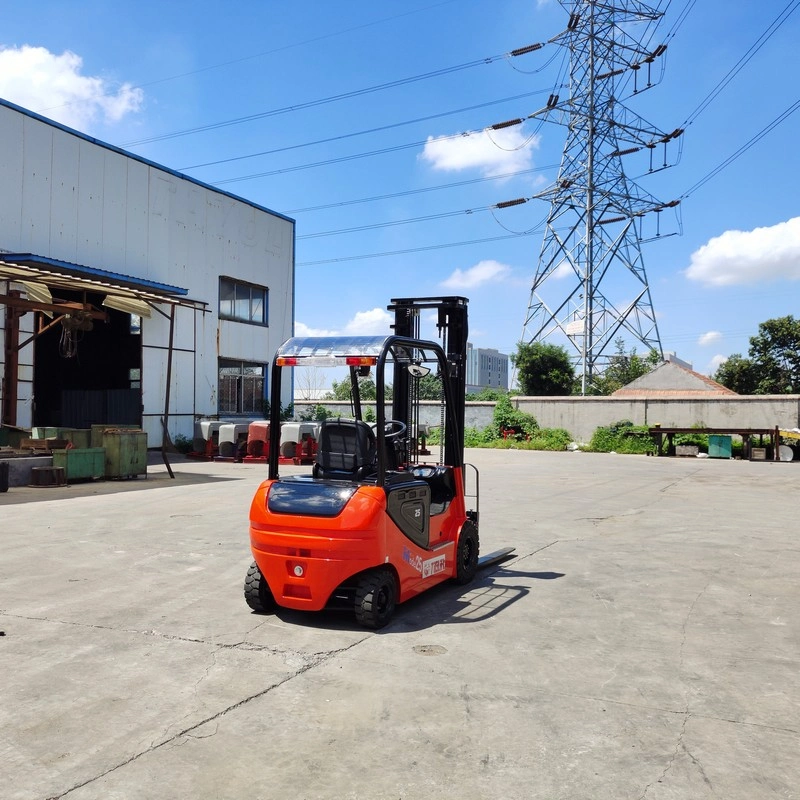

Power Lift Trucks
Lithium battery forklifts feature fast start-stop response, enabling more flexible and precise operation;
They are free from diesel odor, improving the working environment;
They eliminate potential safety hazards associated with fuel storage
Lithium batteries have no risk of acid leakage; they adopt fire and explosion-proof designs and have passed multiple safety certifications; intelligent overcharge and over-discharge protection ensures safer use; they are free from diesel engine oil stains, keeping the workplace clean.
Product Parameter

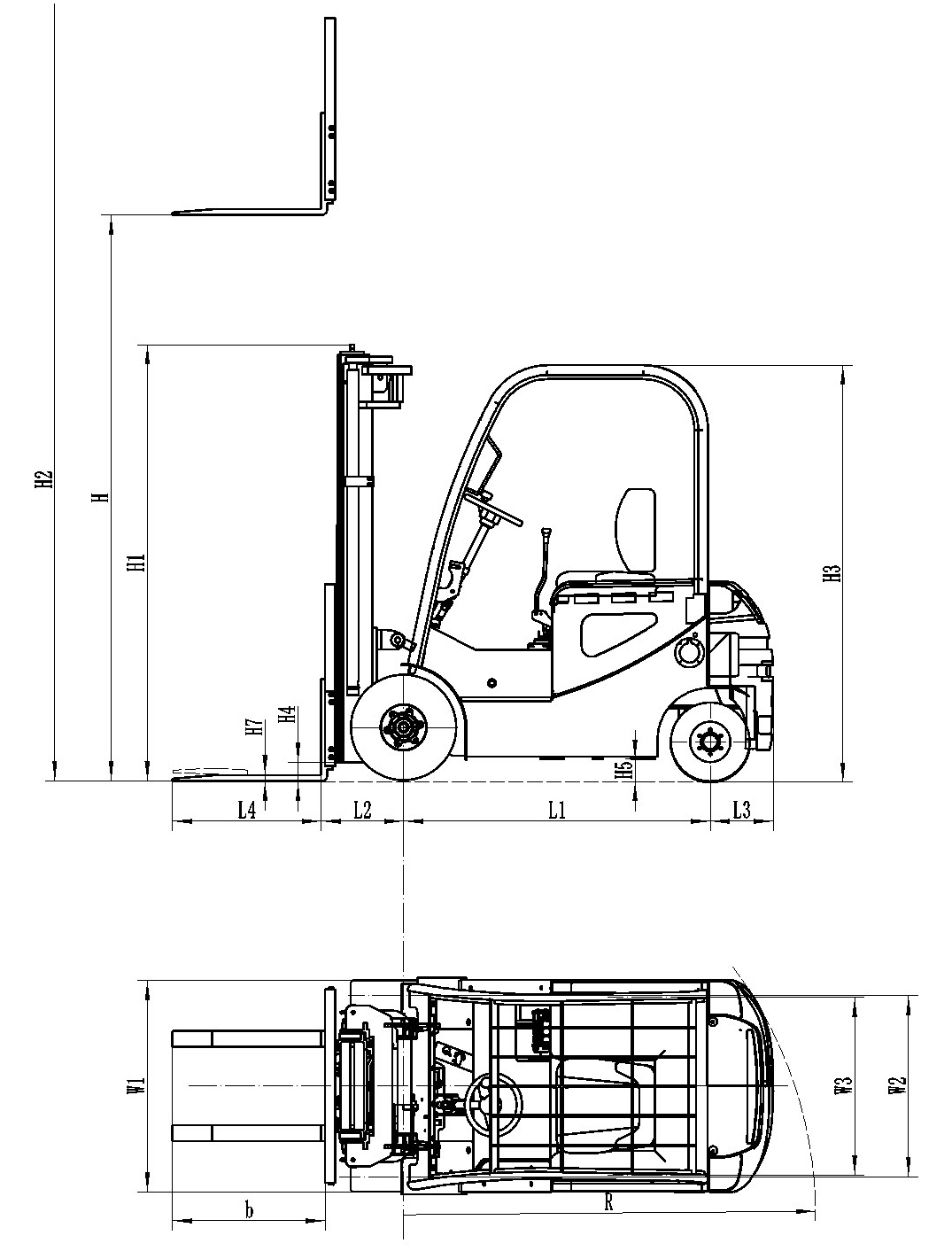

TECHNICAL SPECIFICATIONS | |||
Model | CPD25 | ||
Rated Capacity | kg | 2500 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | L1 | mm | 1550 |
Front Tread | W2 | mm | 945 |
Rear Tread | W3 | mm | 880 |
Front Overhang | L2 | mm | 325 |
Mast Tilting Angle (Forward-Backward) | ° | 5∕10 | |
Max. Lifting Height | H | mm | 3000 |
Free Lift Height | H7 | mm | 105 |
Overall Height (Mast Lowered) | H1 | mm | 2200 |
Overall Height (Mast Extended) | H2 | mm | 4055 |
Overhead Guard Height | H3 | mm | 2110 |
Overall Length (Including Fork) | mm | 3400 | |
Overall Length (Without Fork) | mm | 2300 | |
Overall Width | W1 | mm | 1096 |
Min. Ground Clearance | H4 | mm | 88 |
Min. Turning Radius | mm | 2220 | |
Fork Dimensions (L×W×T) | mm | 1070*100*40 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 12 | |
Max.Lifting Speed(Full-Load/No-Load) | mm/s | 270∕300 | |
Descending Speed (Full-Load / No-Load) | mm/s | 400∕350 | |
Gradeability (Full-Load / No-Load) | (%) | 15∕20 | |
Total Weight | kg | 3200 | |
Number of Wheels (X = Driving Wheels (Front/Rear)) | 2∕2 | ||
Tire Type (Front/Rear) | Solid Tire | ||
Tire Size (Front/Rear) | 6.5-10 16*6.8 | ||
Driving Brake | Hydraulic-Foot Step Type | ||
Parking Brake | Mechanical-Manual | ||
Driving Motor Power (S2-60min) | kW | 6 | |
Lifting Motor Power (S3-15%) | kW | 7.5 | |
Driving Motor Control Mode | AC | ||
Lifting Motor Control Mode | AC | ||
Hydraulic System Pressure | MPa | 18 | |
Battery Capacity | V/Ah | 76.8V/205Ah | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？

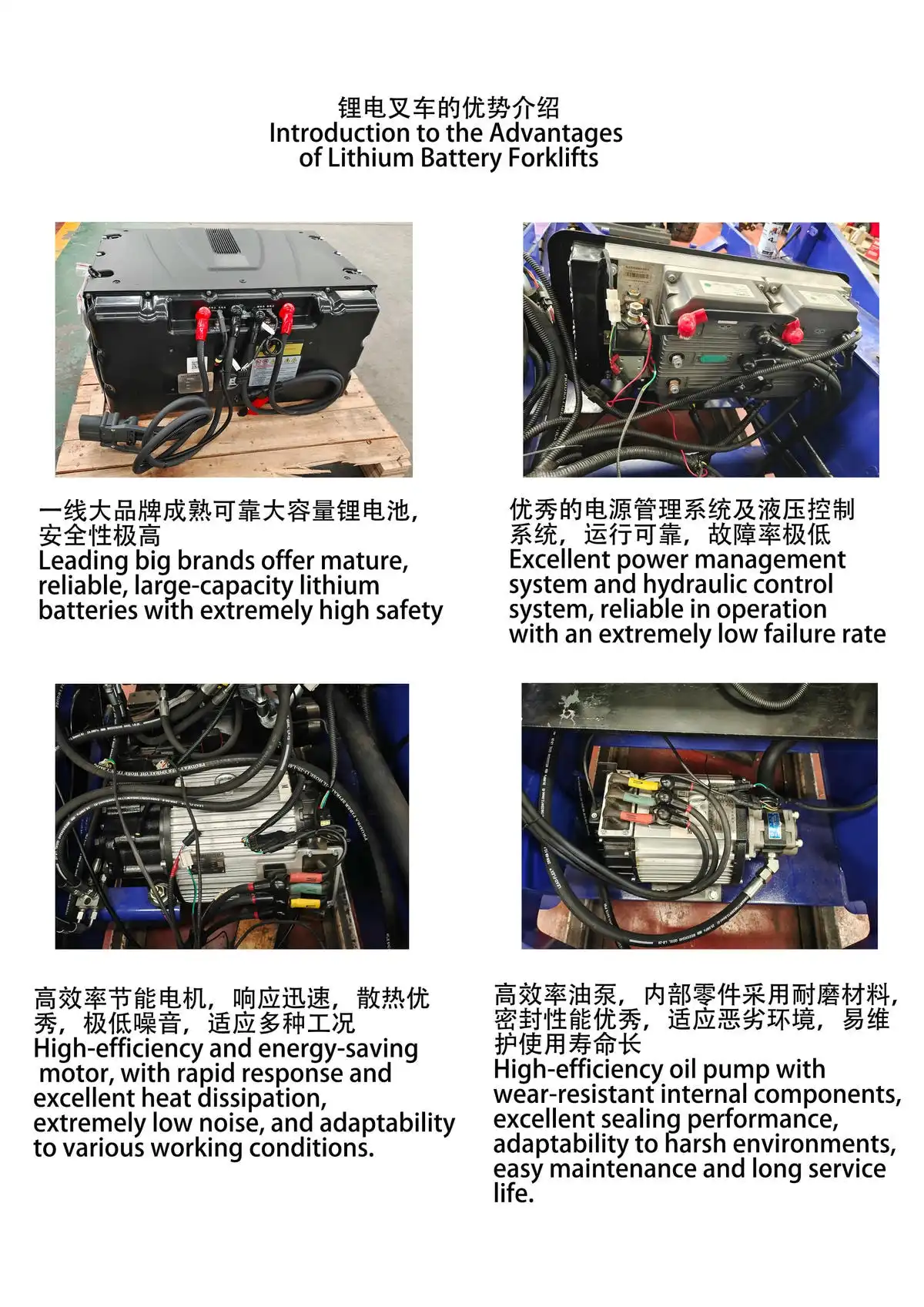

Product Advantages
Tailor-made for e-commerce warehouses (characterized by high-frequency, short-distance handling), this forklift boasts the following features:
Load & Efficiency: Maximum load capacity adapts to mainstream cartons/turnover boxes (up to 2 tons); fork lifting/lowering speed is extremely fast (only 6 seconds), paired with a compact body (width 1.2 meters) that enables flexible movement in narrow shelf aisles (1.6-meter aisle width).
Performance: Four-wheel drive + precise steering enhance handling efficiency, completing up to 40 round trips per hour.
Battery & Operation: Long battery life (6-8 hours of continuous operation on a full charge) and fast-charging function (80% charge in 1 hour) minimize downtime. The cab is equipped with an intelligent display (showing power, fault codes) for intuitive and convenient operation.
Strength of the Manufacturing Plant
With 20 years of focus on e-commerce logistics forklift manufacturing, the plant’s R&D team collaborates with e-commerce platforms to optimize designs—for example, adding anti-slip buckle interfaces for goods to better meet the needs of e-commerce warehousing.
Shipping Services
For full container shipments, e-commerce accessories (such as anti-slip mats, quick clamps) are individually packaged to prevent scratches. Upon arrival at the port, an "E-commerce Warehouse Quick Commissioning Guide" (including instructions for efficient handling operations) is provided.
To meet global e-commerce warehousing and transportation needs, combined air + land transportation solutions are available.

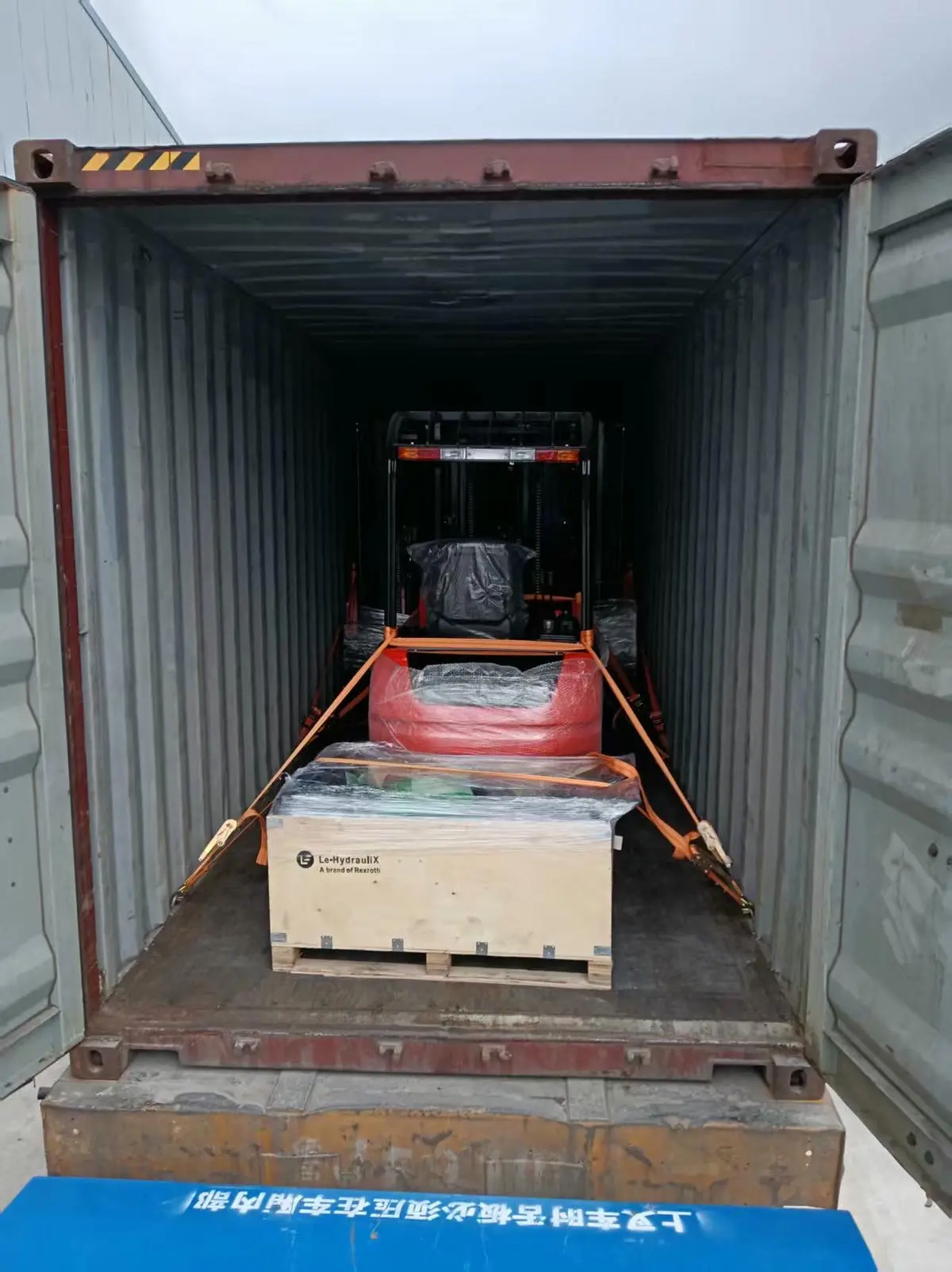

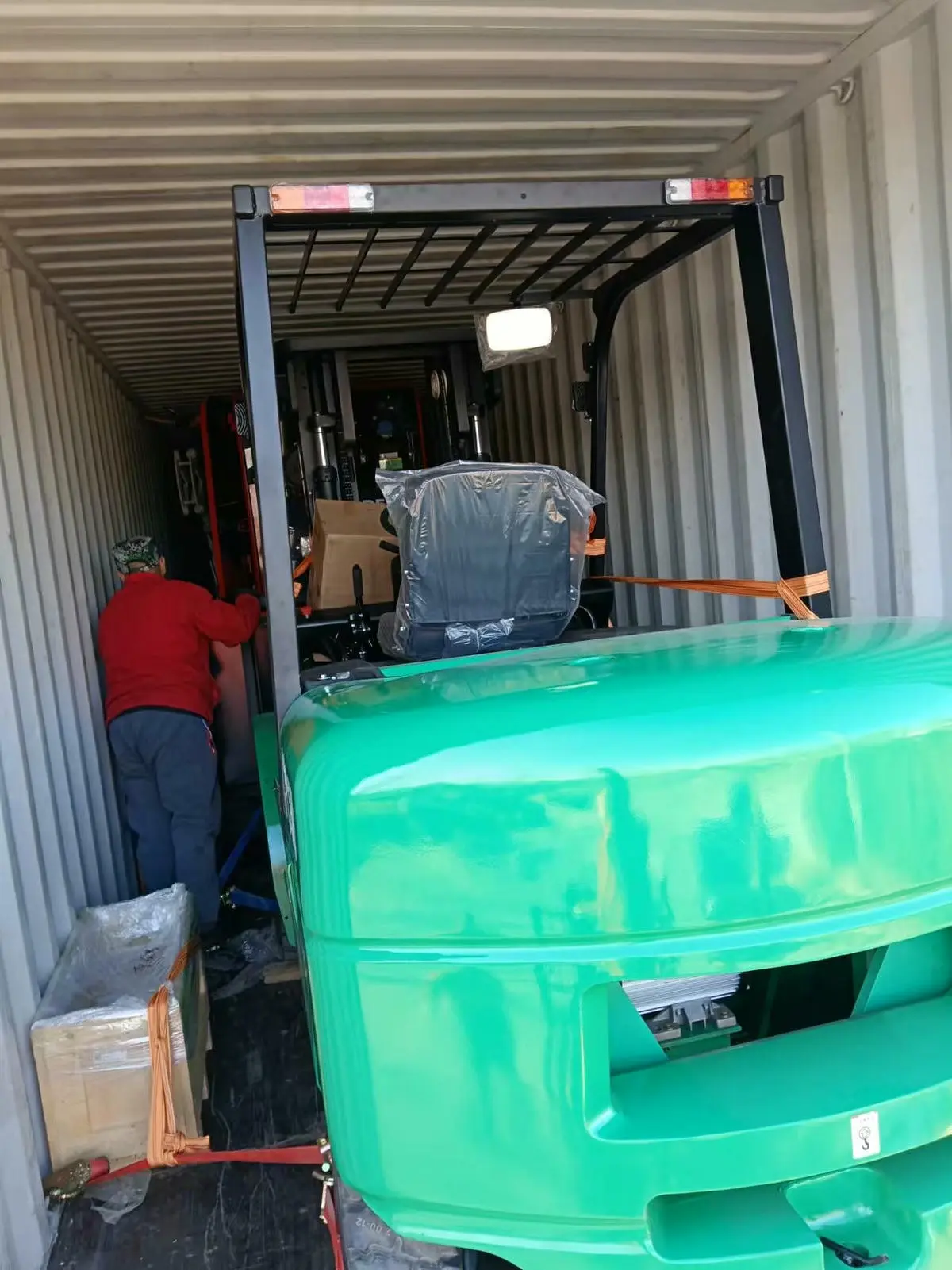

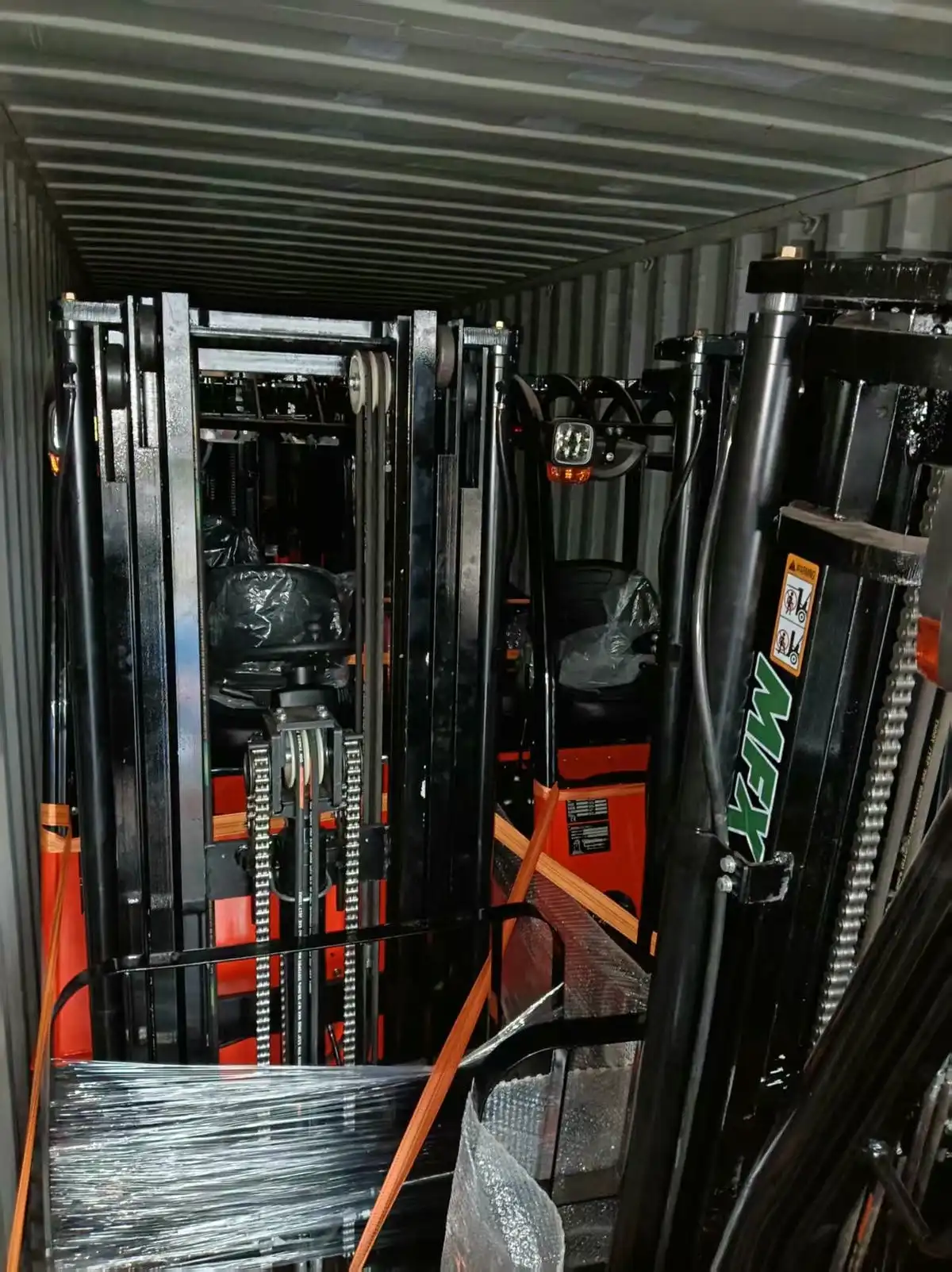

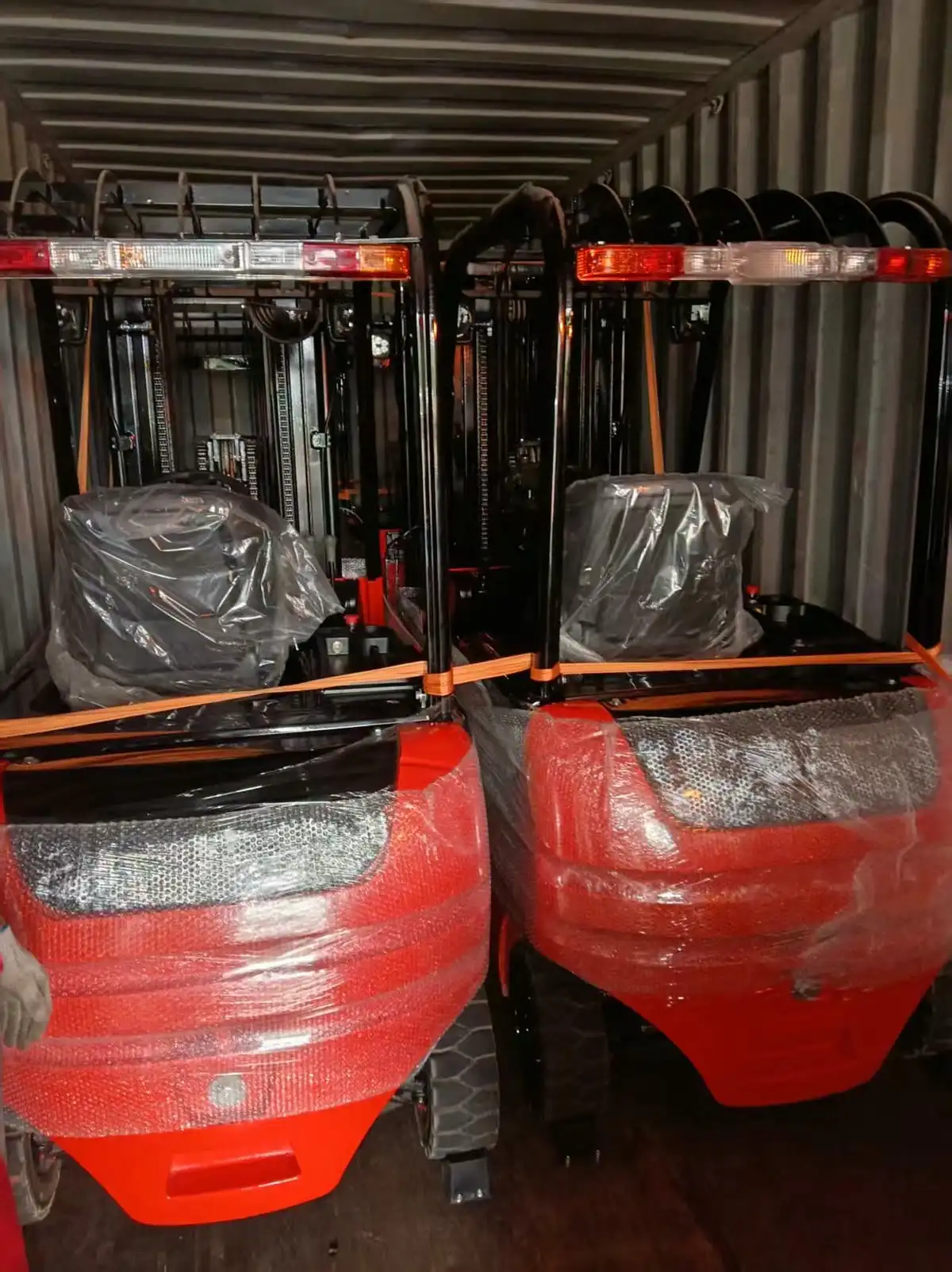

Delivery Photos
After-Sales Service
Warranty: 2-year warranty period.
Maintenance Support: Provides instructions for high-frequency maintenance packages (e.g., regular inspection of battery contacts).
Spare Parts: Common accessories (such as anti-slip mats, clamps) are stocked in parts warehouses, with delivery to e-commerce warehouses within 10 working days.
Remote Assistance: A remote team can guide operators via video to handle equipment overheating issues during peak periods.
