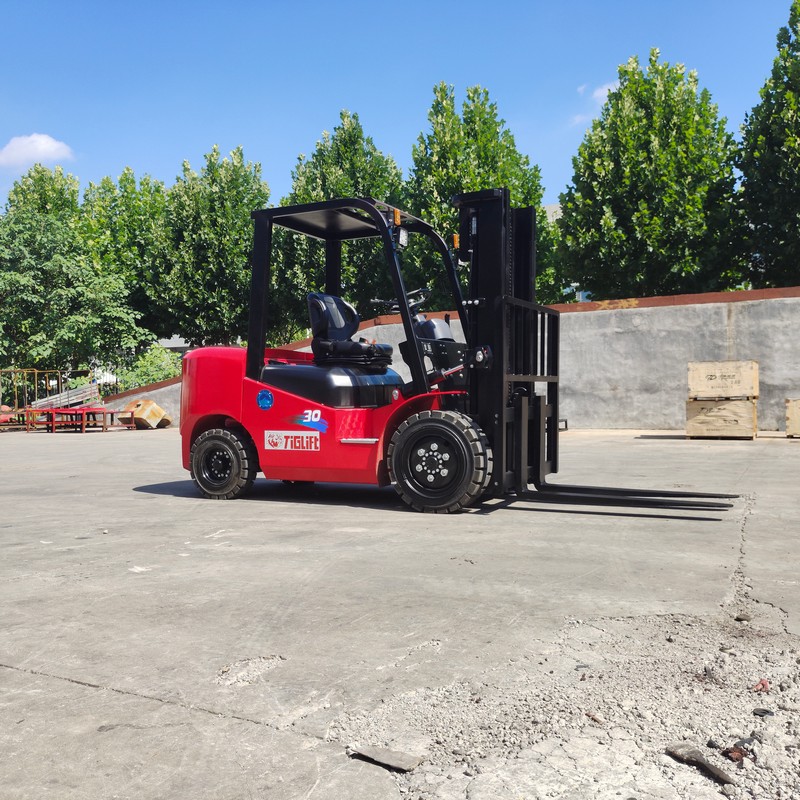

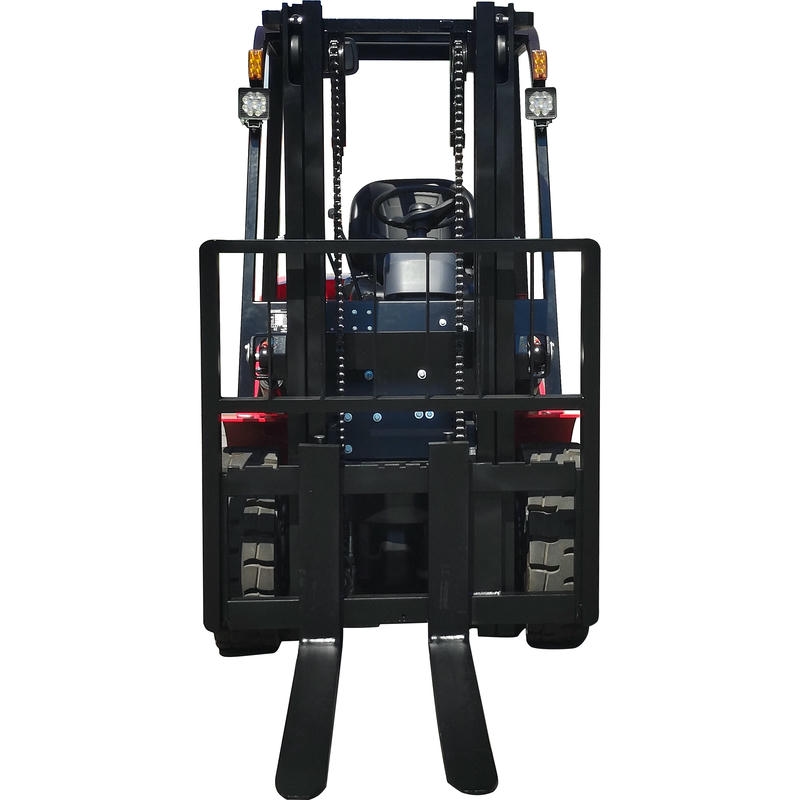

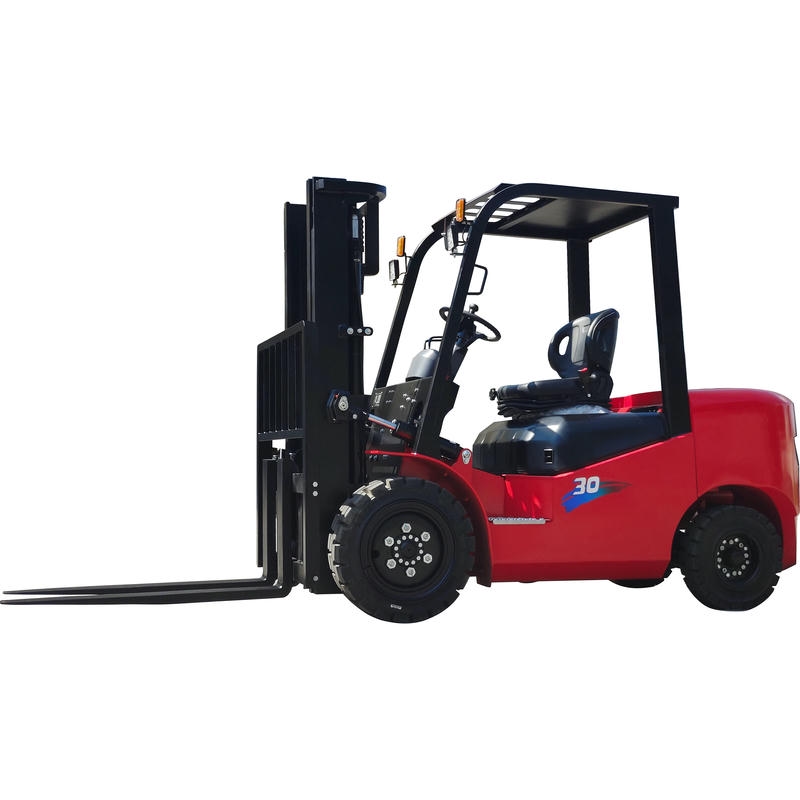

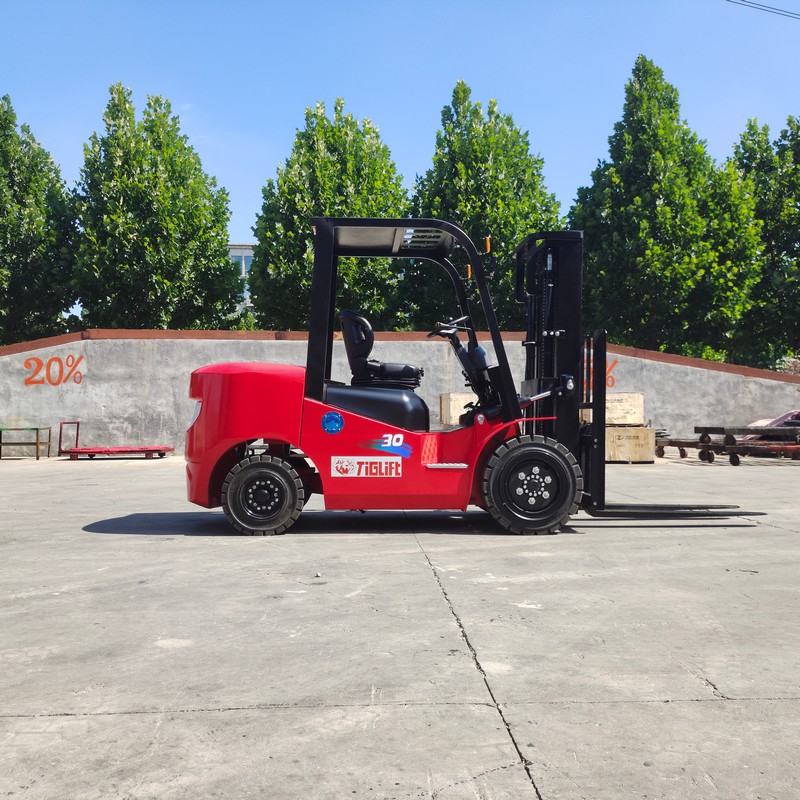

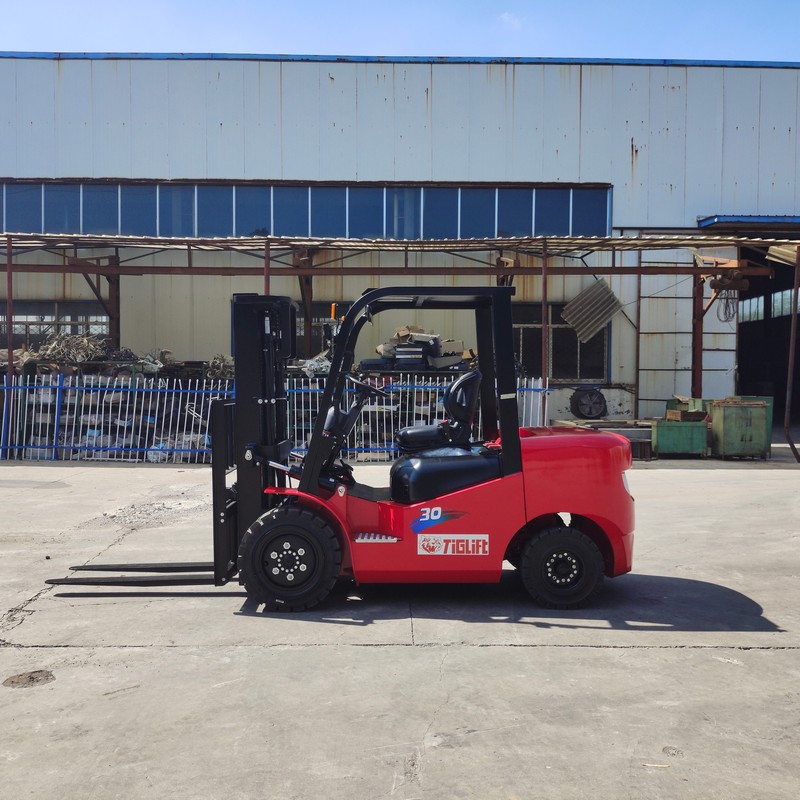

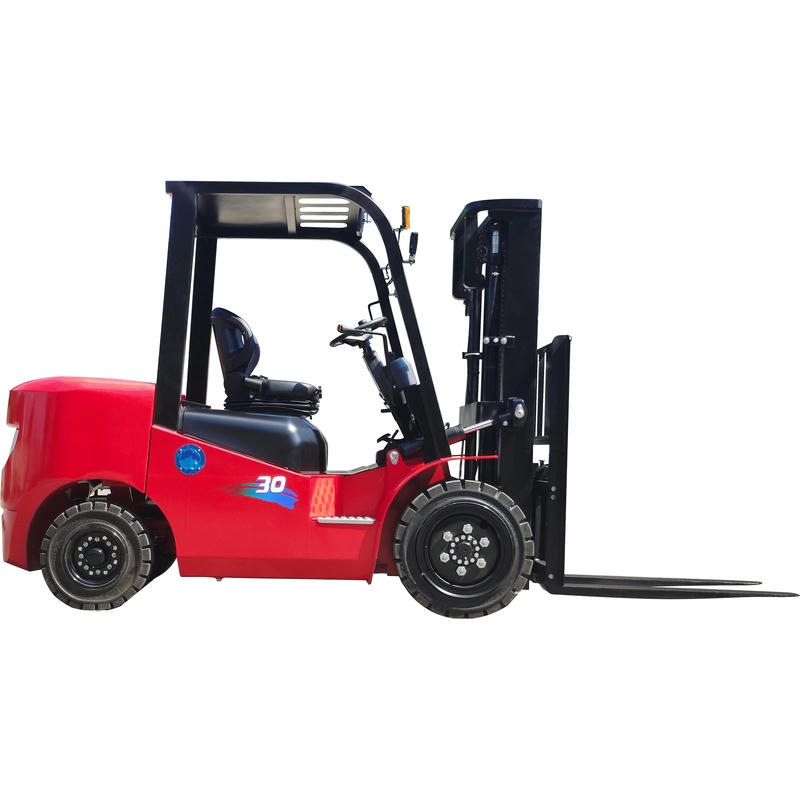

Electric Counterbalance Forklift
Lithium battery forklifts do not require fuel charges, making them more economical for long-term use;
There are no engine overhaul costs,charging facilities are simple, with no need for diesel storage equipment; The battery is detachable, allowing for convenient and flexible charging.
Lithium batteries have a long lifespan of up to 3,000 charge cycles, which is three times that of lead-acid batteries; they support fast charging mode, reaching 80% charge in 1 hour; they have no memory effect and can be charged or discharged at any time; the overall weight is 20% lighter than diesel forklifts, reducing ground bearing pressure.
Product Parameter
TECHNICAL SPECIFICATIONS | |||
Model | CPD30 | ||
Rated Capacity | kg | 3000 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | (A2) | mm | 1760 |
Front Tread | (B1) | mm | 1000 |
Rear Tread | (B2) | mm | 970 |
Front Overhang | (A1) | mm | 465 |
Mast Tilting Angle (Forward-Backward) | ° | 6∕12 | |
Max. Lifting Height | (H1) | mm | 3000 |
Free Lift Height | mm | 80 | |
Overall Height (Mast Lowered) | (H) | mm | 2110 |
Overall Height (Mast Extended) | (H2) | mm | 4270 |
Overall Height to Overhead | (H3) | mm | 2105 |
Overall Length (Including Fork) | (A) | mm | 4060 |
Overall Width | (B) | mm | 1230 |
Min. Ground Clearance | mm | 135 | |
Min. Turning Radius | mm | 2530 | |
Fork Dimensions (L×W×T) | mm | 122*45*1220 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 13 | |
Max. Lifting Speed (Full-Load / No-Load) | mm/s | 270∕300 | |
Gradeability (Full-Load / No-Load) | % | 15∕20 | |
Tire Type (Front/Rear) | Pneumatic Tire | ||
Tire Size (Front/Rear) | 28*9-15-14PR/6.50-10-10PR | ||
Drive Motor Power (S2-60min) | kW | 14 | |
Lifting Motor Power (S3-15%) | kW | 16 | |
Drive Motor Type | AC | ||
Lifting Motor Type | AC | ||
Hydraulic System Pressure | MPa | 18 | |
Battery (Voltage/Capacity) | V/Ah | 76.8V/205Ah | |
Self-Weight | kg | 4100 | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？

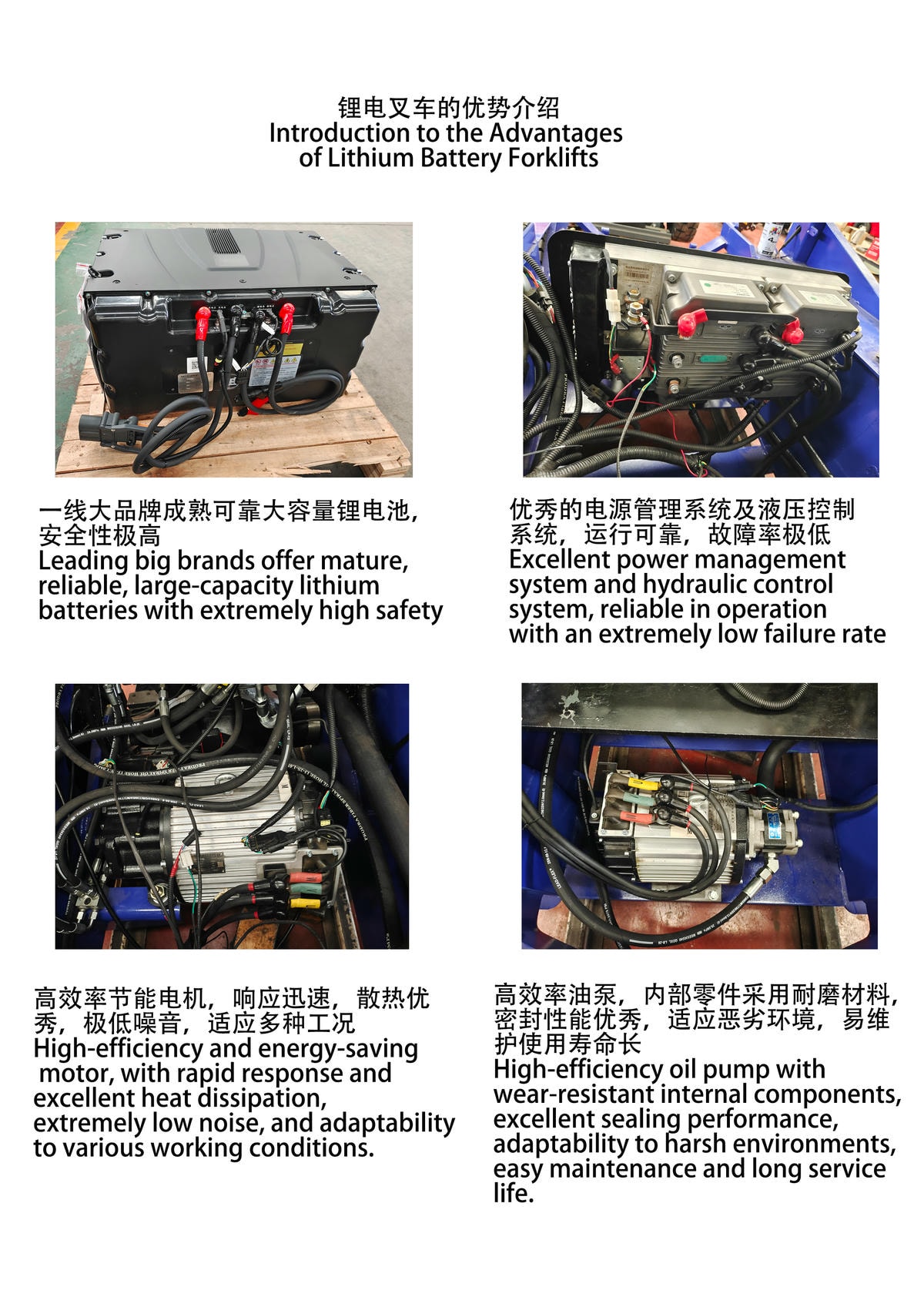

Product Advantages
Designed for manufacturing plants (such as auto parts and mechanical processing facilities), this electric forklift flexibly adapts to both indoor and outdoor operations:
Seamless transition between indoor and outdoor work without additional modifications; forks can be quickly adjusted in width to fit different pallet sizes.
The power system operates stably without vibration, with noise below 70 decibels, ensuring no disruption to the workshop production environment.
The hydraulic system responds sensitively, and the fork lifting speed is adjustable—critical for precisely controlling stability when handling precision parts.
Tires offer optional solid (puncture-proof) or inflatable (comfortable) options, meeting diverse ground needs (concrete, epoxy, steel plates).
Low maintenance costs: The battery charges quickly (80% full in 2 hours) and has a long lifespan (over 2,000 cycles); daily inspections take only 10 minutes.
Strength of the Manufacturing Plant
With 20 years of focus on industrial electric forklift manufacturing, the plant boasts:
Automated welding lines and precision machining centers.
A quality inspection center that simulates complex workshop environments (e.g., high temperatures of 80℃, dusty conditions) to ensure equipment durability.
A R&D team that regularly communicates with manufacturing enterprises to optimize product functions.
ISO 14001 environmental certification, ensuring green and low-carbon production processes.
Shipping Services
Flexible packaging solutions are available:
Standard forklifts are shipped in full containers; customized models (e.g., with widened forks) are disassembled into components, packed in boxes, and labeled with assembly sequences.
Key components (such as battery management systems) are individually protected during sea freight; assembly video guidance is provided upon arrival at the port.

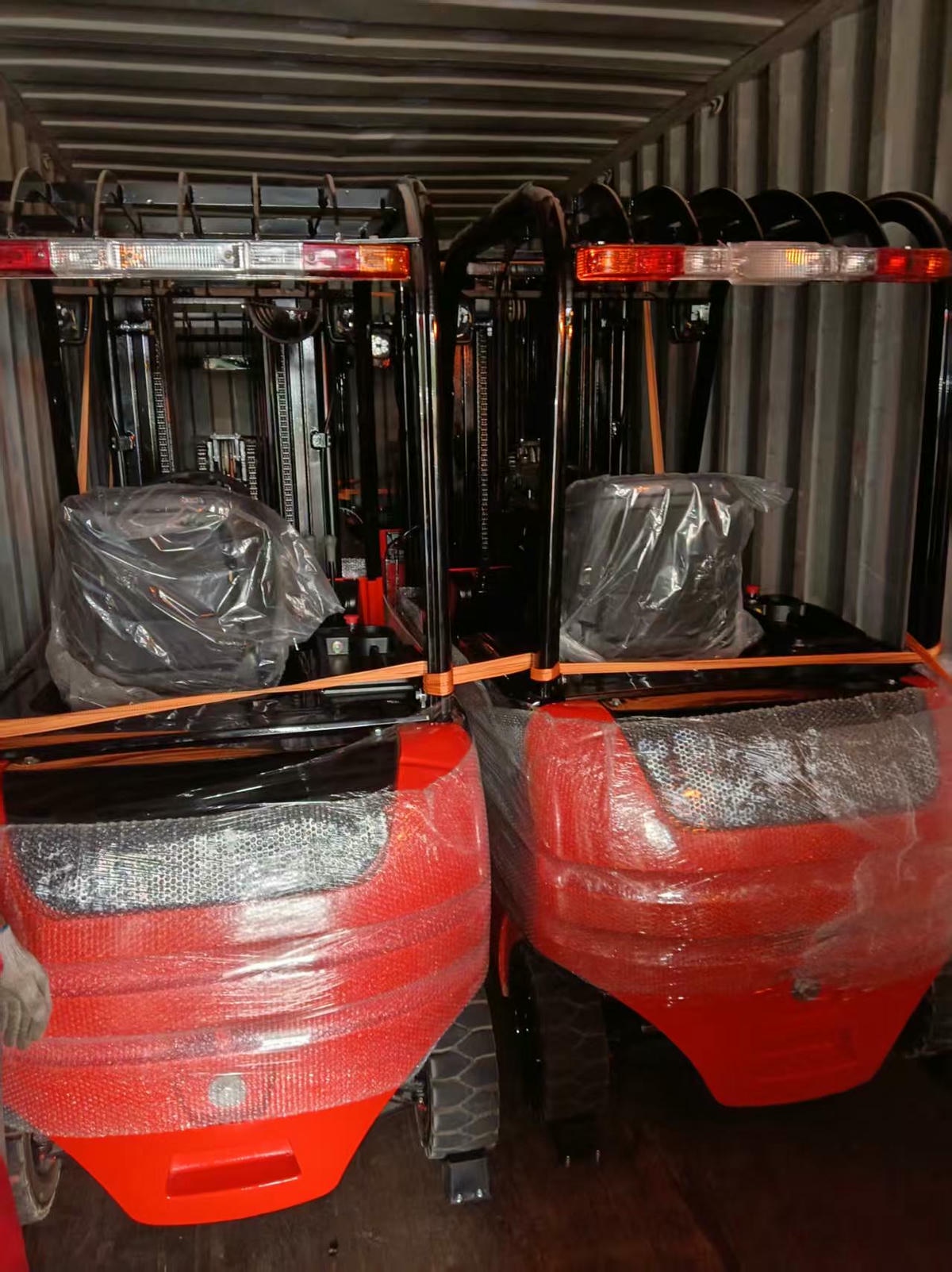

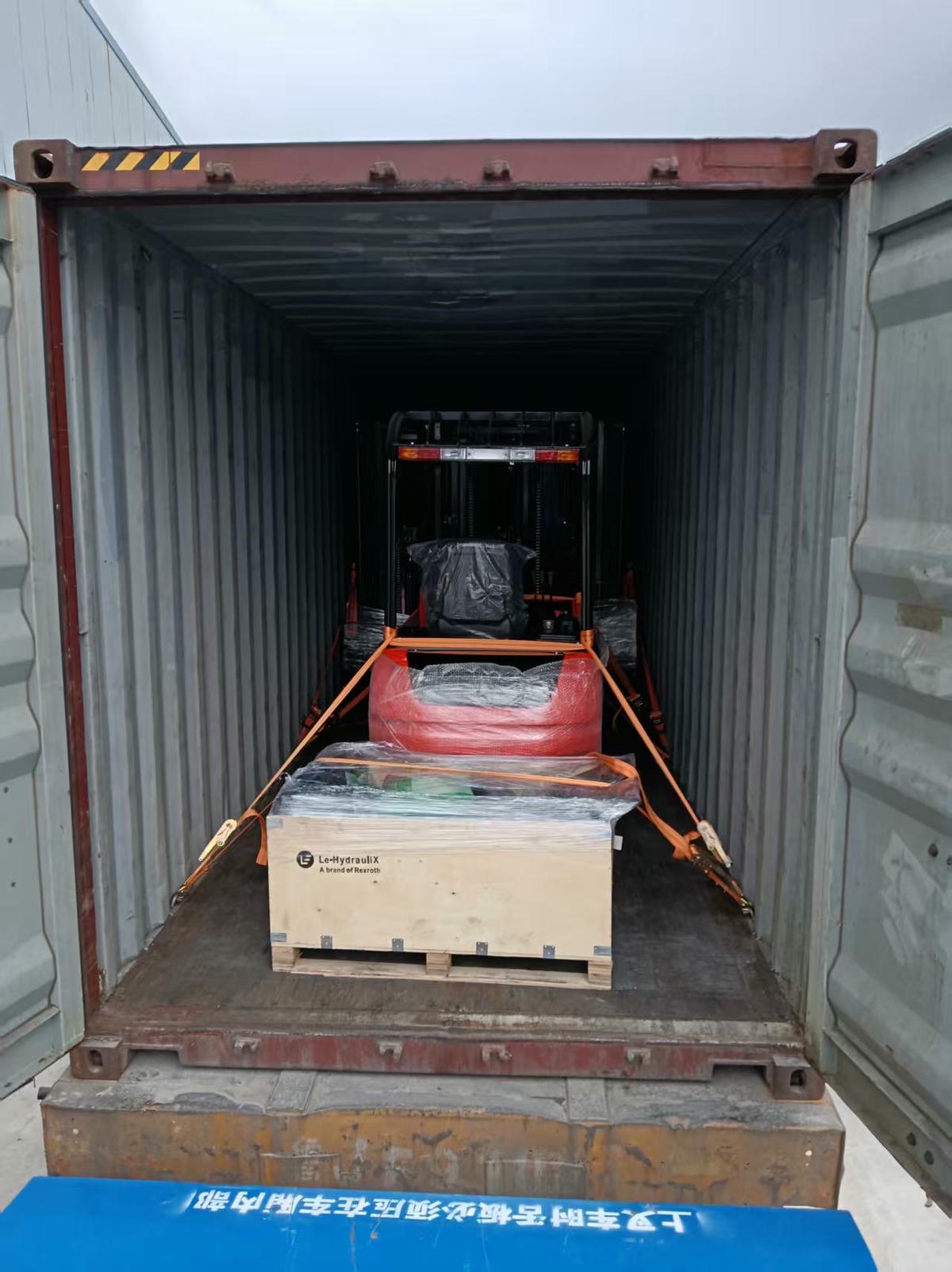

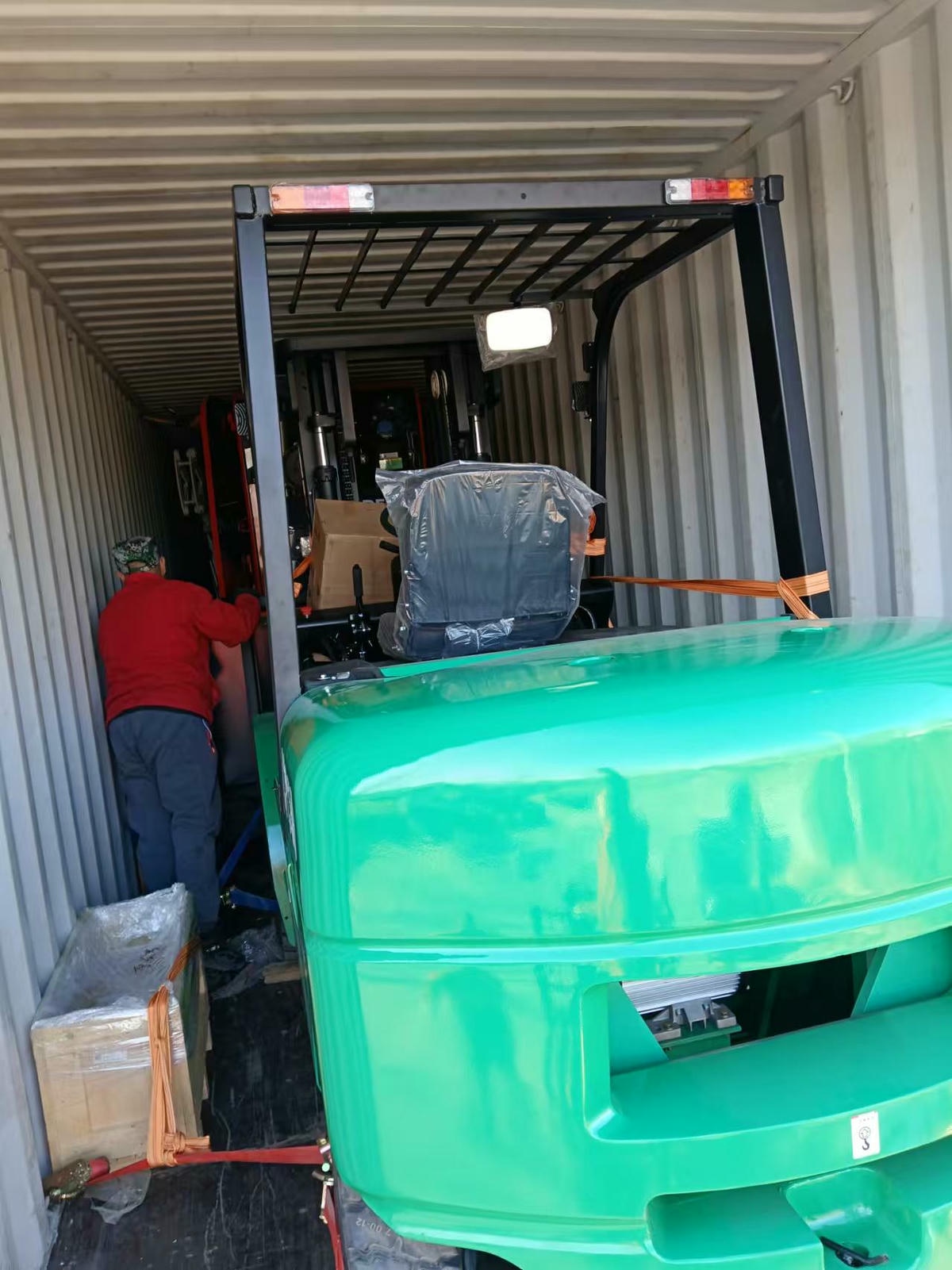

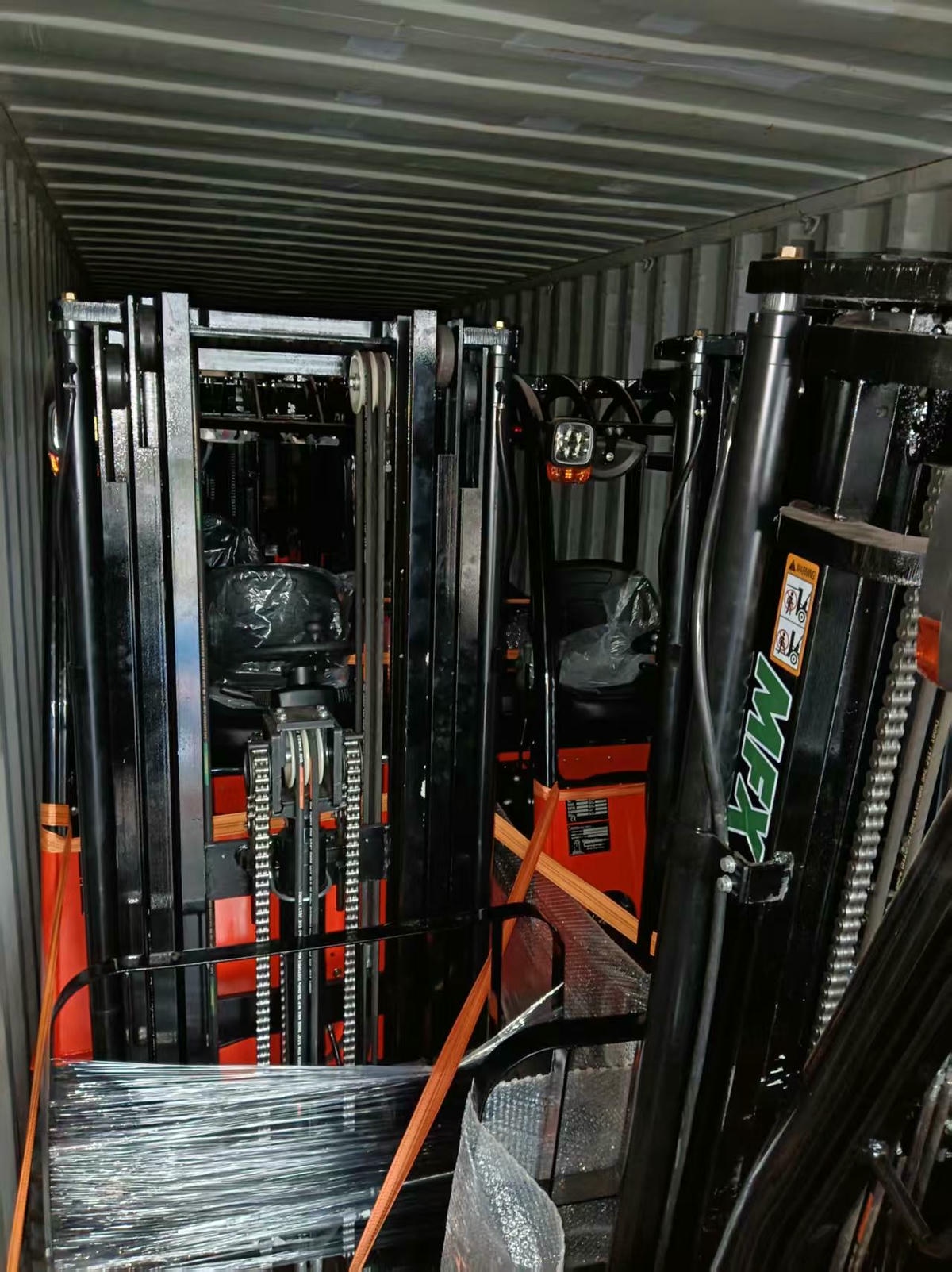

Delivery Photos
After-Sales Service
Warranty: 2-year warranty period.
Documentation: Multilingual operation manuals are provided.
Spare Parts: Common parts (e.g., filters, oil pipe connectors) are stocked in parts warehouses, with delivery to the customer’s factory warehouse within 10 working days.
Remote Support: A remote team can guide workers via video to complete basic maintenance (e.g., cleaning battery contacts).
