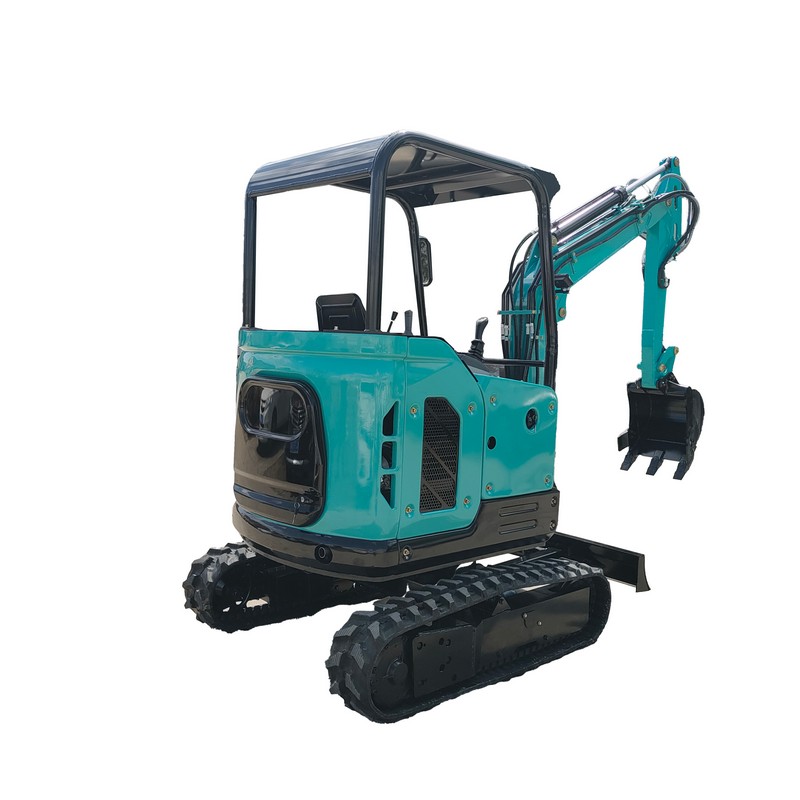

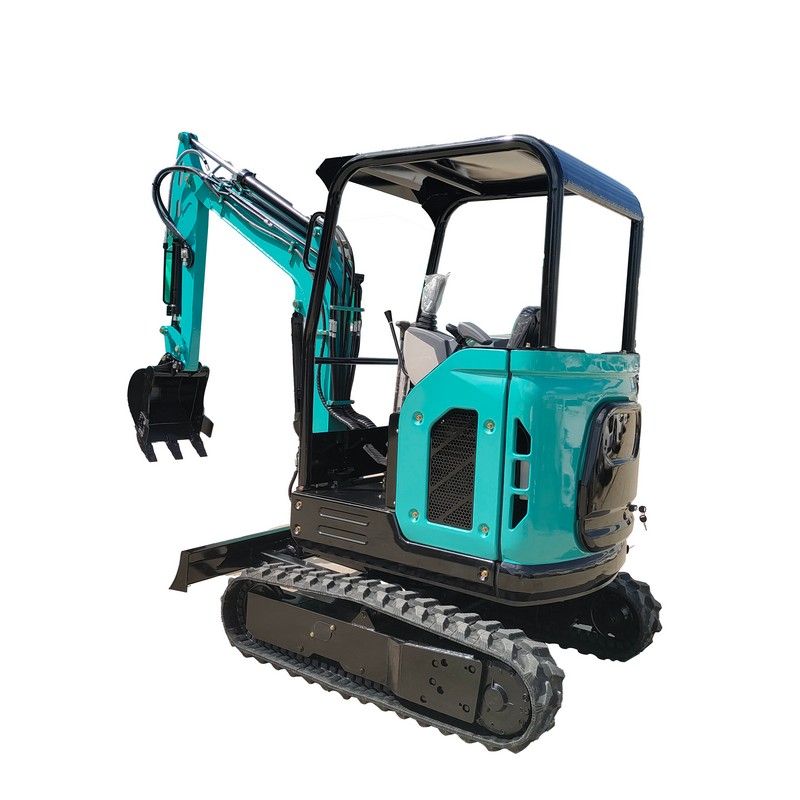

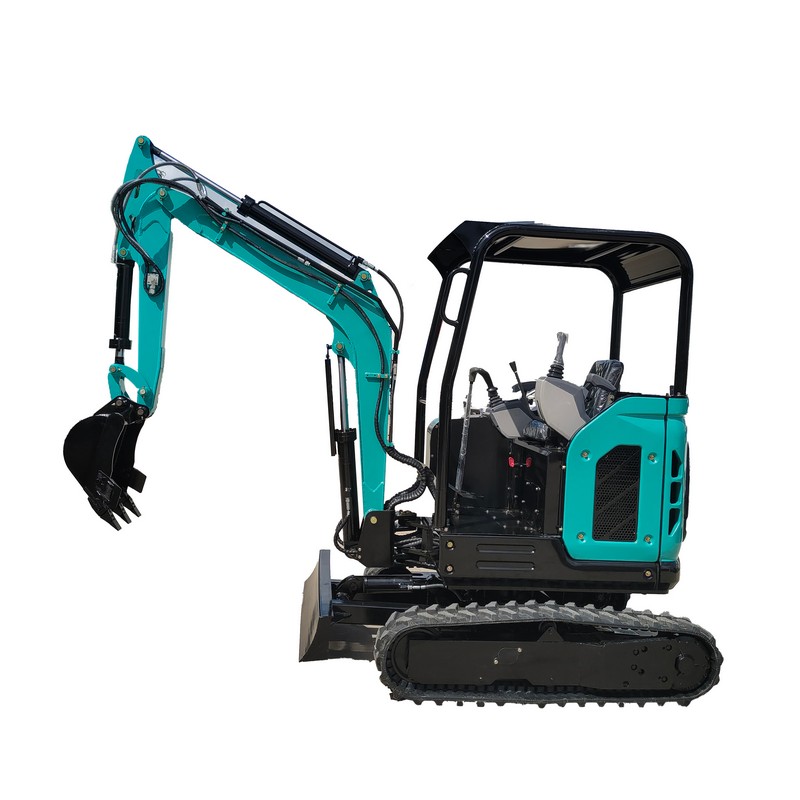

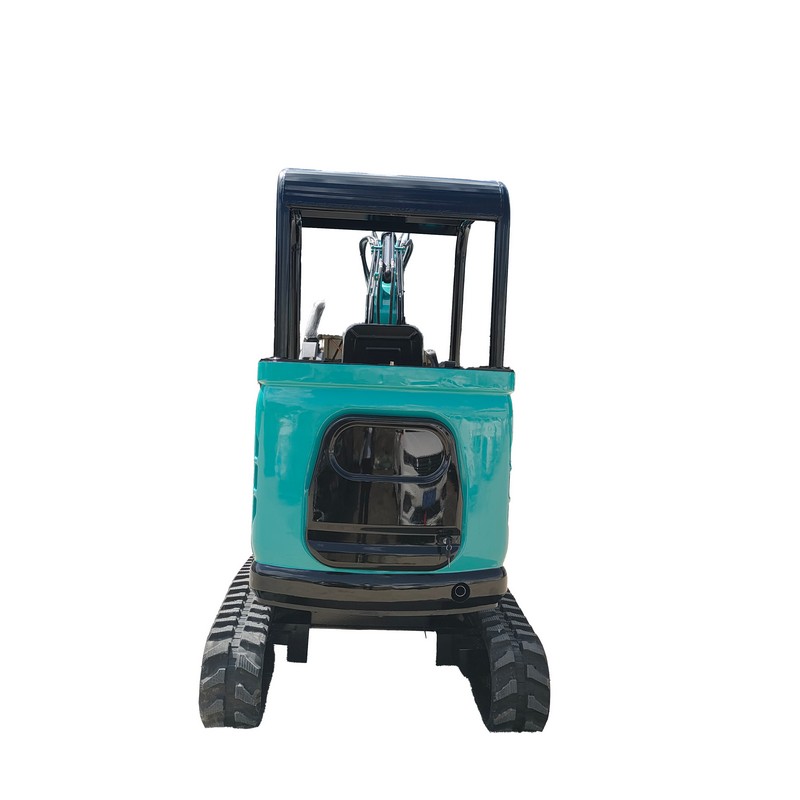

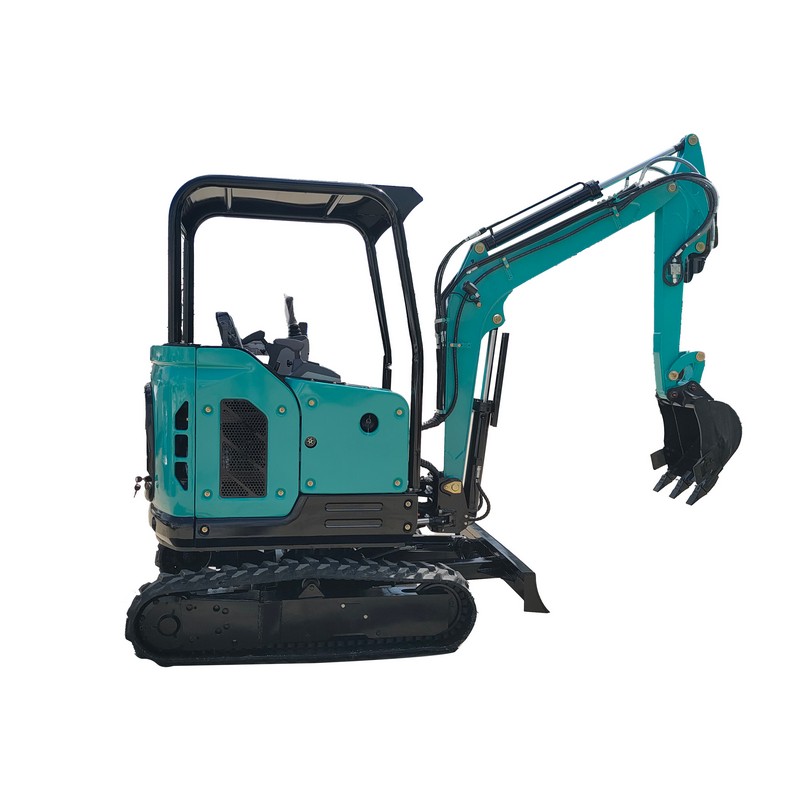

Mini Excavator 2 Ton
1. The vehicle body width is less than 1 meter, allowing it to freely enter and exit narrow door openings and interiors, offering excellent flexibility.
2. The boom can swing sideways, closely adhering to the wall for precise excavation, easily handling complex corner and edge conditions.
3. It adopts a large-displacement engine to provide strong power and ensure excavation and climbing performance.
4. The optimized hydraulic system features smooth and precise movements, high efficiency in compound operations, and stable and reliable performance.
5. Standard rubber tracks are provided to protect the ground and have a low ground contact pressure, making it suitable for various terrains.
In modern urban construction, garden renovation, indoor demolition and farmland water conservancy and other construction projects, large equipment is often restricted by space and cannot operate normally. It is precisely in response to this pain point that the mini excavator 2 ton came into being. With its ultimate flexibility, rich functional expandability and the strong factory strength behind it, it has become your ultimate weapon to deal with narrow and complex working conditions. The core competitiveness of mini excavator 2 ton lies in its unparalleled flexibility. The width of its body has been meticulously optimized, with the narrowest model being only 1.06 meter, enabling it to easily pass through standard courtyard gates, workshop doors, and even move and operate freely within buildings, solving the primary problem of limited space for large equipment. More importantly, its unique boom lateral movement function is the soul of its flexibility. The operator can easily control the entire boom to move left or right from the cab, enabling the excavator to precisely operate by closely adhering to walls, ditches and other obstacles. There is no need to frequently move the body, which greatly improves the work efficiency and safety in the corner areas and effectively avoids the risk of body collision. Combined with its tailless small rotation design, the rear part of the vehicle will not exceed the width of the body during rotation, ensuring that it can operate smoothly even in extremely narrow Spaces, completely eliminating the worry of "tail sweeping".
Powerful multi-functionality: One machine for multiple uses, maximizing value

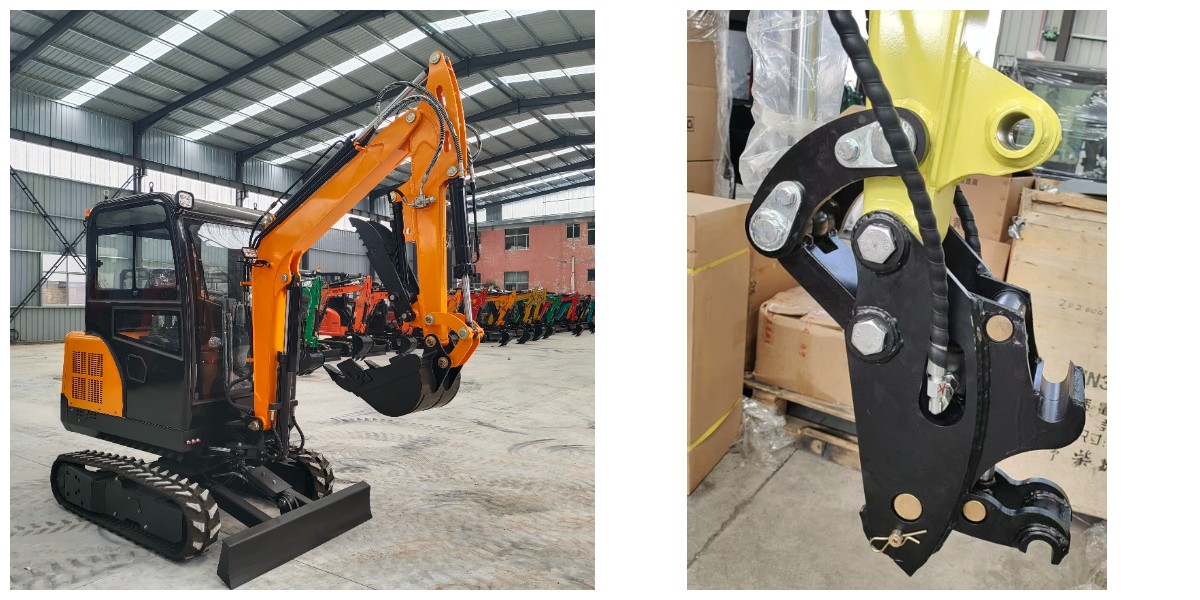

The mini excavator 2 ton is not only an excavation tool but also an efficient multi-functional working platform. It is equipped with an internationally recognized quick connector (quick-change joint), allowing the driver to quickly switch various attachments within just tens of seconds, achieving "multiple functions in one machine" :
• Core operations: Equipped with a standard bucket, it is used for routine earthwork excavation and trench excavation.
• Crushing and cleaning: Replace with hydraulic breakers to easily handle the crushing work of concrete roads and rocks.
• Fine leveling: Install hydraulic compactors or leveling buckets for trench backfilling and compaction, as well as fine leveling of the site.
• Special Applications: It can also be connected to screw drills, wood clamps, dredging hoppers, etc., to meet the special needs of gardens, agriculture, municipal works, etc.
The powerful hydraulic system provides a stable and abundant power source for various attachments, ensuring that each function performs exceptionally well. It truly enables one device to replace multiple specialized machines, bringing the greatest return on investment to customers.
| SPECIFICATION | Operation Weight | t | 2.1ton |
| Engine Brand | Laidong | ||
| Rated Power | Kw | 18.1 | |
| Digging Bucket Capacity | cbm | 0.07 | |
| Bucket Width | mm | 430 | |
| Traveling Motor | Danfoss | ||
| Travel Speed | km/h | 3.4 | |
| Swing Motor | Danfoss | ||
| Swing Speed | r/min | 10 | |
| Hydraulic System | Gear Pump | ||
| Body Swing Radius | mm | 894 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 16 | |
| Hydraulic Fluid Chamber | L | 22 | |
| MAIN DIMENSIONS | Overall Length | mm | 3675 |
| Overall Width | mm | 1060 | |
| Overall Height | mm | 2280 | |
| Track Width | mm | 230 | |
| Track Length | mm | 1650 | |
| Body Width | mm | 1060 | |
| WORKING RANGE | Max. Digging Radius | mm | 4112 |
| Max Digging Depth | mm | 2418 | |
| Max. Digging Height | mm | 3210 | |
| Max. Unloading Height | mm | 2125 | |
| Min. Swing Radius | mm | 2148 | |
| Max. Digging Depth Of Dozer Blade | mm | 297 | |
| Max. Lifting Height Of Dozer Blade | mm | 230 |
Outstanding performance is backed by reliable factory strength
Despite its compact size, its performance is uncompromising. We are equipped with highly efficient and energy-saving diesel engines and advanced hydraulic systems, which not only provide strong digging force and climbing ability, but also achieve smooth and precise movements as well as low fuel consumption and low noise. The working experience far exceeds that of products in the same class.
All of this is based on the strong strength of the factory. We have a technology research and development center and a fully automated intelligent production line. From the robot welding of core structural components, the precise manufacturing of large-scale processing centers, to the assembly and inspection of complete machines, every process adheres to strict quality standards. Before leaving the factory, each excavator must undergo enhanced durability tests to simulate various extreme working environments, ensuring that what is delivered to customers is a reliable partner with stable performance and durability. We can also provide timely technical support and spare parts supply, allowing you to purchase the machine without worries and use it with confidence.
In summary, mini excavator 2 ton is a perfect combination of flexibility, multi-functionality and industrial reliability. It is not only your ideal choice for challenging narrow working conditions, but also a valuable option for enhancing overall construction efficiency. Choosing us means choosing peace of mind and efficiency.
