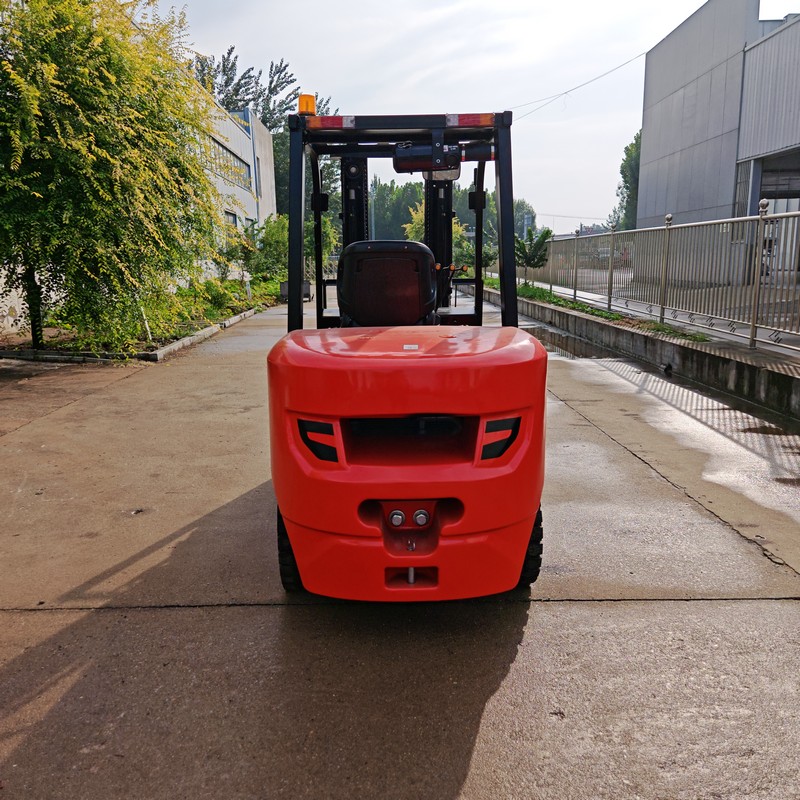

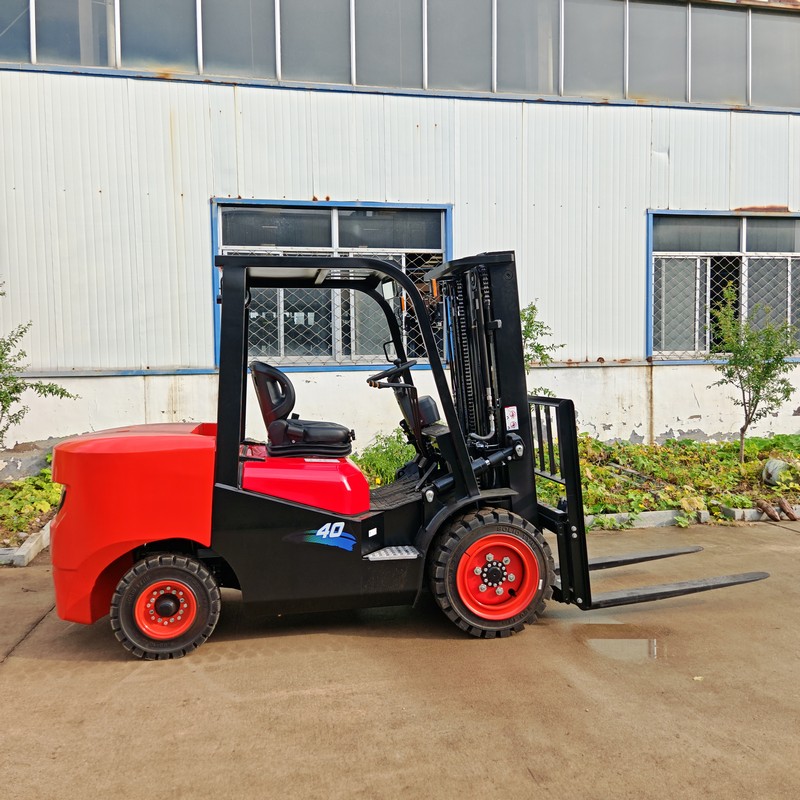

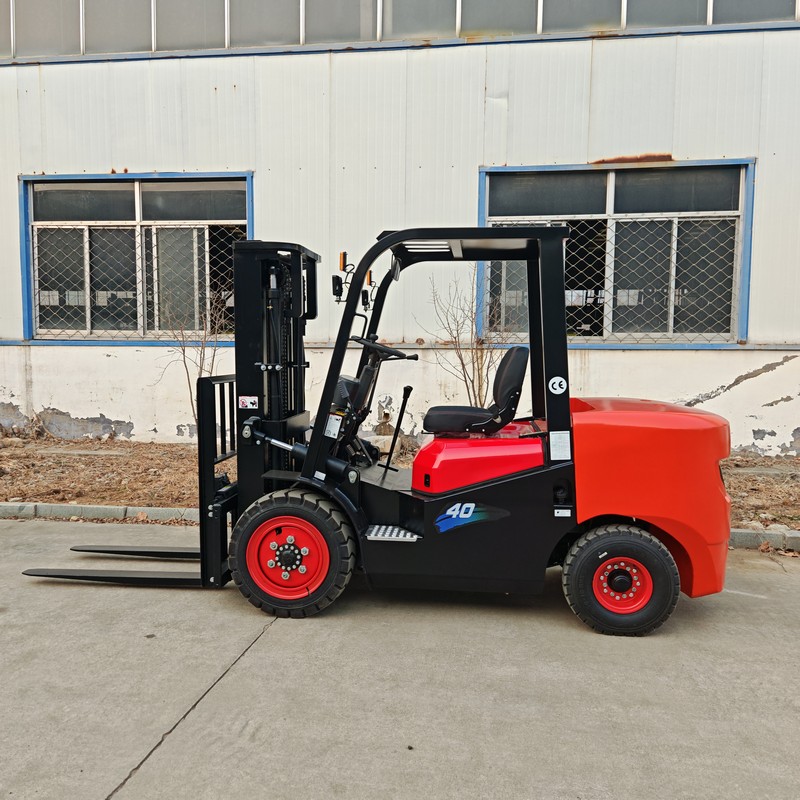

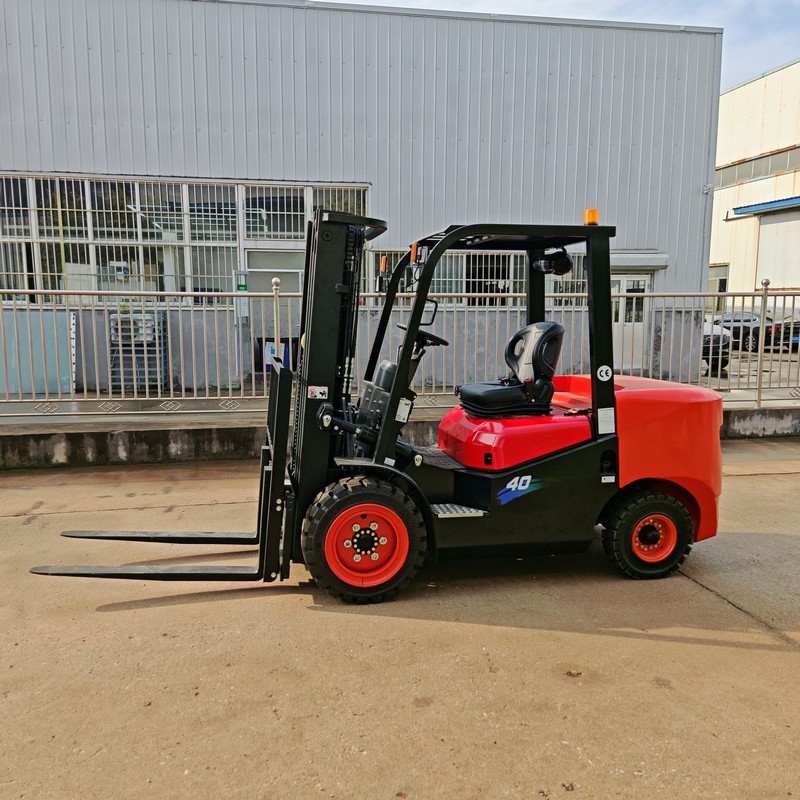

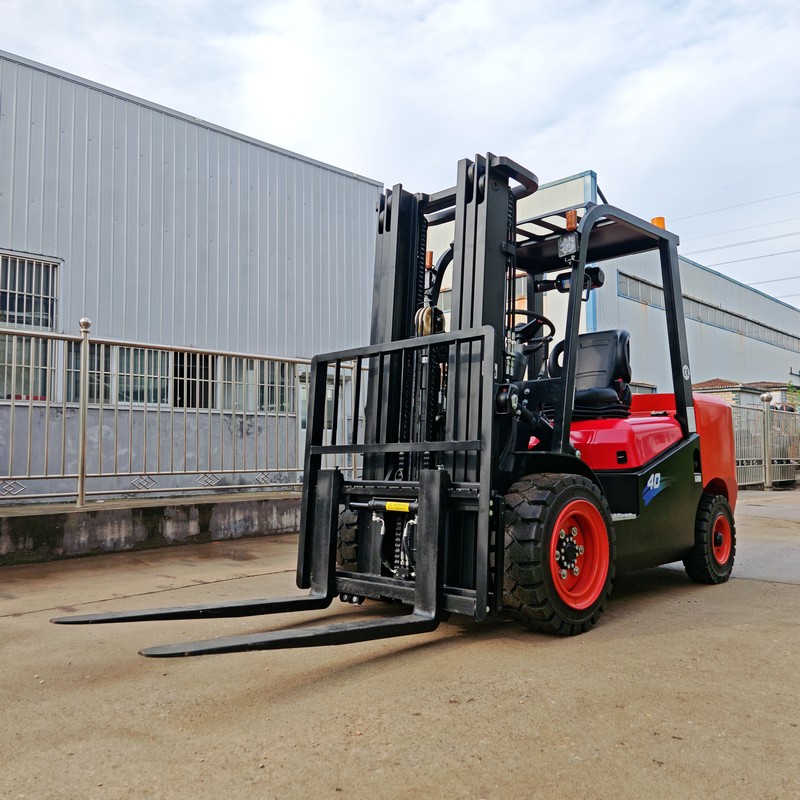

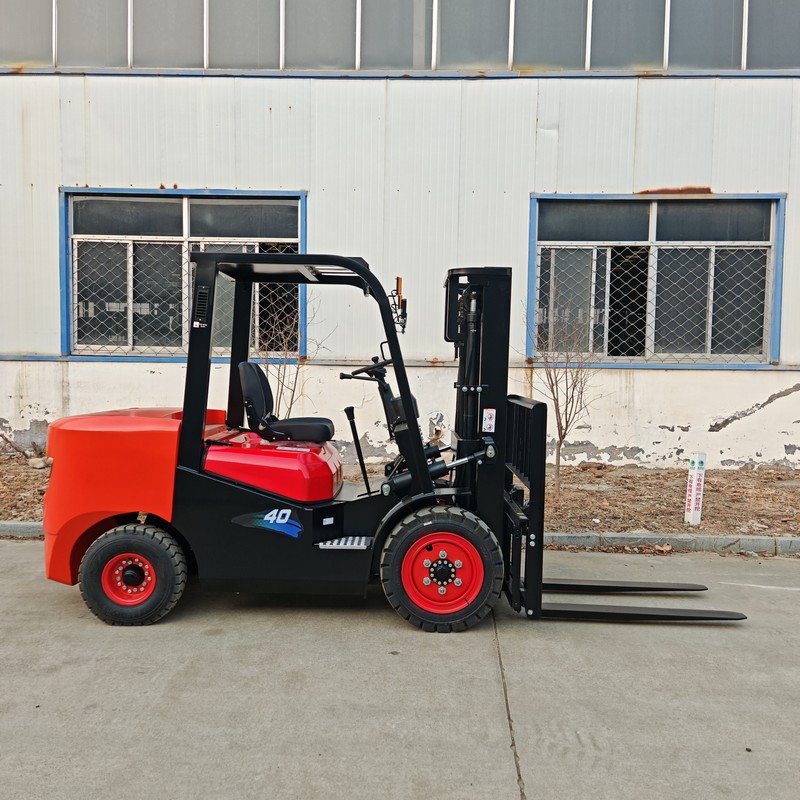

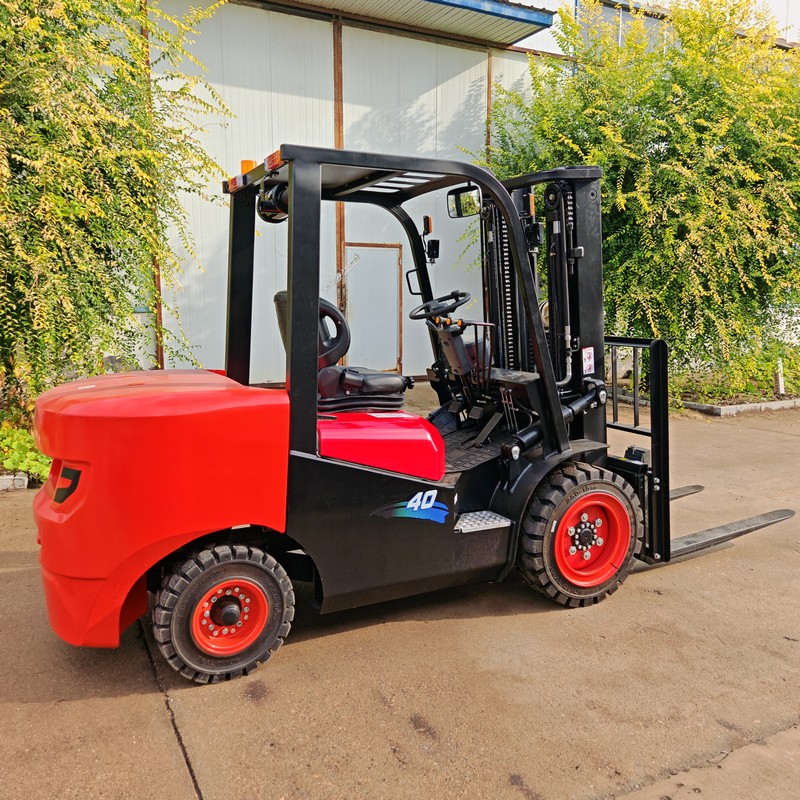

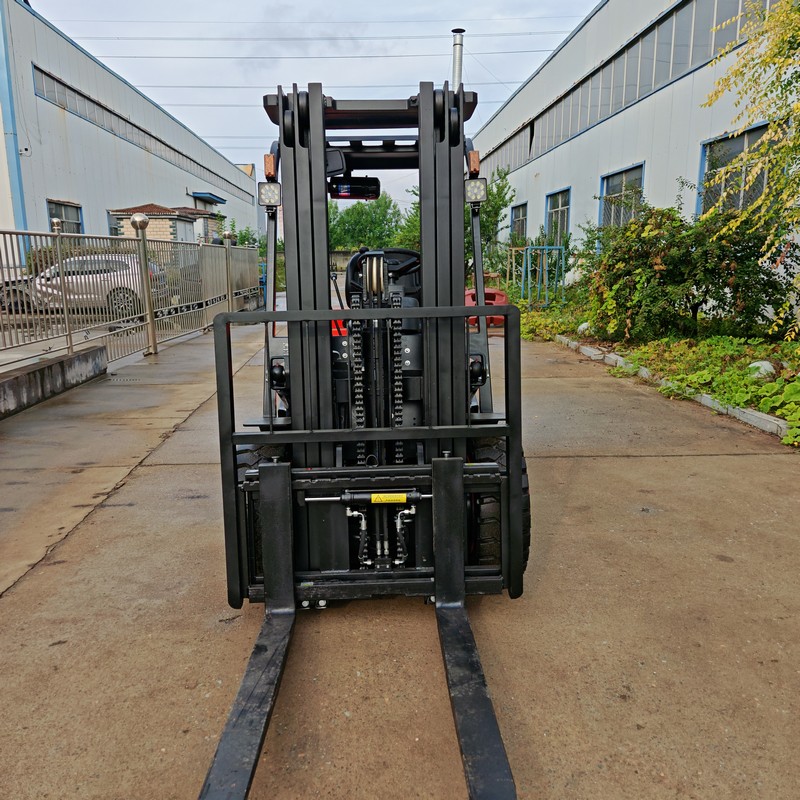

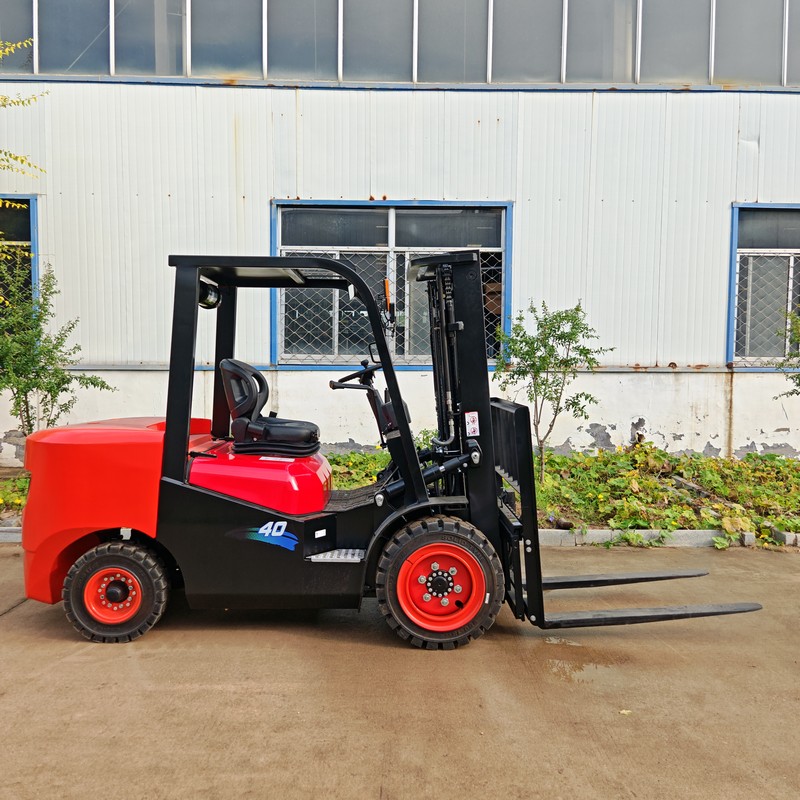

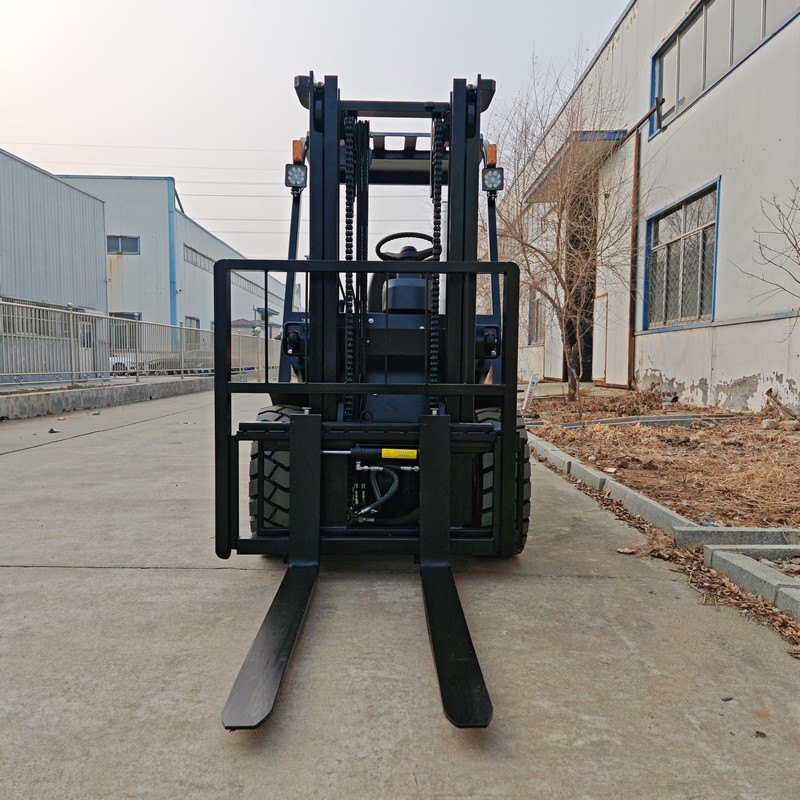

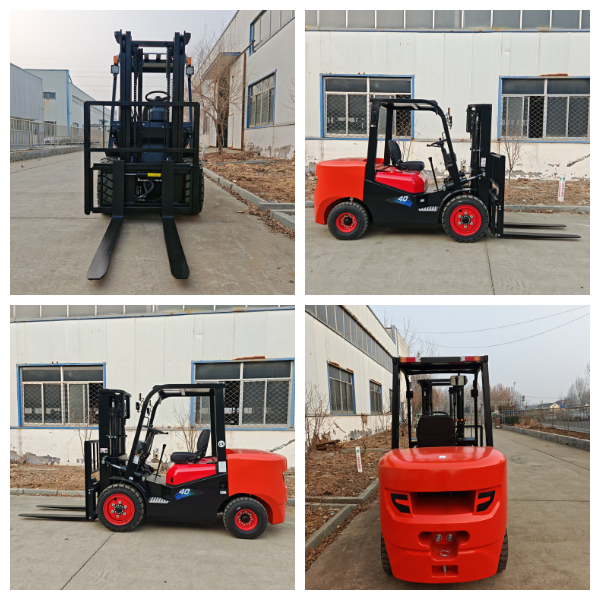

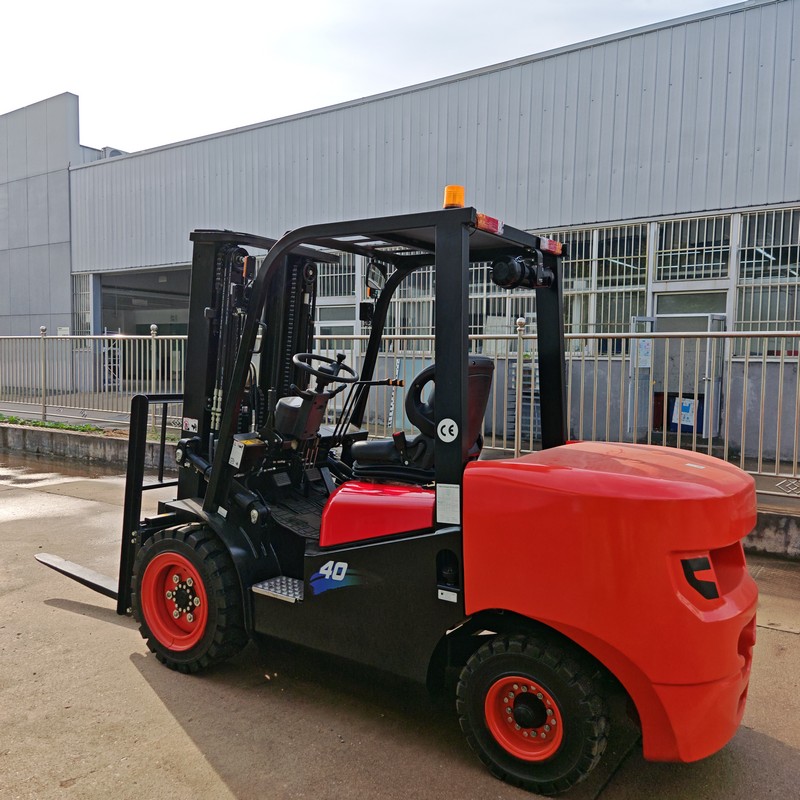

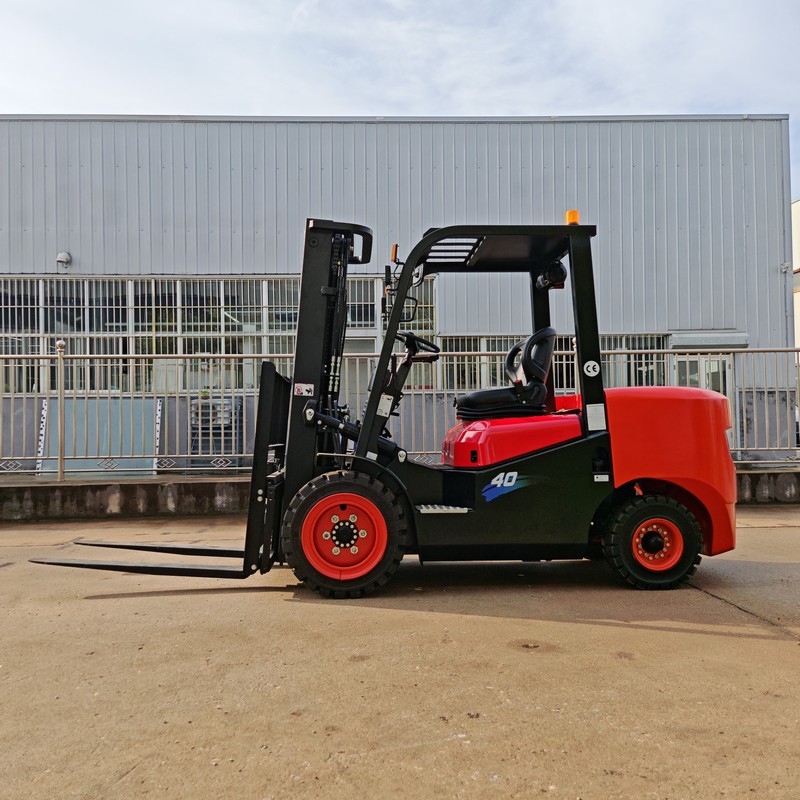

4T Diesel Forklift
1. Heavy-Duty Champion with Proven Strength
4-ton rated load capacity, 10%–15% overload tolerance, slashing handling frequency by 15% without interruption.
2. Powerful Drive for All Scenarios
Climbs 20° slopes with steadiness as if on flat ground; runs non-stop around the clock in extreme environments from –20 ℃ to 45 ℃.
3. Durable, Low-Maintenance, and More Economical
Thickened frame extends service life by 30%; cuts average annual costs by 40% compared with electric models.
4. Efficient Range Without Waiting
Refuel in 5 minutes to last the whole day; equipment utilization surges by 25%.
5. Flexible All-Rounder
2.9-meter tight turning radius fits narrow spaces; with multiple attachments, handles loading, unloading, stacking, and transfer in one go.
4-Ton Diesel Forklift: Heavy-Duty Power, All-Round Value
Core Strengths for Tough Jobs:
Built for stable 4-ton handling in steel, machinery, warehousing, and ports, this forklift combines high load capacity, strong power, and top reliability—redefining mid-heavy material handling with efficiency and economy.
Strong Lifting, Fewer Runs:
Rated for 4 tons, it handles steel beams, molds, and dense pallets in single lifts. Cuts handling frequency by 10%–15% vs. 3.5-ton models. With 10%–15% overload tolerance, it works smoothly on ramps or during surges—no downtime from capacity limits.
Powerful Drive, Anywhere, Anytime:
High-torque diesel engine conquers 20°+ slopes, hits 24 km/h unloaded / 17 km/h loaded. Speeds cycles in yards/long hauls. Reliable from –20 ℃ to 45 ℃, it runs nonstop in any weather.
Built to Last, Easy to Maintain:
Reinforced frame & mast last 30%+ longer (fatigue-tested). Mature diesel = fewer faults. Routine upkeep slashes annual costs 40% vs. electric. 5-min refuel = all-day work, +25% utilization.
Agile & Versatile:
Compact-yet-stable with 2.9 m turning radius fits aisles & racks. Works with side shifters, clamps, rotators for pipes, coils, odd shapes. Single machine does loading, stacking, transfer, sorting—cuts equipment needs.
All-Round Champion for Mid-Heavy Work:
Effortless heavy lifting, rock-solid in tough conditions, and cost-efficient—this 4-ton diesel forklift powers reliable, high-efficiency material handling.
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC40/CPCD40 | ||
| Rated Capacity | kg | 4000 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 470/420 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 18/20 | ||
| Max. Towing Capacity (Full-Load / No-Load) | kN | 16.5/11.5 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 80 | ||
| Mast Tilting Angle (Forward-Backward) | （°） | 6/12 | ||
| Min. Turning Radius | mm | 2540 | ||
| Min.Right Angle Aisle Width | mm | 2050 | ||
| Min. Ground Clearance | mm | 135 | ||

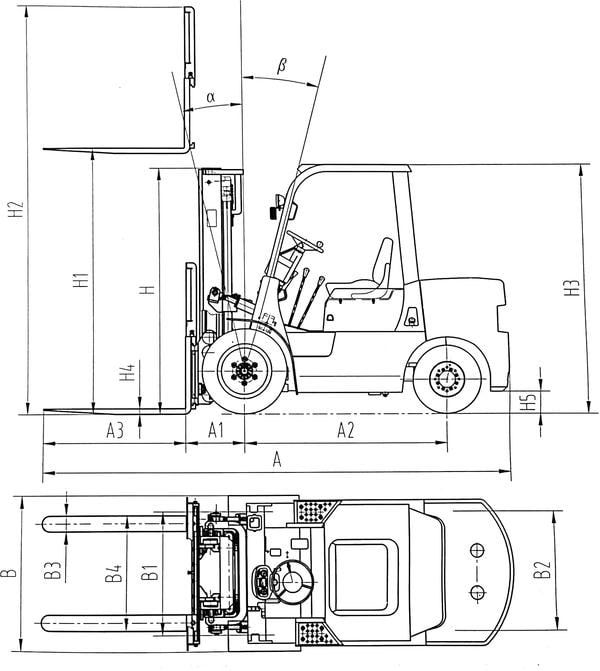

| Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 |
| Overall Width | (B) | mm | 1230 | |
| Overall Height (Mast Lowered) | (H) | mm | 2130 | |
| Overall Height (Mast Extended) | (H2) | mm | 4270 | |
| Overall Height to Overhead | (H3) | mm | 2130 | |
| Front Overhang | (A1) | mm | 465 | |
| Wheelbase | (A2) | mm | 1735 | |
| Front Tread | (B1) | mm | 1000 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | mm | 2.50-15 | |
| Rear Wheel | mm | 6.50-10 | ||
| Fork | Fork Width | (B3) | mm | 122 |
| Fork Thickness | (H4) | mm | 50 | |
| Backrest Height | mm | 1225 | ||
| Fork Length | (A3) | mm | 1220 | |
| Engine | Engine Model | XINCHAI C490BPG | ||
| Rated Power | kW | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | ||
| Max. Torque | Nm | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800～1900 | ||
| Type of Power Shift | Mechanical/Hydraulic | |||
| Curb Weight | kg | 4600 | ||
Optional

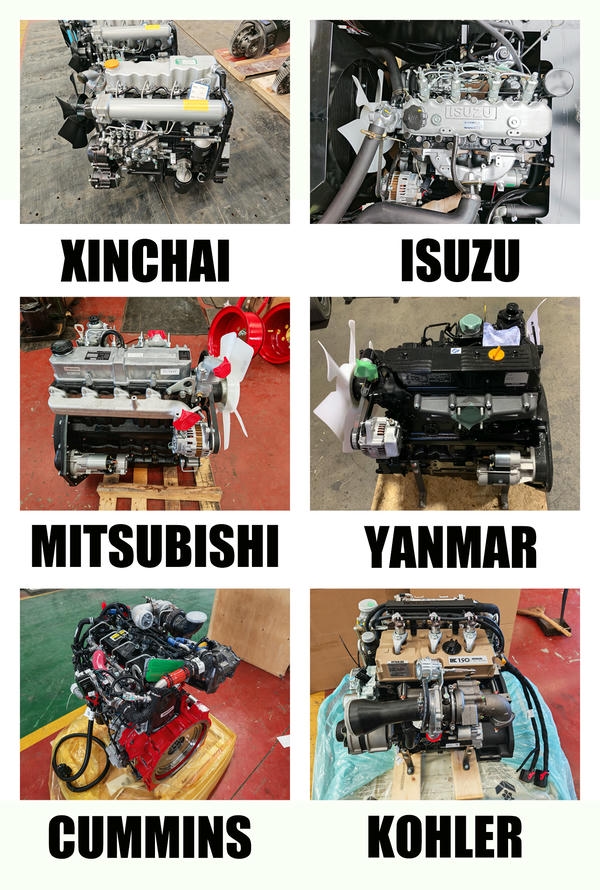

1. Engine：
•Standard: Xinchai
•Optional: ISUZU (Japan), Mitsubishi (Japan), KUBOTA (Japan), YANMAR(Japan), Kohler (USA), Cummins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard: 1220mm fork
•Optional: 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

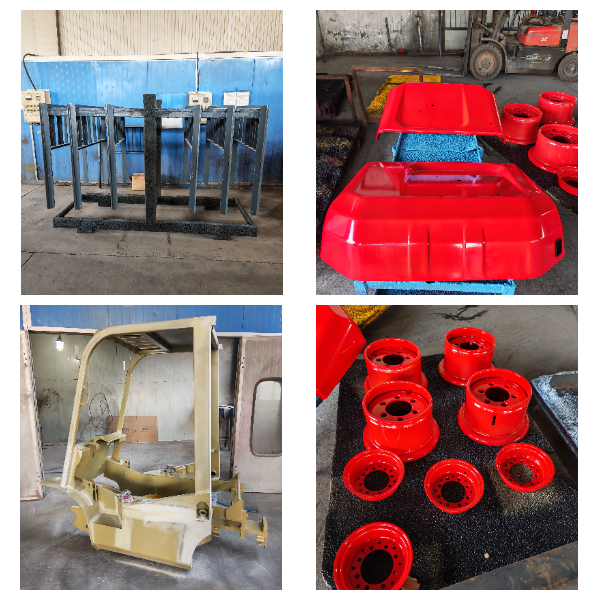

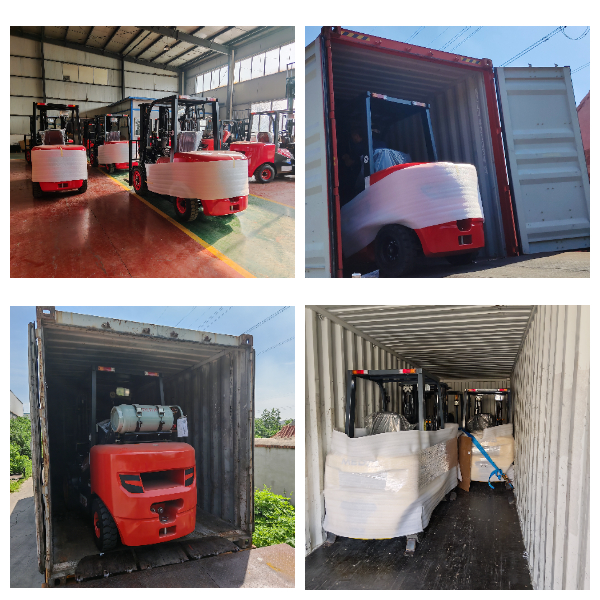

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.
All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
