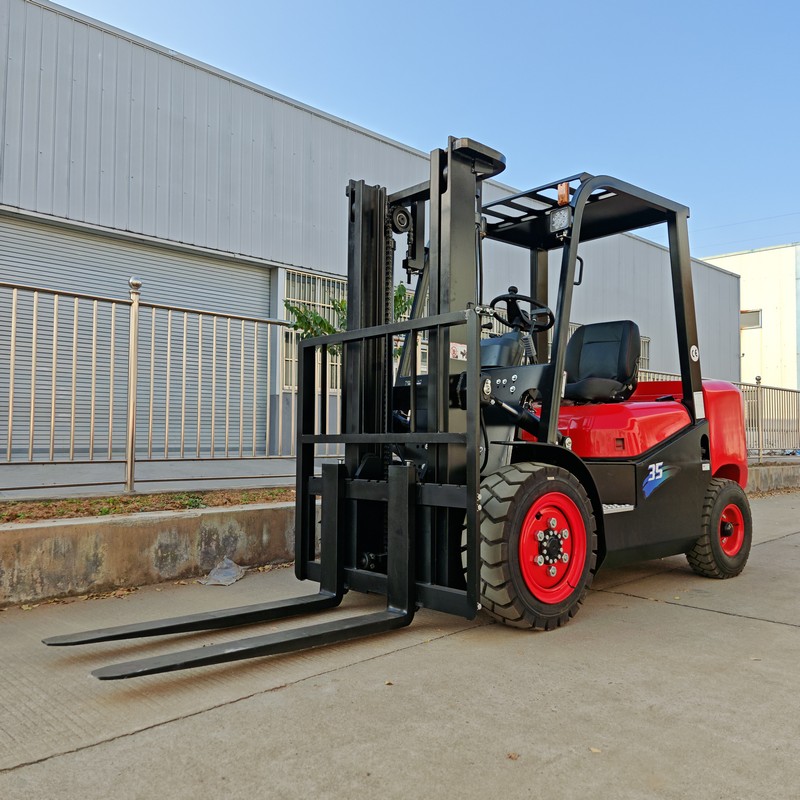

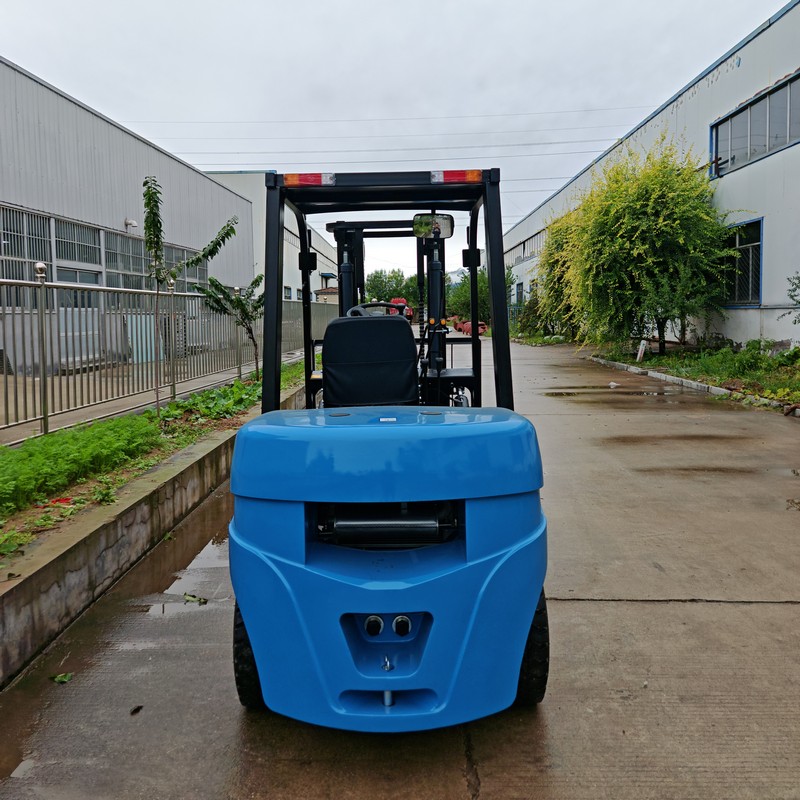

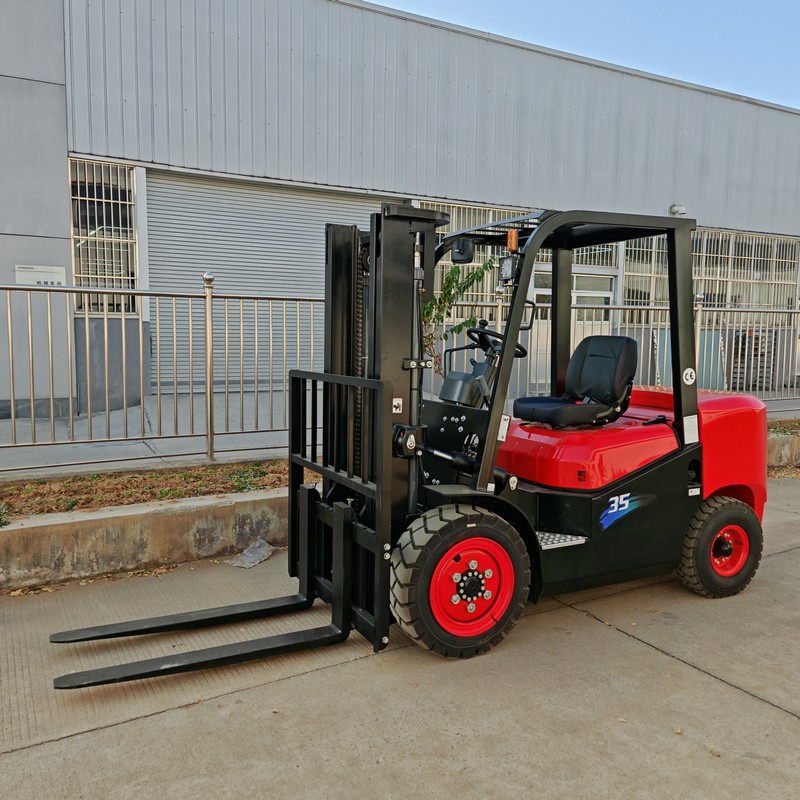

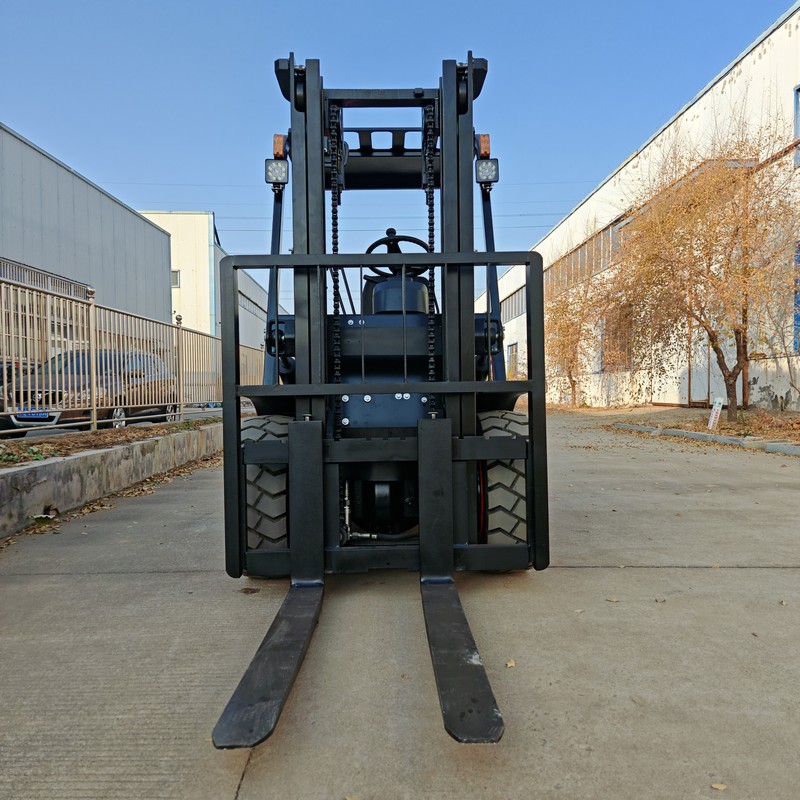

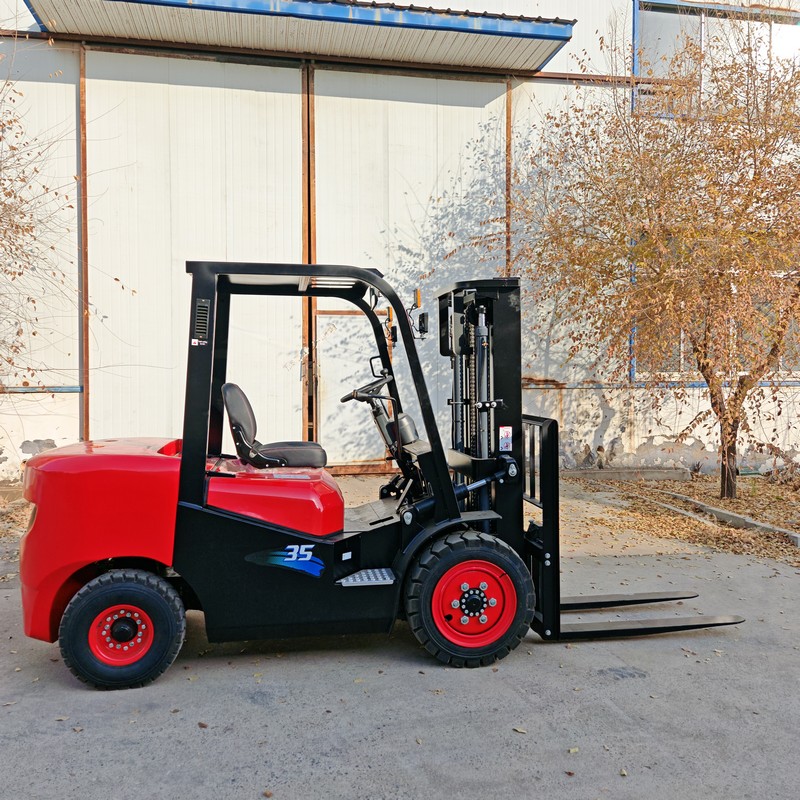

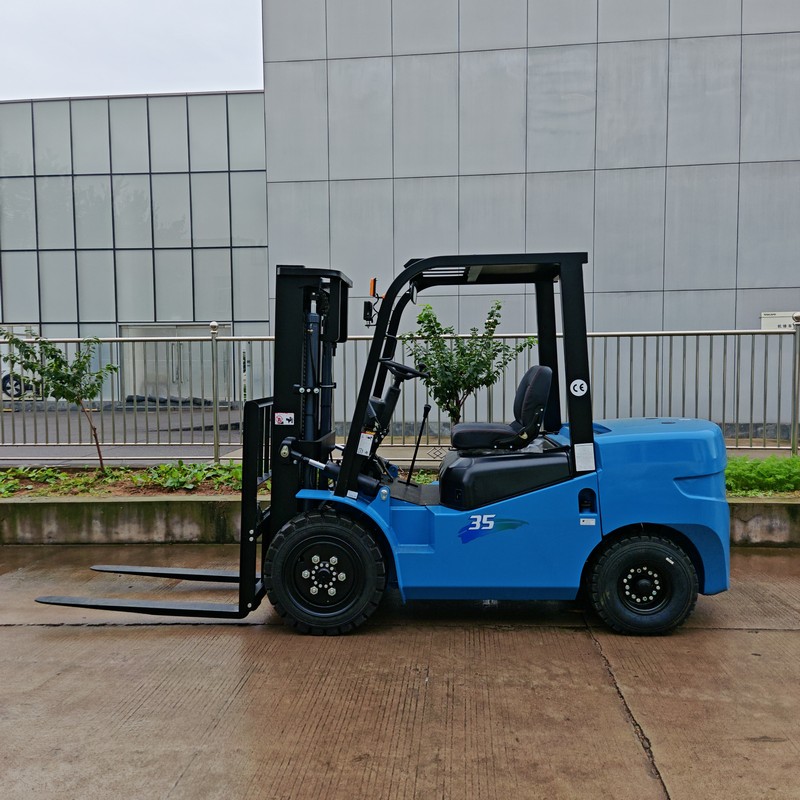

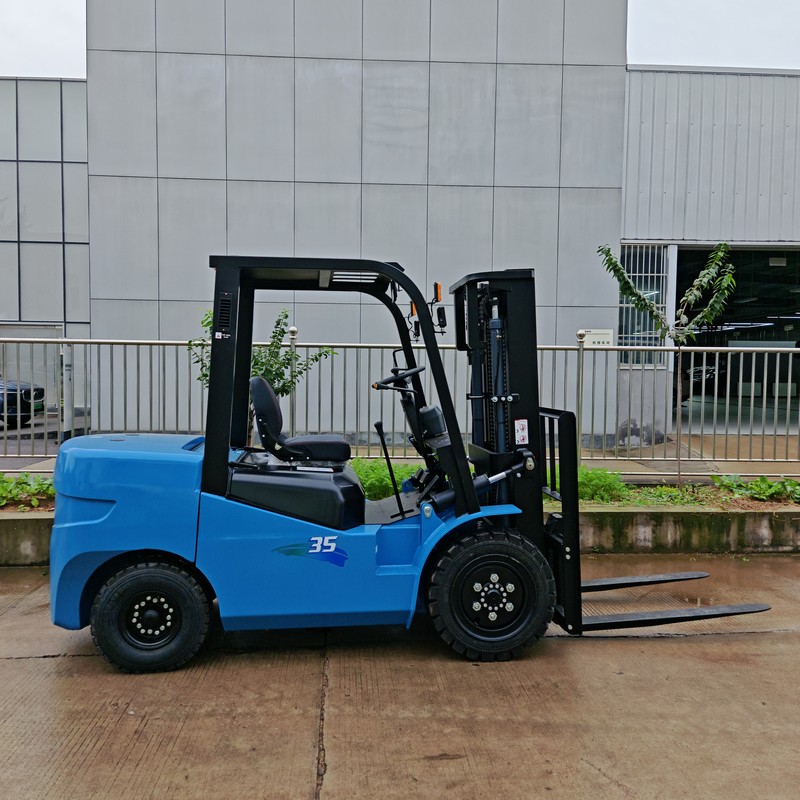

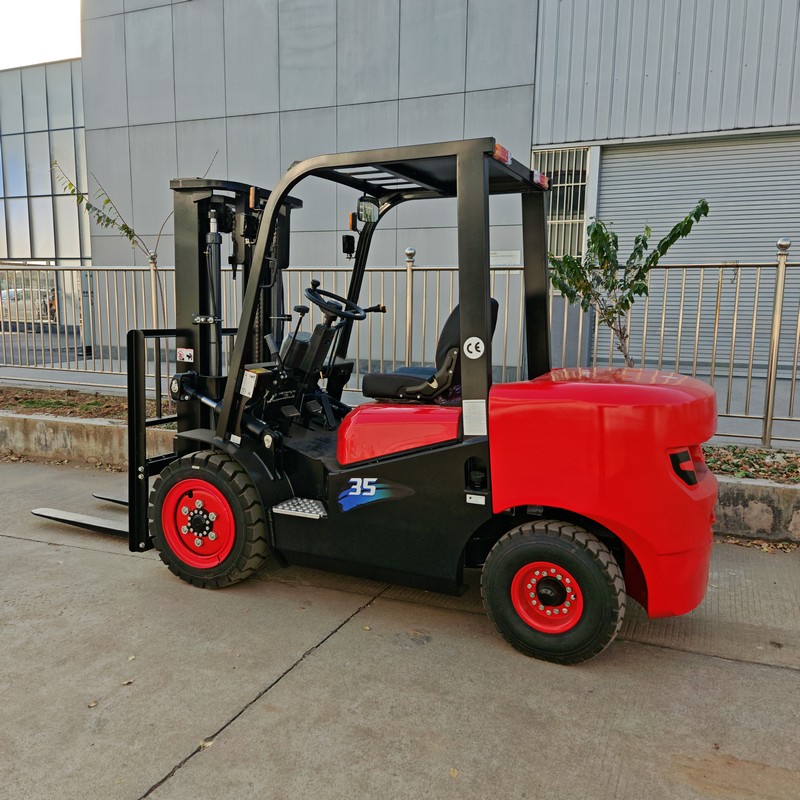

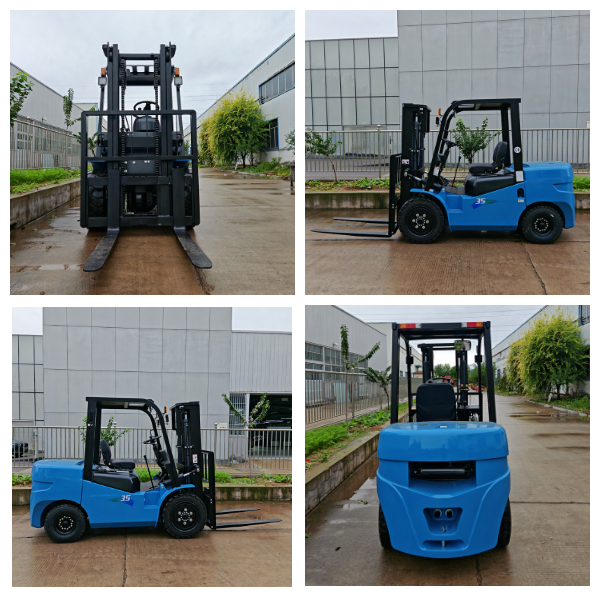

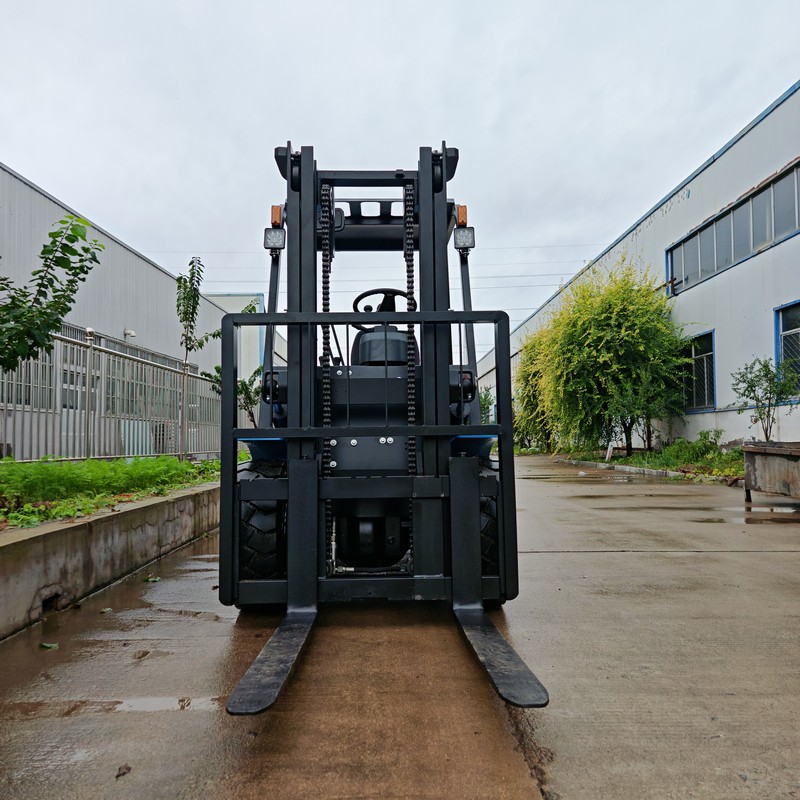

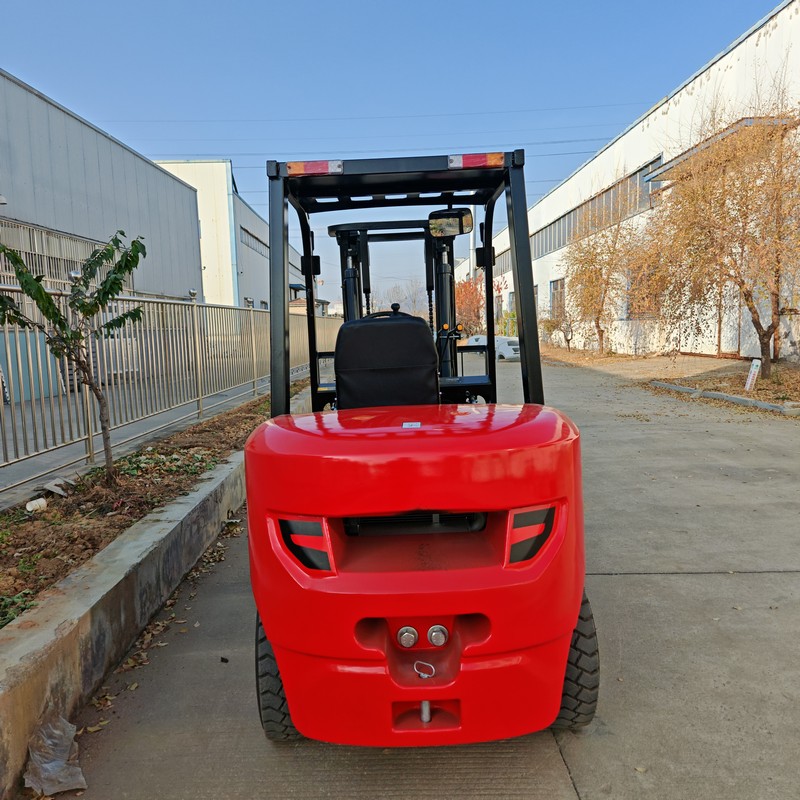

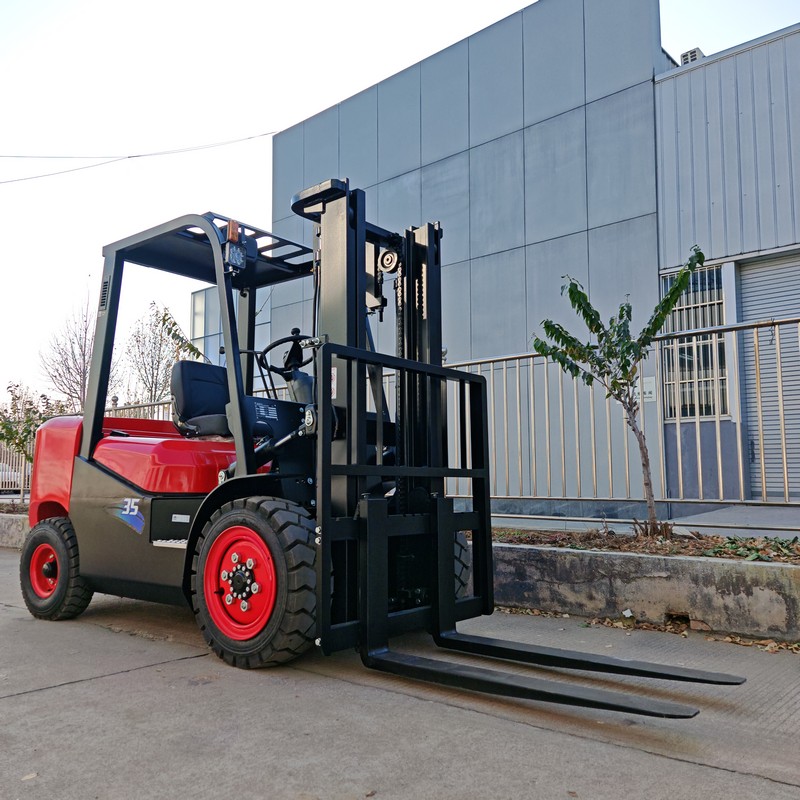

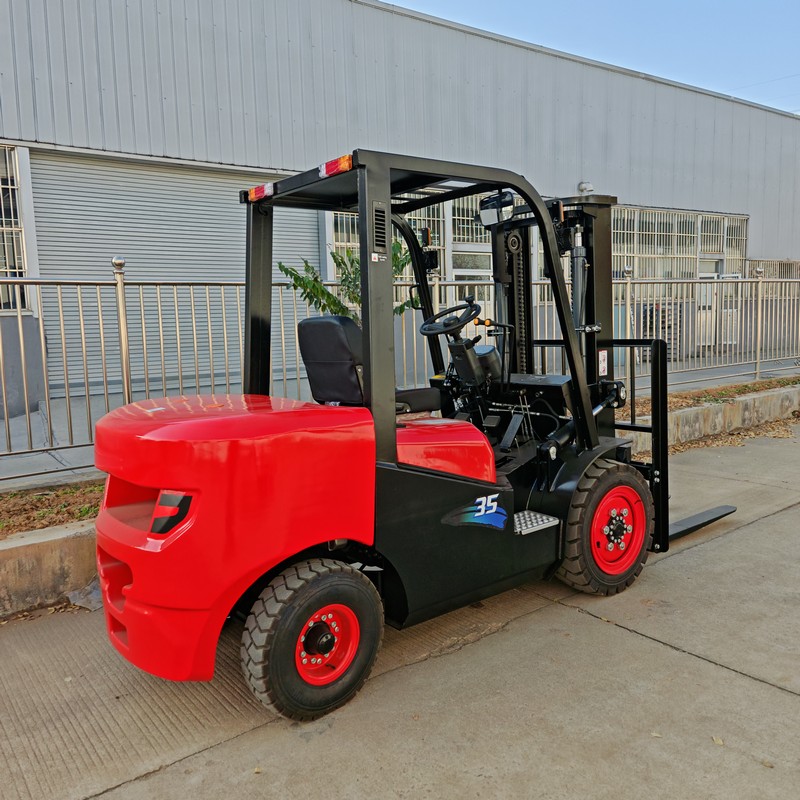

3.5T Diesel Forklift
3.5t Diesel Forklift Stronger Than 3 Tons, More Agile Than 5 Tons
1.Load Efficiency Module – Core Performance
Rated load capacity of 3.5 tons + 10%–15% overload allowance; reduces required handling frequency by 15%–20%, ensuring uninterrupted workflow.
2.Power Adaptation Module – Scenario Adaptability
Gradeability with full load >20°; adaptable to all terrains; operates reliably from –20 ℃ to 45 ℃, enabling all‑weather operation.
3.Economic Durability Module – Cost Advantage
Refuel in 5 minutes for a full‑day range; boosts equipment utilization by 25%; extends service life by 30%; cuts average annual maintenance costs by 40%.
4.Flexible Expansion Module – Multi‑Functionality
Minimum turning radius of 2.8 m; navigates narrow aisles with ease; compatible with various attachments; one machine replaces multiple units.
3.5-Ton Diesel Forklift: Heavy-Duty Efficiency Meets Smart Power
Targeted Strength for Tough Jobs:Positioned between 3-ton and 5-ton forklifts, the 3.5-ton diesel model excels in demanding sectors like construction material storage, machinery manufacturing, and ports. It solves the “just enough vs. overkill” dilemma with balanced power, agility, and cost-efficiency.
Confident Load Capacity, Faster Workflow:Handles 3–4-ton loads with ease—steel, equipment, dense pallets—cutting trips by 15%–20% vs. 3-ton units. A 10%–15% overload buffer prevents halts during ramps or surges, keeping operations smooth.
Powerful Performance in Any Condition:Large-displacement diesel engine delivers high low-speed torque, tackling 20°+ slopes and maintaining 16 km/h when loaded (23 km/h unloaded). Operates reliably from -20℃ to 45℃, ideal for cold storage or open yards.
Durable Build, Lower Costs:Reinforced steel frame and alloy mast last 30% longer, proven via fatigue testing. Simple upkeep (oil/filter changes ≈¥180/service) slashes annual maintenance 40% vs. electric peers. Five-minute refuel = all-day run, boosting usage 25%.
Versatile Across Tasks & Spaces:Nimble 2.8m turning radius fits tight spaces. Works with side shifters, clamps for pipes, coils, and odd shapes—handling loading, stacking, transfer solo, cutting equipment needs.
Smart Powerhouse for Medium-Heavy Lifting:Strong but agile, cost-efficient without compromise—the 3.5-ton diesel forklift drives reliable, high-efficiency handling in tough industrial settings.
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC35/CPCD35 | ||
| Rated Capacity | kg | 3500 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450/420 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 18/20 | ||
| Max. Towing Capacity (Full-Load / No-Load) | kN | 16/11 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 80 | ||
| Mast Tilting Angle (Forward-Backward) | （°） | 6/12 | ||
| Min. Turning Radius | mm | 2540 | ||
| Min.Right Angle Aisle Width | mm | 2050 | ||
| Min. Ground Clearance | mm | 135 | ||

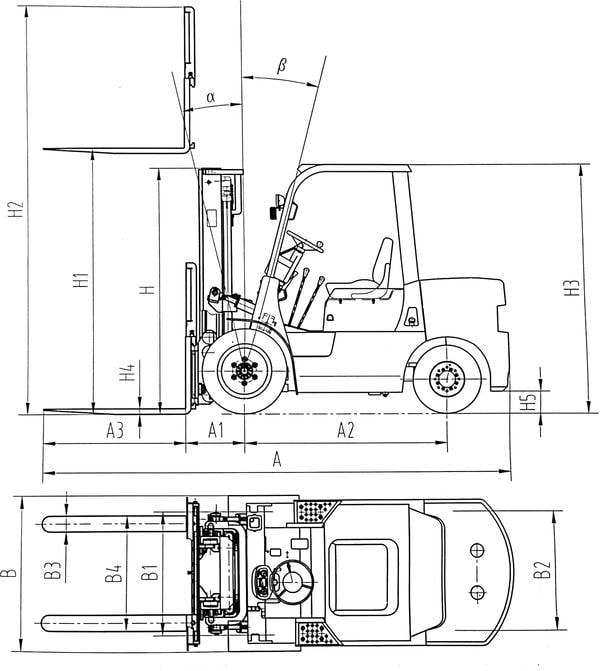

| Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 |
| Overall Width | (B) | mm | 1230 | |
| Overall Height (Mast Lowered) | (H) | mm | 2110 | |
| Overall Height (Mast Extended) | (H2) | mm | 4270 | |
| Overall Height to Overhead | (H3) | mm | 2105 | |
| Front Overhang | (A1) | mm | 465 | |
| Wheelbase | (A2) | mm | 1760 | |
| Front Tread | (B1) | mm | 1000 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | mm | 28*9-15 | |
| Rear Wheel | mm | 6.50-10 | ||
| Fork | Fork Width | (B3) | mm | 122 |
| Fork Thickness | (H4) | mm | 45 | |
| Backrest Height | mm | 1225 | ||
| Fork Length | (A3) | mm | 1220 | |
| Engine | Engine Model | XINCHAI C490BPG | ||
| Rated Power | kW | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | ||
| Max. Torque | Nm | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800～1900 | ||
| Type of Power Shift | Mechanical/Hydraulic | |||
| Curb Weight | kg | 4400 | ||
Optional

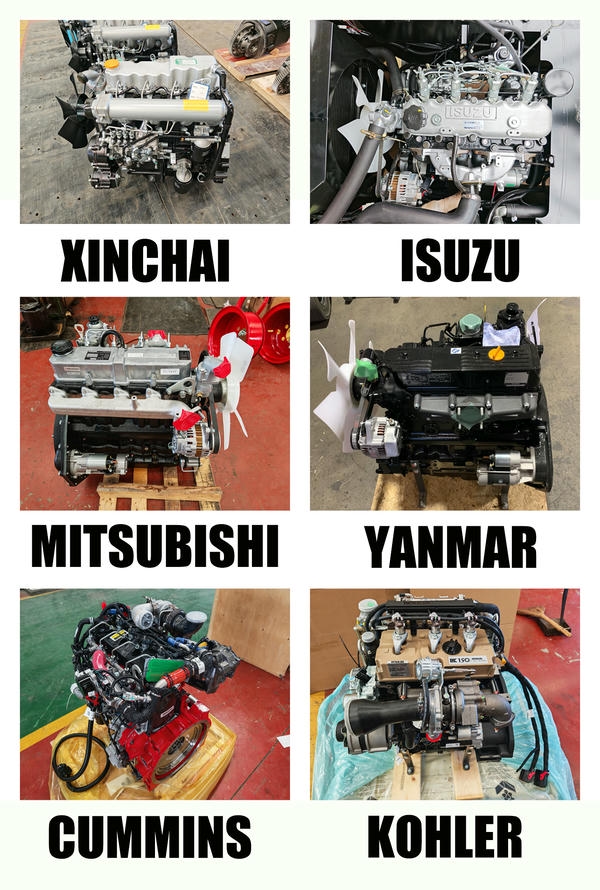

1. Engine：
•Standard: Xinchai
•Optional: ISUZU (Japan), Mitsubishi (Japan), KUBOTA (Japan), YANMAR(Japan), Kohler (USA), Cummins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard: 1220mm fork
•Optional: 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

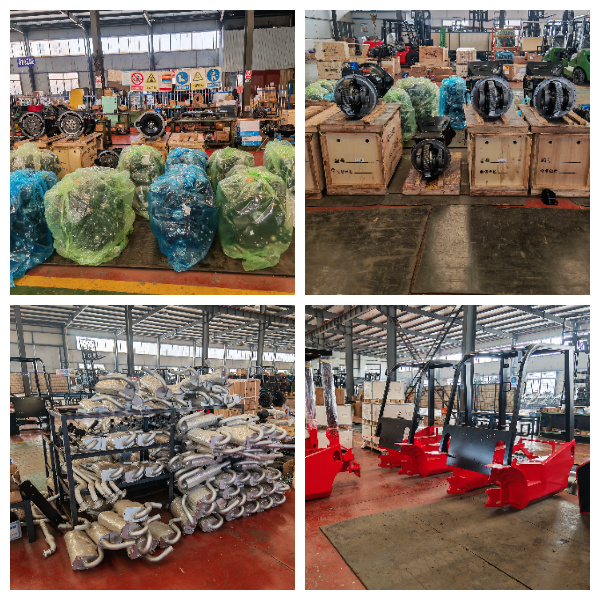

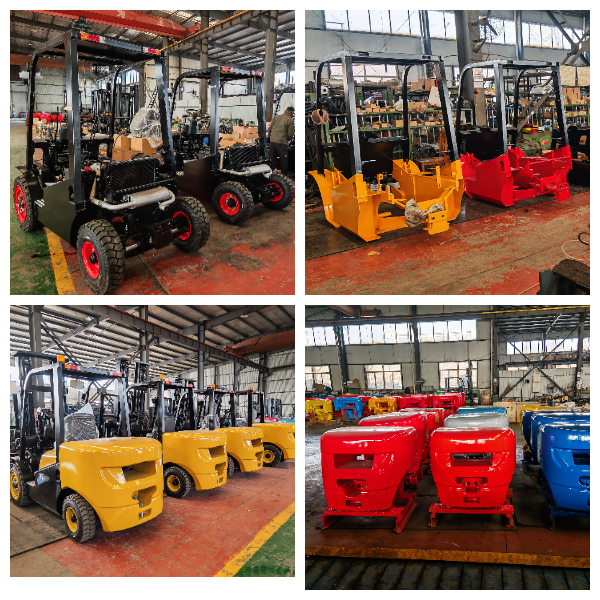

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.

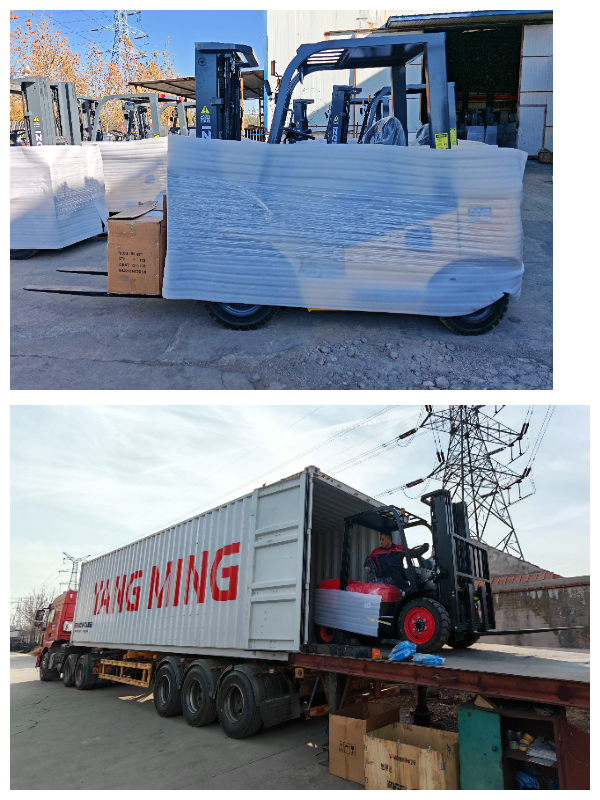

All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
