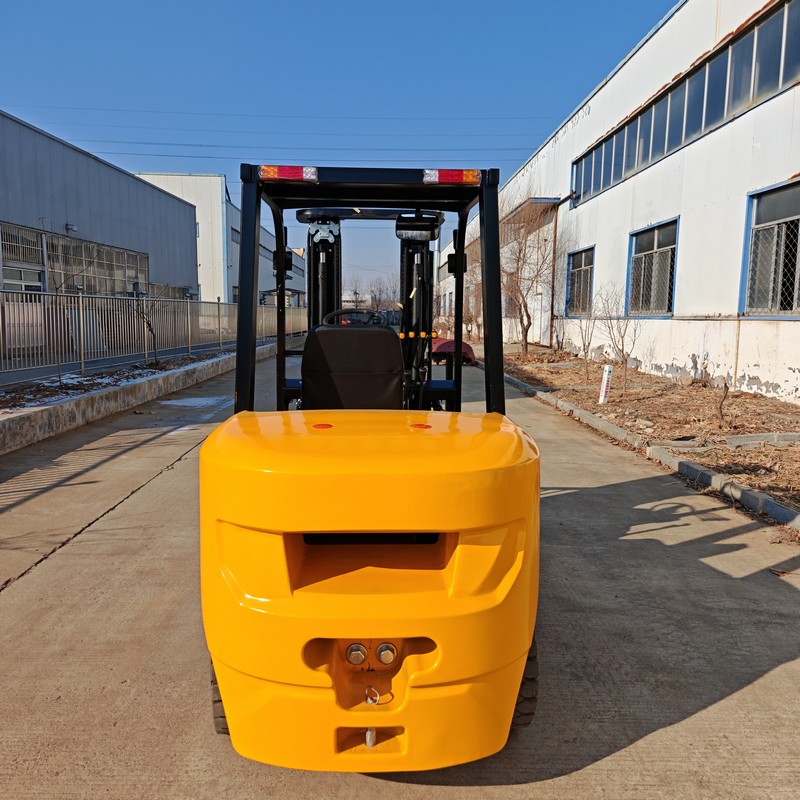

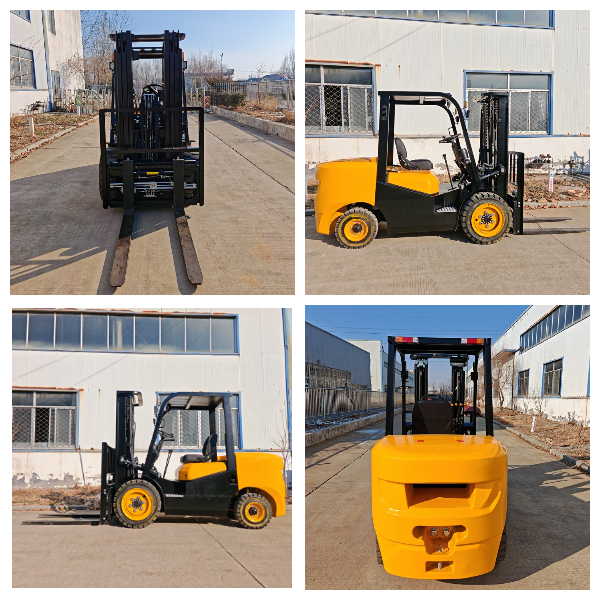

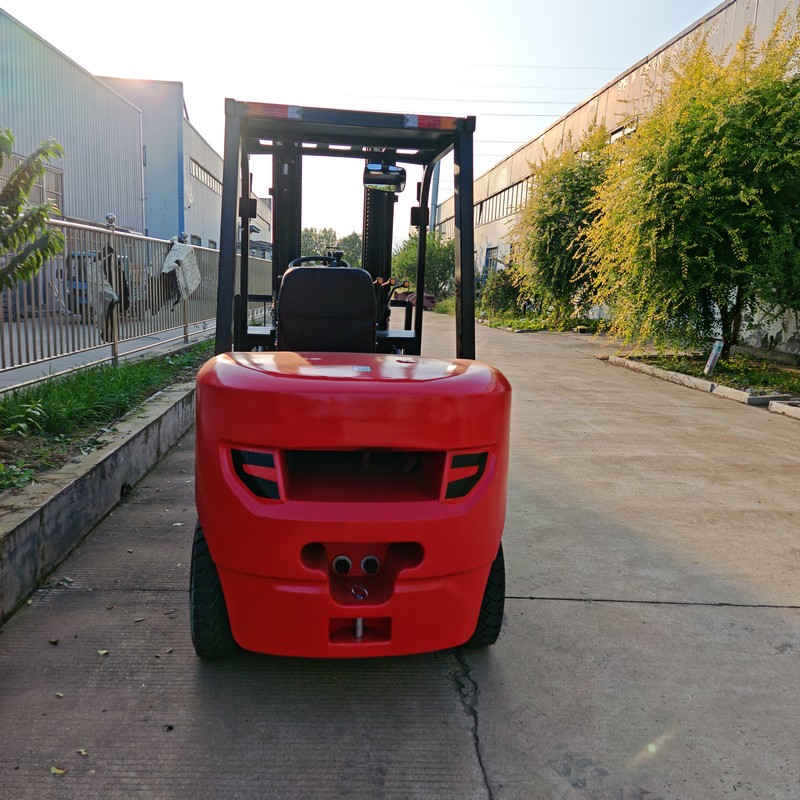

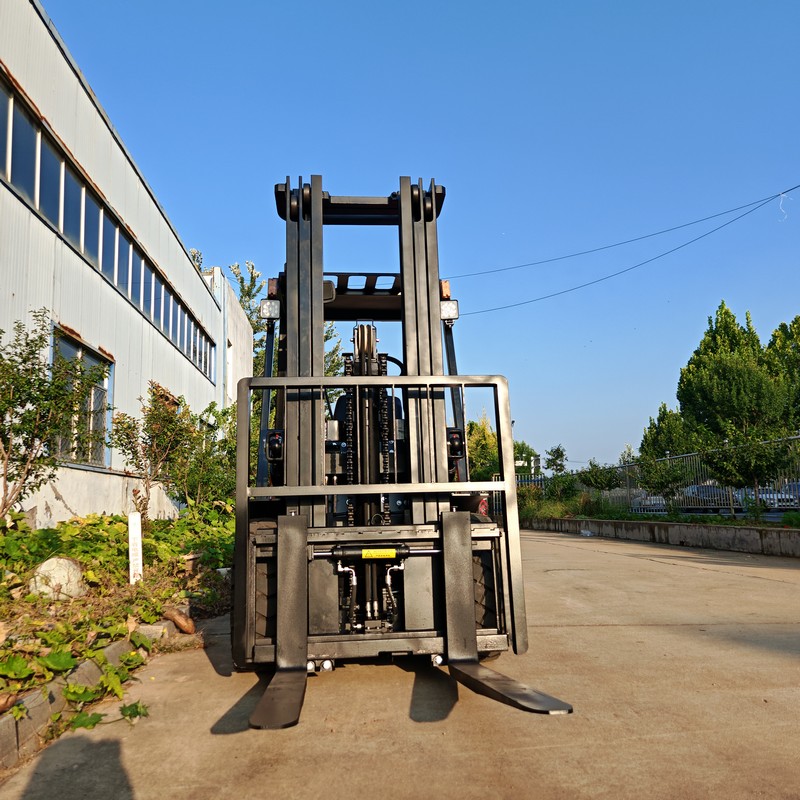

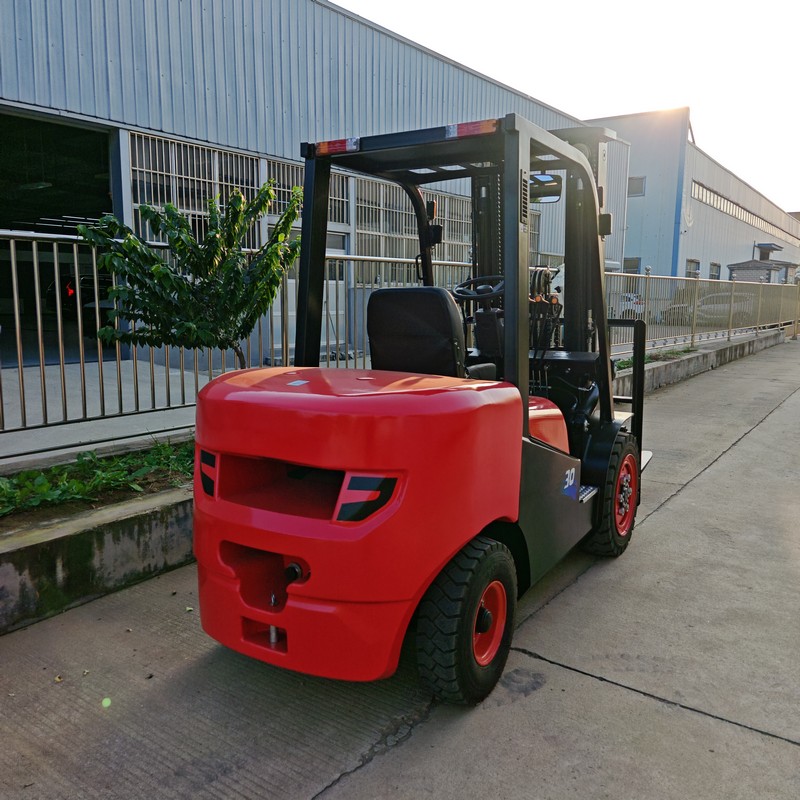

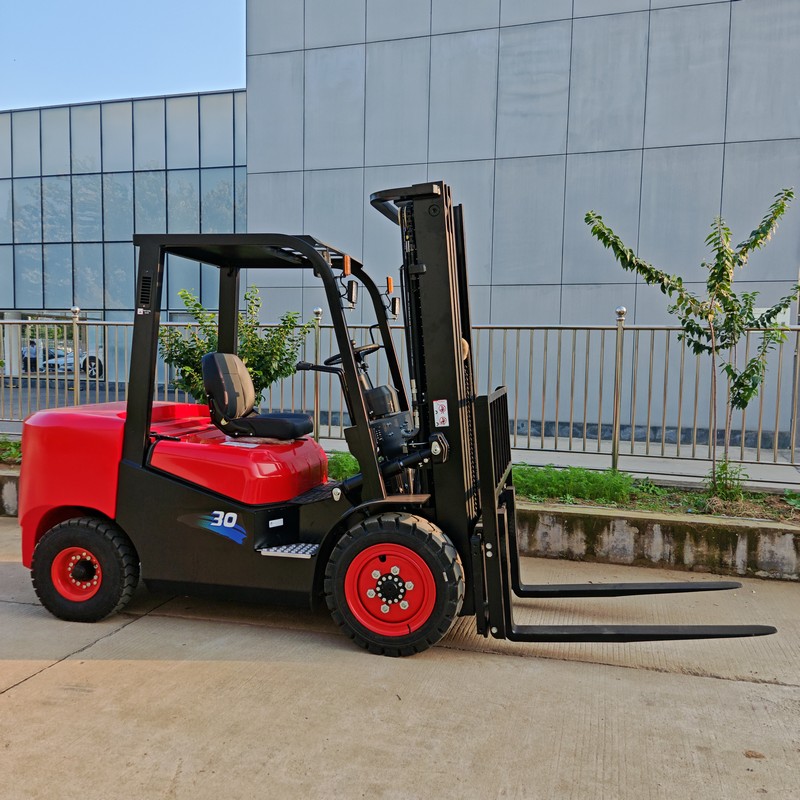

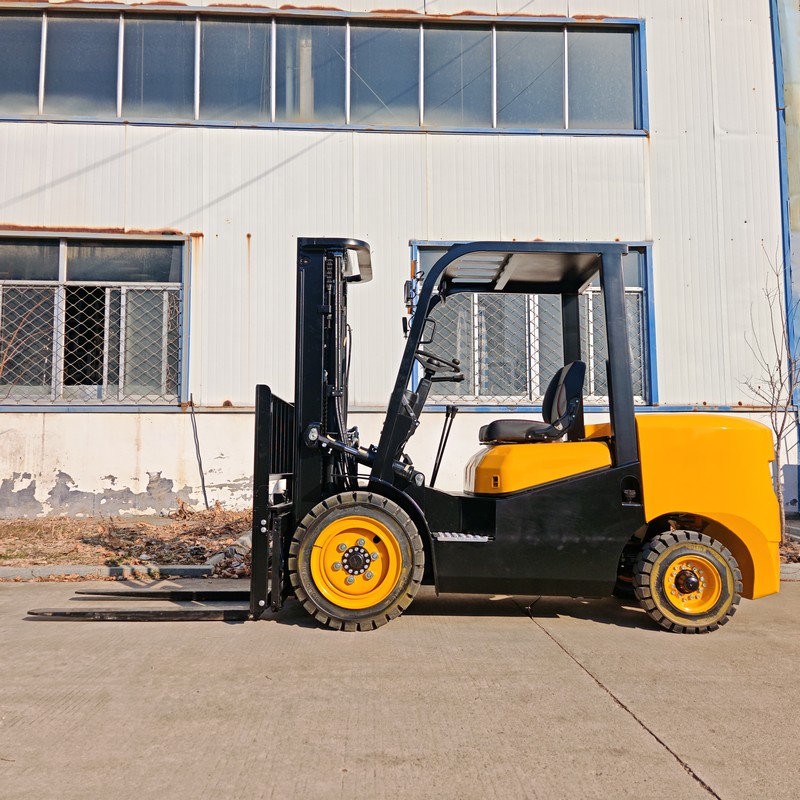

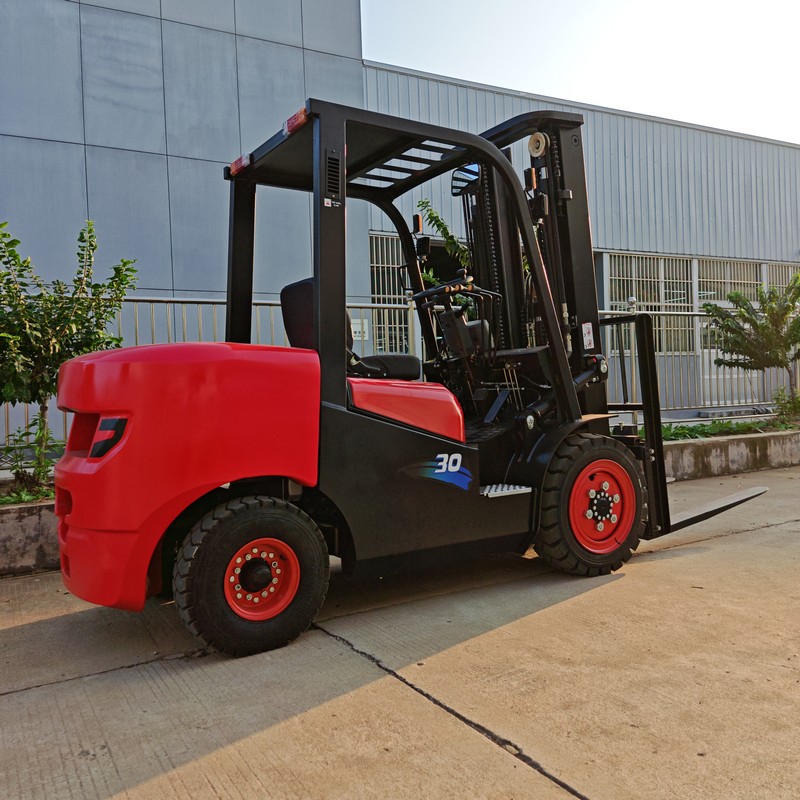

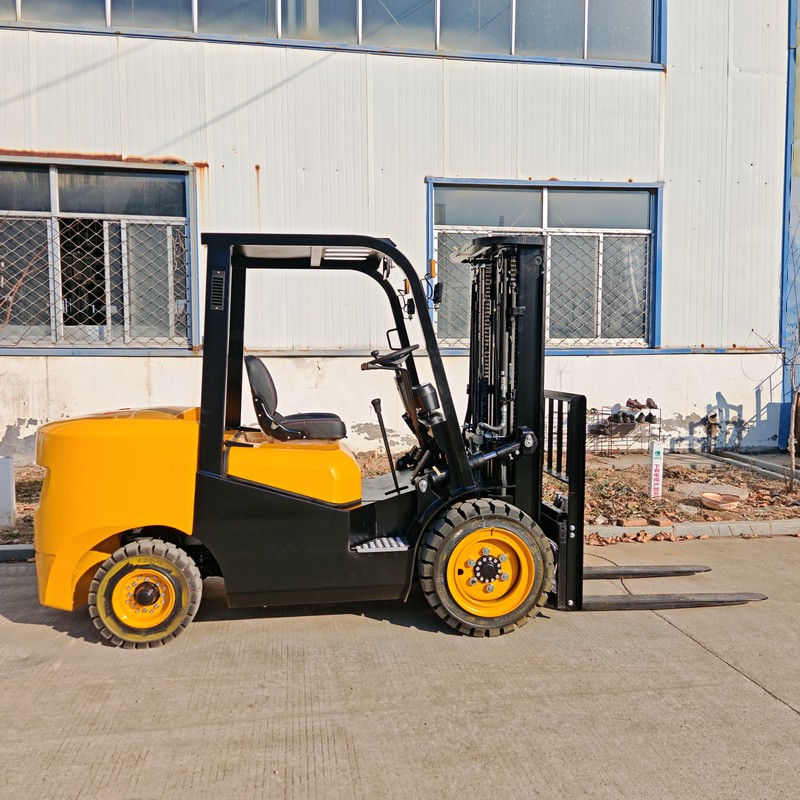

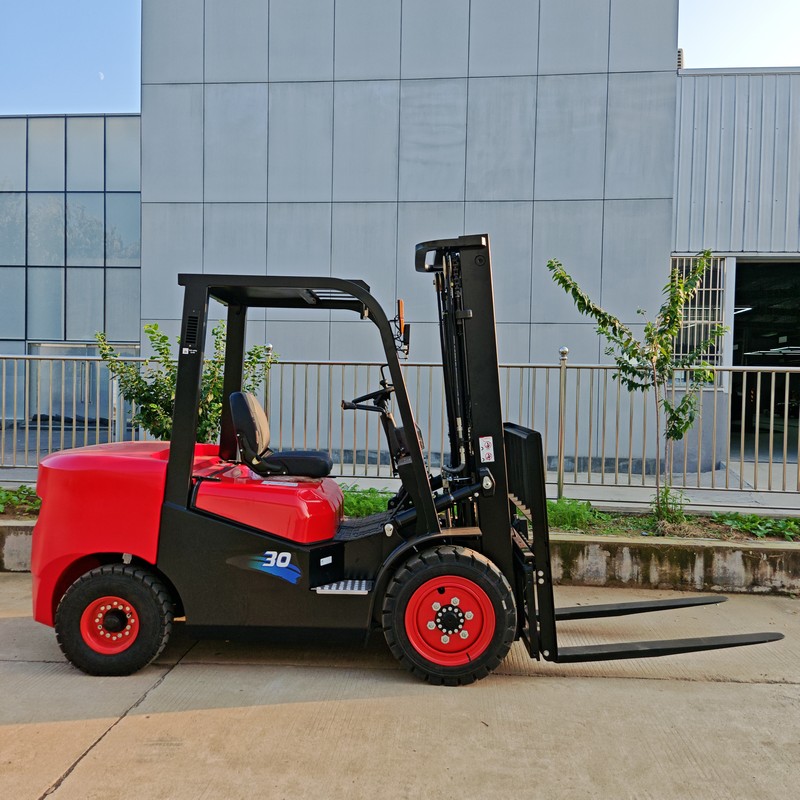

3T Diesel Forklift
1. 3-ton diesel forklift: workhorse of industrial handling
2. Ideal for medium & heavy-duty applications
3. 3-ton capacity + 10%-15% overload margin: efficiency boosted
4. Large-displacement diesel engine: strong power output
5. Reliable in complex terrain & extreme temperatures
6. Reinforced frame: durable, low maintenance cost
7. Fast refueling for non-stop operation
8. Compact turning radius for easy maneuvering
9. Optional attachments for multi-process coverage
10. Cost-effective & highly flexible

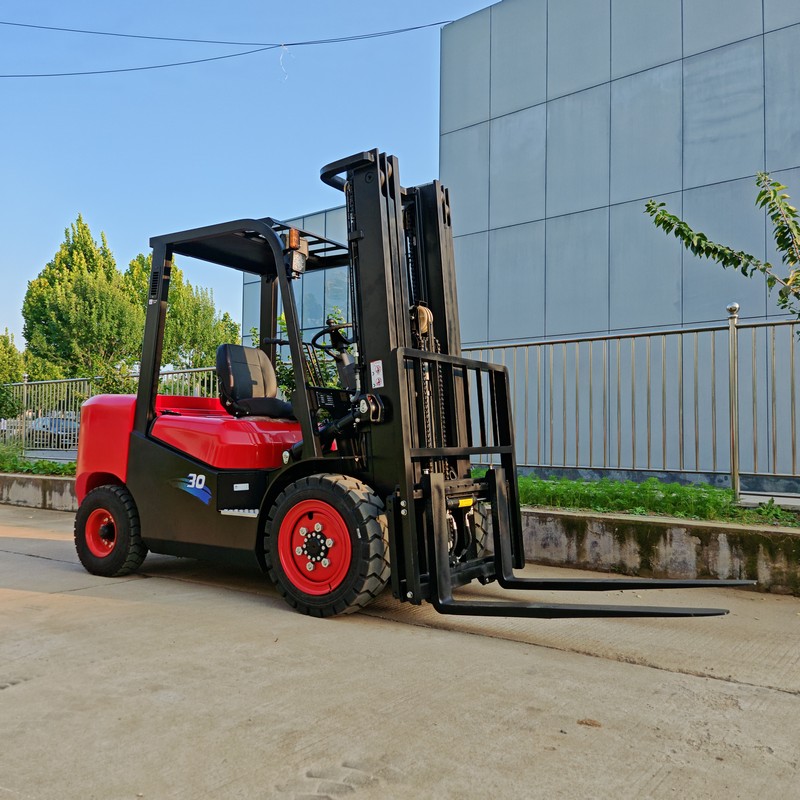

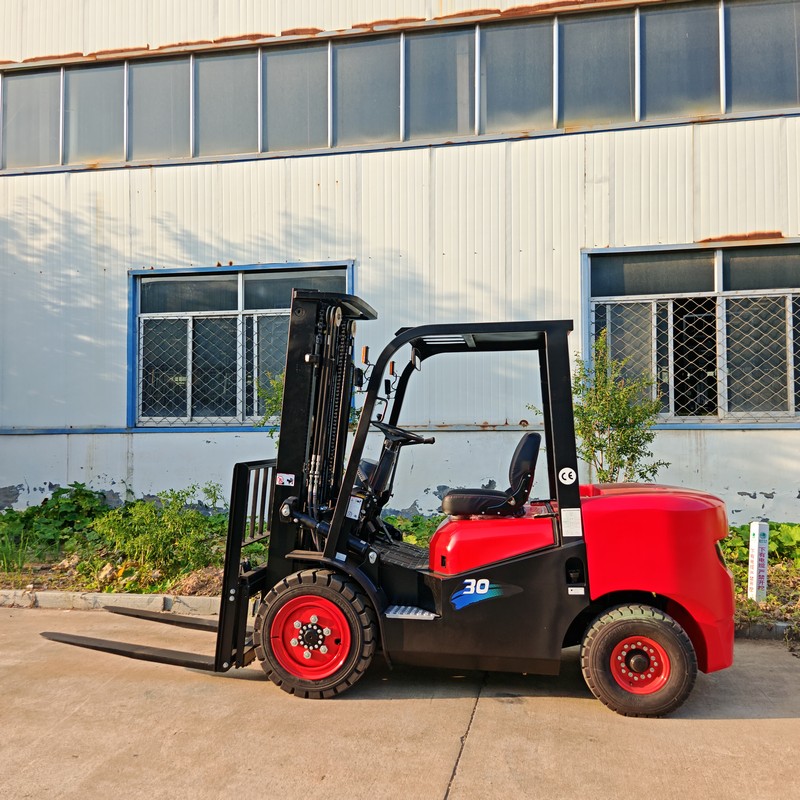

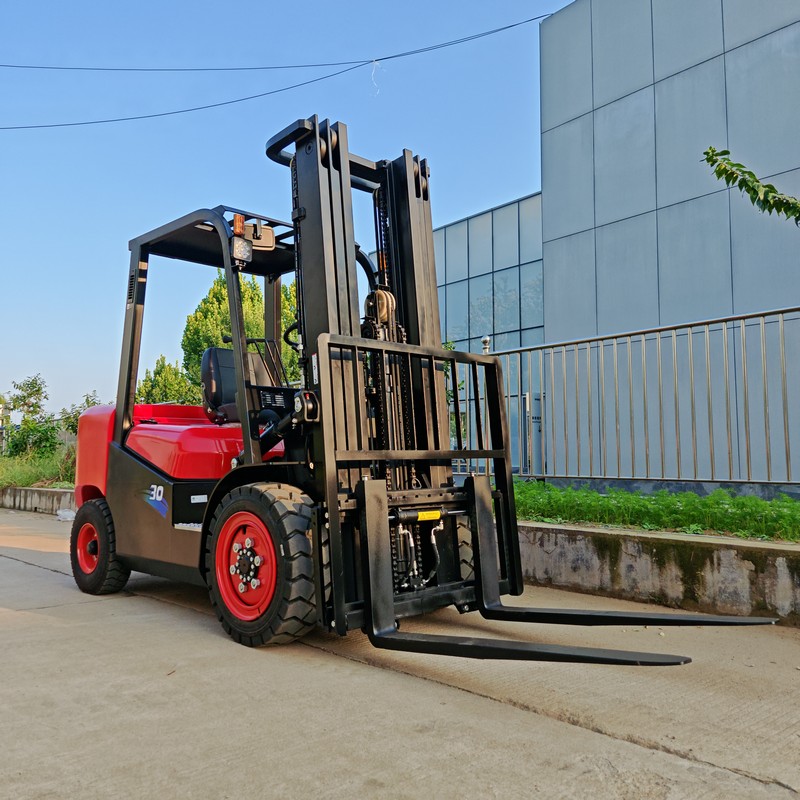

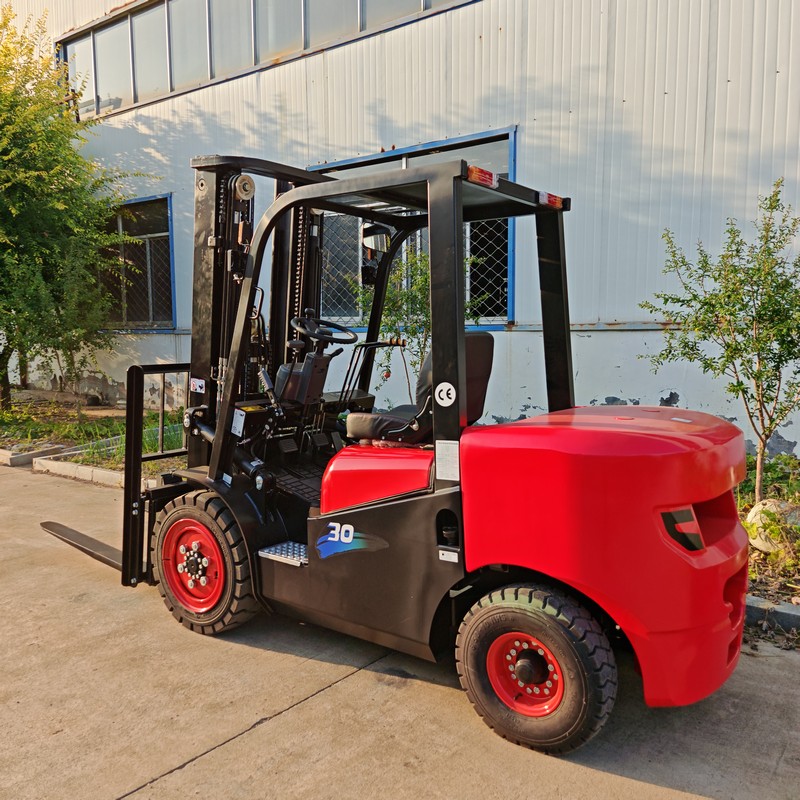

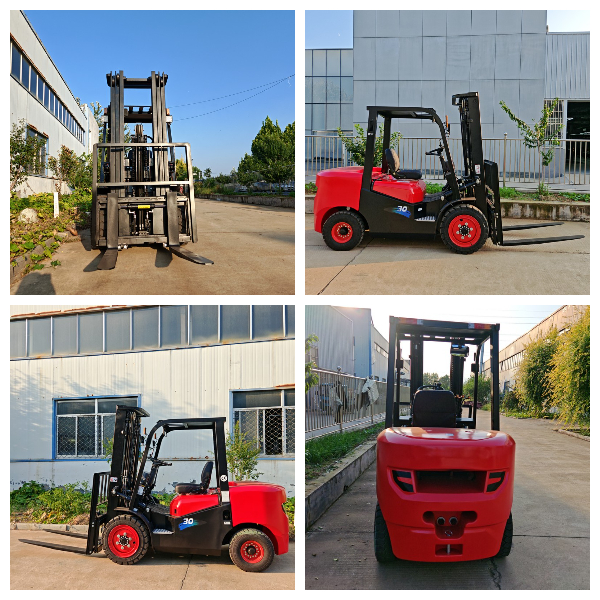

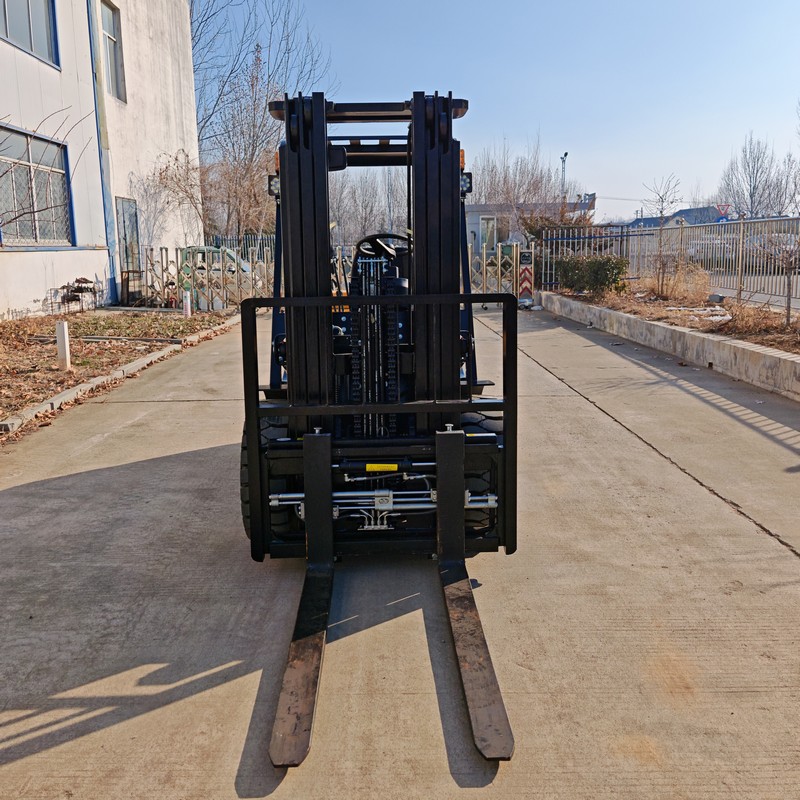

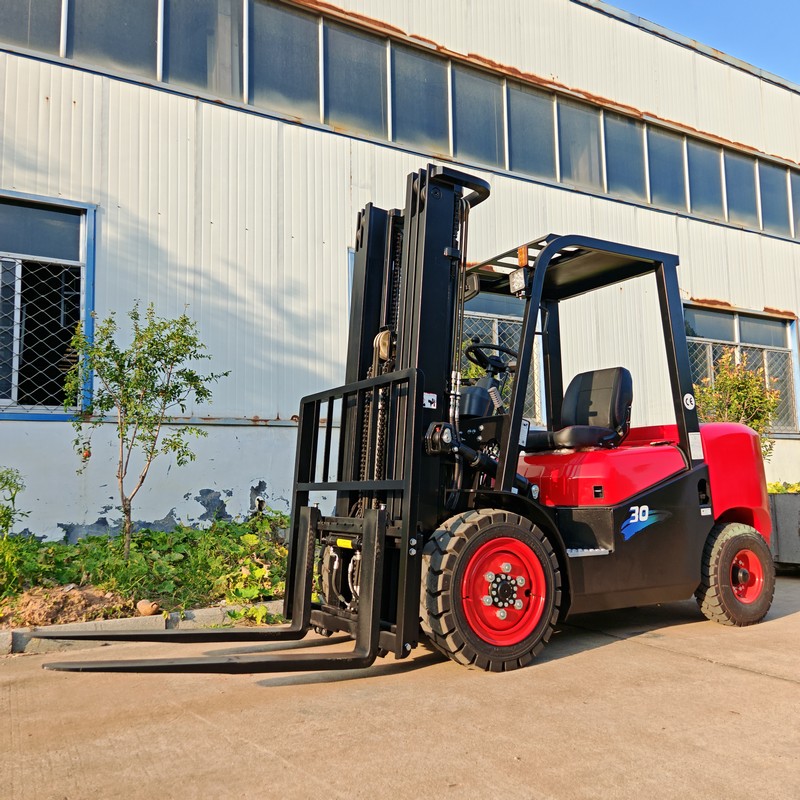

3-Ton Diesel Forklift: The Industrial “Workhorse” — Balanced Power, Efficiency & Value
Widely used in manufacturing, ports, building material storage, and logistics hubs, the 3-ton diesel forklift is the go-to for medium-heavy handling—balancing efficiency, stability, and cost. Its core strengths span five key areas:
1. Strong Load Capacity for Heavy Tasks
Rated 3 tons, it handles heavy pallets, large parts, and building panels with ease. The extra 0.5 tons vs. 2.5-ton models cuts trips by 15%–20% and adds a 10%–15% overload buffer—no stops from capacity limits on ramps or surges.
2. Powerful Drive for Complex Terrain
High-displacement diesel delivers high low-RPM torque, climbing 20°+ fully loaded (vs. lighter models). Hits 22 km/h unloaded / 15 km/h loaded, speeding transfers in warehouses/yards. Reliable from –20 ℃ to 45 ℃, it runs all-weather nonstop.
3. Durable Build, Low Maintenance Costs
Thickened steel frame + high-strength alloy mast last 30%+ longer (fatigue-tested). Mature diesel = few faults. Routine upkeep (oil/filters ≈¥150/service) slashes annual costs 40%+ vs. electric. 5-min refuel = all-day work, +25% utilization.
4. Agile & Expandable
Compact-yet-stable with 2.8 m turning radius fits aisles/racks. Works with side shifters, clamps, rotators for pipes, coils, odd shapes. Single machine does loading, stacking, transfer, sorting—cuts equipment spend.
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC30/CPCD30 | ||
| Rated Capacity | kg | 3000 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450/440 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 18/20 | ||
| Max. Towing Capacity (Full-Load / No-Load) | kN | 15.5/10.5 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 80 | ||
| Mast Tilting Angle (Forward-Backward) | （°） | 6/12 | ||
| Min. Turning Radius | mm | 2530 | ||
| Min.Right Angle Aisle Width | mm | 2050 | ||
| Min. Ground Clearance | mm | 135 | ||

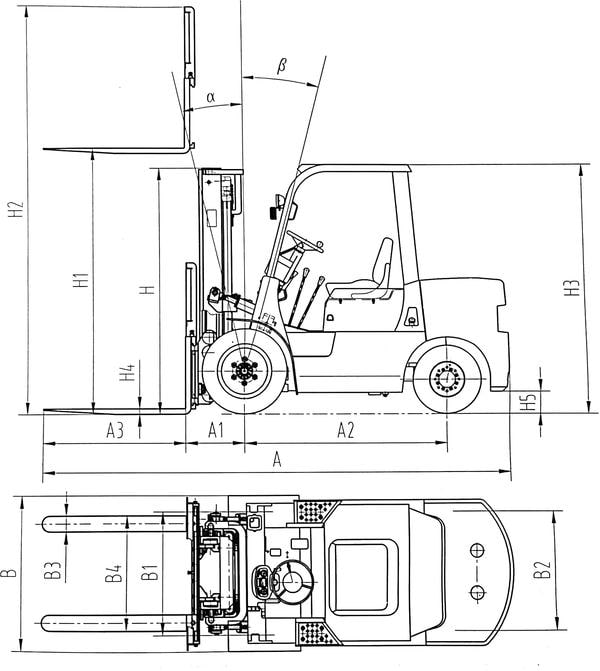

| Dimensions | Overall Length (Including Fork) | (A) | mm | 4170 |
| Overall Width | (B) | mm | 1230 | |
| Overall Height (Mast Lowered) | (H) | mm | 2110 | |
| Overall Height (Mast Extended) | (H2) | mm | 4270 | |
| Overall Height to Overhead | (H3) | mm | 2105 | |
| Front Overhang | (A1) | mm | 465 | |
| Wheelbase | (A2) | mm | 1760 | |
| Front Tread | (B1) | mm | 1000 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | mm | 28*9-15 | |
| Rear Wheel | mm | 6.50-10 | ||
| Fork | Fork Width | (B3) | mm | 122 |
| Fork Thickness | (H4) | mm | 45 | |
| Backrest Height | mm | 1225 | ||
| Fork Length | (A3) | mm | 1220 | |
| Engine | Engine Model | XINCHAI C490BPG | ||
| Rated Power | kW | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | ||
| Max. Torque | Nm | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800～1900 | ||
| Type of Power Shift | Mechanical/Hydraulic | |||
| Curb Weight | kg | 4100 | ||
Optional

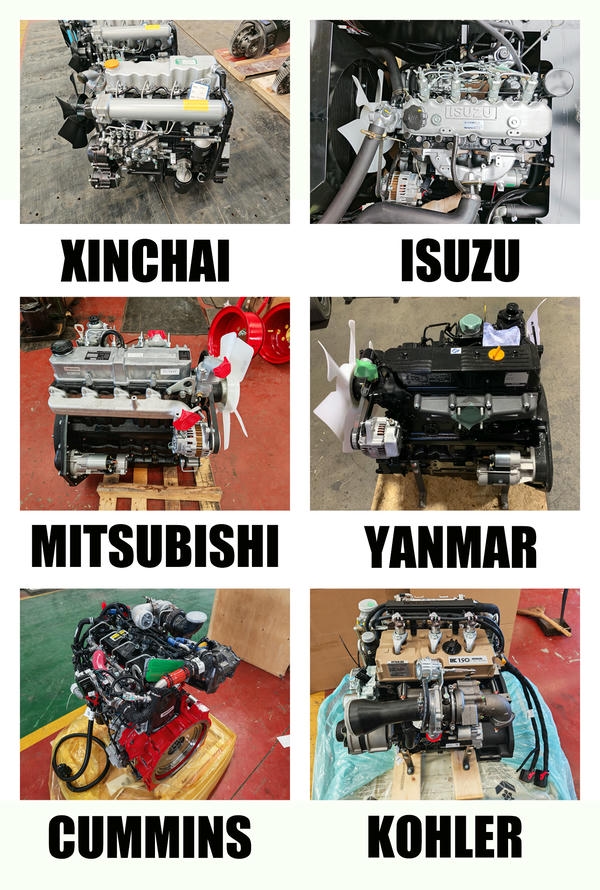

1. Engine：
•Standard: Xinchai
•Optional: ISUZU (Japan), Mitsubishi (Japan), KUBOTA (Japan), YANMAR(Japan), Kohler (USA), Cummins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard: 1220mm fork
•Optional: 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

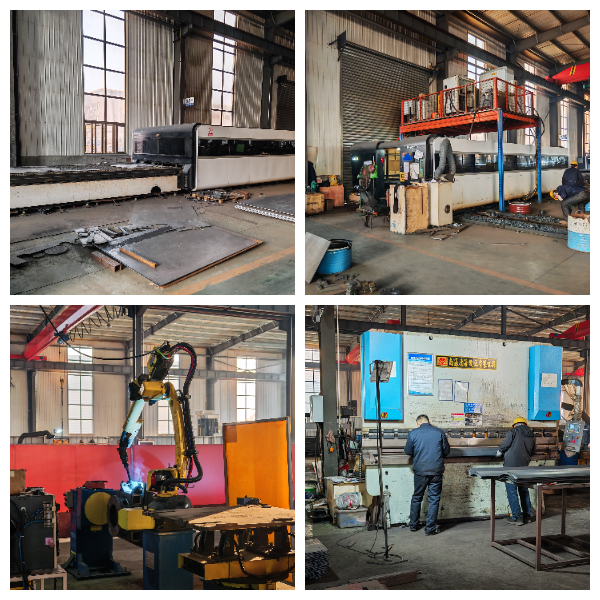

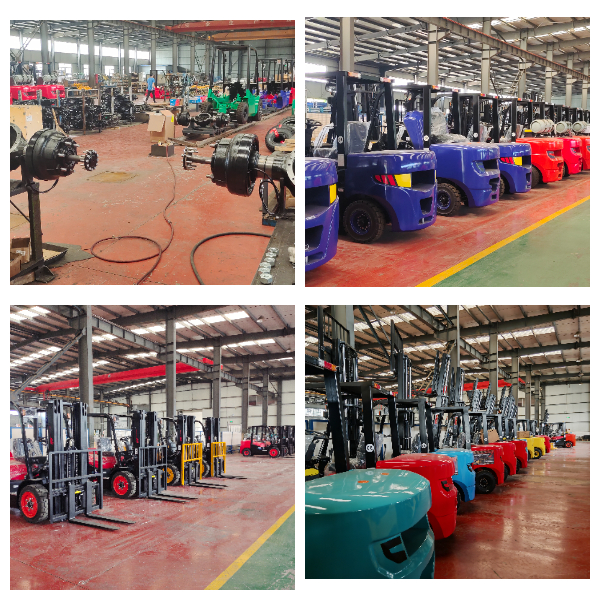

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.
All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
