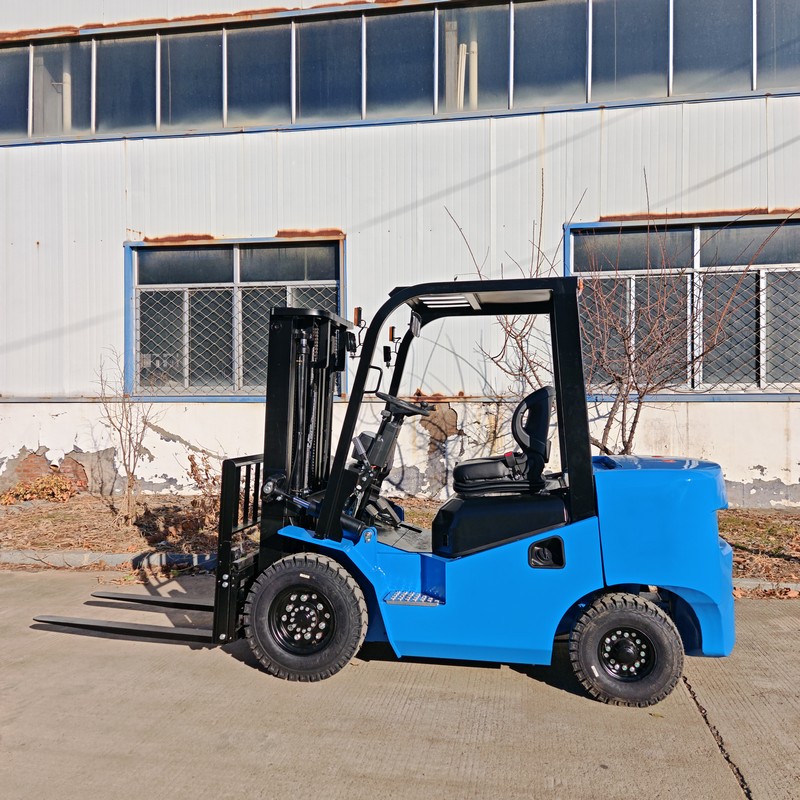

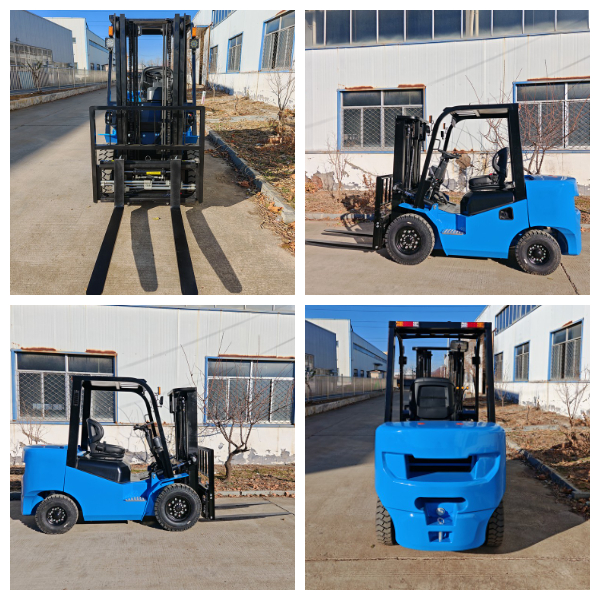

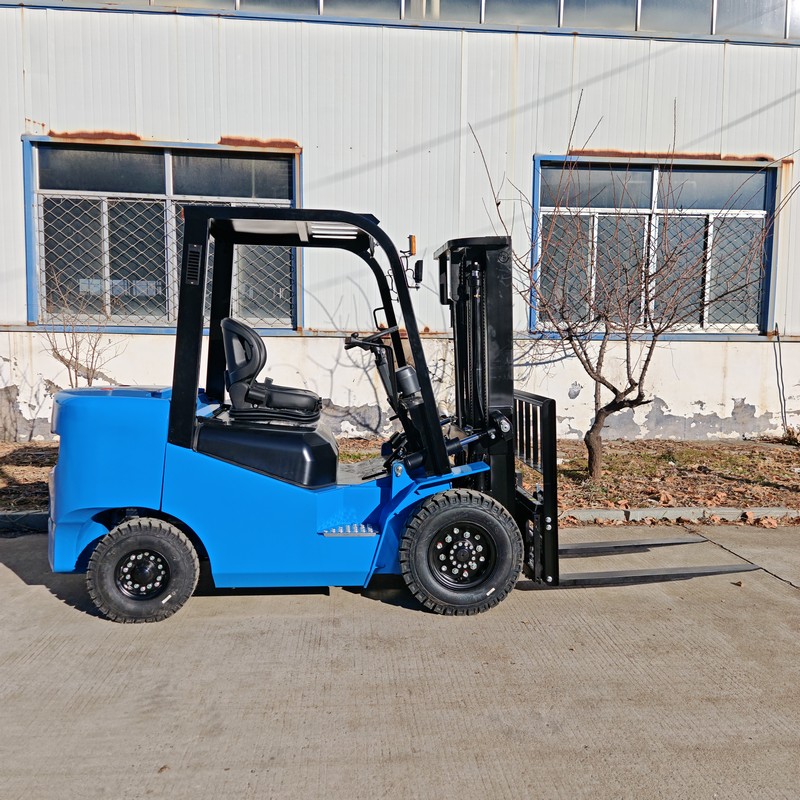

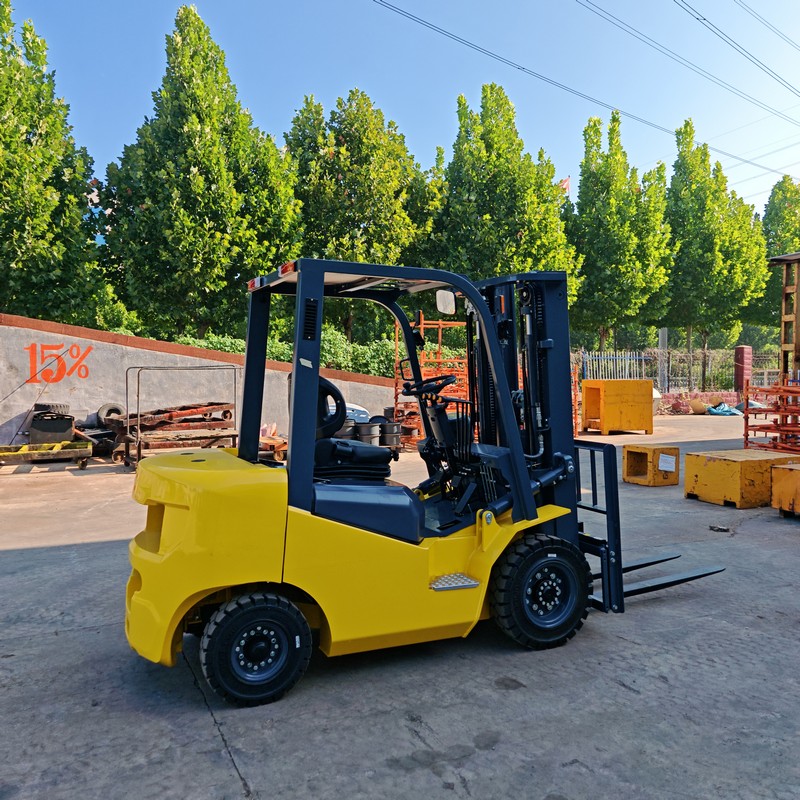

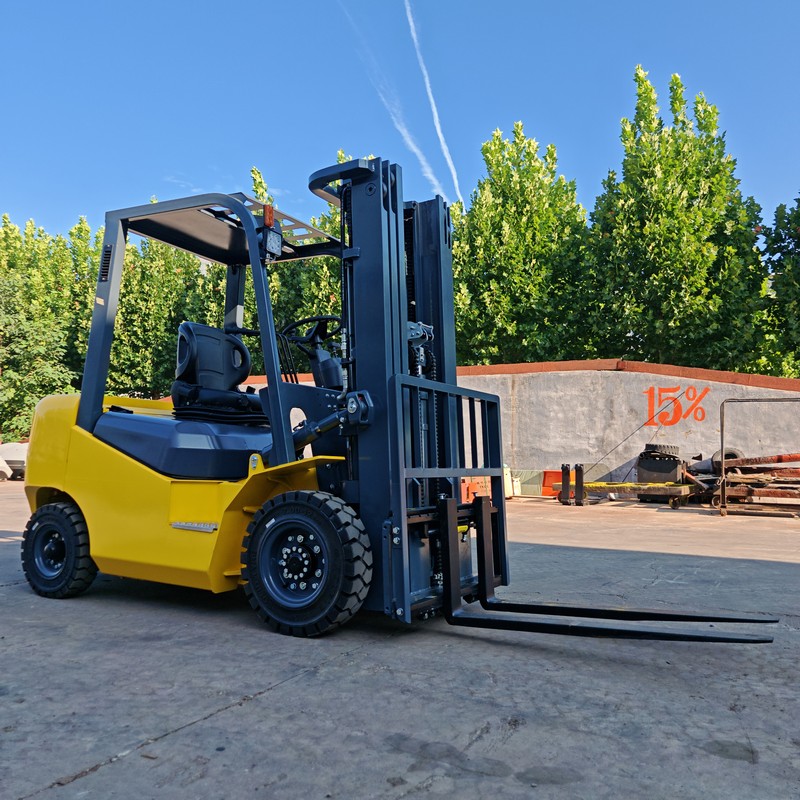

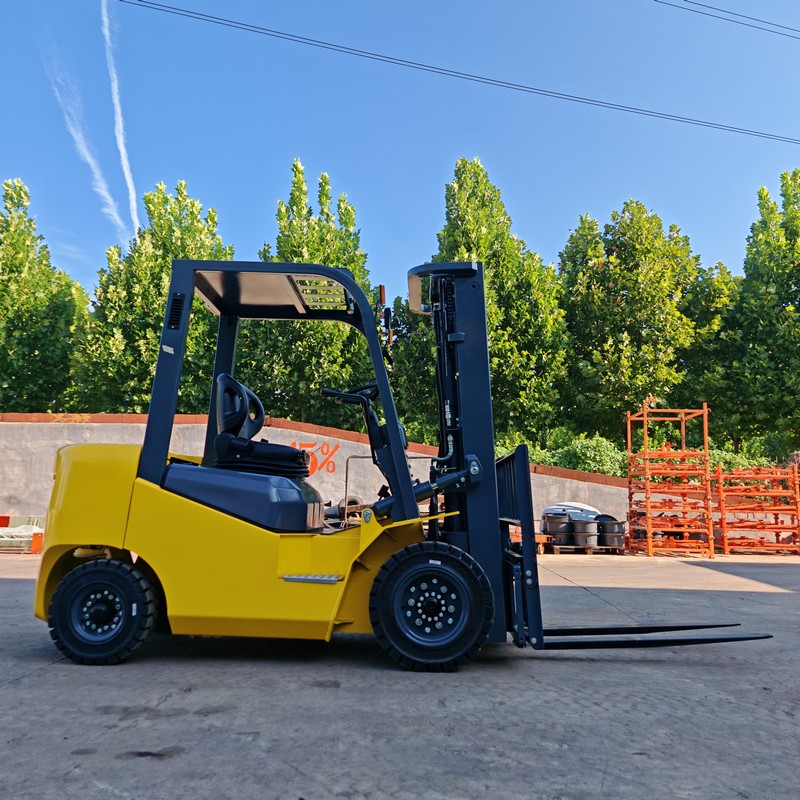

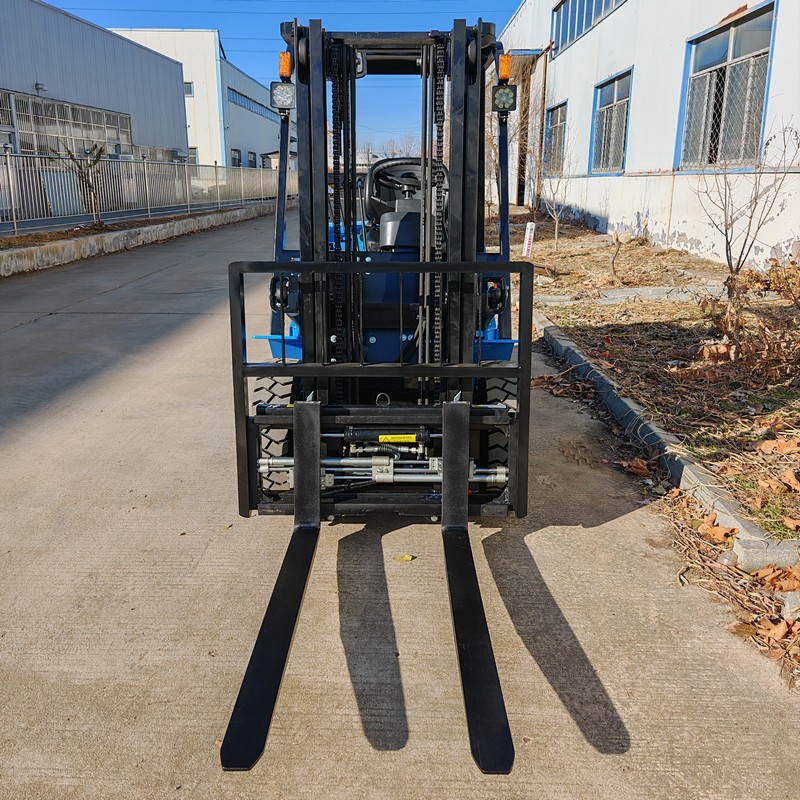

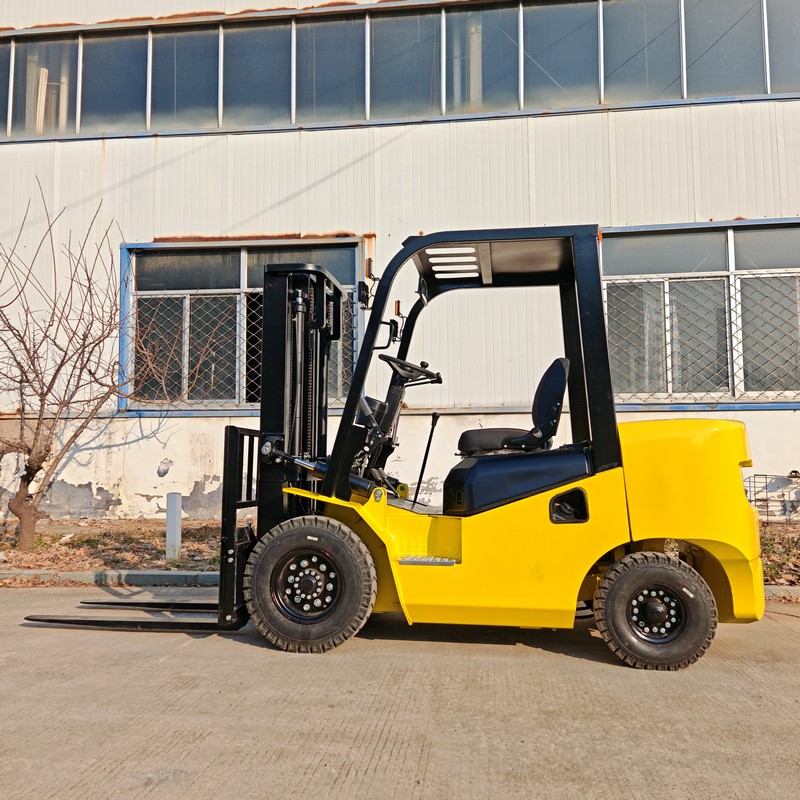

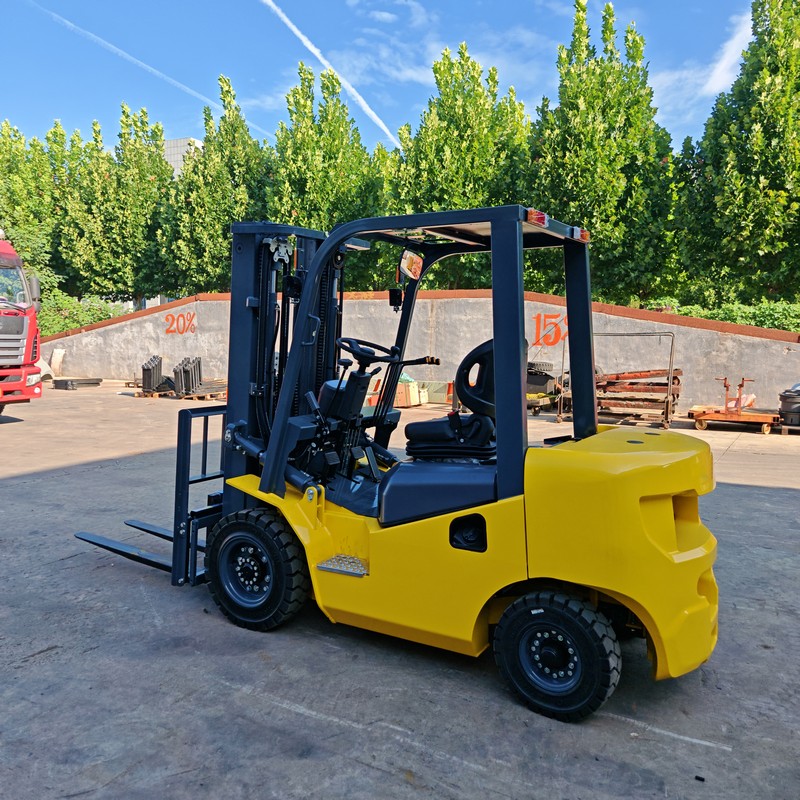

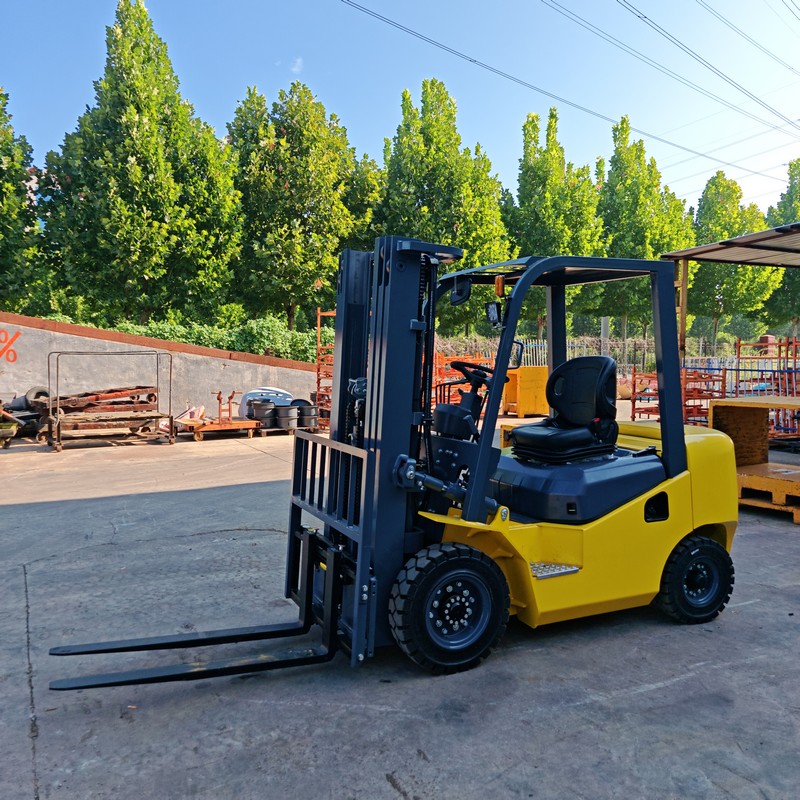

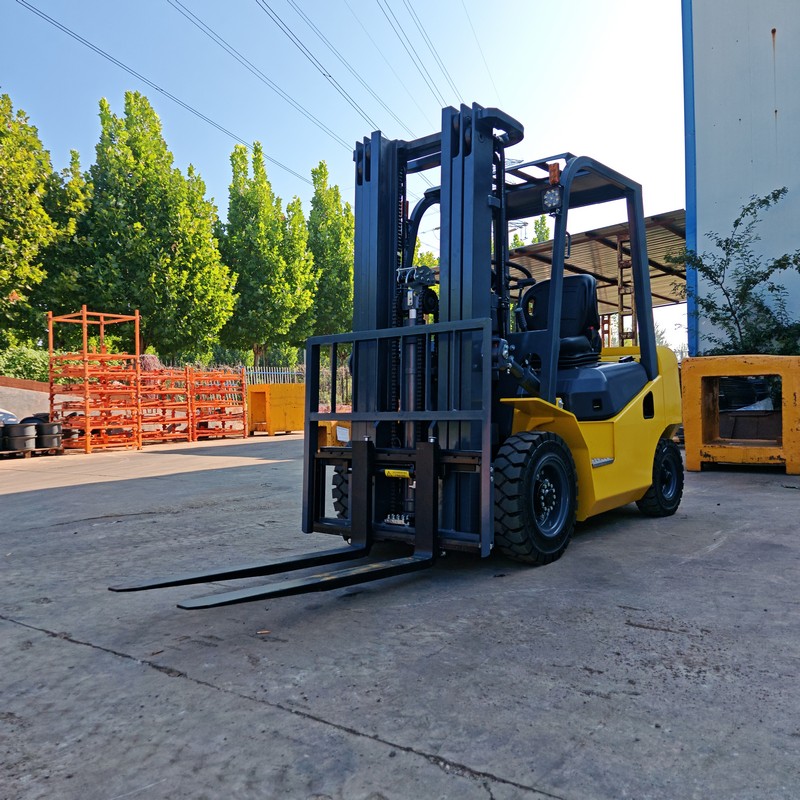

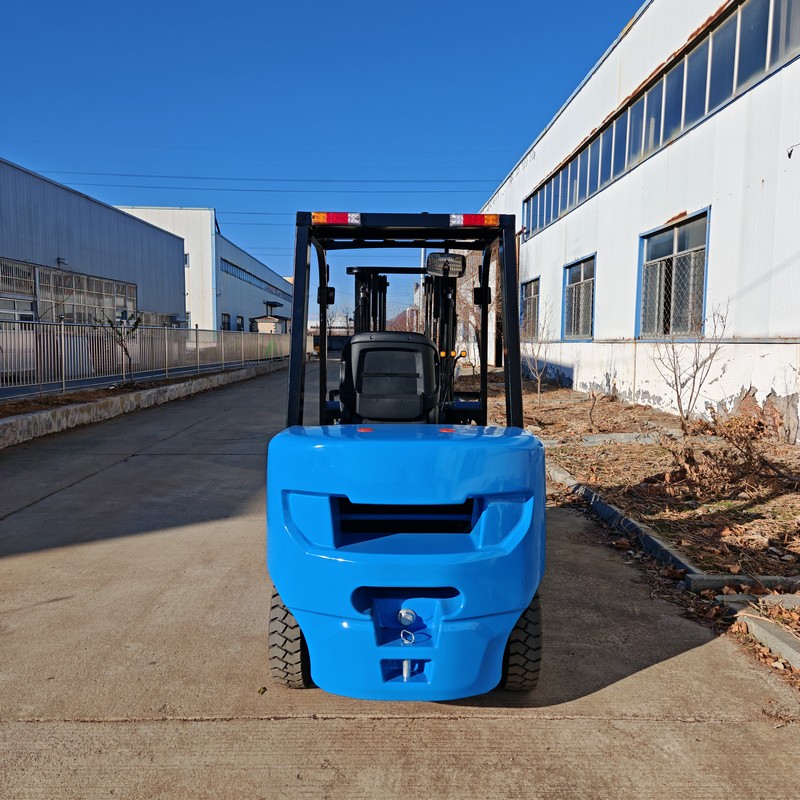

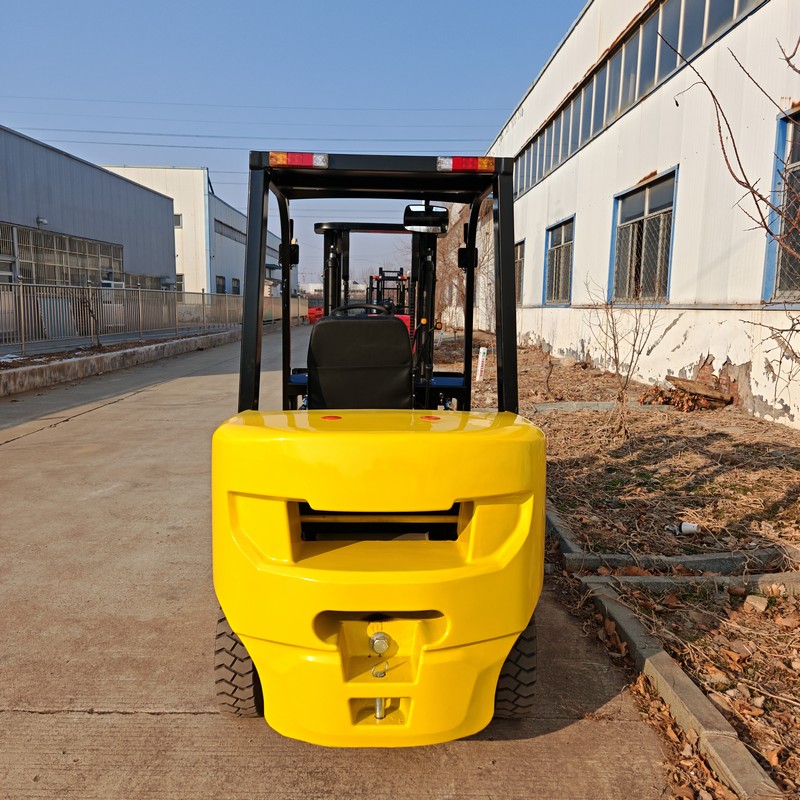

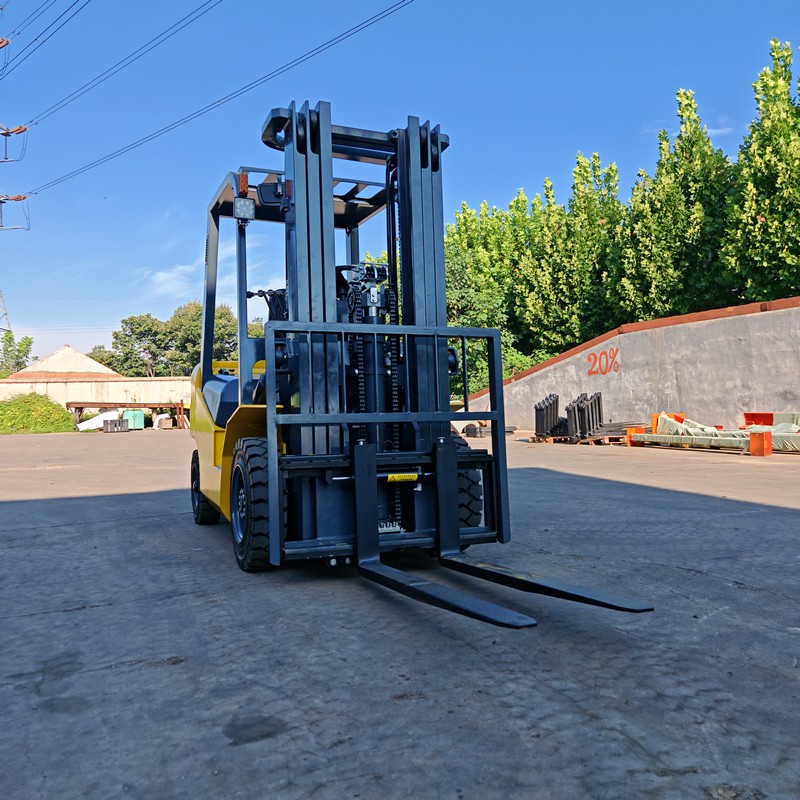

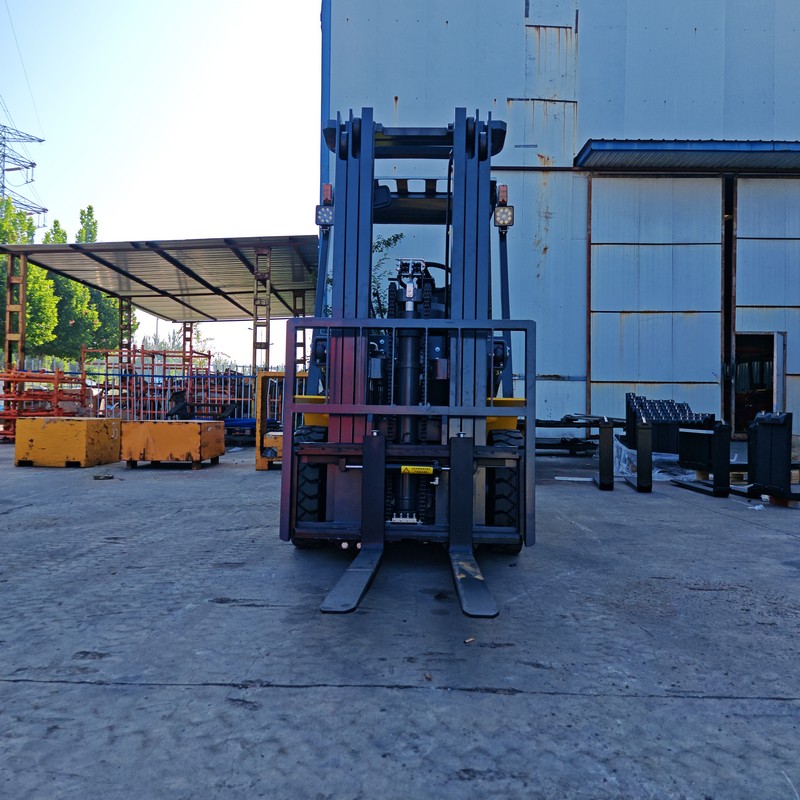

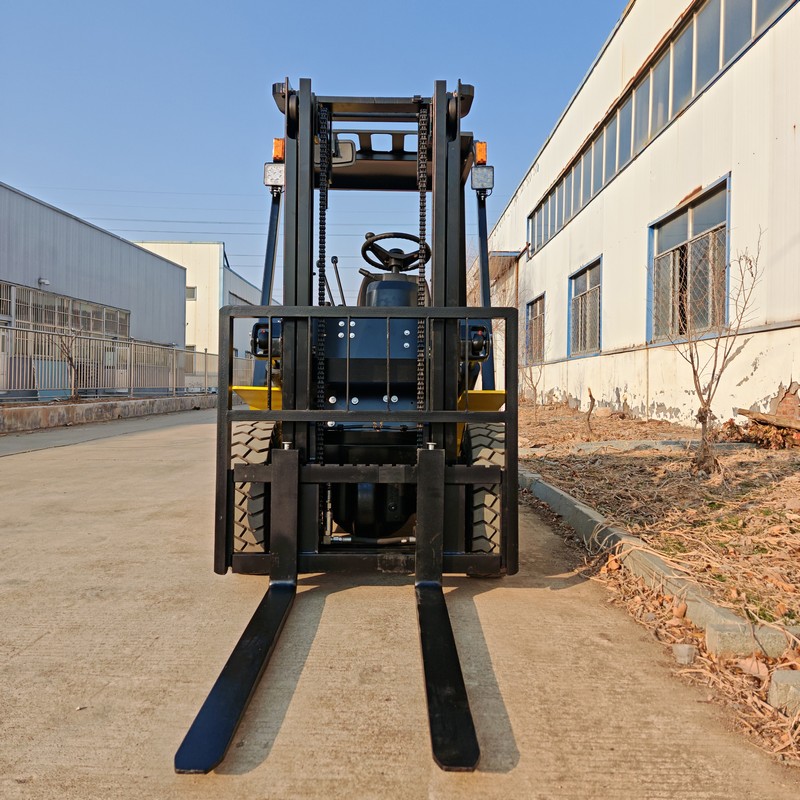

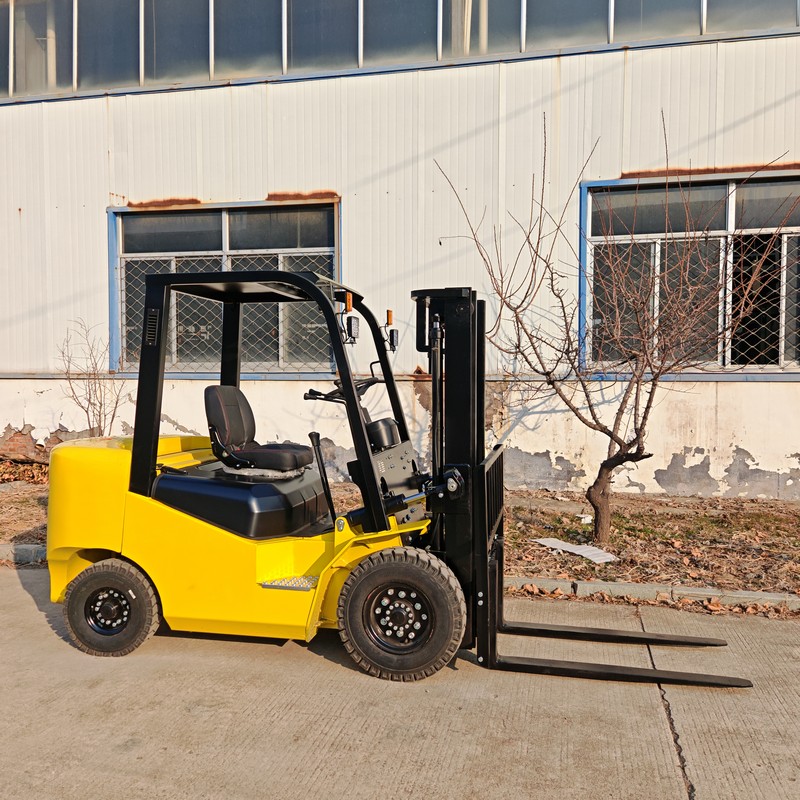

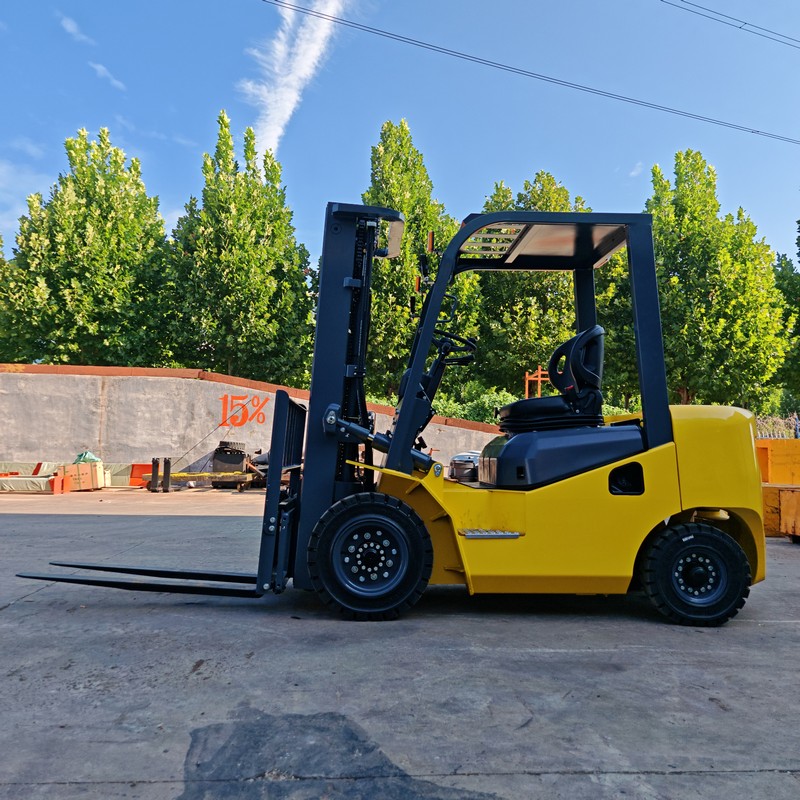

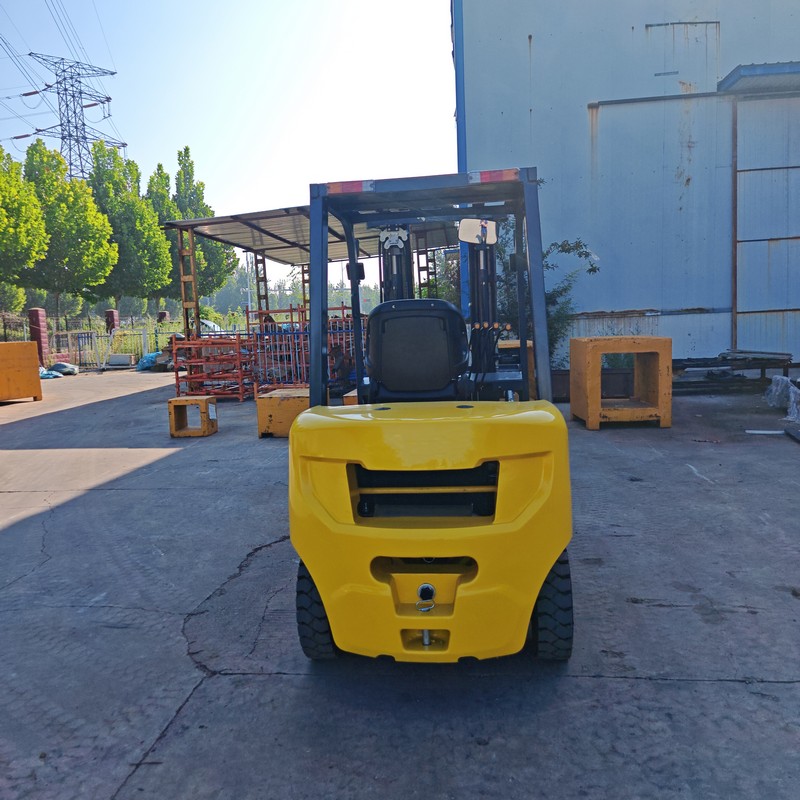

2.5T Diesel Forklift
2.5t Diesel Forklift
Best Choice for Medium-load Operations: Balanced Load Capacity, No Power Wastage
Powerful performance: Steady climbing at 15°, non-stop operation from -15℃ to 40℃
Cost-effective purchase & maintenance: Lower cost than electric forklifts; 5-minute refueling for a full day's work
Compact & flexible: Compatible with multiple attachments; one machine handles loading, stacking & transferring
2.5-Ton Diesel Forklift: The Gold Standard for Medium-Duty Handling, the Smart Choice for Balanced Performance
In medium-duty operational scenarios such as warehousing, logistics, and manufacturing, the 2.5-ton diesel forklift, with its precise positioning of "bridging the gap," has become the preferred material handling solution for many businesses. It offers a greater load-bearing margin than 2-ton models while avoiding the excess power of 3-ton models, embodying the philosophy of "just right" with its balanced capabilities.
Load-Bearing Advantage: Effortless Performance
With a rated load capacity of 2.5 tons, it meets the vast majority of industrial handling needs—from standard palletized goods to medium-sized equipment parts. Compared to 2-ton models, the additional 0.5-ton margin ensures greater operational safety, allowing it to handle occasional overloads or inclined surfaces with stable performance, avoiding the inefficiency of an underpowered machine. At the same time, compared to 3-ton models, it prevents power wastage and excessive fuel consumption, truly realizing the smart choice of "matching power to demand."
Powerful and Efficient
Equipped with a high-efficiency diesel engine, it delivers robust torque even at low RPMs, with a full-load climbing capability exceeding 15° and a no-load speed of up to 20 km/h. Its ability to swiftly navigate between warehouses and workshops significantly enhances per-task efficiency. The mature and reliable diesel power system ensures stable performance across temperatures ranging from -15°C cold storage to 40°C high-temperature workshops, enabling uninterrupted all-weather operation.
Economical and Cost-Effective
With a purchase cost over 30% lower than electric forklifts of the same tonnage, it eliminates concerns about battery degradation and replacement expenses. Daily fuel consumption is economical—operating 8 hours a day uses approximately 10-12L of fuel, with just 5 minutes of refueling providing all-day runtime. Maintenance is straightforward, with routine servicing costing under a hundred yuan, and annual upkeep expenses are more than 50% lower than electric models. This makes it particularly suitable for small and medium-sized enterprises with limited budgets but a focus on long-term returns.
Flexible and Versatile
Its compact design and small turning radius allow for easy maneuvering in narrow aisles and dense racking. With optional attachments, it effortlessly handles goods of various shapes, covering the entire workflow of loading, unloading, stacking, and transporting with a single machine, significantly improving equipment utilization.
Choosing the 2.5-ton diesel forklift means opting for practical wisdom—sufficient, reliable, and durable. With its balanced performance, it powers every efficient move.
2.5T Diesel Forklift Technical Specifications
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC25/CPCD25 | ||
| Rated Capacity | kg | 2500 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 400 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 17/19 | ||
| Max. Towing Capacity (Full-Load / No-Load) | kN | 15/10 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 60 | ||
| Mast Tilting Angle (Forward-Backward) | (°) | 6/12 | ||
| Min. Turning Radius | mm | 2450 | ||
| Min.Right Angle Aisle Width | mm | 2050 | ||
| Min. Ground Clearance | mm | 110 | ||

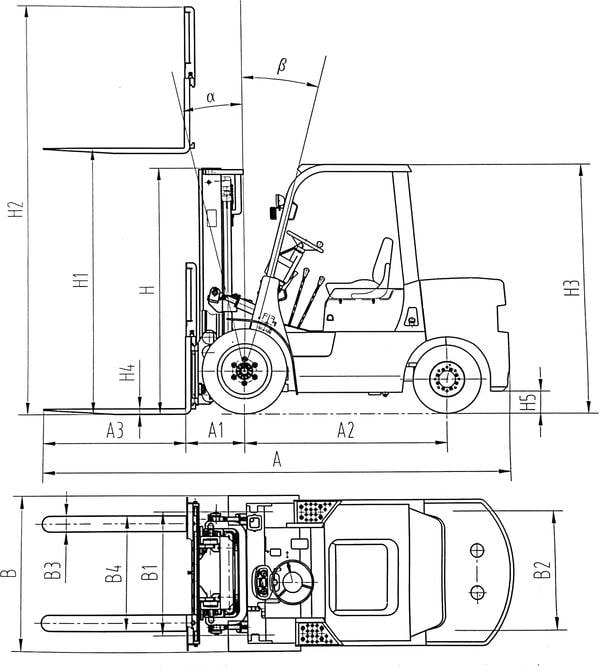

| Dimensions | Overall Length (Including Fork) | (A) | mm | 3820 |
| Overall Width | (B) | mm | 1160 | |
| Overall Height (Mast Lowered) | (H) | mm | 2095 | |
| Overall Height (Mast Extended) | (H2) | mm | 4080 | |
| Overall Height to Overhead | (H3) | mm | 2095 | |
| Front Overhang | (A1) | mm | 451 | |
| Wheelbase | (A2) | mm | 1640 | |
| Front Tread | (B1) | mm | 970 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | mm | 7.00-12 | |
| Rear Wheel | mm | 6.00-9 | ||
| Fork | Fork Width | (B3) | mm | 122 |
| Fork Thickness | (H4) | mm | 40 | |
| Backrest Height | mm | 1000 | ||
| Fork Length | (A3) | mm | 1070 | |

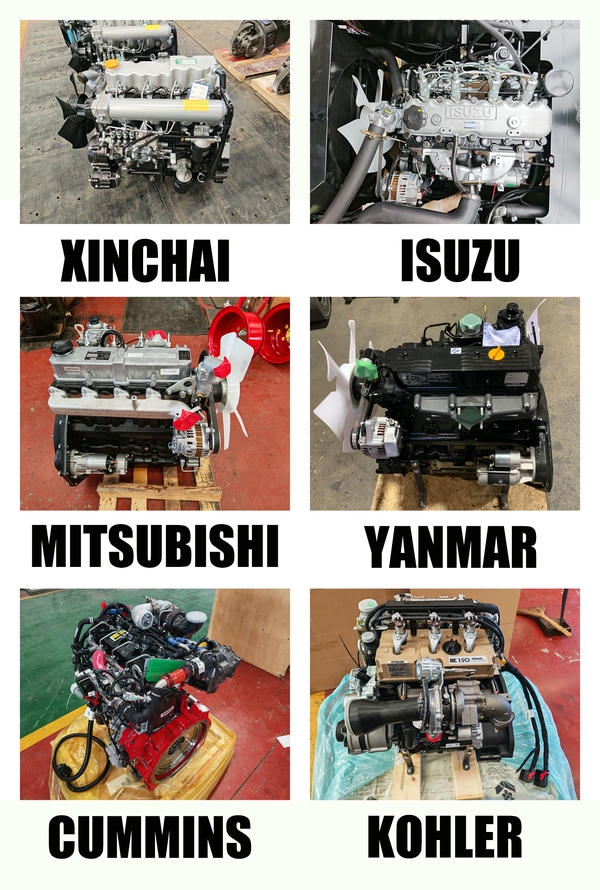

| Engine | Engine Model | XINCHAI C490BPG | ||
| Rated Power | Kw | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | ||
| Max. Torque | Nm | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800~1900 | ||
| Type of Power Shift | Mechanical/Hydraulic | |||
| Curb Weight | kg | 3170 | ||

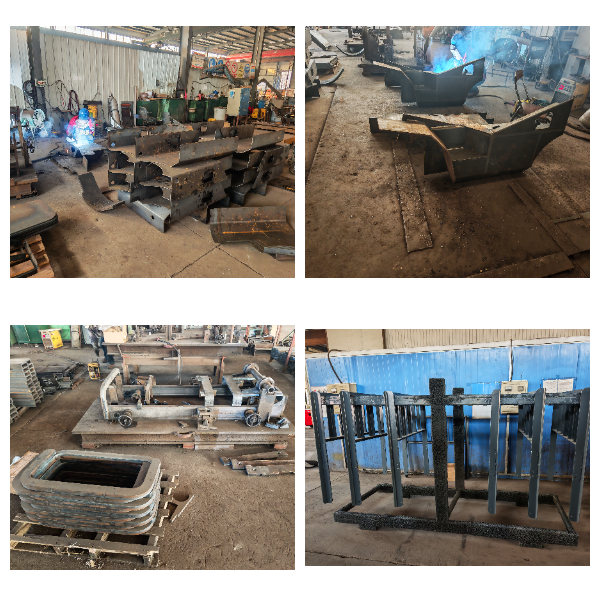

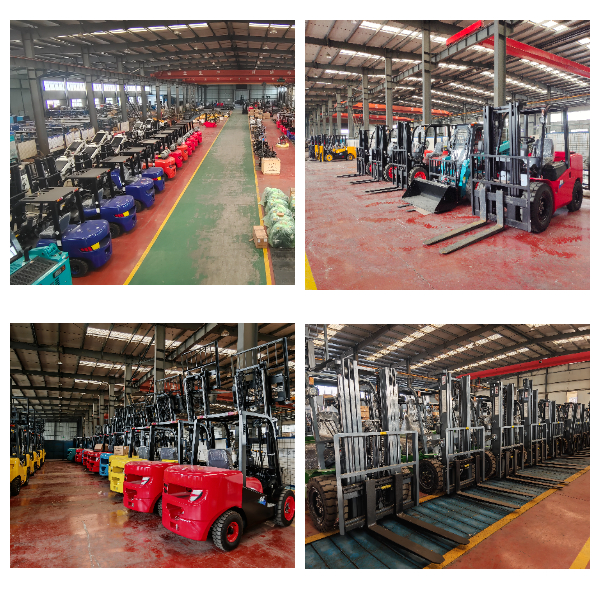

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.
All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
