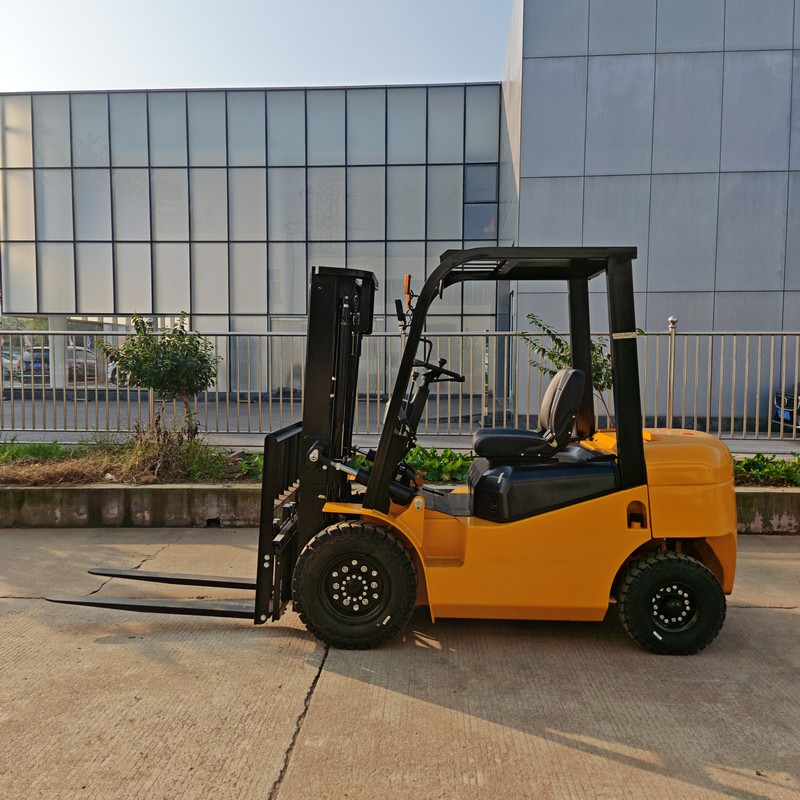

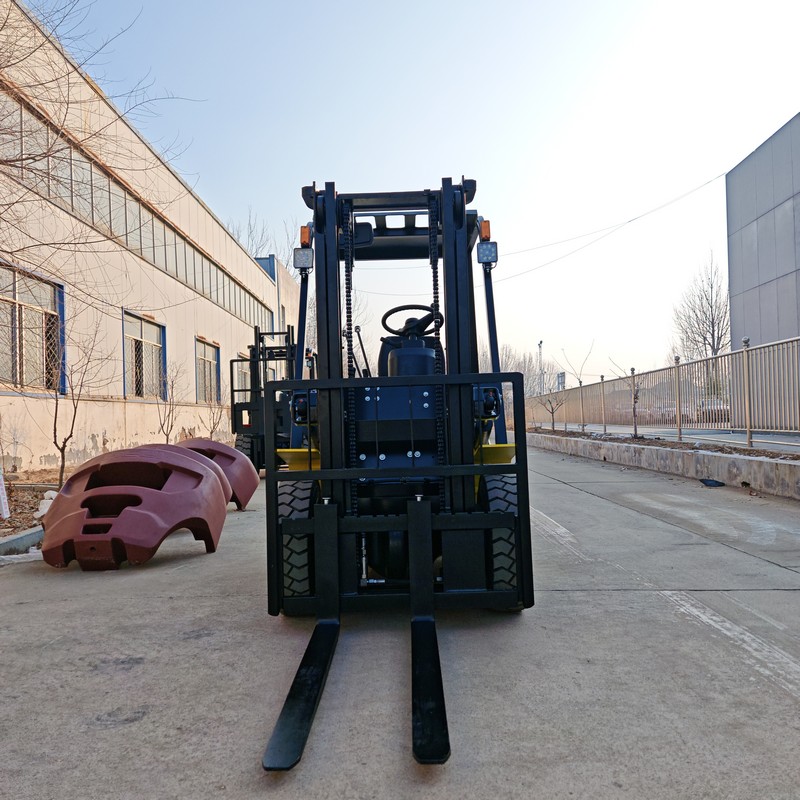

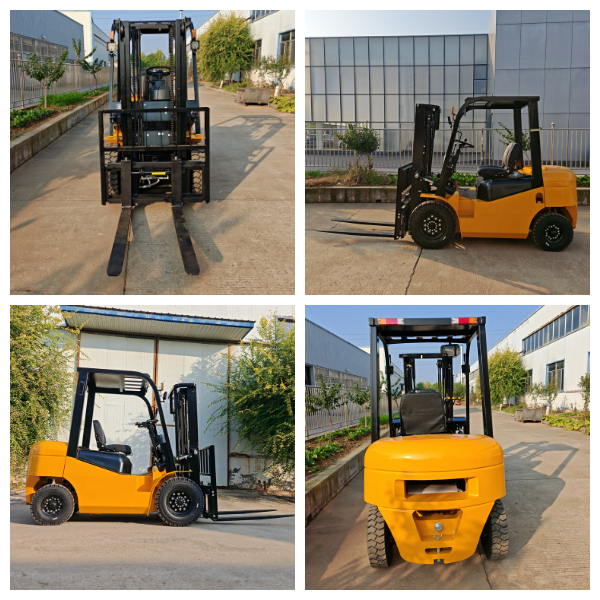

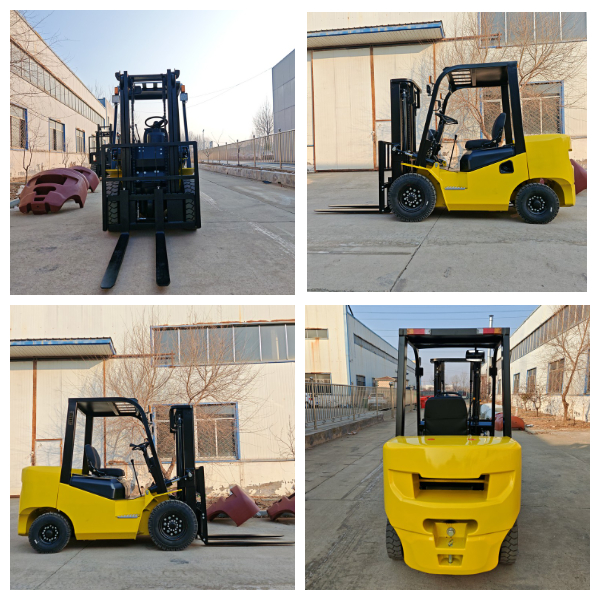

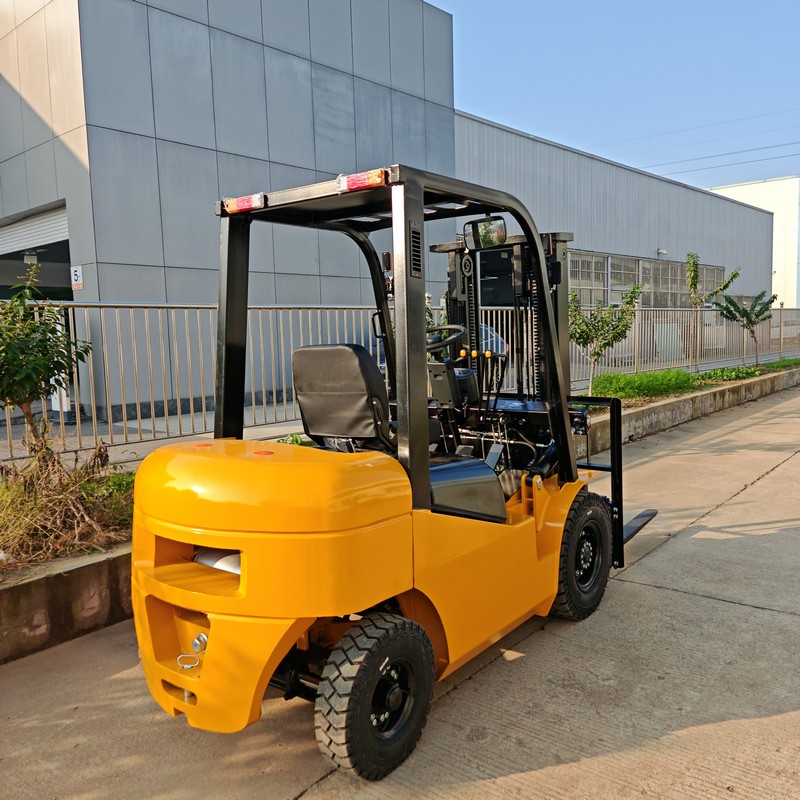

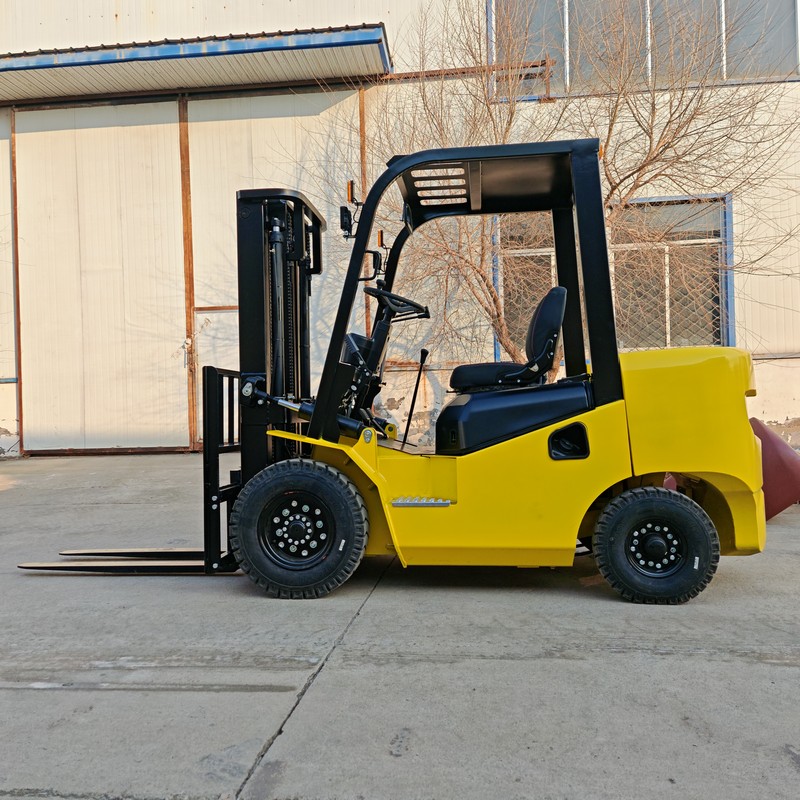

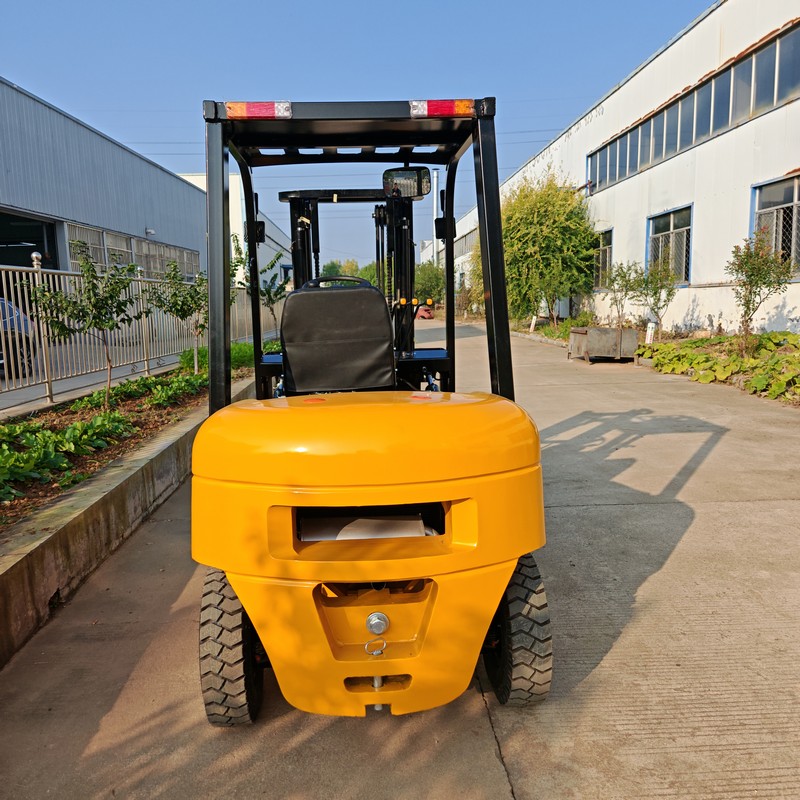

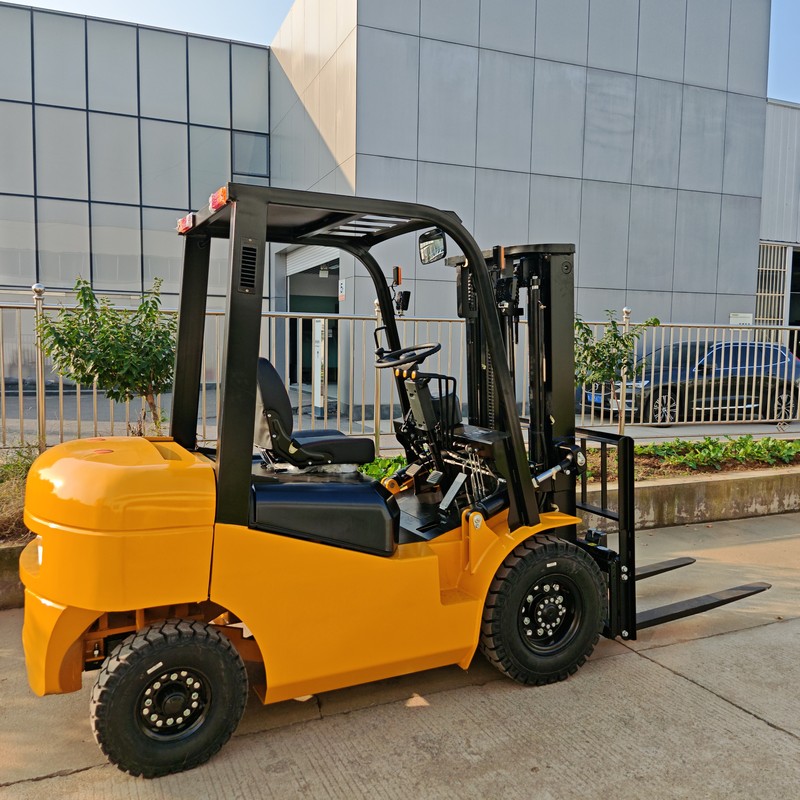

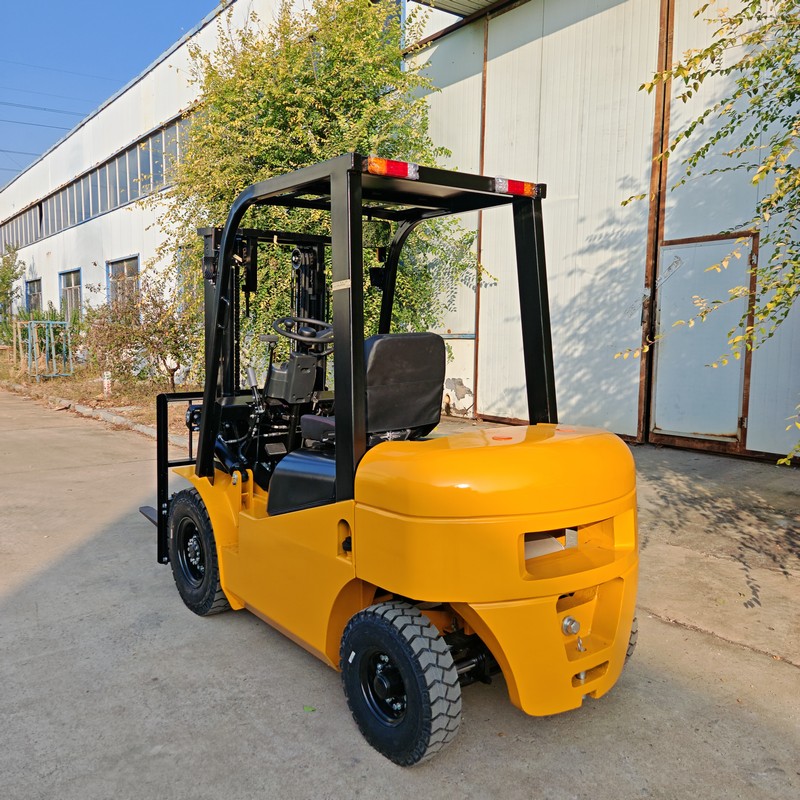

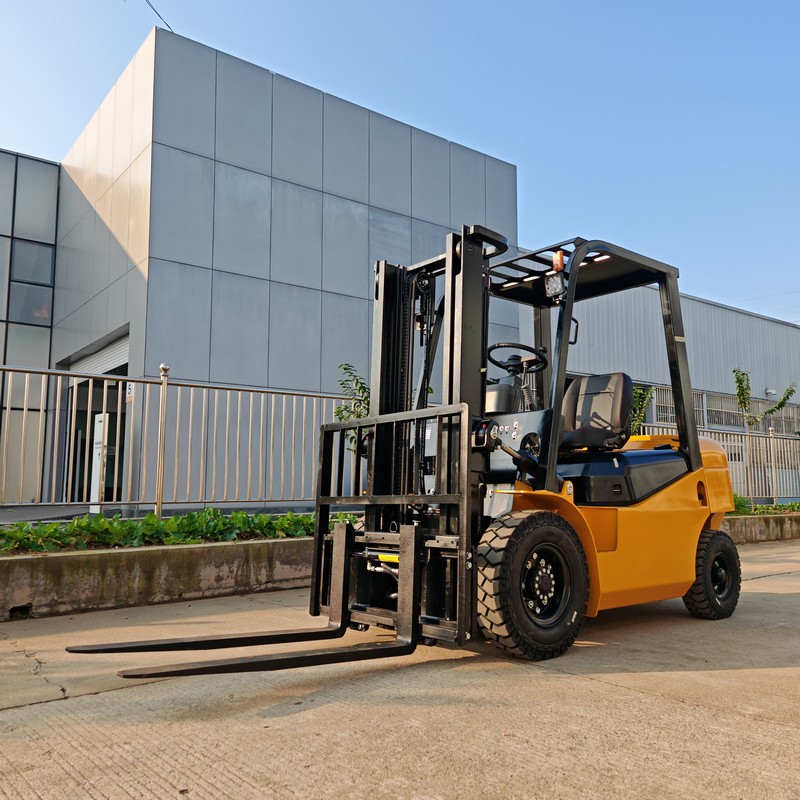

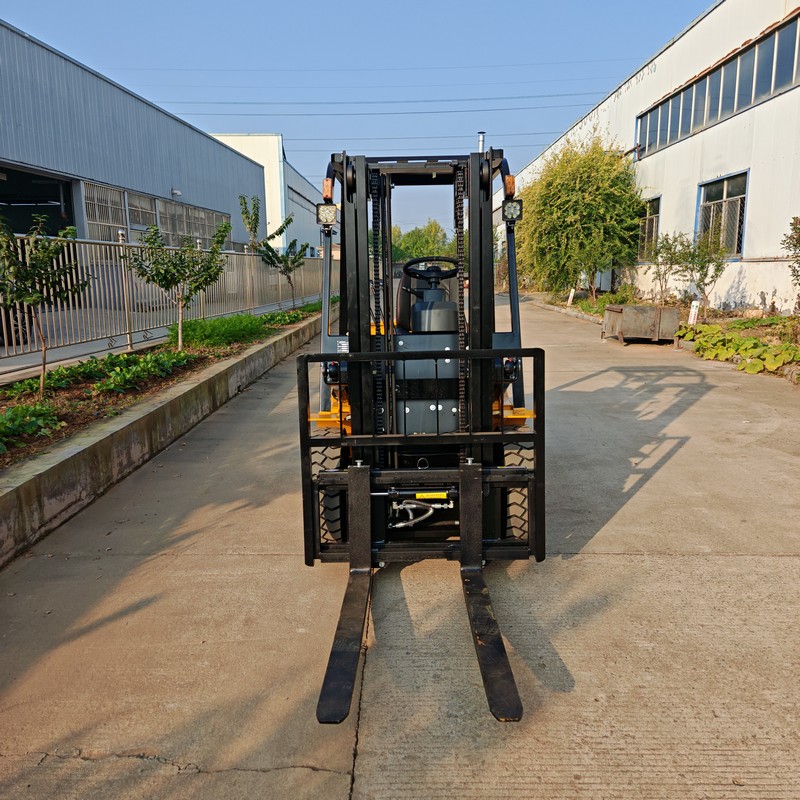

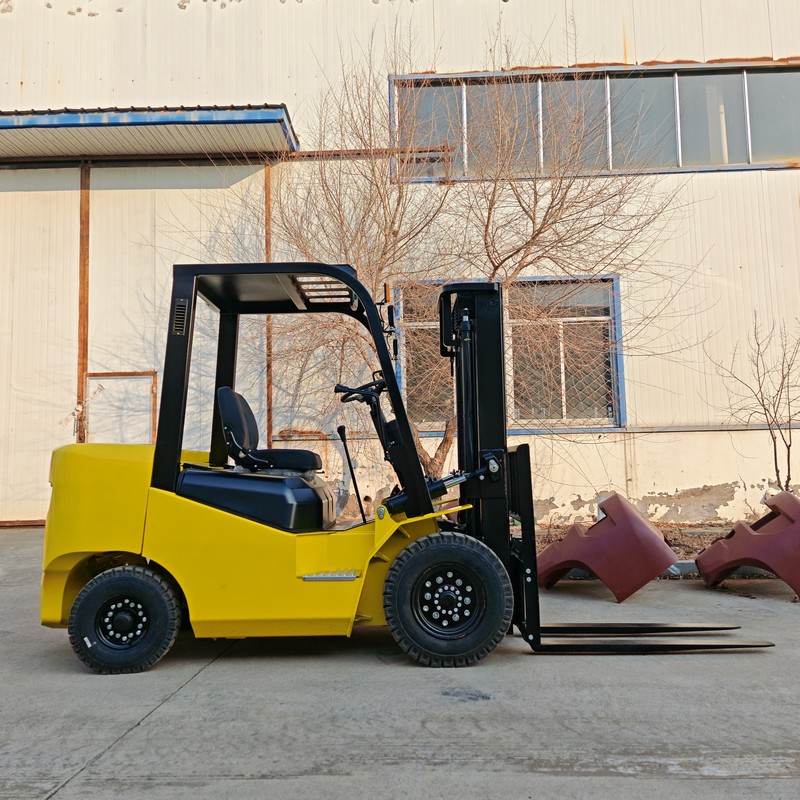

2T Diesel Forklift
2-Ton Diesel Forklift Features the Following Advantages:
· Powerful Performance: Ideal for heavy-load operations.
· Long Endurance & Quick Refueling: Offers extended working hours with fast and convenient refueling.
· Strong Adaptability: Capable of operating reliably in harsh environments.
· Low Maintenance Costs: Simple and durable diesel engine design reduces upkeep expenses.
· High Cost-Effectiveness: Lower overall operational costs.
· Ideal Applications: Suitable for heavy-load handling scenarios such as warehouses, ports, and factories.
2-Ton Diesel Forklift: Compact Powerhouse for Everyday Efficiency
Powerful Yet Practical:With a 2-ton capacity covering 80% of daily tasks—from pallets to small parts—this diesel forklift balances strength and efficiency. Its high-torque engine hits 18 km/h unloaded and climbs 15° slopes fully loaded, even managing 2.5-ton overloads. More versatile than underpowered 1-ton or overbuilt 3-ton models, it avoids waste and overload risk.
Space-Smart Design:At just 1.1–1.2m wide with <2m turning radius and a short 1.5–2m wheelbase, it navigates tight aisles and racks with ease. A 1.9–2.1m mast (upgradable to 3m) boosts vertical storage use by 20%, solving the “too big to fit, too small to lift” problem.
Budget-Friendly Operation:30% cheaper to buy than electric forklifts, it refuels in 5 mins for 6–8 hours of work (8–10L/day). No charging delays suit variable shifts. Maintenance is simple and cheap—routine fixes under ¥100, annual costs 50%+ lower than electrics. True value-for-money.
Rugged & Adaptable:Performs from -10°C to 35°C, with a tough build for harsh loads like construction gear. Add-ons (side shifters, adjustable forks) expand tasks to drums and odd shapes. One machine handles loading, transport, and stacking—ideal for SMEs maximizing output with minimal equipment.
Smart Match, Not Compromise:This “small but strong” forklift delivers just-right power, agility, and savings—making it the go-to workhorse for mid-small operations.

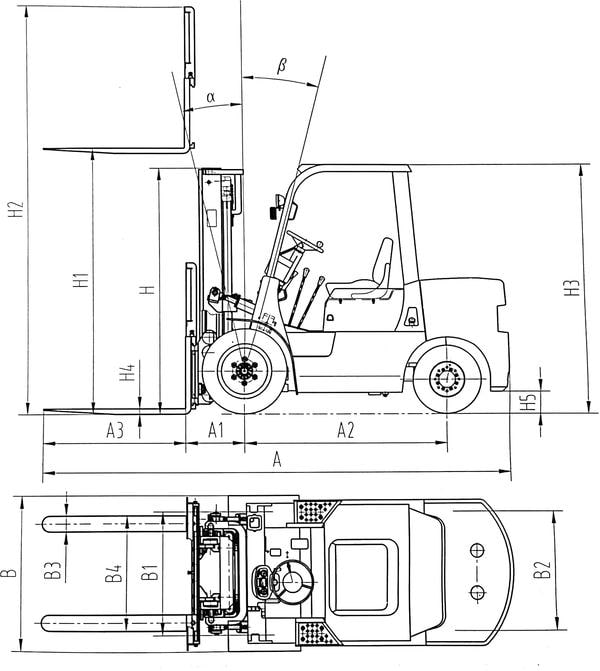

2T Diesel Forklift Technical Specifications
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPC20/CPCD20 | ||
| Rated Capacity | kg | 2000 | ||
| Load Center | mm | 500 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 400 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 17/19 | ||
| Max. Towing Capacity (Full-Load / No-Load) | kN | 14/9 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 60 | ||
| Mast Tilting Angle (Forward-Backward) | （°） | 6/12 | ||
| Min. Turning Radius | mm | 2450 | ||
| Min.Right Angle Aisle Width | mm | 2050 | ||
| Min. Ground Clearance | mm | 110 | ||
| Dimensions | Overall Length (Including Fork) | (A) | mm | 3820 |
| Overall Width | (B) | mm | 1160 | |
| Overall Height (Mast Lowered) | (H) | mm | 2095 | |
| Overall Height (Mast Extended) | (H2) | mm | 4080 | |
| Overall Height to Overhead | (H3) | mm | 2095 | |
| Front Overhang | (A1) | mm | 451 | |
| Wheelbase | (A2) | mm | 1640 | |
| Front Tread | (B1) | mm | 970 | |
| Rear Tread | (B2) | mm | 970 | |
| Tire | Front Wheel | mm | 7.00-12 | |
| Rear Wheel | mm | 6.00-9 | ||
| Fork | Fork Width | (B3) | mm | 122 |
| Fork Thickness | (H4) | mm | 40 | |
| Backrest Height | mm | 1000 | ||
| Fork Length | (A3) | mm | 1070 | |
| Engine | Engine Model | XINCHAI C490BPG | ||
| Rated Power | Kw | 40 | ||
| Rotate Speed at Rate Power | rpm | 2650 | ||
| Max. Torque | Nm | 162 | ||
| Rotation Speed at Max. Torque | rpm | 1800～1900 | ||
| Type of Power Shift | Mechanical/Hydraulic | |||
| Curb Weight | kg | 3050 | ||
Optional
1. Engine：
•Standard: Xinchai
•Optional: ISUZU (Japan), Mitsubishi (Japan), KUBOTA (Japan), YANMAR(Japan), Kohler (USA), Cummins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard: 1220mm fork
•Optional: 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

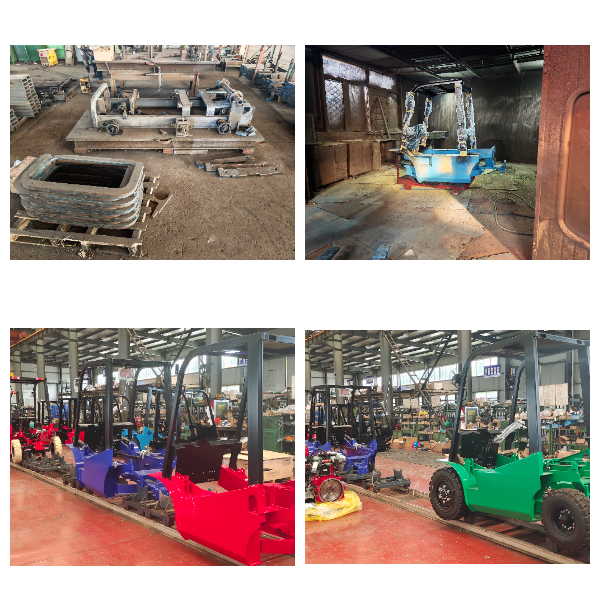

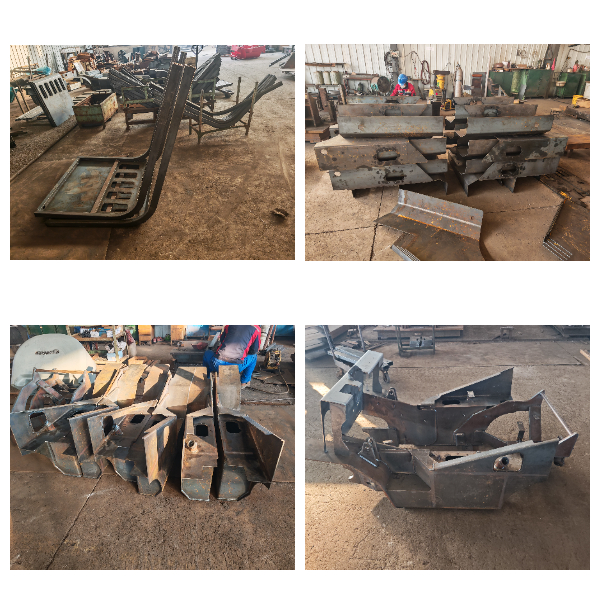

Our Factory Show
We are a professional forklift manufacturer, utilizing internationally renowned, market-proven first-tier brands for key components such as engines, transmissions, and axles. Every aspect of production—from raw material selection, cutting, and welding to shot blasting, painting, assembly, and testing—is carried out independently in our facility, with a comprehensive quality control system overseeing the entire process.

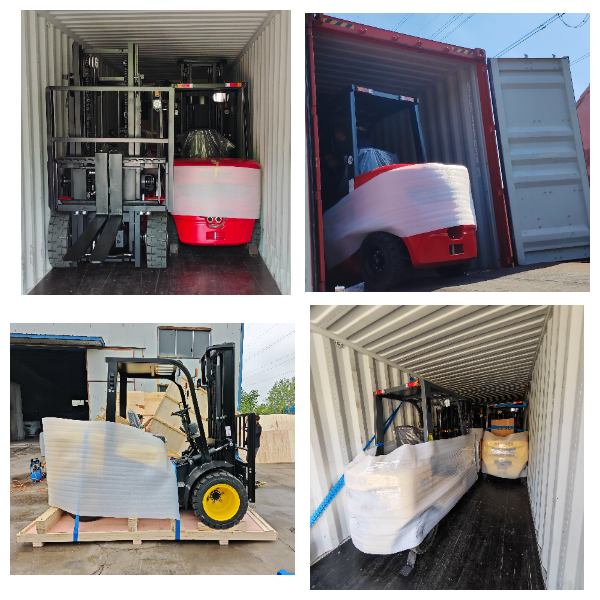

All products undergo rigorous inspections before delivery to customers. Our diesel forklifts have been exported to numerous countries and are widely favored by customers around the world.
