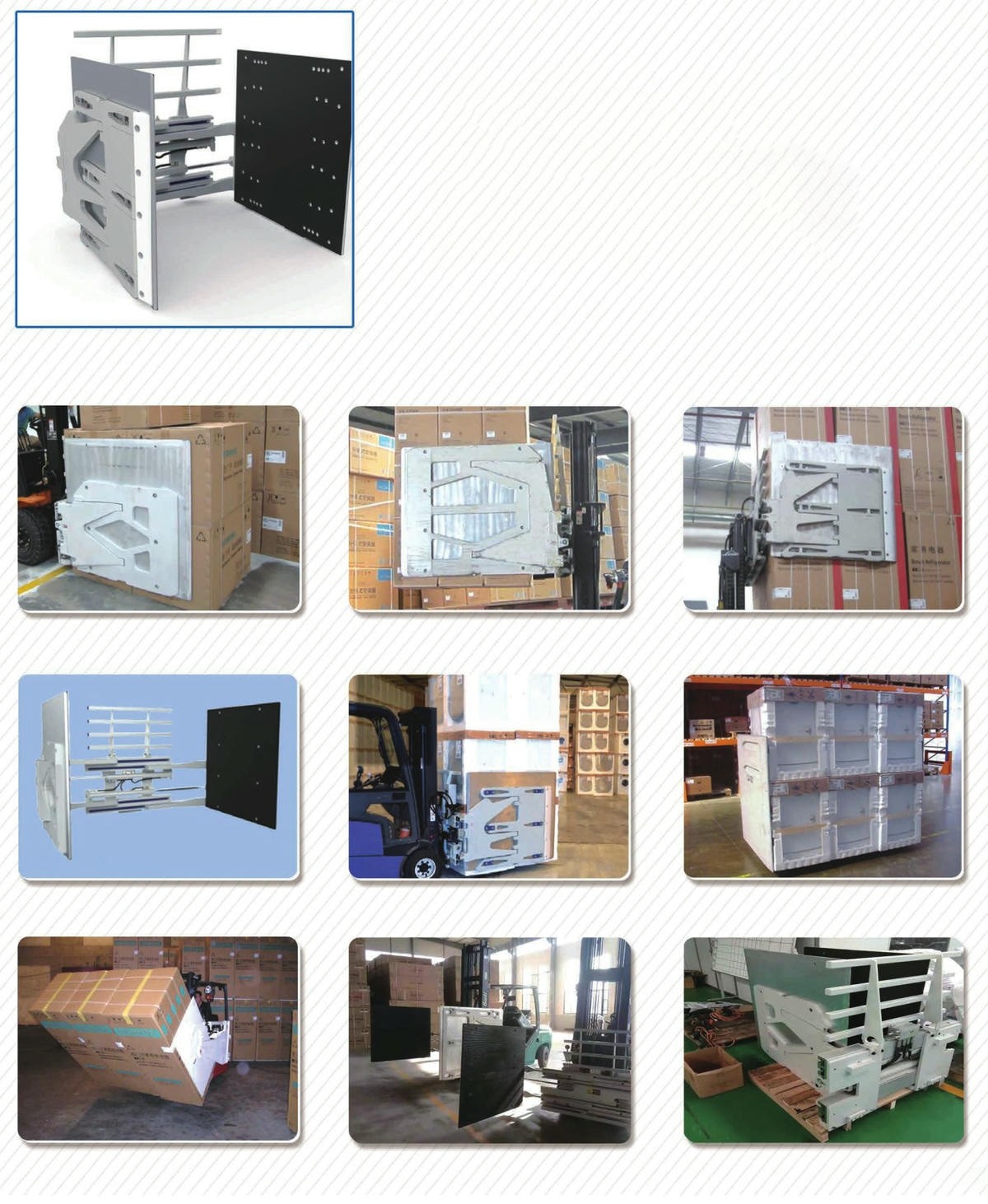

Carton Clamp

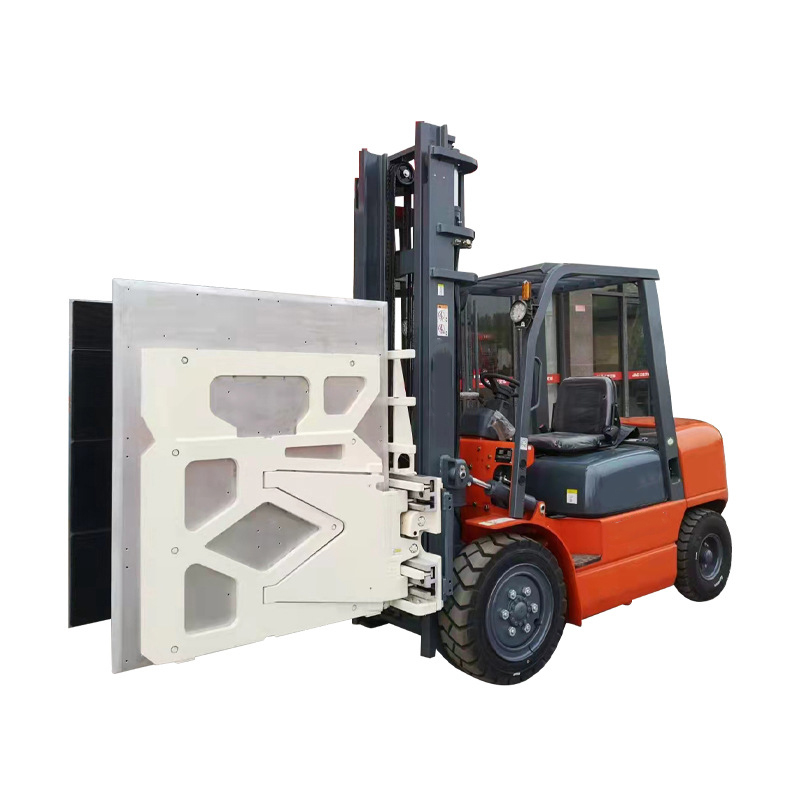

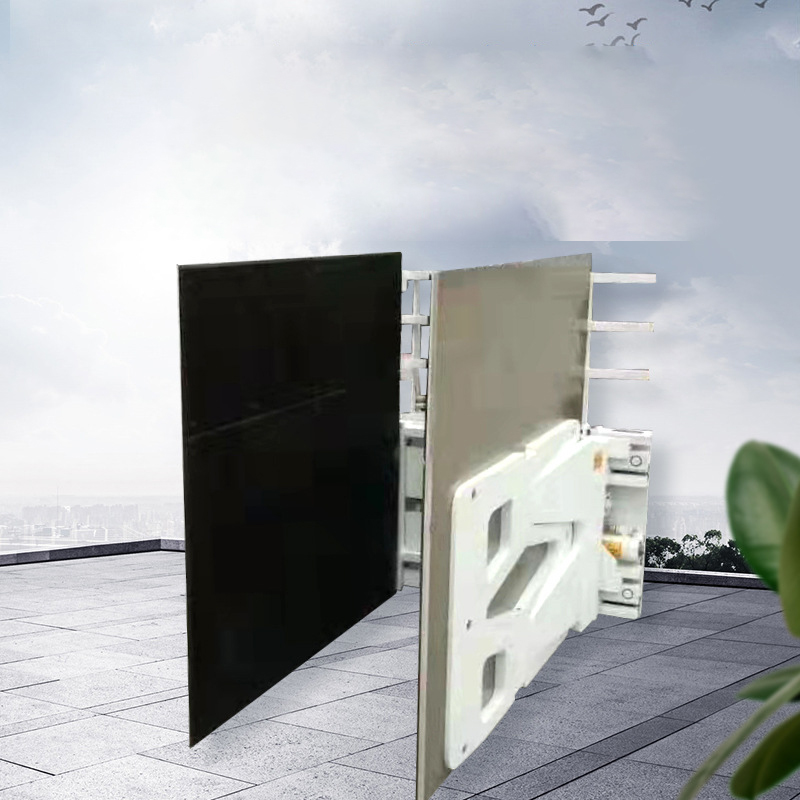

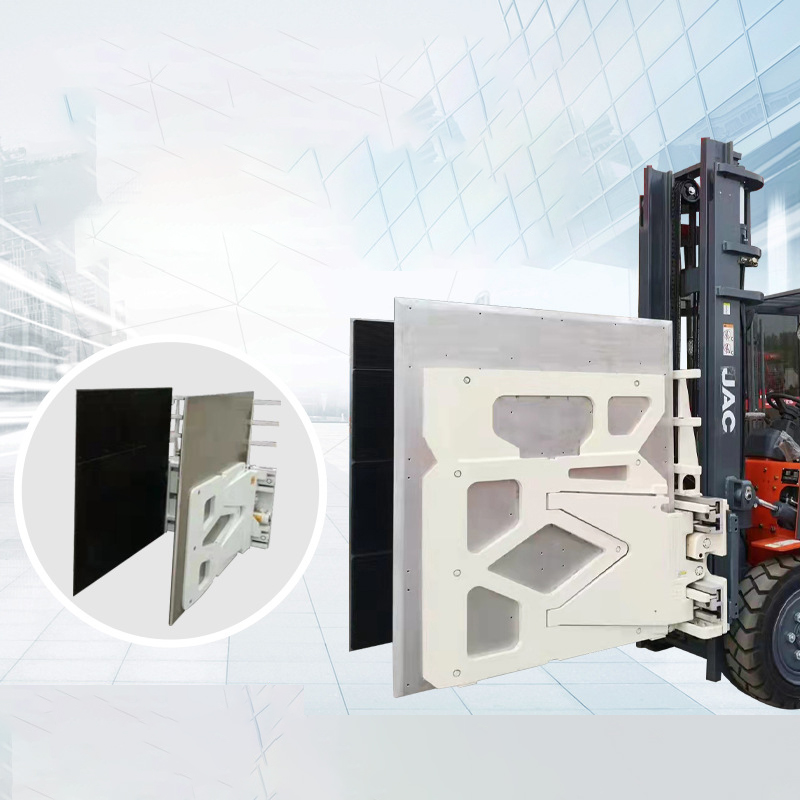

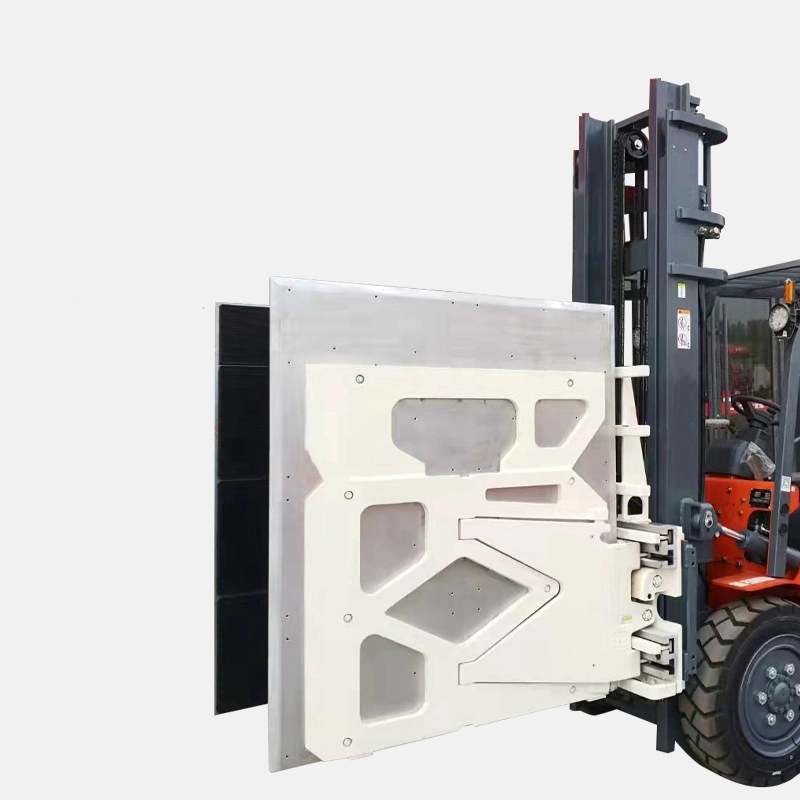

Forklift Home Appliance Clamp Introduction

The forklift home appliance clamp is a specialized attachment designed to handle large household appliances such as refrigerators, washing machines, and air conditioners. It secures appliances by clamping from the sides or wrapping around the body, replacing manual handling or rope tying to enable safe, efficient loading/unloading and stacking. Commonly used in logistics warehouses, appliance manufacturing plants, and retail distribution, it streamlines appliance logistics.

Structural Components

Key parts include:

• Clamping Arms: Directly contact the appliance, typically made of high-strength steel or aluminum in arc/flat shapes (with sponge/rubber padding on surfaces to prevent scratches). Some models feature adjustable opening angles to fit various appliance sizes (e.g., refrigerators/washing machines 500–1200mm wide).

• Hydraulic System: Powered by the forklift’s hydraulic system (some light-duty models use electric/pneumatic drives) to control arm movement and clamping force.

• Connection Frame: Mounts the clamp to the forklift’s fork carriage, syncing with the forklift’s lifting/tilting functions. Some include anti-slip bases for stability.

• Control Unit: Integrated into the forklift’s handle, allowing operators to open/close the clamping arms via buttons (some models adjust pressure).

Working Principle

During operation:

1. Setup: The forklift inserts forks into the appliance’s bottom slots (e.g., standard forklift holes on refrigerators/washing machines) or supports the base edge.

2. Clamping: The hydraulic cylinder drives the arms inward to grip the appliance’s sides (e.g., refrigerator frame, washing machine casing). Padding protects the surface while forks bear the weight, minimizing movement during transport.

3. Handling: The secured appliance can be lifted, moved, or stacked (e.g., in warehouses or delivery trucks).

4. Release: At the destination, the arms open to safely place the appliance.

Application Scenarios

• Appliance Manufacturing: Transporting finished goods from production lines to warehouses/vehicles.

• Logistics Warehouses: Storing and sorting appliances (e.g., e-commerce bulk storage).

• Retail Delivery: Moving appliances from warehouses to store displays or customer vehicles.

• After-Sales Service: Transporting repaired/replacement units.

The home appliance clamp enhances safety, efficiency, and protection in appliance handling, making it an essential tool for supply chain operations.
