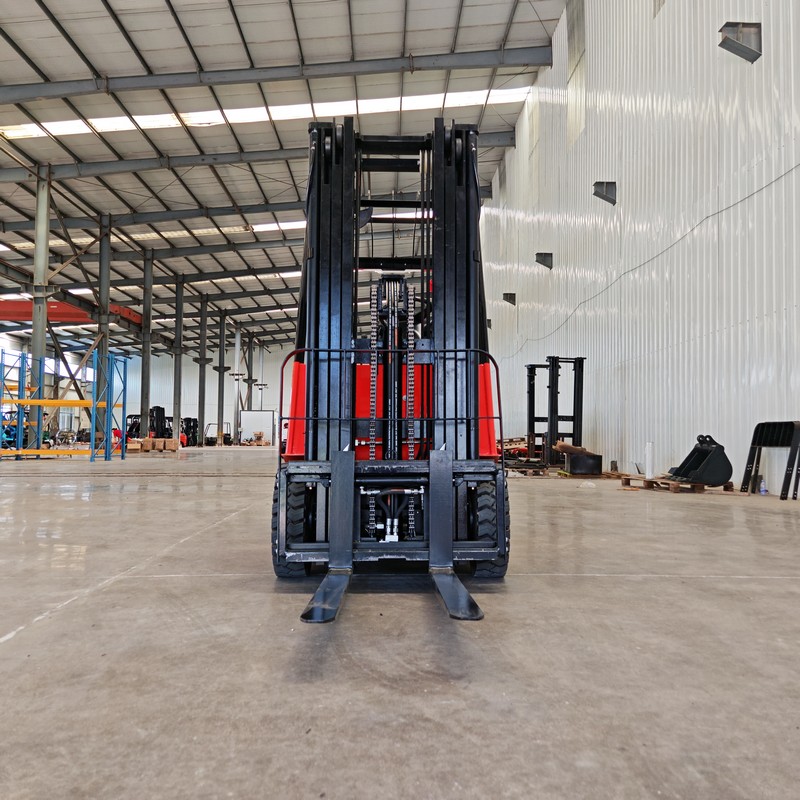

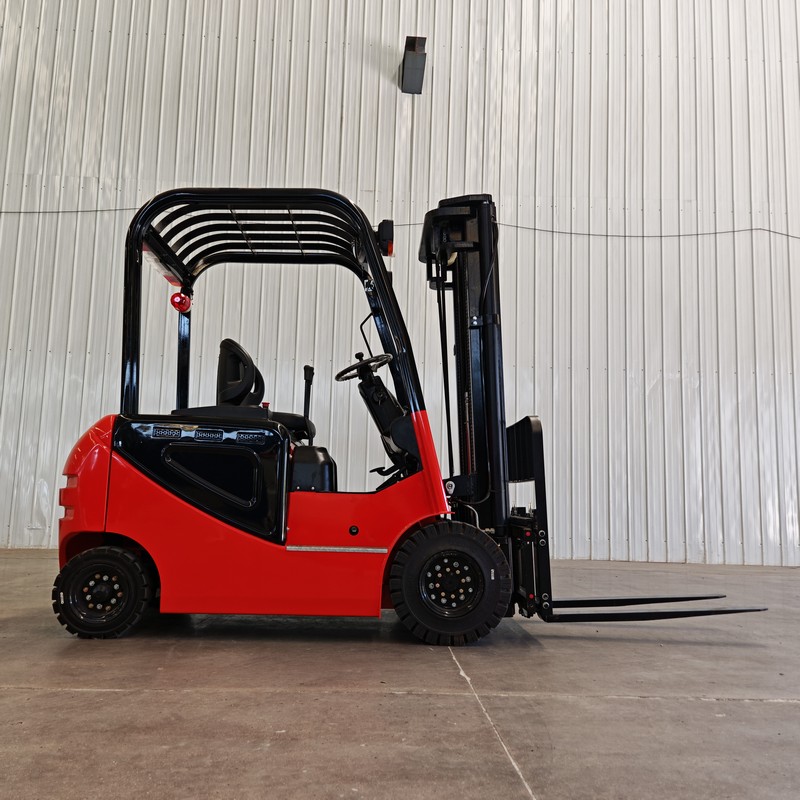

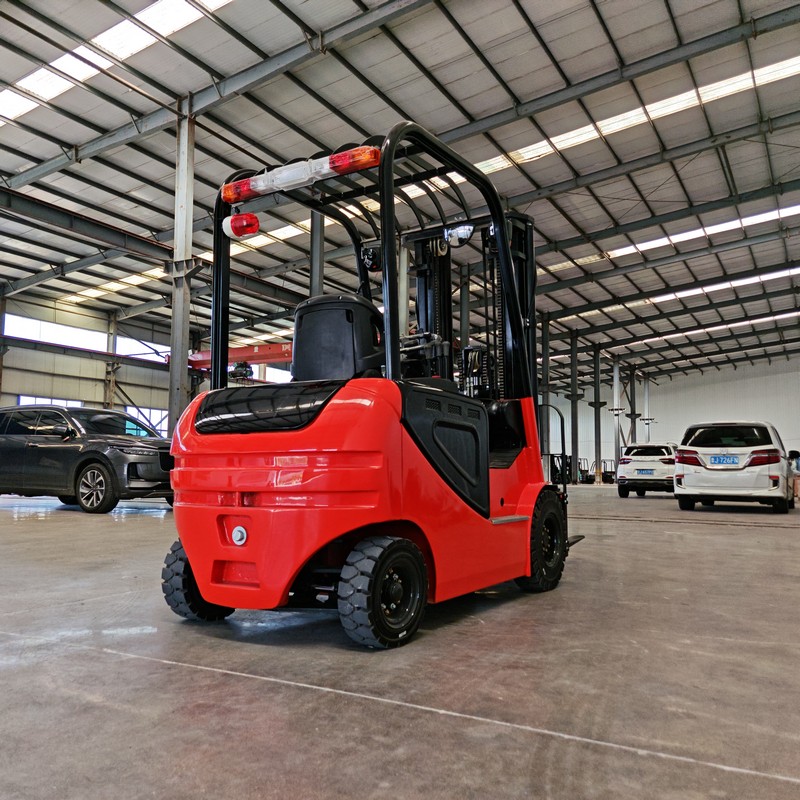

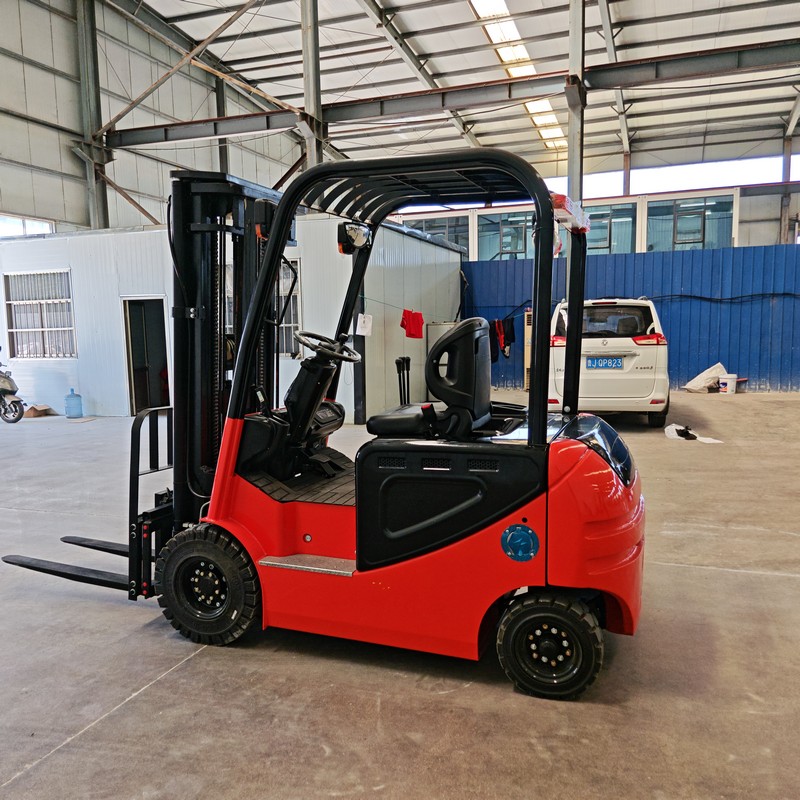

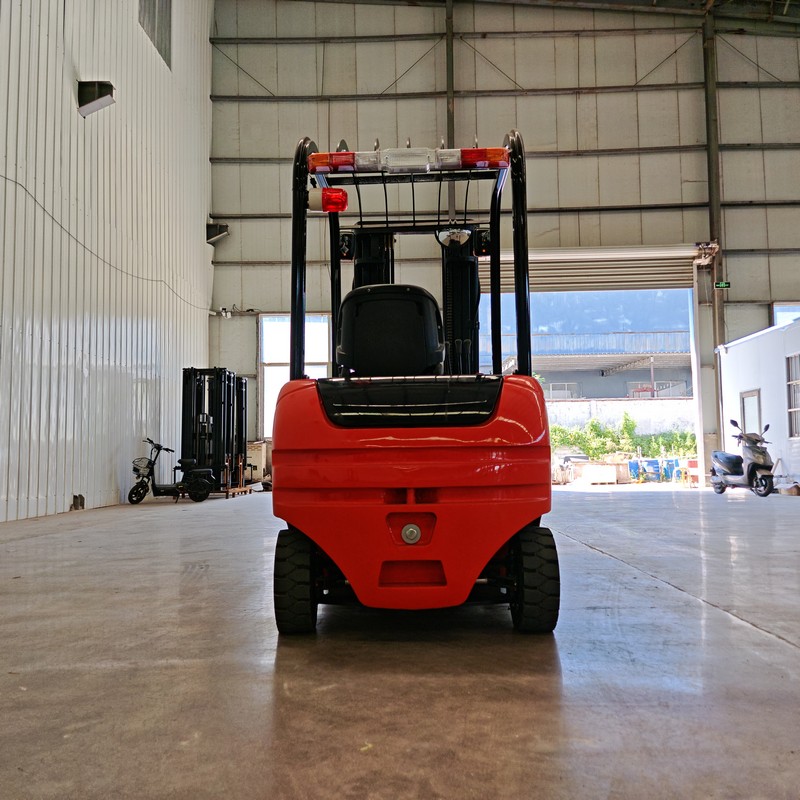

Small Electric Forklift

1. Equipped with a large-capacity lithium iron phosphate battery, it supports fast charging and opportunistic charging, enabling continuous operation in multiple shifts.

2. It is free of the acid mist and memory effect of lead-acid batteries, making it more environmentally friendly and safe, and can meet the high-standard indoor operation requirements.

3. The electronic control system is intelligent and efficient, with smooth and powerful power output. Its acceleration and climbing performance are significantly superior to those of vehicles in the same class.

4. It is equipped with intelligent self-checking and CAN bus communication functions, enabling rapid and accurate fault diagnosis and significantly reducing operation and maintenance costs.

5. The vehicle has a compact structure with extremely low noise and vibration, providing a quiet and comfortable driving experience and improving the working environment.


Product Details

In modern warehousing and logistics systems, space is a valuable resource and efficiency is at the core of competition. Our 2t small electric forklift is precisely a masterpiece designed to meet the demands of high-density warehousing and high-intensity operations. It not only perfectly inherits the environmental protection genes of electric technology, but also comprehensively surpasses traditional fuel forklifts in terms of space utilization and operational efficiency. Compared with fuel-powered forklifts of the same tonnage, 2t small electric forklift has inherent advantages in structural design. It eliminates the huge internal combustion engine, fuel tank, exhaust system and complex transmission structure, so the overall structure of the vehicle is more compact and the body size is significantly reduced. This "small volume" brings about tremendous practical value: in extreme Spaces such as narrow warehouse aisles, crowded shelves, and inside containers, it can flexibly turn and operate at ease, significantly reducing operational difficulty and space requirements. This means that enterprises can arrange more shelves within the same storage area, increase storage density, and directly release huge storage space value. This is a core advantage that bulky and large-turning radius fuel-powered forklifts cannot match.

small electric forklift

Powerful performance, fearless of high-intensity operations, with performance comparable to or even surpassing that of fuel

In traditional perception, fuel-powered forklifts seem to represent "power", but our 2-ton lithium battery forklift has completely broken this stereotype. Adopting advanced AC drive motor and electronic control technology, it can instantly output the maximum torque. The response during starting, acceleration and climbing is rapid, and the power output is stable and powerful. In actual operation, its lifting speed, traveling speed and climbing ability can all rival or even exceed those of fuel-powered forklifts of the same level. More importantly, lithium batteries have a continuous and stable discharge characteristic, which can ensure that the forklift remains "high-energy throughout the entire operation cycle", without significant power attenuation due to power consumption, thus ensuring consistent efficiency under high-intensity and multi-shift operations.

Zero emissions and ultra-low noise break through the limitations of operation scenarios and achieve all-domain application

This is the most significant advantage of lithium battery forklifts over fuel forklifts. When fuel forklifts are in operation, they produce harmful exhaust gases such as carbon monoxide and hydrocarbons, accompanied by loud noise and vibration, which strictly limits their use only in well-ventilated outdoor areas or semi-open Spaces. Our lithium battery forklifts have achieved zero exhaust emissions and ultra-low noise operation. This not only creates a quiet and comfortable operating environment for drivers, but also means that they can freely move between indoor workshops, cold storage facilities and even dust-free workshops with strict air quality requirements in industries such as food, medicine, electronics and textiles, achieving "barrier-free operation throughout the entire area" from outdoors to indoors, and significantly expanding the business application scenarios of enterprises.

Ultimate energy conservation and ultra-low maintenance, with significant cost advantages throughout the entire life cycle

From the perspective of operational economy, lithium battery forklifts pose a "dimensional reduction blow" to fuel-powered forklifts. The cost of electricity is much lower than that of fuel. Its energy conversion efficiency is as high as over 80%, while that of internal combustion engines is only about 30%. Energy costs can be saved by more than 70%. In terms of maintenance, the electric structure is simple and does not require the replacement of conventional consumables such as engine oil, oil filter, air filter, and spark plugs, resulting in extremely low maintenance costs. The lithium iron phosphate battery it is equipped with has a cycle life of over 4,000 times, far exceeding that of a fuel engine. Moreover, it supports "charge and use as needed" opportunistic charging without the need for a dedicated charging room, further enhancing time utilization and operational efficiency. Overall calculation shows that although the initial purchase cost of lithium battery forklifts is slightly higher, the total cost throughout their entire life cycle is much lower than that of fuel forklifts.

Empowered by intelligent technology, it enhances the efficiency of safety management and operation and maintenance

Modern lithium battery forklifts are highly intelligent products. The integrated CAN bus system can monitor vehicle status, battery level, fault codes and other information in real time, achieving precise fault early warning and remote diagnosis. The intelligent BMS battery management system provides multiple protections such as overcharge, overdischarge and high temperature, maximizing the battery life. In addition, it can be optionally equipped with a variety of safety functions, significantly enhancing the safety of operations. These intelligent features have transformed equipment management from "passive maintenance" to "active prevention", and the operation and maintenance efficiency and the degree of management refinement are far beyond those of traditional fuel forklifts.

Model

CPD20
Rated Capacity
kg2000
Load Center
mm500
Power Type

Lithium Battery
Driving Type

Ride-on Type
Wheelbase(L1)mm1550
Front Tread(W2)mm945
Rear Tread(W3)mm880
Front Overhang(L2)mm325
Mast Tilting   Angle (Forward-Backward)
°5∕10
Max. Lifting   Height(H)mm3000
Free Lift   Height(H7)mm105
Overall Height   (Mast Lowered)(H1)mm2200
Overall Height   (Mast Extended)(H2)mm4055
Overhead Guard   Height(H3)mm2110
Overall Length   (Including Fork)
mm3300
Overall Length   (Without Fork)
mm2200
Overall Width(W1)mm1096
Min. Ground   Clearance(H4)mm88
Min. Turning   Radius
mm2120
Fork   Dimensions (L×W×T)
mm1070*100*40
Max. Driving   Speed (No-Load)
km/h14
Max. Driving   Speed (Full-Load)
km/h12
Max.Lifting   Speed(Full-Load/No-Load)
mm/s270∕300
Descending   Speed (Full-Load / No-Load)
mm/s400∕350
Gradeability   (Full-Load / No-Load)
(%)15∕20
Curb Weight
kg2850
Number of   Wheels (X = Driving Wheels (Front/Rear))

2∕2
Tire Type   (Front/Rear)

Solid Tire
Tire Size   (Front/Rear)

6.5-10 16*6.8
Driving Brake

Hydraulic-Foot Step   Type
Parking Brake

Mechanical-Manual
Driving Motor   Power (S2-60min)
kW5
Lifting Motor   Power (S3-15%)
kW7.5
Driving Motor   Control Mode

mosfet/pmsm
Lifting Motor   Control Mode

mosfet/pmsm
Hydraulic   System Pressure
MPa18
Battery   Capacity
V/Ah76.8V/205Ah

In summary, 2t small electric forklift maximizes space efficiency with its compact size, meets high-intensity demands with its strong operational capacity, and demonstrates overwhelming advantages in environmental adaptability, comprehensive cost, and intelligent management when compared with fuel-powered forklifts. It is not merely a simple tool replacement, but a strategic upgrade of the enterprise's logistics equipment, helping customers gain the upper hand in the fierce market competition.
