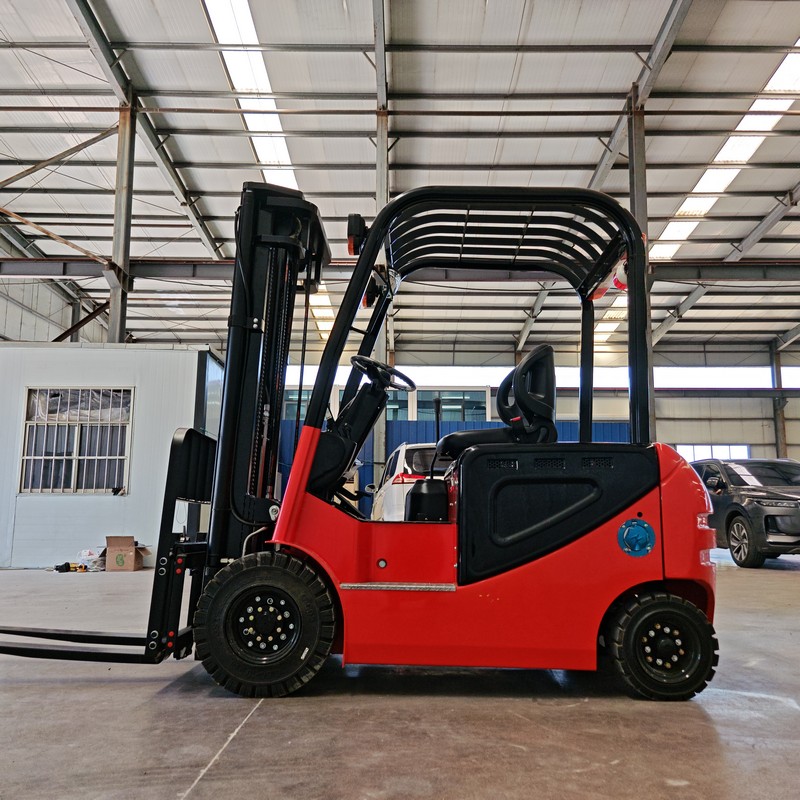

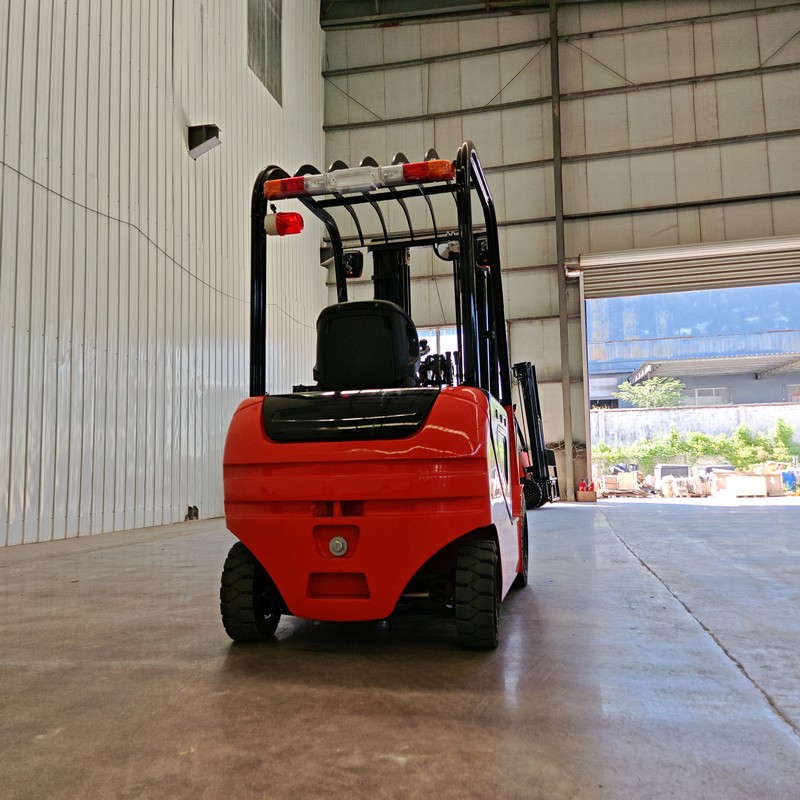

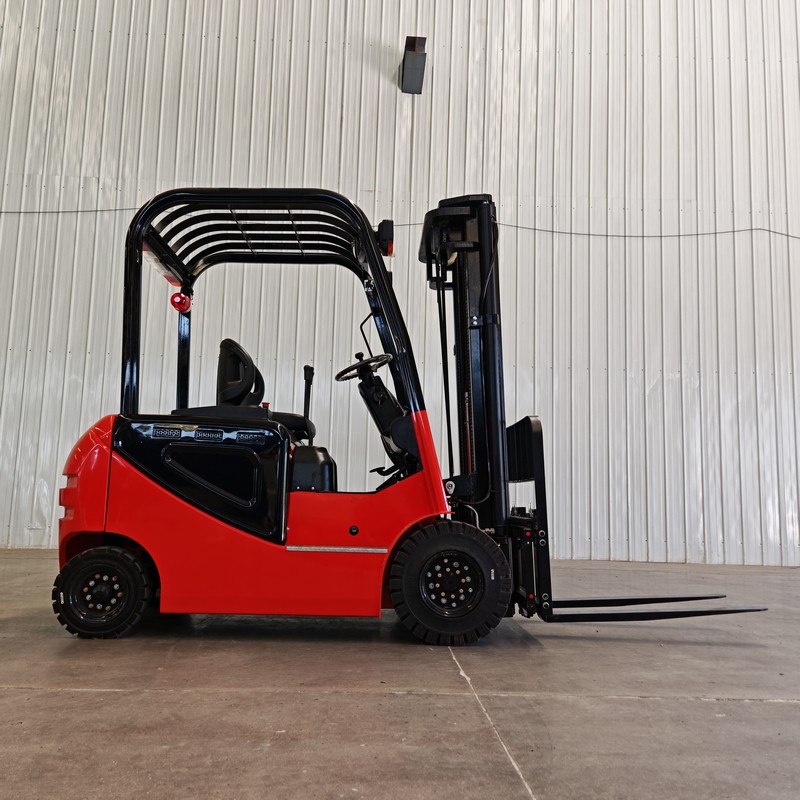

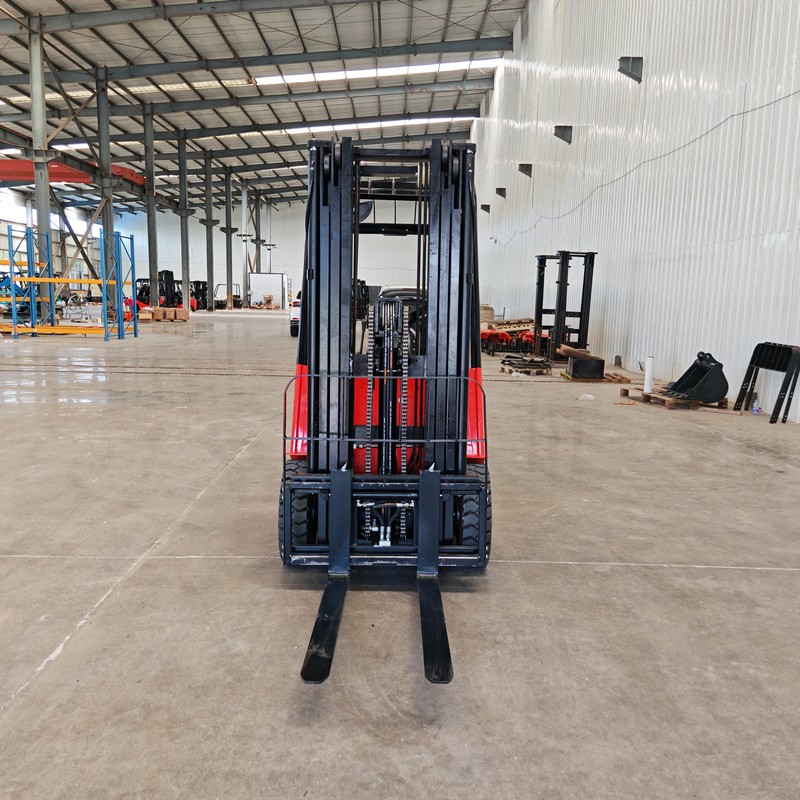

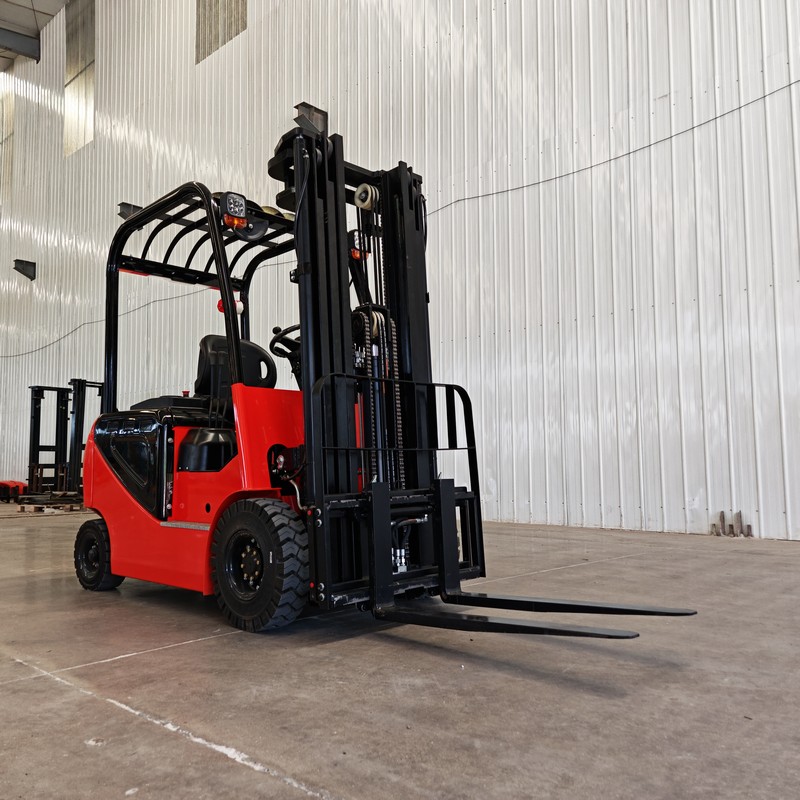

Electric Forklift 2 Ton
1. Equipped with high-performance lithium batteries, it charges quickly, has a long lifespan, and supports continuous operation in multiple shifts without interruption.
2. Zero emissions, low noise, meeting indoor environmental protection requirements, and improving the working environment and comfort of the warehouse.
3. Compact body, small turning radius, flexible weaving in narrow passages, improving space utilization.
4. It features a fast charging function, supports opportunistic charging, and allows for energy replenishment at any time.
5. Intelligent power management takes into account both efficiency and energy consumption, making operation more worry-free.
In the modern warehousing and logistics industry, efficiency, environmental protection and space utilization are the core competitiveness. Our newly launched electric forklift 2 ton is precisely designed to address these challenges. It deeply integrates advanced lithium battery technology with a compact and flexible body design, aiming to provide you with a cleaner, quieter and more efficient material handling solution. Electric forklift 2 ton is the best choice for handling operations in the warehousing and logistics industry.
Core advantage: High-performance lithium battery technology, the source of power is also the foundation of benefits
Compared with traditional lead-acid battery forklifts, our lithium battery forklifts have achieved a revolutionary breakthrough in the power source head, bringing all-round value enhancement to users.
• Ultra-long battery life and outstanding efficiency: Equipped with a high-performance lithium iron phosphate battery pack, it features high energy density and strong endurance, easily meeting the continuous operation requirements of multiple shifts. It completely eliminates interruptions caused by insufficient power, significantly enhancing the equipment's availability and overall operational efficiency.
• Ultra-fast charging, charge as needed: The lithium battery supports fast charging technology, allowing for quick energy replenishment during lunch breaks. Meanwhile, the battery has no memory effect and supports "opportunistic charging", making full use of breaks during work to replenish power and making "charging as fast as refueling" a reality.
• Ultra-long lifespan and nearly zero maintenance: The cycle life of lithium batteries far exceeds that of lead-acid batteries, typically reaching over 3,000 times, which is basically in line with the life cycle of forklifts, significantly reducing the cost of battery replacement. The entire usage process does not require the addition of electrolyte, achieving maintenance-free operation and saving a significant amount of manpower and maintenance costs.
• Safe and environmentally friendly, with a wide range of applications: No harmful gases are emitted during operation, and the operating noise is extremely low. It is perfectly suitable for indoor environments with strict requirements for air quality and noise, such as workshops in the food, pharmaceutical, and electronic industries, effectively improving the working environment for employees.
Dynamic design: Compact body and precise steering, it can handle even narrow Spaces with ease
In warehouses where space is precious, the flexibility of forklifts directly determines the utilization rate of storage volume and the agility of operations. We have made meticulous optimizations to this.
• Compact body structure: Through precise computer-aided design, the internal structure of the vehicle body has been optimized to the extreme. Under the premise of ensuring a rated load capacity of 2 tons, the overall dimensions of the vehicle have been minimized to the greatest extent, especially the width and length of the vehicle body, allowing it to move freely in narrow shelf aisles.
• Extremely small turning radius: Equipped with high-performance steering axles and a precise hydraulic steering system, it achieves a smaller turning radius among products of the same class. Forklifts can easily perform high-difficulty actions such as right-angle turns and in-place steering within a limited space, significantly reducing the width of aisle occupation. This enables warehouses to plan more shelf storage positions and directly increase the density of storage capacity.

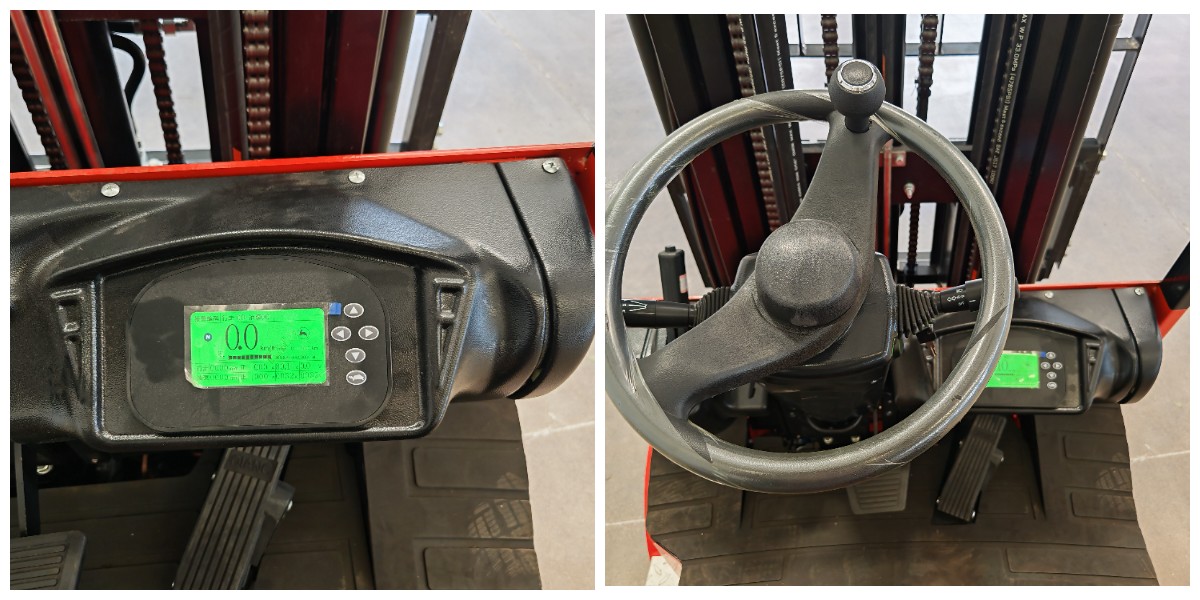

• Sensitive and precise operation: Combined with the instantaneous response characteristics of the electronic control system, the steering is light and flexible, and can be easily controlled with one hand. This precise controllability not only reduces the driver's labor intensity but also ensures the safety of operations in crowded environments, effectively avoiding the risk of goods colliding with shelves.
| Model | CPD20 | ||
| Rated Capacity | kg | 2000 | |
| Load Center | mm | 500 | |
| Power Type | Lithium Battery | ||
| Driving Type | Ride-on Type | ||
| Wheelbase | (L1) | mm | 1550 |
| Front Tread | (W2) | mm | 945 |
| Rear Tread | (W3) | mm | 880 |
| Front Overhang | (L2) | mm | 325 |
| Mast Tilting Angle (Forward-Backward) | ° | 5∕10 | |
| Max. Lifting Height | (H) | mm | 3000 |
| Free Lift Height | (H7) | mm | 105 |
| Overall Height (Mast Lowered) | (H1) | mm | 2200 |
| Overall Height (Mast Extended) | (H2) | mm | 4055 |
| Overhead Guard Height | (H3) | mm | 2110 |
| Overall Length (Including Fork) | mm | 3300 | |
| Overall Length (Without Fork) | mm | 2200 | |
| Overall Width | (W1) | mm | 1096 |
| Min. Ground Clearance | (H4) | mm | 88 |
| Min. Turning Radius | mm | 2120 | |
| Fork Dimensions (L×W×T) | mm | 1070*100*40 | |
| Max. Driving Speed (No-Load) | km/h | 14 | |
| Max. Driving Speed (Full-Load) | km/h | 12 | |
| Max.Lifting Speed(Full-Load/No-Load) | mm/s | 270∕300 | |
| Descending Speed (Full-Load / No-Load) | mm/s | 400∕350 | |
| Gradeability (Full-Load / No-Load) | (%) | 15∕20 | |
| Curb Weight | kg | 2850 | |
| Number of Wheels (X = Driving Wheels (Front/Rear)) | 2∕2 | ||
| Tire Type (Front/Rear) | Solid Tire | ||
| Tire Size (Front/Rear) | 6.5-10 16*6.8 | ||
| Driving Brake | Hydraulic-Foot Step Type | ||
| Parking Brake | Mechanical-Manual | ||
| Driving Motor Power (S2-60min) | kW | 5 | |
| Lifting Motor Power (S3-15%) | kW | 7.5 | |
| Driving Motor Control Mode | mosfet/pmsm | ||
| Lifting Motor Control Mode | mosfet/pmsm | ||
| Hydraulic System Pressure | MPa | 18 | |
| Battery Capacity | V/Ah | 76.8V/205Ah |
In conclusion, this electric forklift 2 ton is not merely a power replacement but a comprehensive performance upgrade. It perfectly combines the two core advantages of lithium batteries, namely "strong endurance, fast charging and maintenance-free", with the compact body's "small turns, high flexibility and space-saving", jointly building its core competitiveness in the modern intelligent logistics system. Choosing it means choosing a brand-new way of working that is more economical, environmentally friendly and efficient.
