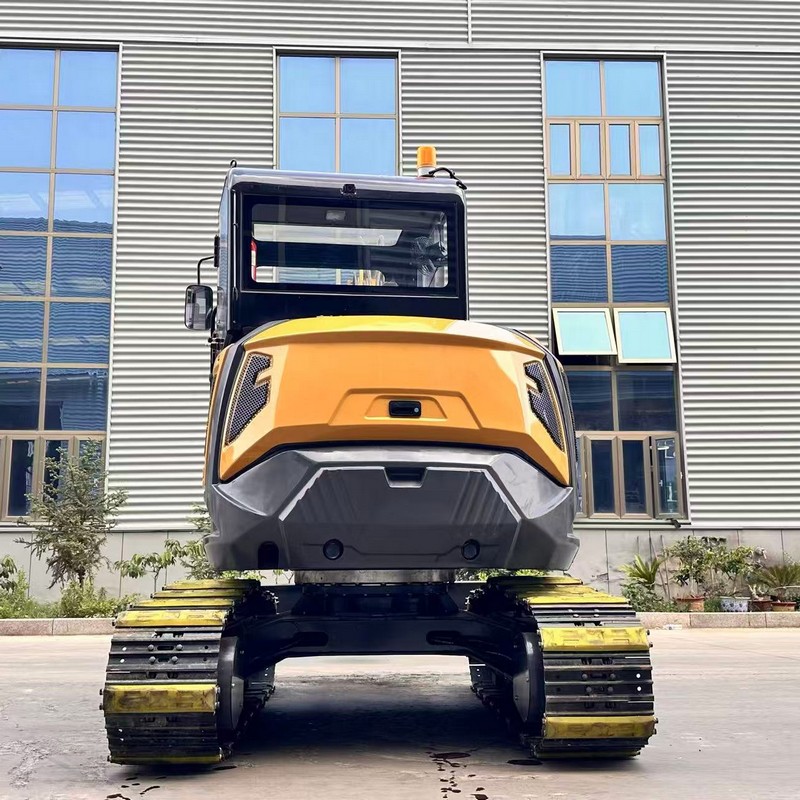

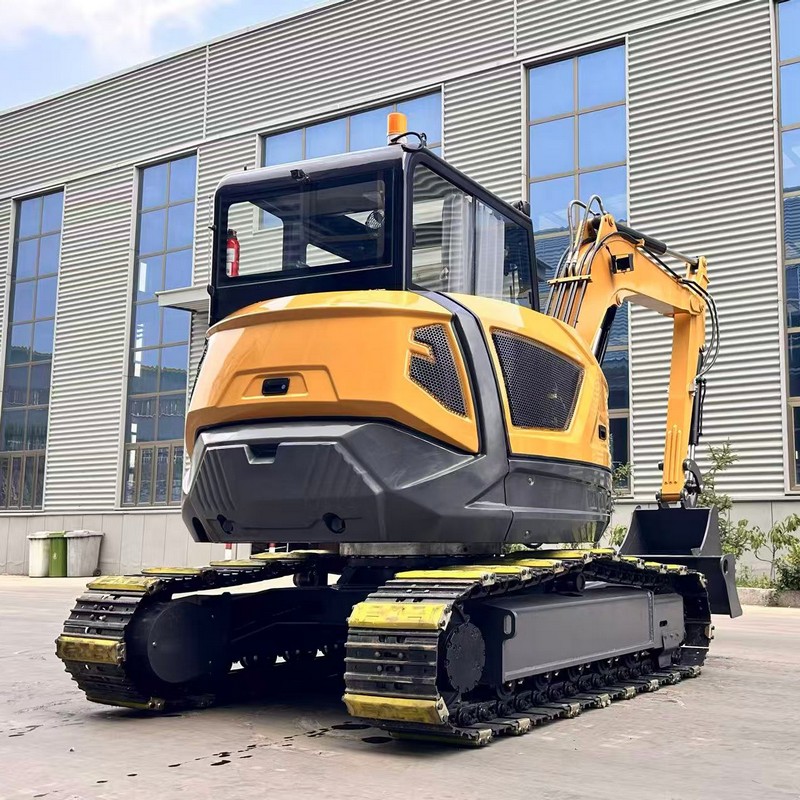

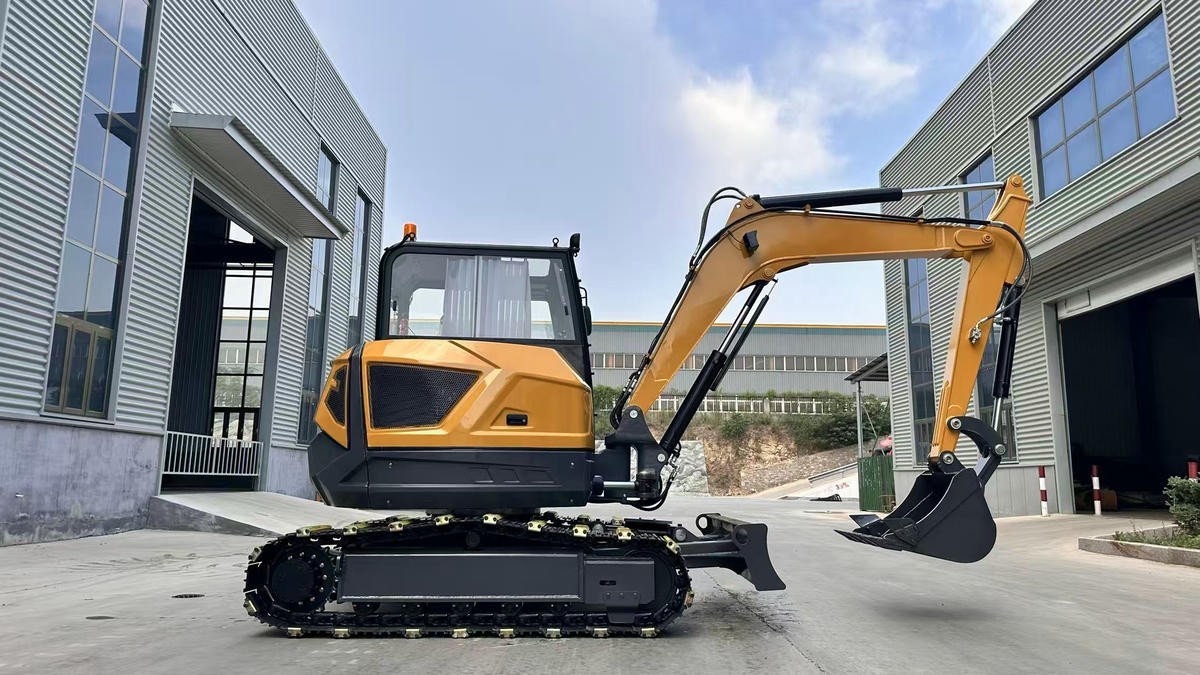

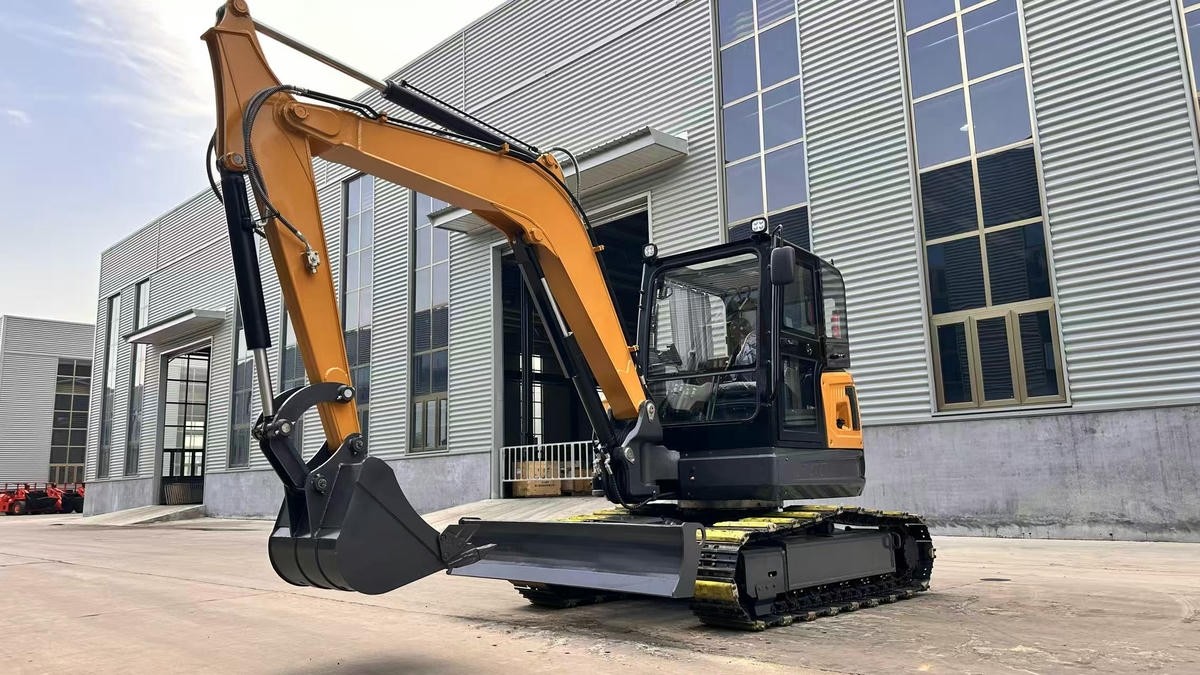

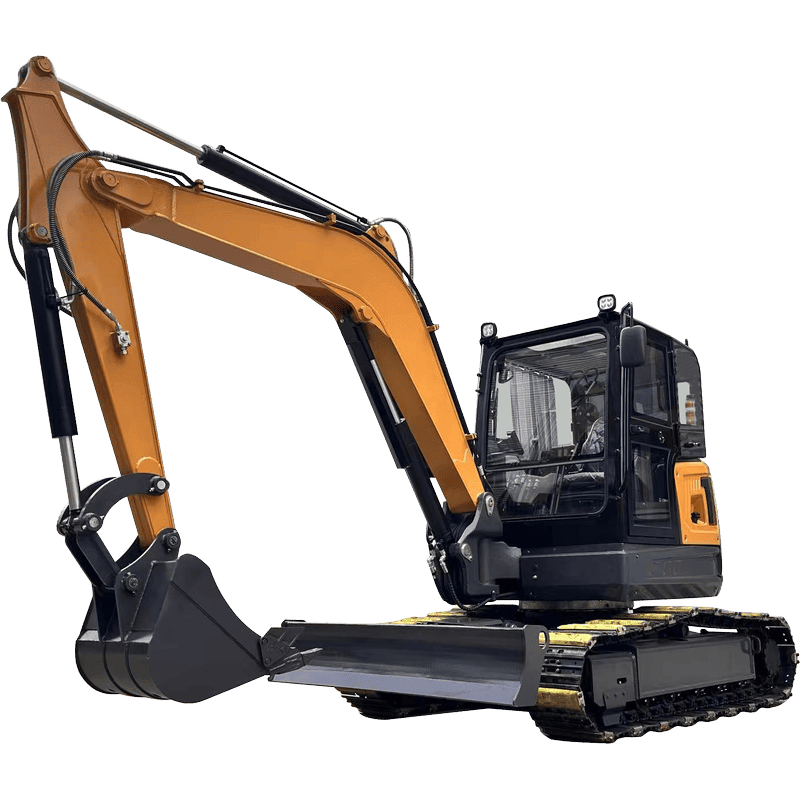

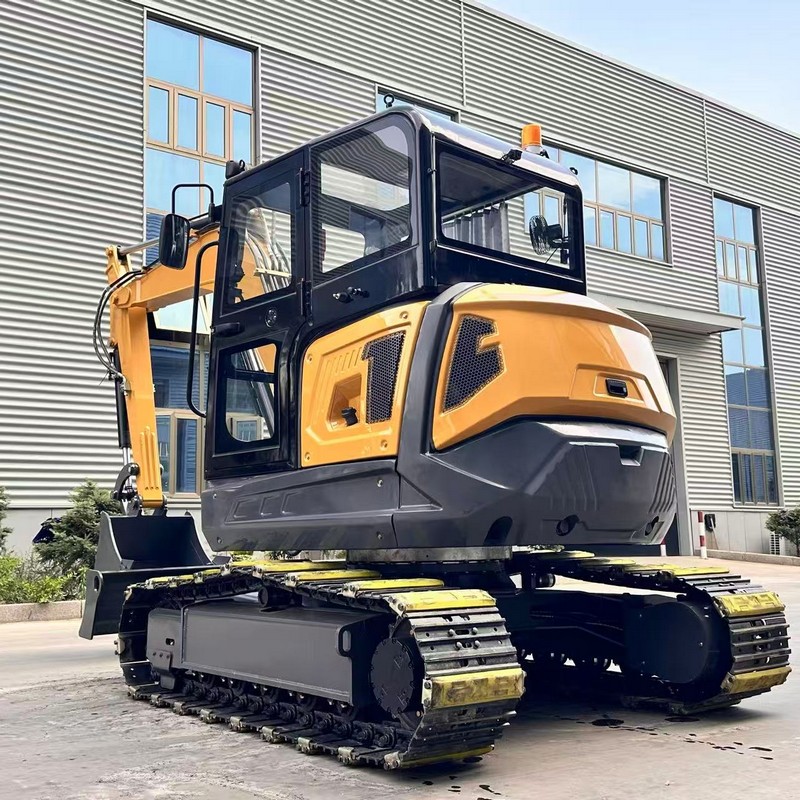

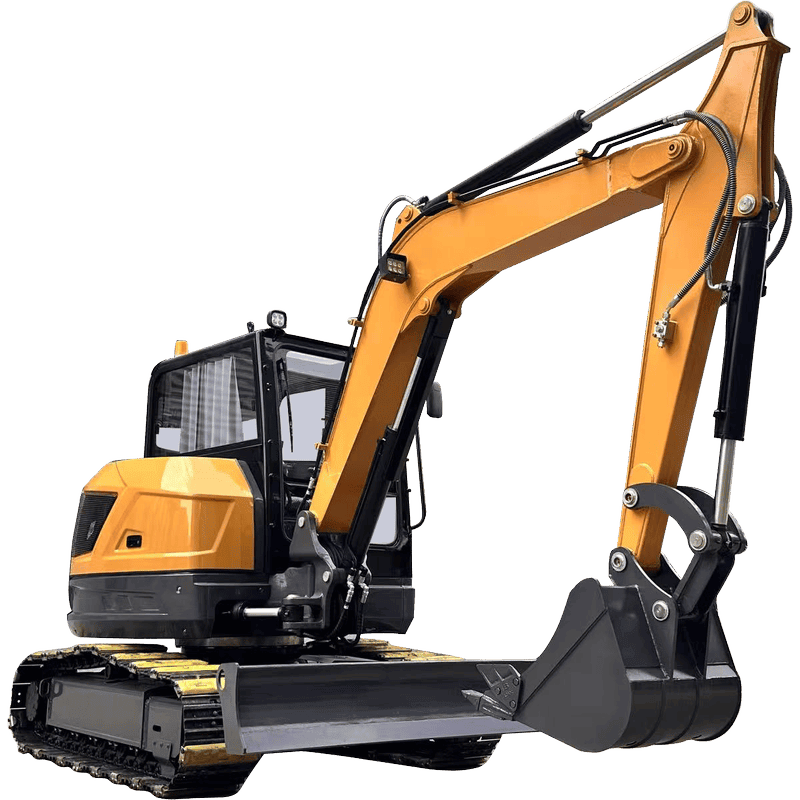

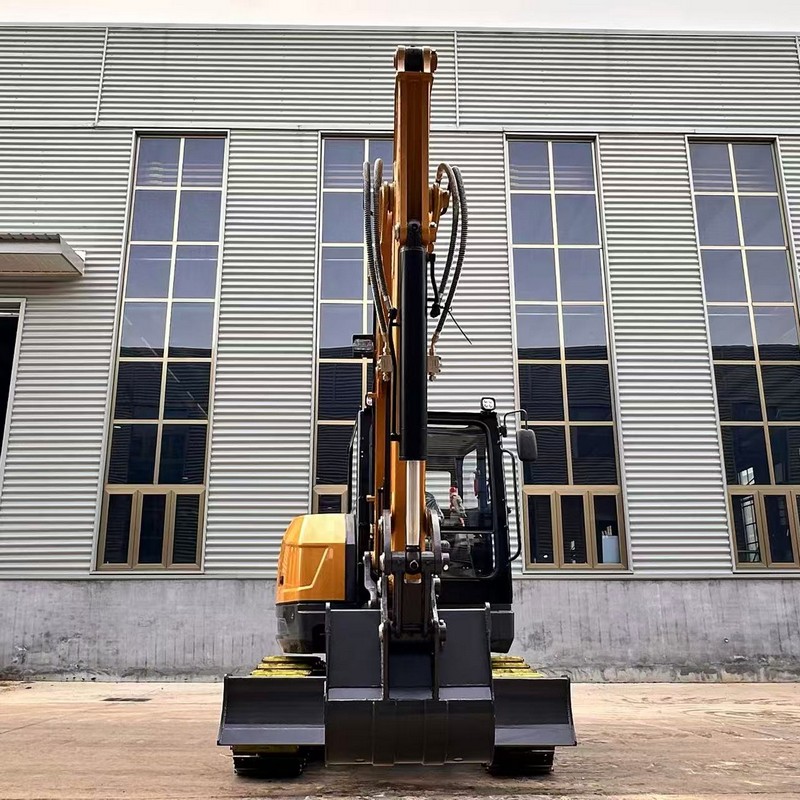

6 Ton Excavator
As a general-purpose small construction machinery, this equipment can not only handle conventional earthwork operations but also, through accessory expansion, be competent for tasks such as slope trimming and material handling.
Delivers stable power output, suitable for long-term continuous operations.
The traveling device has strong wear resistance, adapting to different ground conditions such as gravel and soil.
The overall weight distribution is reasonable, reducing pressure damage to the ground.
| SPECIFICATION | Operation Weight | t | 6.6ton |
| Engine Brand | Yanmar494/Yanmar498/KUBOTA V2607 | ||
| Rated Power | Kw | 36.3/42.4/42.5 | |
| Digging Bucket Capacity | cbm | 0.23 | |
| Bucket Width | mm | 700 | |
| Traveling Motor | LKC | ||
| Travel Speed | km/h | 2.2/4.2 | |
| Swing Motor | Lonking | ||
| Swing Speed | r/min | 12 | |
| Hydraulic System | Plunger Pump | ||
| Body Swing Radius | mm | 1180 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 45/55 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 30 | |
| Hydraulic Fluid Chamber | L | 41 | |
| MAIN DIMENSIONS | Overall Length | mm | 5834 |
| Overall Width | mm | 2000 | |
| Overall Height | mm | 2570 | |
| Track Width | mm | 400 | |
| Track Length | mm | 2640 | |
| Body Width | mm | 1780 | |
| WORKING RANGE | Max. Digging Radius | mm | 6044 |
| Max Digging Depth | mm | 2845 | |
| Max. Digging Height | mm | 5157 | |
| Max. Unloading Height | mm | 3692 | |
| Min. Swing Radius | mm | 3022 | |
| Max. Digging Depth Of Dozer Blade | mm | 369 | |
| Max. Lifting Height Of Dozer Blade | mm | 253 |
Factory Strength
It has a large open-air test site to simulate real working conditions and verify the reliability of the equipment. The quality inspection process includes multiple checkpoints such as weld flaw detection and hydraulic pressure testing.
International Shipping
Options for basic equipment assembly services (if needed) are provided, with key component inspection points marked. The logistics team tracks the entire transportation process and immediately reports any abnormal situations.
After-Sales Commitment
Regular follow-ups are conducted on the usage of international customers to collect improvement suggestions. We commit to providing lifelong technical consultation support to help users optimize operational efficiency.
