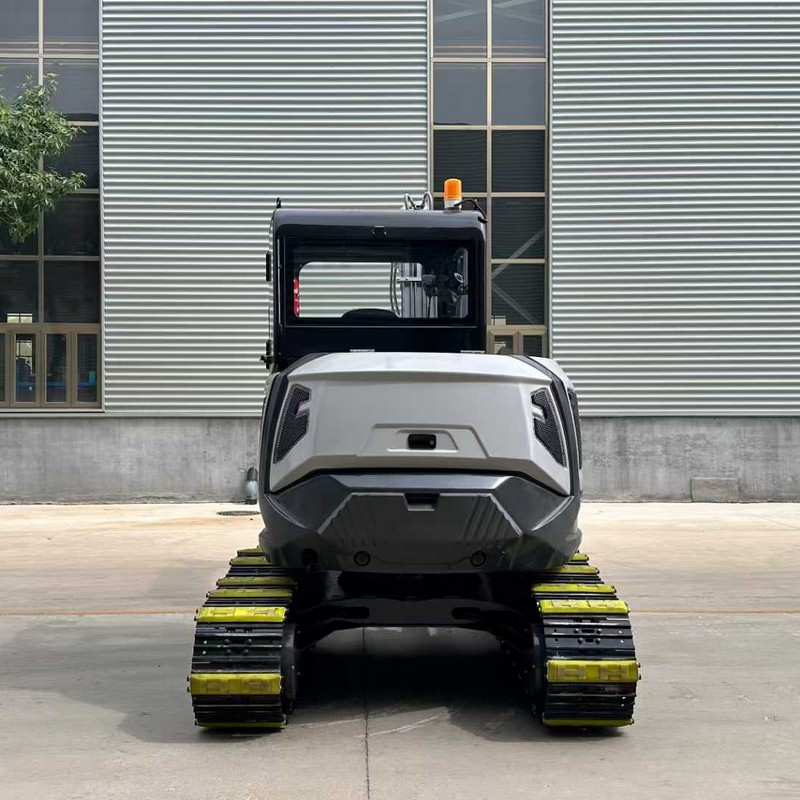

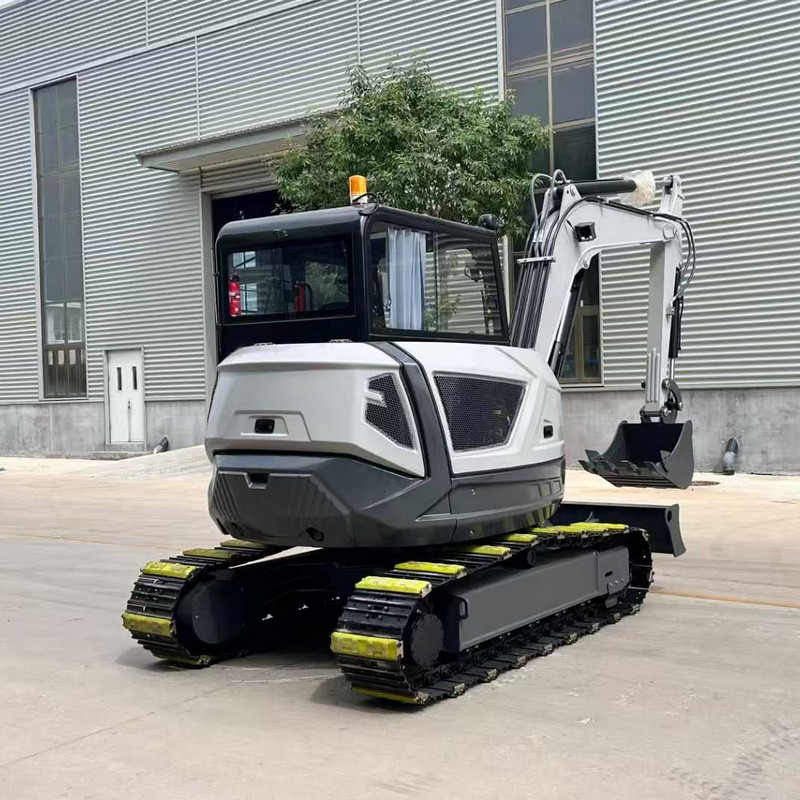

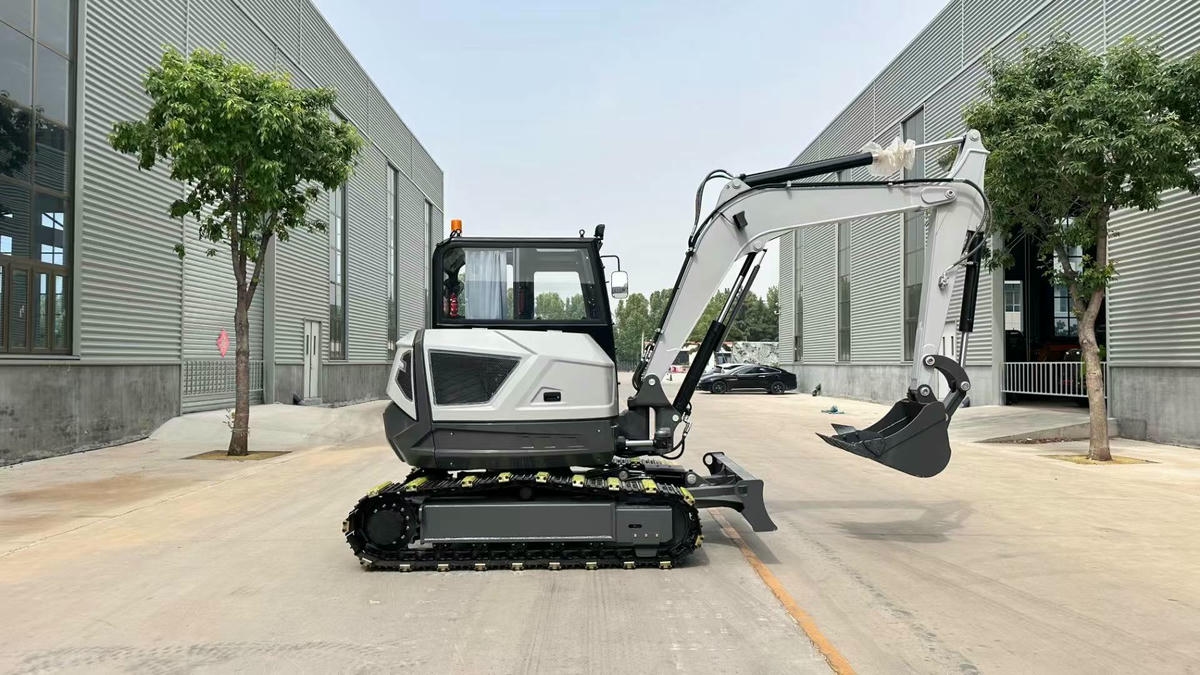

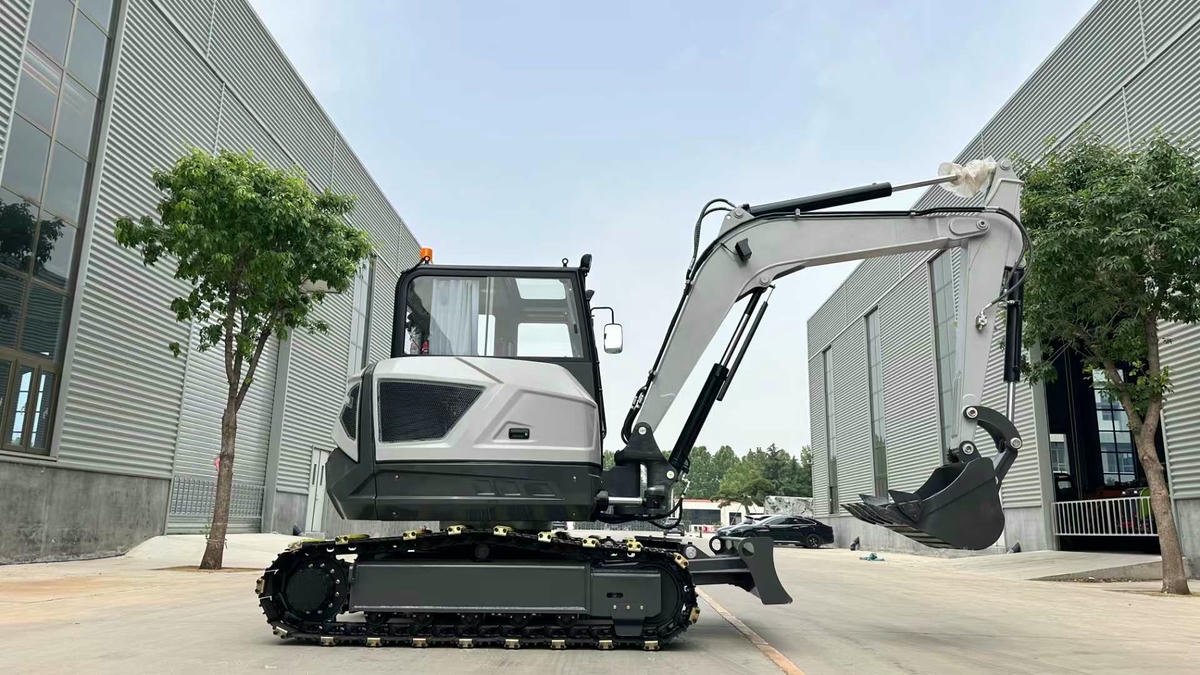

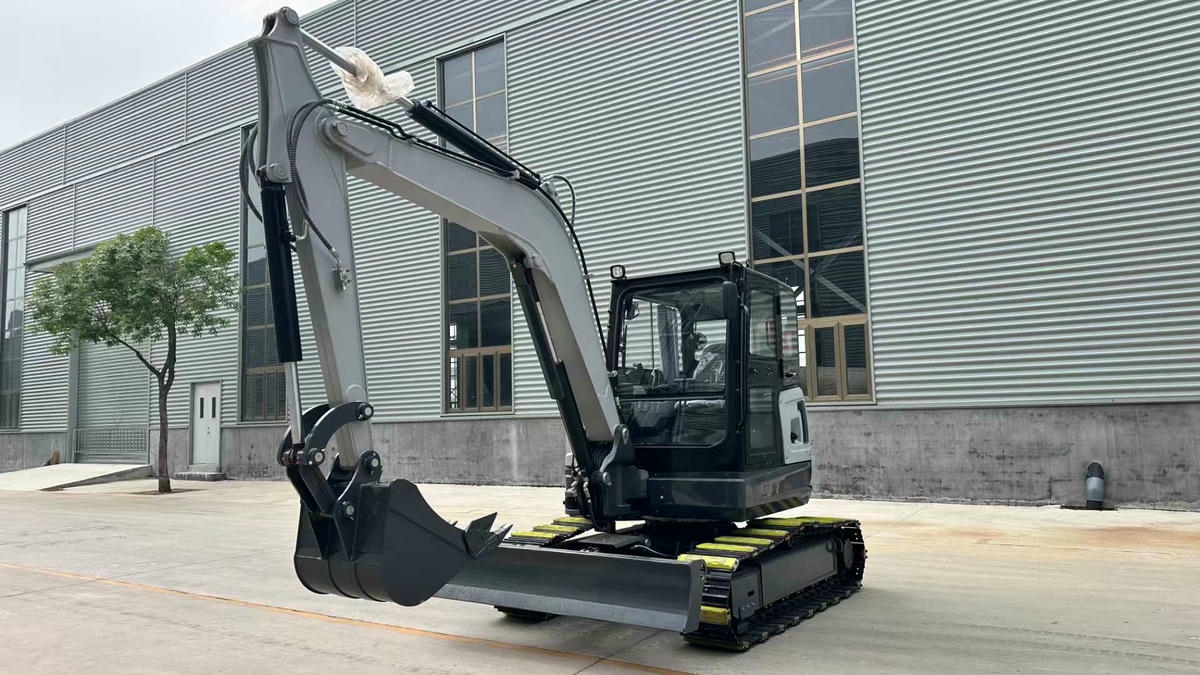

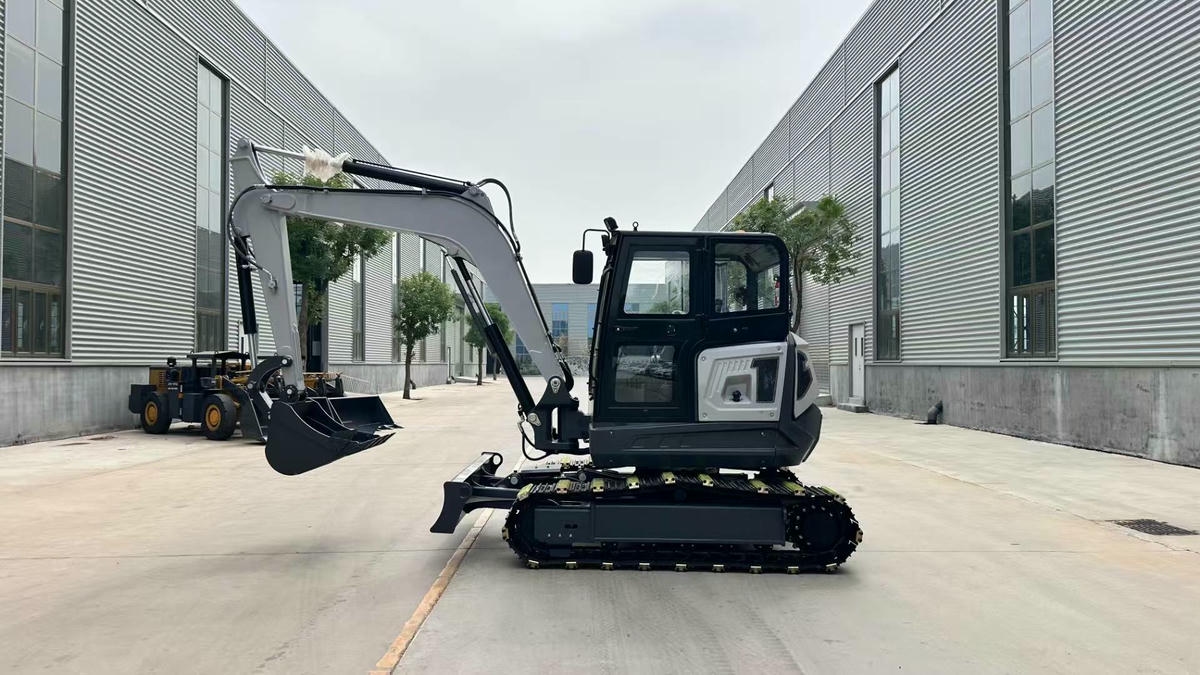

Small Garden Digger
Integrating modern engineering design concepts, this model focuses on operational convenience and scenario adaptability, making it suitable for refined operation scenarios such as interior decoration and indoor demolition.
The hydraulic system responds sensitively, with precise control over micro-actions.
Optional shock-absorbing seats and noise-reduction configurations are available to enhance comfort during long-hour operations.
The modular design simplifies the maintenance process.
| SPECIFICATION | Operation Weight | t | 6.6ton |
| Engine Brand | Yanmar494/Yanmar498/KUBOTA V2607 | ||
| Rated Power | Kw | 36.3/42.4/42.5 | |
| Digging Bucket Capacity | cbm | 0.23 | |
| Bucket Width | mm | 700 | |
| Traveling Motor | LKC | ||
| Travel Speed | km/h | 2.2/4.2 | |
| Swing Motor | Lonking | ||
| Swing Speed | r/min | 12 | |
| Hydraulic System | Plunger Pump | ||
| Body Swing Radius | mm | 1180 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 45/55 | |
| Max. Grade Ability | deg | 35 | |
| Fuel Tank | L | 30 | |
| Hydraulic Fluid Chamber | L | 41 | |
| MAIN DIMENSIONS | Overall Length | mm | 5834 |
| Overall Width | mm | 2000 | |
| Overall Height | mm | 2570 | |
| Track Width | mm | 400 | |
| Track Length | mm | 2640 | |
| Body Width | mm | 1780 | |
| WORKING RANGE | Max. Digging Radius | mm | 6044 |
| Max Digging Depth | mm | 2845 | |
| Max. Digging Height | mm | 5157 | |
| Max. Unloading Height | mm | 3692 | |
| Min. Swing Radius | mm | 3022 | |
| Max. Digging Depth Of Dozer Blade | mm | 369 | |
| Max. Lifting Height Of Dozer Blade | mm | 253 |
Factory Strength
The R&D department is equipped with a simulation testing system to verify equipment performance in advance. The production team receives regular skill training to ensure process consistency.
International Shipping
We provide equipment installation guidance videos and basic debugging support. We can coordinate with overseas agents to assist customers in inspecting goods after customs clearance.
After-Sales Commitment
Key electronic components come with additional extended warranty services. Maintenance reminders and seasonal maintenance suggestions are pushed through the online platform.
