Track Skidsteers

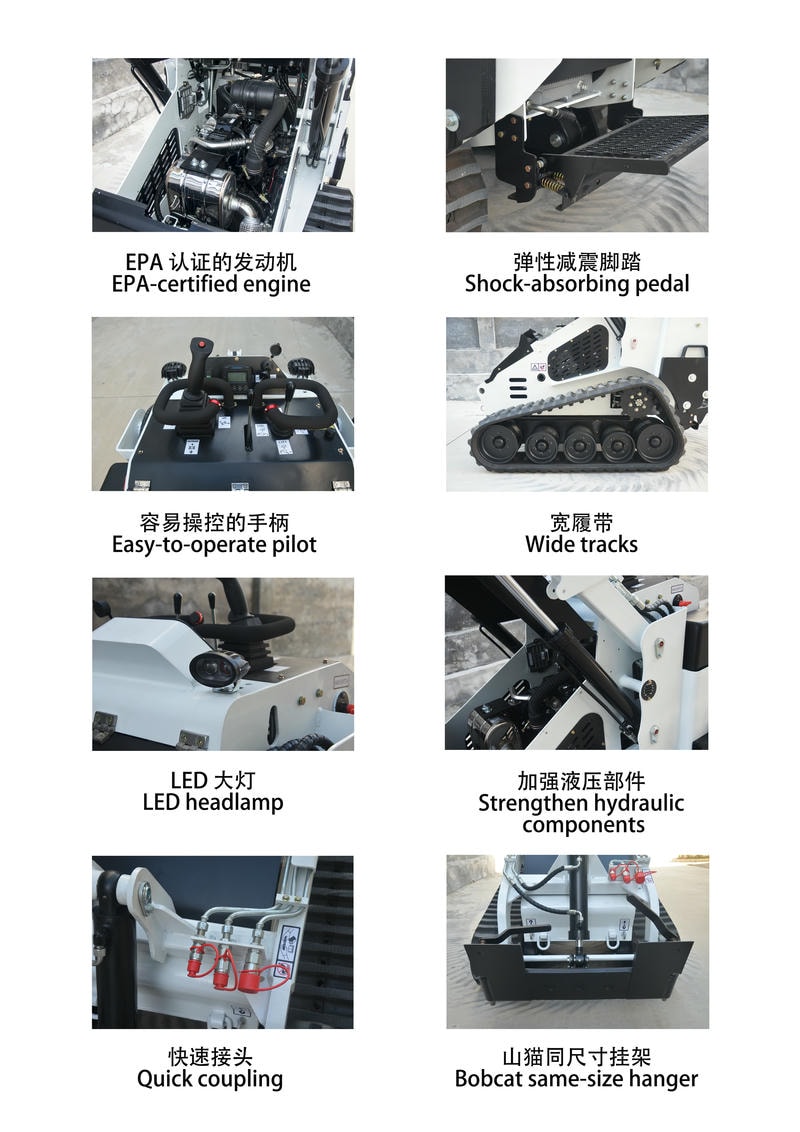

•Yanmar/Kubota engine, ensuring powerful performance.

•Italian HANSA hydraulic system, reliable in performance.

•Strong track, capable of traveling in complex terrains.

•Comfortable standing driving position design.

•US EPA/European Standards

Contact Now E-Mail Telephone WhatsApp

Product Details

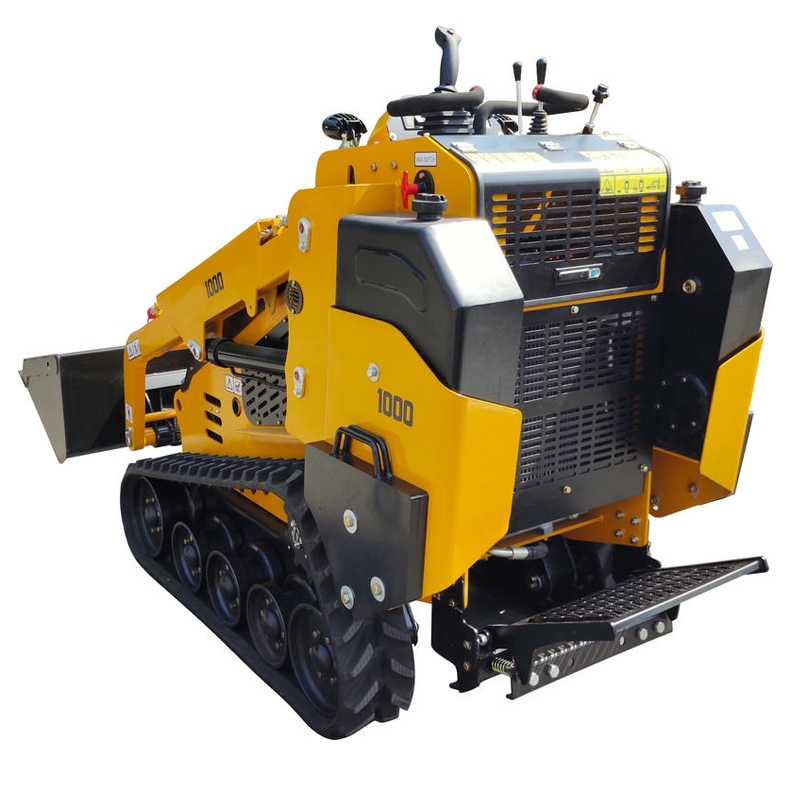

TIGLIFT 1000 mini skid steer loader is equipped with a Japanese engine and an Italian hydraulic system, ensuring the vehicle's power and maneuverability.

Control system adopts dual servo handles, easily and precisely control of vehicle movement and operation.

Standing pedals are fitted with a shock absorption system to ensure driving comfort.

Engine hood opens at a large angle, easy for maintenance and repair.

Skid Loaders for Sale

Product Parameter

Performance Parameters	Unit (Metric)	Unit (inch)
Max Operating Height	2695mm	106.10in
Max Hinge Pin Height	2000mm	78.74in
Overall Height of Machine	1650mm	65in
Overall Width of Machine	1105mm	43.5in
Overall Length of Machine (Std.Bucket)	2580mm	101.57in
Overall Length of Loader (No Attachment)	2050mm	80.7in
Track Length	1090mm	43in
Track Width	200mm	7.87in
Wheelbase	1080mm	42.52in
Turning Radius	1100mm	43.31in
Ground Clearance	200mm	7.87in
Angle of Departure	30°	30°
Ground Drive Speed	6.4km/h	4.0mph
Ground Pressure	0.43bar	6.3psi
Machine Weight	1300kg	2866lb
Gear Pump Flow Rate	33L/min	8.7gpm
Double Gear Pump Pressure	200bar	2900psi
Dual Hydrostatic Ground Drive Pumps Flow	45L/min	11.88gpm
Dual Hydrostatic Ground Drive Pumps	207bar	3000psi
Load Weight	600kg	1323lb
Bucket Width	1150mm	45.28in
Bucket Capacity	0.15cbm	39.63gal
Bucket Dimension	570mm1150mm430mm	22.44in45.28in16.93in
Bucket Unloading Angle	40°	40°
Engine	Kubota D1105
Fuel	Diesel
Emissions Compliance	US EPA/European Standards
Gross Power Rating	18.2KW	24.4hp
Number Of Cylinders	3	3
Displacement	1.123 L	68.5in³
Rated Speed	2500rpm	2500rpm
Fuel Tank Capacity	35L	9.2gal
Engine Oil (With Filter)	4.7L	5qt
Hydraulic Reservoir Capacity	40L	10.5gal
