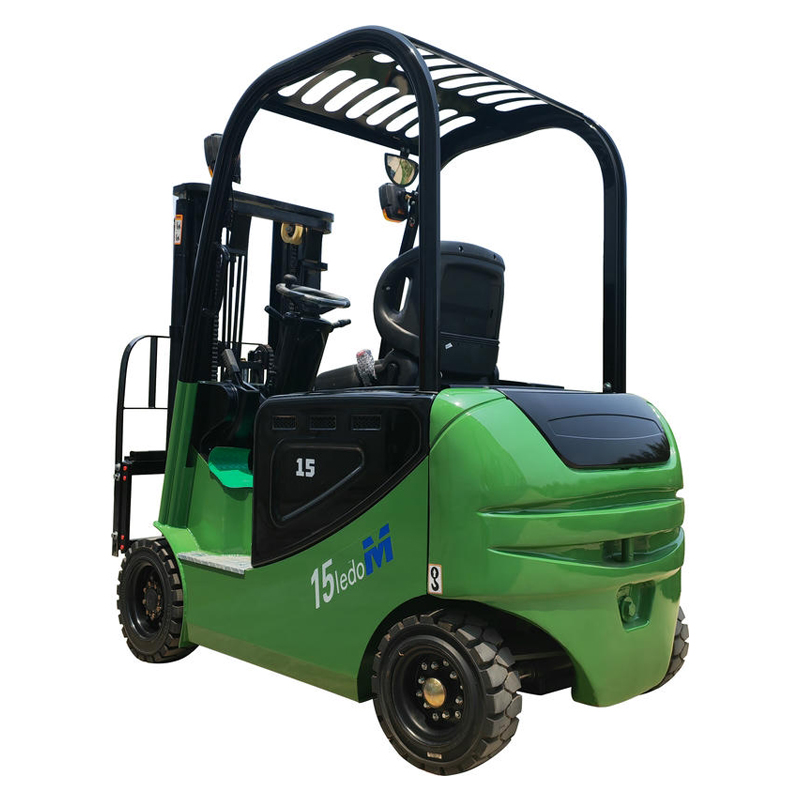

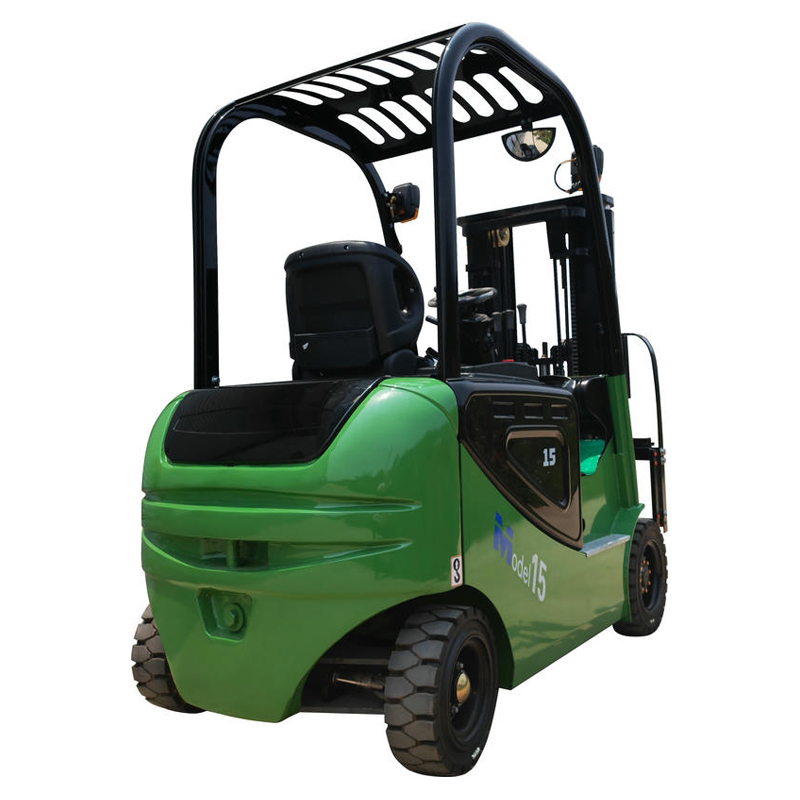

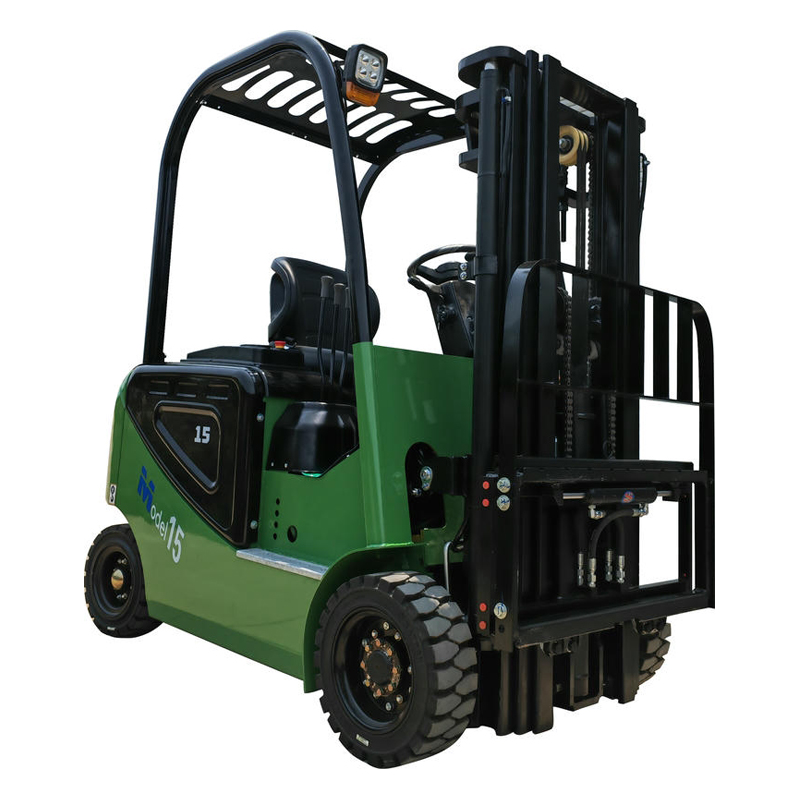

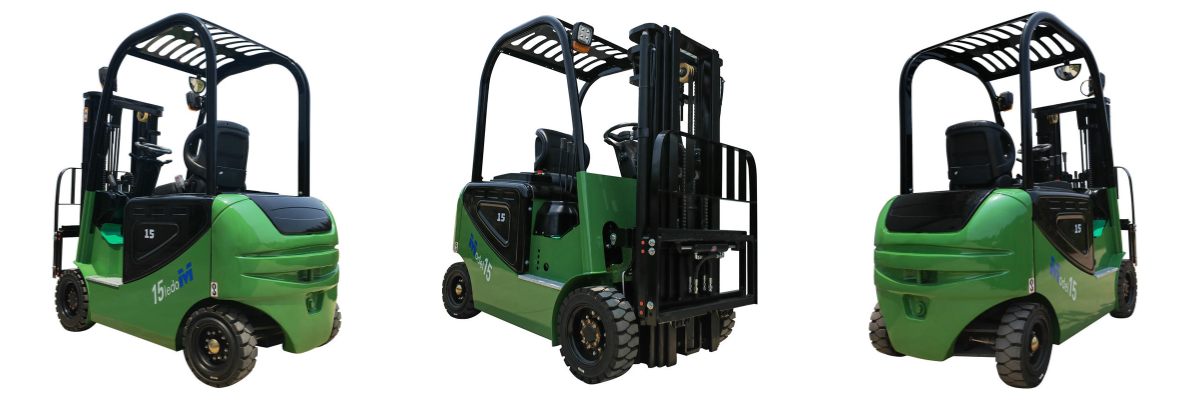

1.5T Electric Forklift
1.The lithium-electric forklifts produced by our company adopt thickened vehicle body components, well-known brand batteries and mature power management solutions. With a small body size, they are suitable for operations in narrow spaces.
2.Lithium batteries have a longer service life, resulting in low average cost in long-term use. They are noise-free and pollution-free, ensuring high comfort for workers.
3.The performance of lithium-electric forklifts is less affected by temperature, enabling them to have a wide range of operations. They can be applied to working environments such as cold storage, food, medicine, precision machinery and electronic equipment.
Electric Forklifts are industrial handling vehicles powered by lithium-ion batteries, used for loading, unloading, stacking and short-distance transportation of palletized goods.
1.More Eco-Friendly and Energy Efficient
Lithium batteries as the power source produce zero emissions during operation, making them ideal for cleanroom-sensitive indoor environments like food processing and pharmaceutical production.
2. Superior Operational Experience
•Smooth electric motor startup with instant acceleration/deceleration response
•Exceptionally agile handling and low noise levels enhance workplace comfort
3. Simplified Maintenance
•No complex engine or transmission components
•Minimized unplanned downtime compared to traditional forklifts
4. Flexible Charging & Extended Runtime
•Fast-charge capable – recharge during breaks/lunch hours
•Opportunity charging maximizes uptime
5. Outstanding Total Cost of Ownership (TCO)
•Electricity costs 70% less than diesel/gas 60% lower maintenance expenses
•Typical ROI achieved within 2-3 years
Product Parameter
Model | CPD15 | |
Rated Capacity | kg | 1500 |
Load Center | mm | 500 |
Power Type | Lithium Battery | |
Driving Type | Sitting Type | |
Wheel Base | mm | 1550 |
Front Tread/Rear Tread | mm | 945/880 |
Front Overhang | mm | 325 |
Mast Tilting Angle(Forword-Backward) | ° | 5/10 |
Max Lifting Height | mm | 3000 |
Free Lift Height | mm | 105 |
Overall Height (Mast Lowered) | mm | 2200 |
Overall Height (Mast Extend) | mm | 4055 |
Overhead Guard Height | mm | 2110 |
Overall Length (Including Fork) | mm | 3150 |
Overall Length (Without Fork) | mm | 2050 |
Overall Width | mm | 1096 |
Min.Ground Clearance | mm | 88 |
Min.Tuming Radius | mm | 2020 |
Fork Dimension | mm | 40*100*1070 |
Max.Driving Speed (No-Load) | km/h | 14 |
Max.Driving Speed (Full-Load) | km/h | 12 |
Max.Lifting Speed (Full-Load/No-Load) | mm/s | 270/300 |
Descending Speed (Full-Load/No-Load) | mm/s | 400/350 |
Grade ability (Full-Load/No-Load) | (%) | 15/20 |
Total Weight | kg | 2650 |
Wheel No. X= Driving wheel (Front/Rear) | 2/2 | |
Tyre Type(Front/Rear) | Solid Tyre | |
Tyre Size(Front/Rear) | 6.5-10 16*6.8 | |
Driving Brake | Hydraulic-Foot Step Type | |
Parking Brake | Mechanical-Manual | |
Driving Motor Power(S2-60min) | kw | 4 |
Lifting Motor Power(S3-15%) | kw | 5 |
Driving Motor Control Mode | mosfet/pmsm | |
Lifting Motor Control Mode | mosfet/pmsm | |
Hydraulic System Pressure | MP | 18MP |
Battery | V/AH | 76.8V205ah |

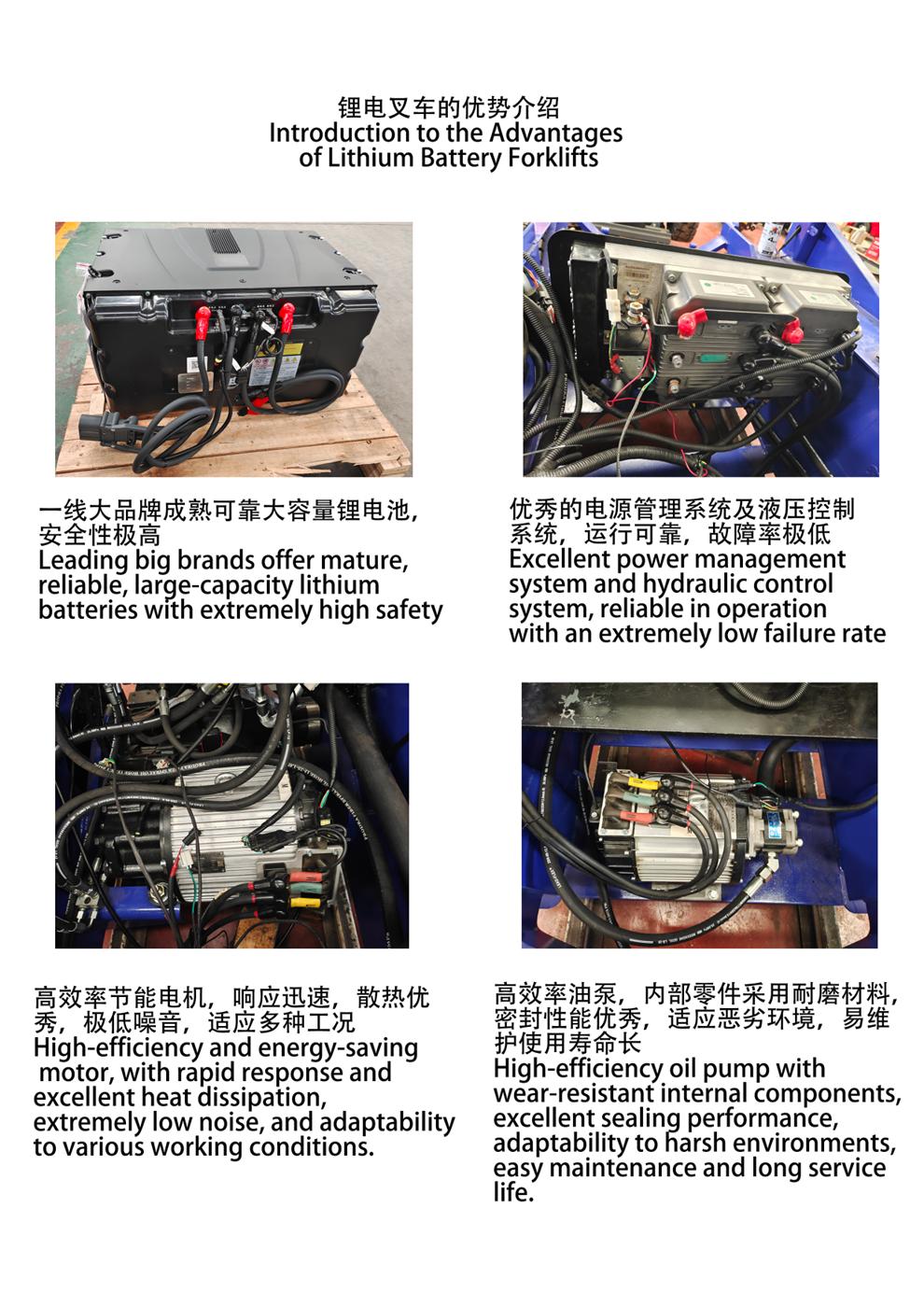

Product Advantage
1. High efficiency and energy saving, low operating cost
· High energy consumption ratio: Lithium batteries have an energy conversion efficiency of over 95%, charge faster and have no memory effect, allowing for charging and discharging at any time.
· Maintenance-free: There is no need for regular refilling of electrolyte or cleaning of acid, reducing manual maintenance costs.
2. Flexible and lightweight, high space utilization
· Compact design: The width of the vehicle body can be small, making it suitable for narrow passages.
· Lightweight: The overall weight of the vehicle is reduced, alleviating the pressure on the ground.
3. Long service life and fast charging
· Long cycle life: Lithium batteries can reach 3,000 cycles. Calculated on the basis of one charge per day, the theoretical service life is more than 8 years.
· Fast charging technology: It can be charged to 80% in 1 hour, supporting supplementary charging during lunch breaks or shift gaps, enabling 24-hour multi-shift operations.
4. Intelligent management and environmental compliance
· BMS system: It monitors power and temperature in real time, prevents overcharging and over-discharging, and extends battery life.
· Zero emissions: No lead or acid mist pollution, meeting environmental regulations such as the EU RoHS, and suitable for industries with high cleanliness requirements such as food and pharmaceuticals.
5. Strong scene adaptability
· Cold storage application: Lithium batteries can still maintain more than 70% capacity at -20℃.
· Ergonomic optimization: Low vibration, low noise (less than 60 decibels), combined with a suspended seat, reduces driver fatigue.
Delivery and After Service
•Professional manufacturer with over 20 years’ experience
•Quickly analyze customer needs and provide comprehensive solutions
•Fast delivery and professional customer service staff
•Rapid response to after-sales issues
•Quick problem identification & solution provision
•Comprehensive spare parts supply system & emergency spare parts support
