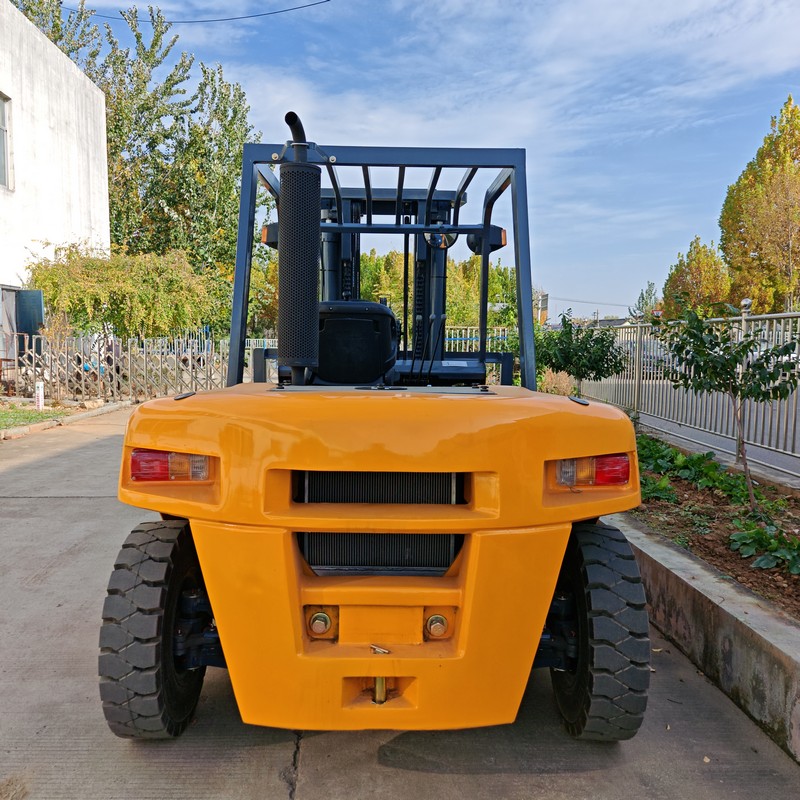

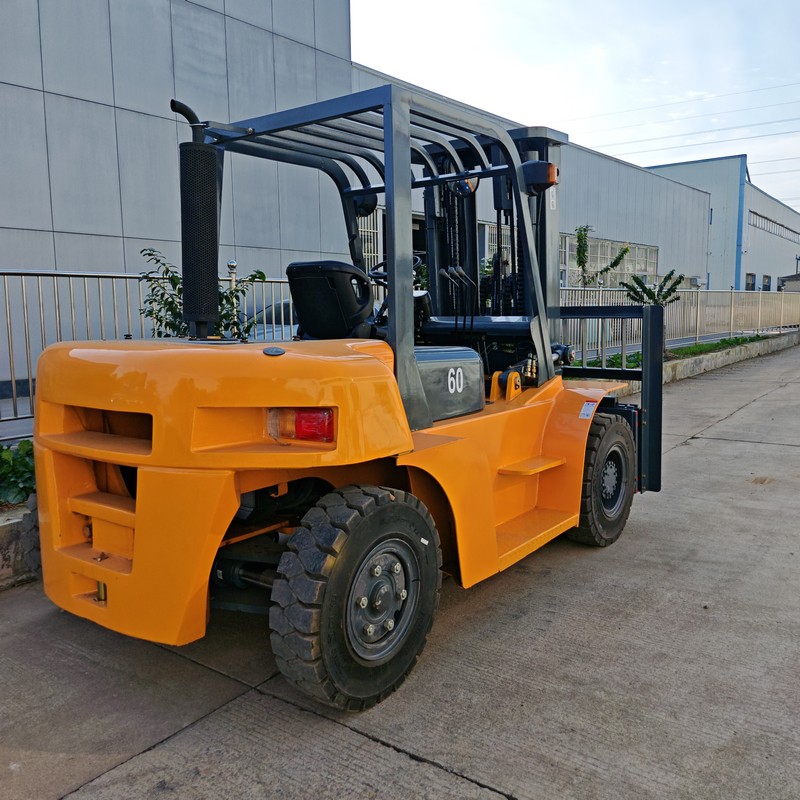

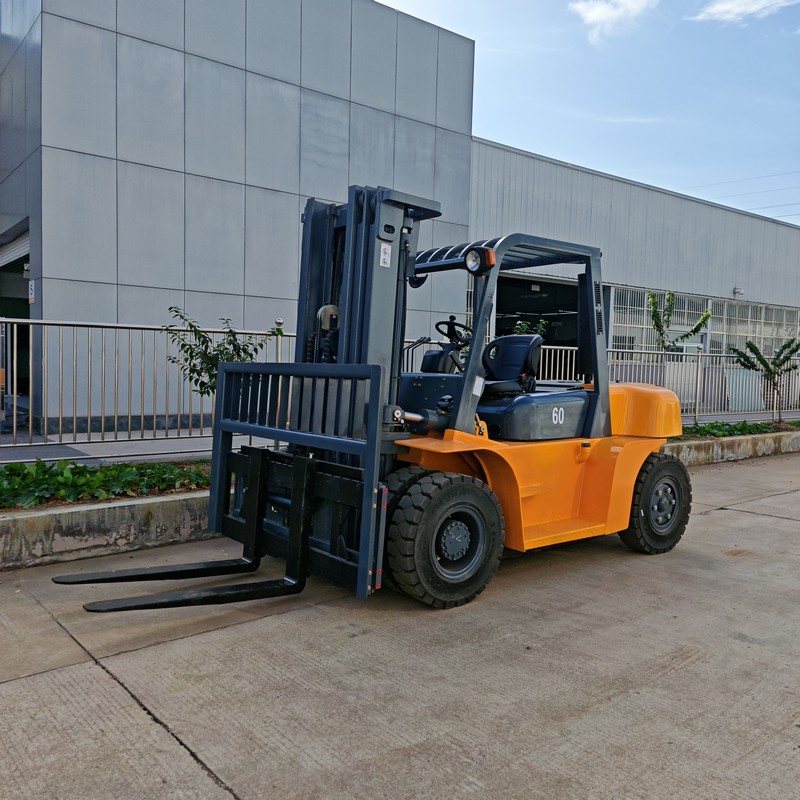

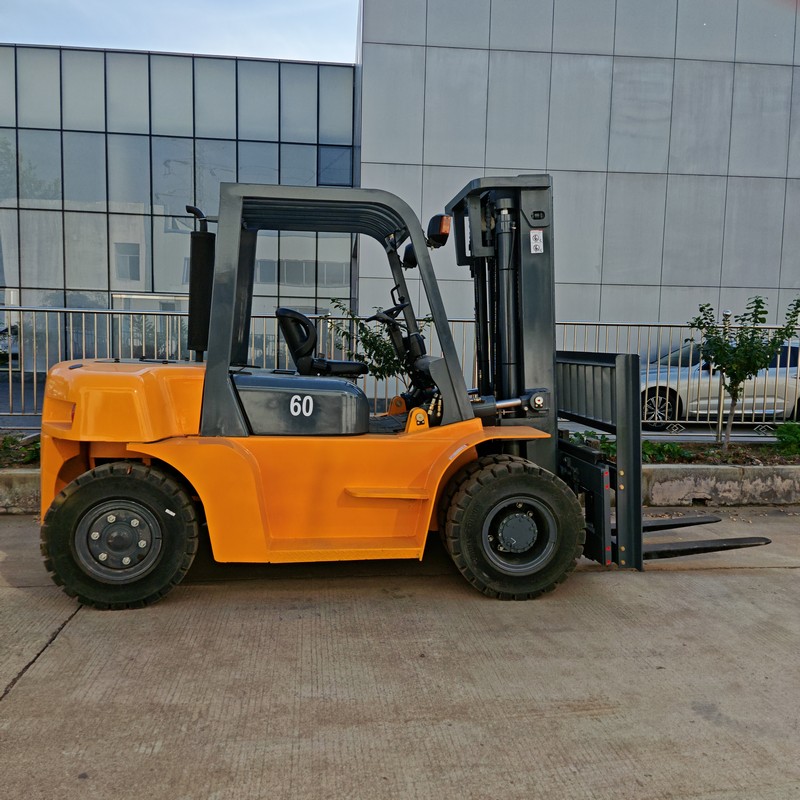

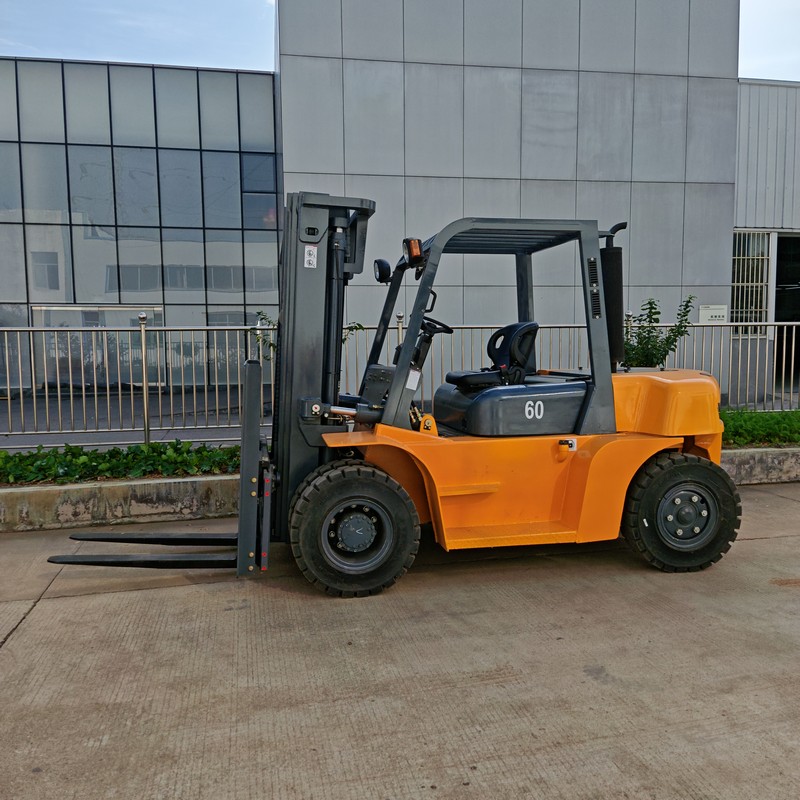

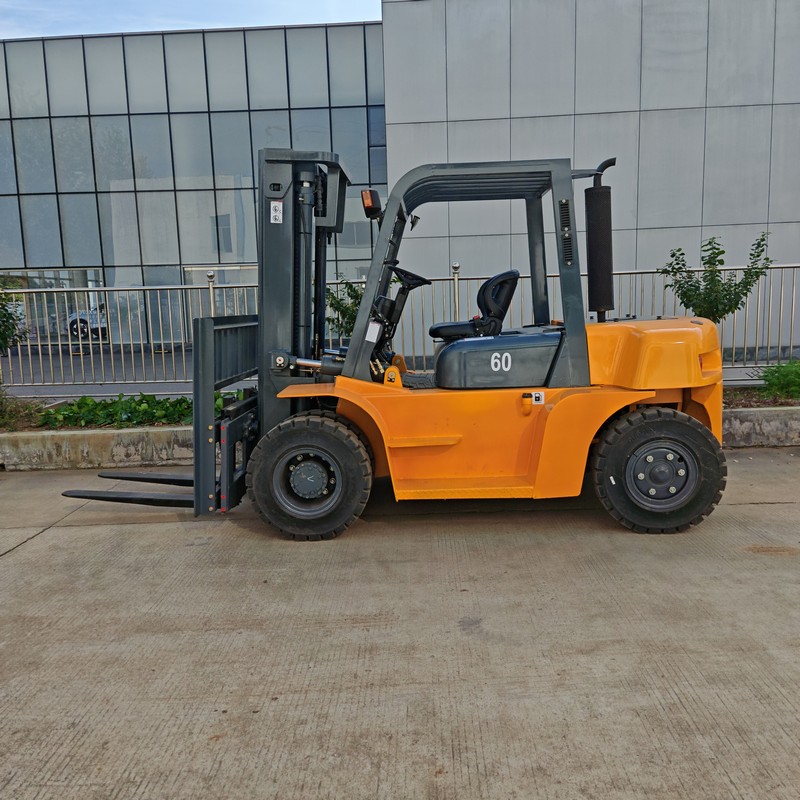

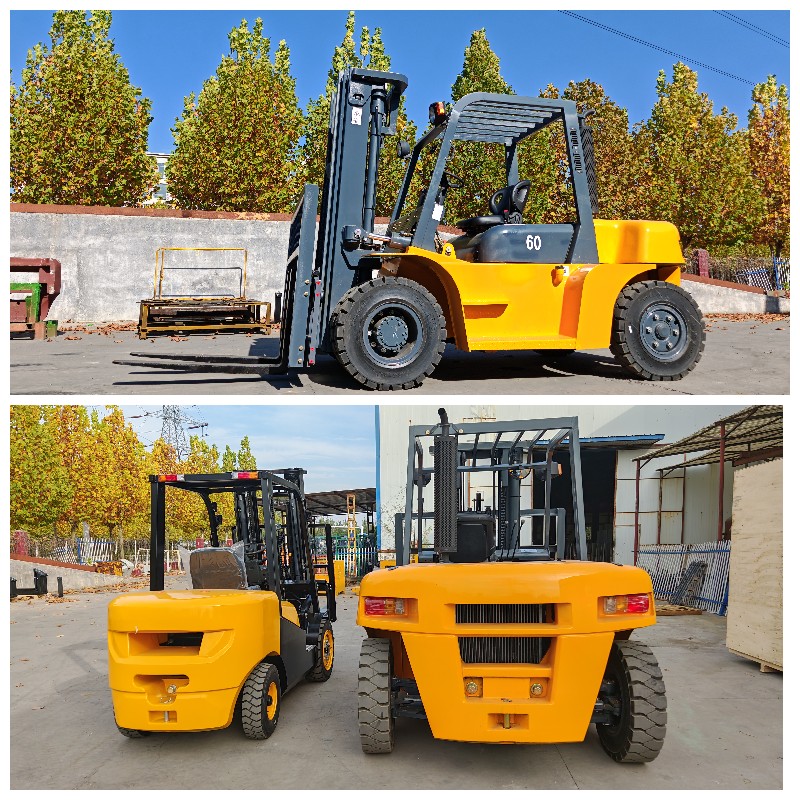

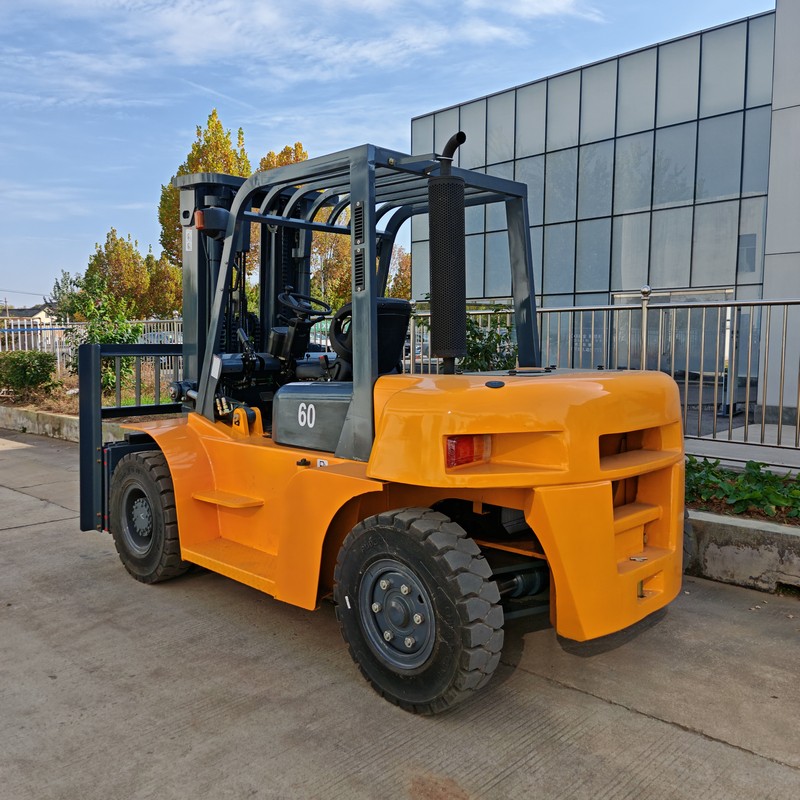

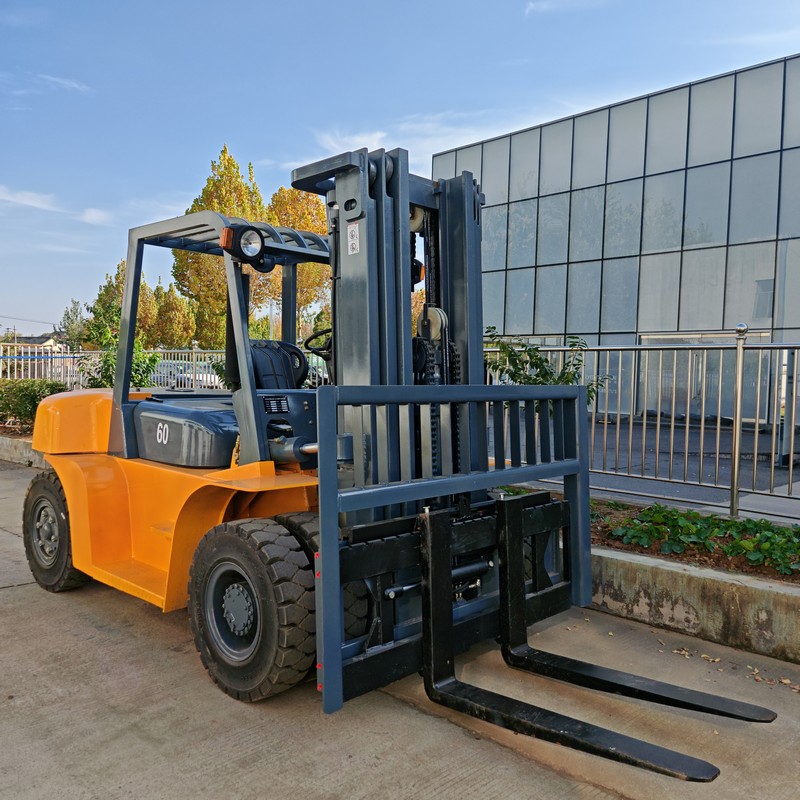

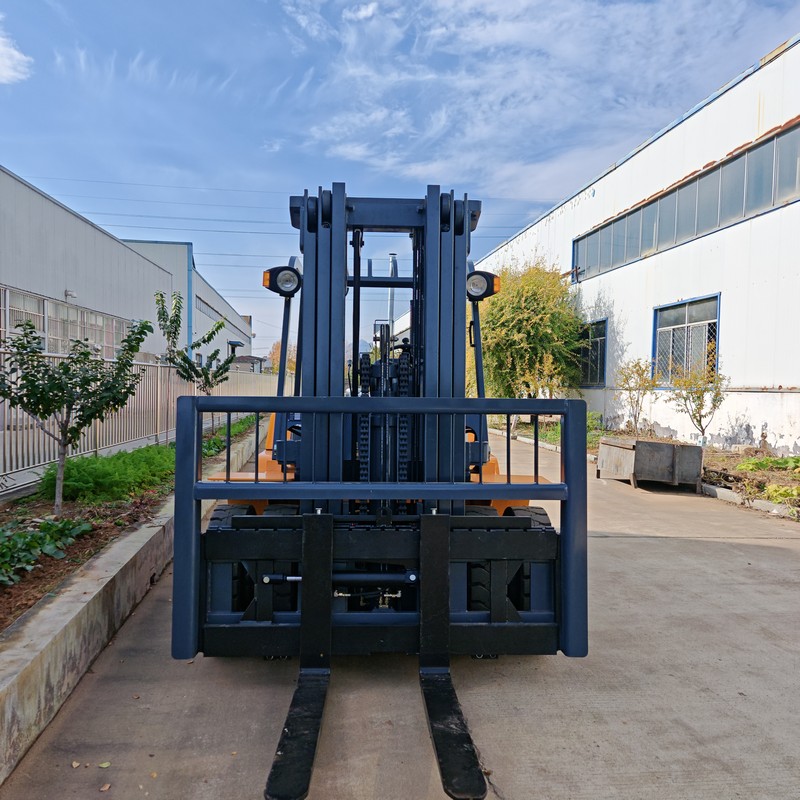

Forklift 6 Ton
1.6T heavy load, powerful diesel, non-stop efficiency.
2.Sturdy build, flexible operation, multi-scene ready.
3.Low maintenance, high cost-effectiveness, heavy-duty expert.
4.Attachments compatible, reliable performance, all-day work.
Boasting a robust 6 ton load capacity, this diesel forklift delivers exceptional power and torque for heavy-duty handling tasks. It excels in diverse working conditions, from indoor warehouses to outdoor construction sites, with outstanding climbing ability and long-lasting endurance that supports 24-hour shift operations. Built with high-strength steel frames and optimized key components, it ensures superior durability and low failure rates, cutting down long-term maintenance costs. Its flexible steering system enables smooth navigation in narrow spaces, while compatibility with various attachments expands its operational versatility. A cost-effective choice for efficient, reliable heavy-load transportation needs.
| TECHNICAL SPECIFICATIONS FOR FORKLIFT | ||||
| Performance | Model | CPCD60F | ||
| Rated Capacity | kg | 6000 | ||
| Load Center | mm | 600 | ||
| Power Type | Diesel | |||
| Max. Lifting Speed (No-Load / Full-Load) | mm/s | 470 | ||
| Max. Driving Speed (Full-Load / No-Load) | km/h | 26/28 | ||
| Max. Towing Capacity | kN | 53 | ||
| Gradeability (Full-Load / No-Load) | % | 15/20 | ||
| Lifting Height | (H1) | mm | 3000 | |
| Free Lift Height | mm | 150 | ||
| Mast Tilting Angle (Forward-Backward) | (°) | 6∕12 | ||
| Min. Turning Radius | mm | 3430 | ||
| Min.Right Angle Aisle Width | mm | 3090 | ||
| Min. Ground Clearance | mm | 230 | ||

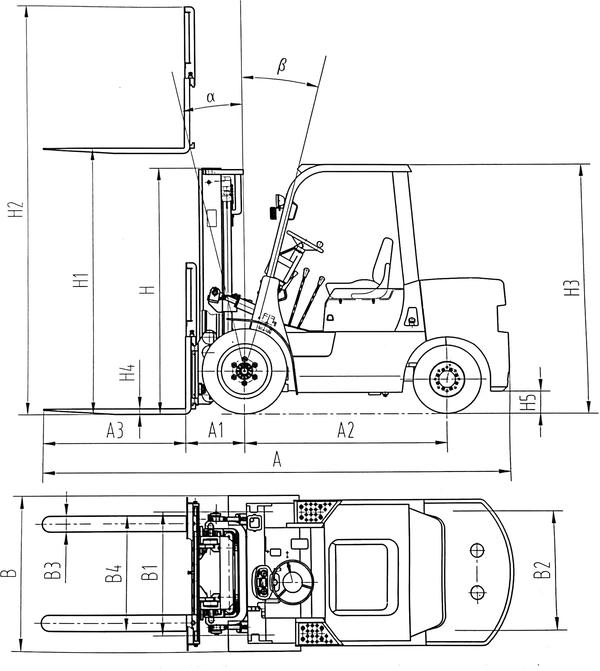

| Dimensions | Overall Length (Including Fork) | (A) | mm | 4750 |
| Overall Width | (B) | mm | 1995 | |
| Overall Height (Mast Lowered) | (H) | mm | 2500 | |
| Overall Height (Mast Extended) | (H2) | mm | 4420 | |
| Overall Height to Overhead | (H3) | mm | 2420 | |
| Front Overhang | (A1) | mm | 635 | |
| Wheelbase | (A2) | mm | 2250 | |
| Front Tread | (B1) | mm | 1470 | |
| Rear Tread | (B2) | mm | 1700 | |
| Tire | Front Wheel | mm | 8.25-15-14 | |
| Rear Wheel | mm | 8.25-15-14 | ||
| Fork | Fork Width | (B3) | mm | 150 |
| Fork Thickness | (H4) | mm | 60 | |
| Backrest Height | mm | 1365 | ||
| Fork Length | (A3) | mm | 1220 | |
| Engine | Engine Model | QUANCHAI 4J1 | ||
| Rated Power | kW | 85 | ||
| Rotate Speed at Rate Power | rpm | 2200 | ||
| Max. Torque | Nm | 500 | ||
| Rotation Speed at Max. Torque | rpm | 1650 | ||
| Type of Power Shift | Hydraulic | |||
| Curb Weight | kg | 8640 | ||

A 6-ton diesel forklift is a medium- to heavy-duty industrial handling equipment that balances load capacity with operational flexibility. It is suitable for medium- to high-intensity applications in manufacturing, warehousing, logistics, ports, and terminals. Its core advantages are as follows:
1. Strong Heavy-Duty Capability, Suitable for Diverse Conditions
With a rated load capacity of 6 tons, it can easily handle heavy goods such as large molds, steel materials, container parts, and stacked building materials. It is capable of both indoor tasks like pallet stacking and cargo transfer and outdoor heavy-duty operations at construction sites and freight yards, surpassing the load limitations of light-duty forklifts.
2. Powerful Performance, Balancing Endurance and Efficiency
The diesel engine delivers high torque and strong climbing capability (with a maximum gradeability of over 20°), ensuring smooth operation on challenging terrains like muddy surfaces and slopes. Diesel refueling is convenient, and the long operational range eliminates the need for frequent recharging, enabling 24/7 shift operations and significantly improving handling efficiency.
3. Robust Structure, Exceptional Durability
The chassis and mast are constructed from high-strength welded steel, offering excellent impact and wear resistance to withstand long-term mechanical stress from heavy loads. Key components, such as the transmission and hydraulic system, are optimized for heavy-duty conditions, resulting in low failure rates, extended maintenance intervals, and reduced long-term operating costs.
4. High Cost-Effectiveness, Controllable Total Cost of Ownership
Compared to electric forklifts of the same load capacity, the initial purchase cost is lower. Diesel refueling is convenient, and the mature engine technology ensures easy access to repair parts and lower maintenance expenses. For enterprises with medium- to heavy-duty handling needs, it is a cost-effective solution that balances heavy-duty performance and cost control.
5. Flexible Operation, Compatible with Multiple Attachment Options
The forklift can be equipped with attachments such as side shifters, clamps, and pushers to handle irregularly shaped or long materials, expanding its range of applications. Its flexible steering system and moderate turning radius allow efficient operation in both narrow warehouse aisles and spacious freight yards.
