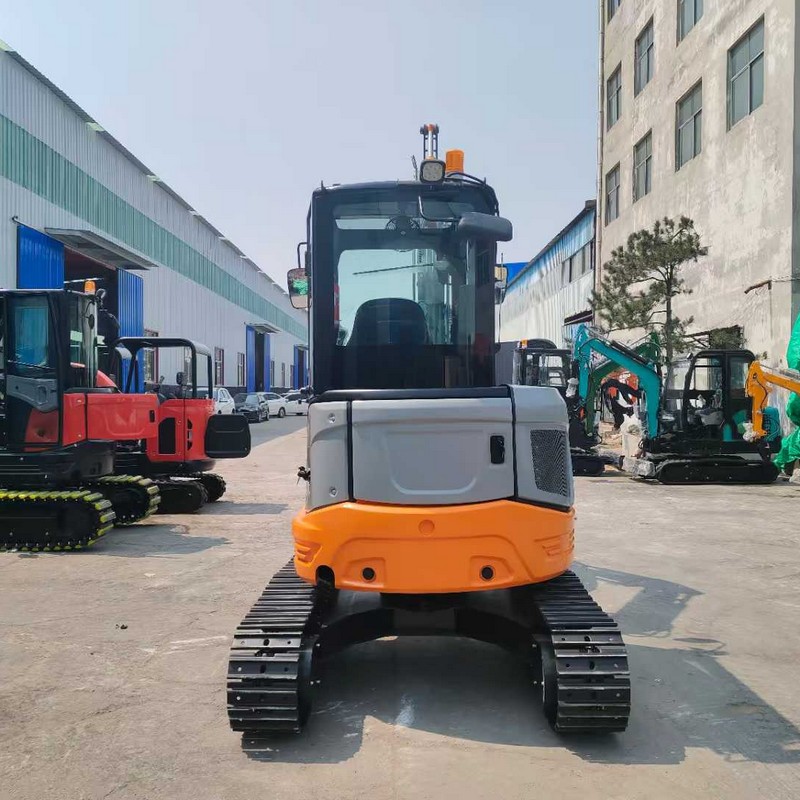

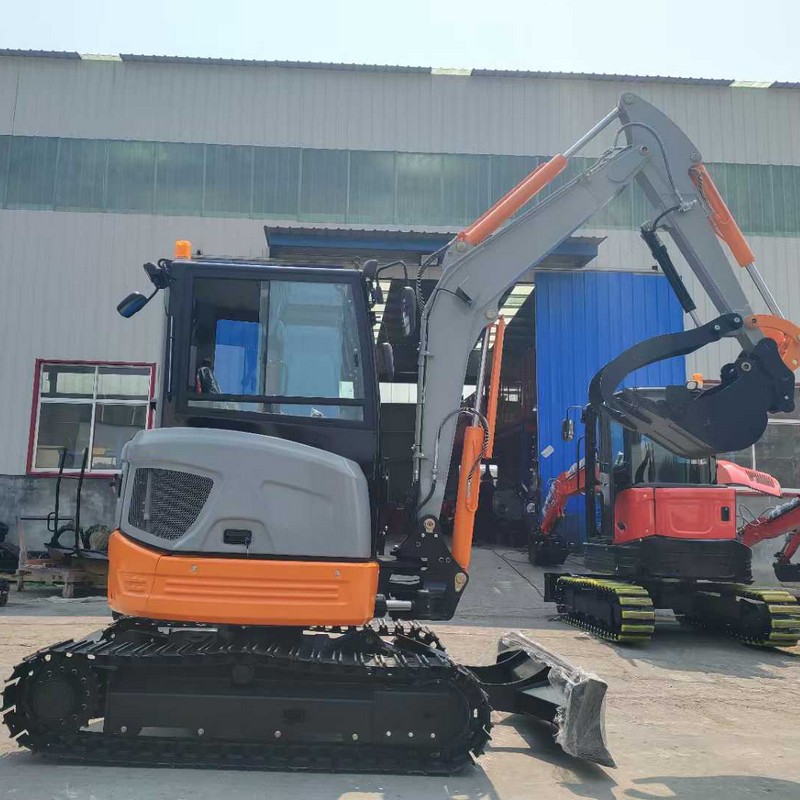

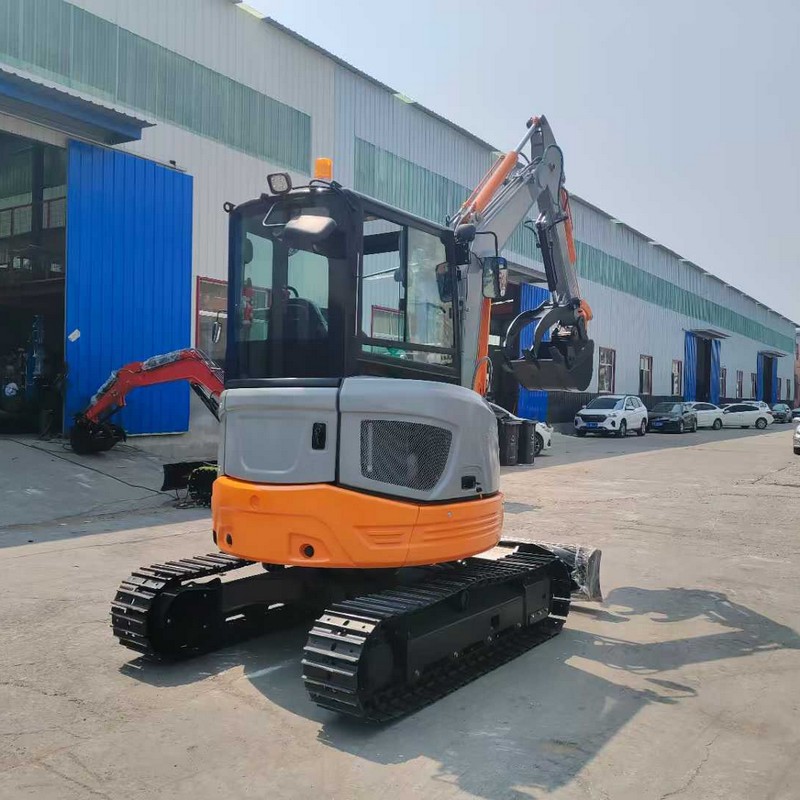

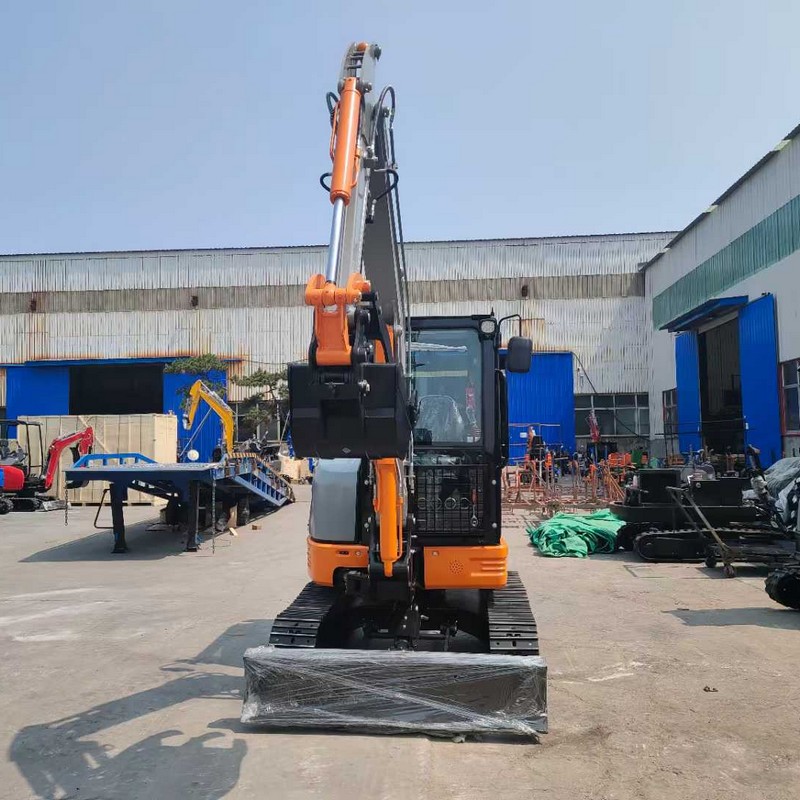

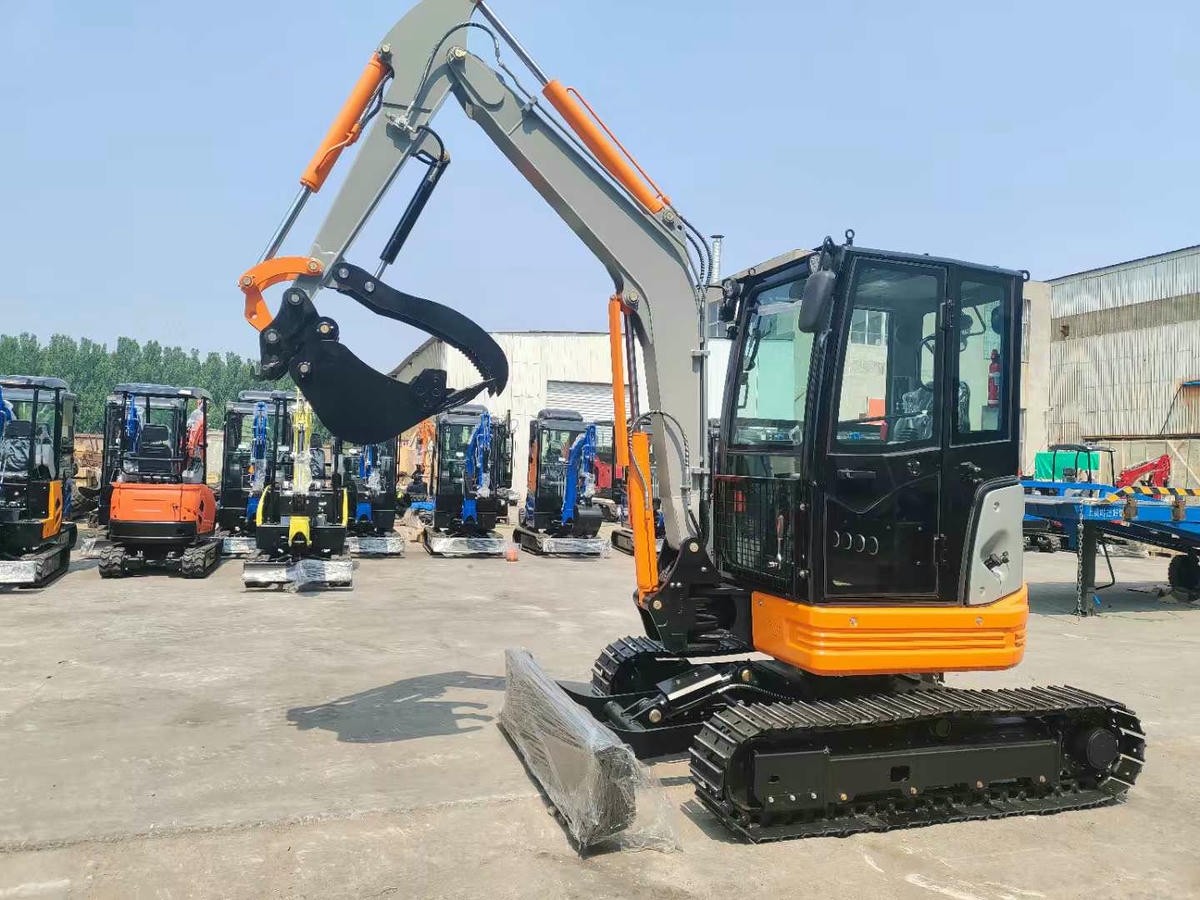

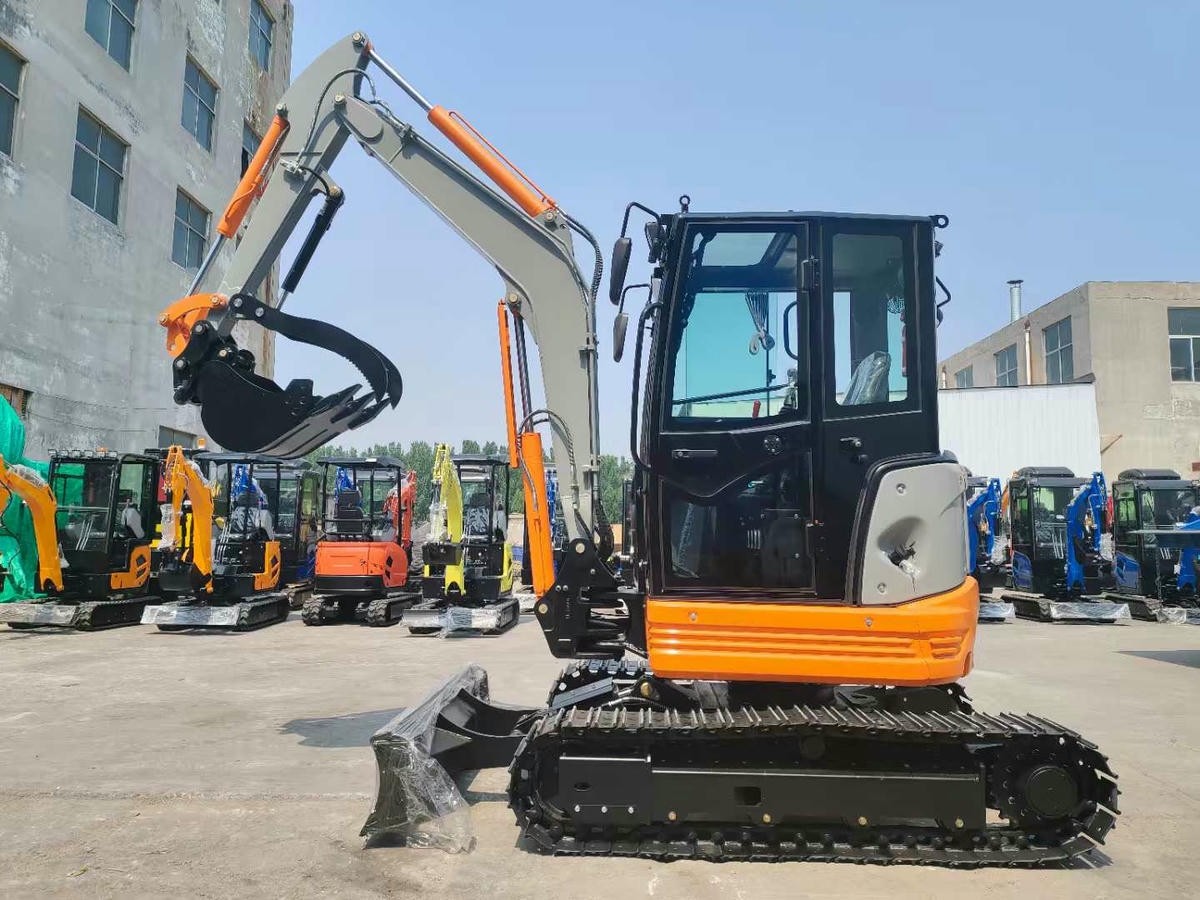

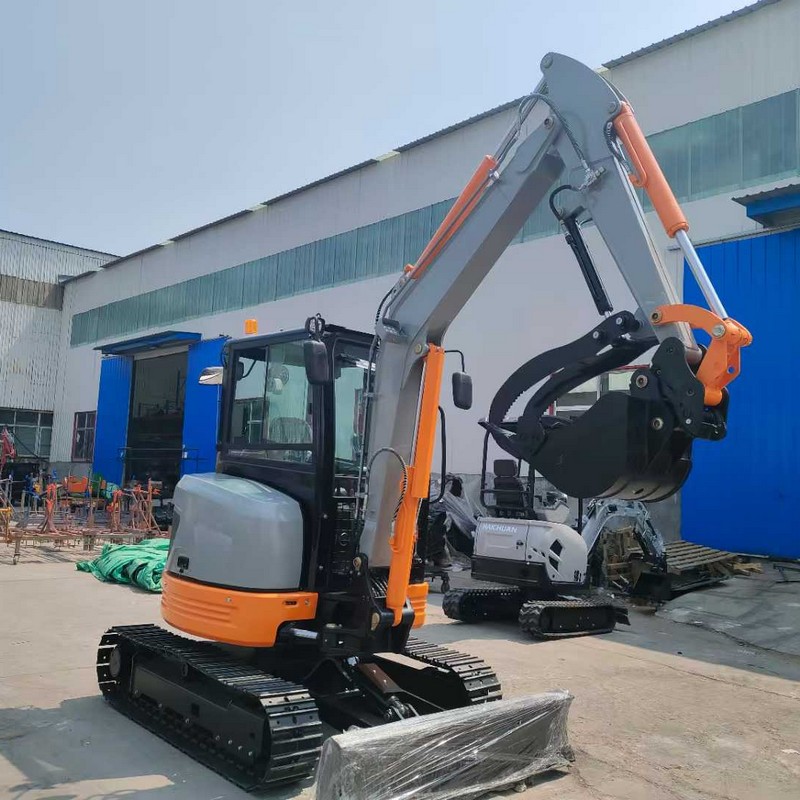

Compact Digger
Positioned as an entry-level model with high cost performance, this excavator is suitable for small construction sites, rural infrastructure projects, and individual contractors. It has gained market recognition for its low operating costs and high return on investment.
Features low fuel consumption and long maintenance intervals, resulting in low overall operating costs.
The chassis is designed to be stable, making it suitable for operations on complex terrains.
The operation logic is simple, allowing even novice users to get started quickly.
| SPECIFICATION | Operation Weight | t | 3.5ton | 3.8ton |
| Engine Brand | Xinchai 490 | KUBOTA1703 | ||
| Rated Power | Kw | 36.8 | 18.2 | |
| Digging Bucket Capacity | cbm | 0.1 | 0.11 | |
| Bucket Width | mm | 500 | 530 | |
| Traveling Motor | Danfoss | LKC | ||
| Travel Speed | km/h | 2.7 | 4.0/2.3 | |
| Swing Motor | Danfoss | LKC | ||
| Swing Speed | r/min | 10 | 12 | |
| Hydraulic System | Plunger Pump | Plunger Pump | ||
| Body Swing Radius | mm | 1291 | 858 | |
| Body Swing Angel | deg | 360 | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | 68/50 | |
| Max. Grade Ability | deg | 35 | 35 | |
| Fuel Tank | L | 40 | 40 | |
| Hydraulic Fluid Chamber | L | 41 | 41 | |
| MAIN DIMENSIONS | Overall Length | mm | 4348 | 4945 |
| Overall Width | mm | 1500 | 1700 | |
| Overall Height | mm | 2159 | 2585 | |
| Track Width | mm | 230 | 300 | |
| Track Length | mm | 1961 | 2286 | |
| Body Width | mm | 1350 | 1500 | |
| WORKING RANGE | Max. Digging Radius | mm | 4477 | 5251 |
| Max Digging Depth | mm | 3058 | 3071 | |
| Max. Digging Height | mm | 3445 | 4815 | |
| Max. Unloading Height | mm | 2203 | 3382 | |
| Min. Swing Radius | mm | 2165 | 2250 | |
| Max. Digging Depth Of Dozer Blade | mm | 297 | 433 | |
| Max. Lifting Height Of Dozer Blade | mm | 230 | 345 |
Factory Strength
The factory has obtained ISO quality management system certification, and the production line implements standardized operating procedures. It regularly invites customers to visit the production process to demonstrate details of quality control.
International Shipping
Multiple trade terms such as FOB and CIF are available, with support for payment via letter of credit (L/C) or telegraphic transfer (T/T). We can assist customers in calculating tariffs and provide suggestions on adapting to local regulations.
After-Sales Commitment
A multilingual customer service hotline is set up, covering time zones of major sales regions. We commit to providing preliminary fault diagnosis solutions within 48 hours and giving priority to handling urgent issues.
