Green Power Forklift
Lithium batteries are convenient to charge, compatible with ordinary 220V power supplies;
Intelligent balanced charging maintains battery consistency.
Intelligent charging management extends battery life;
There is no preheating time like that of diesel engines, allowing immediate use once turned on;
Free from diesel refueling restrictions, they are applicable to a wider range of scenarios and offer greater flexibility in use.
Lithium battery charging efficiency is as high as 98%, 40% higher than diesel fuel energy utilization; there is no risk of fuel leakage, making them more environmentally friendly and safe; an intelligent temperature control system ensures the battery operates in optimal conditions; the modular design facilitates easier maintenance and replacement.
Product Parameter
TECHNICAL SPECIFICATIONS | |||
Model | CPD30 | ||
Rated Capacity | kg | 3000 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | (A2) | mm | 1760 |
Front Tread | (B1) | mm | 1000 |
Rear Tread | (B2) | mm | 970 |
Front Overhang | (A1) | mm | 465 |
Mast Tilting Angle (Forward-Backward) | ° | 6∕12 | |
Max. Lifting Height | (H1) | mm | 3000 |
Free Lift Height | mm | 80 | |
Overall Height (Mast Lowered) | (H) | mm | 2110 |
Overall Height (Mast Extended) | (H2) | mm | 4270 |
Overall Height to Overhead | (H3) | mm | 2105 |
Overall Length (Including Fork) | (A) | mm | 4060 |
Overall Width | (B) | mm | 1230 |
Min. Ground Clearance | mm | 135 | |
Min. Turning Radius | mm | 2530 | |
Fork Dimensions (L×W×T) | mm | 122*45*1220 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 13 | |
Max. Lifting Speed (Full-Load / No-Load) | mm/s | 270∕300 | |
Gradeability (Full-Load / No-Load) | % | 15∕20 | |
Tire Type (Front/Rear) | Pneumatic Tire | ||
Tire Size (Front/Rear) | 28*9-15-14PR/6.50-10-10PR | ||
Drive Motor Power (S2-60min) | kW | 14 | |
Lifting Motor Power (S3-15%) | kW | 16 | |
Drive Motor Type | AC | ||
Lifting Motor Type | AC | ||
Hydraulic System Pressure | MPa | 18 | |
Battery (Voltage/Capacity) | V/Ah | 76.8V/205Ah | |
Self-Weight | kg | 4100 | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？
Product Advantages
Designed specifically for building materials markets (for mixed handling of tiles, wood, steel, etc.), this electric forklift offers versatile features:
Flexible Fork Attachments: Forks can be quickly replaced with side shifters (for precise pallet alignment), anti-slip mats (to prevent tiles/glass from sliding), or extended expansion plates (for handling extra-long steel).
Stable Performance: The power system adapts to frequent starts and stops (e.g., short-distance handling of multiple batches of goods) and operates smoothly with low noise.
Enhanced Visibility: The cab features an unobstructed design, allowing operators to clearly observe the stacking status of goods.
Tire Options: Tires can be optionally inflatable (comfortable, suitable for indoor handling) or solid (puncture-proof, ideal for outdoor yards), adapting to concrete, asphalt, and gravel surfaces.
Easy Maintenance: The battery charges quickly (full charge in 3 hours) and has a long lifespan; daily inspections take only 10 minutes.
Strength of the Manufacturing Plant
With 20 years of focus on electric forklifts for building materials handling, the plant boasts: Forks and frame structures with strength 1.2 times the industry standard, ensuring durability for heavy building materials. A R&D team that collaborates with building materials market merchants to optimize attachment interfaces, such as universal quick-change devices for efficient switching. Compliance with international building materials equipment safety certifications (e.g., standards from the China Building Materials Federation).
International Shipping Services
For full container shipments, building materials attachments (such as side shifters and anti-slip mats) are individually packaged to prevent scratches. Upon arrival at the port, a "Quick Commissioning Guide" (including instructions for attachment replacement and cargo securing) is provided. To meet transportation needs of Southeast Asian building materials markets, a moisture-proof packaging upgrade (with inner waterproof film) is available.

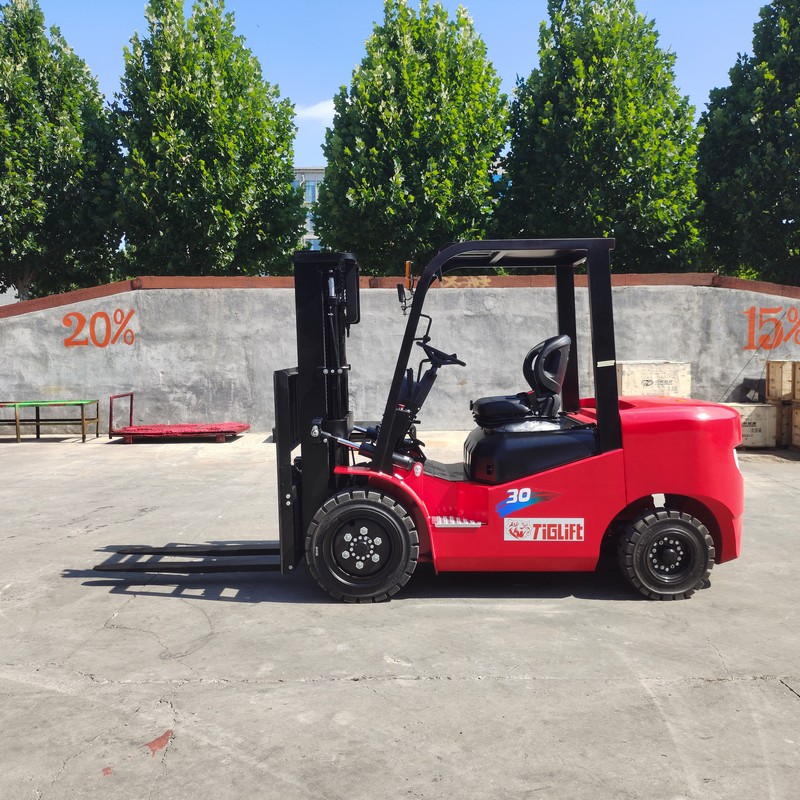

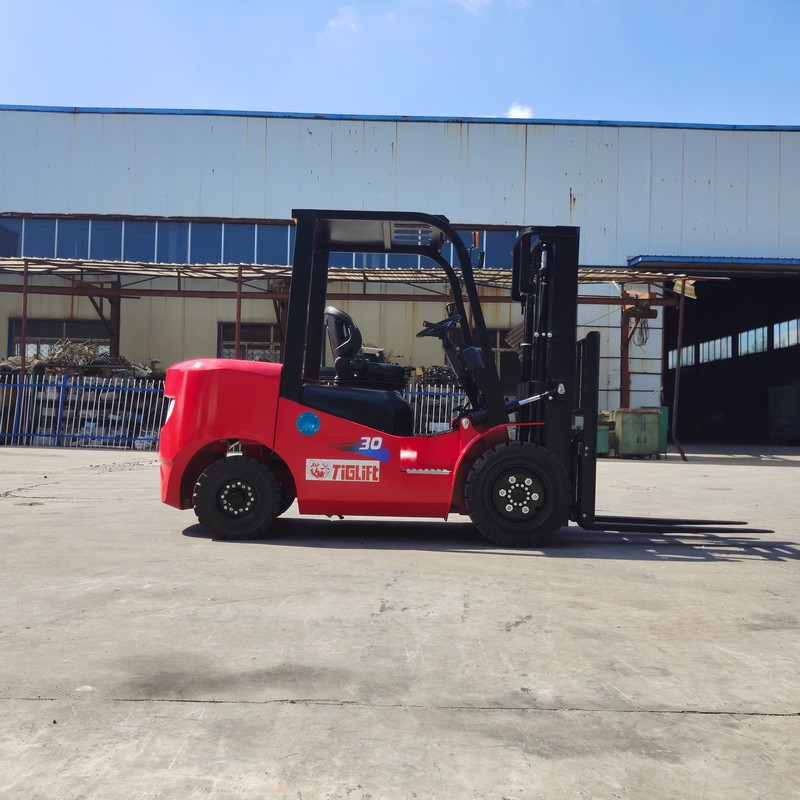

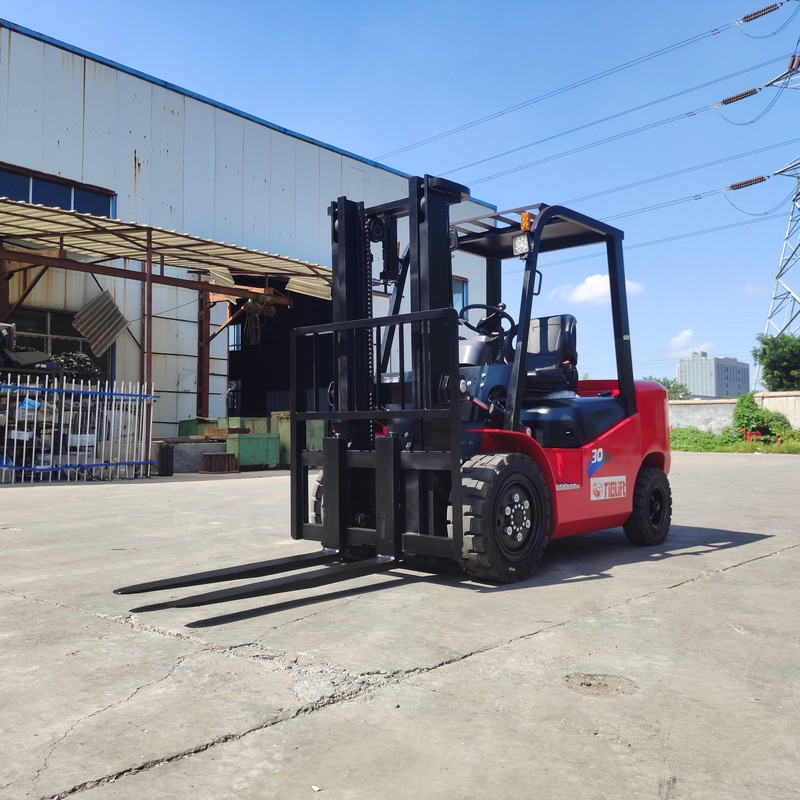

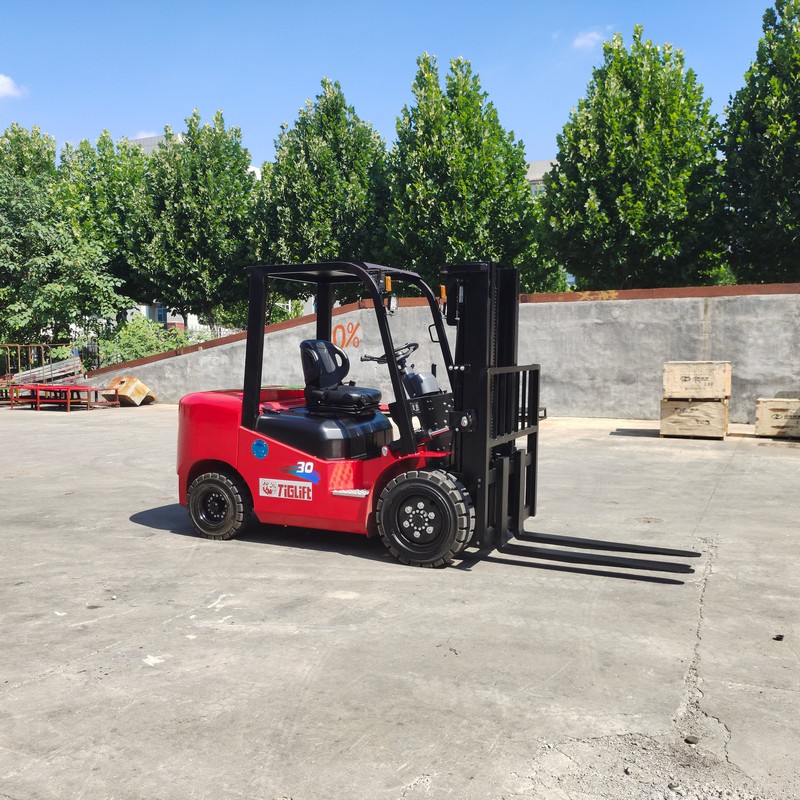

Delivery Photos
International After-Sales Service Warranty: 2-year warranty (universal for building materials market scenarios), with over 100 global cooperative building materials service providers. Documentation: Multilingual operation manuals are provided, including safety specifications for handling different building materials. Spare Parts: Common attachments (such as side shifters and extended expansion plates) are stocked in parts warehouses, with delivery to building materials market warehouses within 10 working days. Remote Support: A remote team can guide merchants via video to complete basic maintenance (e.g., cleaning forks and attachments).
