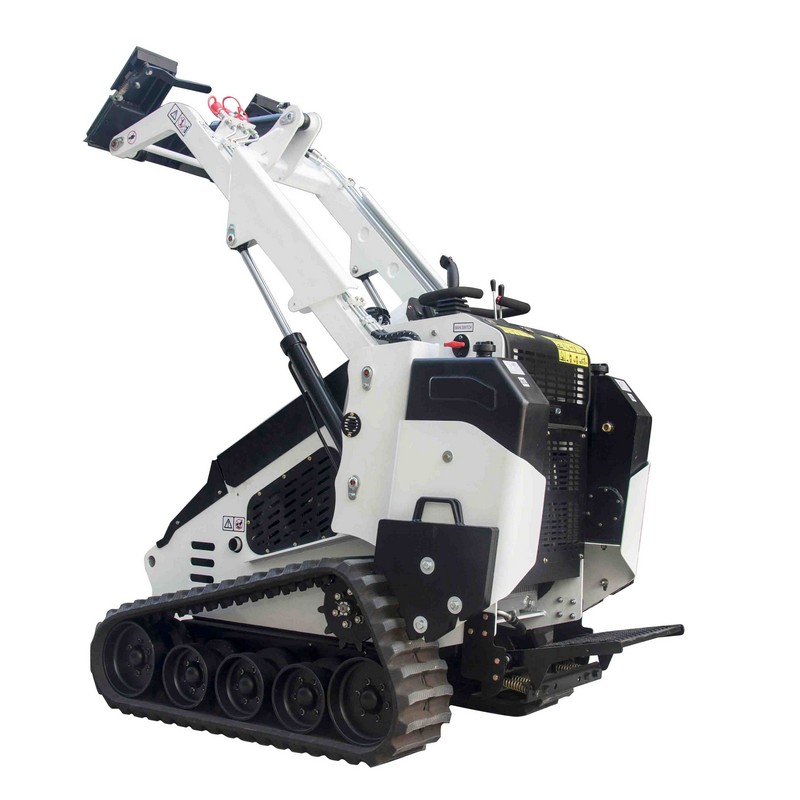

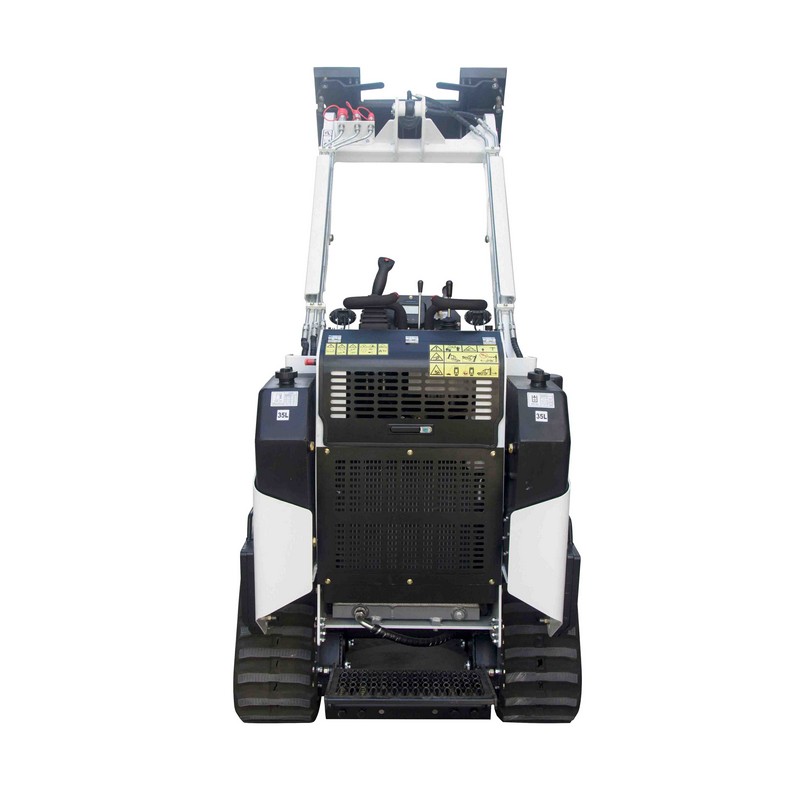

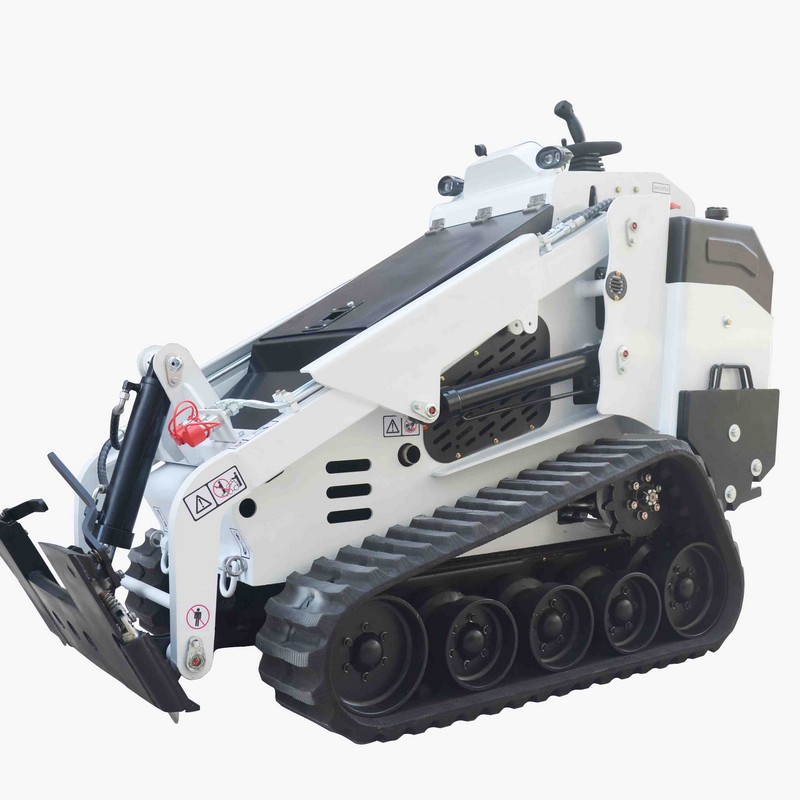

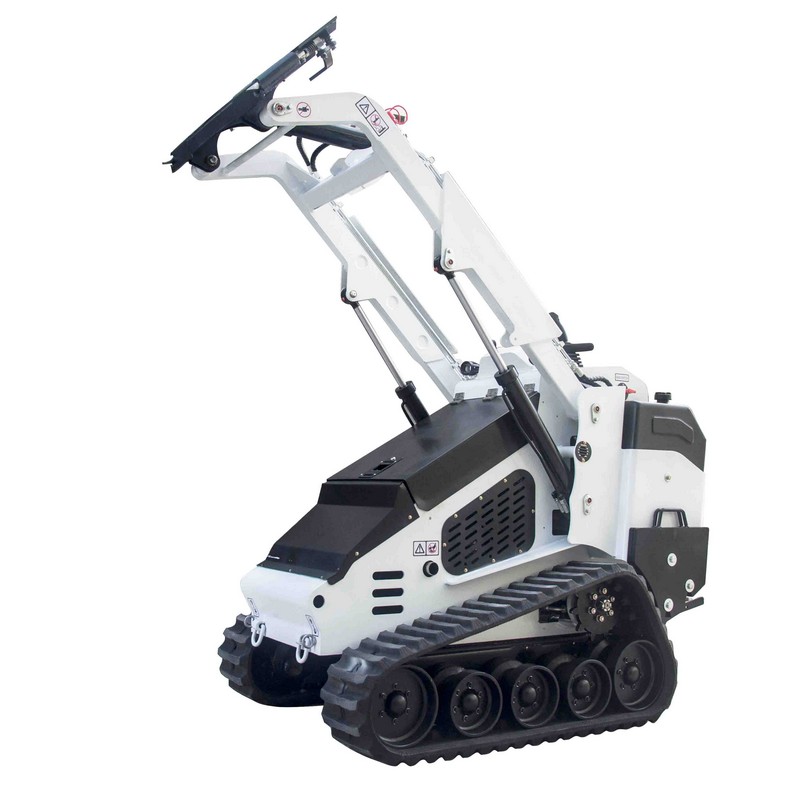

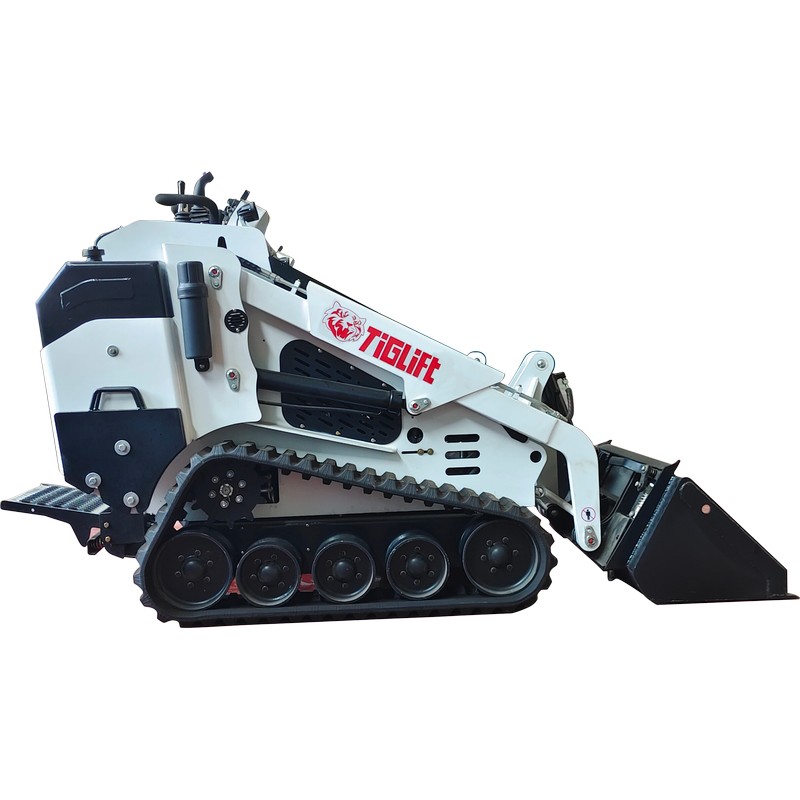

Skid Steer Track Loader

The versatility of skid steer loaders is prominent:

they can be equipped with over 200 types of attachments, including buckets, milling machines, snow blowers, etc.;

the hydraulic pipelines for attachments come as standard, supporting plug-and-play;

the intelligent hydraulic system automatically matches different tools;

they are easy to operate, and new operators can be trained to work in one day.

Contact Now E-Mail Telephone WhatsApp
Product Details

Skid steer loaders are compact in size, allowing flexible operation in narrow alleys of 2 meters; they feature 360-degree in-place steering with a minimum turning radius of zero; come standard with quick-connect couplers, enabling switching between different attachments in 30 seconds; and adopt a full-time four-wheel drive design, with rubber track versions that do not damage hardened ground, making them suitable for municipal engineering.

The skid steer loader is a highly efficient and flexible multi-functional construction machine, featuring four-wheel drive and all-wheel steering design. It can quickly turn in narrow spaces and complete various operational tasks. Its modular design supports rapid attachment replacement, making it widely applicable in construction sites, agriculture, logistics warehousing, municipal engineering, and other fields. It is an ideal equipment to enhance work efficiency and flexibility.

Product Parameter

Model

HL1100

Performance Parameters

Unit(Metric)

Unit(inch)

Max Operating Height

2695mm

106.10in

Max Hinge Pin Height

2000mm

78.74in

Overall Height of Machine

1650mm

65in

Overall Width of Machine

1185mm

46.65in

Overall Length of Machine(Std.Bucket)

2580mm

101.57in

Overall Length of Loader(No Attachment)

2050mm

80.7in

Track Length

1090mm

43in

Track Width

280mm

11.02in

Wheelbase

1080mm

42.52in

Turning Radius

1100mm

43.31in

Ground Clearance

200mm

7.87in

Angle of Departure

30°

30°

Ground Drive Speed

6.4km/h

4.0mph

Ground Pressure

0.43bar

6.3psi

Machine Weight

1400kg

3086lb

Gear Pump Flow Rate

33L/min

8.7gpm

Double Gear Pump Pressure

200bar

2900psi

Dual Hydrostatic Ground Drive Pumps Flow

45L/min

11.88gpm

Dual Hydrostatic Ground Drive Pumps

207bar

3000psi

Load Weight

800kg

1764lb

Bucket Width

1160mm

45.67in

Bucket Capacity

0.18cbm

47.55gal

Bucket Dimension

600mm*1160mm*430mm

23.62in*45.67in*16.93in

Bucket Unloading Angle

40°

40°

Engine

Yanmar3TNV88

Yanmar3TNV88

Fuel

Diesel

Diesel

Emissions Compliance

US EPA/European Standards

US EPA/European Standards

Gross Power Rating

18.2KW

24.4hp

Number Of Cylinders

3

3

Displacement

1.642 L

100.2in³

Rated Speed

2200rpm

2200rpm

Fuel Tank Capacity

35L

9.2gal

Engine Oil(With Filter)

4.7L

5qt

Hydraulic Reservoir Capacity

40L

10.5gal

Battery

12V

12V

 Why TIGLIFT Skid steer loader



Product Advantages

1. Versatility: By quickly replacing attachments (such as buckets, breakers, sweepers, etc.), one machine can perform multiple tasks including excavation, loading, leveling, and crushing, reducing equipment procurement costs.

2. Flexible Operation: With a compact body and zero-radius steering capability, it maneuvers effortlessly in narrow construction sites, indoor spaces, or complex terrains, significantly improving work efficiency.

3. High-Efficiency Power: Equipped with a high-performance power system, it delivers strong and stable output, capable of meeting the demands of long-term high-intensity operations.

4. Convenient Maintenance: Key components are reasonably arranged, and daily inspections and maintenance do not require complex tools, resulting in short downtime and reduced operating costs.

Delivery Photos

International Shipping Services

To ensure the safe and efficient delivery of equipment to global customers, the factory has established long-term cooperation with multiple international logistics companies, providing various transportation solutions:

Full Container Load (FCL) by sea: Suitable for large-volume orders. Equipment is loaded into standard containers with comprehensive protective measures to avoid collision damage during transportation.

Less than Container Load (LCL) by sea: For small-volume orders, professional packaging and container splitting services are provided to reduce customers’ logistics costs.

Land-sea intermodal transportation: For neighboring countries (such as Southeast Asia and Central Asia), goods are transported by land to ports and then forwarded, shortening the delivery cycle.

The factory offers full logistics tracking services to ensure customers can real-time monitor the transportation status of their equipment.

Strength of the Manufacturing Plant

This product is manufactured by an enterprise with 20 years of experience in construction machinery manufacturing. The factory covers an area of over 100,000 square meters, equipped with modern production lines and precision testing equipment. It has obtained ISO 9001 quality management system certification, strictly controlling every process from raw materials to finished products to ensure that each piece of equipment meets high industry standards. In addition, the factory has an independent R&D and design team, continuously optimizing product structure and production processes to meet the needs of global customers.

International After-Sales Service

The factory understands that after-sales service is the core of customer trust, thus providing comprehensive international after-sales support:

Technical Guidance: Assisting customers in quickly solving operation and simple fault problems through video calls, remote diagnosis, and other methods.

Spare Parts Supply: Cooperating warehouses are set up in major global markets with sufficient stock of common spare parts. Emergency orders are shipped within 48 hours to ensure quick equipment repair.

Warranty Commitment: The equipment comes with a 12-month or 2,000-hour warranty (whichever comes first). Non-human-induced faults within the warranty period are repaired or replaced free of charge.
