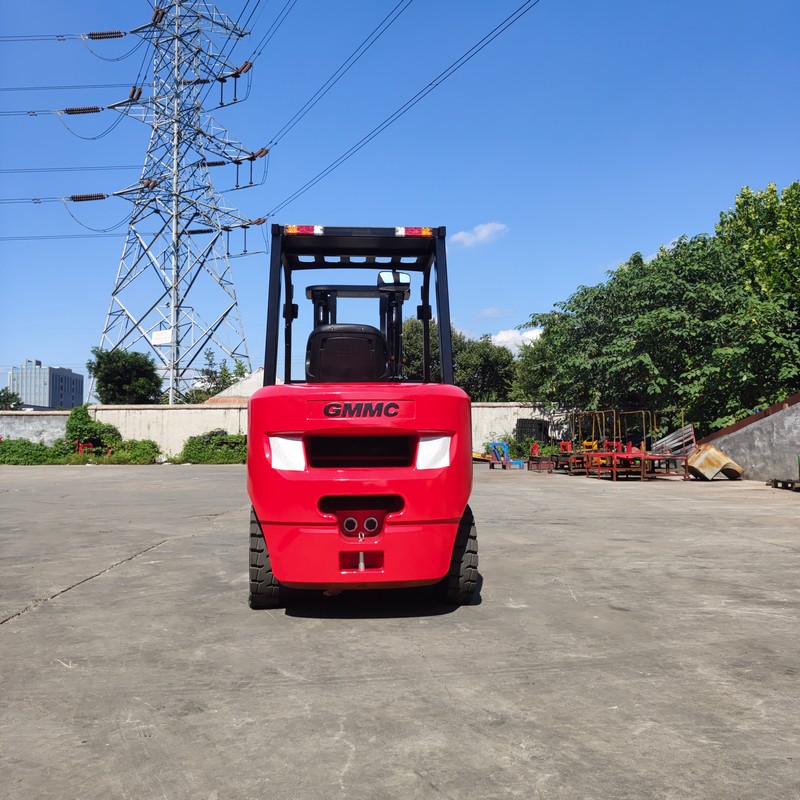

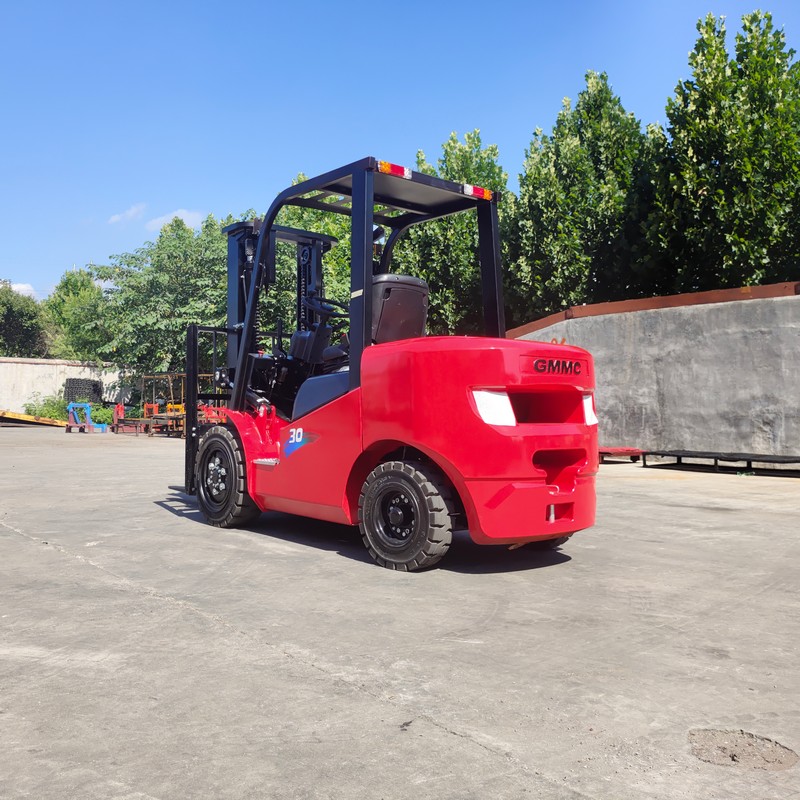

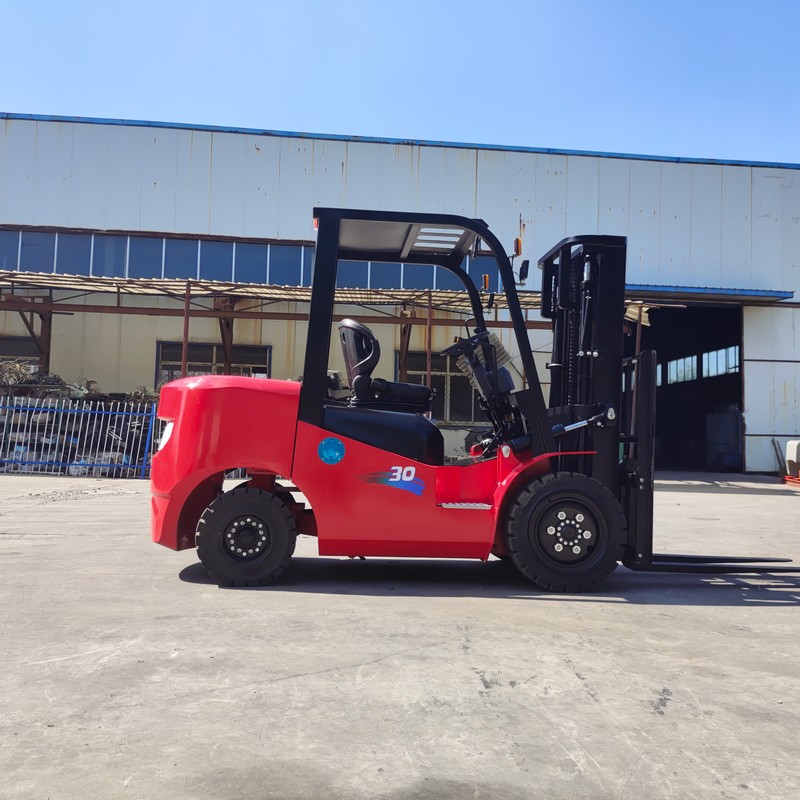

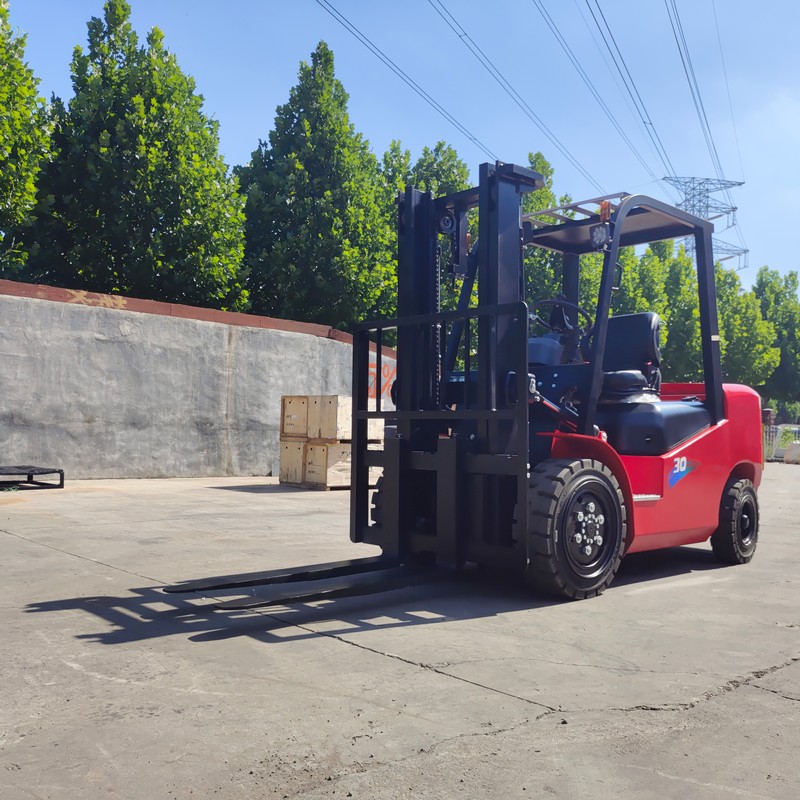

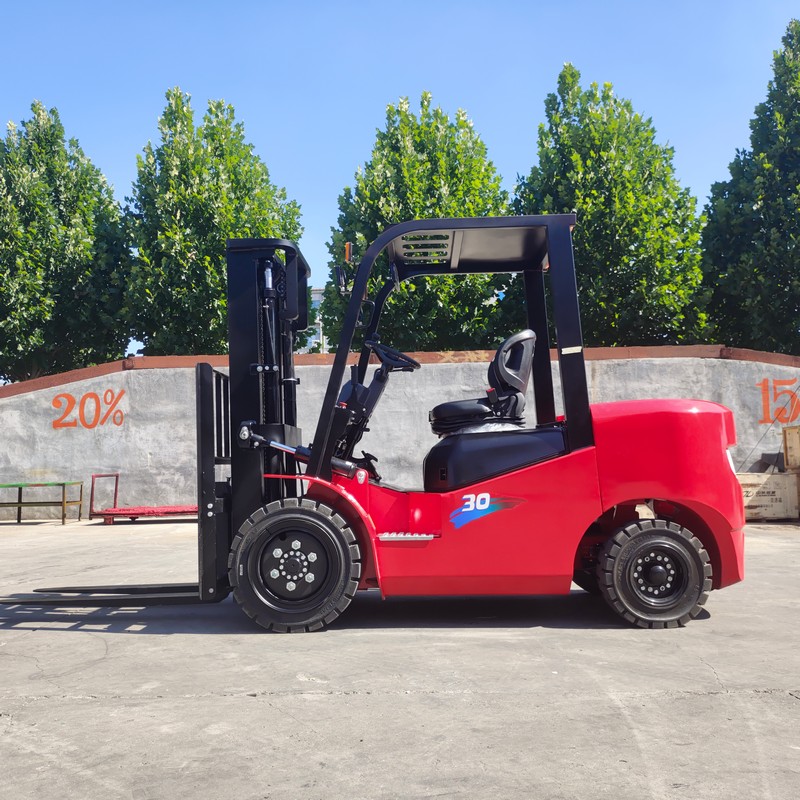

Electric Hydraulic Forklift
1. Equipped with a high-safety lithium iron phosphate battery, it has a cycle life of over 4,000 times, significantly reducing long-term usage costs.
2. Fast charging technology, fully charged in just 2 hours, supports multi-shift operations, and meets the high-intensity logistics demands.
3. The intelligent electronic control system ensures stable and precise power output, sensitive and efficient operation, and effectively enhances the efficiency of handling operations.
4. Zero emissions, low noise, meeting green environmental protection requirements, and can be easily operated indoors and in environmentally sensitive areas.
5. Compact and sturdy structure, reasonable load distribution, and excellent stability ensure the safety of operation under heavy load conditions.
In high-intensity operation fields such as logistics handling, port terminals, and heavy manufacturing, a powerful, durable, intelligent and efficient 3 ton electric hydraulic forklift is the core equipment to ensure production efficiency. 3 ton electric hydraulic forklift, with its pure electric design and leading manufacturing process, is redefining the standards for heavy material handling. Compared with traditional internal combustion forklifts, 3 ton electric hydraulic forklift has demonstrated disruptive advantages, providing a perfect solution for enterprises to achieve cost reduction, efficiency improvement and green transformation.
| Model | CPD30 | ||
| Rated Capacity | kg | 3000 | |
| Load Center | mm | 500 | |
| Power Type | Lithium Battery | ||
| Driving Type | Ride-on Type | ||
| Wheelbase | (A2) | mm | 1760 |
| Front Tread | (B1) | mm | 1000 |
| Rear Tread | (B2) | mm | 970 |
| Front Overhang | (A1) | mm | 465 |
| Mast Tilting Angle (Forward-Backward) | ° | 6∕12 | |
| Max. Lifting Height | (H1) | mm | 3000 |
| Free Lift Height | mm | 80 | |
| Overall Height (Mast Lowered) | (H) | mm | 2110 |
| Overall Height (Mast Extended) | (H2) | mm | 4270 |
| Overall Height to Overhead | (H3) | mm | 2105 |
| Overall Length (Including Fork) | (A) | mm | 4060 |
| Overall Width | (B) | mm | 1230 |
| Min. Ground Clearance | mm | 135 | |
| Min. Turning Radius | mm | 2530 | |
| Fork Dimensions (L×W×T) | mm | 122*45*1220 | |
| Max. Driving Speed (No-Load) | km/h | 14 | |
| Max. Driving Speed (Full-Load) | km/h | 13 | |
| Max. Lifting Speed (Full-Load / No-Load) | mm/s | 270∕300 | |
| Gradeability (Full-Load / No-Load) | % | 15∕20 | |
| Tire Type (Front/Rear) | Pneumatic Tire | ||
| Tire Size (Front/Rear) | 28*9-15-14PR/6.50-10-10PR | ||
| Drive Motor Power (S2-60min) | kW | 14 | |
| Lifting Motor Power (S3-15%) | kW | 16 | |
| Drive Motor Type | AC | ||
| Lifting Motor Type | AC | ||
| Hydraulic System Pressure | MPa | 18 | |
| Battery (Voltage/Capacity) | V/Ah | 76.8V/205Ah | |
| Curb Weight | kg | 4100 |
1. Ultimate economy, lower full life cycle cost:
The vehicle is equipped with a high-performance lithium iron phosphate battery pack, which has a cycle life of over 4,000 times, far exceeding that of traditional lead-acid batteries. Combined with fast charging technology, it can be fully charged in just 2 hours, supporting long-term continuous operation and significantly reducing energy and maintenance costs. Although the initial investment is relatively high, the total cost of long-term use is much lower than that of internal combustion forklifts.
2. Powerful performance and precise handling are perfectly combined
It adopts advanced permanent magnet synchronous motors and intelligent electronic control systems, with strong torque output. Its starting, climbing and traction performance are comparable to or even exceed those of internal combustion forklifts of the same level. Meanwhile, the motor can achieve stepless speed regulation, ensuring smooth and precise operation. The goods can be placed with minimal movement, significantly enhancing operational efficiency and safety.
3. Zero emissions and ultra-quiet operation, expanding the boundaries of work
As a pure electric device, the vehicle achieves zero exhaust emissions during operation, completely eliminating pollution to indoor air. Meanwhile, its operating noise is extremely low (<65 decibels), creating a healthier and more comfortable working environment for employees, making it accessible for application in industries with strict environmental requirements such as food, medicine, and electronics, as well as in confined Spaces.
4. High reliability design, durable
The vehicle body structure is made of high-strength steel and features an optimized design. It has undergone strict fatigue tests to ensure stability and durability under heavy-load and high-frequency working conditions. The protection grade of key electrical components reaches IP54 or above, effectively preventing dust and water, and adapting to various complex working conditions.
Strong manufacturer strength: A solid backing for quality and service
The outstanding performance of the product stems from the strong comprehensive strength of the manufacturer behind it. We are not only equipment suppliers, but also your reliable long-term partners.
• Professional and dedicated R&D and manufacturing background: As a leading domestic industrial vehicle manufacturer, we have decades of technological accumulation.

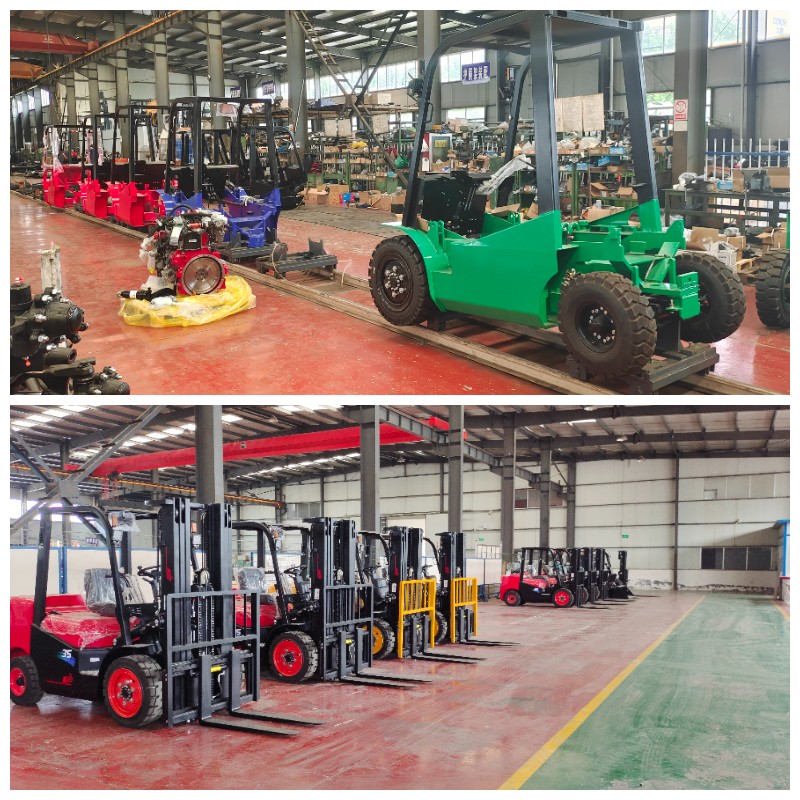

• Advanced production base: The manufacturer has its own welding and painting production lines, ensuring that each forklift has excellent welding quality, anti-corrosion performance and consistency. A strict ISO quality management system runs through every link from the raw materials entering the warehouse to the complete vehicle coming off the production line.
• A complete full life cycle service network: We are equipped with a team of professionally certified engineers. We offer a one-stop service covering pre-sale consultation, in-sale commissioning and after-sale maintenance, and promise to respond quickly to ensure the availability of your equipment and minimize downtime losses to the greatest extent.
In summary, 3 ton electric hydraulic forklift is not only a high-performance product, but also a comprehensive solution integrating environmental protection concepts, intelligent technology and reliable quality. Choosing us means choosing a strategic partner with strong technical strength, powerful manufacturing capabilities and a complete service system, and moving towards an efficient and green future together.
