Compact Electric Forklift
Lithium battery forklifts are easier to operate, requiring shorter training time;
They eliminate the complex operational procedures of diesel engines;
Feature intelligent power steering for more effortless operation;
Adopt an ergonomic design to reduce operational fatigue.
Lithium battery forklifts deliver stable power output without the vibration and noise of diesel engines; with no exhaust emissions, they can be safely used in enclosed spaces; the charging cost is only 1/3 of that of diesel forklifts; and the motor efficiency is as high as 95%, 30% higher than that of diesel engines.
Product Parameter

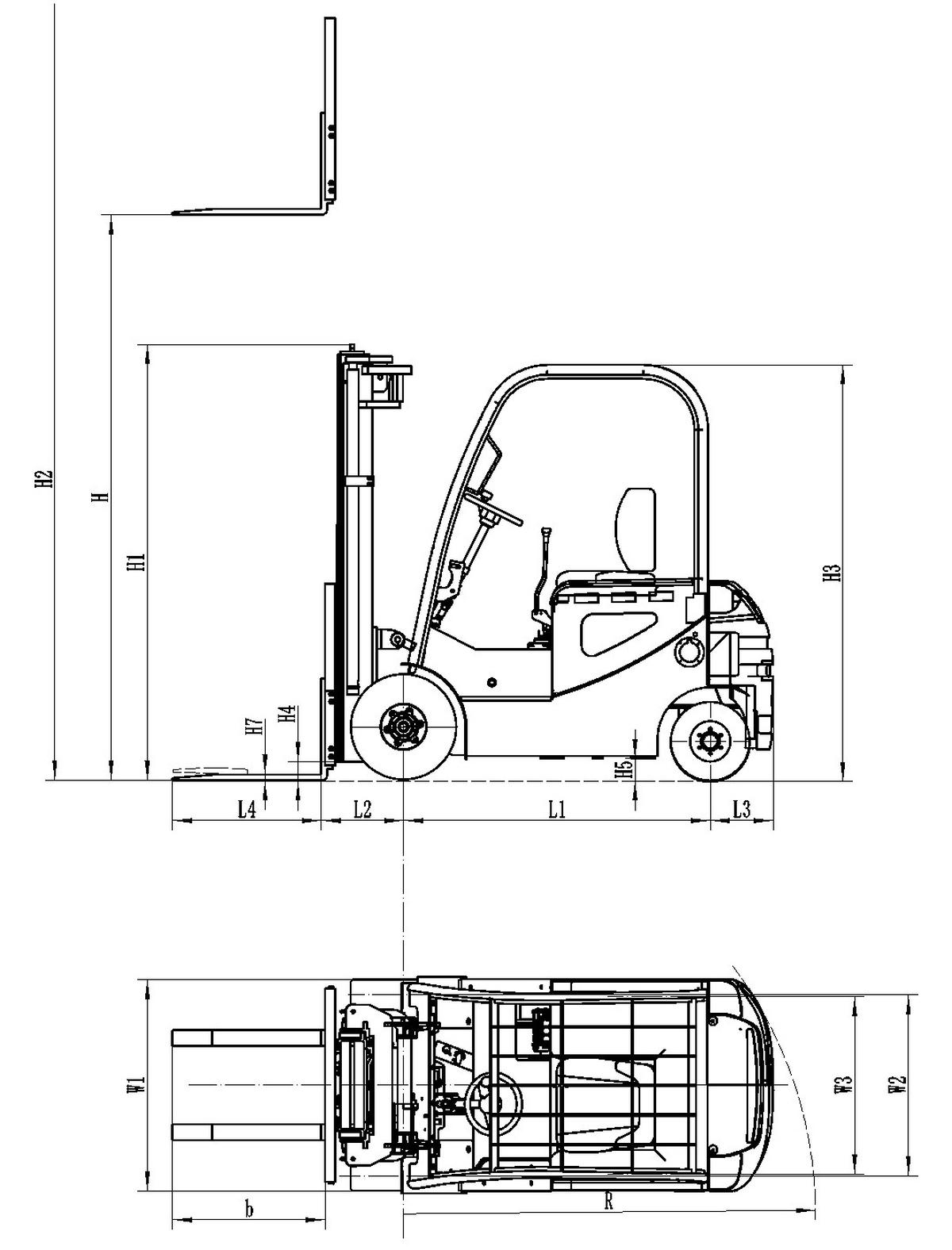

TECHNICAL SPECIFICATIONS | |||
Model | CPD20 | ||
Rated Capacity | kg | 2000 | |
Load Center | mm | 500 | |
Power Type | Lithium Battery | ||
Driving Type | Ride-on Type | ||
Wheelbase | L1 | mm | 1550 |
Front Tread | W2 | mm | 945 |
Rear Tread | W3 | mm | 880 |
Front Overhang | L2 | mm | 325 |
Mast Tilting Angle (Forward-Backward) | ° | 5∕10 | |
Max. Lifting Height | H | mm | 3000 |
Free Lift Height | H7 | mm | 105 |
Overall Height (Mast Lowered) | H1 | mm | 2200 |
Overall Height (Mast Extended) | H2 | mm | 4055 |
Overhead Guard Height | H3 | mm | 2110 |
Overall Length (Including Fork) | mm | 3300 | |
Overall Length (Without Fork) | mm | 2200 | |
Overall Width | W1 | mm | 1096 |
Min. Ground Clearance | H4 | mm | 88 |
Min. Turning Radius | mm | 2120 | |
Fork Dimensions (L×W×T) | mm | 1070*100*40 | |
Max. Driving Speed (No-Load) | km/h | 14 | |
Max. Driving Speed (Full-Load) | km/h | 12 | |
Max.Lifting Speed(Full-Load/No-Load) | mm/s | 270∕300 | |
Descending Speed (Full-Load / No-Load) | mm/s | 400∕350 | |
Gradeability (Full-Load / No-Load) | (%) | 15∕20 | |
Total Weight | kg | 2850 | |
Number of Wheels (X = Driving Wheels (Front/Rear)) | 2∕2 | ||
Tire Type (Front/Rear) | Solid Tire | ||
Tire Size (Front/Rear) | 6.5-10 16*6.8 | ||
Driving Brake | Hydraulic-Foot Step Type | ||
Parking Brake | Mechanical-Manual | ||
Driving Motor Power (S2-60min) | kW | 5 | |
Lifting Motor Power (S3-15%) | kW | 7.5 | |
Driving Motor Control Mode | mosfet/pmsm | ||
Lifting Motor Control Mode | mosfet/pmsm | ||
Hydraulic System Pressure | MPa | 18 | |
Battery Capacity | V/Ah | 76.8V/205Ah | |
Optional
1. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
2. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
3. Pneumatic tire and solid tire both available
4. All kinds of forklift attachments available
Why TIGLIFT Electric Forklift？
Product Advantages
Specifically designed for food processing plants (such as baking workshops and cold storage warehouses), this electric forklift features a range of food-safe designs:
Hygienic Materials: The entire vehicle uses food-grade 304 stainless steel (optional) and easy-to-clean epoxy coating, preventing residues and stains from dairy products, meat, and other food items.
Safe Operation: Batteries and motors emit no harmful gases, complying with food safety and hygiene standards. Hydraulic oil and lubricants are made of food-grade materials (NSF H1 grade) to avoid cross-contamination.
Easy Cleaning: Forks and masts have smooth,死角-free surfaces, facilitating daily cleaning with food-grade disinfectants (e.g., hydrogen peroxide).
Environmentally Friendly: Low-noise operation (below 65 decibels) ensures no disruption to packaging workshops or cold storage environments.
Dual Protection: The cab is equipped with splash guards to protect operators while preventing cargo contamination.
Strength of the Manufacturing Plant
With 20 years of focus on electric forklifts for the food industry, the plant offers:
Forks and contact components with antibacterial properties twice the industry standard, ensuring hygienic reliability.
A R&D team that collaborates with food enterprises to optimize designs—for example, adding quick-connect interfaces for disinfectants to streamline cleaning processes.
Shipping Services
For full container shipments, food-grade components (such as stainless steel forks and coated bodies) are individually packaged to prevent scratches. Upon arrival at the port, a "Quick Commissioning Guide" (including cleaning and disinfection steps) is provided.
To meet transportation needs of food factories in Europe and America, NSF certification document packages and disinfection compatibility reports are available.
Delivery Photos
After-Sales Service
Warranty: 2-year warranty period.
Hygiene Maintenance: Provides instructions for hygiene maintenance packages (e.g., regular inspection of disinfectant compatibility).
Food-Grade Spare Parts: Dedicated food-grade parts (such as stainless steel filters and antibacterial seals) are stocked in parts warehouses, with delivery to food factory warehouses within 10 working days.
Remote Support: A remote team can guide operators to solve cleaning challenges via video.
