Loader Skid

Advantages of skid steer loaders:

They can turn in place, enabling flexible operation in narrow spaces;

Compound actions improve work efficiency;

Precise control allows for fine operations;

Multi-functional attachments meet complex needs;

Low noise complies with environmental protection requirements.

Contact Now E-Mail Telephone WhatsApp
Product Details

The ultimate advantages of skid steer loaders: Compact size + powerful functions = unlimited possibilities; one machine with multiple uses significantly reduces equipment investment; adapts to more than 90% of small and medium-sized engineering needs; simple operation and maintenance lower the threshold for use; high-efficiency construction ensures quick returns, making it a versatile all-rounder in modern engineering.

Product Parameter



Model

HL1000

HL1000 xinchai

Performance Parameters

Unit(Metric)

Unit(inch)

Unit(Metric)

Unit(inch)

Max Operating Height

2695mm

106.10in

2695mm

106.10in

Max Hinge Pin Height

2000mm

78.74in

2000mm

78.74in

Overall Height of Machine

1650mm

65in

1650mm

65in

Overall Width of Machine

1105mm

43.5in

1105mm

43.5in

Overall Length of Machine(Std.Bucket)

2580mm

101.57in

2580mm

101.57in

Overall Length of Loader(No Attachment)

2050mm

80.7in

2050mm

80.7in

Track Length

1090mm

43in

1090mm

43in

Track Width

200mm

7.87in

200mm

7.87in

Wheelbase

1080mm

42.52in

1080mm

42.52in

Turning Radius

1100mm

43.31in

1100mm

43.31in

Ground Clearance

200mm

7.87in

200mm

7.87in

Angle of Departure

30°

30°

30°

30°

Ground Drive Speed

6.4km/h

4.0mph

6.4km/h

4.0mph

Ground Pressure

0.43bar

6.3psi

0.43bar

6.3psi

Machine Weight

1300kg

2866lb

1300kg

2866lb

Gear Pump Flow Rate

33L/min

8.7gpm

23X2L/min

6.08X2gpm

Double Gear Pump Pressure

200bar

2900psi

250bar

3626psi

Dual Hydrostatic Ground Drive Pumps Flow

45L/min

11.88gpm



Dual Hydrostatic Ground Drive Pumps

207bar

3000psi



Load Weight

600kg

1323lb

600kg

1323lb

Bucket Width

1150mm

45.28in

1150mm

45.28in

Bucket Capacity

0.15cbm

39.63gal

0.15cbm

39.63gal

Bucket Dimension

570mm*1150mm*430mm

22.44in*45.28in*16.93in

570mm*1150mm*430mm

22.44in*45.28in*16.93in

Bucket Unloading Angle

40°

40°

40°

40°

Engine

Kubota D1105

Kubota D1105

Xinchai 3B11X51

Xinchai 3B11X51

Fuel

Diesel

Diesel

Diesel

Diesel

Emissions Compliance

US EPA/European Standards

US EPA/European Standards

Euro V

Euro V

Gross Power Rating

18.2KW

24.4hp

18.5KW

24.8hp

Number Of Cylinders

3

3

3

3

Displacement

1.123 L

68.5in³

1.12L

68.35in³

Rated Speed

2500rpm

2500rpm

3000rpm

3000rpm

Fuel Tank Capacity

35L

9.2gal

35L

9.2gal

Engine Oil(With Filter)

4.7L

5qt

4.7L

5qt

Hydraulic Reservoir Capacity

40L

10.5gal

40L

10.5gal

Battery

12V

12V

12V

12V

 Why TIGLIFT Skid steer loader

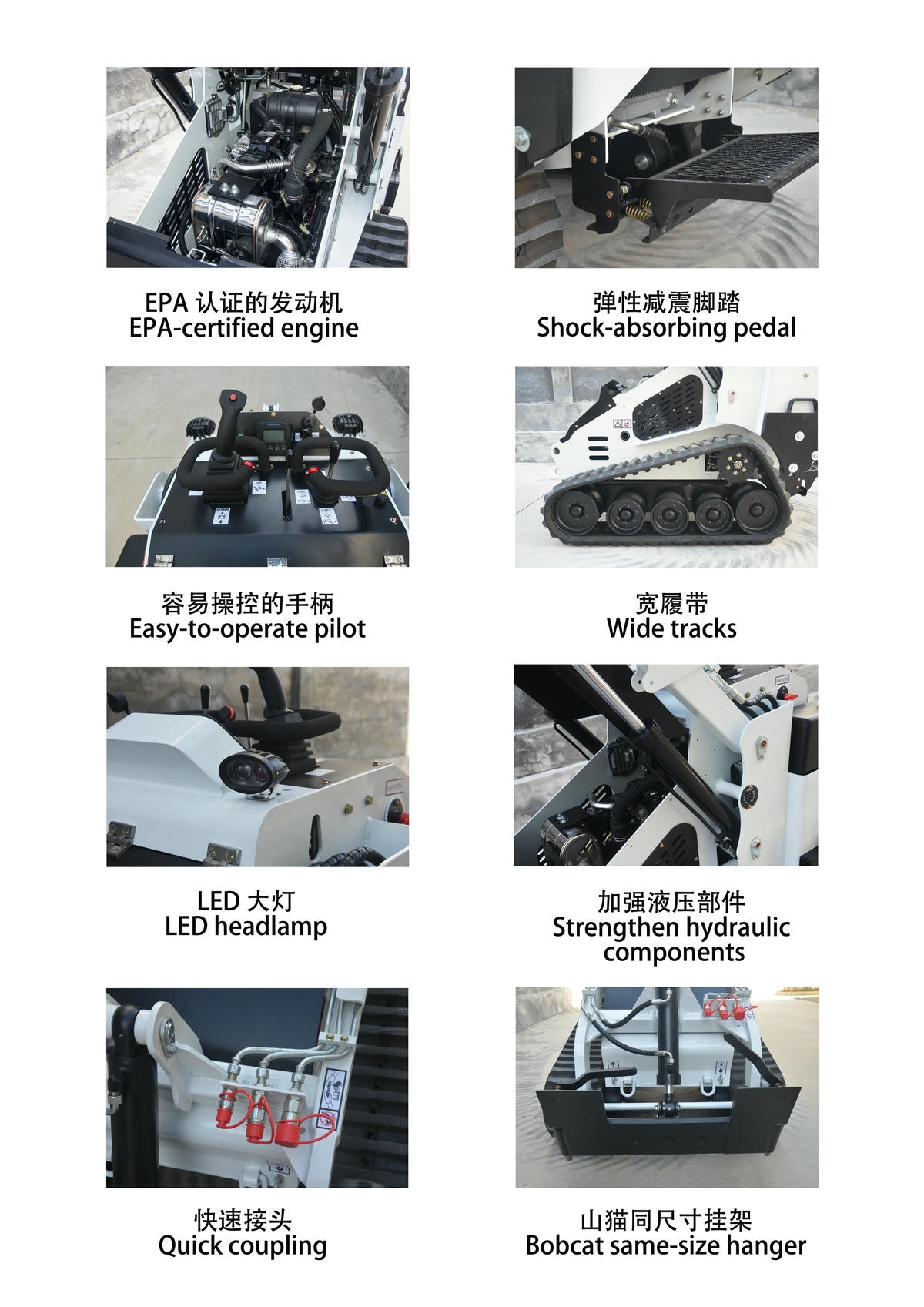

 Advantages of Skid Steer Loader

With its compact body and strong adaptability, the skid steer loader has become an indispensable all-rounder in modern engineering operations. Whether it’s municipal maintenance in narrow urban streets or farmland leveling, this equipment can efficiently complete tasks such as shoveling, handling, and crushing through flexible steering and multi-functional attachment configurations. It is a key tool for improving operational precision and efficiency.

Product Advantages

1. Flexible Maneuverability: Adopting four-wheel independent drive and all-wheel steering technology, it can turn in place or move laterally in narrow spaces, easily coping with complex operating environments.

2. High Pass ability: Optimized chassis and tire configuration provide excellent terrain adaptability, enabling easy traversal of uneven surfaces such as muddy ground and gravel.

3. Reliability and Durability: Key structural components (such as frames and booms) are made of high-strength steel, undergoing rigorous fatigue resistance tests to ensure stable performance under long-term high-load operations.

4. Economic Efficiency: The low-fuel-consumption power system and optimized hydraulic design reduce operating costs while minimizing energy waste, meeting the requirements of environmentally friendly operations.

Strength of the Manufacturing Plant

This product is manufactured by an enterprise specializing in R&D and manufacturing of construction machinery. With over 15 years of industry experience, the factory is a leading construction machinery production base in the region. It is equipped with automated welding robots, precision machining centers, and full-process quality inspection lines, realizing standardized operations from steel plate cutting to complete machine assembly. The factory has obtained international CE certification and multiple environmental protection standards, ensuring that products meet global market access requirements. In addition, the factory has a dedicated R&D center that maintains close cooperation with global customers to customize product solutions according to the usage needs of different regions.

Delivery Photos

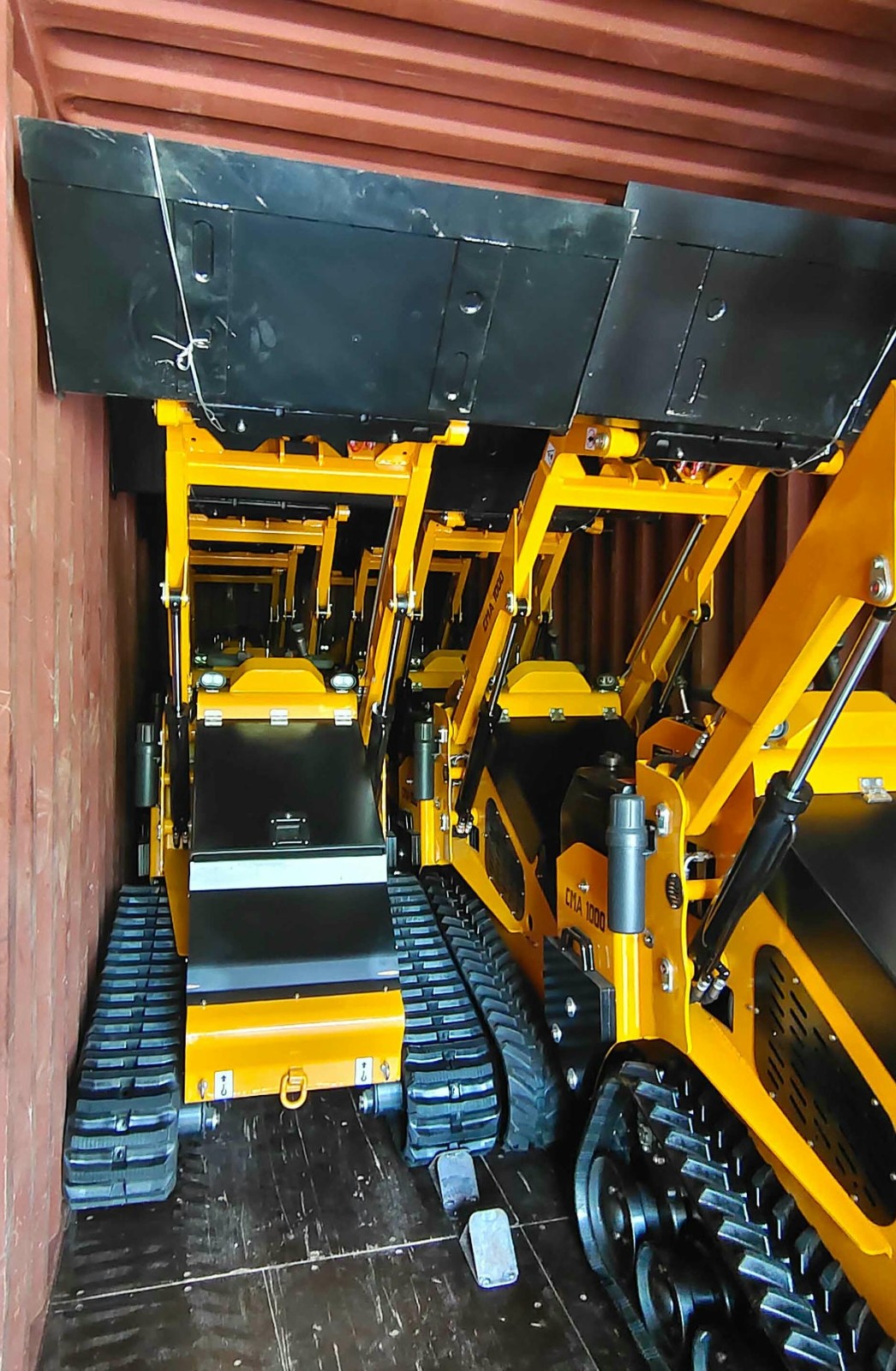

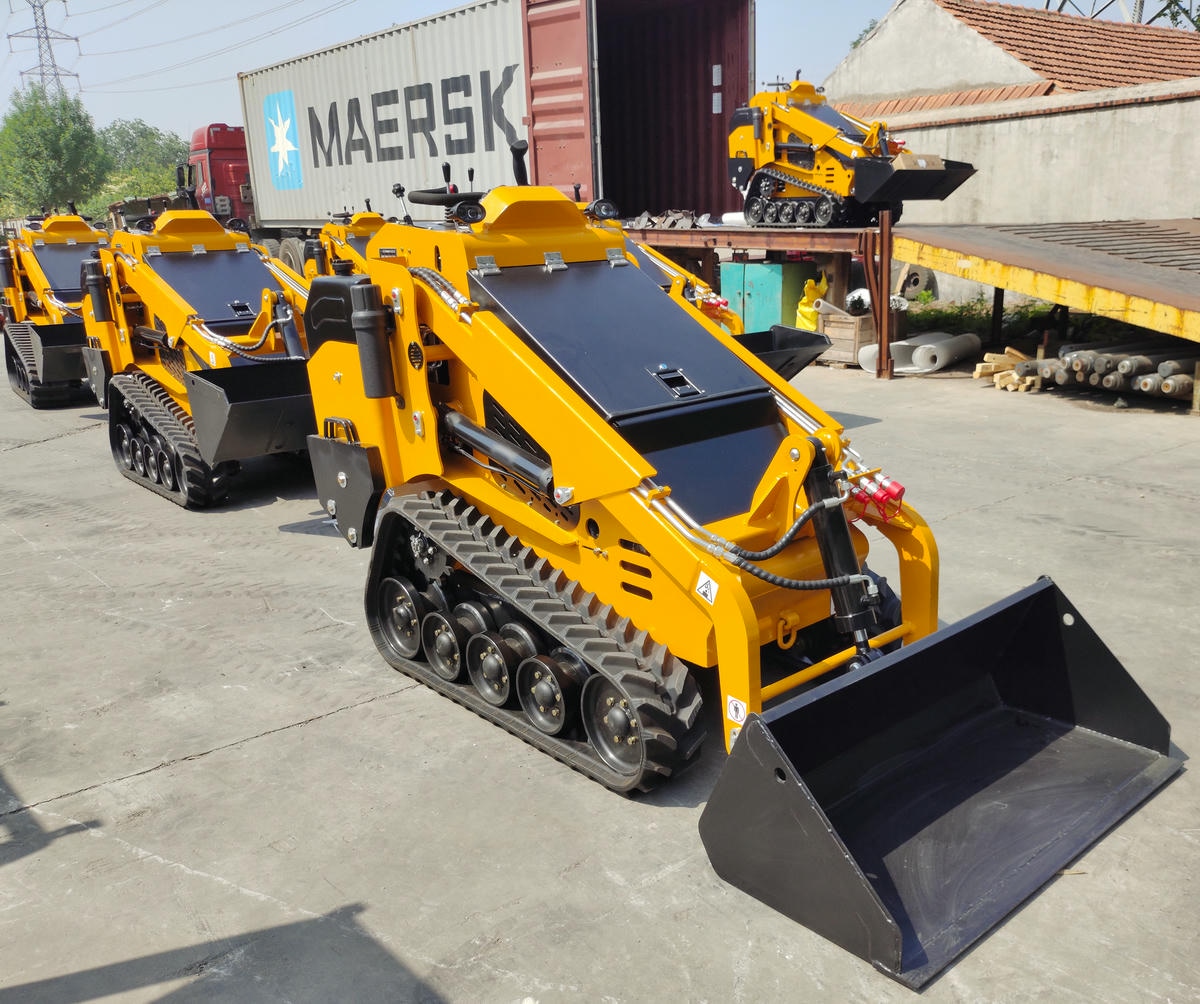

Skid Steer Loader Shipment Photo

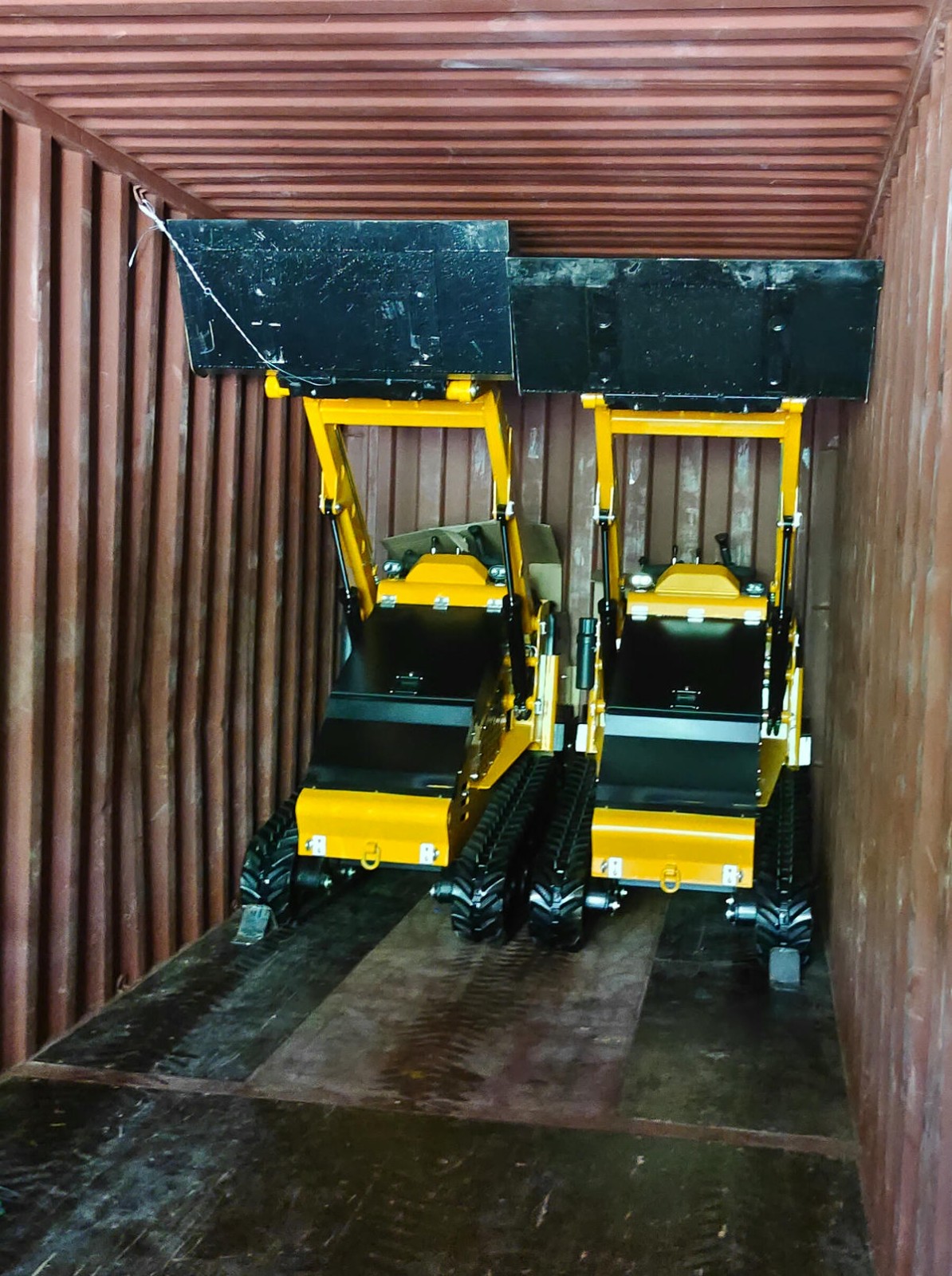

Skid Steer Loader Shipment Photo

Skid Steer Loader Shipment Photo

International Shipping Services

To meet the diverse logistics needs of global customers, the factory provides flexible shipping solutions:

Full Container Shipping: Standard-configured equipment is preferentially loaded in 20ft or 40ft containers, with internal reinforcement and protection to avoid damage during transportation.

Bulk Cargo Consolidation: For special orders or small-batch purchases, professional wooden box packaging and port consolidation services are provided to reduce logistics costs.

Door-to-Door Service: Cooperating with multiple international freight forwarders, it offers full-process services from factory pickup, customs declaration and clearance to delivery at the customer’s designated location, simplifying the customer’s operation process.

The factory promises that all goods undergo strict packaging inspections before shipment and provides detailed packing lists and instructions on transportation precautions.

International After-Sales Service

Adhering to the after-sales philosophy of "customer worry-free", the factory provides comprehensive international support:

Remote Support: A multi-lingual technical team (supporting English, Spanish, Arabic, etc.) provides customers with operation training videos, fault diagnosis guides, and online real-time guidance.

Long-Term Cooperation: For long-term customers, it offers annual maintenance plans and equipment upgrade suggestions to help extend equipment service life and improve operational efficiency.
