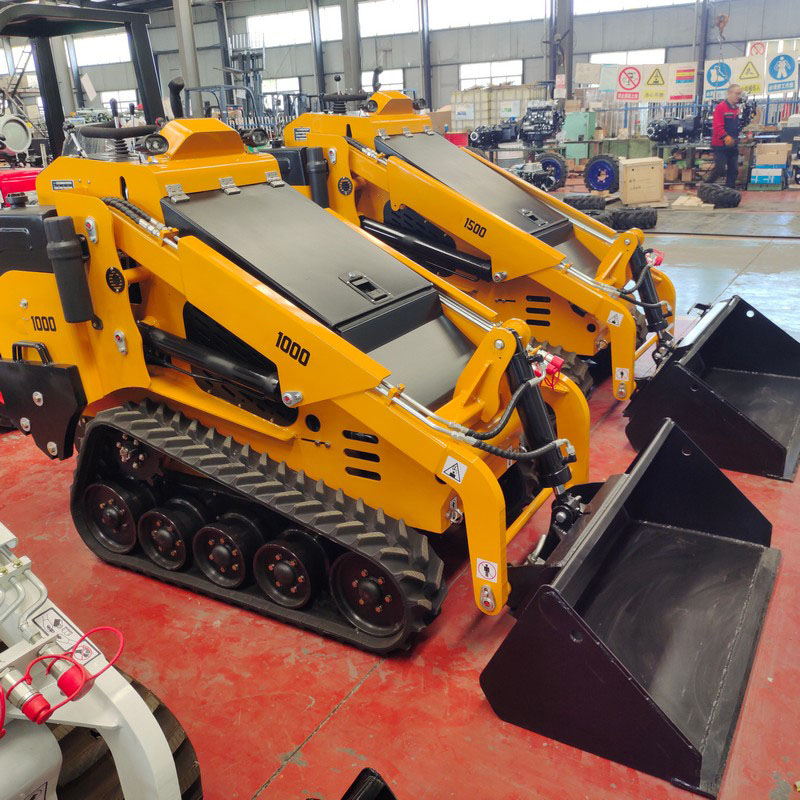

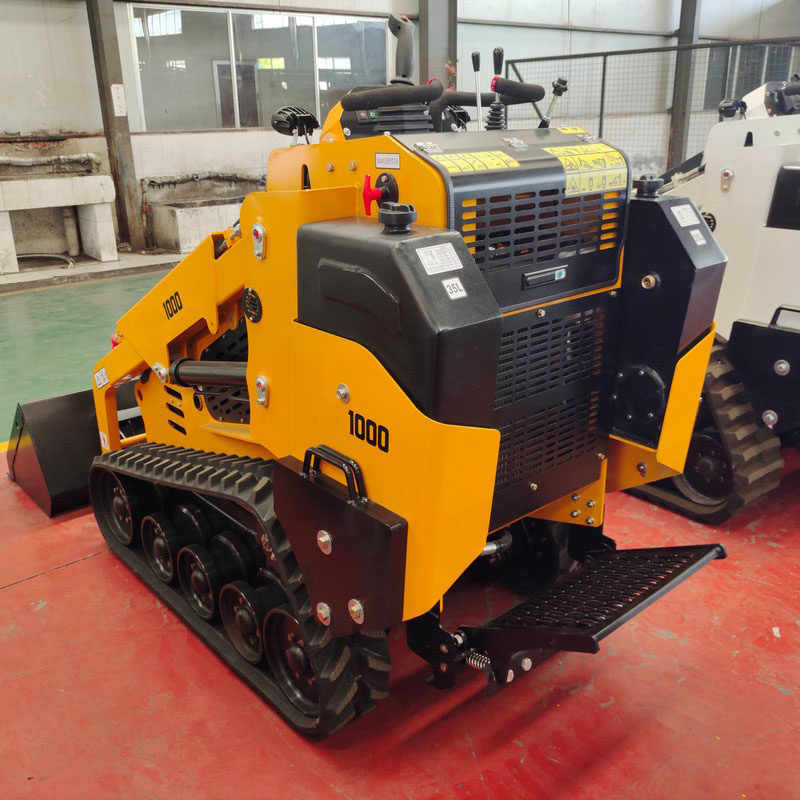

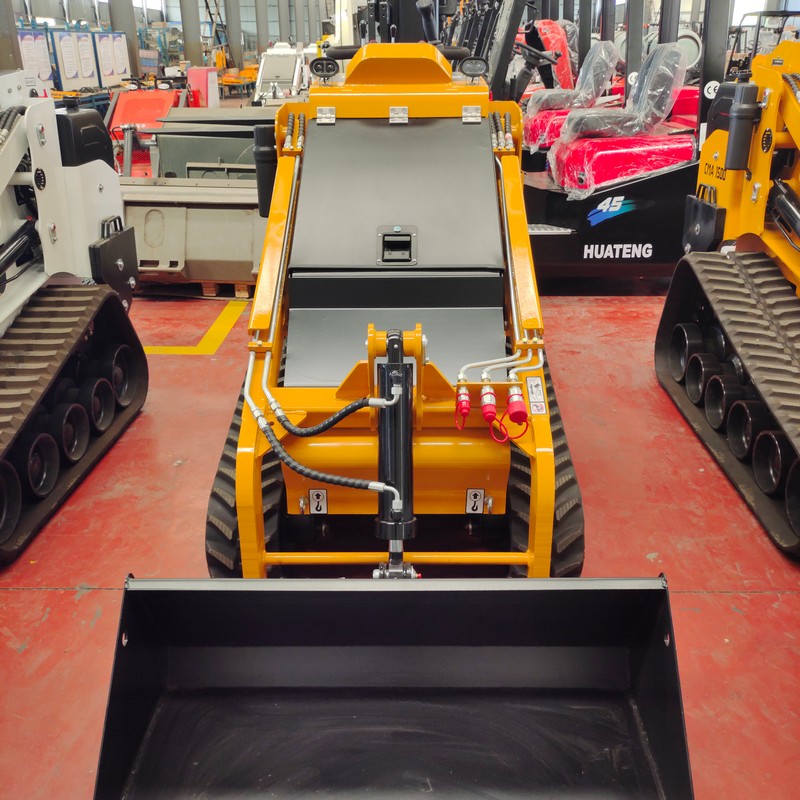

Track Loader Skid Steer

Comprehensive advantages of skid steer loaders:

Compact size adapts to narrow spaces;

Multi-functionality meets diverse needs;

Simple operation with short training cycles;

Convenient maintenance and low costs;

High efficiency and energy saving ensure quick returns.

Contact Now E-Mail Telephone WhatsApp
Product Details

Durability of this skid steer loader: Reinforced boom extends service life by 50%; wear-resistant steel plates protect key parts; sealed bearings prolong service life; anti-rust treatment adapts to harsh environments; key components are designed to last up to 10,000 hours.

Product Parameter

Model

HL1000

HL1000 xinchai

Performance Parameters

Unit(Metric)

Unit(inch)

Unit(Metric)

Unit(inch)

Max Operating Height

2695mm

106.10in

2695mm

106.10in

Max Hinge Pin Height

2000mm

78.74in

2000mm

78.74in

Overall Height of Machine

1650mm

65in

1650mm

65in

Overall Width of Machine

1105mm

43.5in

1105mm

43.5in

Overall Length of Machine(Std.Bucket)

2580mm

101.57in

2580mm

101.57in

Overall Length of Loader(No Attachment)

2050mm

80.7in

2050mm

80.7in

Track Length

1090mm

43in

1090mm

43in

Track Width

200mm

7.87in

200mm

7.87in

Wheelbase

1080mm

42.52in

1080mm

42.52in

Turning Radius

1100mm

43.31in

1100mm

43.31in

Ground Clearance

200mm

7.87in

200mm

7.87in

Angle of Departure

30°

30°

30°

30°

Ground Drive Speed

6.4km/h

4.0mph

6.4km/h

4.0mph

Ground Pressure

0.43bar

6.3psi

0.43bar

6.3psi

Machine Weight

1300kg

2866lb

1300kg

2866lb

Gear Pump Flow Rate

33L/min

8.7gpm

23X2L/min

6.08X2gpm

Double Gear Pump Pressure

200bar

2900psi

250bar

3626psi

Dual Hydrostatic Ground Drive Pumps Flow

45L/min

11.88gpm



Dual Hydrostatic Ground Drive Pumps

207bar

3000psi



Load Weight

600kg

1323lb

600kg

1323lb

Bucket Width

1150mm

45.28in

1150mm

45.28in

Bucket Capacity

0.15cbm

39.63gal

0.15cbm

39.63gal

Bucket Dimension

570mm*1150mm*430mm

22.44in*45.28in*16.93in

570mm*1150mm*430mm

22.44in*45.28in*16.93in

Bucket Unloading Angle

40°

40°

40°

40°

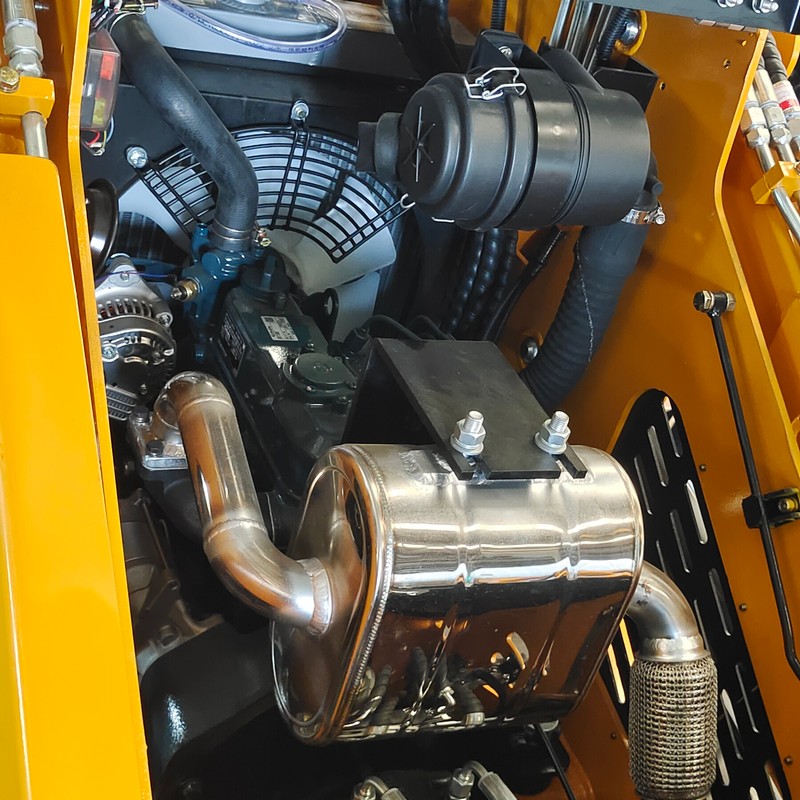

Engine

Kubota D1105

Kubota D1105

Xinchai 3B11X51

Xinchai 3B11X51

Fuel

Diesel

Diesel

Diesel

Diesel

Emissions Compliance

US EPA/European Standards

US EPA/European Standards

Euro V

Euro V

Gross Power Rating

18.2KW

24.4hp

18.5KW

24.8hp

Number Of Cylinders

3

3

3

3

Displacement

1.123 L

68.5in³

1.12L

68.35in³

Rated Speed

2500rpm

2500rpm

3000rpm

3000rpm

Fuel Tank Capacity

35L

9.2gal

35L

9.2gal

Engine Oil(With Filter)

4.7L

5qt

4.7L

5qt

Hydraulic Reservoir Capacity

40L

10.5gal

40L

10.5gal

Battery

12V

12V

12V

12V

Why TIGLIFT Skid steer loader

 Advantages of Skid Steer Loader

Product Overview

The skid steer loader is a construction machinery designed specifically for high-efficiency, multi-scenario operations. Its unique skid-steering mechanism and modular attachment system enable it to quickly switch functions across various scenarios such as building demolition, agricultural farming, and road maintenance, making it a core tool for modern construction teams to boost productivity.

Product Advantages

1. High-Efficiency Operation: The powerful power system, combined with precise hydraulic control, enables fast shoveling, leveling, and other operations, significantly reducing the time required to complete a single task.

2. Flexible Adaptability: Supports quick connection of multiple attachments (such as forks, sweeper brushes, cutting machines, etc.), allowing seamless switching between different tasks without complex modifications.

3. Safety and Reliability: Equipped with anti-slip braking systems and emergency shutdown devices, key components undergo impact resistance tests to ensure operational safety under harsh working conditions.

4. Maintenance-Friendly: The engine compartment and hydraulic system adopt an open design, allowing daily inspections (e.g., engine oil, hydraulic oil) without disassembling numerous components, reducing maintenance difficulty.

Strength of the Manufacturing Plant

This product is manufactured by an enterprise with 20 years of history in construction machinery manufacturing. As a national high-tech enterprise, the factory specializes in R&D and production of small engineering equipment. It is equipped with advanced equipment such as laser cutting machines and CNC bending machines to ensure the processing precision of components. The factory has obtained ISO 14001 environmental management system certification, adopting eco-friendly painting processes and energy-saving production lines to reduce carbon emissions during production. All products undergo load tests, steering tests, and durability verification before leaving the factory to ensure reliable quality.

Delivery Photos

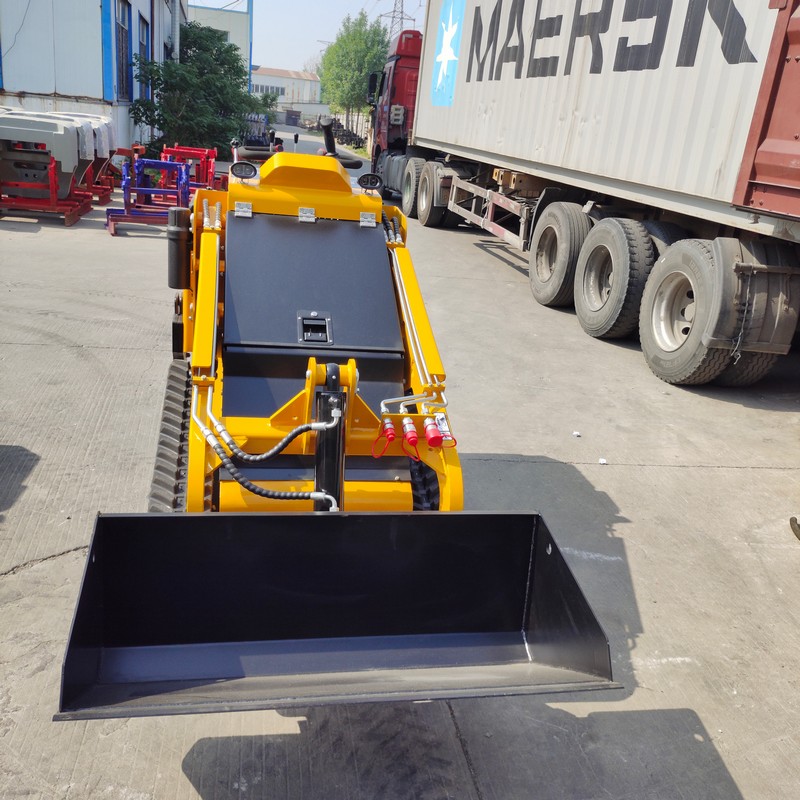

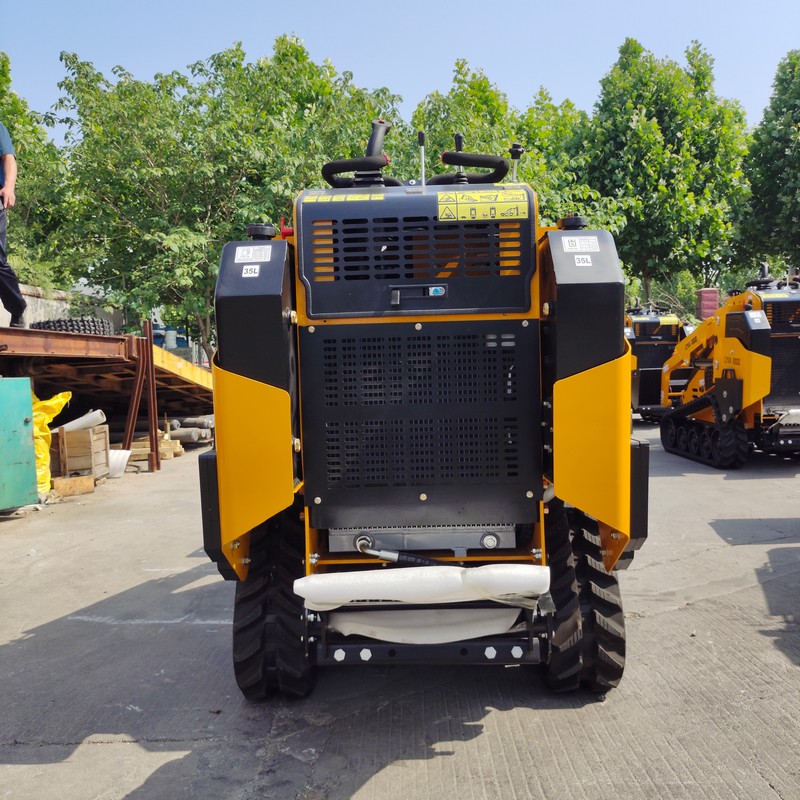

Skid Steer Loader Shipment Photo

Skid Steer Loader Shipment Photo

Skid Steer Loader Shipment Photo

International Shipping Services

To ensure reliable global delivery of equipment, the factory provides customized logistics solutions:

Sea Freight Priority: Standard equipment is loaded in full containers, with shock-absorbing materials filled inside to avoid displacement damage during transportation; for large orders, dedicated ship transportation can be arranged to reduce costs.

Air Freight for Emergencies: For urgent orders (e.g., urgent replacement due to equipment failure), key components are shipped by air to minimize customer downtime.

Multimodal Transport: Combining railway and road transport, more economical door-to-door solutions are provided for customers in Europe, Southeast Asia, and other regions to shorten delivery cycles.

The factory’s logistics team tracks the cargo status throughout the process and provides complete documents such as bills of lading and insurance policies.

International After-Sales Service

With "global service network" as the core, the factory has built a comprehensive after-sales system:

Training Services: Free operation training (online or offline) is provided for new customers, covering equipment startup, attachment replacement, daily maintenance, etc., to ensure safe and efficient use.

Parts Express Delivery: Over 1,000 types of common parts are stocked in warehouses, and urgent orders can be delivered within 48 hours via expedited logistics.

Extended Warranty: In addition to the standard warranty period, customers can choose to purchase extended warranty services, enjoying regular equipment inspections and priority repair rights.
