Skid Loader

Skid steer loaders have obvious advantages in construction:

The compound action design increases work efficiency by 30%;

Pilot hydraulic control ensures precise operation;

The suspended seat reduces fatigue;

Fully sealed bearings extend the service life;

The intelligent monitoring system displays operating parameters in real-time.

Contact Now E-Mail Telephone WhatsApp

Product Details

Five reasons to choose a skid steer loader:

Its operating efficiency is 20 times that of manual work;

it adapts to narrow spaces and areas inaccessible to large equipment;

the purchase cost is only 60% of that of a wheel loader;

maintenance is simple, and daily maintenance can be completed by one person;

it has low fuel consumption.

Product Parameter

SPECIFICATIONS AT65
	Parameters	Unit(Metric)	Unit(inch)
Dimensions	Operating Height	3900mm	153.5 in
	Max Hinge Pin Height	2297mm	90.4 in
	Height To Top	2409mm	94.8 in
	Overall Length With Std.Bucket	3400mm	133.9 in
	Overall Length Without Attachment	2450mm	96.5 in
	Wheelbase	1500mm	59 in
	Overall Width	1782mm	70 in
	Mini Ground Clearance	200mm	7.9 in
	Angle Of Departure	18.5°	18.5°
	Bucket Capacity	0.5CBM	132 gal
	Rated Loading Capacity	1000kgs	2205 lb
	Machine Weight	3700kgs	8157 lb
Hydraulic system	Working System Pressure	22Mpa	3191 psi
	Working System Flow Rate	80L/min	21.13 gpm
	Driving System Pressure	25Mpa	3626 psi
	Driving System Flow Rate	105L/min	27.74 gpm
Engine	Engine Model	XINCHAI Supercharger Diesel Engine 498(State II)
	No. Of Cylinders	4 Cylinder	4 Cylinder
	Net Power	55kW	73.76 hp
	Note: Optional Engine 1.Korean LS(EPA)L4-54.4Kw/2.5L 2.Cummins (EPA)QS-55Kw/2.8L

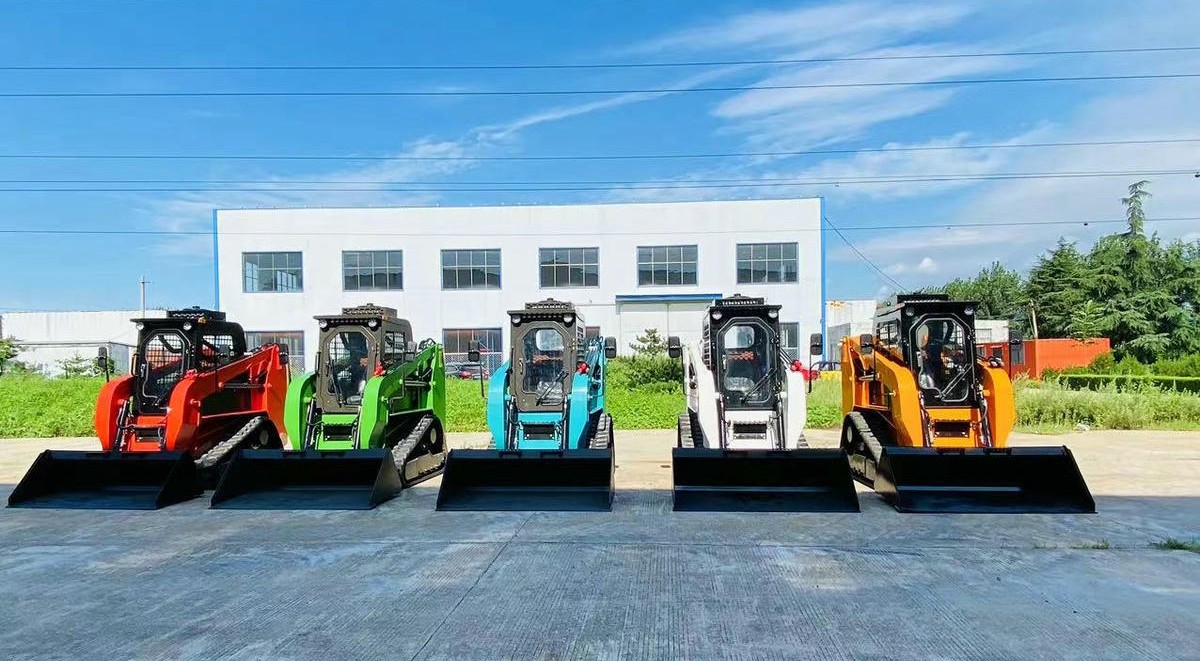

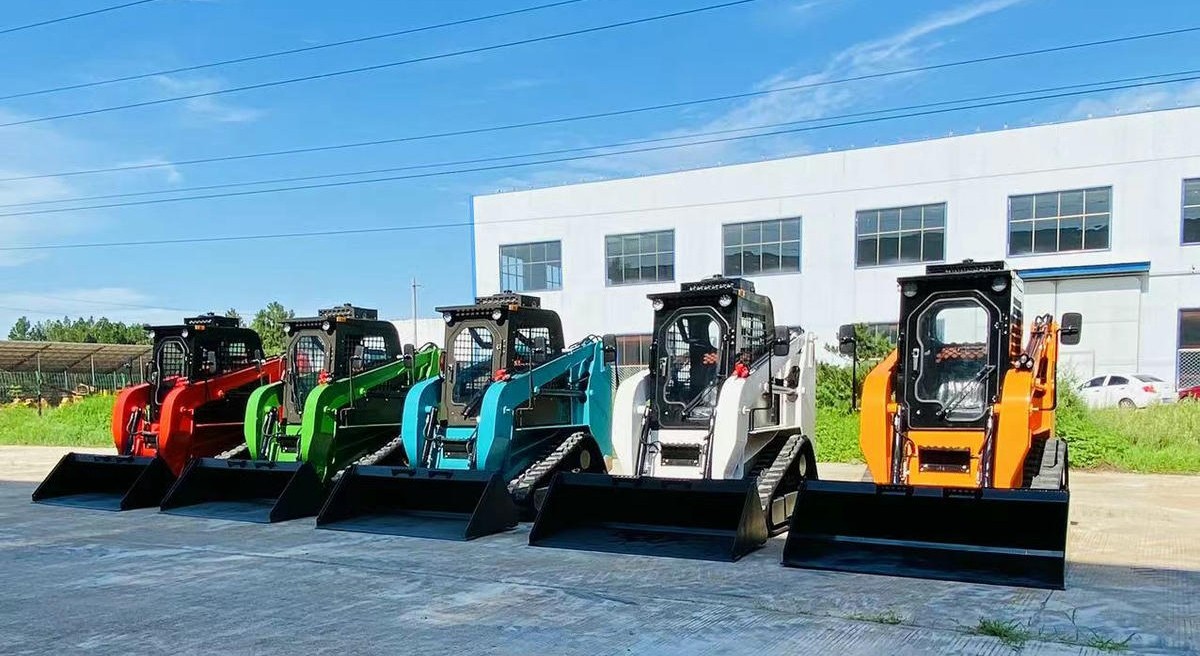

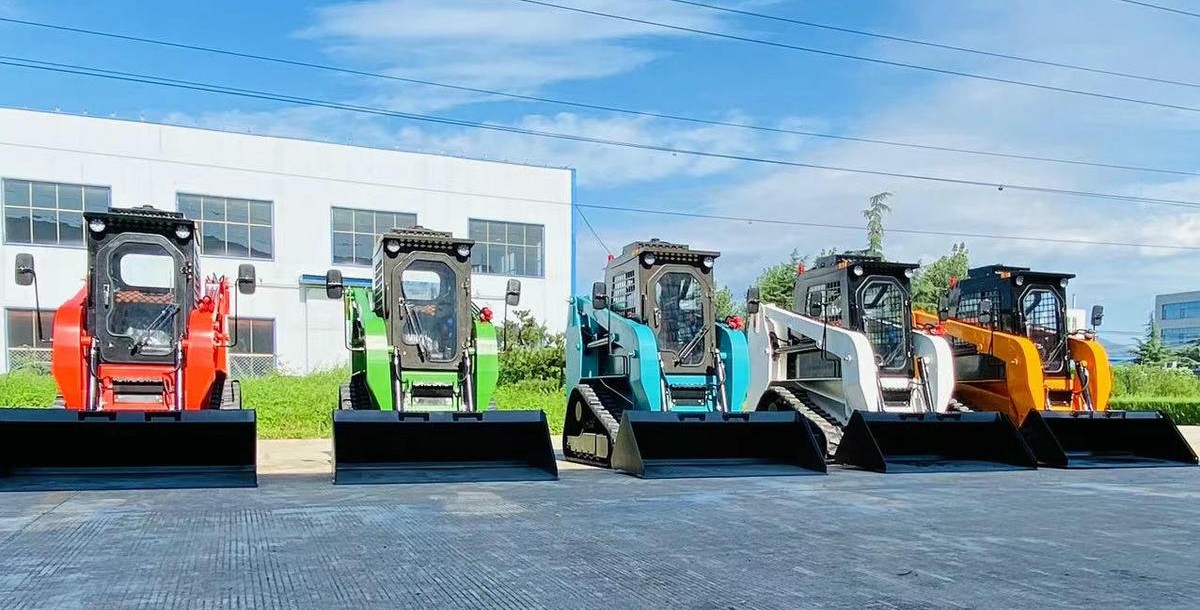

Tracked Skid Steer Loader

Why TIGLIFT Skid steer loader？

1. Superior Mobility and Compact Design

360° In-place Steering: Adopts skid-steer technology, enabling flexible turning in narrow spaces with a minimum turning radius of zero.

Compact Size: Typically, less than 1.5 meters in width and under 2 meters in height, allowing passage through narrow corridors or low doorways.

2. Multifunctional Attachment Compatibility & Low-cost Operation

Quick Change System: Equipped with a standard hydraulic quick-coupler, enabling second-level switching between dozens of attachments to achieve "one machine, multiple uses".

Attachment Sharing: A single host machine is compatible with multiple tools, reducing the number of equipment purchases.

3. Powerful Performance and Stability

High-torque Hydraulic System: Delivers strong traction even at low speeds, suitable for operations on slopes or muddy ground.

Rigid Chassis Design: Features a low center of gravity, wide wheelbase, and full-time 4WD, offering better stability than small wheel loaders on rough terrain.

4. Operational Efficiency

Responsive Operation: Uses hydraulic pilot control or electro-hydraulic steering for precise movements, ideal for fine operations.

High Pass ability: Optional rubber tracks or solid tires minimize ground damage.

5. Easy Maintenance and Durability

Modular Design: The engine compartment can be fully opened for easy access to key components such as filters and hydraulic hoses during maintenance.

Long-lasting Structure: Reinforced steel chassis and boom ensure high durability.

After Service

•Professional manufacturer with over 20 years’ experience

•Quickly analyze customer needs and provide comprehensive solutions

•Fast delivery and professional customer service staff

•Rapid response to after-sales issues

•Quick problem identification & solution provision

•Comprehensive spare parts supply system & emergency spare parts support

FAQ:

1. Q: Do TIGLIFT skid steer loader comply with worldwide requirements and certifications?

A: Yes, All the TIGLIFT skid steer loader usually conforms to worldwide first-class requirements and attain applicable certifications. This consists of CE certification, ISO certification, EPA certification and more.

2. Q: What’s the delivery time?

A: Its depends on the order quantity，please check with our customer service，for less than 10 sets standard skid steer loader usually 7 days can delivery.

3. Q: What’s the MOQ (minimum order quantity)? Is that possible to use my own LOGO?

A: No problem. ONE set also be accepted. You can use your own LOGO on the skid steer loader. OEM can be accepted.

4. Q：How about the after service?

A: As we mentioned above，we will do our utmost to provide excellent service to every customer. That’s also our TIGLIFT company business philosophy.
