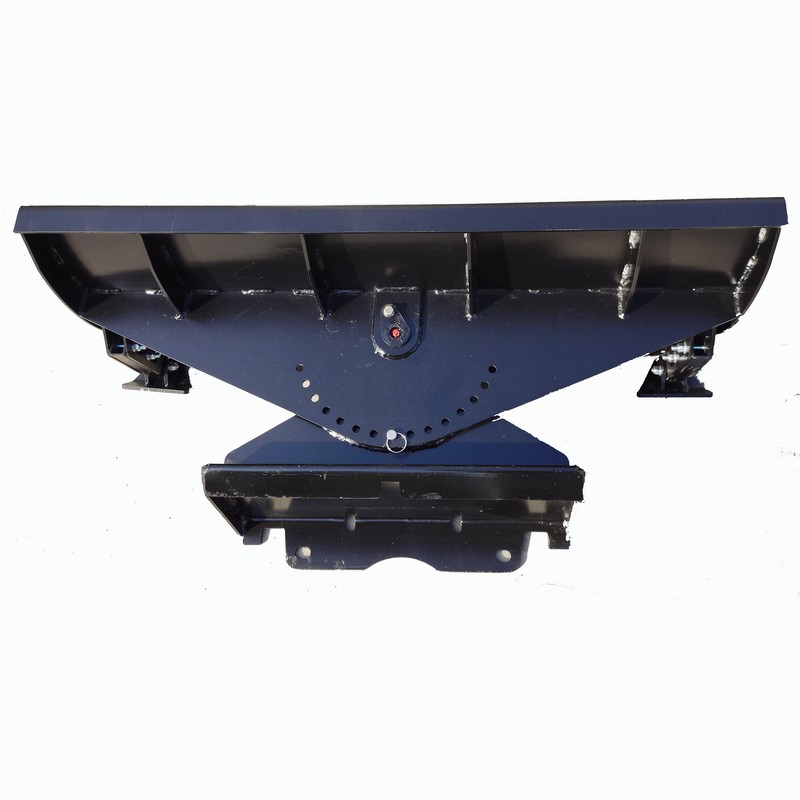

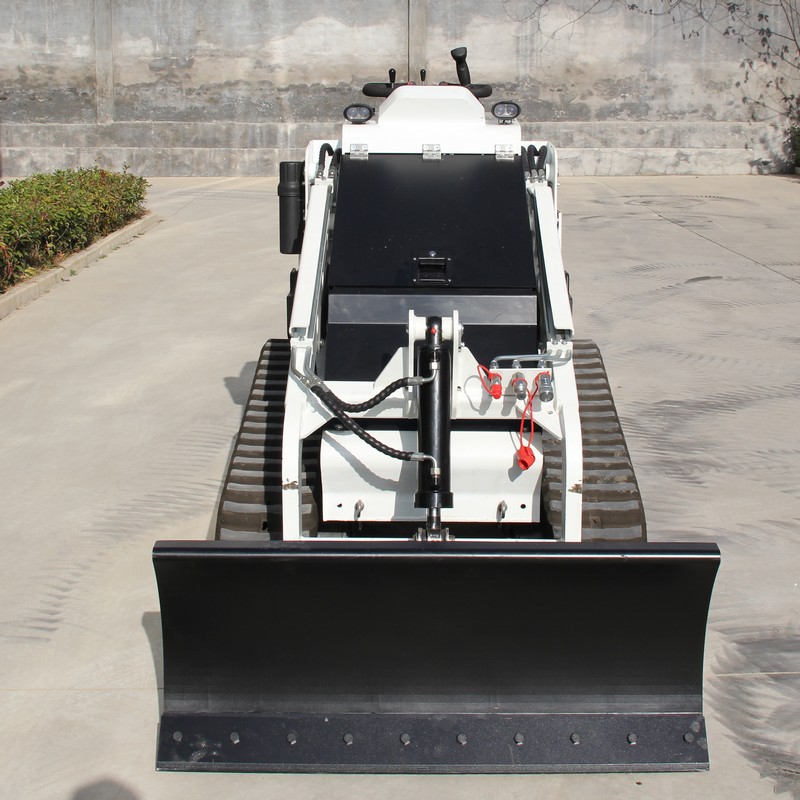

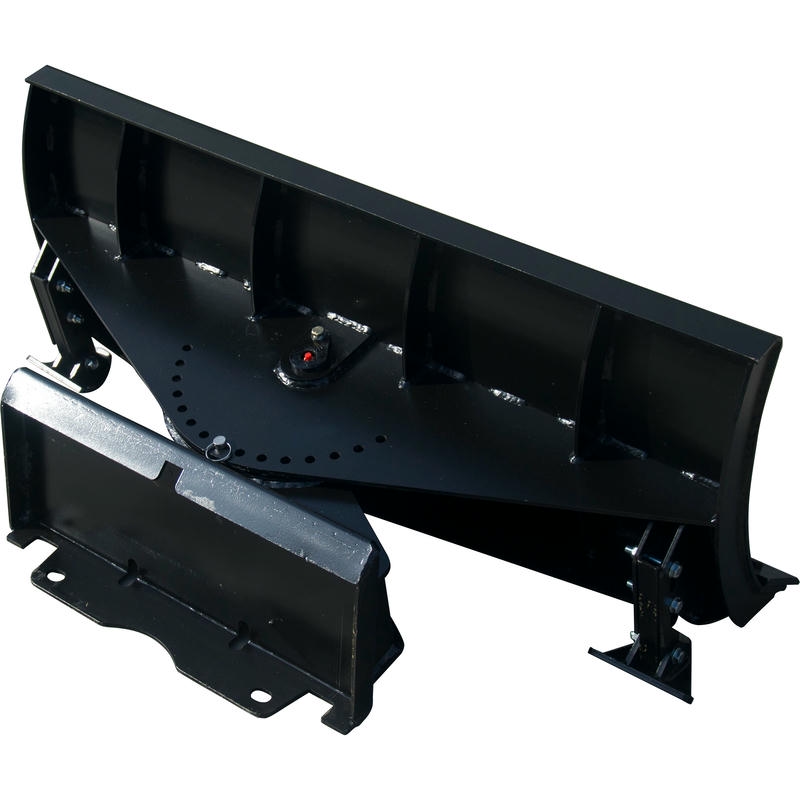

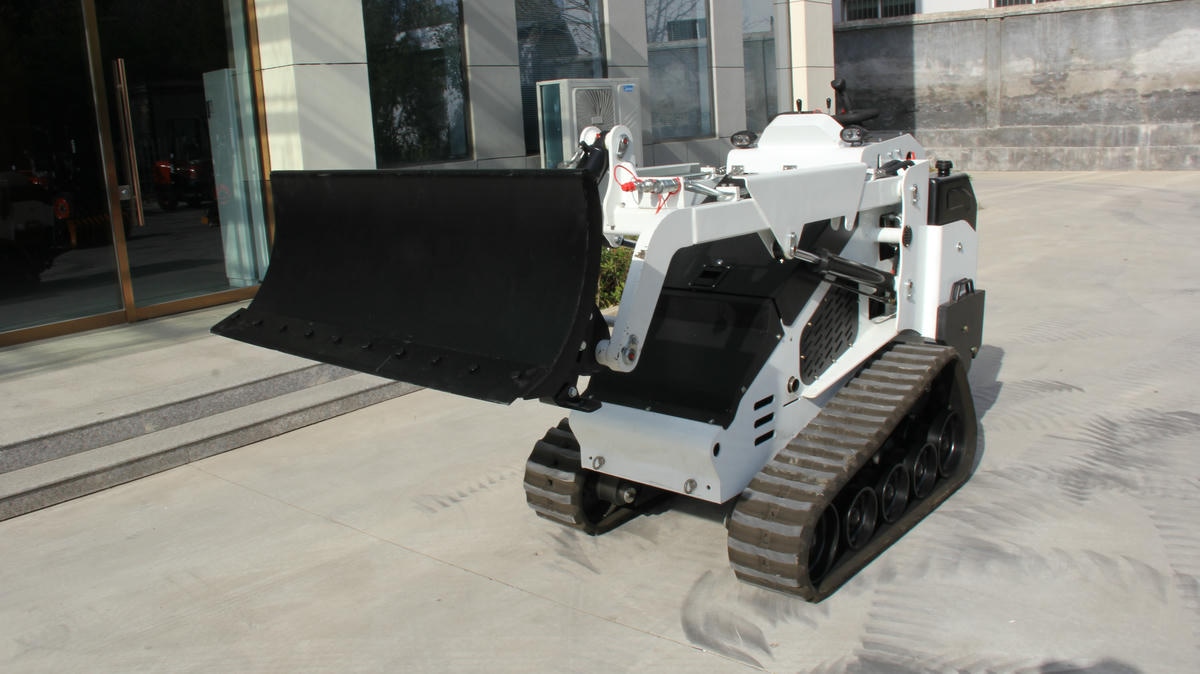

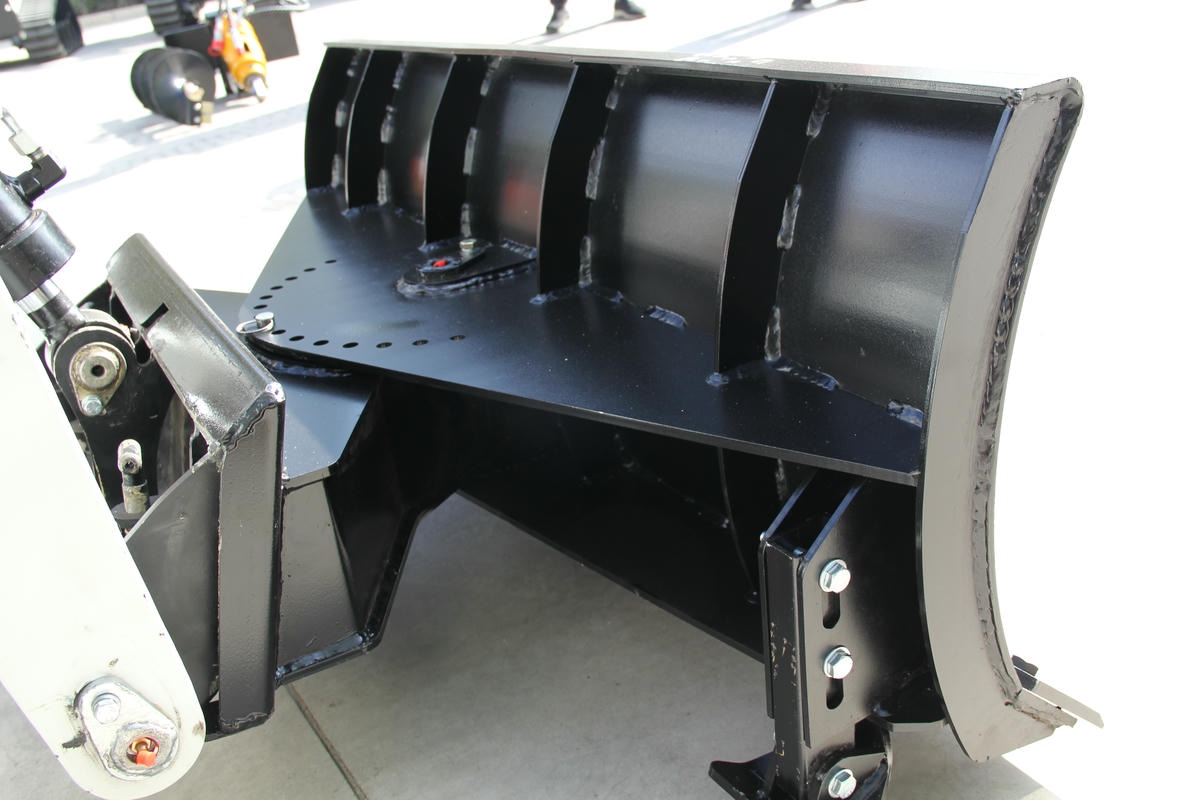

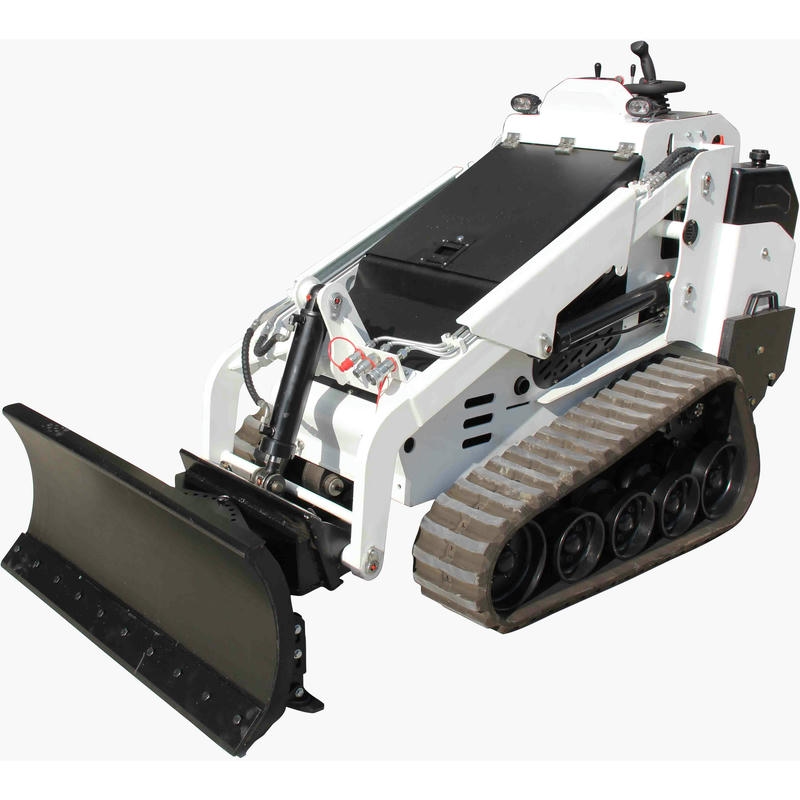

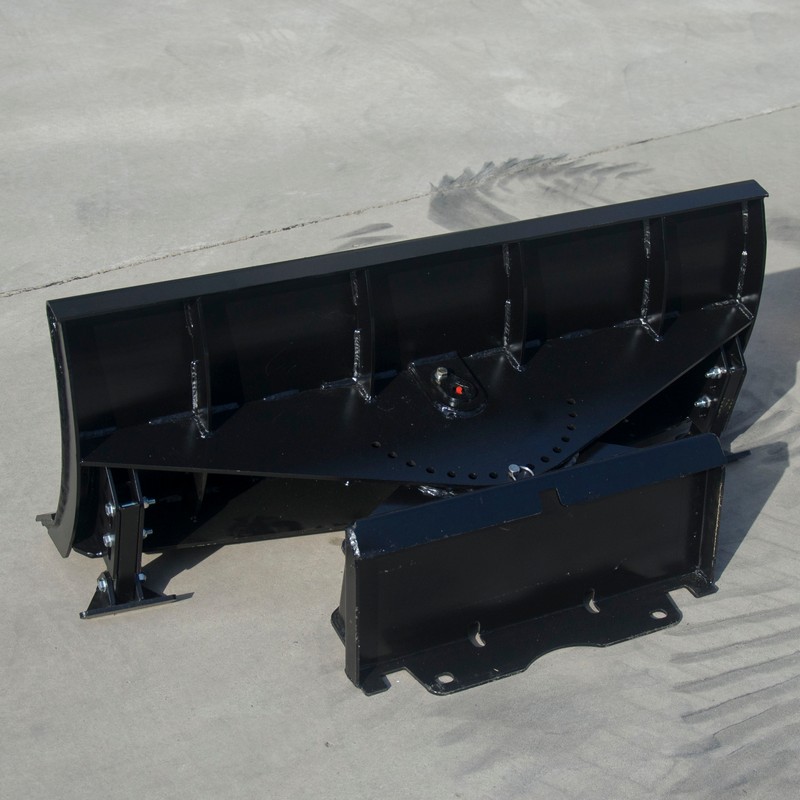

Angle Blade

The skid - steer loader Angle Blade is a snow - removal tool specifically designed for skid - steer loaders. It is used to quickly clear snow from large - area hard surfaces such as roads and parking lots. By directly pushing and scraping the snow to the roadside with a sturdy snow - pushing plate and leveraging the flexibility of the skid - steer loader, it enables efficient snow removal and is suitable for scenarios such as municipal operations, airports, and property management.

Structural Components

The main components are as follows:

• Snow - Pushing Plate Main Body: It is an inclined flat plate (or a plate with a certain curvature) made of high - strength steel. The front end is equipped with a sharp blade, which facilitates cutting into the snow. The surface is treated by hardening processes (such as quenching) to enhance wear resistance. The angle of the plate can be adjusted (usually between 0° and 30°) to control the snow - pushing direction.

• Adjustment Mechanism: It adjusts the height of the snow - pushing plate (to avoid the roadside edges) and the angle (to change the snow - pushing direction) through a hydraulic cylinder or a mechanical connecting rod.

• Connection Frame: It fixes the snow - pushing plate to the front end of the skid - steer loader and connects the hydraulic system to transmit operation commands.

• Reinforcement Components: The reinforced ribs improve the impact resistance, and the anti - collision buffer pads (such as rubber blocks) protect the plate from being damaged by collisions with curbs.

• Optional Functions: Some models are equipped with side wings (to increase the snow - pushing width) or guide plates (to direct the flow of snow).

Working Principle

During operation, the driver pushes the loader forward, and the snow - pushing plate directly pushes and scrapes the snow to the edge (such as the roadside). The height can be adjusted to avoid obstacles, and the angle can be adjusted to change the snow - pushing direction. In narrow areas, the loader can be precisely maneuvered using its zero - turn ability for targeted snow removal.

Core Features

• Efficient Snow Removal: With the mobility of the loader, it has a large single - pass snow - pushing width (1.5 - 2.5 meters), and its snow - removal speed far exceeds that of manual labor.

• Strong Adaptability: The angle and height are adjustable, allowing it to adapt to different snow thicknesses (from light snow to compacted snow) and various road surfaces (such as asphalt and concrete).

• Durable and Sturdy: The wear - resistant steel plate and blade design enable it to resist impacts and operate normally in low - temperature environments (from - 20°C to - 40°C).

• Simple Operation: The lifting and angle adjustment can be controlled via the loader's control handle, and no additional training is required. It can also be quickly disassembled and assembled.

• Function Expansion: Optional side wings or guide plates can be selected to optimize the snow - removal effect.

Typical Application Scenarios

• Municipal Sanitation: Snow removal on urban roads and sidewalks.

• Airport Ground Operations: Snow removal on runways and aprons.

• Property Communities: Snow removal on roads and parking lots in residential areas.

• Highways: Rapid snow removal at service areas and toll stations.

• Industrial Parks: Snow removal on factory roads.

The snow - pushing plate, with its simple and direct snow - pushing function, has become an efficient attachment for large - area snow removal in winter and is suitable for municipal, transportation, and property management scenarios.
