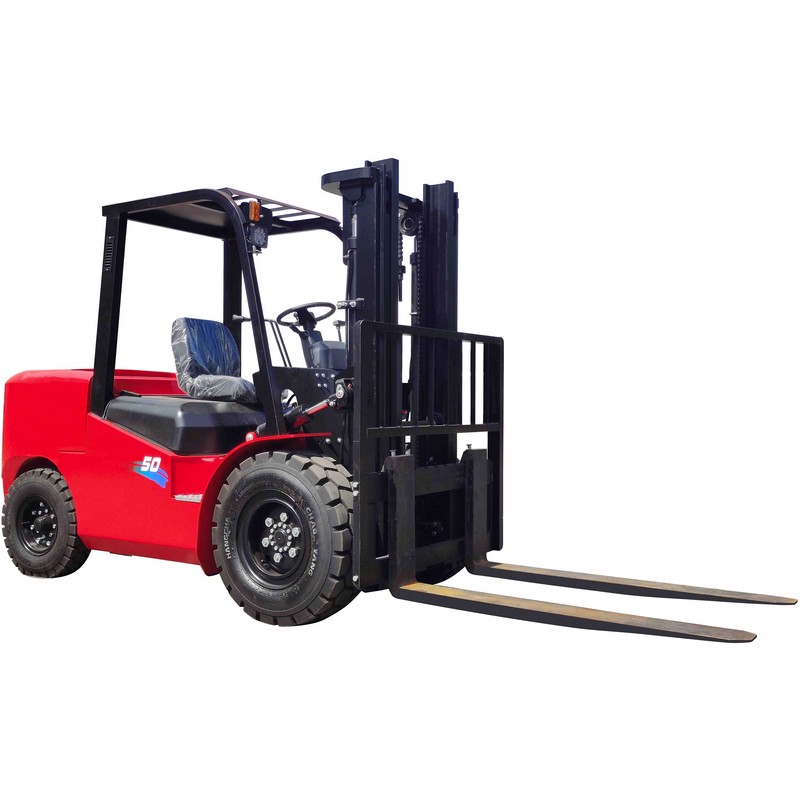

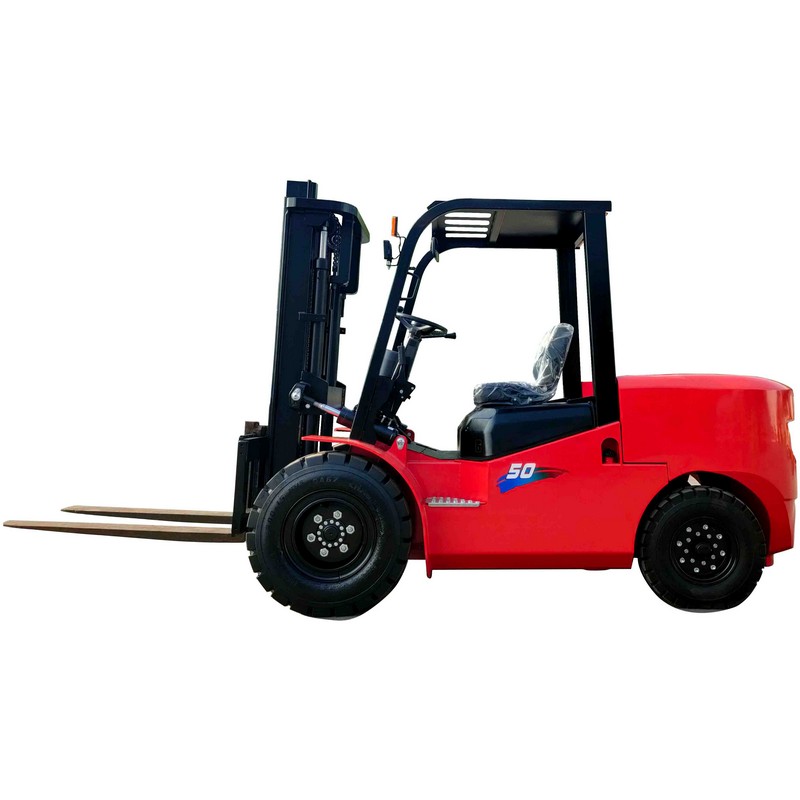

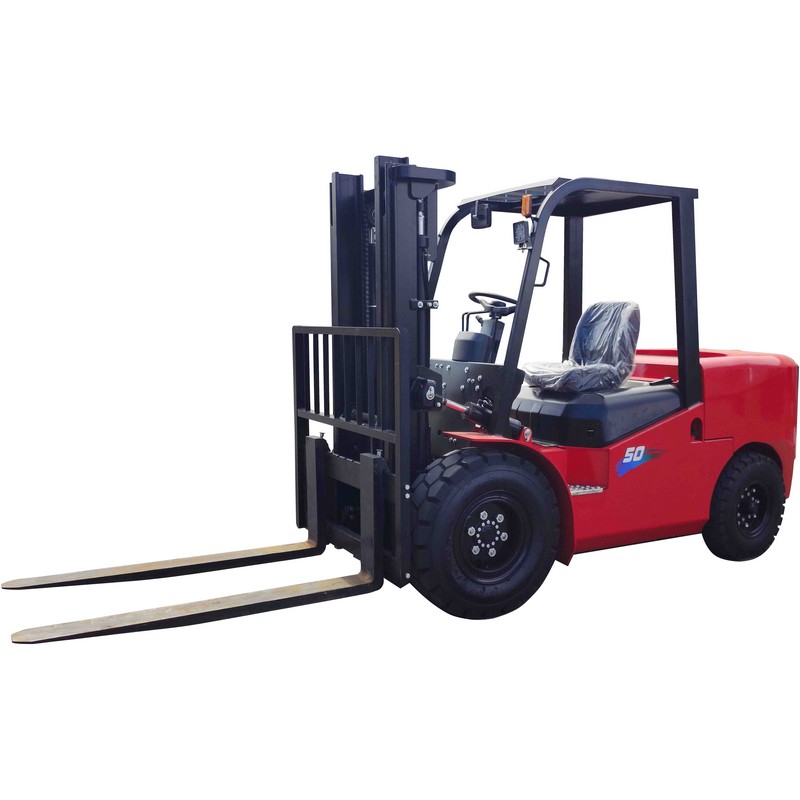

Counterbalance Forklift
The diesel engine boasts an ultra-long lifespan, reaching up to 15,000 hours;
Refueling takes just 3 minutes, which is 20 times faster than charging;
There are no battery replacement costs, saving money within 5 years.
Operational comfort is a significant advantage of diesel forklifts — the fully suspended seat reduces fatigue, making it suitable for operations lasting more than 8 hours; the ergonomic operating handle (with adjustable force) reduces hand pressure; the instrument panel clearly displays fuel level and fault codes, facilitating real-time monitoring.
Product Parameter
TECHNICAL SPECIFICATIONS | |||||
Performance | Model | CPC(D)50 | CPC(D)50 | ||
Rated Capacity | kg | 5000 | 5000 | ||
Load Center | mm | 500 | 500 | ||
Power Type | Diesel | Diesel | |||
Max. Lifting Speed (Full-Load) | mm/s | 330 | 330 | ||
Max. Driving Speed (Full-Load) | km/h | 22 | 22 | ||
Max. Towing Capacity (Full-Load) | kN | 15.5 | 15.5 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | 3000 | |
Free Lift Height | mm | 1500 | 1500 | ||
Mast Tilting Angle (Forward-Backward) | Deg | 6/12 | 6/12 | ||
Min. Turning Radius | mm | 2850 | 2850 | ||
Min.Right Angle Aisle Width | mm | 2350 | 2350 | ||
Min. Ground Clearance | mm | 180 | 180 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 4410 | 4410 |
Overall Width | (B) | mm | 1380 | 1380 | |
Overall Height (Mast Lowered) | (H) | mm | 2180 | 2180 | |
Max. Lifting Height | (H2) | mm | 4320 | 4320 | |
Overall Height to Overhead | (H3) | mm | 2200 | 2200 | |
Front Overhang | (A1) | mm | 545 | 545 | |
Wheelbase | (A2) | mm | 1980 | 1980 | |
Front Tread | (B1) | mm | 1080 | 1080 | |
Rear Tread | (B2) | mm | 970 | 970 | |
Tire | Front Wheel | 300-15 | 300-15 | ||
Rear Wheel | 700-12 | 700-12 | |||
Fork | Fork Width | (B3) | mm | 150 | 150 |
Fork Thickness | (H4) | mm | 50 | 50 | |
Backrest Height | mm | 1275 | 1275 | ||
Fork Length | (A3) | mm | 1220 | 1220 | |
Engine | Model | Xinchai A498BPG | Xinchai A498BPG | ||
Rated Power | kW/r.p.m | 45/2300 | 45/2300 | ||
Max. Torque | Nm/r.p.m | 193/1600-1800 | 193/1600-1800 | ||
Number of Cylinders | 4 | 4 | |||
Displacement | L | 3.168 | 3.168 | ||
Shift | Type of Power Shift | Mechanical | Hydraulic | ||
Shift (Forward/Reverse) | 2/2 | 2/2 | |||
Fuel Tank Capacity | L | 70 | 70 | ||
Battery Capacity | V/Ah | 12V/80Ah | 12V/80Ah | ||
Self-Weight | kg | 5550 | 5550 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT Diesel Forklift？
Diesel Forklifts: "Maximizing Efficiency" for High-Frequency Logistics Park Operations
In high-frequency operation scenarios like logistics parks, diesel forklifts excel with their "efficiency maximization" advantages:
Their daily handling capacity is 20% higher than that of electric forklifts, thanks to the elimination of charging downtime.
A 5-minute refueling session is all it takes to resume full-load operation.
Long-lasting endurance makes them ideal for continuous multi-shift work.
Wear-resistant tires and reinforced forks are well-suited for handling diverse goods, including cartons, pallets, and heavy equipment.
