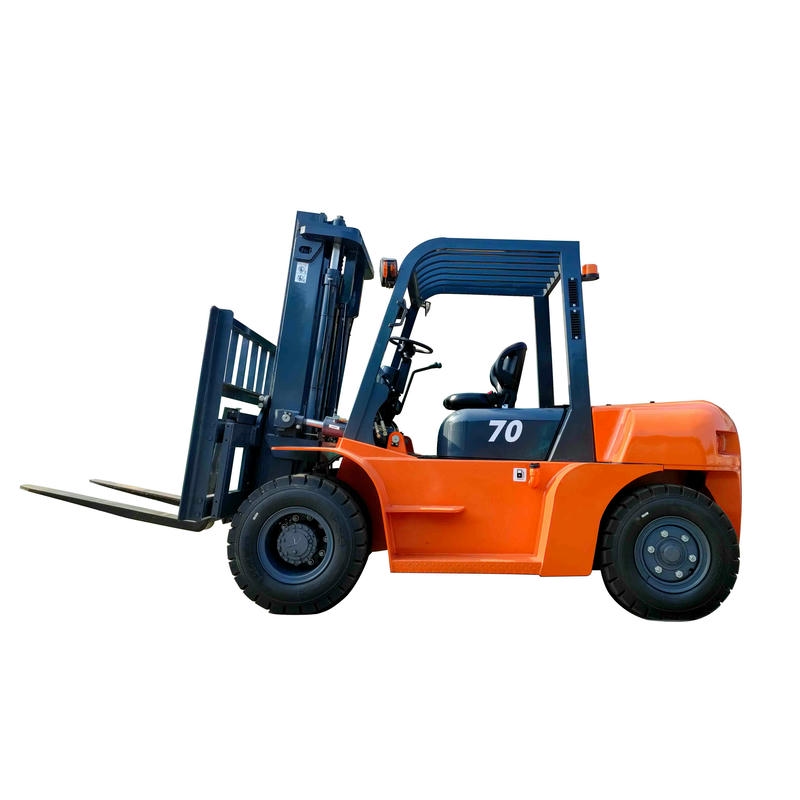

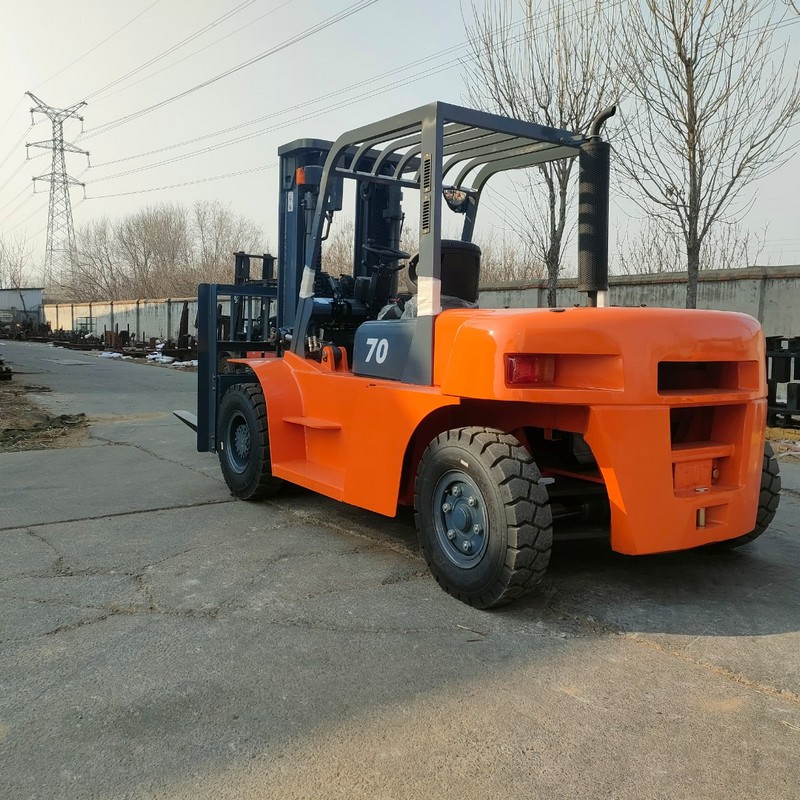

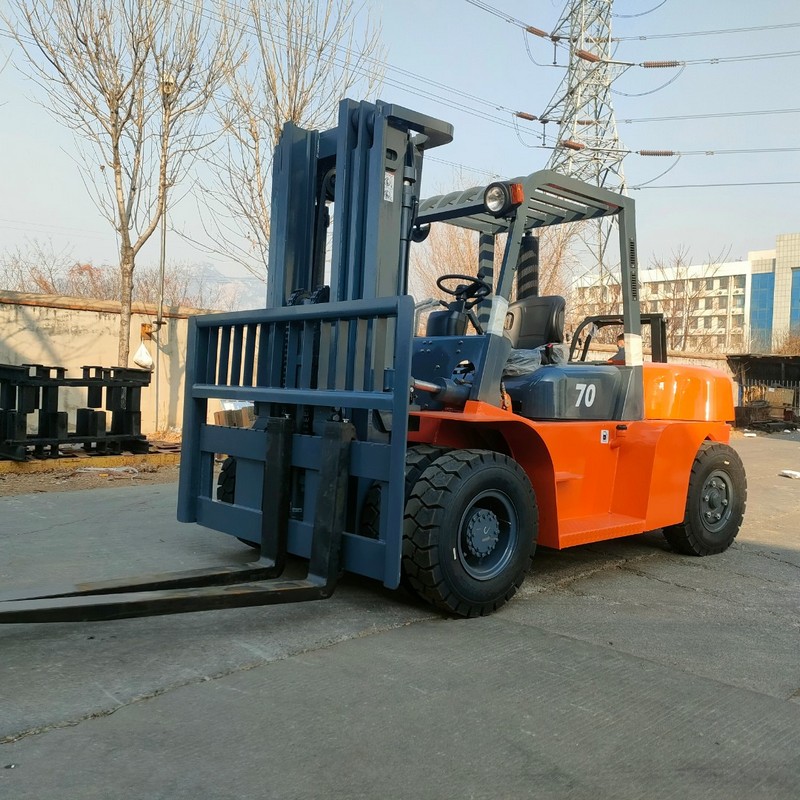

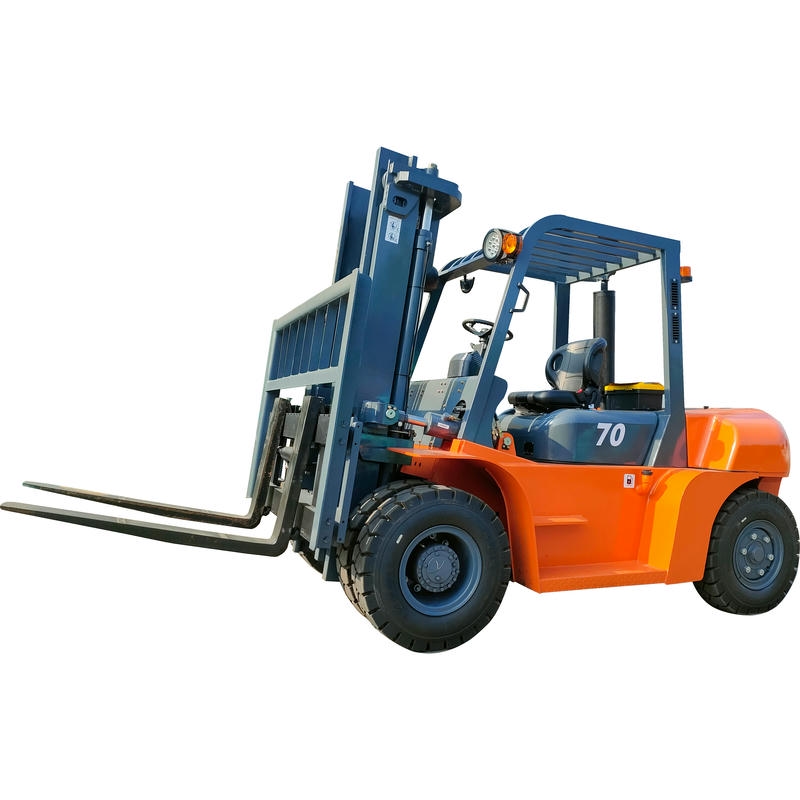

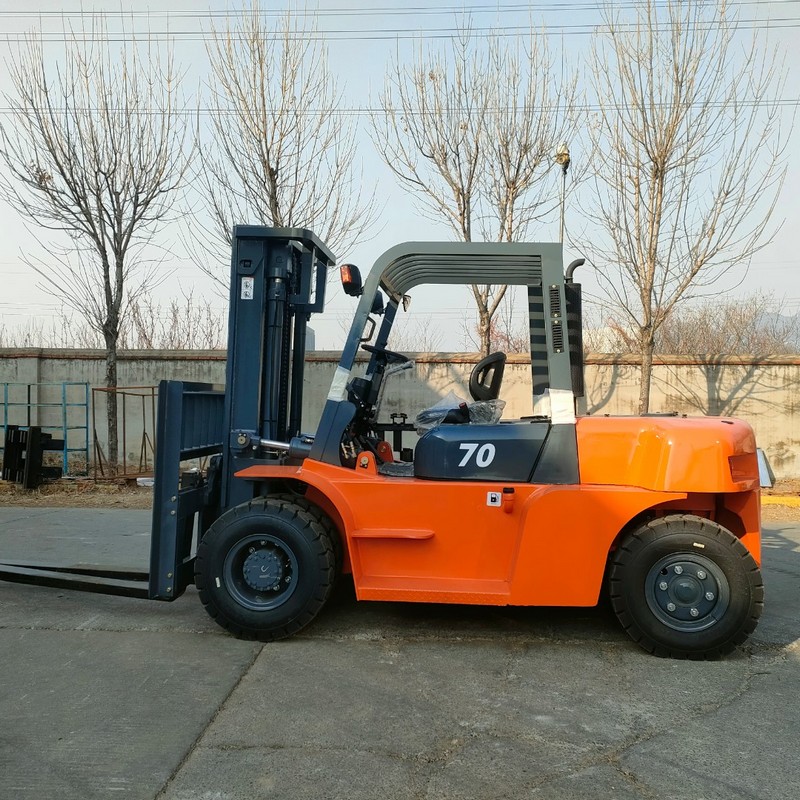

7 Ton Forklift
Diesel has a high energy density, resulting in stronger endurance;
Refueling is fast, improving work efficiency;
There is no problem of battery degradation, and it remains powerful even after 5 years;
Anti-slip pedals ensure safer operation.
Diesel forklifts have a higher residual value rate after long-term use — a 5-year-old used diesel forklift can still be sold for 40%-50% of its original price (electric forklifts have a residual value of only about 20% due to battery degradation); core components (such as the engine) can be sold or repaired separately, reducing scrap losses; they have strong universality, with sufficient supply in the parts market and low renovation costs.
Product Parameter
TECHNICAL SPECIFICATIONS | ||||
Performance | Model | CPCD70F | ||
Rated Capacity | kg | 7000 | ||
Load Center | mm | 600 | ||
Power Type | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 450 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 26∕28 | ||
Max. Towing Capacity | kN | 54 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | |
Free Lift Height | mm | 150 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | ||
Min. Turning Radius | mm | 3450 | ||
Min.Right Angle Aisle Width | mm | 3090 | ||
Min. Ground Clearance | mm | 230 | ||

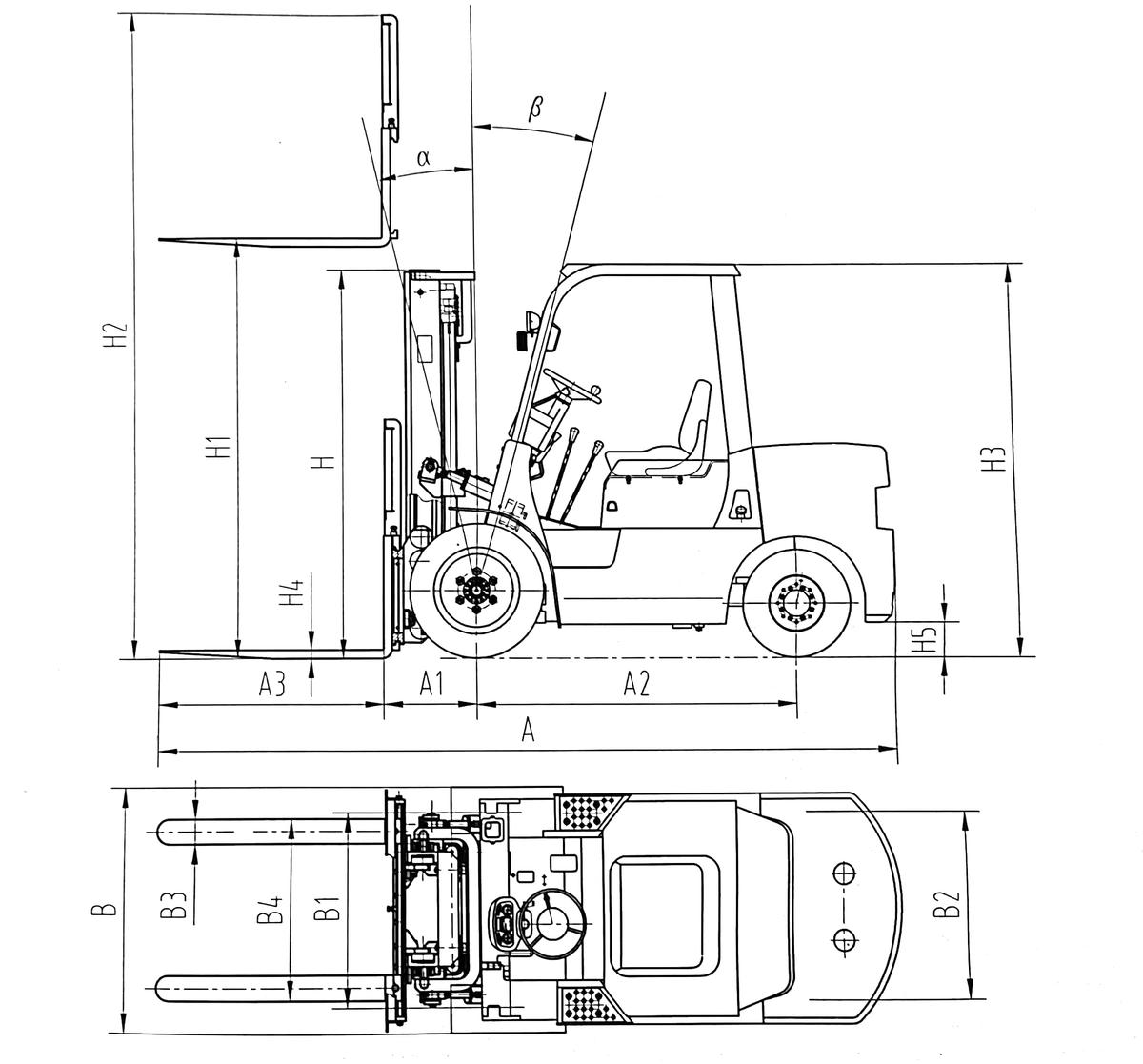

Dimensions | Overall Length (Including Fork) | (A) | mm | 4800 |
Overall Width | (B) | mm | 1995 | |
Overall Height (Mast Lowered) | (H) | mm | 2500 | |
Overall Height (Mast Extended) | (H2) | mm | 4420 | |
Overall Height to Overhead | (H3) | mm | 2420 | |
Front Overhang | (A1) | mm | 610 | |
Wheelbase | (A2) | mm | 2250 | |
Front Tread | (B1) | mm | 1470 | |
Rear Tread | (B2) | mm | 1700 | |
Tire | Front Wheel | mm | 8.25-15-14 | |
Rear Wheel | mm | 8.25-15-14 | ||
Fork | Fork Width | (B3) | mm | 150 |
Fork Thickness | (H4) | mm | 65 | |
Backrest Height | mm | 1365 | ||
Fork Length | (A3) | mm | 1220 | |
Engine | Engine Model | Quanchai 4J1 | ||
Rated Power | kW | 85 | ||
Rotate Speed at Rate Power | rpm | 2200 | ||
Max. Torque | Nm | 500 | ||
Rotation Speed at Max. Torque | rpm | 1650 | ||
Type of Power Shift | Hydraulic | |||
Self-Weight | kg | 9500 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available

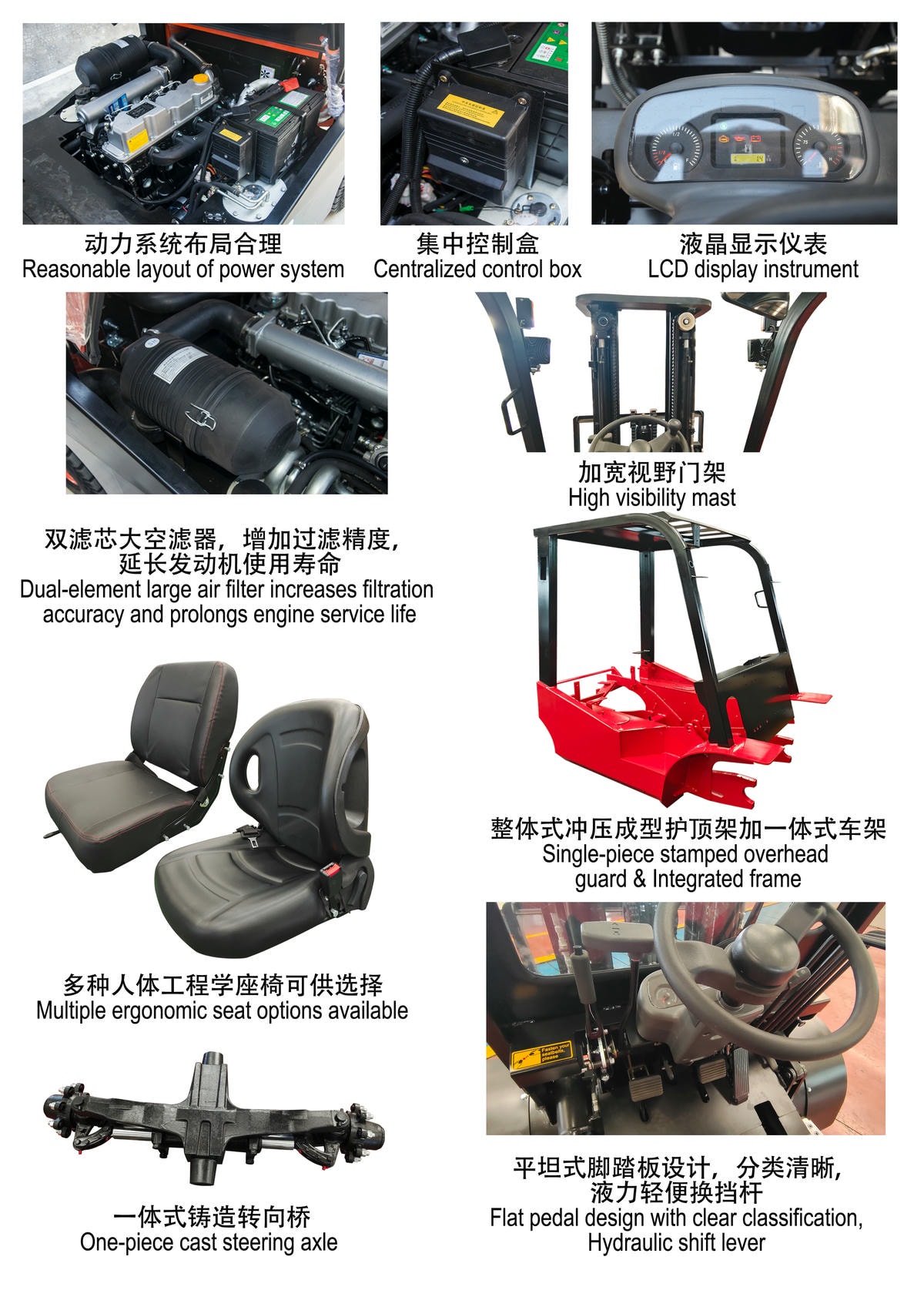

Why TIGLIFT Diesel Forklift？
Diesel Forklifts: Essential for Mines and Quarries
Diesel forklifts are indispensable in mines and quarries, as they excel in withstanding harsh working conditions. Diesel engines are simple to maintain with easily accessible parts; they avoid battery degradation, ensuring long-term reliability. Additionally, full-steel overhead guards protect against falling rock impacts.
Diesel Forklifts: Meeting Extreme Environmental Demands in Mines and Quarries
The extreme environments of mines and quarries impose stringent requirements on forklifts, and diesel forklifts stand out as essential equipment due to:
Impact-resistant undercarriages capable of withstanding falling rock collisions.
Dust-proof sealed engines that prevent dust infiltration, ensuring stable operation in dusty settings.
Strong traction, enabling them to climb slopes of 20° with full loads without slipping.
Convenient diesel refueling, independent of external power sources, making them suitable for remote mining areas.

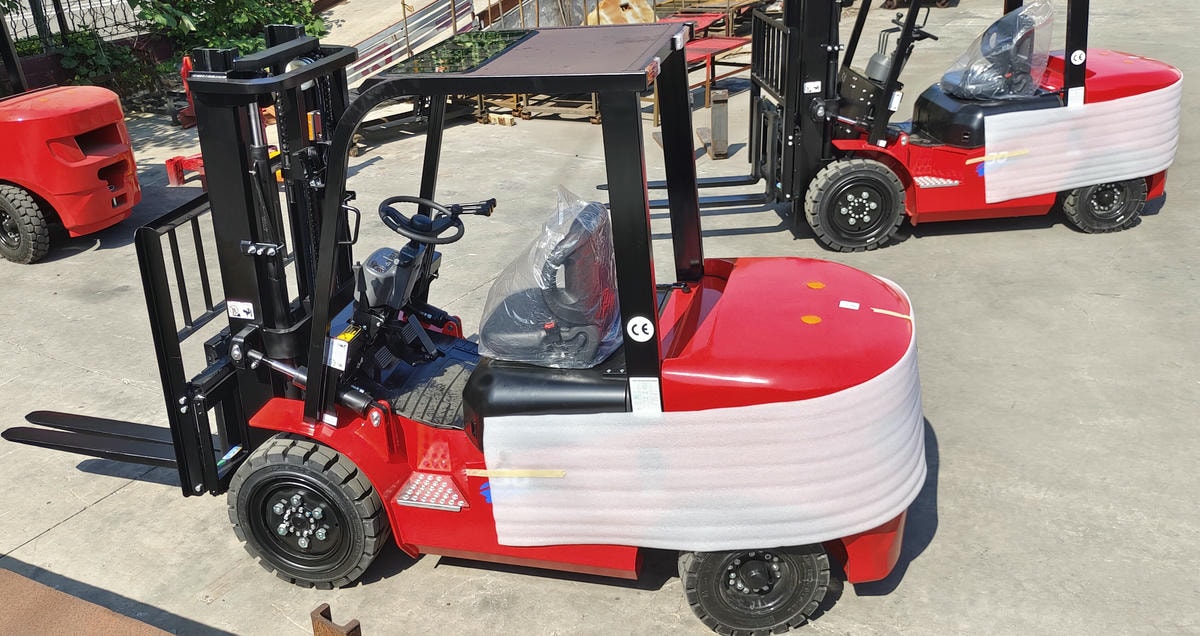

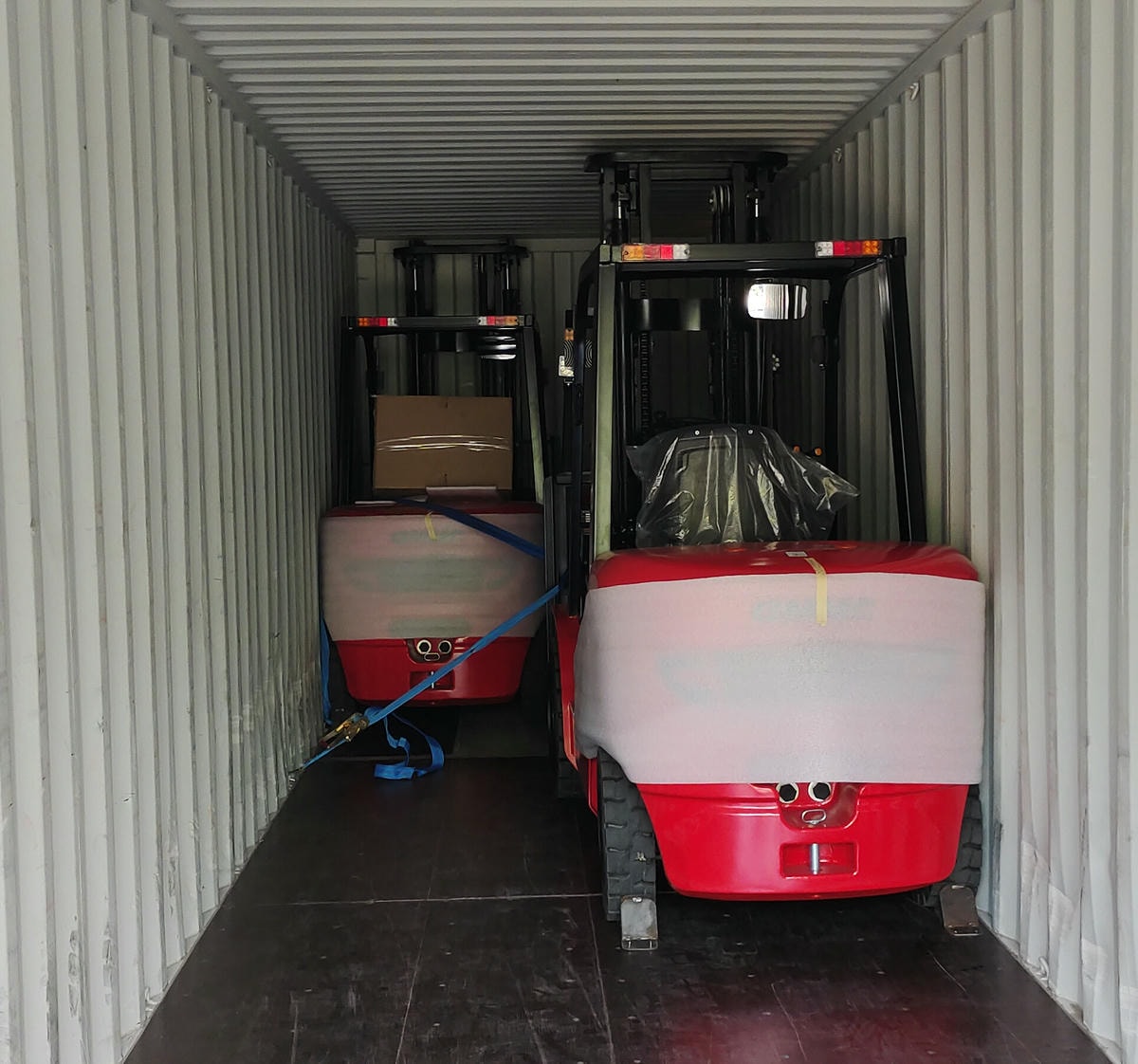

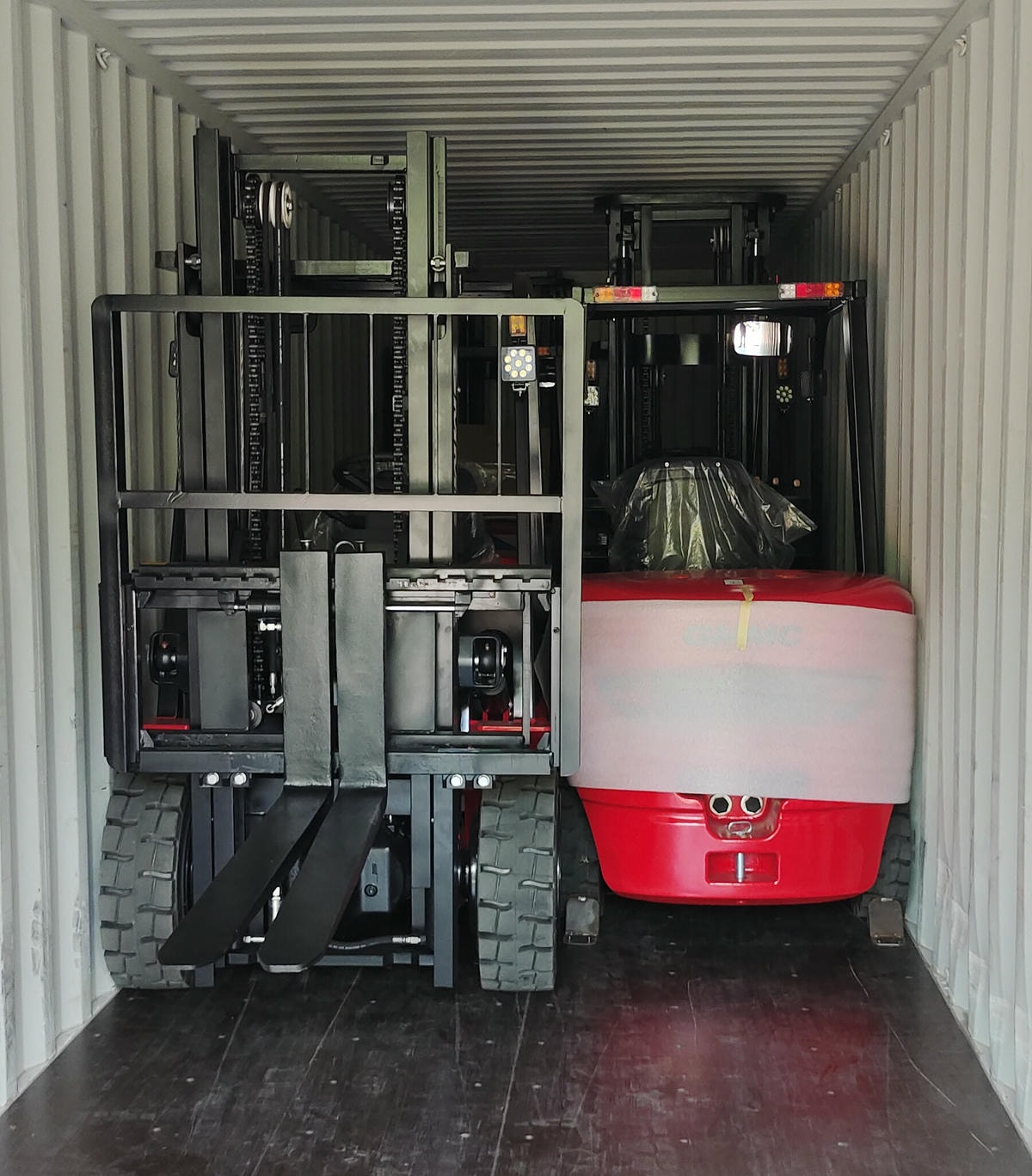

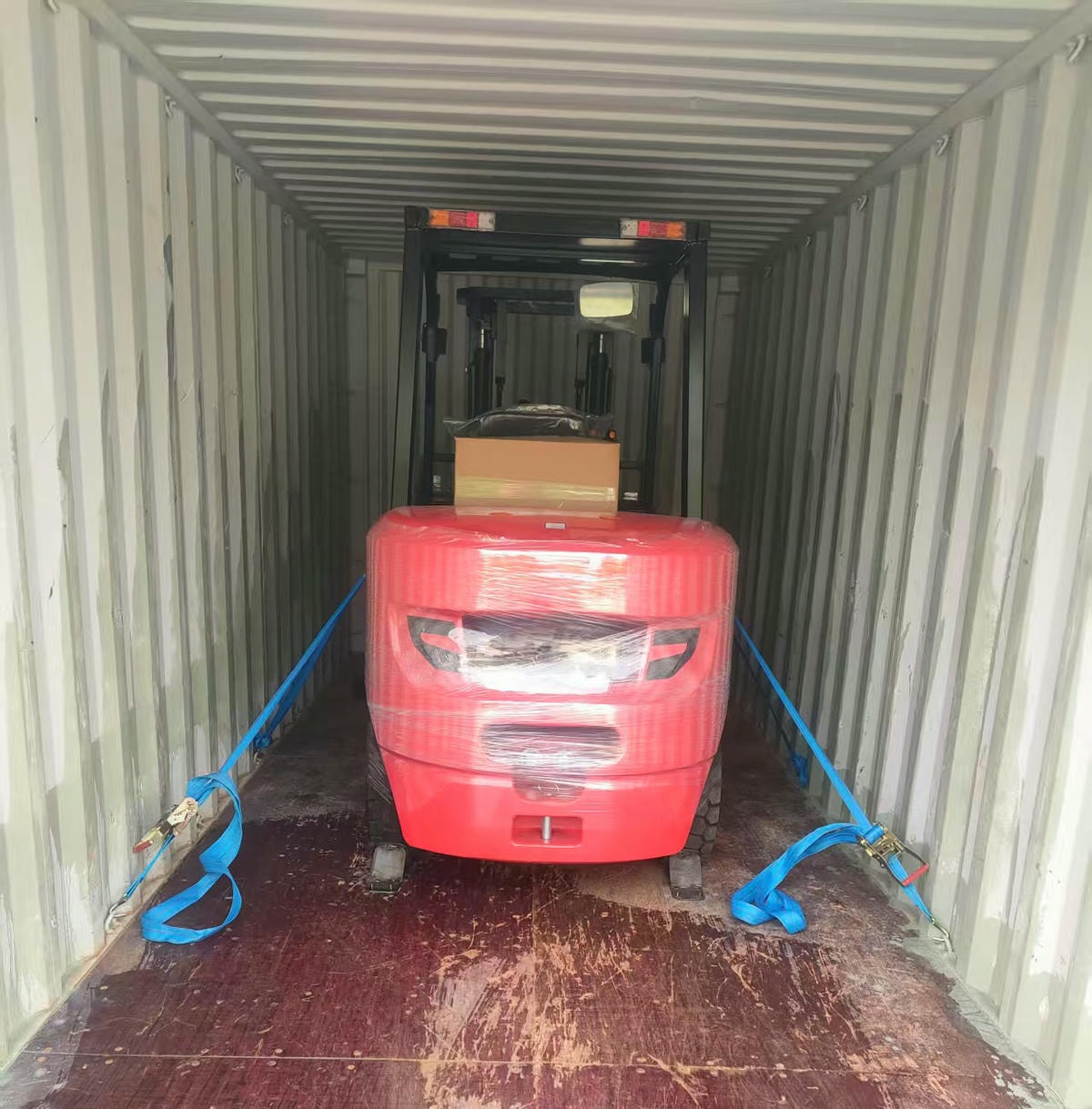

Delivery Photos
Exclusive Service for Large Orders and High-Tech Products
For large-value orders or high-tech threshold products (such as precision instruments and automated equipment), we provide a "one-on-one dedicated customer service manager + technical team" service model:
Within 3 working days after the contract is signed, the dedicated customer service will connect with the customer to sort out their needs and formulate a *After-Sales Service Manual* (including response time limits, spare parts lists, and training plans).
Within 30 days after product delivery, engineers will be arranged for on-site guidance on installation and commissioning, as well as operational training.
Subsequently, based on the customer's business cycle, customized quarterly inspections or annual in-depth maintenance plans will be provided, truly realizing a closed loop of "demand-response-optimization."
