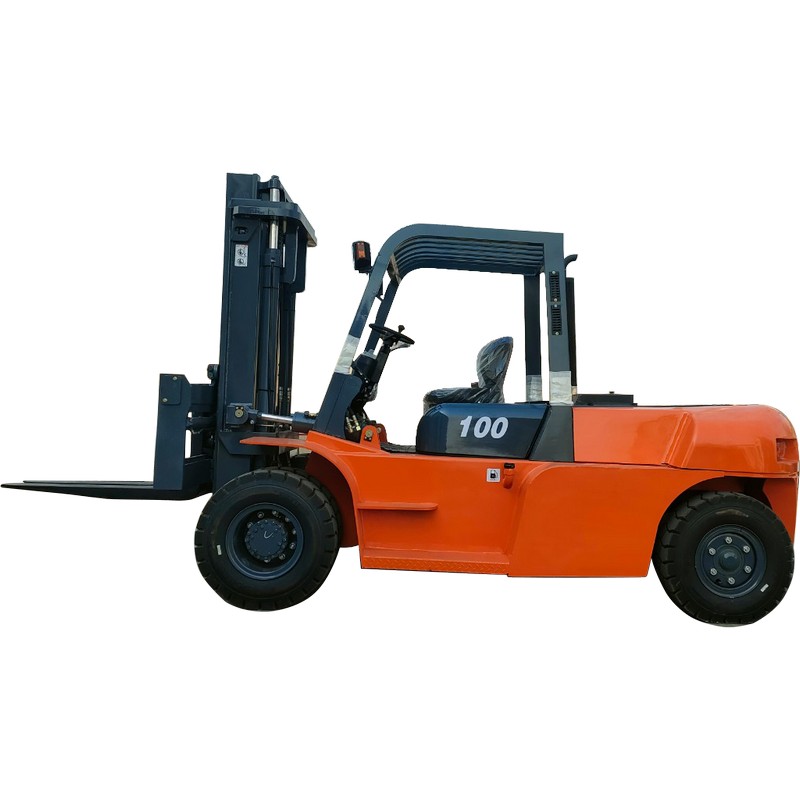

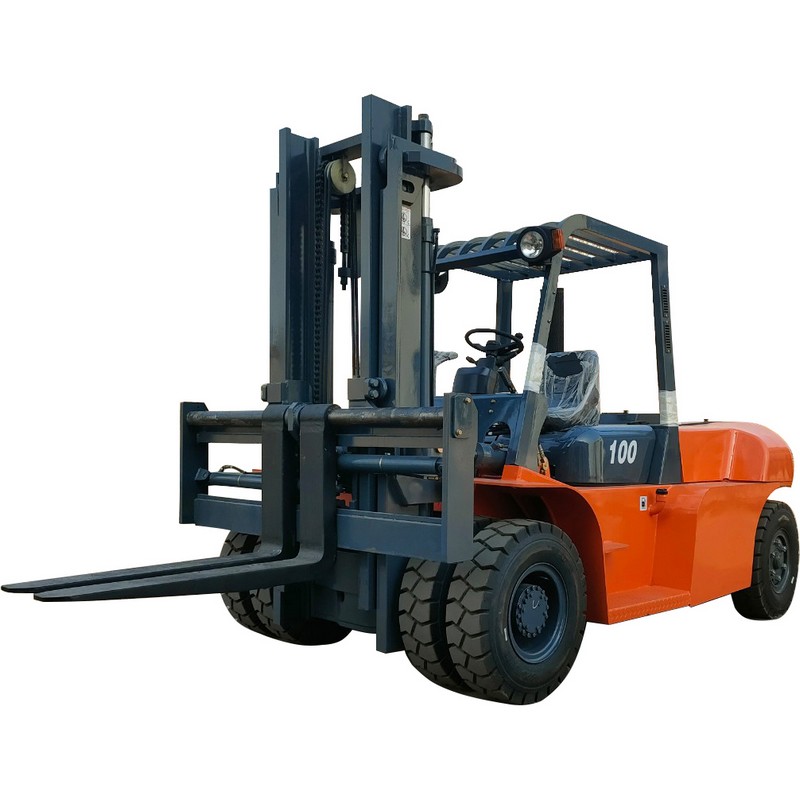

10 Ton Forklift
Diesel forklifts boast strong power, easily handling heavy loads of 5-10 tons;
They feature high fuel efficiency, with lower operating costs compared to electric forklifts;
Offer long endurance, capable of working 8-10 hours on a single tank of fuel;
Have strong adaptability, operating stably even in harsh environments.
The economy of diesel forklifts is reflected in three aspects: First, the fuel cost is 40% lower than that of electric forklifts (calculated based on an average daily operation of 5 hours); Second, maintenance is simple, the engine structure is mature, and parts have strong universality, resulting in maintenance costs 25% lower than those of electric forklifts; Third, there is no trouble with battery management, no need for regular inspection and replacement of batteries, thus eliminating hidden costs; Fourth, they have strong durability, with thickened chassis steel plates, which increases bump resistance by 30%, making them suitable for rough roads.
Product Parameter
TECHNICAL SPECIFICATIONS | ||||
Performance | Model | CPCD100F | ||
Rated Capacity | kg | 10000 | ||
Load Center | mm | 600 | ||
Power Type | Diesel | |||
Max. Lifting Speed (No-Load / Full-Load) | mm/s | 310 | ||
Max. Driving Speed (Full-Load / No-Load) | km/h | 26∕29 | ||
Max. Towing Capacity | kN | 57 | ||
Gradeability (Full-Load / No-Load) | % | 15∕20 | ||
Lifting Height | (H1) | mm | 3000 | |
Free Lift Height | mm | 150 | ||
Mast Tilting Angle (Forward-Backward) | （°） | 6∕12 | ||
Min. Turning Radius | mm | 4000 | ||
Min.Right Angle Aisle Width | mm | 3540 | ||
Min. Ground Clearance | mm | 250 | ||
Dimensions | Overall Length (Including Fork) | (A) | mm | 5500 |
Overall Width | (B) | mm | 2275 | |
Overall Height (Mast Lowered) | (H) | mm | 2850 | |
Overall Height (Mast Extended) | (H2) | mm | 4297 | |
Overall Height to Overhead | (H3) | mm | 2585 | |
Front Overhang | (A1) | mm | 720 | |
Wheelbase | (A2) | mm | 2800 | |
Front Tread | (B1) | mm | 1600 | |
Rear Tread | (B2) | mm | 1700 | |
Tire | Front Wheel | mm | 9.00-20-14PR | |
Rear Wheel | mm | 9.00-20-14PR | ||
Fork | Fork Width | (B3) | mm | 175 |
Fork Thickness | (H4) | mm | 80 | |
Backrest Height | mm | 1015 | ||
Fork Length | (A3) | mm | 1220 | |
Engine | Engine Model | Quanchai 4J1 | ||
Rated Power | kW | 85 | ||
Rotate Speed at Rate Power | rpm | 2200 | ||
Max. Torque | Nm | 500 | ||
Rotation Speed at Max. Torque | rpm | 1650 | ||
Type of Power Shift | Hydraulic | |||
Self-Weight | kg | 12510 | ||
Optional
1. Engine：
•Standard: Xinchai, Quanchai
•Optional: Isuzu (Japan), Mitsubishi (Japan), Nissan (Japan), YANMAR(Japan), Kohler (USA), Commins (USA)
2. Mast：
•Standard: 2-stages 3000mm
•Optional: 2-stages and 3-stages full free 4500mm-7500mm mast
3. Fork：
•Standard 1220mm fork
•Optional 1370mm, 1520mm, 1670mm and 1820mm forks;
4. Pneumatic tire and solid tire both available
5. All kinds of forklift attachments available
Why TIGLIFT Diesel Forklift？
Diesel Forklifts in Port Container Handling
For port container handling, diesel forklifts offer significant advantages:
Sufficient power to meet the demands of heavy lifting.
Convenient refueling, making them suitable for 24-hour continuous operations.
Resistance to salt spray corrosion, ensuring reliable use in coastal environments.
Full hydraulic steering for precise control during handling.
Diesel Forklifts: A Classic Choice for Port Container Handling
Port container handling stands as a classic application scenario for diesel forklifts, thanks to their:
Strong power, enabling easy lifting of 20-foot standard containers (approximately 2 tons).
Quick refueling, adapting to round-the-clock non-stop operations in busy ports.
Salt spray corrosion-resistant design, preventing rust even with long-term use by the sea.
Anti-slip tires with excellent grip, enhancing safety during operations in container yards on rainy days.
Delivery Photos
AfterSales Service
•Professional manufacturer with over 20 years’ experience
•Quickly analyze customer needs and provide comprehensive solutions
•Fast delivery and professional customer service staff
•Rapid response to after-sales issues
•Quick problem identification & solution provision
•Comprehensive spare parts supply system & emergency spare parts support
