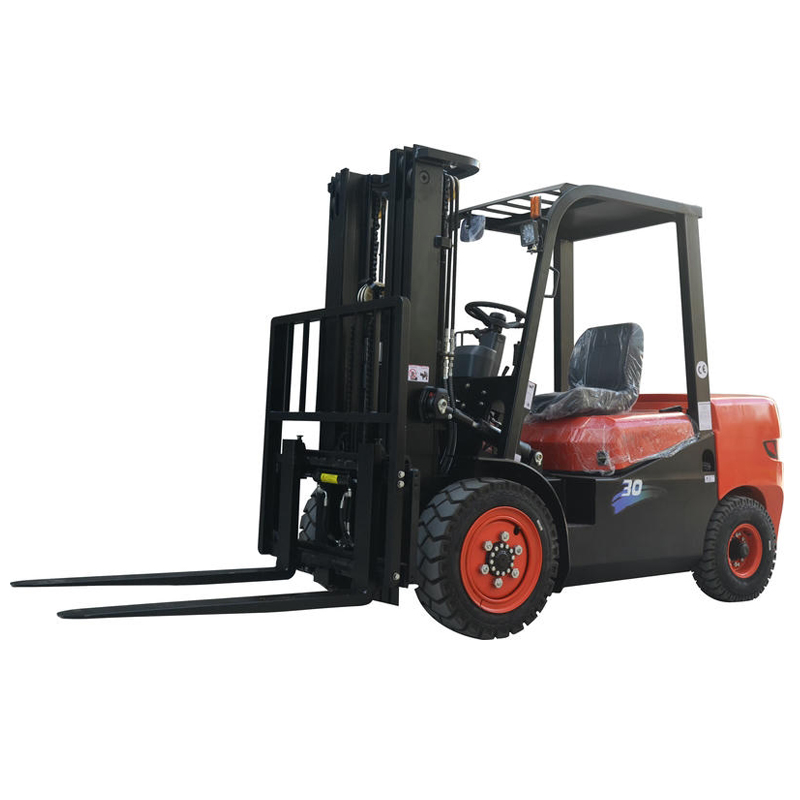

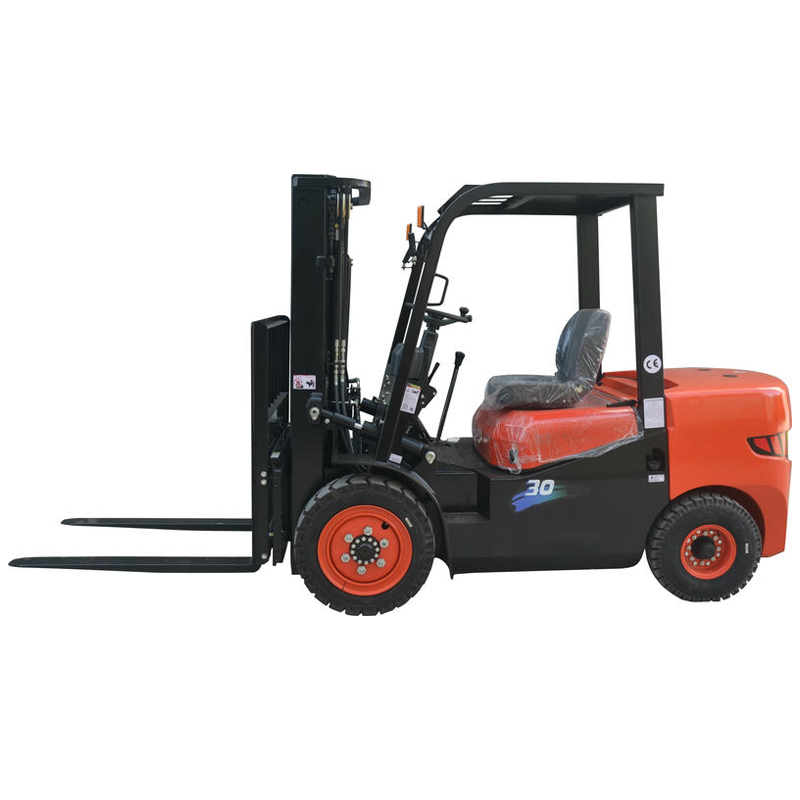

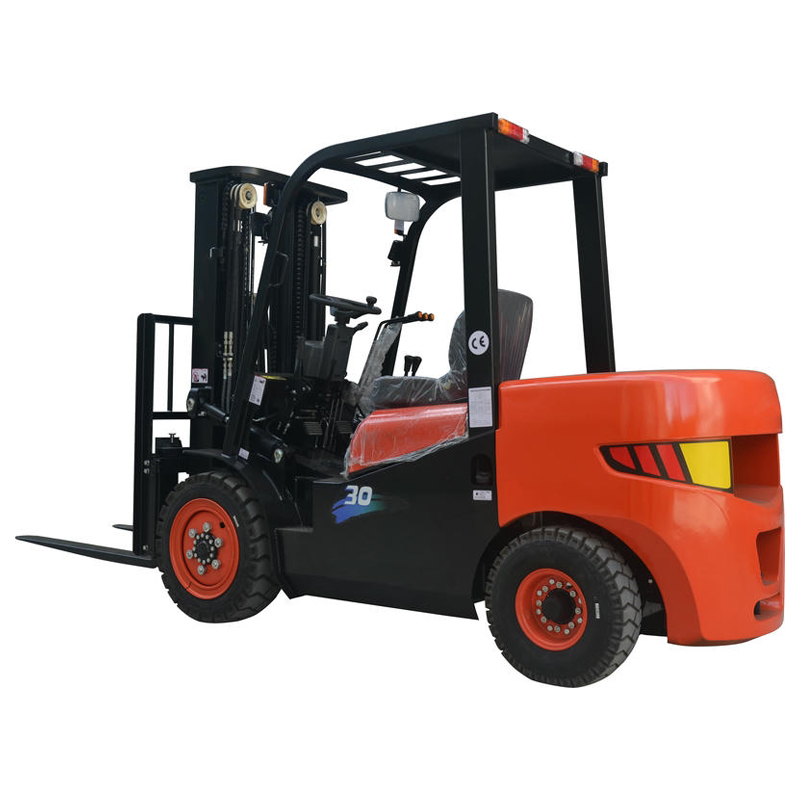

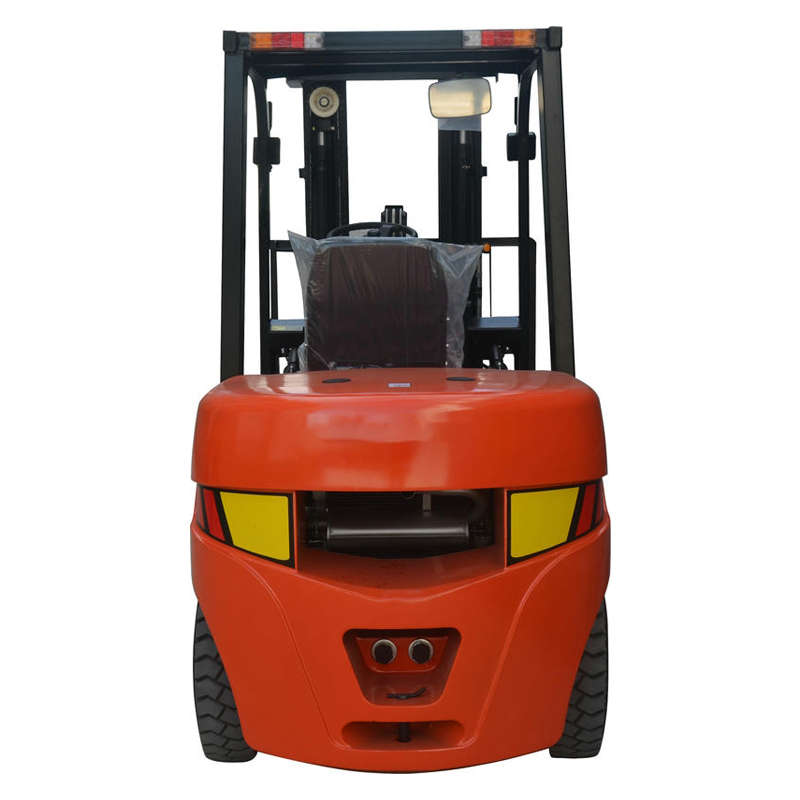

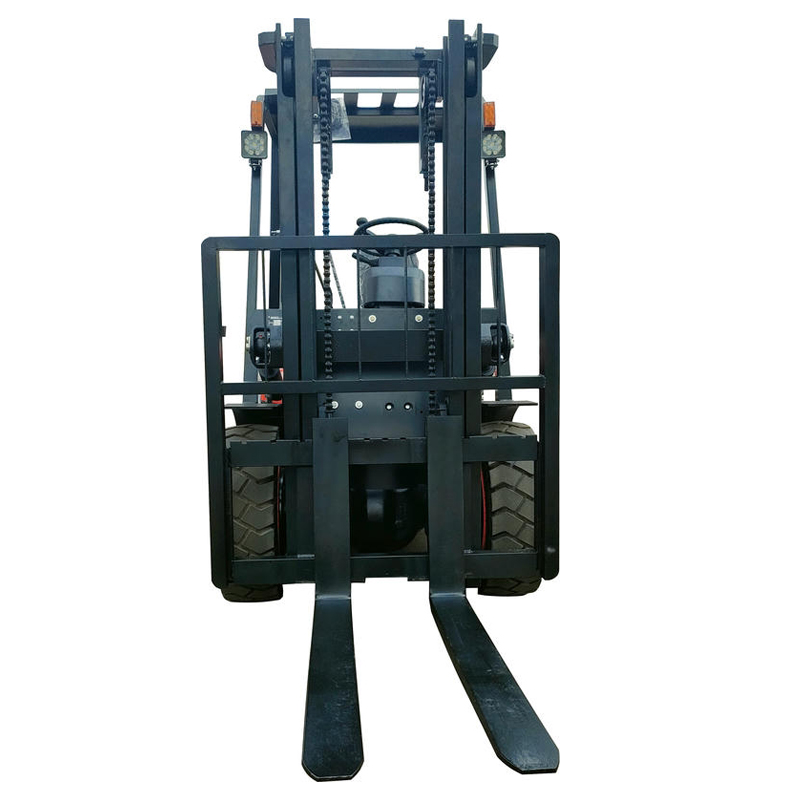

Counterbalance Forklift Truck
•Design with human-machine engineering technology.
•Lifting system adopt wide-vision mast.
•Large volume water tank ensure heat dissipation effect.
•Reasonable layout of oil and pipeline routes reduce oil pressure loss and prevent oil temperature over heat.
•One-piece stamped safety frame provides better protection for driver's safety.

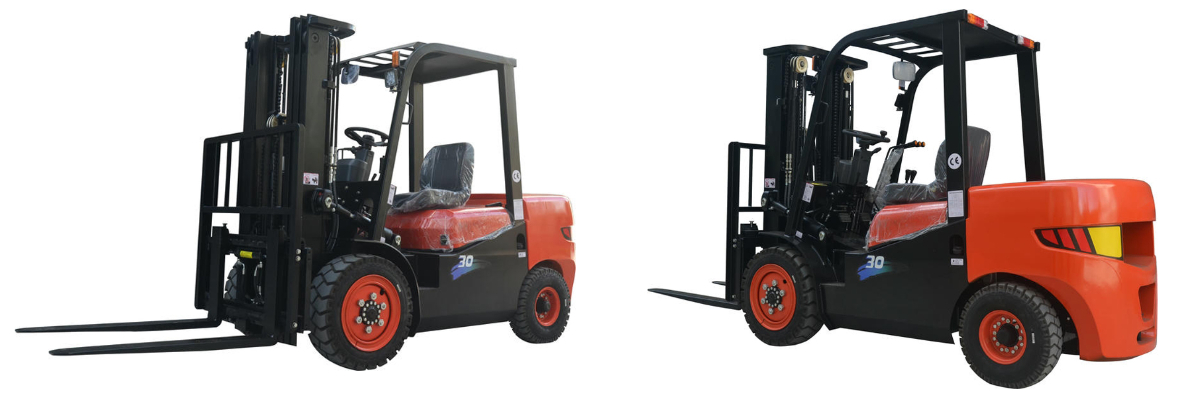

TIGLIFT CPC30/CPCD30 diesel counterbalanced forklift adopts advanced design and is equipped with domestic well-known brand engines and gearboxes, ensuring the vehicle's power performance and economic efficiency. The vehicle body and mast are made of high-strength steel to ensure the safety of the vehicle and the driver. The overall performance of the vehicle has been precisely calibrated to ensure work efficiency while reducing operating costs and creating profit margins for customers. The product has passed ISO9001 and CE certifications, with reliable quality and highly cost effective.
Product Parameter
Model | CPC30 | CPCD30 | ||
Performance Parameters | Rated Capacity | kg | 3000 | 3000 |
Load Center | mm | 500 | 500 | |
Power Type | Diesel | Diesel | ||
Max.Lifting Speed (No-Load/Full-Load) | mm/s | 450∕440 | 450∕440 | |
Max.Driving Speed (Full-Load/No-Load) | km/h | 18∕20 | 18∕20 | |
Max.Towing(Full-Load/No-Load) | KN | 15.5∕10.5 | 15.5∕10.5 | |
Grade Ability (Full-Load/No-Load) | (%) | 15/20 | 15/20 | |
Lifting Height | mm | 3000 | 3000 | |
Mast Stage | 2 | 2 | ||
Free Lift Height | mm | 80 | 80 | |
Mast Tilting Angle (Forword-Backward) (α∕β) | Deg | 6∕12 | 6∕12 | |
Min.Tuming Radius | mm | 2530 | 2530 | |
Min.Right Angle Aisle Width | mm | 2050 | 2050 | |
Min.Ground Clearance | mm | 135 | 135 | |
Total Weight | kg | 4150 | 4150 | |
Dimension | Overall Length (Including Fork) (A) | mm | 4075 | 4075 |
Overall Length (Without Fork) | mm | 2855 | 2855 | |
Overall Width (B) | mm | 1230 | 1230 | |
Overall Height (Mast Lowered) (H) | mm | 2110 | 2110 | |
Overall Height (Mast Extend) (H2) | mm | 4270 | 4270 | |
Overhead Guard Height | mm | 2105 | 2105 | |
Front Overhang (A1) | mm | 465 | 465 | |
Wheel Base (A2) | mm | 1760 | 1760 | |
Tread | Front Tread (B1) | mm | 1000 | 1000 |
Rear Tread (B2) | mm | 970 | 970 | |
Tyre | Front Wheel | 28*9-15 | 28*9-15 | |
Rear Wheel | 6.50-10 | 6.50-10 | ||
Fork | Fork Width (B3) | mm | 1220 | 1220 |
Fork Thickness (H4) | mm | 45 | 45 | |
Backrest Height | mm | 1225 | 1225 | |
Fork Length (A3) | mm | 1220 | 1220 | |
Engine | Engine Model | XINCHAI 4D29V41 | XINCHAI 4D29V41 | |
Rate Power | KW | 40 | 40 | |
Rotate Speed at Rate Power | rpm | 2650 | 2650 | |
Max.Torque | NM | 162 | 162 | |
Rotate Speed at Max.Torque | rpm | 1800～1900 | 1800～1900 | |
Emission | EuroⅡ | EuroⅡ | ||
Transmission | Mechanical Shift | Hydraulic Shift |
Product Advantage
•Design with human-machine engineering technology.
•Lifting system adopt wide-vision mast.
•Large volume water tank ensure heat dissipation effect.
•Reasonable layout of oil and pipeline routes reduce oil pressure loss and prevent oil temperature over heat.
•One-piece stamped safety frame provides better protection for driver's safety.
Delivery and After Service

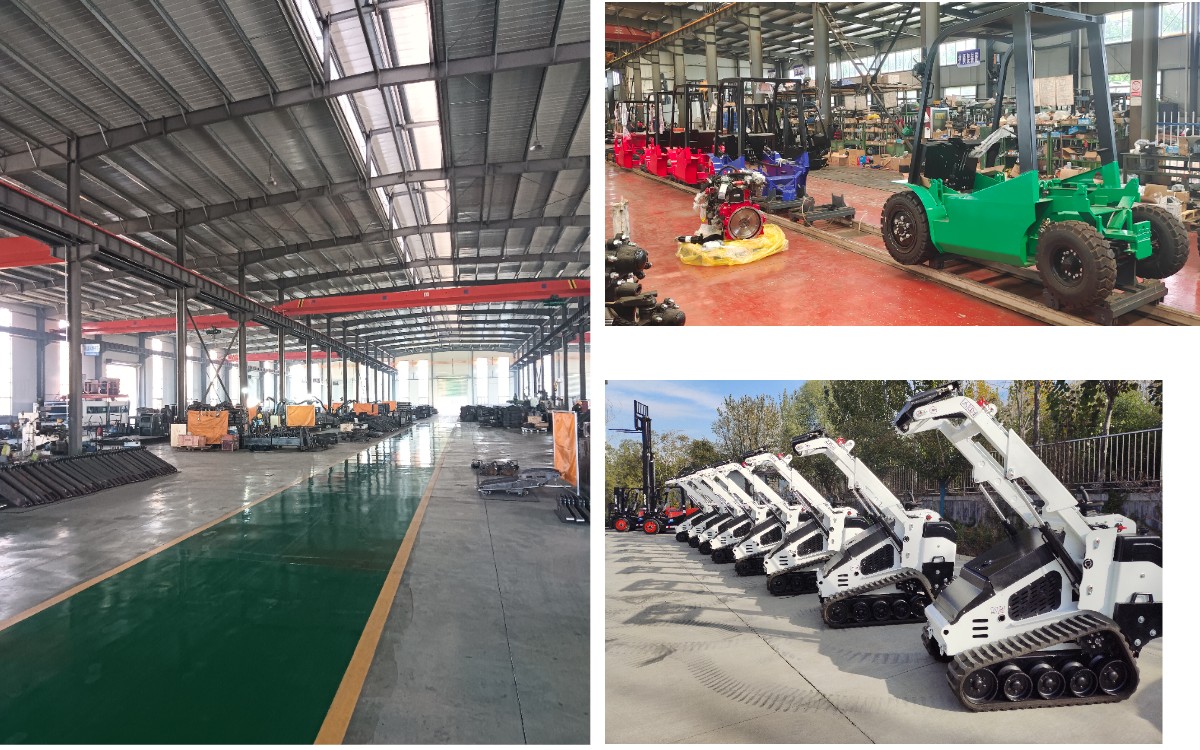

•Professional manufacturer with over 20 years’ experience
•Quickly analyze customer needs and provide comprehensive solutions
•Fast delivery and professional customer service staff
•Rapid response to after-sales issues
•Quick problem identification & solution provision
•Comprehensive spare parts supply system & emergency spare parts support
