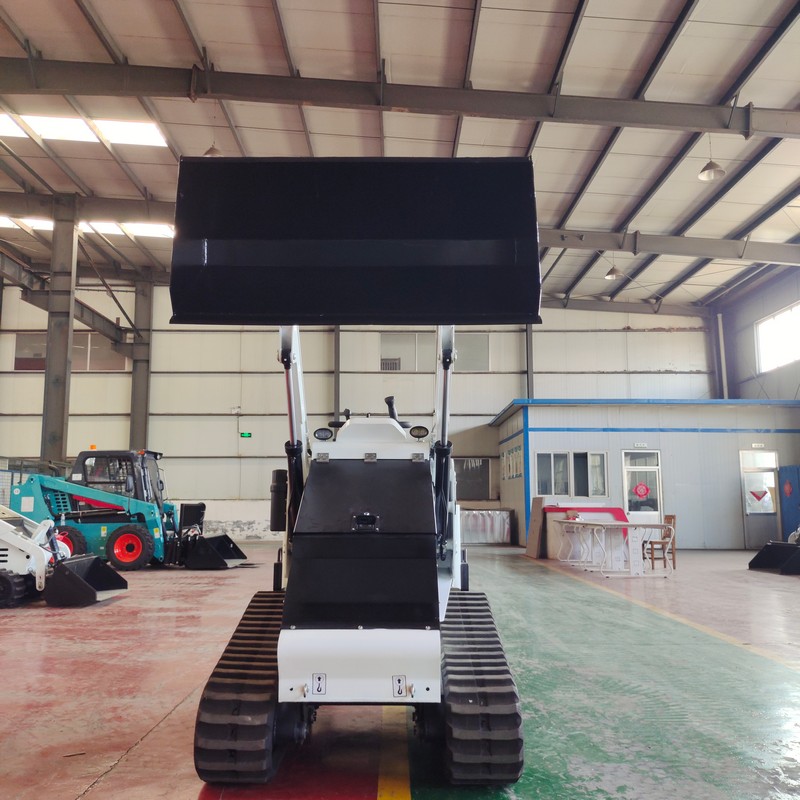

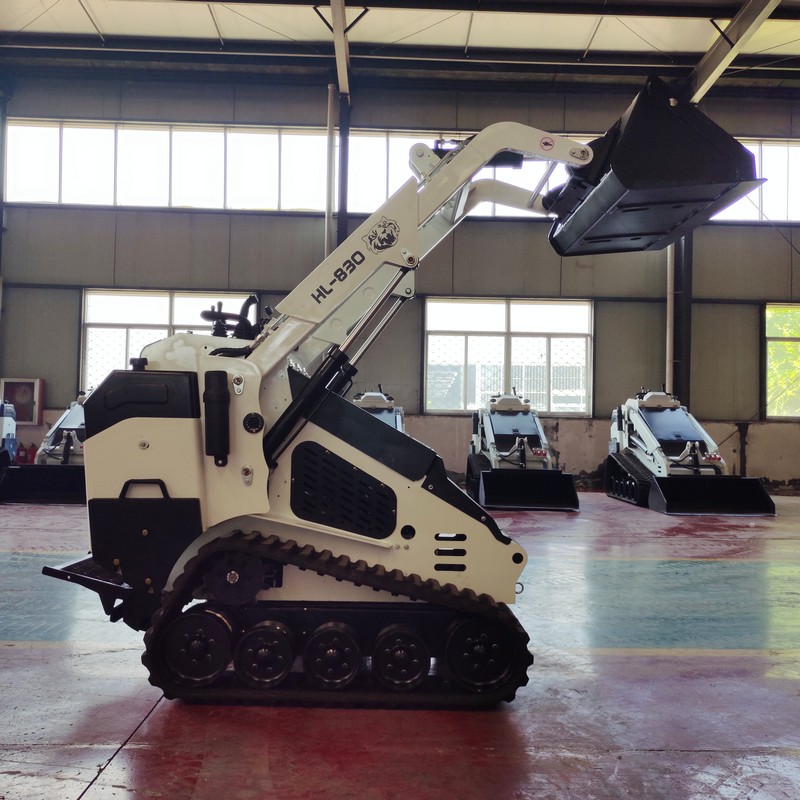

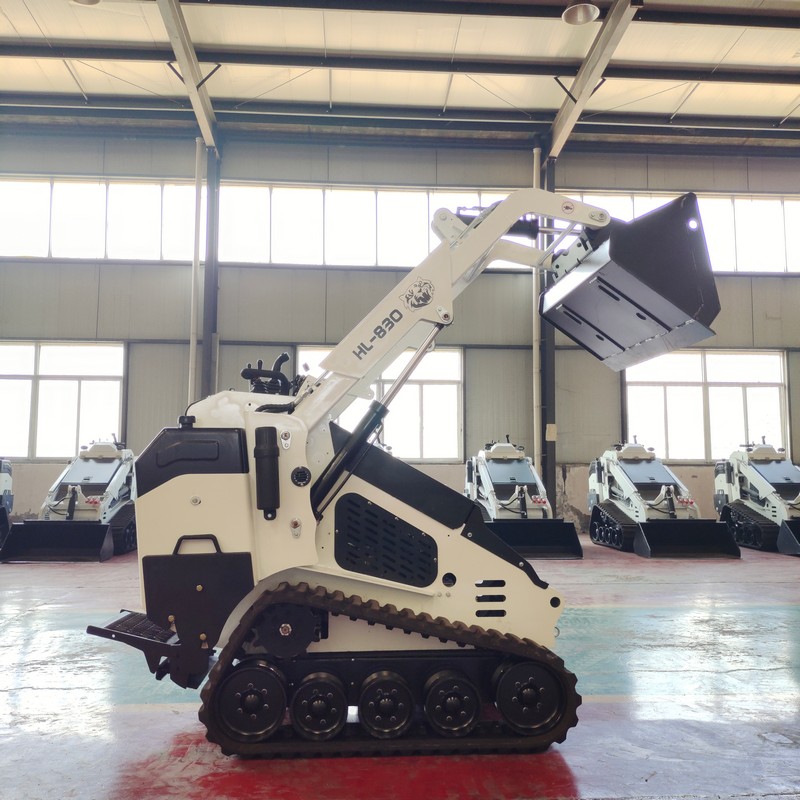

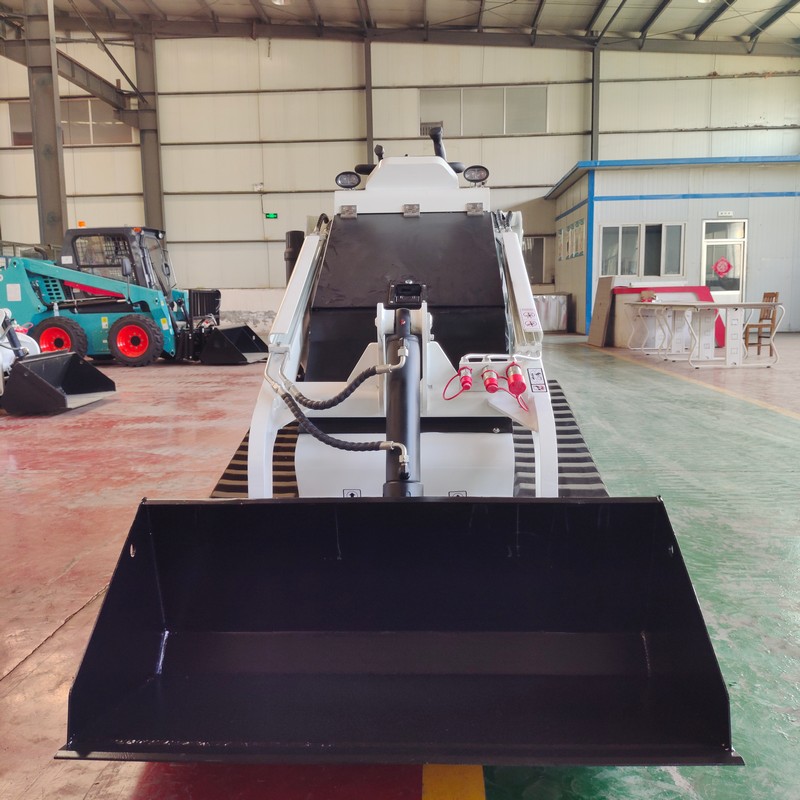

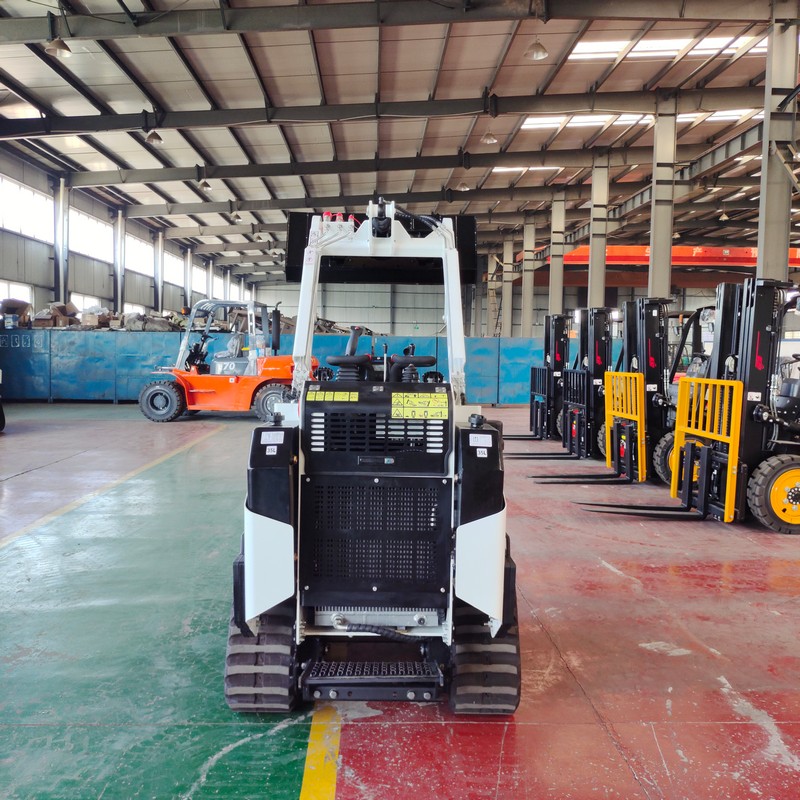

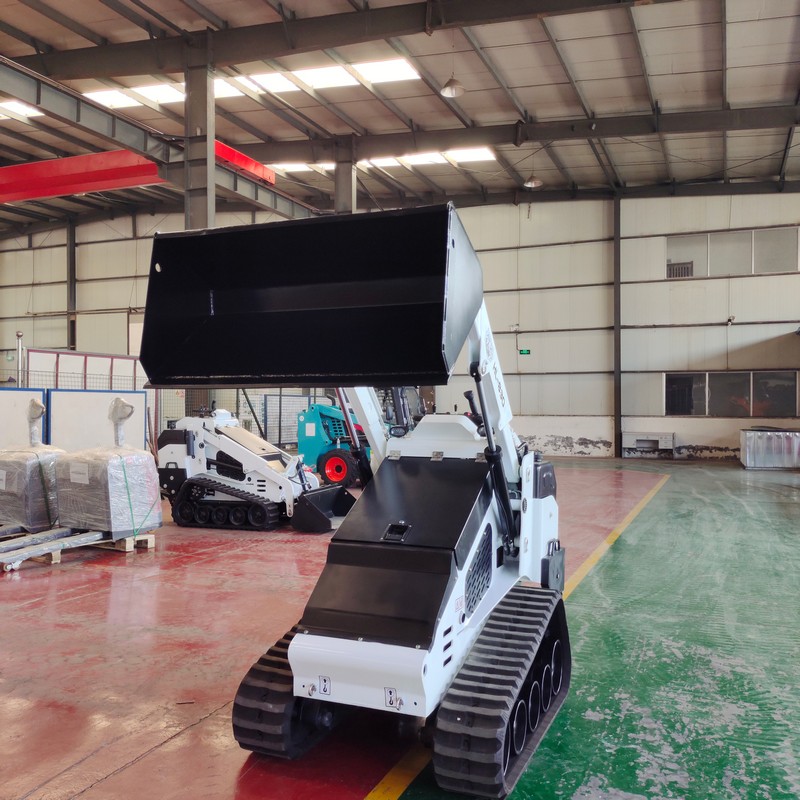

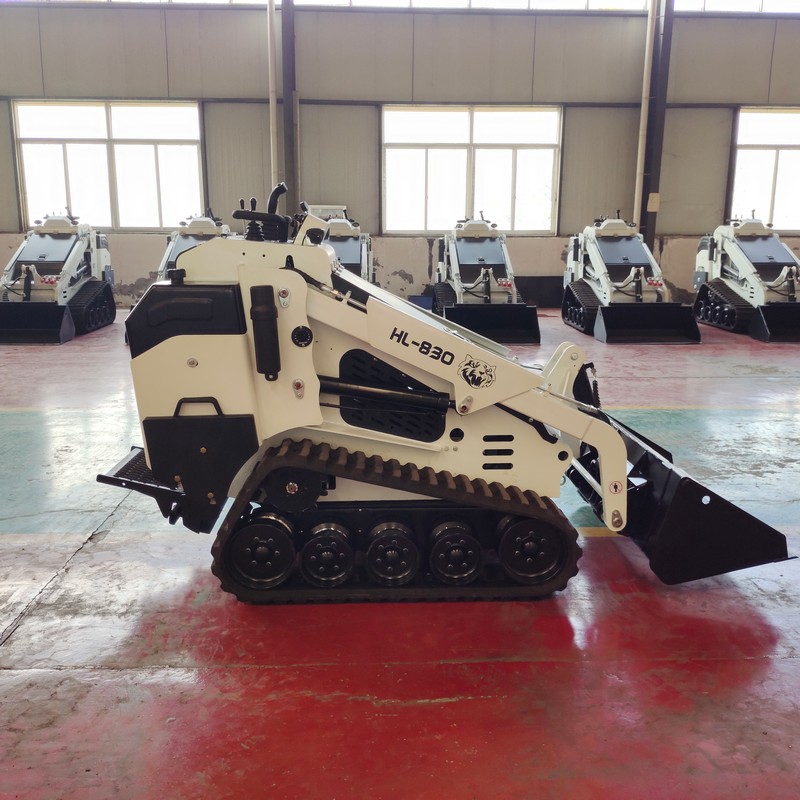

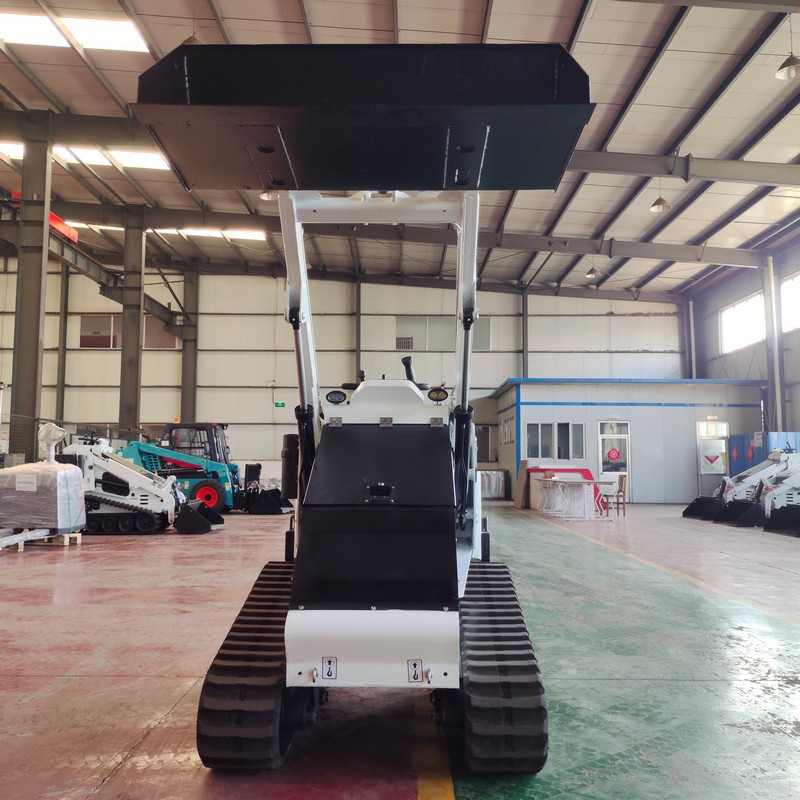

Compact Track Skid Steer
1. Flexible and Efficient: Zero-radius steering and a compact body design allow it to move freely in narrow areas (such as indoors and alleys) without the need for extra space to adjust direction.
2. Multi-Task Capability: By quickly replacing attachments (such as buckets, forks, sweepers, etc.), it can seamlessly switch between multiple tasks including excavation, loading, handling, and leveling, reducing equipment idle time.
3. Strong Durability: Key structural components are made of high-strength alloy steel, undergoing impact resistance and wear-resistant treatment, enabling them to adapt to long-term high-load operation environments.
4. Convenient Maintenance: The modular design makes common fault components (such as filters and hydraulic pipes) easy to disassemble and replace. Daily maintenance only requires simple tools, reducing downtime costs.
Product Overview
The skid steer loader is a construction machinery that integrates flexibility, versatility, and high reliability, designed specifically for modern high-efficiency operation scenarios. Its unique skid-steering technology and modular attachment system enable it to quickly switch functions across various environments such as construction sites, agricultural planting, and logistics warehousing. From shoveling materials to crushing concrete, from cleaning roads to transporting goods, a single piece of equipment can meet diverse needs, making it an ideal choice for improving work efficiency and reducing costs.
Product Advantages
Durability Excellence of Skid Steer Loaders
Long-Lasting Key Components: The service life of critical structural parts reaches 10,000 hours, ensuring stable performance during long-term high-intensity operations.
Reinforced Chassis: Features strong impact resistance, capable of withstanding harsh working conditions such as collisions and vibrations in construction or agricultural scenarios.
Full-Vehicle Rust Prevention: Undergoes comprehensive rust-proof treatment, adapting to harsh environments like humidity, dust, and even corrosive settings, significantly extending the overall service life.
High-Cleanliness Hydraulic System: Maintains high cleanliness to reduce wear and tear of internal components, resulting in low failure rates and minimized maintenance interruptions.
Enhanced Track Lifespan: The track life is 1.5 times that of standard models, reducing the frequency of replacement and lowering long-term usage costs.
Model | HL1000 | HL1000 xinchai | ||
Performance Parameters | Unit(Metric) | Unit(inch) | Unit(Metric) | Unit(inch) |
Max Operating Height | 2695mm | 106.10in | 2695mm | 106.10in |
Max Hinge Pin Height | 2000mm | 78.74in | 2000mm | 78.74in |
Overall Height of Machine | 1650mm | 65in | 1650mm | 65in |
Overall Width of Machine | 1105mm | 43.5in | 1105mm | 43.5in |
Overall Length of Machine(Std.Bucket) | 2580mm | 101.57in | 2580mm | 101.57in |
Overall Length of Loader(No Attachment) | 2050mm | 80.7in | 2050mm | 80.7in |
Track Length | 1090mm | 43in | 1090mm | 43in |
Track Width | 200mm | 7.87in | 200mm | 7.87in |
Wheelbase | 1080mm | 42.52in | 1080mm | 42.52in |
Turning Radius | 1100mm | 43.31in | 1100mm | 43.31in |
Ground Clearance | 200mm | 7.87in | 200mm | 7.87in |
Angle of Departure | 30° | 30° | 30° | 30° |
Ground Drive Speed | 6.4km/h | 4.0mph | 6.4km/h | 4.0mph |
Ground Pressure | 0.43bar | 6.3psi | 0.43bar | 6.3psi |
Machine Weight | 1300kg | 2866lb | 1300kg | 2866lb |
Gear Pump Flow Rate | 33L/min | 8.7gpm | 23X2L/min | 6.08X2gpm |
Double Gear Pump Pressure | 200bar | 2900psi | 250bar | 3626psi |
Dual Hydrostatic Ground Drive Pumps Flow | 45L/min | 11.88gpm | ||
Dual Hydrostatic Ground Drive Pumps | 207bar | 3000psi | ||
Load Weight | 600kg | 1323lb | 600kg | 1323lb |
Bucket Width | 1150mm | 45.28in | 1150mm | 45.28in |
Bucket Capacity | 0.15cbm | 39.63gal | 0.15cbm | 39.63gal |
Bucket Dimension | 570mm*1150mm*430mm | 22.44in*45.28in*16.93in | 570mm*1150mm*430mm | 22.44in*45.28in*16.93in |
Bucket Unloading Angle | 40° | 40° | 40° | 40° |
Engine | Kubota D1105 | Kubota D1105 | Xinchai 3B11X51 | Xinchai 3B11X51 |
Fuel | Diesel | Diesel | Diesel | Diesel |
Emissions Compliance | US EPA/European Standards | US EPA/European Standards | Euro V | Euro V |
Gross Power Rating | 18.2KW | 24.4hp | 18.5KW | 24.8hp |
Number Of Cylinders | 3 | 3 | 3 | 3 |
Displacement | 1.123 L | 68.5in³ | 1.12L | 68.35in³ |
Rated Speed | 2500rpm | 2500rpm | 3000rpm | 3000rpm |
Fuel Tank Capacity | 35L | 9.2gal | 35L | 9.2gal |
Engine Oil( With Filter) | 4.7L | 5qt | 4.7L | 5qt |
Hydraulic Reservoir Capacity | 40L | 10.5gal | 40L | 10.5gal |
Battery | 12V | 12V | 12V | 12V |
Strength of the Manufacturing Plant
This product is manufactured by an enterprise with 20 years of experience in construction machinery manufacturing. As a national-level "Specialized, Refined, Characteristic, and Novel" small giant enterprise, the factory specializes in the R&D and manufacturing of small engineering equipment. It is equipped with intelligent production lines and fully automatic testing equipment, realizing digital management from component processing to complete machine assembly to ensure the consistency and high quality of each piece of equipment. The factory has passed the ISO 9001 quality management system and multiple international certifications, with products exported to more than 50 countries and regions worldwide. It continuously invests in R&D resources to optimize the power system and hydraulic efficiency, reducing energy consumption and noise levels.
International Shipping Services
To meet the logistics needs of global customers, the factory provides flexible and diverse transportation solutions:
Full Container Sea Freight: Standard equipment is preferentially loaded in 40ft high containers, with customized internal reinforcement brackets to ensure the stability and safety of the equipment during long-distance sea transportation.
Consolidation Service: For small-batch orders, professional wooden box packaging and port consolidation services are provided to reduce customers’ logistics costs while ensuring transportation safety.
Door-to-Door Delivery: Cooperating with world-renowned freight forwarders, it offers full-process services from factory shipment, customs declaration and clearance to delivery at the customer’s designated location, simplifying the international procurement process. The factory’s logistics team provides real-time freight tracking and early warning of abnormal situations to ensure customers stay informed of transportation dynamics.
International After-Sales Service
With the after-sales tenet of "global customer worry-free", the factory has built a comprehensive international support system:
Warranty and Upgrade: The equipment comes with a 12-month or 2,000-hour warranty (whichever comes first). Non-human-induced faults within the warranty period are repaired free of charge; meanwhile, the factory provides customers with equipment upgrade suggestions to extend service life and improve performance.
