Side Shifter

The forklift side shifter attachment is a device installed on the forklift forks that enables left-right movement (side shifter) of the forks and the load, allowing precise adjustment of the cargo position without moving the forklift body. It is commonly used in logistics, manufacturing, ports, and other scenarios requiring fine stacking or operations in confined spaces.

Structural Components

Key parts include:

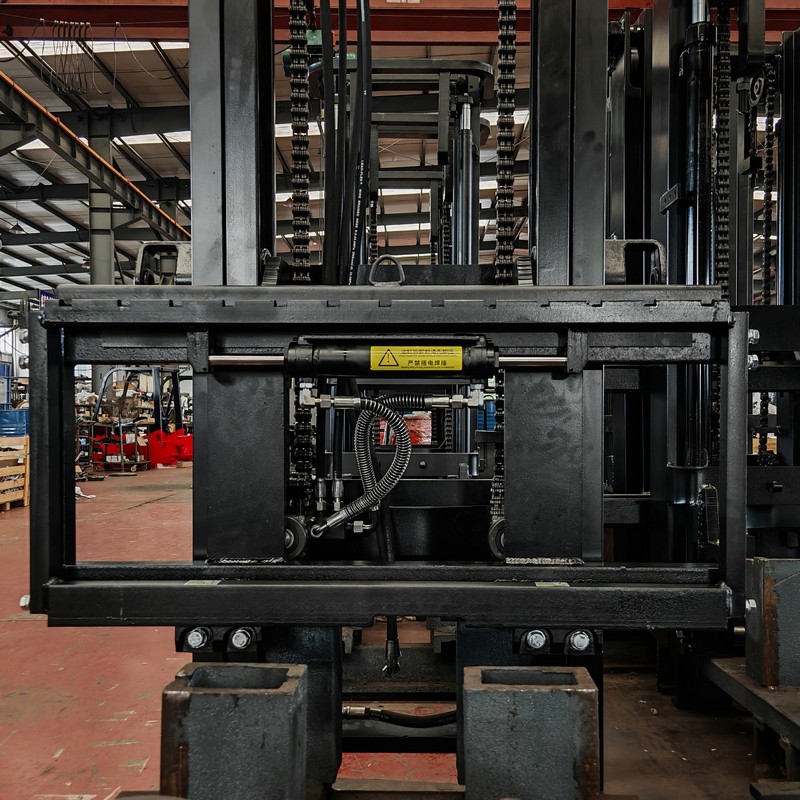

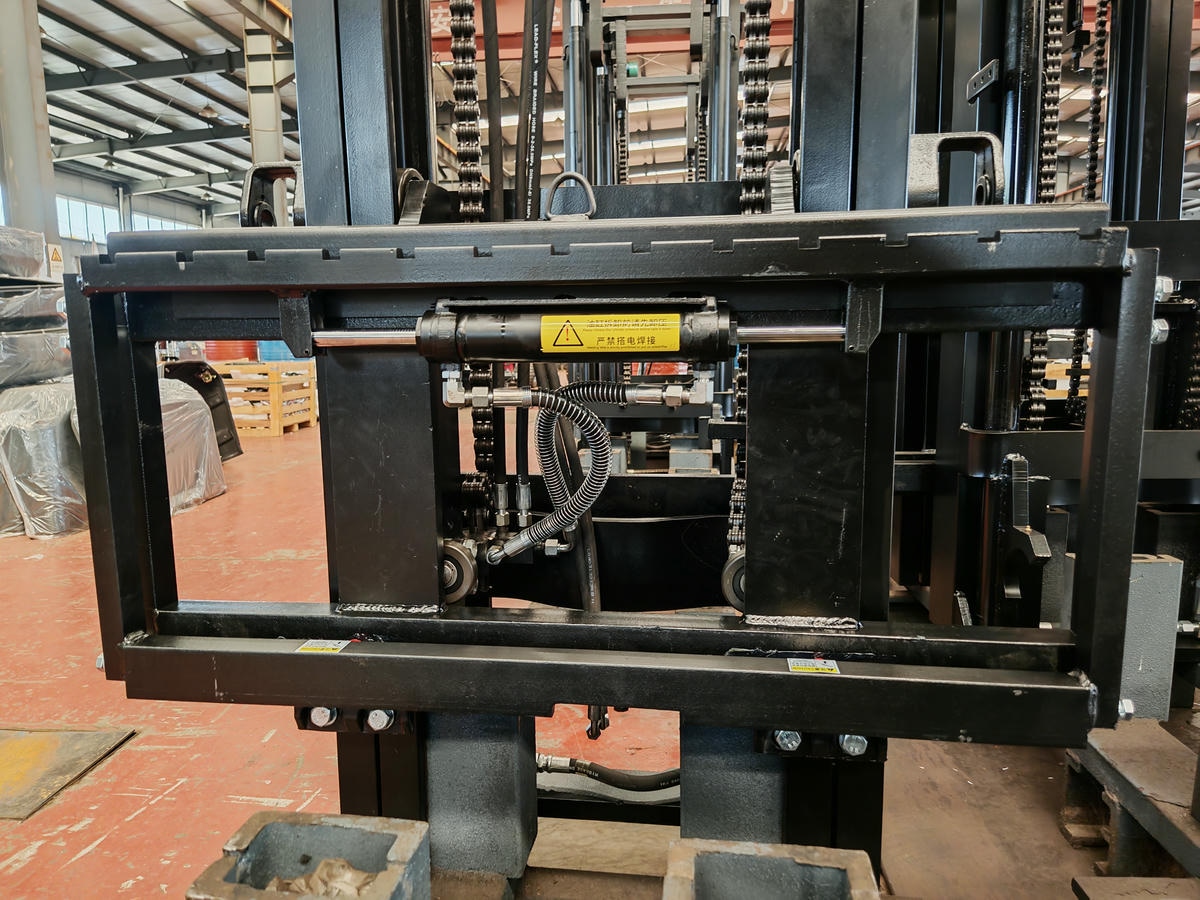

• Side shifter Mechanism: Comprises a side shifter cylinder, guide rails, and fork carriage. The cylinder pushes the fork carriage to slide left or right along the rails, enabling horizontal load movement.

• Hydraulic System: Powered by the forklift’s own hydraulic system, it drives the cylinder to extend/retract and perform the side shifter action.

• Connection Frame: Mounts the side shifter attachment to the forklift’s original fork carriage, synchronizing with lifting/tilting functions and transmitting power.

• Limiting Device (optional): Restricts the side shifter range (typically 150–300mm left/right) to prevent cargo collisions.

Working Principle

During operation:

1. Setup: The forklift lifts the load with its forks.

2. Side shifter: The operator activates the hydraulic system via the control handle. The cylinder pushes the fork carriage left or right, adjusting the load’s position (e.g., aligning with shelf gaps).

3. Reset & Transport: After adjustment, the cylinder retracts to return the carriage to its original position, allowing the forklift to proceed with lifting or moving the load.

Core Features

• Precise Micro-Adjustment: Adjusts the load’s left-right position (150–300mm side shifter range) without moving the forklift, ideal for narrow aisles or densely stacked shelves.

• Improved Efficiency: Reduces the need for repeated forklift repositioning, shortens cycle times, and enhances stacking speed.

• Flexible Compatibility: Customizable side shifter range and compatible with various attachments (e.g., forks, clamps).

• Safety & Reliability: Stable rails and cylinders prevent load shifting during movement; some models include limiters to avoid collisions.

• User-Friendly: Controlled via the forklift’s handle—no additional training required.

Typical Application Scenarios

• Logistics & Warehousing: Precise stacking in high-bay warehouses and quick placement in narrow aisles.

• Manufacturing: Accurate material handling on production lines or workpiece stacking.

• Ports & Terminals: Fine cargo arrangement inside containers or ship holds.

• E-commerce Distribution: Efficient pallet sorting and stacking in warehouses.

The side shifter attachment enhances forklift maneuverability and efficiency in confined spaces, making it an essential tool for modern logistics and warehousing operations.
