Trencher

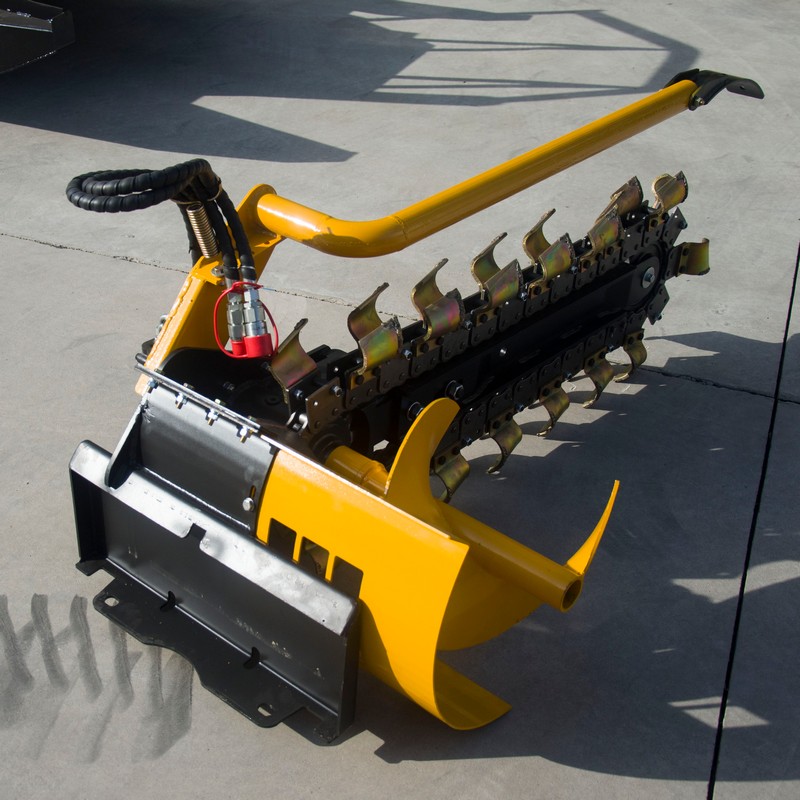

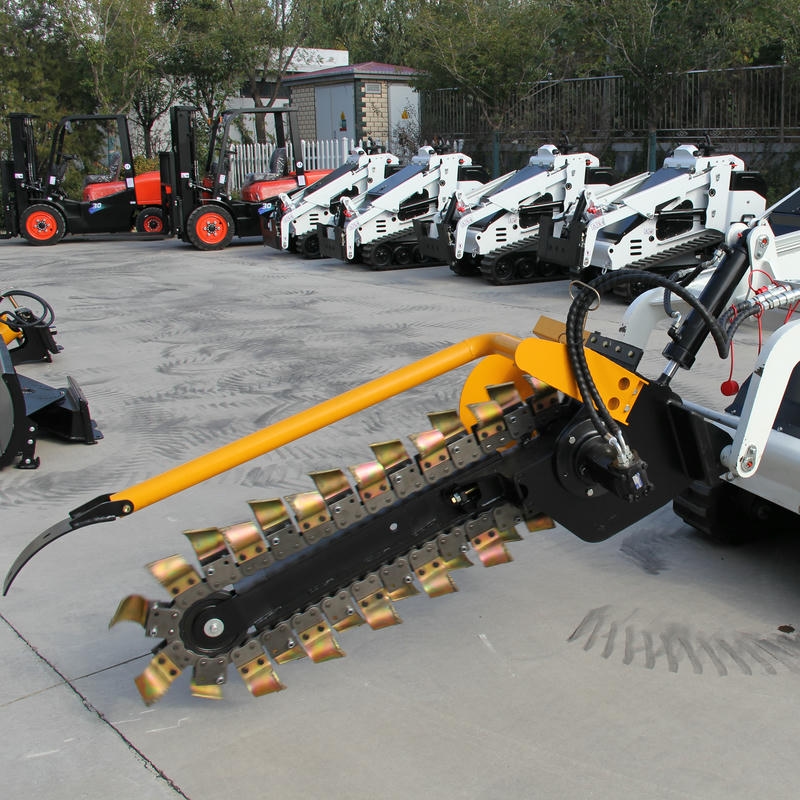

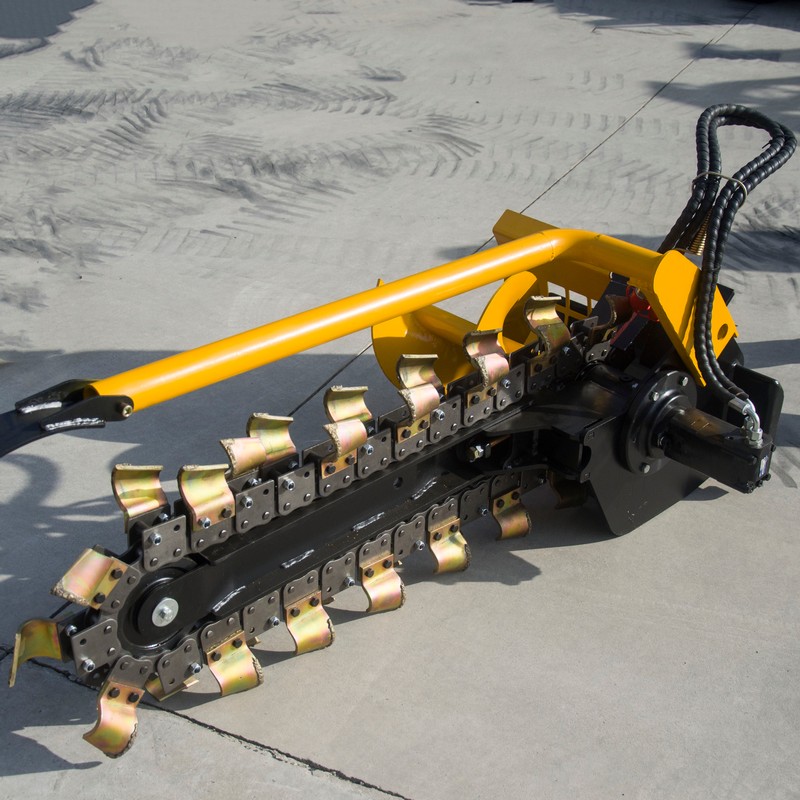

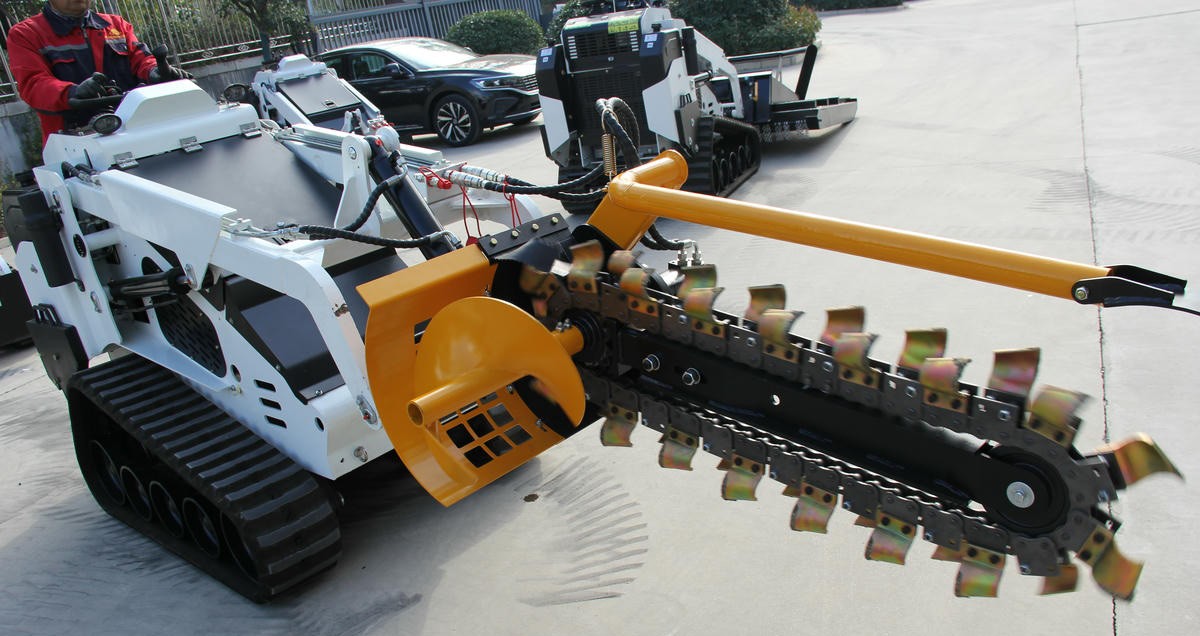

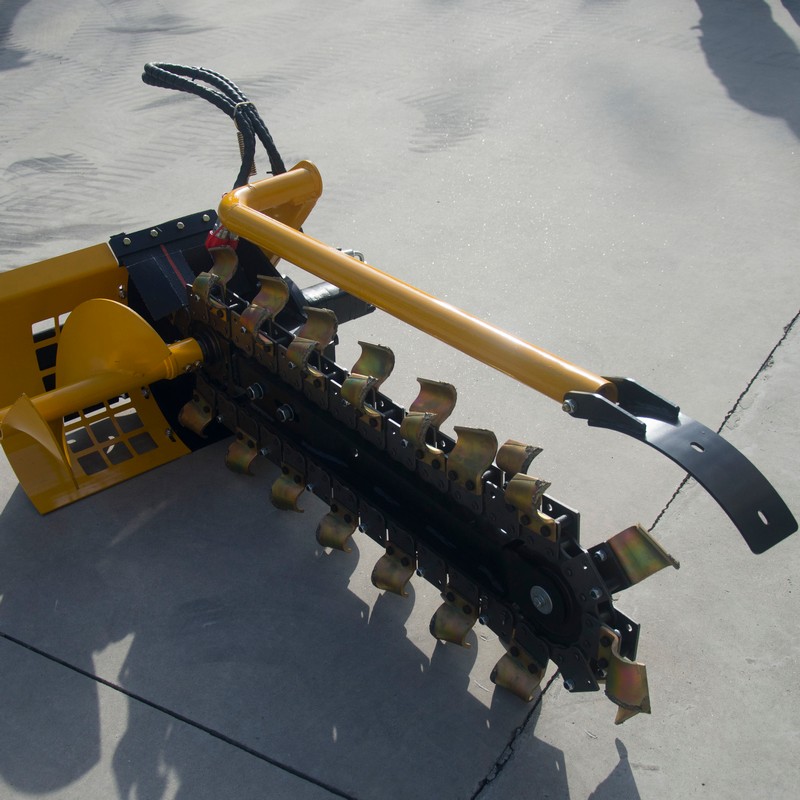

The trencher attachment for skid steer loaders is a specialized excavation tool designed for skid steer loaders, used to quickly dig trenches for cables, drainage, and other purposes. It works by rotating a cutting disc to break up soil and eject the excavated material. Suitable for municipal, agricultural, and construction applications, its key features include high efficiency, flexibility, and precision.

Structural Components

The main parts include:

• Cutting Disc/Tools: A rotating disc (equipped with carbide blades) or milling head that spins at high speeds (50–200 rpm) to crush soil. Made of wear-resistant materials (e.g., tungsten steel), it adapts to various terrains such as soft soil and gravel.

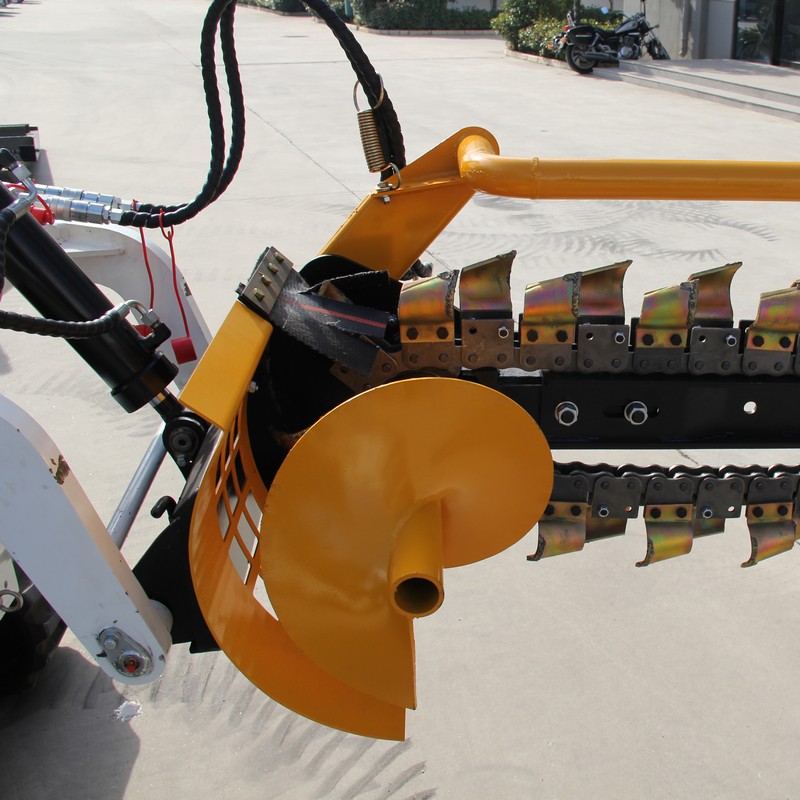

• Soil Ejection System: Deflector plates or spiral blades that direct the excavated soil to the sides of the trench (ejection distance: 0.5–1.5 meters), keeping the trench bottom clean.

• Adjustment Mechanism: Hydraulic cylinders control the trench depth (100–1000 mm) and width (determined by the disc diameter, 300–800 mm), enabling precise adjustments.

• Mounting Frame: Secures the trencher to the front of the skid steer loader and connects to the hydraulic system for power transmission.

• Drive System: Hydraulic-driven (powered by the loader) to rotate the cutting disc; some smaller models use electric motors.

• Protective Components: Wear-resistant guards and impact-absorbing pads to safeguard the equipment and enhance stability.

Working Principle

During operation, the operator activates the rotating cutting disc, which cuts into the soil to form a trench while the deflector plates eject soil to the sides. By adjusting the depth and width, trench specifications (e.g., 500 mm deep and 400 mm wide) are controlled. For hard soil, reducing the rotation speed minimizes wear.

Core Features

• High Efficiency: Leveraging the skid steer loader’s mobility, it can dig tens of meters of trenches per hour, far outperforming manual labor.

• Precision Control: Adjustable depth and width (with minimal error) meet strict size requirements for cables, pipelines, etc.

• Adaptability: Interchangeable cutting discs and tools suit various terrains, including soft soil and gravel.

• Flexible Adjustment: Controllable soil ejection direction reduces secondary cleanup; supports angled trenching (e.g., for slope drainage).

• Reliable Durability: Wear-resistant design and hydraulic drive ensure performance in low temperatures (-10°C to -30°C).

• User-Friendly: Operated via the loader’s control levers, requiring no additional training, and allows quick installation/removal.

Typical Applications

• Municipal Projects: Digging cable trenches, drainage ditches, and pipeline trenches.

• Farmland & Water Conservancy: Excavating irrigation and drainage channels.

• Construction: Building foundation drainage ditches or pipeline trenches.

• Power & Telecommunications: Creating optical cable trenches and cable pit surrounding trenches.

• Landscape & Green Spaces: Digging drainage ditches in scenic areas.

With its modular design, the trencher attachment serves as an efficient tool for excavation across various projects, enhancing both productivity and precision while meeting diverse application needs.
