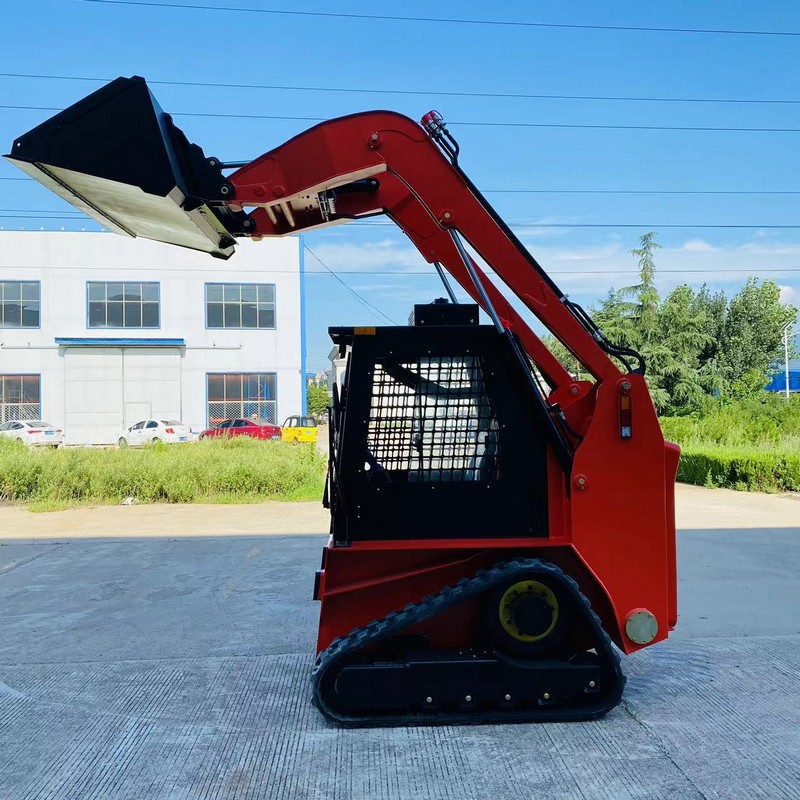

Rubber Tracks Skid Steer

1. Agile & Efficient: With a tight turning radius, it maneuvers effortlessly in confined spaces. Quick attachment switching enables seamless transitions between multiple tasks.

2. Versatile All-Rounder: Compatible with dozens of attachments—such as buckets and breakers—this single machine replaces multiple pieces of equipment, reducing overall investment.

3. Powerful & Reliable: A high-output engine delivers stable performance, tackling heavy-duty tasks without performance drops, even in demanding conditions.

4. Fuel-Efficient & Easy Maintenance: Low fuel consumption meets emission standards, while durable key components and simple upkeep keep operating costs minimal.

5. Superior Off-Road Capability: Four-wheel drive paired with anti-slip tires ensures stable travel across muddy, sloped, and other challenging terrains.

Contact Now E-Mail Telephone WhatsApp

Product Details

Skid-Steer Loader: A "Versatile Tool" for Complex Working Conditions

With its compact body design, flexible steering capability, and compatibility with multiple attachments, the skid-steer loader has become a "versatile tool" for complex working conditions. Whether in narrow indoor spaces, winding garden paths, or construction sites requiring frequent changes in work content, it can leverage its unique advantages to become a reliable assistant for users. It is widely used in diverse scenarios such as construction sites, municipal maintenance, and agricultural and forestry operations.

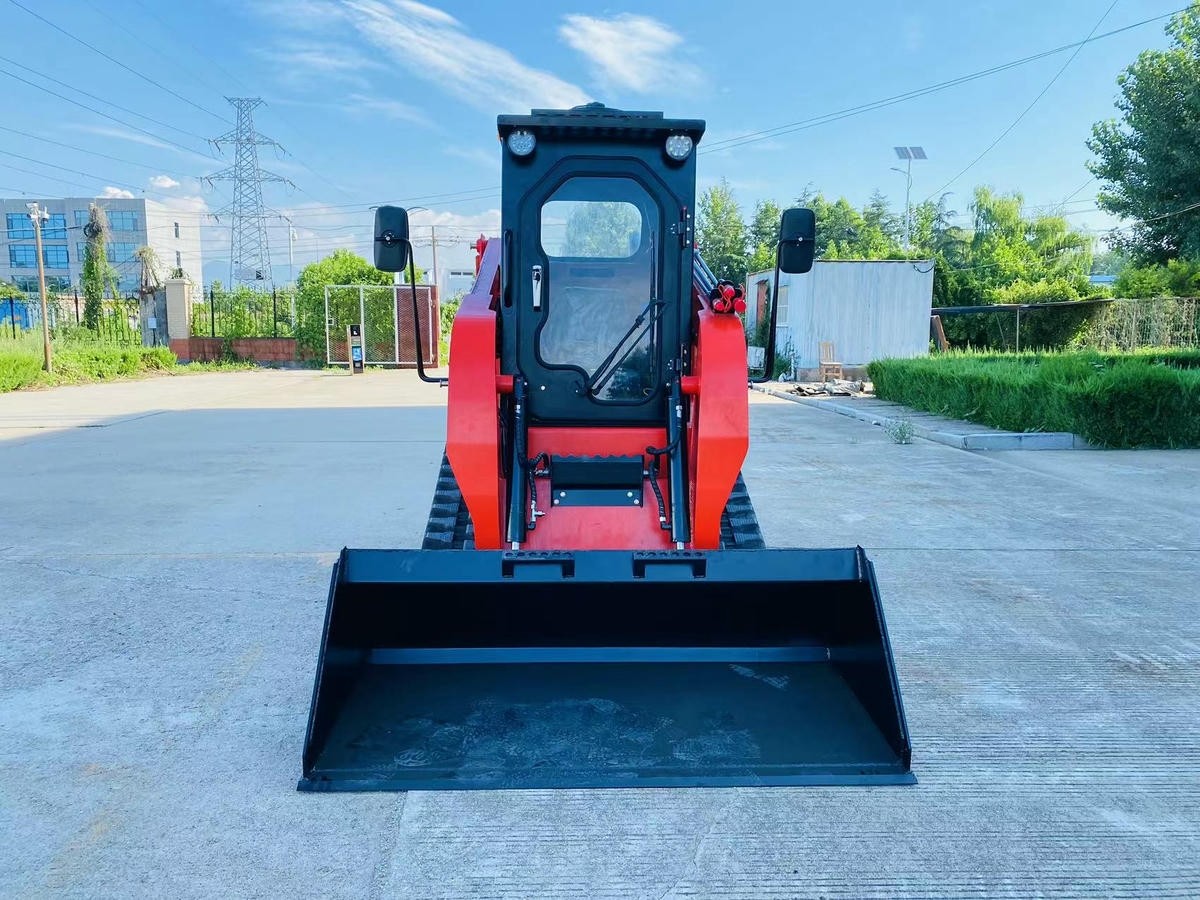

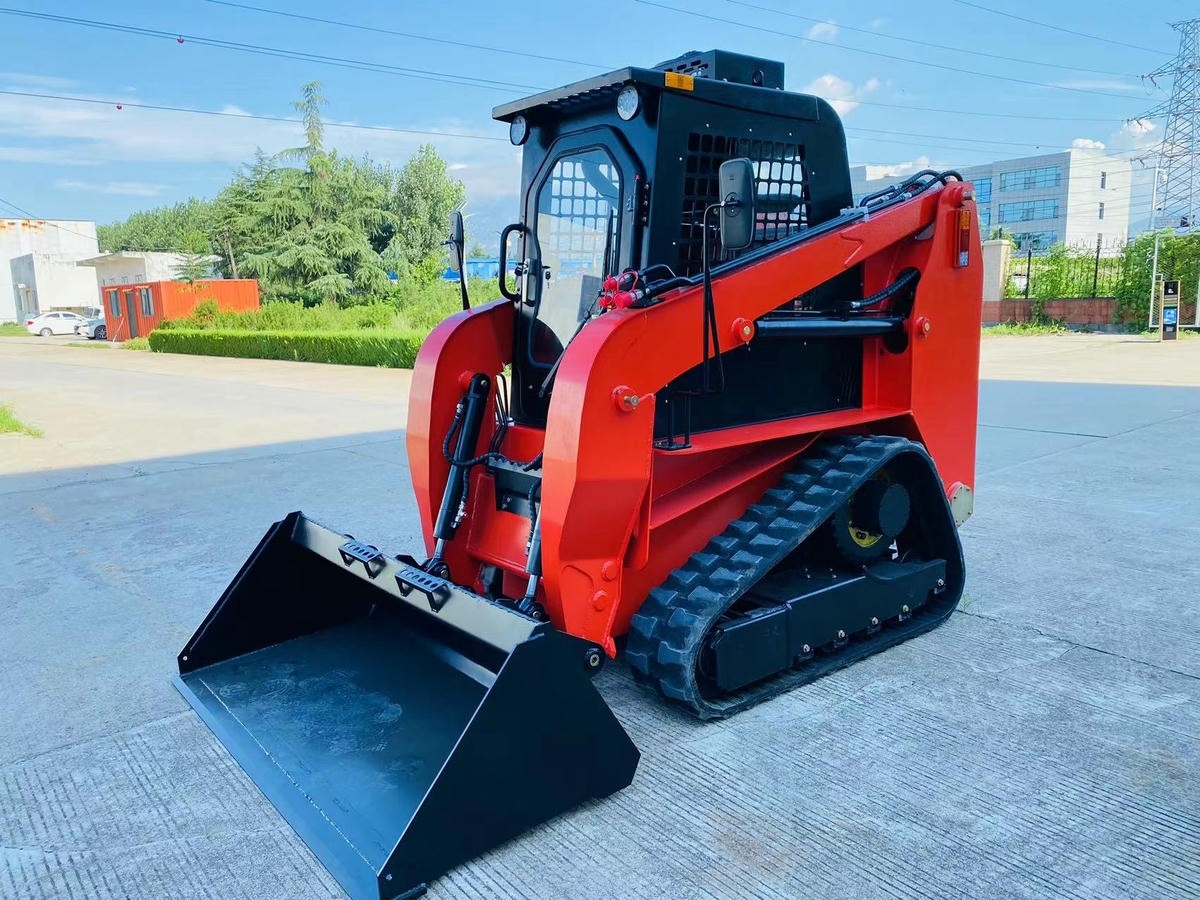

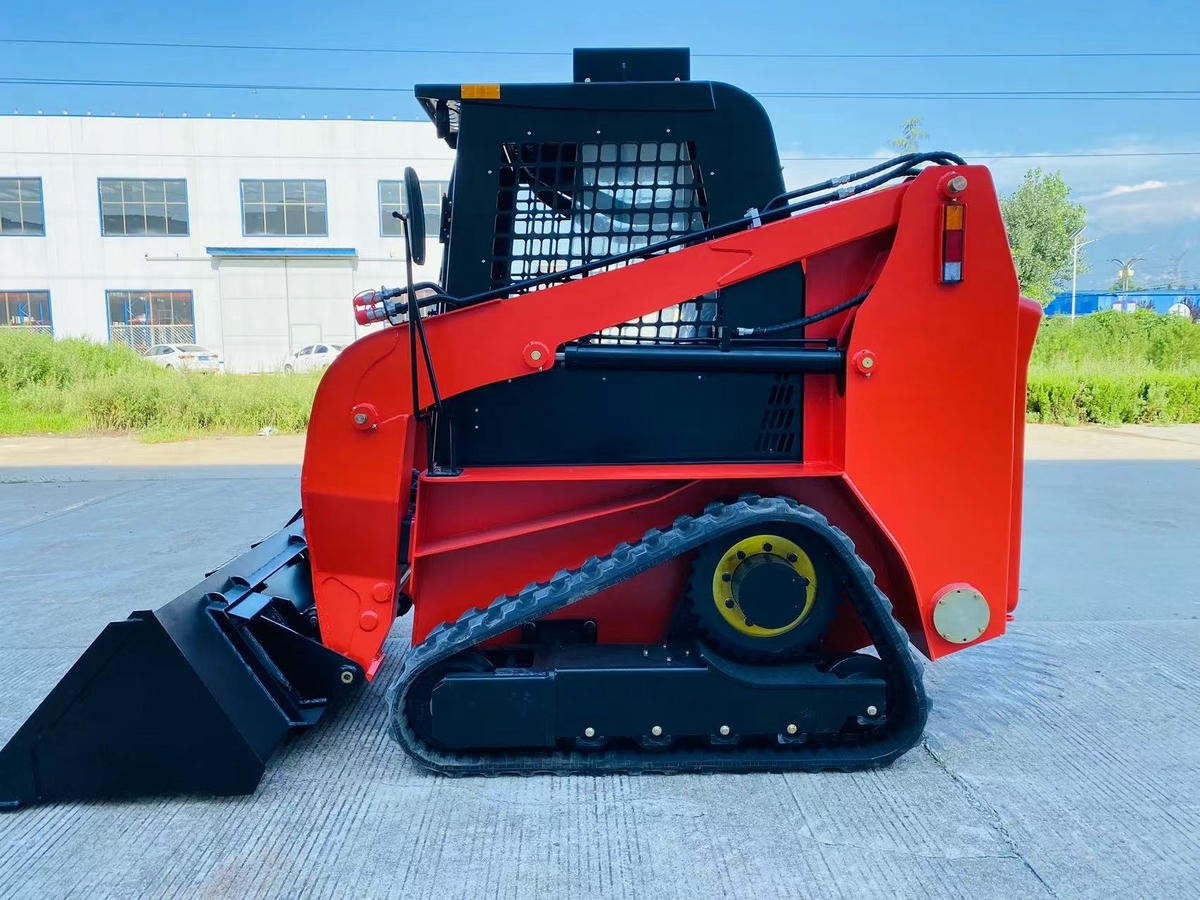

Tracked Skid Steer Loader

SPECIFICATIONS AT65
	Parameters	Unit(Metric)	Unit(inch)
Dimensions	Operating Height	3900mm	153.5 in
	Max Hinge Pin Height	2297mm	90.4 in
	Height To Top	2409mm	94.8 in
	Overall Length With Std.Bucket	3400mm	133.9 in
	Overall Length Without Attachment	2450mm	96.5 in
	Wheelbase	1500mm	59 in
	Overall Width	1782mm	70 in
	Mini Ground Clearance	200mm	7.9 in
	Angle Of Departure	18.5°	18.5°
	Bucket Capacity	0.5CBM	132 gal
	Rated Loading Capacity	1000kgs	2205 lb
	Machine Weight	3700kgs	8157 lb
Hydraulic system	Working System Pressure	22Mpa	3191 psi
	Working System Flow Rate	80L/min	21.13 gpm
	Driving System Pressure	25Mpa	3626 psi
	Driving System Flow Rate	105L/min	27.74 gpm
Engine	Engine Model	XINCHAI Supercharger Diesel Engine 498(State II)
	No. Of Cylinders	4 Cylinder	4 Cylinder
	Net Power	55kW	73.76 hp
	Note: Optional Engine 1.Korean LS(EPA)L4-54.4Kw/2.5L 2.Cummins (EPA)QS-55Kw/2.8L

Core Advantages

Flexible and Maneuverable, Breaking Through Space Limitations:

Adopting independent steering technology, it supports zero-radius turning and diagonal movement (crab mode). Even in narrow indoor workshops, passages in old residential areas, or crowded construction corners, it can easily turn around and position accurately, solving the problem of traditional equipment being "unable to enter or turn around."

Multi-Purpose, Covering All Scenario Needs:

By quickly replacing attachments (such as buckets, breakers, sweepers, forks, etc.), it can seamlessly switch between various operations including excavation, loading, crushing, cleaning, and handling. Whether cleaning construction waste, leveling roads, handling materials, or shoveling snow and deicing, one piece of equipment can meet the needs of more than 10 types of common working conditions, significantly reducing users' equipment procurement and maintenance costs.

Easy to Operate, Lowering the Usage Threshold:

The humanized hydraulic pilot handle is sensitive in response and requires light operating force, allowing even novice users to get started quickly. The cab offers a wide field of vision, with key operating areas reasonably laid out. Coupled with the low-noise design (no disturbance during long-hour operations), it makes operation more comfortable and efficiency more stable.

Reliable Structure, Adapting to Complex Environments:

The frame and working device have undergone reinforced design, capable of withstanding impacts from construction site gravel and bumpy roads. The chassis has a high ground clearance, ensuring strong pass ability. Whether on soft soil, gravel roads, or in short-distance wading conditions, it can travel stably, reducing downtime caused by environmental restrictions.

After-Sales Service

We provide quick response services, committing to answering inquiries within 4 hours. Equipped with a professional team of technicians, we conduct regular return visits to guide the use of attachments and daily maintenance. We have sufficient reserves of commonly used parts and prioritize deployment in emergency situations to minimize equipment downtime, allowing users to focus on their work without worries.
