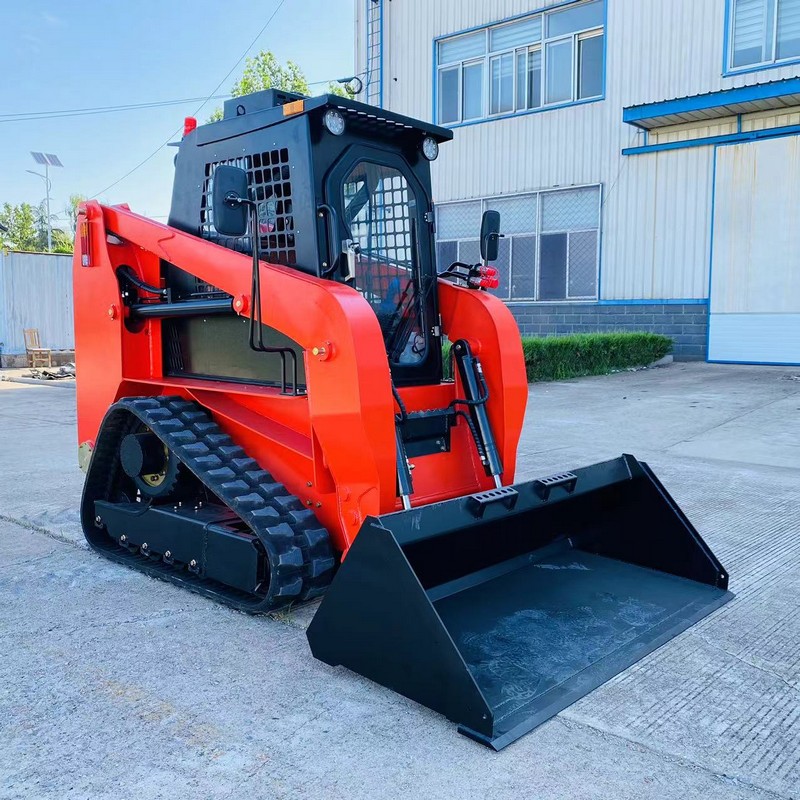

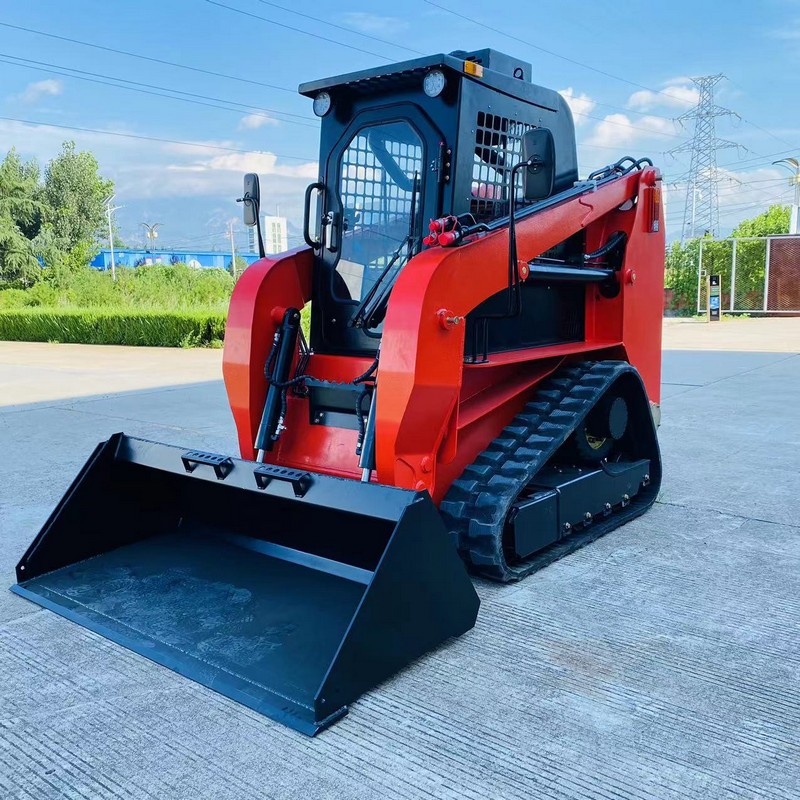

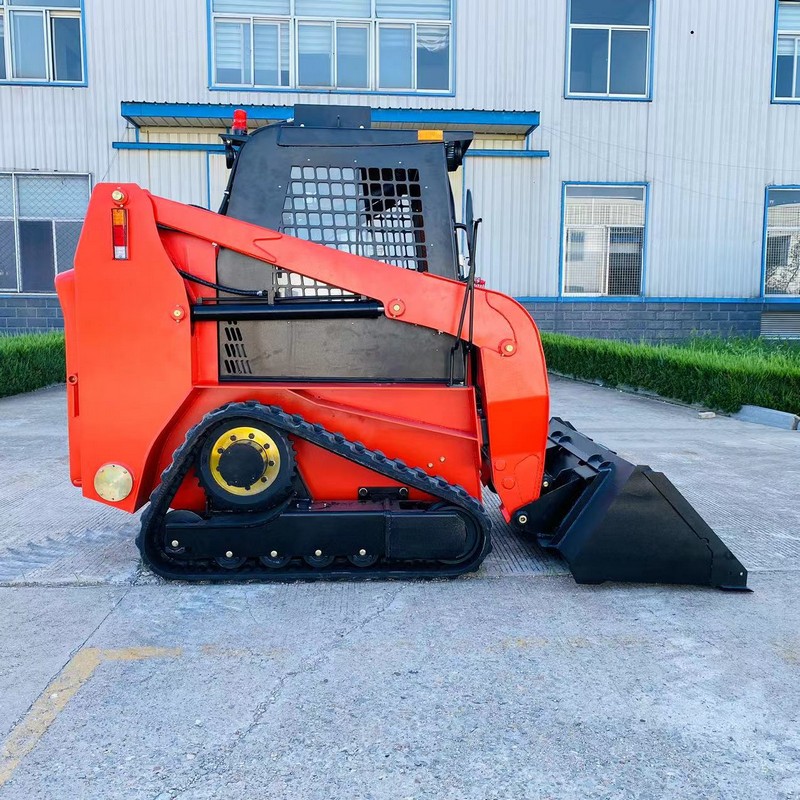

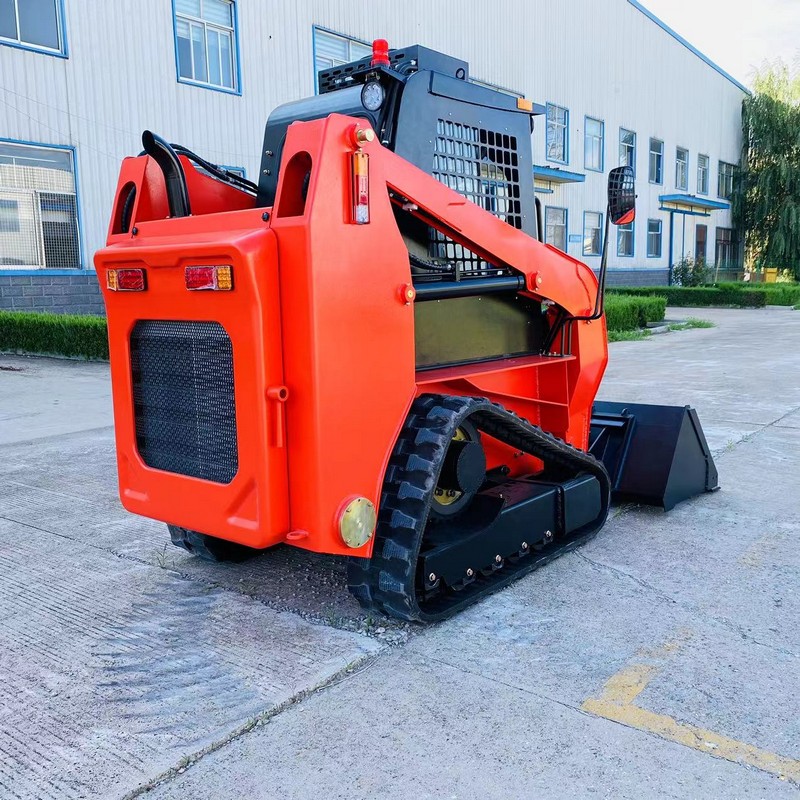

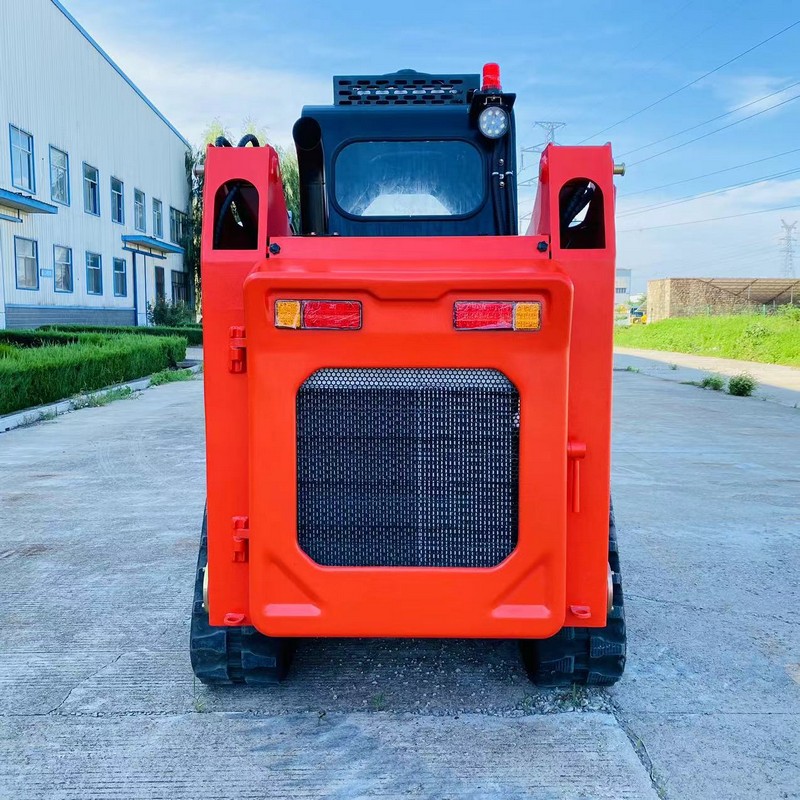

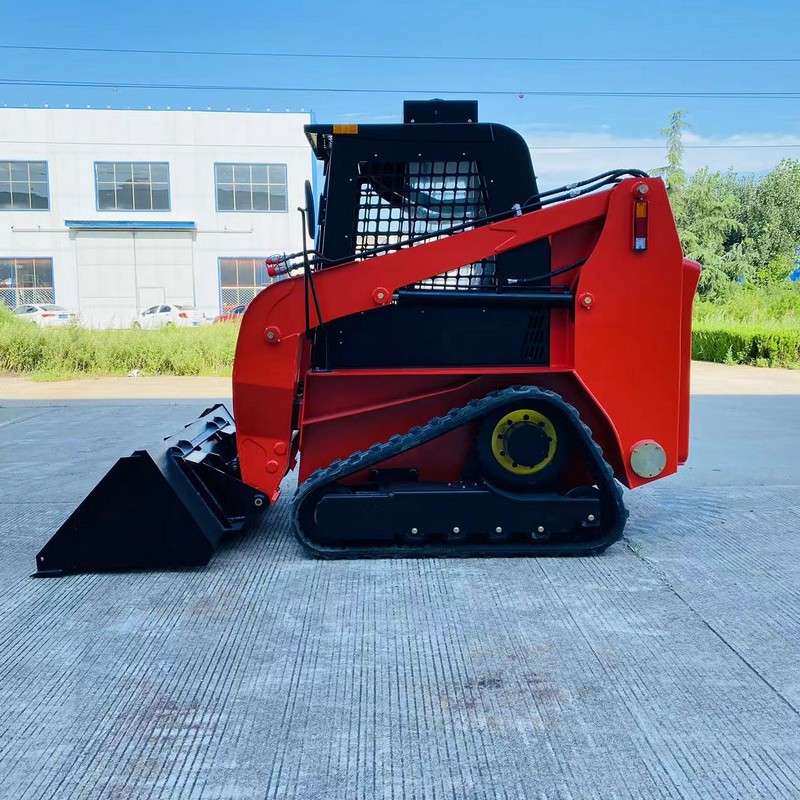

New Skid Loader

1. User-Friendly Operation: Hydraulic pilot controls enable quick mastery for beginners, delivering effortless and efficient operation.

2. Wide Application Range: Suitable for municipal, agricultural, warehousing, and other diverse scenarios, performing effectively even in confined spaces.

3. Cost-Effective: Low fuel consumption, affordable and widely available wear parts, and minimal maintenance expenses.

4. Durable & Robust: Constructed with high-strength alloy components for superior wear and impact resistance, ensuring long service life.

Contact Now E-Mail Telephone WhatsApp

Product Details

Skid-Steer Loader: A "Long-Term Partner" for Heavy-Duty Operations

For users requiring long-term, high-intensity operations, equipment reliability and maintenance costs directly affect overall efficiency. Specifically designed for heavy-duty working conditions and complex environments, the skid-steer loader, with "durability, ease of use, and wide adaptability" as its core, has become a "long-term partner" in scenarios such as mine restoration, road maintenance, and farm operations. It not only maintains stable performance under harsh conditions but also reduces users' comprehensive operating costs through modular design and intelligent maintenance systems, making it an ideal choice for those pursuing "one-time investment, long-term returns."

SPECIFICATIONS
	Performance Parameters	Unit(Metric)	Unit(inch)
Dimensions	Operating Height	3660mm	144 in
	Max Hinge Pin Height	2370mm	93 in
	Height To Top	2349mm	92.5 in
	Overall Length With Std.Bucket	3150mm	124 in
	Overall Length Without Attachment	2170mm	85.4 in
	Wheelbase	1230mm	48.4 in
	Overall Width	1422mm	56 in
	Mini Ground Clearance	230mm	9 in
	Angle Of Departure	18.5°	18.5°
	Bucket Capacity	0.4CBM	105.67 gal
	Rated Loading Capacity	700kgs	1543 lb
	Machine Weight	2700kgs	5952 lb
Hydraulic system	Working System Pressure	22Mpa	3191psi
	Working System Flow Rate	80L/min	21.13 gpm
	Driving System Pressure	25Mpa	3626 psi
	Driving System Flow Rate	95L/min	25.1 gpm
Engine	Engine Model	XINCHAI490(State II)
	No. Of Cylinders	4 Cylinder	4 Cylinder
	Net Power	42kw	56.32 hp
	Note: Optional Engine: Korean LS(EPA)-42.5kw/1.9L

Core Advantages

Robust Structure for Longevity:

Key components (such as the frame and working device pins) are made of high-strength materials and processed with reinforcement techniques. Undergoing repeated load tests, they can withstand the dual challenges of long-term heavy-duty operations and harsh environments. The core structure has a long service life, reducing frequent repairs caused by wear and tear—its lifespan can be several times that of ordinary models.

Stable Heavy-Load Performance with Outstanding Efficiency:

The power system is reasonably matched, delivering strong and stable output. Even when fully loaded for excavation, heavy material handling, or crushing hard materials, it maintains smooth operation, avoiding efficiency drops due to insufficient power. The load capacity is optimized to adapt to more heavy-duty attachments (such as large-capacity buckets and heavy breakers), meeting higher-intensity working condition requirements.

Simple Maintenance for Time and Effort Savings:

Adopting a modular design, core components like the engine and hydraulic pump are centrally located in easily accessible areas. Daily inspections and basic maintenance (such as filter replacement and oil checks) can be completed in just 5 minutes with simple tools. The intelligent fault diagnosis system can early warn potential issues in advance, preventing minor faults from escalating into major shutdowns.

Flexible Adaptability with Customization Options:

Supports switching between 2WD/4WD modes (to adapt to different terrain needs), and the hydraulic system flow can be adjusted according to attachment types, ensuring optimal performance of various tools for excavation, crushing, handling, etc. It is compatible with mainstream attachment interfaces on the market, allowing users to freely match according to actual needs without additional modifications.

After-Sales Service

We provide full-cycle support from equipment delivery to long-term use:

A professional team offers remote guidance for installation, commissioning, and training on attachment operation skills.

Common accessories are kept in sufficient stock, with expedited deployment in emergency situations. Meanwhile, a basic maintenance guide is provided as a gift to help users extend equipment lifespan, ensuring every investment delivers maximum value.
