Mini Excavator Attachments Introduction

The mini excavator is easy to operate, compact and convenient to transport. It can freely rotate and work in a space of two meters and is suitable for more working conditions. Its multi-functionality, featuring excavation, crushing, trenching, drilling, and equipped with a bulldozer shovel, allows for the replacement of accessories and attachments, which increases the machine's utilization rate and also enhances construction efficiency. It has extremely high working efficiency and cost performance.

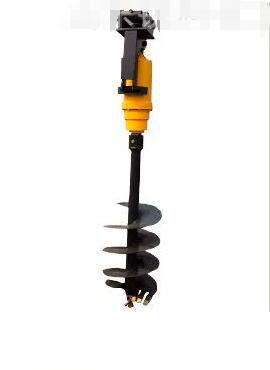

Soil layer drilling: The spiral drilling rig, during operation, is driven by the drill pipe to rotate and cut the soil, and then lifted outside the hole to unload the soil. It is mainly used for drilling operations on various soil types, such as tree planting pit drilling, well drilling, and coal sampling, etc.

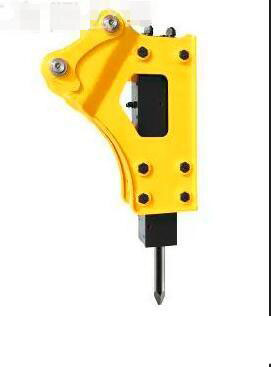

The breaker hammer, also known as the hydraulic breaker, is mainly used for the mining of ores in mines and the demolition of various concrete building facilities.

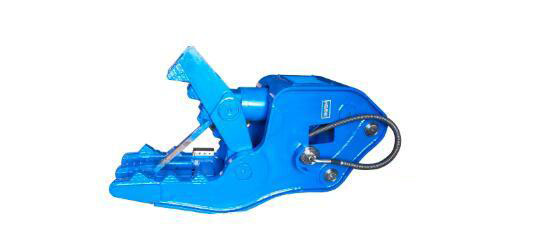

Hydraulic shears, also known as hydraulic pliers, are mainly used in the demolition of buildings and are much more efficient than breakers.

For deep trench operations in rural fields with excavators, narrow buckets can be chosen.

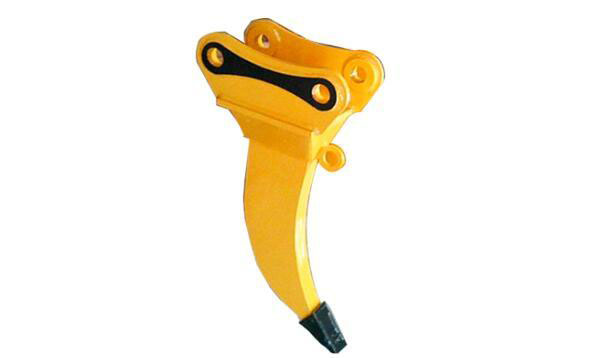

The soil loosening device, also known as the soil splitting device, is mainly used in the construction of weathered rock. It is particularly useful for layering working conditions. It is difficult to dig with a bucket and a bit easy and wasteful to break with a breaker. At this time, using a soil loosening device will greatly improve the construction efficiency. First, use the soil loosening device to separate the soil layer or weathered rock layer, and then use a quick connector to switch the bucket and load it onto the vehicle.

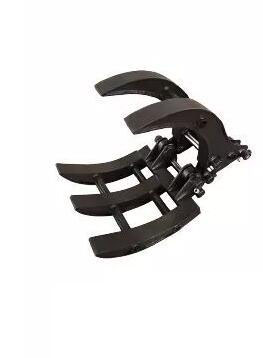

The wood grabber, also known as the wood clamping machine, is divided into hydraulic wood grabbers and mechanical wood grabbers. Hydraulic wood grabbers are further classified into hydraulic rotary wood grabbers and fixed wood grabbers. The wood gripper, after the redesign and modification of its claws, can be used to pick up stones and scrap steel. It is mainly used for grasping wood and bamboo, and it is very fast and convenient for loading and unloading work.

The quick coupling machine, also known as the quick coupling or quick conversion coupling, is specifically designed to switch between the breaker hammer (or other equipment) and the bucket. A skilled operator can switch equipment in no more than 30 seconds, while in the past it took 40 to 60 minutes and required at least two people to operate.

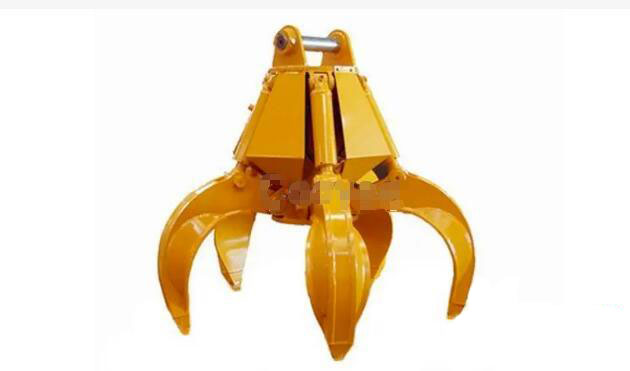

The lotus gripper, also known as the hydraulic gripper, is a material handling device mainly used for automatic material grasping. It is indispensable in various engineering loading and unloading operations and can handle a large amount of bulk materials on-site, such as production and domestic garbage, scrap iron, scrap steel and other solid wastes, achieving rapid transfer and conversion of solid wastes.

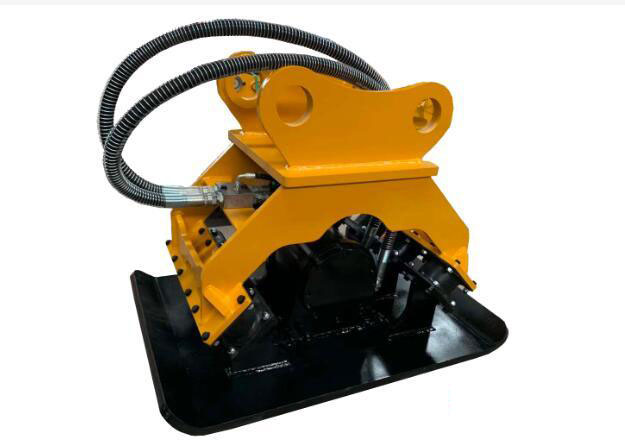

The working principle of the small vibrating rammer is to use a hydraulic motor to drive the eccentric mechanism to rotate. The vibration generated by the rotation acts on the material to be compacted through the ramming plate, making it compact. The vibratory tamper is easy to operate and has a good compaction effect. It is mainly used for compacting slope roads, water conservancy embankments, building foundations, etc. It is suitable for compacting materials with relatively low bonding force between particles, such as river sand, crushed stone, asphalt, etc.

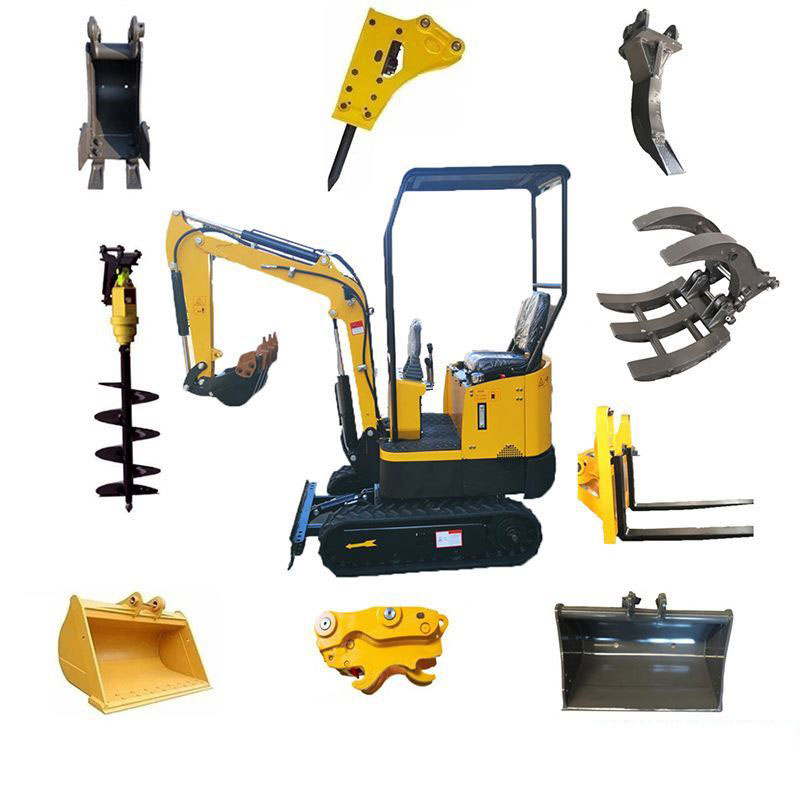

The mini excavator can be quickly equipped with breakers, auger drills, soil looseners, vibrator compactors, various fixtures, etc., to carry out crushing work on road surfaces or interior decoration. It can also dig holes when planting trees and loosen the soil in farmland greenhouses. The adjustable bulldozer it is equipped with can level the farmland land.
