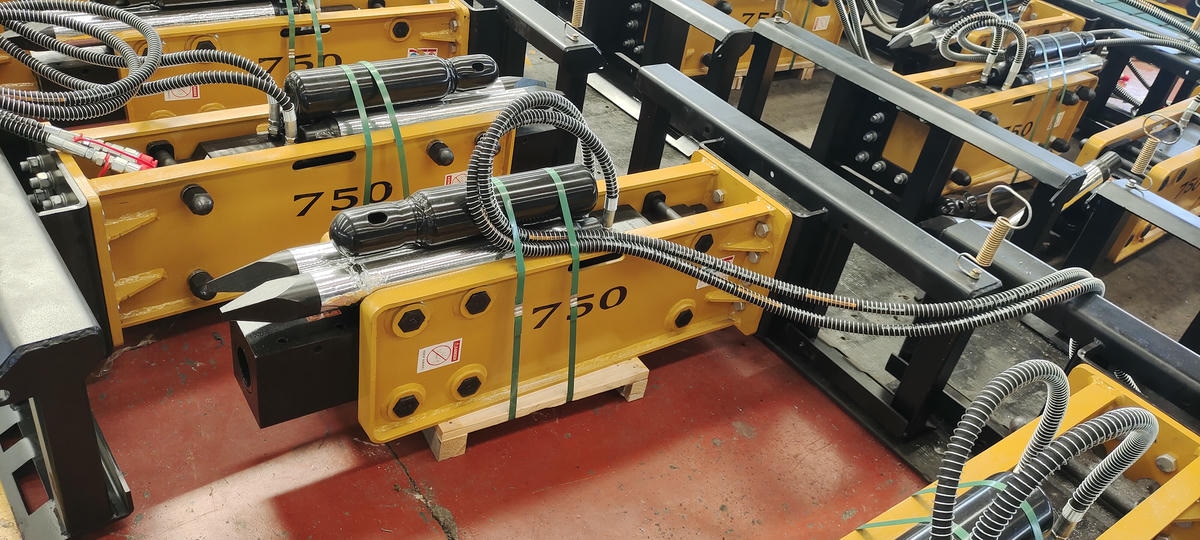

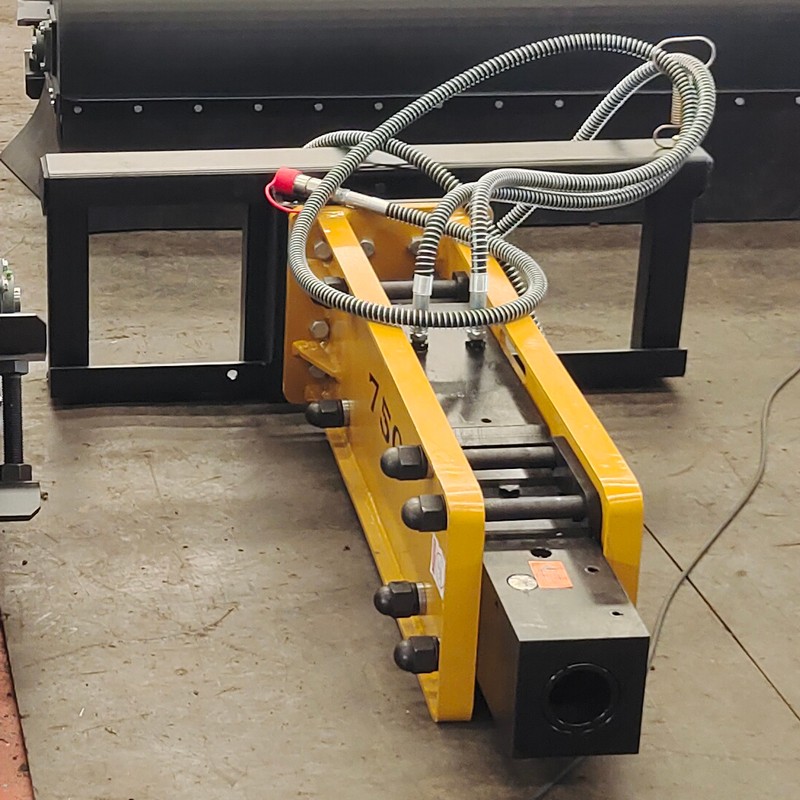

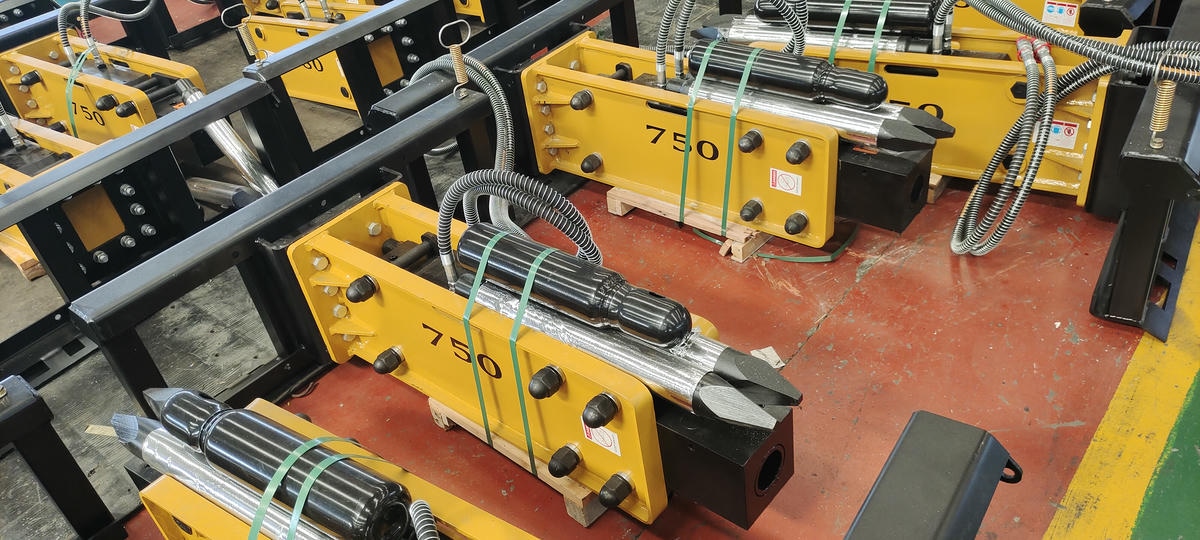

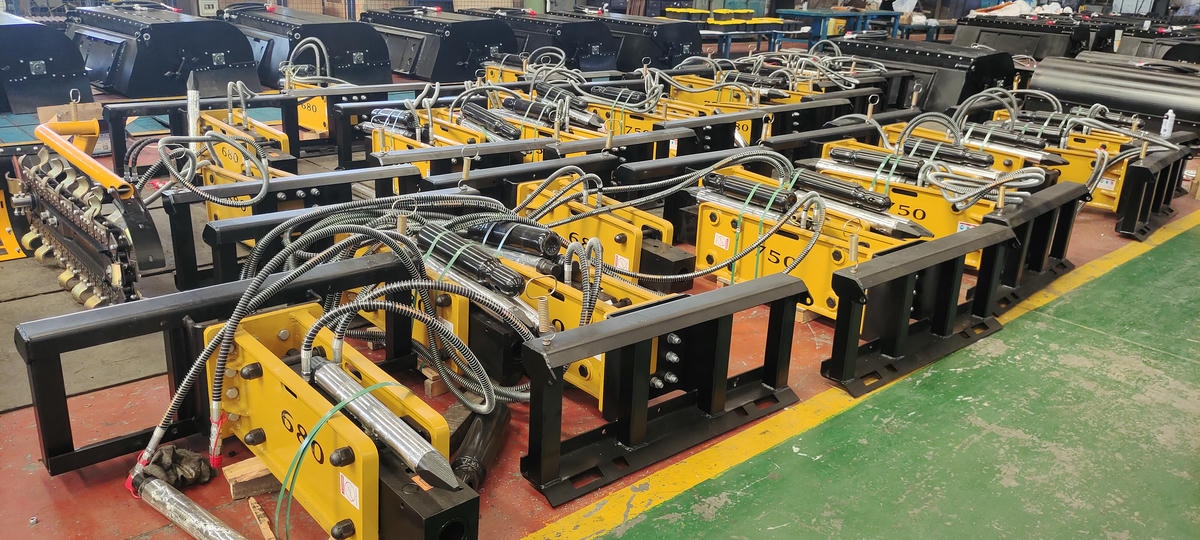

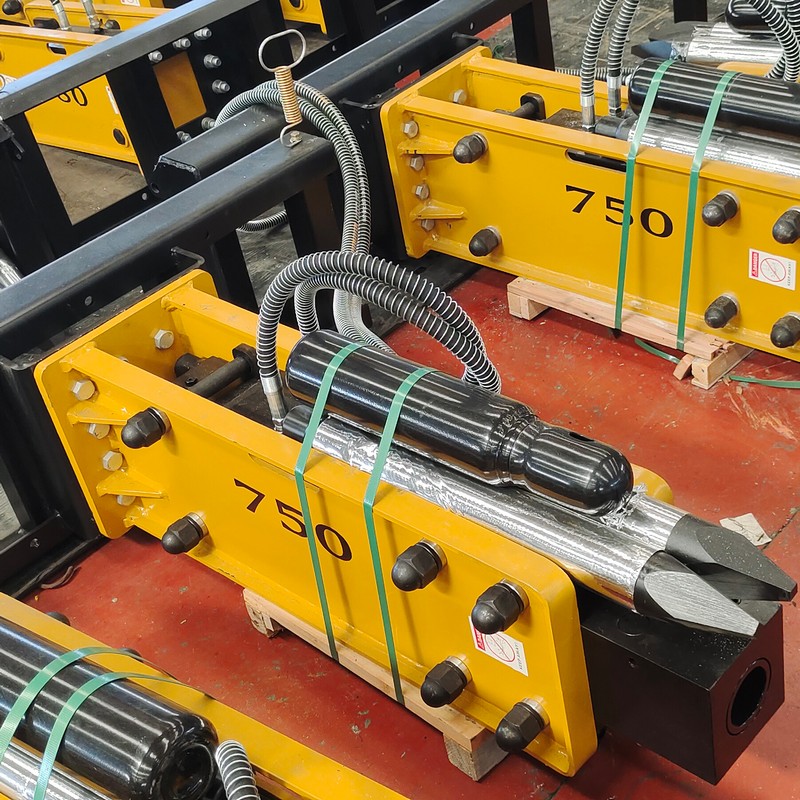

Breaker Hammer

The skid-steer loader attachment breaker hammer is a specialized demolition tool designed for skid-steer loaders. It is used to break hard materials such as concrete, rock, asphalt, and scrap metal, and is suitable for scenarios like building demolition, mining, and road repair. It can efficiently replace large hydraulic breakers or manual hammering, significantly improving demolition efficiency and flexibility.

Structural Components

Key parts include:

• Tool Bit (Chisel): Made of high-strength alloy steel with a wear-resistant front end, it directly impacts materials. Available in diameters of 50–120mm to suit different material hardness levels.

• Cylinder and Piston: The hydraulic-driven piston generates high-frequency impacts (300–800 strikes per minute) on the tool bit, delivering powerful force to break materials.

• Accumulator: Stores energy to enhance the impact force of each strike.

• Guide Sleeve and Sealing System: Secures the tool bit in place and prevents hydraulic oil leakage and dust ingress.

• Connection Frame: Mounts the breaker hammer to the front of the skid-steer loader and transmits power.

• Buffering Components: Reduce recoil impacts to protect the equipment and operator.

• Hydraulic Interface: Compatible with the skid-steer loader’s hydraulic system (flow rate: 40–120L/min, pressure: 15–25MPa).

Working Principle

During operation, the operator controls the hydraulic oil to drive the piston, which strikes the tool bit at high frequency. The impact energy is transferred to the material (e.g., concrete or rock), breaking it through repeated strikes. The accumulator amplifies each impact, while the sealing system ensures long-term stability.

Core Features

• High-Efficiency Demolition: High impact frequency and energy enable rapid breaking of concrete blocks, rocks, etc., far surpassing manual methods.

• Strong Adaptability: Suitable for various hard materials (concrete, rock, asphalt, metal) with interchangeable tool bits to optimize performance.

• Flexible Mobility: Compact and agile, it operates effectively in confined or complex spaces.

• Safe and Reliable: Buffering design minimizes recoil damage; while sealing and wear-resistant components ensure durability.

• Simple Operation: Controlled via standard handles—no specialized training required; quick-install design for easy removal.

Typical Application Scenarios

• Building Demolition: Breaking concrete walls, floors, and clearing debris.

• Mining: Crushing medium-sized rocks.

• Road Repair: Demolishing old asphalt or concrete pavements.

• Disaster Rescue: Clearing rubble to create access routes.

• Industrial Demolition: Removing concrete foundations of equipment.

The breaker hammer delivers powerful hydraulic impact for efficient hard material demolition, making it ideal for small-to-medium scale and flexible operation scenarios.
