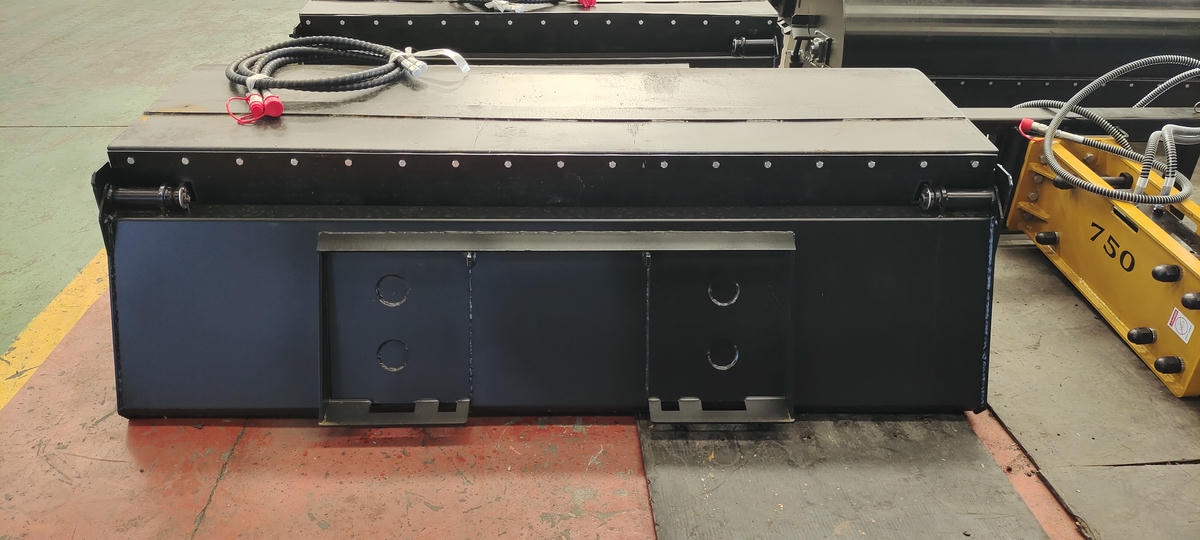

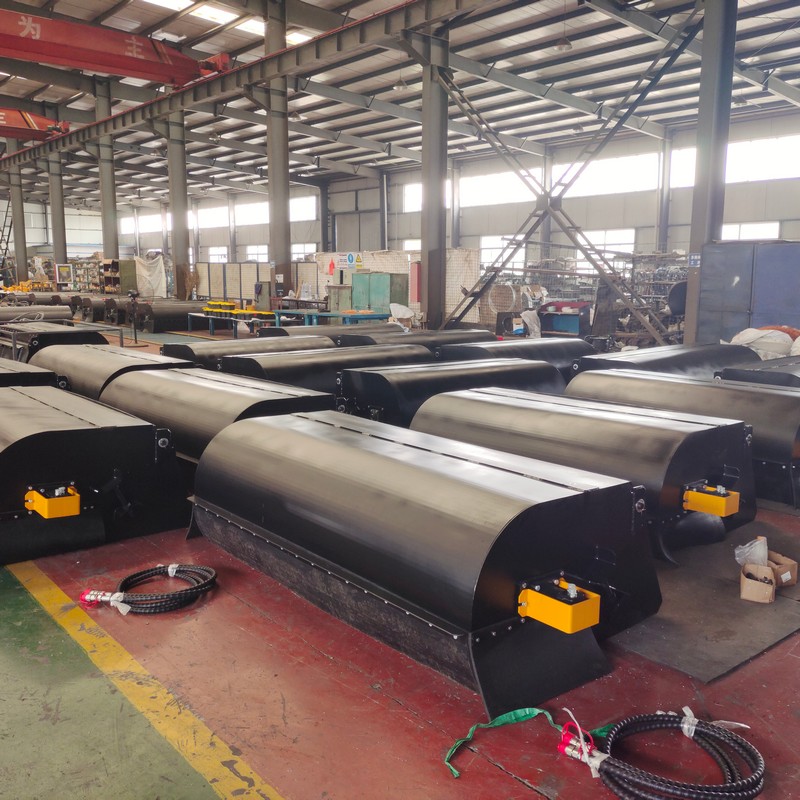

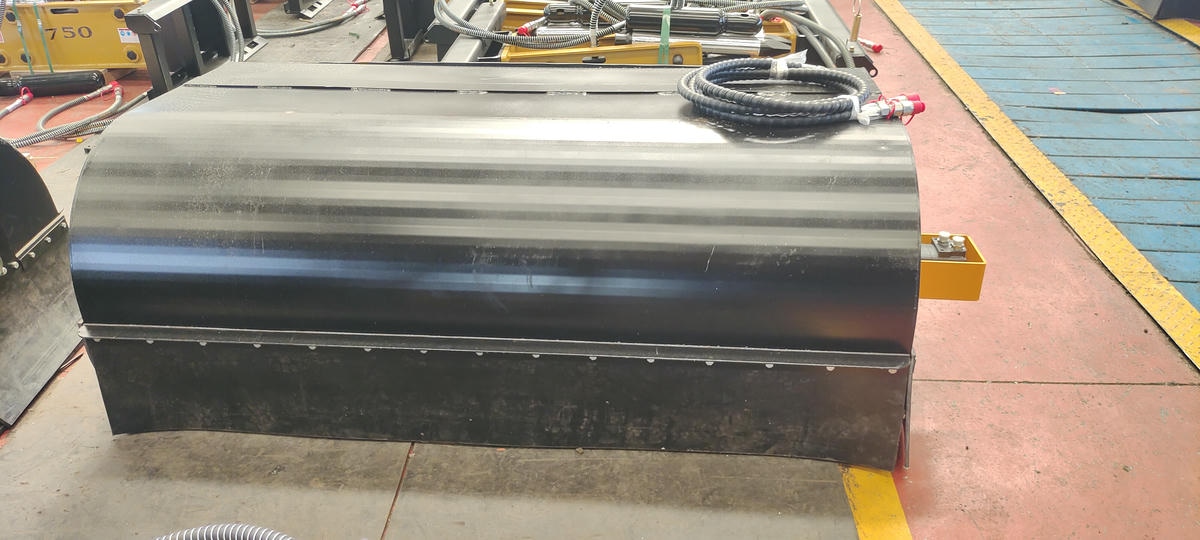

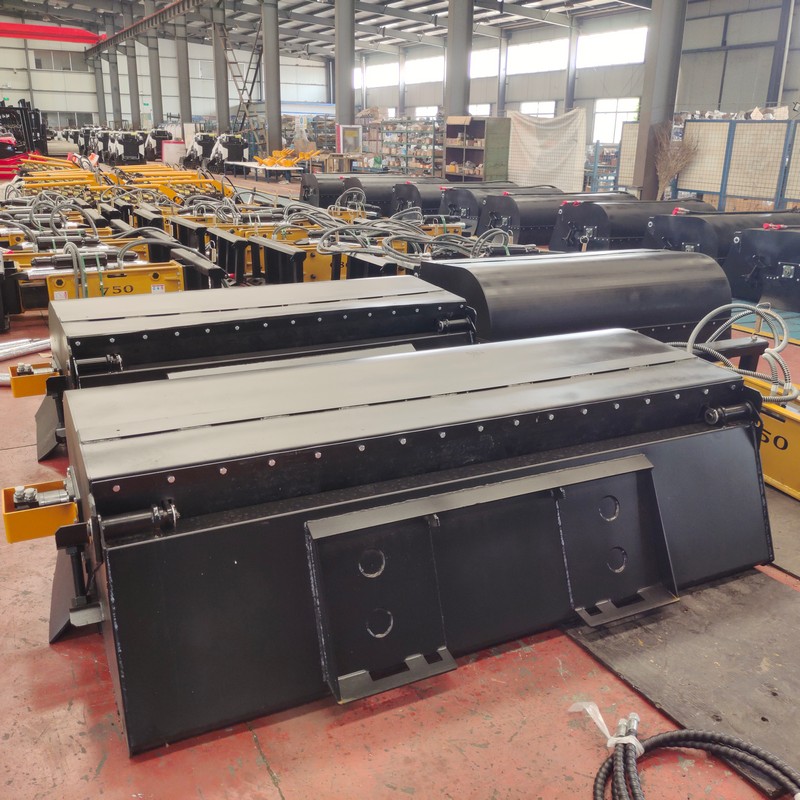

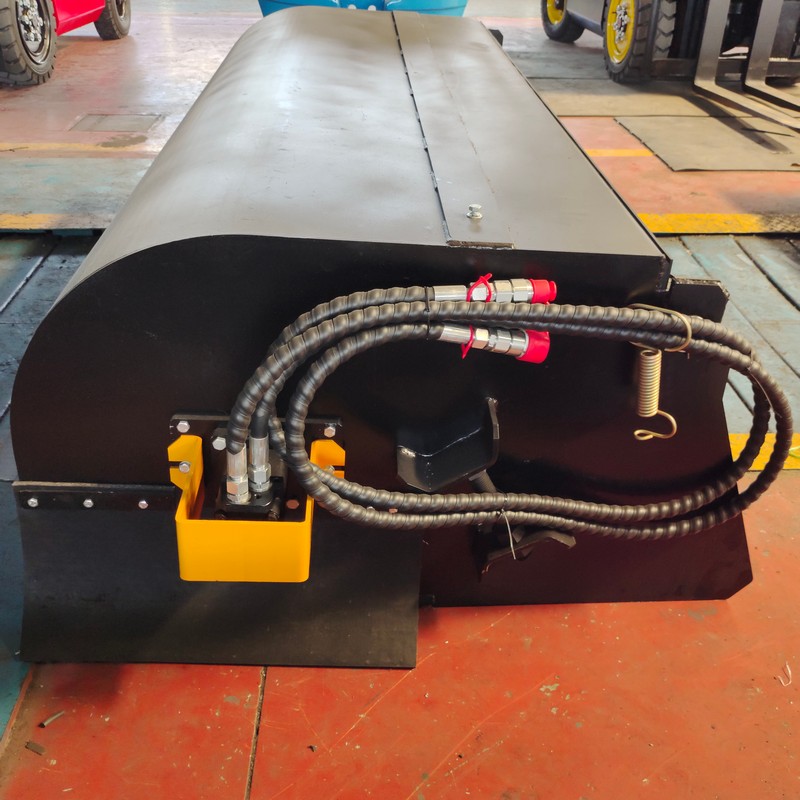

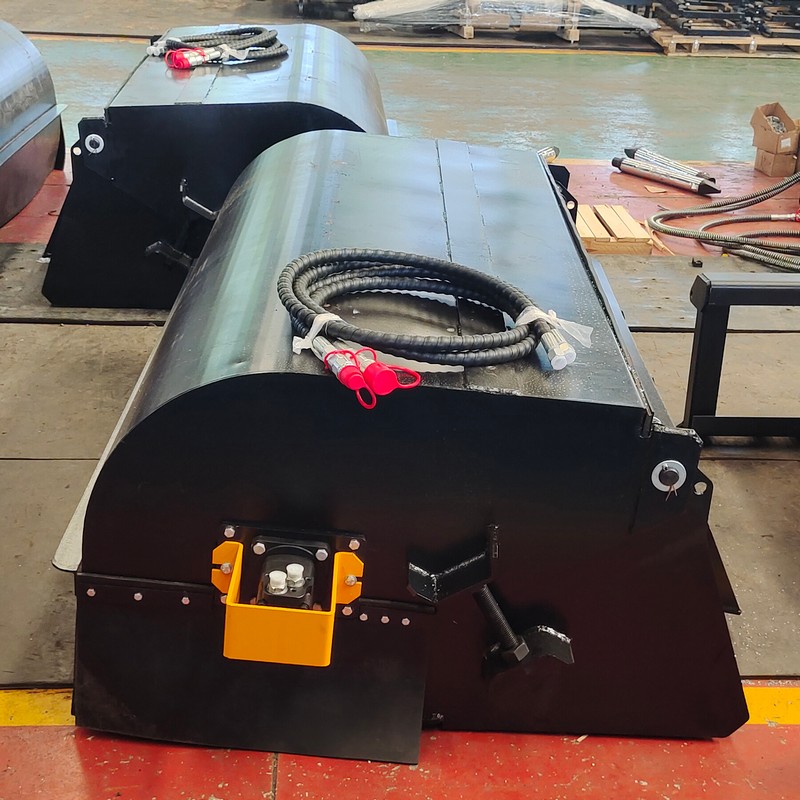

Sweeper

The skid-steer loader attachment sweeper is a specialized cleaning tool designed for skid-steer loaders. It is used to clean dust, debris, leaves, and other particles from hard surfaces such as roads and squares, and is suitable for municipal, property management, and industrial park scenarios. It efficiently replaces manual sweeping, significantly improving cleaning efficiency and flexibility.

Structural Components

Key parts include:

• Sweeping Brush Roller: The core working component, made of high-wear-resistant nylon bristles or steel wires, rotates at high speed (200–600rpm) to sweep away debris. Its diameter ranges from 300–600mm to adapt to different working widths.

• Dust Collection System (optional): Includes a front baffle, guide plates, and a dust collection box (or external vacuum equipment) to reduce dust dispersion and gather particles.

• Lifting and Angle Adjustment Mechanism: Hydraulically controls the brush roller’s ground clearance (5–50mm) and tilt angle for precise cleaning range adjustment.

• Connection Frame: Mounts the sweeper to the front of the loader and transmits power commands.

• Protective Components: Brush roller guards and wear-resistant plates protect the equipment and operator.

• Hydraulic Drive System: Powered by the loader to drive the brush roller’s rotation.

Working Principle

During operation, the driver activates the rotating brush roller and adjusts its height (e.g., 5–10mm for thin dust layers, 20–30mm for thick leaf piles) and angle to target debris. The dust collection system guides particles for centralized removal, with some models supporting external vacuums for enhanced efficiency. Obstacles (e.g., curbs) are avoided by lifting the brush roller.

Core Features

• Efficient Cleaning: Single-pass cleaning width of 1.5–2.5 meters, far surpassing manual sweeping for large-area tasks.

• Strong Adaptability: Nylon bristle/steel wire brush rollers handle various debris types; adjustable height protects surfaces like epoxy or tile floors.

• Flexible Adjustment: Precise control for edges/narrow areas; quick adaptation to different working conditions.

• Safe and Reliable: Protective designs minimize debris splash, while hydraulic overload protection prevents equipment damage.

• Simple Operation: Controlled via standard handles—no specialized training required; quick-install design for easy removal.

Typical Application Scenarios

• Municipal Sanitation: Road and square cleaning.

• Property Management: Parking lot and leisure area maintenance.

• Industrial Parks: Factory road clearance.

• Airport Ground Operations: Terminal area debris removal.

• Construction Sites: Peripheral dust sweeping.

The sweeper delivers mechanized cleaning efficiency, making it a versatile attachment for diverse cleaning needs.
