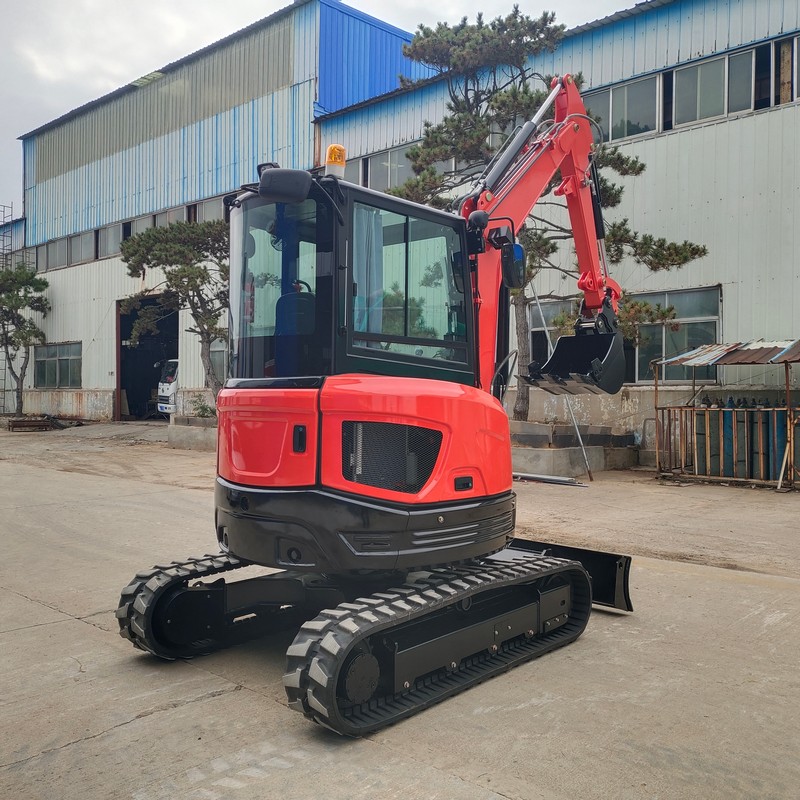

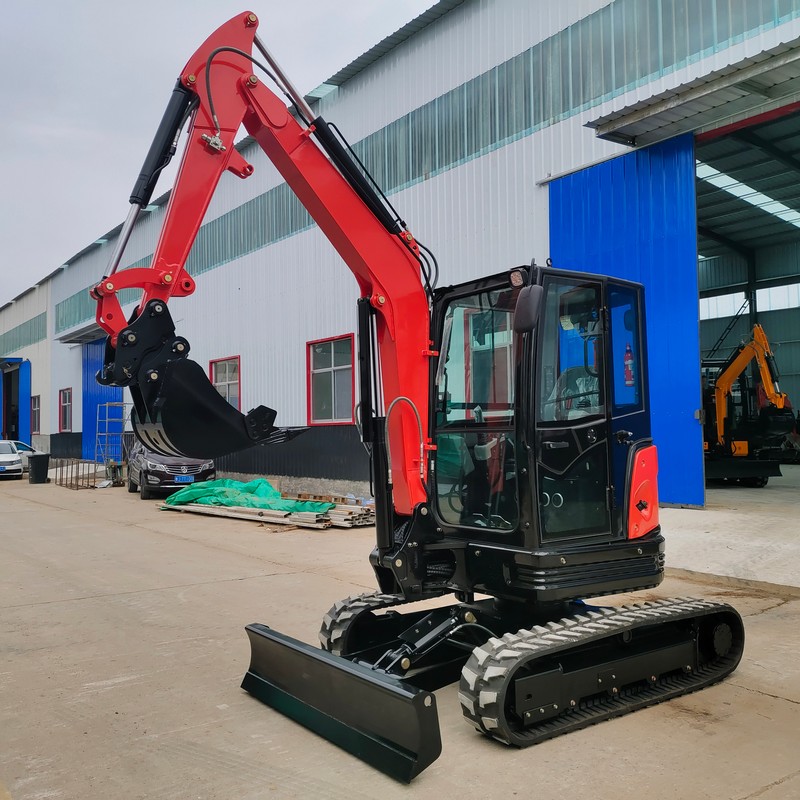

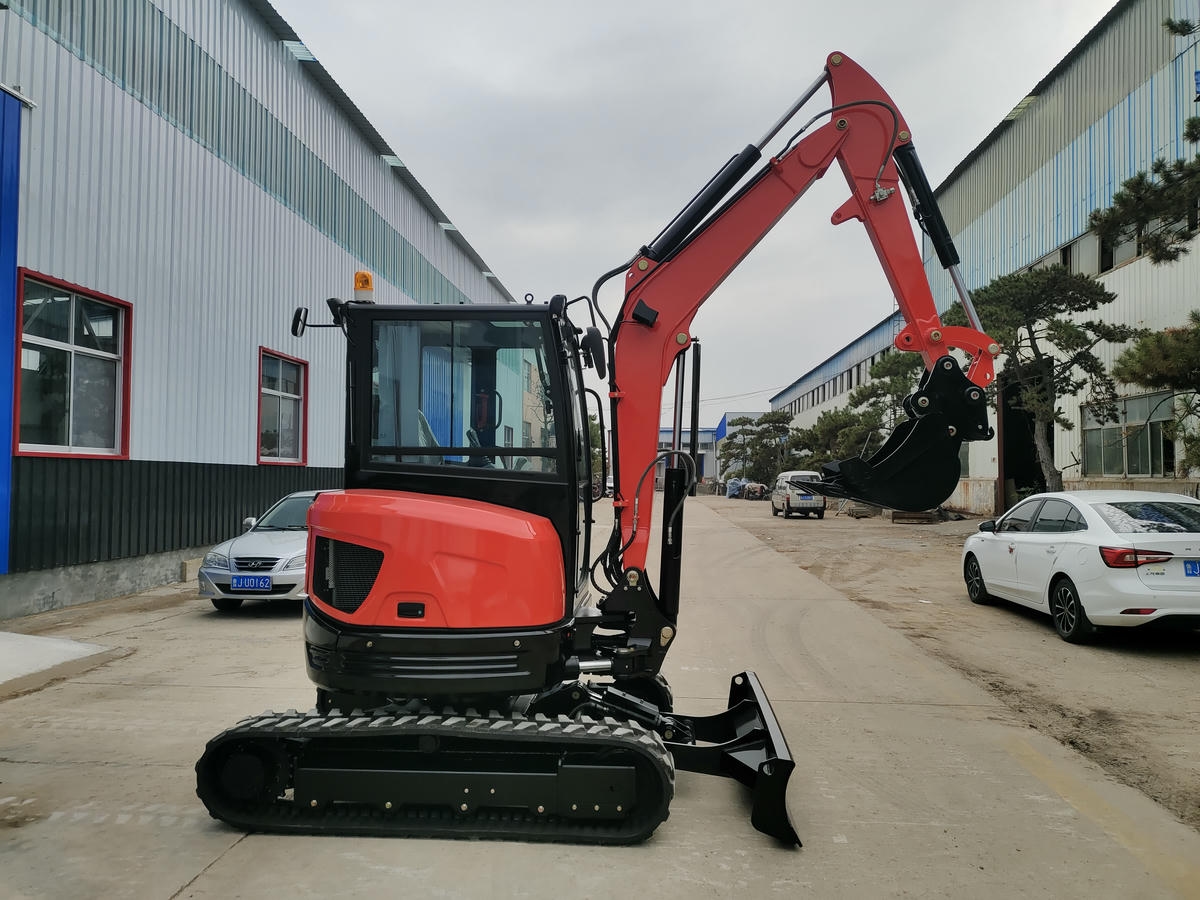

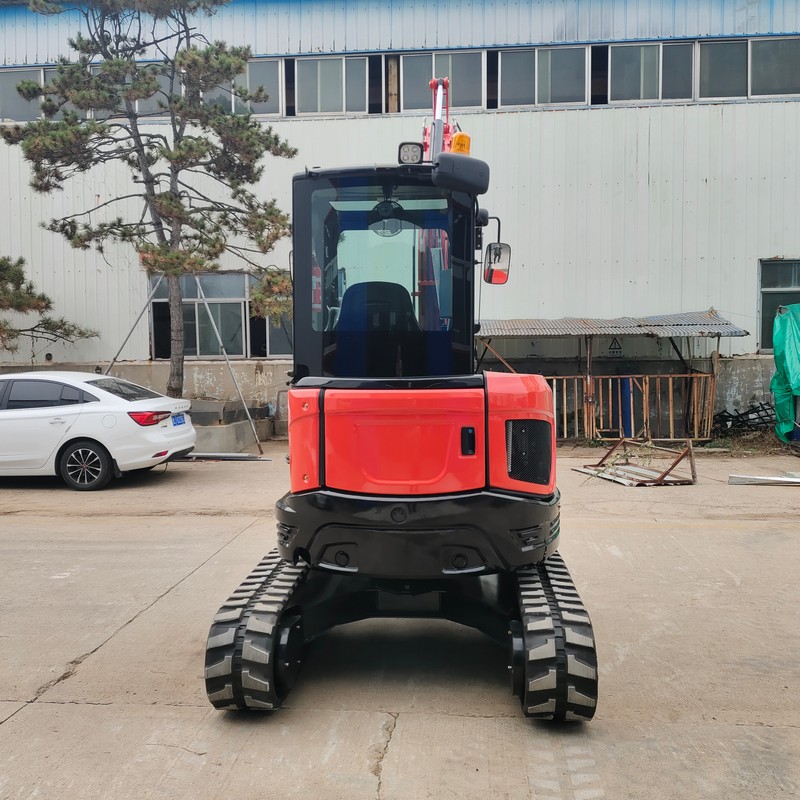

Mini Crawler Excavator

This model is positioned as a multi-functional small construction equipment, widely used in light and medium-duty operations such as landscaping, foundation excavation, and cable laying. It is renowned for its stability and ease of maintenance.

Contact Now E-Mail Telephone WhatsApp

Product Details

Structural components are welded with high-strength steel, ensuring long-lasting durability.

The hydraulic system features excellent sealing performance, reducing the risk of leakage.

The cab offers a wide field of vision and is equipped with user-friendly control devices, minimizing operational fatigue.

Mini Crawler Excavator

SPECIFICATION	Operation Weight	t	3.5ton	3.8ton
	Engine Brand		Xinchai 490	KUBOTA1703
	Rated Power	Kw	36.8	18.2
	Digging Bucket Capacity	cbm	0.1	0.11
	Bucket Width	mm	500	530
	Traveling Motor		Danfoss	LKC
	Travel Speed	km/h	2.7	4.0/2.3
	Swing Motor		Danfoss	LKC
	Swing Speed	r/min	10	12
	Hydraulic System		Plunger Pump	Plunger Pump
	Body Swing Radius	mm	1291	858
	Body Swing Angel	deg	360	360
	Boom Swing Angel(L/R)	deg	55/45	68/50
	Max. Grade Ability	deg	35	35
	Fuel Tank	L	40	40
	Hydraulic Fluid Chamber	L	41	41
MAIN DIMENSIONS	Overall Length	mm	4348	4945
	Overall Width	mm	1500	1700
	Overall Height	mm	2159	2585
	Track Width	mm	230	300
	Track Length	mm	1961	2286
	Body Width	mm	1350	1500
WORKING RANGE	Max. Digging Radius	mm	4477	5251
	Max Digging Depth	mm	3058	3071
	Max. Digging Height	mm	3445	4815
	Max. Unloading Height	mm	2203	3382
	Min. Swing Radius	mm	2165	2250
	Max. Digging Depth Of Dozer Blade	mm	297	433
	Max. Lifting Height Of Dozer Blade	mm	230	345

Factory Strength

Equipped with an automated painting line and a complete machine testing platform, each piece of equipment undergoes load tests and durability tests before leaving the factory. Strict supply chain management is implemented, with core components sourced from qualified suppliers.

International Shipping

Door-to-door logistics services are available, supporting customers in appointing their own freight forwarders or cooperating with our international logistics partners. Customizable wooden crate packaging or bare-machine reinforcement solutions are provided to meet different transportation requirements.

After-Sales Commitment

Free operation training videos and electronic maintenance manuals are provided. Parts damaged non-artificially within the warranty period will be replaced free of charge, and we will assist in coordinating nearby service outlets.
