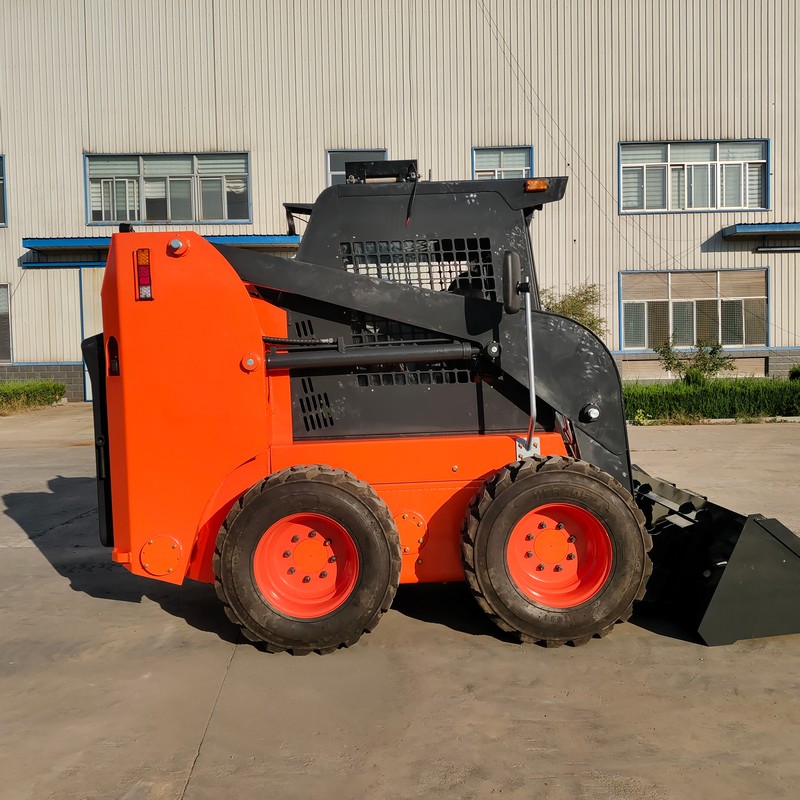

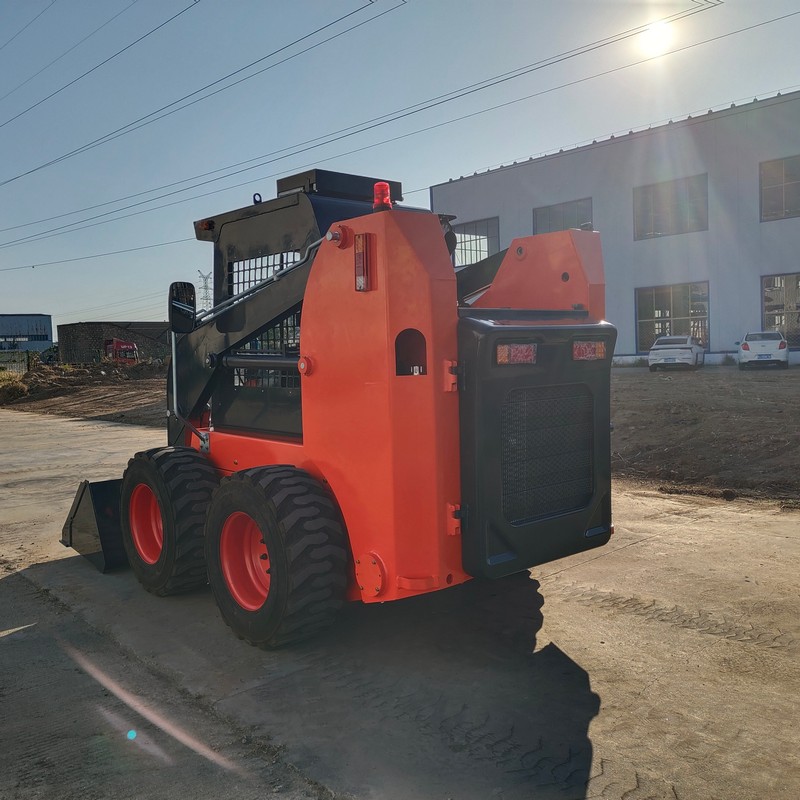

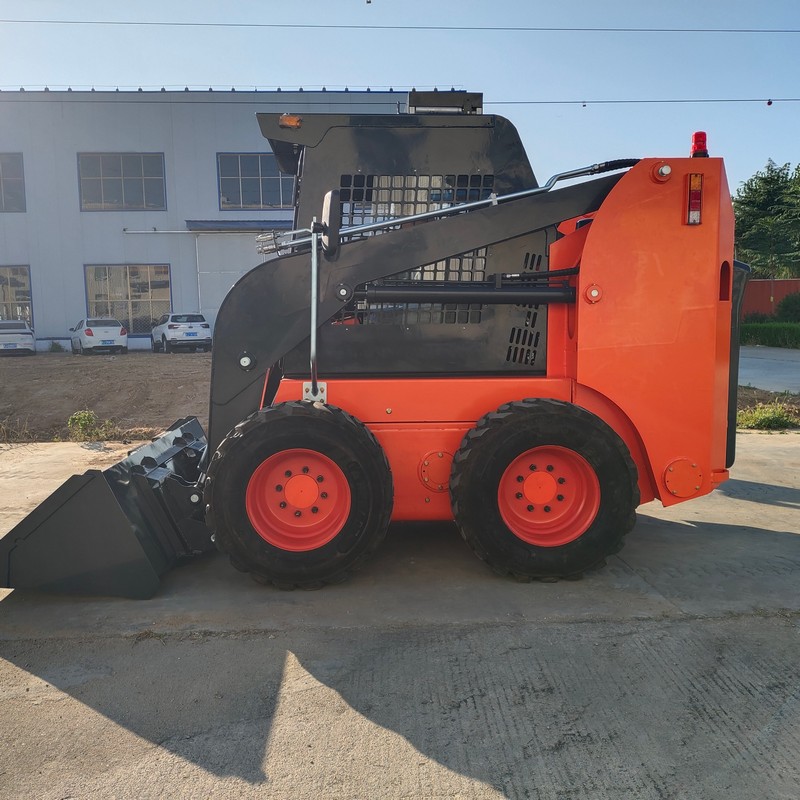

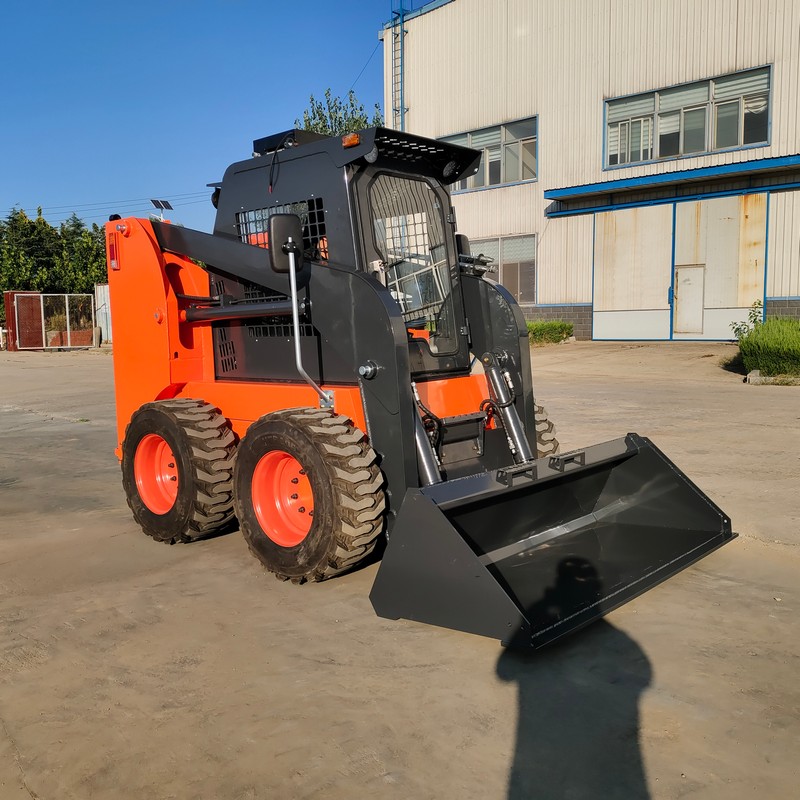

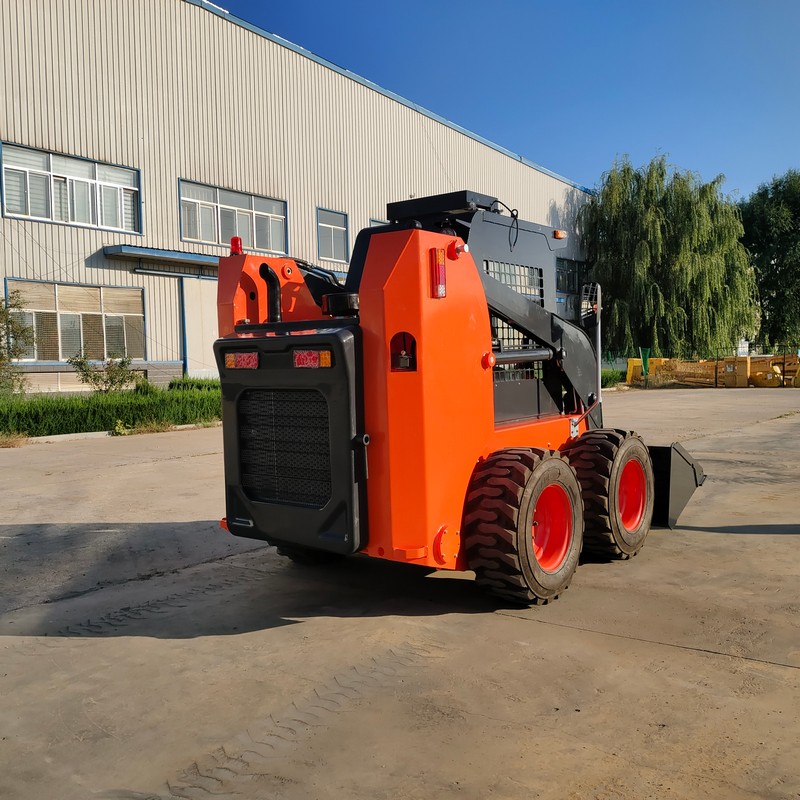

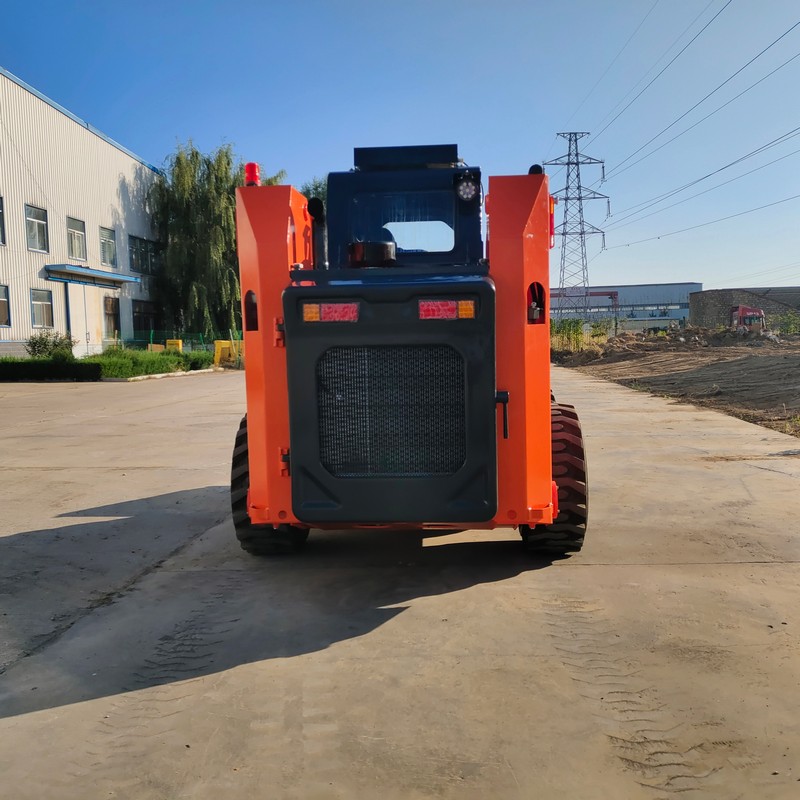

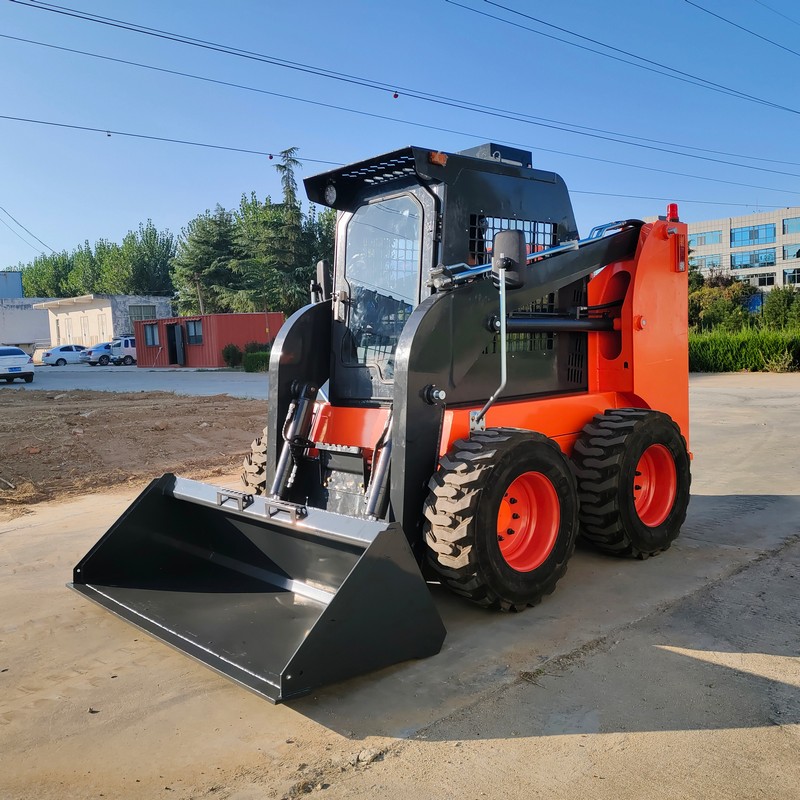

Skid Steer Wheel Loader

This skid steer loader offers convenient maintenance:

Centralized lubrication points save maintenance time;

The open design facilitates inspection and repair;

The oil-water separator extends the service life of the hydraulic system;

The dust-proof air filter adapts to dusty environments;

Intelligent reminders for maintenance cycles are provided.

Contact Now E-Mail Telephone WhatsApp

Product Details

Skid steer loaders are the first choice for municipal maintenance: They do not damage asphalt pavements; quickly replace attachments to handle diverse tasks; the low-noise design meets environmental protection requirements; the dust-proof cab ensures operational comfort; and LED work lights guarantee safety during night operations.

Product Parameter

SPECIFICATIONS AW65
	Parameters	Unit(Metric)	Unit(inch)
Dimensions	Operating Height	3987mm	157 in
	Max Hinge Pin Height	3018mm	119 in
	Height To Top	2295mm	90.4 in
	Overall Length With Std.Bucket	3428mm	135 in
	Overall Length Without Attachment	2527mm	99.5 in
	Wheelbase	1074mm	42.3 in
	Overall Width	1805mm	71 in
	Mini Ground Clearance	205mm	8 in
	Angle Of Departure	20°	20°
	Bucket Capacity	0.5CBM	132 gal
Hydraulic system	Rated Loading Capacity	1050kgs	2315 lb
	Machine Weight	3300kgs	7275 lb
	Working System Pressure	22Mpa	3191 psi
	Working System Flow Rate	80L/min	21.13 gpm
	Driving System Pressure	25Mpa	3626 psi
	Driving System Flow Rate	105L/min	27.74 gpm
Engine	Engine Model	XINCHAI Supercharger Diesel Engine 498(State II)
	No. Of Cylinders	4 Cylinder	4 Cylinder
	Net Power	55kw	73.76 hp
	Note: Optional Engine 1.Korean LS(EPA)L4-54.4kw/2.5L 2.Cummins (EPA)QS-55kw/2.8L

Product Advantages

Specifically designed for urban municipal maintenance, this equipment offers features tailored to public environment operations:

Low-Noise Operation: Noise is controlled below 70 decibels, meeting residential construction standards and ensuring no disturbance to residents during night work.

Exceptional Maneuverability: With an ultra-small turning radius (only 1.8 meters), it can flexibly steer beside sidewalks and in green belts, adapting to narrow streets for tasks like road patching and drainage ditch cleaning.

Versatile Attachment Compatibility: It supports quick replacement of attachments such as sweepers (for leaves and garbage), asphalt milling machines (for local road repair), and high-pressure water guns (for guardrail cleaning), satisfying diverse municipal needs.

Precise Hydraulics: The responsive hydraulic system enables accurate operation, easily handling fine tasks like small-scale excavation (e.g., tree pit digging) and material handling (e.g., sandbag stacking).

Operator Comfort & Safety: The cab is equipped with basic air conditioning and splash guards, enhancing operator comfort and protection.

Strength of the Manufacturing Plant

With 20 years of focus on engineering equipment manufacturing, the plant boasts:

An eco-friendly spraying workshop (VOC emissions 60% lower than national standards) and precision machining centers. Key components (such as hydraulic valve groups and attachment connectors) feature industry-leading processing accuracy, ensuring equipment stability.

A R&D team that optimizes designs (e.g., reducing throttle sensitivity to avoid misoperation) and has obtained EU CE certification and compliance with US ANSI standards.

International Shipping Services

For full container shipments, attachment interfaces and hydraulic pipelines are individually protected to prevent collision deformation during transportation.

Offers "municipal quick commissioning services"—providing assembly video guidance and basic operation training manuals upon equipment arrival at the port.

To meet transportation needs of European municipal projects, supports a disassembled packaging solution (some components packed separately), allowing on-site assembly within 2 hours after arrival.

International After-Sales Service

Warranty: 2-year warranty (exclusive to municipal scenarios).

Documentation Support: Provides detailed operation manuals.

Spare Parts Availability: Common attachments (such as sweepers and milling heads) are stocked in parts warehouses, with delivery to municipal warehouses within 10 working days.

Remote Assistance: The remote team, familiar with maintenance norms, can guide operators in handling emergencies.
