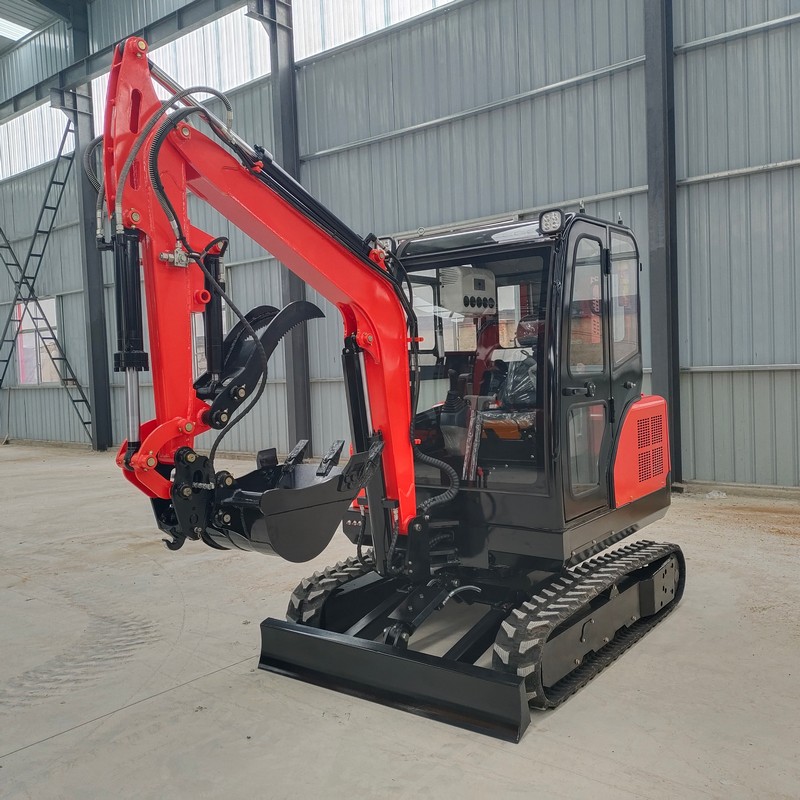

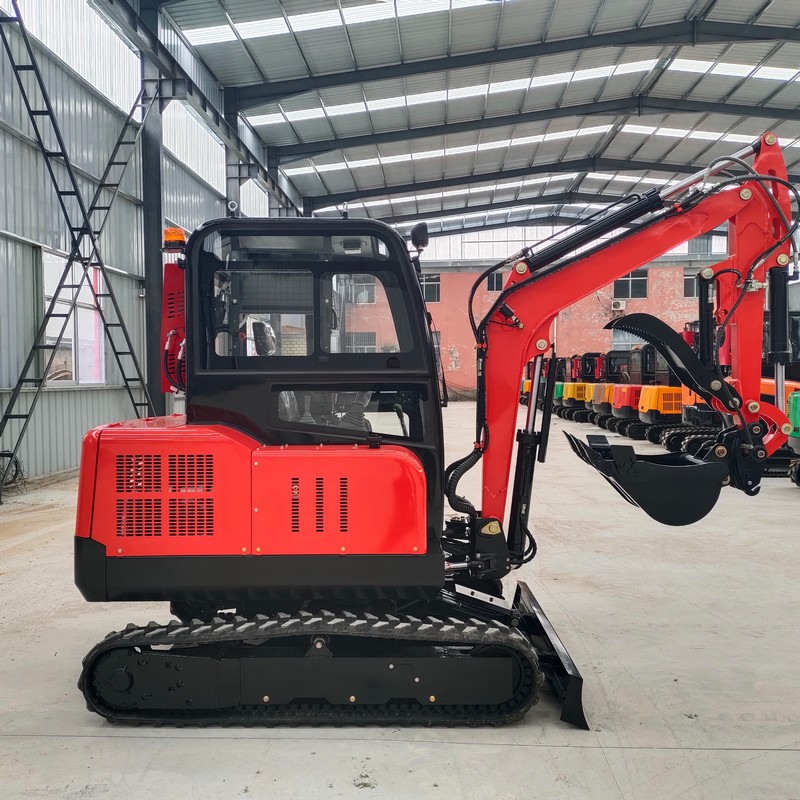

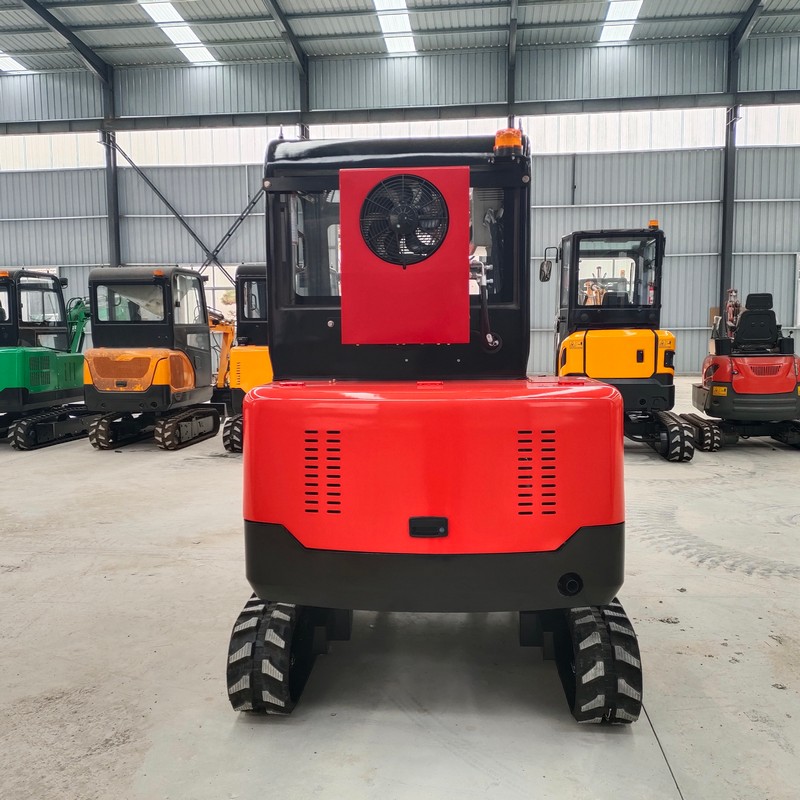

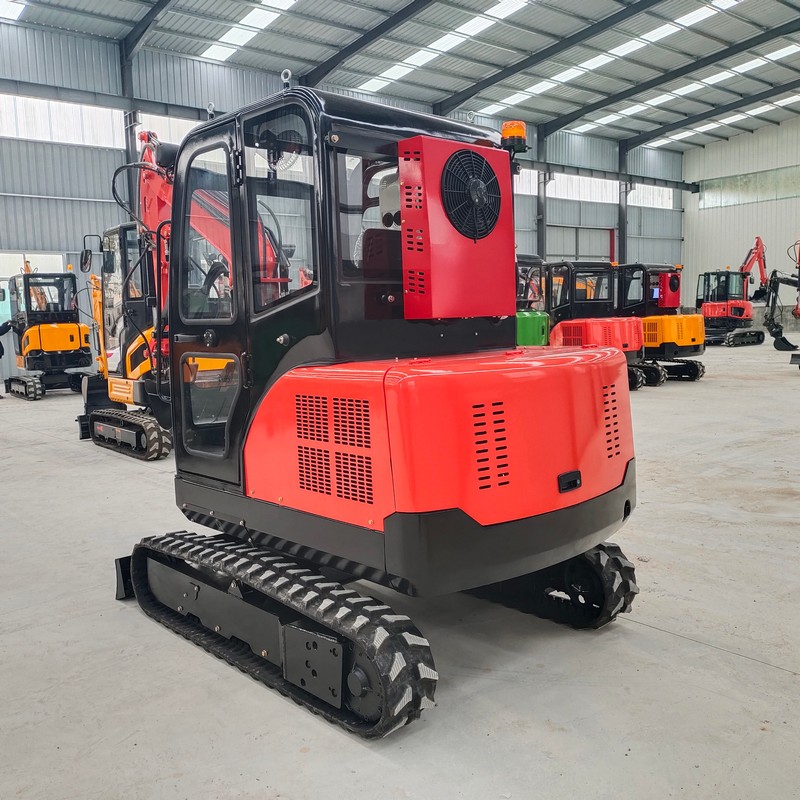

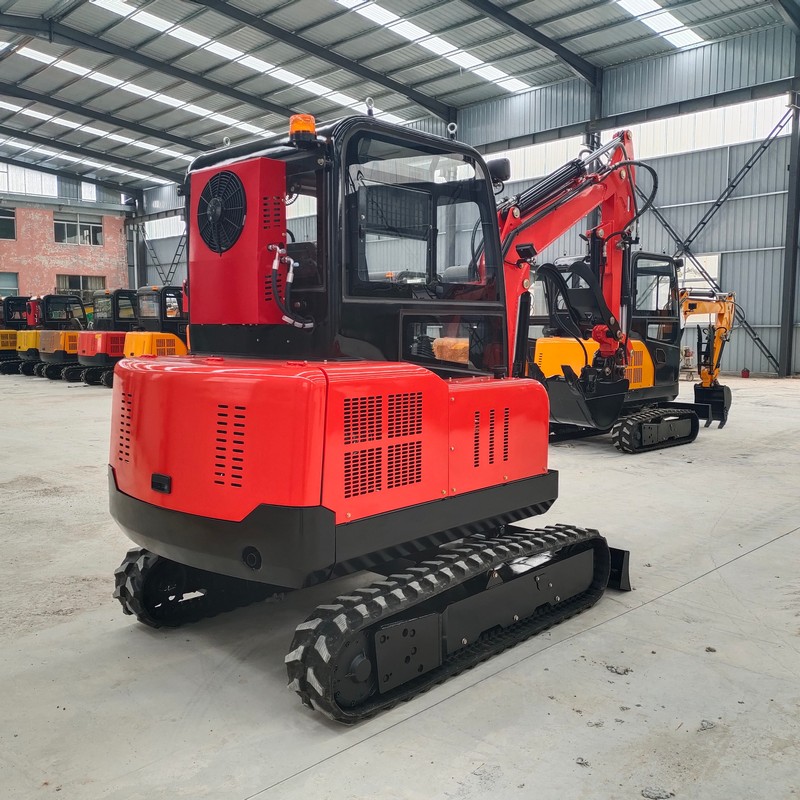

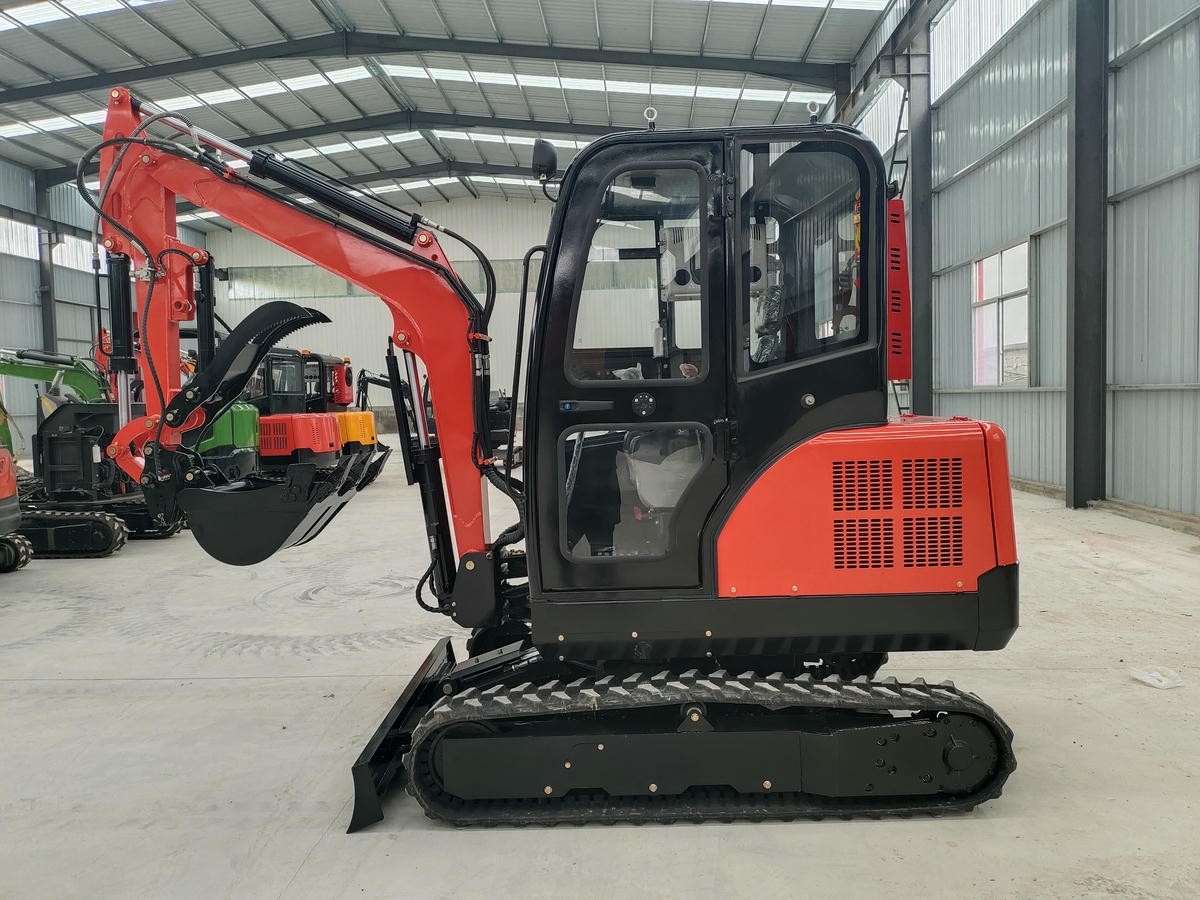

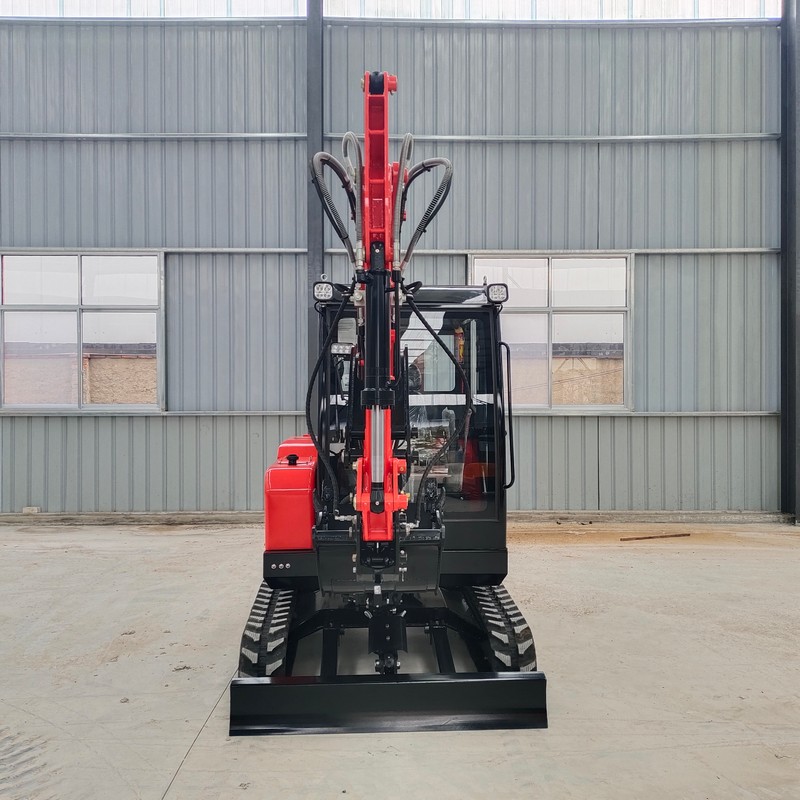

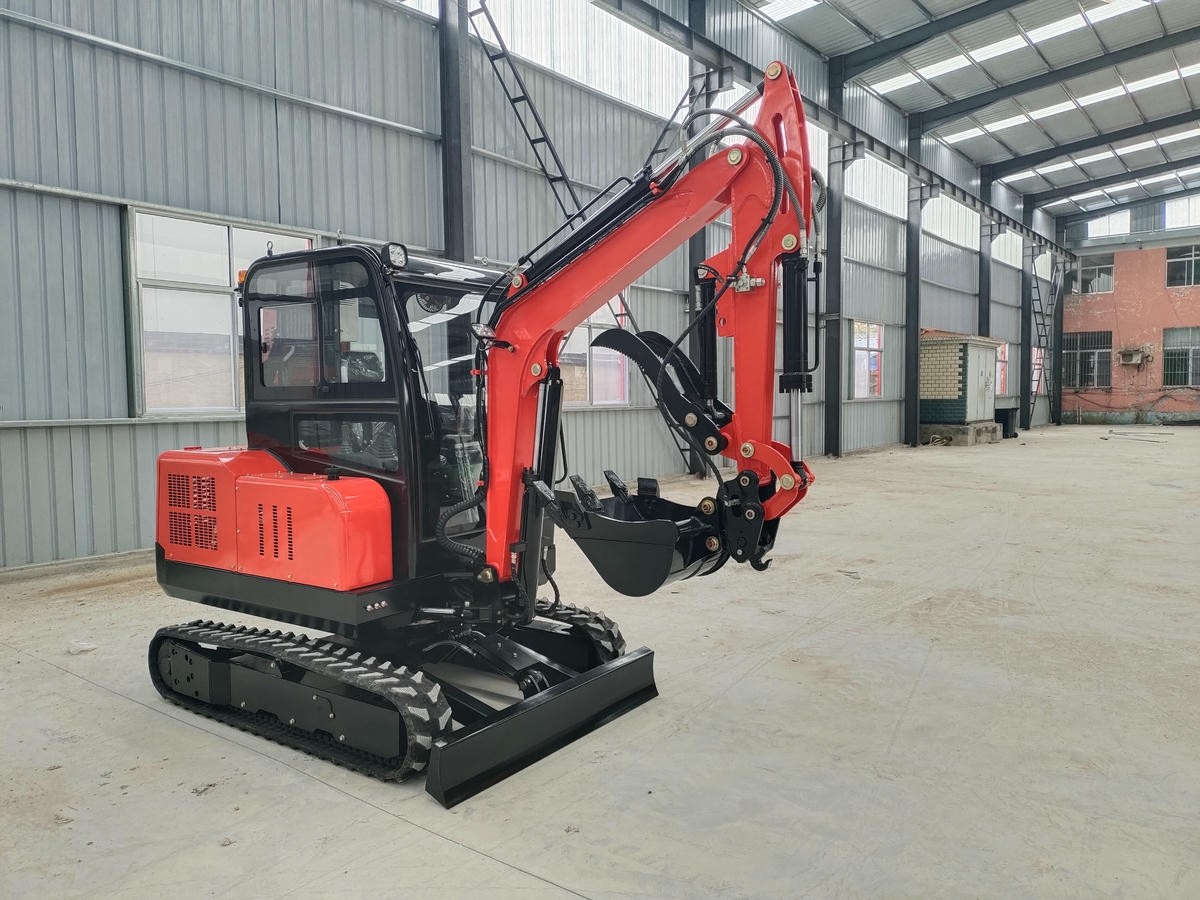

3.5 Ton Excavator

This mini excavator is specifically designed for operations in narrow spaces, suitable for municipal engineering, farmland renovation, pipeline excavation, and other scenarios.

It integrates multiple functions such as excavation, loading, and crushing, with flexible operation and outstanding efficiency.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product Advantages

Adopts a compact body structure with a small turning radius, enabling free movement in confined areas.

The power system and hydraulic system are optimally matched to ensure operational stability and fuel economy.

Equipped with a multi-functional accessory interface, it supports quick replacement of tools such as buckets and breakers to meet diverse needs.

3.5 Ton Excavator

SPECIFICATION	Operation Weight	t	3.5ton	3.8ton
	Engine Brand		Xinchai 490	KUBOTA1703
	Rated Power	Kw	36.8	18.2
	Digging Bucket Capacity	cbm	0.1	0.11
	Bucket Width	mm	500	530
	Traveling Motor		Danfoss	LKC
	Travel Speed	km/h	2.7	4.0/2.3
	Swing Motor		Danfoss	LKC
	Swing Speed	r/min	10	12
	Hydraulic System		Plunger Pump	Plunger Pump
	Body Swing Radius	mm	1291	858
	Body Swing Angel	deg	360	360
	Boom Swing Angel(L/R)	deg	55/45	68/50
	Max. Grade Ability	deg	35	35
	Fuel Tank	L	40	40
	Hydraulic Fluid Chamber	L	41	41
MAIN DIMENSIONS	Overall Length	mm	4348	4945
	Overall Width	mm	1500	1700
	Overall Height	mm	2159	2585
	Track Width	mm	230	300
	Track Length	mm	1961	2286
	Body Width	mm	1350	1500
WORKING RANGE	Max. Digging Radius	mm	4477	5251
	Max Digging Depth	mm	3058	3071
	Max. Digging Height	mm	3445	4815
	Max. Unloading Height	mm	2203	3382
	Min. Swing Radius	mm	2165	2250
	Max. Digging Depth Of Dozer Blade	mm	297	433
	Max. Lifting Height Of Dozer Blade	mm	230	345

Factory Strength

The production workshop is equipped with intelligent welding robots and precision processing equipment. Key components undergo strict quality inspections to ensure each device meets industry standards. The R&D team continuously optimizes the design and improves the operating experience based on user feedback.

International Shipping

We support global shipping via full container or LCL (less than container load) from multiple ports. The equipment is provided with reinforced packaging and moisture-proof treatment. We can assist customers in handling export customs clearance documents to ensure safe and efficient transportation.

After-Sales Commitment

We offer remote technical guidance services to help users quickly solve basic problems. Key components come with a long-term warranty, and we commit to responding to maintenance needs within the agreed time.
