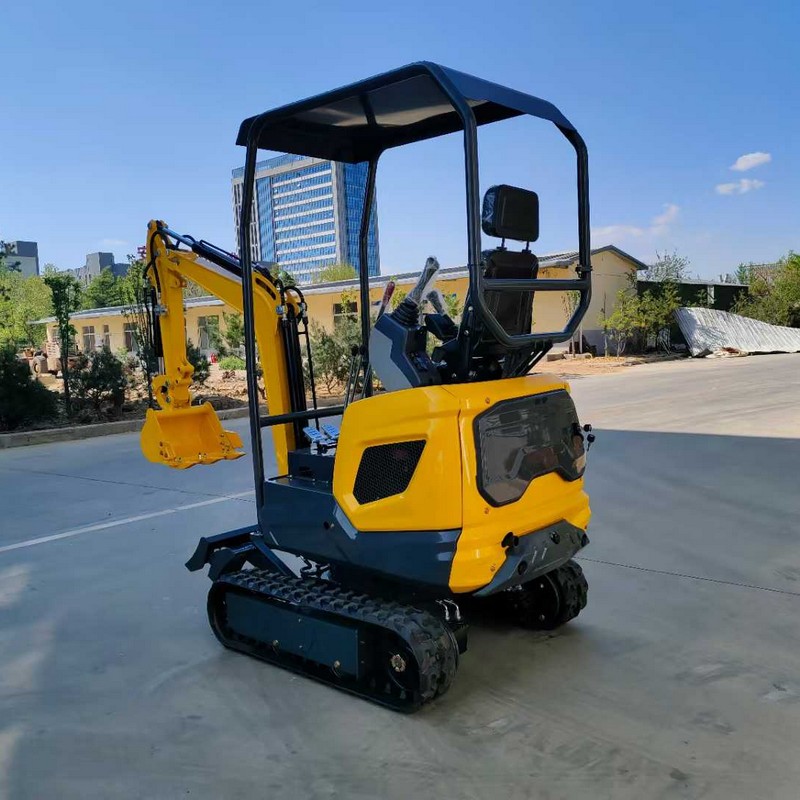

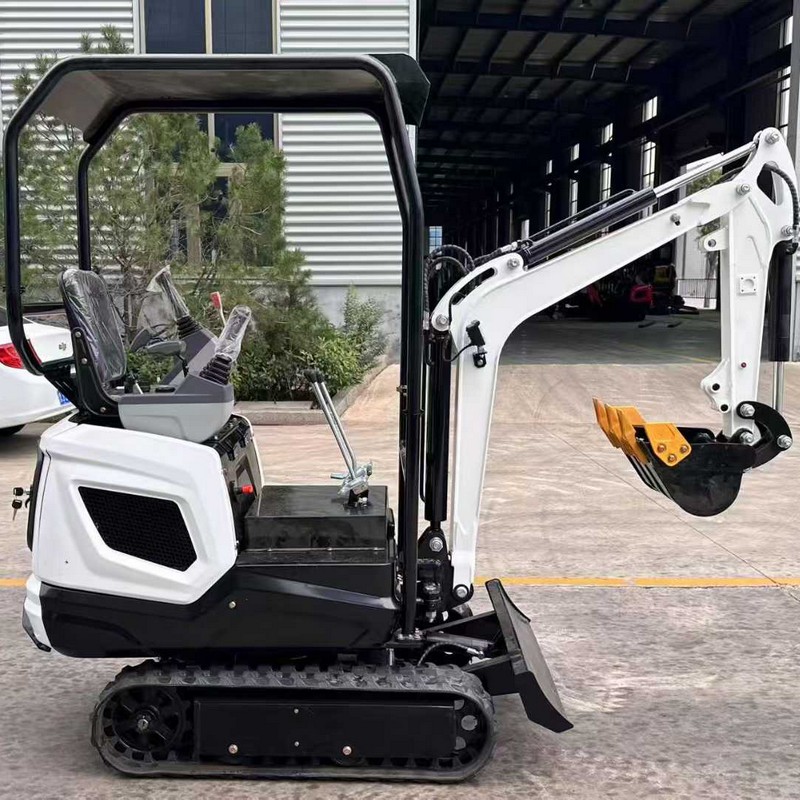

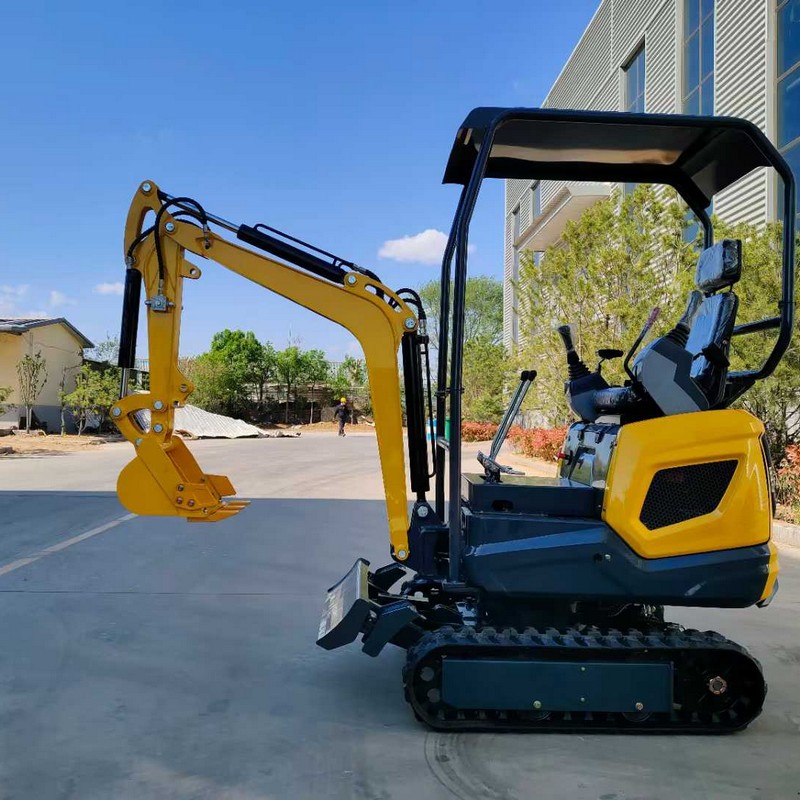

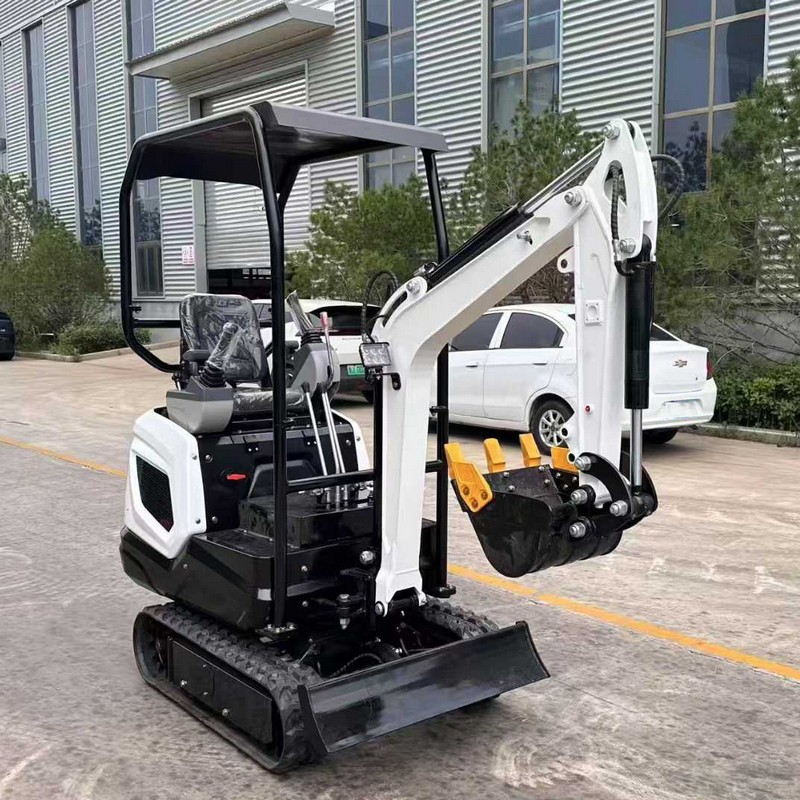

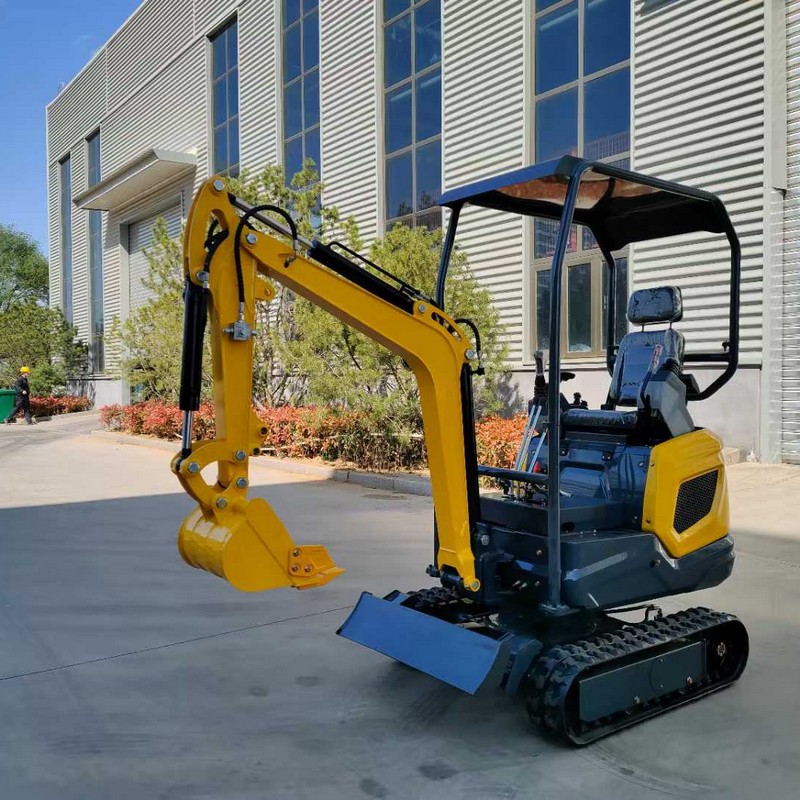

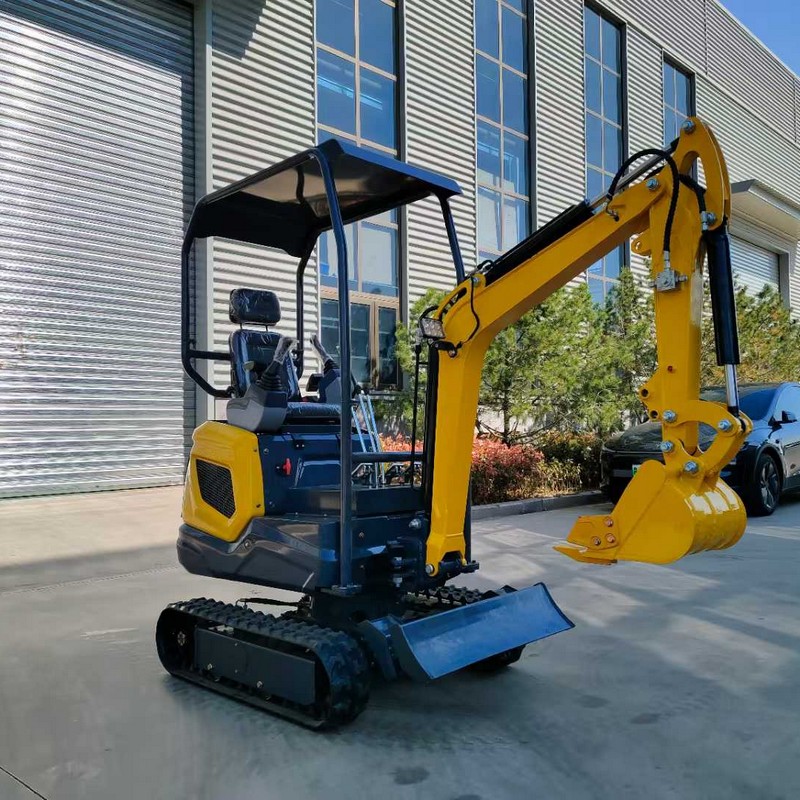

1 Ton Excavator
Comprehensive Advantages of Mini Excavators
Compact size, adaptable to narrow spaces;
Multi-functional design to meet diverse needs;
Simple operation with a short training cycle;
Convenient maintenance and low costs;
High efficiency and energy-saving, ensuring quick returns.
They are the ideal choice for small-scale engineering projects.
Mini Excavator: A Versatile Engineering Machinery
Mini excavators are widely used in urban construction, farmland renovation, landscaping, and other scenarios. With their flexibility and high efficiency, they have become indispensable equipment in modern construction.
| SPECIFICATION | Operation Weight | t | 0.95ton |
| Engine Brand | KOOP192 | ||
| Rated Power | Kw | 7.6 | |
| Digging Bucket Capacity | cbm | 0.018m³ | |
| Bucket Width | mm | 400 | |
| Traveling Motor | |||
| Travel Speed | km/h | 2.1 | |
| Swing Motor | PAIYI | ||
| Swing Speed | r/min | 8 | |
| Hydraulic System | Gear Pump | ||
| Body Swing Radius | mm | 744 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 30 | |
| Fuel Tank | L | 4.89 | |
| Hydraulic Fluid Chamber | L | 12 | |
| MAIN DIMENSIONS | Overall Length | mm | 2820 |
| Overall Width | mm | 934 | |
| Overall Height | mm | 2220 | |
| Track Width | mm | 180 | |
| Track Length | mm | 1257 | |
| Body Width | mm | 845 | |
| WORKING RANGE | Max. Digging Radius | mm | 2507 |
| Max Digging Depth | mm | 1436 | |
| Max. Digging Height | mm | 2283 | |
| Max. Unloading Height | mm | 1698 | |
| Min. Swing Radius | mm | 1220 | |
| Max. Digging Depth Of Dozer Blade | mm | 210 | |
| Max. Lifting Height Of Dozer Blade | mm | 163 |
Multi-functional Operation Capability
Equipped with a standard bucket, it is suitable for tasks such as earth excavation, trench digging, and material handling. Meanwhile, it can quickly replace attachments like breakers, hydraulic shears, and rippers to meet various needs such as crushing, demolition, and leveling, thus improving equipment utilization.
User-friendly Operating Experience
The cab adopts an ergonomic design with reasonably arranged control levers, reducing fatigue during long-hour operations. Some models are equipped with suspended seats and air conditioning systems to enhance operational comfort. In addition, the low-noise design minimizes impact on the surrounding environment, making it suitable for construction in residential areas.
Convenient Maintenance and Cost-effectiveness
This mini excavator features easy maintenance:
Large-opening design of the engine compartment;
Centralized arrangement of maintenance points;
Visual oil level observation window;
Error-proof design to avoid incorrect refueling;
Intelligent reminders for maintenance cycles.
Safety and Reliability
It is equipped with a Roll-over Protective Structure (ROPS) and a Falling Object Protective Structure (FOPS) to ensure the safety of operators. The hydraulic system has an overload protection function to prevent equipment damage due to overloading.
This model, with its flexibility, versatility, and economy, is the ideal choice for municipal engineering, farmland water conservancy, landscaping, and other fields.
After-sales Service
No matter where you are in the world, we promise to respond to after-sales requests within 2 hours and provide clear solutions within 48 hours. Every product comes with a global warranty certificate, eliminating worries for cross-continental procurement.
