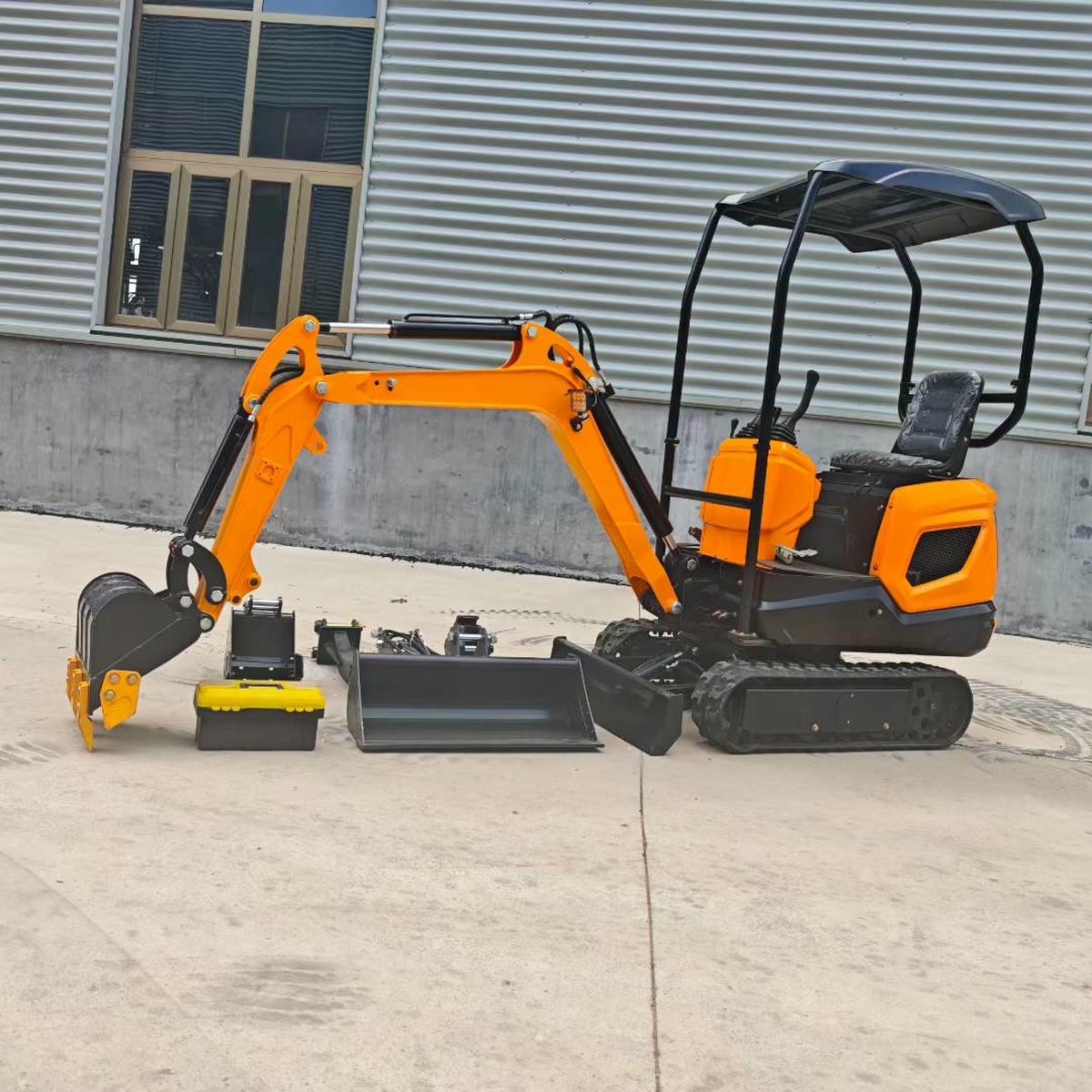

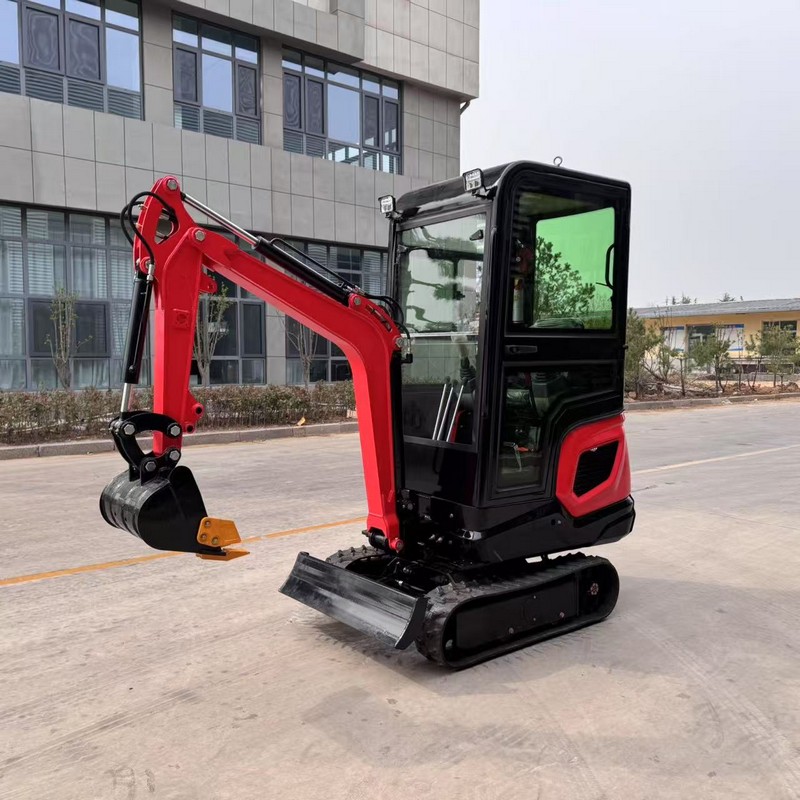

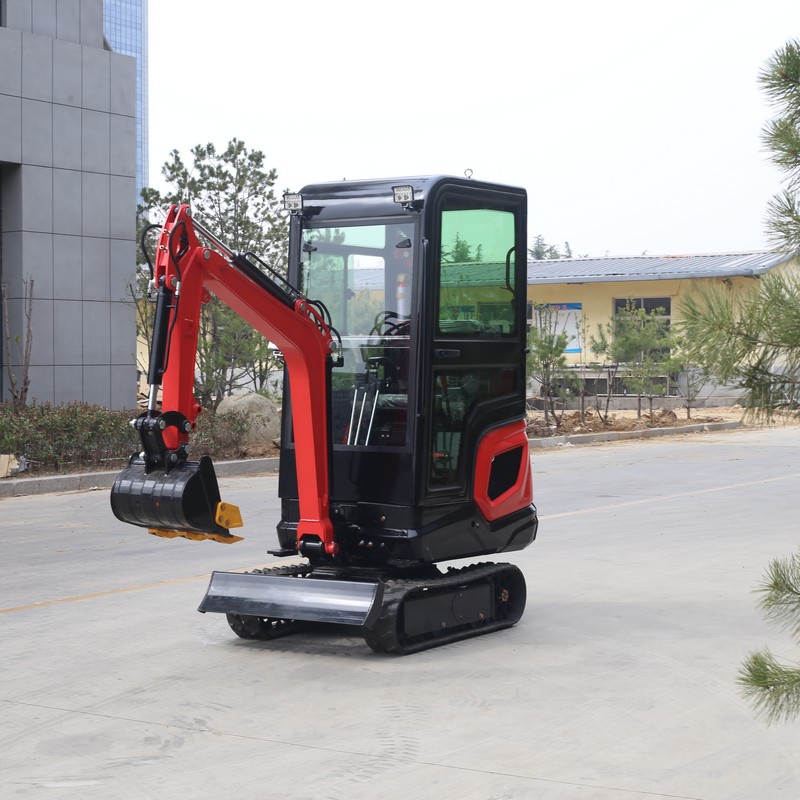

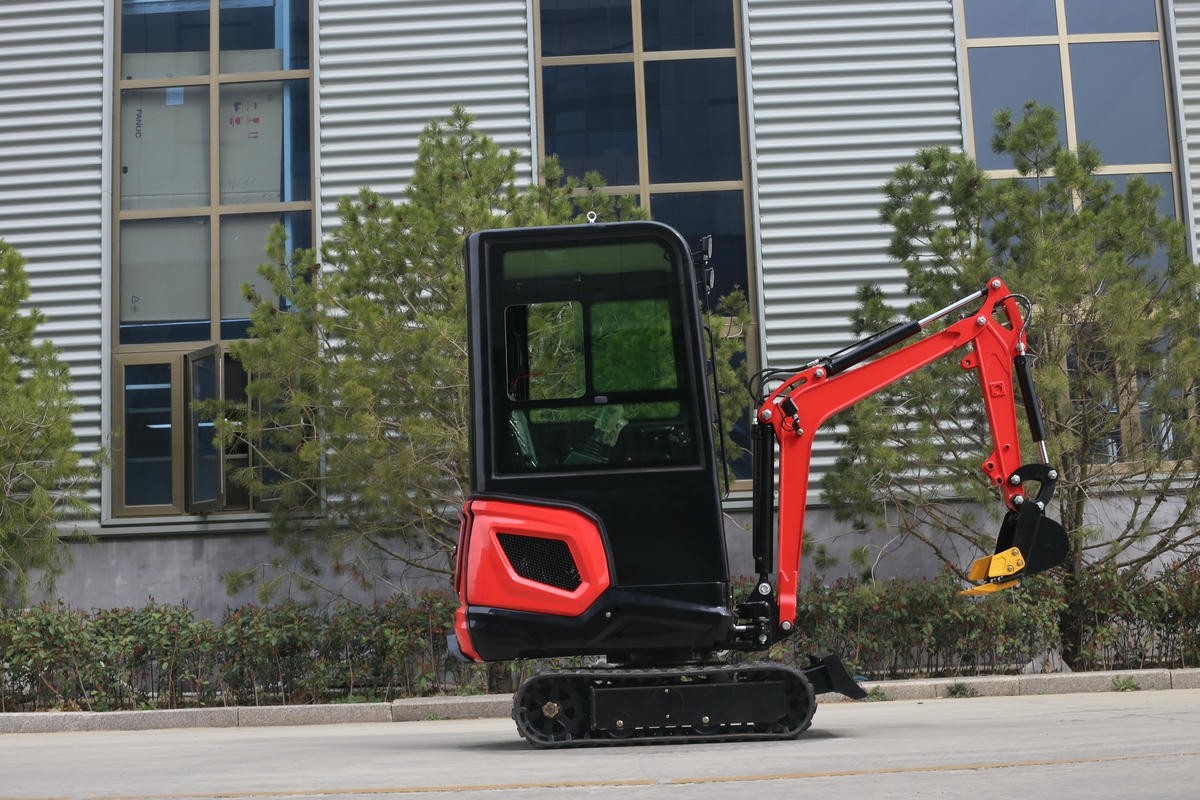

1 Ton Digger
Mini Excavators:
Ideal for Space-Constrained Work Environments
Thanks to their lightweight and flexible features, mini excavators play a vital role in various projects, especially suitable for work environments with limited space.
Lightweight Design for Easy Transportation
The overall weight is relatively light, allowing transportation via small trailers without the need for large flatbed trucks, thus reducing transfer costs.
Some models adopt a tail-swing-free design, with an extremely small rear swing radius, preventing collisions with obstacles when working near corners or walls.
| SPECIFICATION | Operation Weight | t | 0.95ton |
| Engine Brand | KOOP192 | ||
| Rated Power | Kw | 7.6 | |
| Digging Bucket Capacity | cbm | 0.018m³ | |
| Bucket Width | mm | 400 | |
| Traveling Motor | |||
| Travel Speed | km/h | 2.1 | |
| Swing Motor | PAIYI | ||
| Swing Speed | r/min | 8 | |
| Hydraulic System | Gear Pump | ||
| Body Swing Radius | mm | 744 | |
| Body Swing Angel | deg | 360 | |
| Boom Swing Angel(L/R) | deg | 55/45 | |
| Max. Grade Ability | deg | 30 | |
| Fuel Tank | L | 4.89 | |
| Hydraulic Fluid Chamber | L | 12 | |
| MAIN DIMENSIONS | Overall Length | mm | 2820 |
| Overall Width | mm | 934 | |
| Overall Height | mm | 2220 | |
| Track Width | mm | 180 | |
| Track Length | mm | 1257 | |
| Body Width | mm | 845 | |
| WORKING RANGE | Max. Digging Radius | mm | 2507 |
| Max Digging Depth | mm | 1436 | |
| Max. Digging Height | mm | 2283 | |
| Max. Unloading Height | mm | 1698 | |
| Min. Swing Radius | mm | 1220 | |
| Max. Digging Depth Of Dozer Blade | mm | 210 | |
| Max. Lifting Height Of Dozer Blade | mm | 163 |
High-Efficiency Operation Capability
The hydraulic system responds quickly, with smooth movements of the boom and arm, and sufficient digging force to easily handle common working conditions such as clay and gravel.
The bucket is made of wear-resistant steel, ensuring a long service life and reducing replacement frequency.
Intelligent Control
Some models are equipped with an intelligent control system that can automatically adjust hydraulic output according to the load, improving energy efficiency.
The operation panel is simple and intuitive, enabling even novice users to get started quickly and reducing training costs.
Adaptability to Complex Terrains
The wide track design enhances ground adhesion, maintaining stable operation on complex terrains such as slopes and muddy ground.
Rubber tracks are available as an option to reduce damage to hardened roads, making them suitable for municipal road construction.
Environmental Protection and Energy Saving
The engine meets environmental protection standards with low emissions, satisfying the environmental requirements of urban construction.
The optimized fuel system reduces exhaust emissions and lowers operating noise, making it suitable for sensitive areas such as residential areas and schools.
This model is applicable to scenarios such as small earthworks, pipeline laying, and garden arrangement, serving as an ideal tool to improve construction efficiency.
After-Sales Service
We promise "zero after-sales risk":
All repaired or replaced parts enjoy the same warranty period as the original products, with maintenance records accessible for life.
If you are unsatisfied with the after-sales results, you can apply for testing by a third-party institution. If the issue is confirmed to be our responsibility, we will double compensate for the testing fees.
