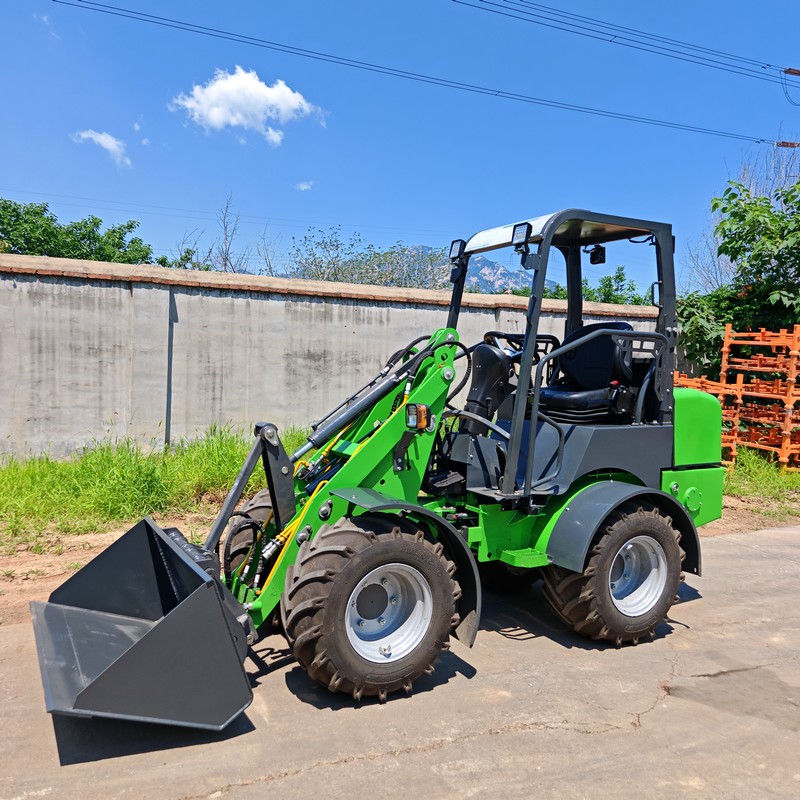

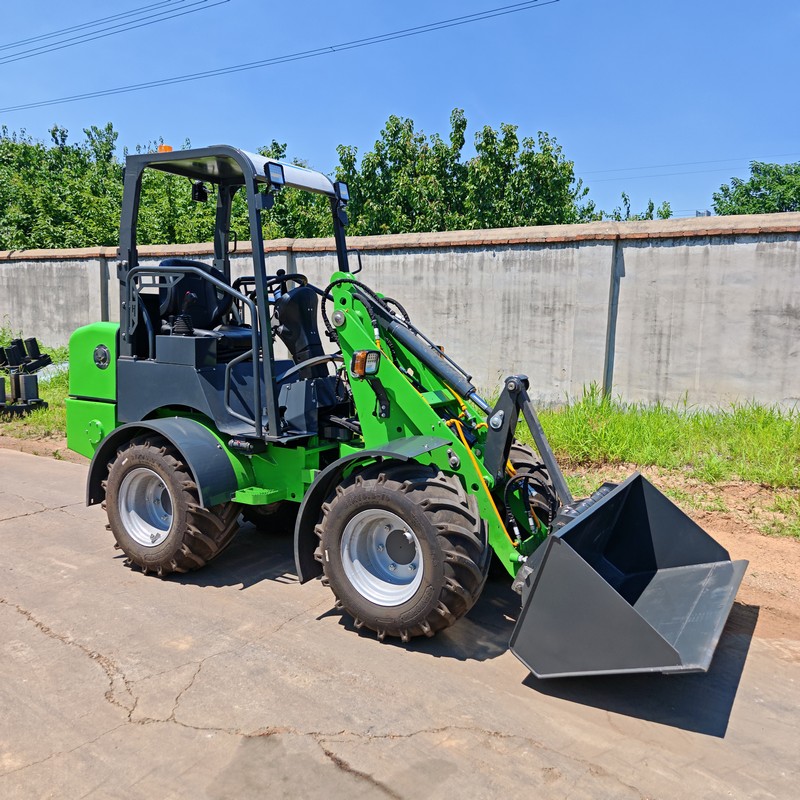

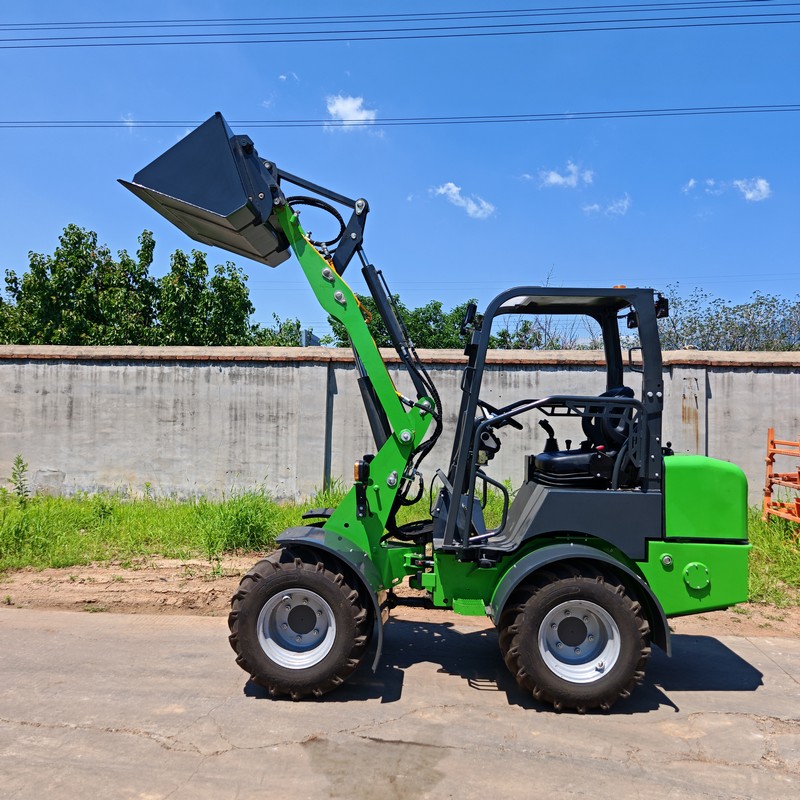

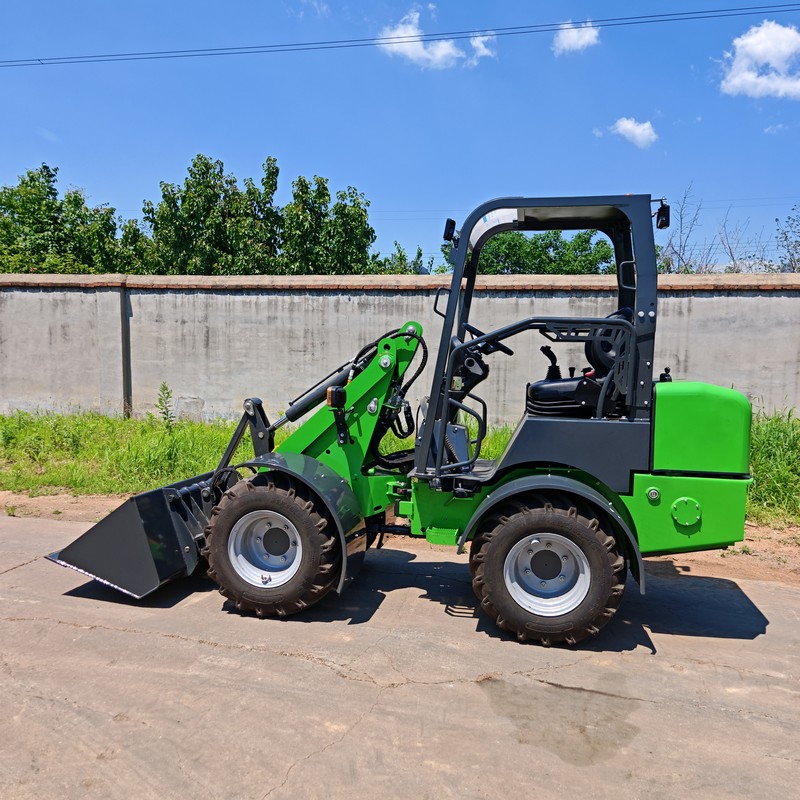

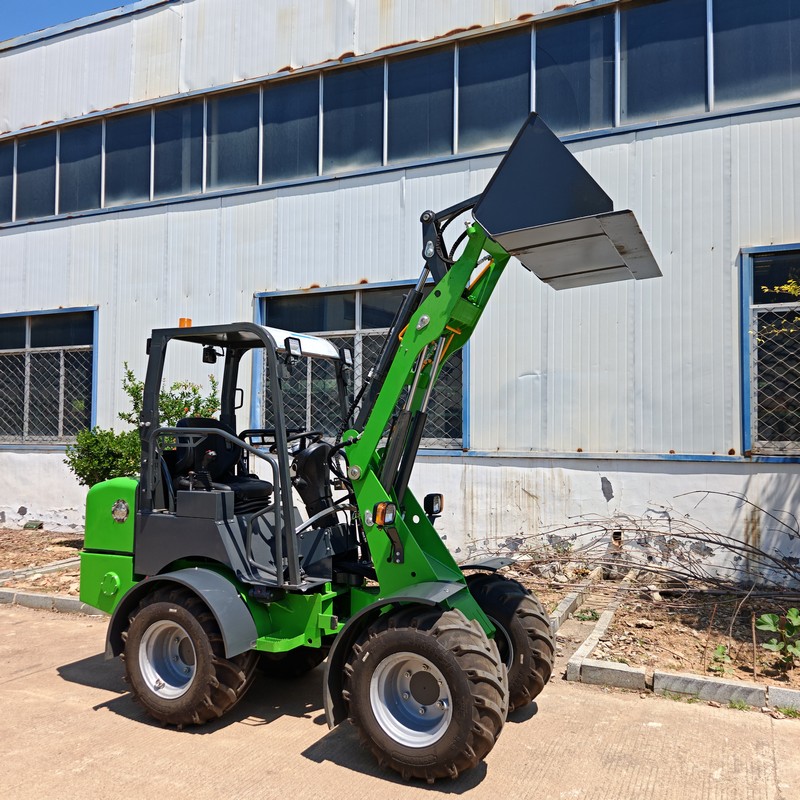

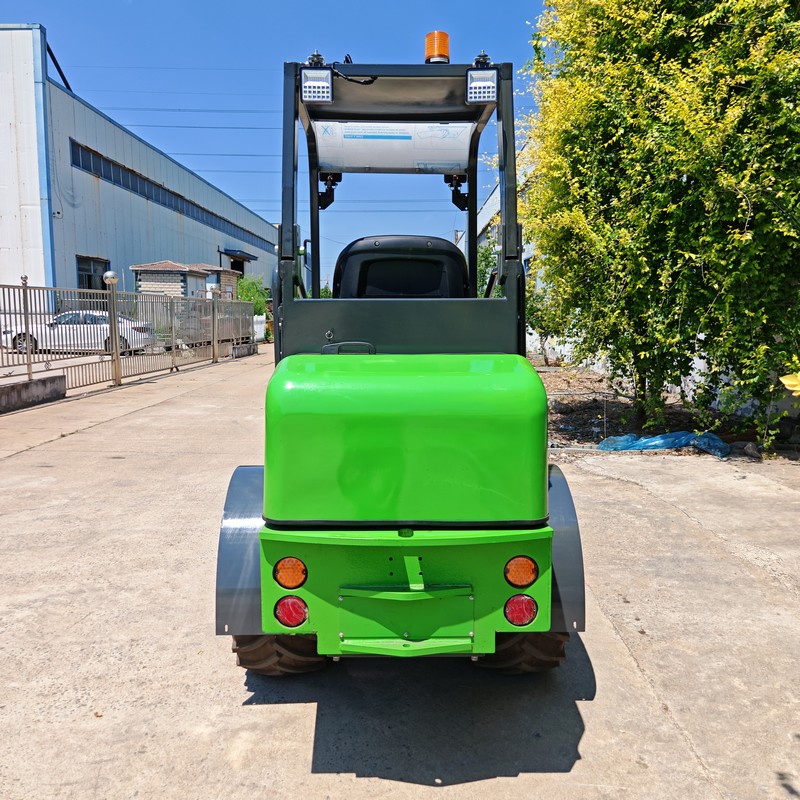

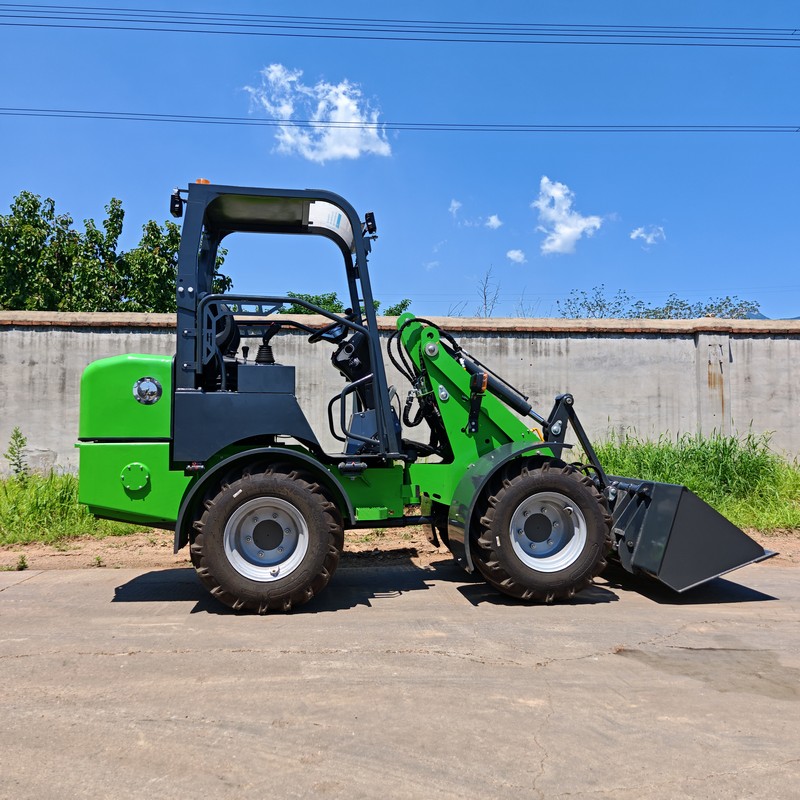

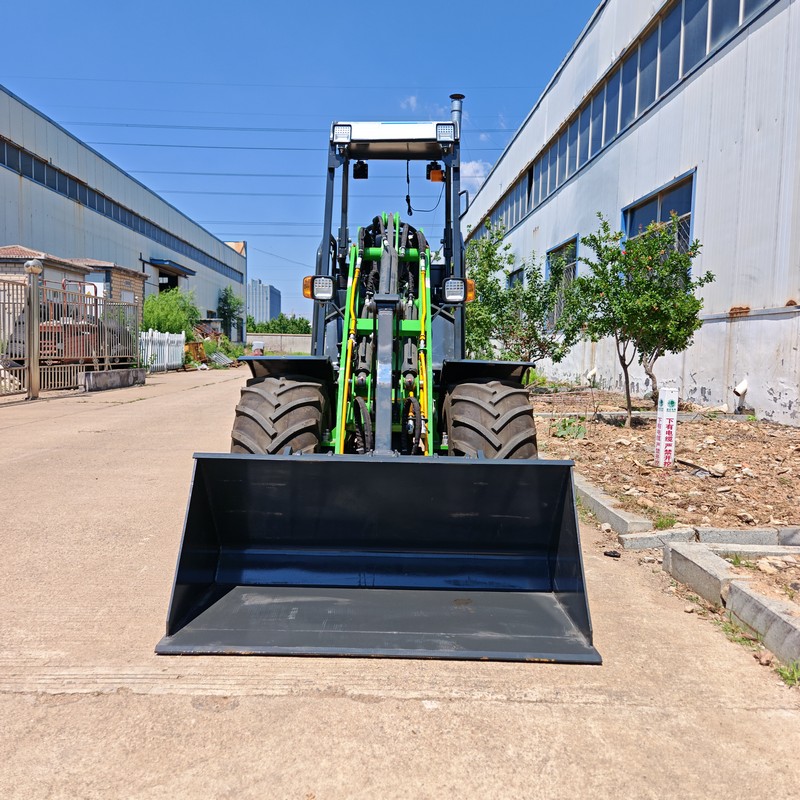

Electric Compact Wheel Loader

Mini 4WD Electric Wheel Loader Advantages

• 4-wheel drive system, strong traction, suitable for muddy, slop and rough terrain

• Zero exhaust emission, low noise, ideal for indoor workshop, farm, enclosed space

• Compact body, small turning radius, flexible operation in narrow passages

• Low operation cost, electric power instead of diesel, less maintenance work

• Easy operation, optional attachments: bucket, fork, grapple, sweeper

• Widely used in farm, construction, garden, warehouse, livestock industry


Product Details

Direct Factory Supply! Our Electric Mini Loader is the ultimate eco-friendly solution for modern construction, agriculture, and warehousing. As a professional OEM manufacturer, we offer high-performance machines designed to replace European brands like Weidemann, Schaffer, Avant at a competitive price.

Mini 4WD Pure Electric Wheel Loader

The Ideal Green Equipment for Operations in Confined Spaces

Say goodbye to high fuel consumption, loud noise and exhaust pollution! The mini 4WD electric wheel loader integrates multiple strengths including 4-wheel drive off-road capability, compact agility, low power costs, zero emissions and quiet operation. It is widely applied in farms, indoor workshops, garden construction sites, community renovation, grain transportation, tunnel and indoor construction scenarios.

4-Wheel Drive for Outstanding Trafficability

Equipped with four-wheel independent drive and abundant starting torque, it resists slipping on muddy ground, slopes and bumpy roads. It travels steadily on narrow construction sites, farm dirt roads and damp barns, easily navigating complex terrain with strong load capacity and powerful digging performance.

Zero Emissions, Suitable for Diverse Working Scenarios

No exhaust fumes or oil pollution! It can operate in indoor factories, breeding barns, basements and enclosed spaces. Compliant with environmental regulations, it is not restricted by urban exhaust emission bans, delivering clean operation without contaminating materials or surroundings.

Ultra-Low Operating Costs for Better Long-Term Value

Electric power replaces fuel, greatly cutting energy expenses. Free of internal combustion engine components, it eliminates regular replacements of engine oil, oil filters and fuel filters. Fewer vulnerable parts simplify maintenance and bring significant savings on service fees for a faster return on investment.

Compact Structure & Agile Steering for Narrow Spaces

The machine features compact overall dimensions and a small turning radius, enabling easy U-turns and passage in narrow lanes, greenhouses and indoor aisles. Its streamlined body easily passes through gateways and gentle ramps, handling jobs where large loaders cannot reach.

Low Noise & Comfortable Driving Experience

The motor generates minimal operating noise, making it suitable for night construction and work in residential areas without noise disturbance. It boasts user-friendly controls, stepless speed change and light steering. New operators can master it quickly, and operators suffer less fatigue during long shifts.

Multi-Purpose Design with Quick Attachment Replacement

Comes with a standard digging bucket. Optional attachments include log grapples, pallet forks, sweepers and snow pushers. Capable of shoveling sand and gravel, cleaning manure, transporting feed, handling timber and clearing waste, one machine fulfills various material handling tasks.

Safe & Reliable with Intelligent Electronic Control System

Fitted with a professional electronic control system with overvoltage, undervoltage and overload protection. The hydraulic system ensures stable lifting and responsive braking. Lithium batteries or maintenance-free batteries are optional to support long endurance for daily full-shift operations.

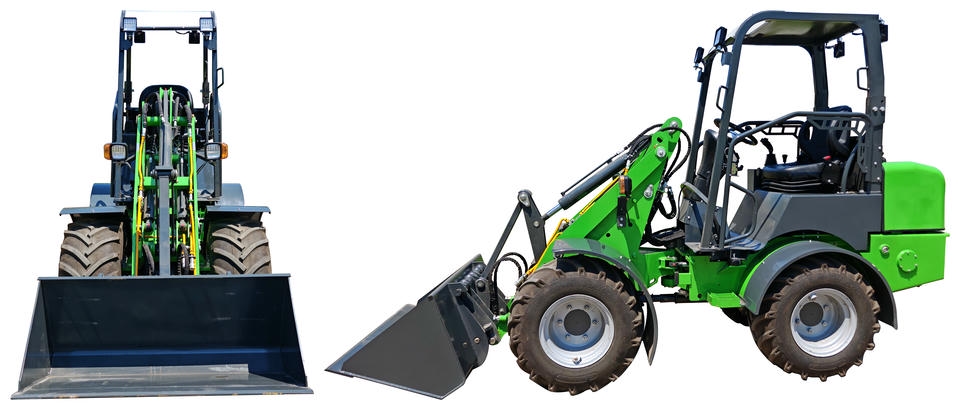

electric loader

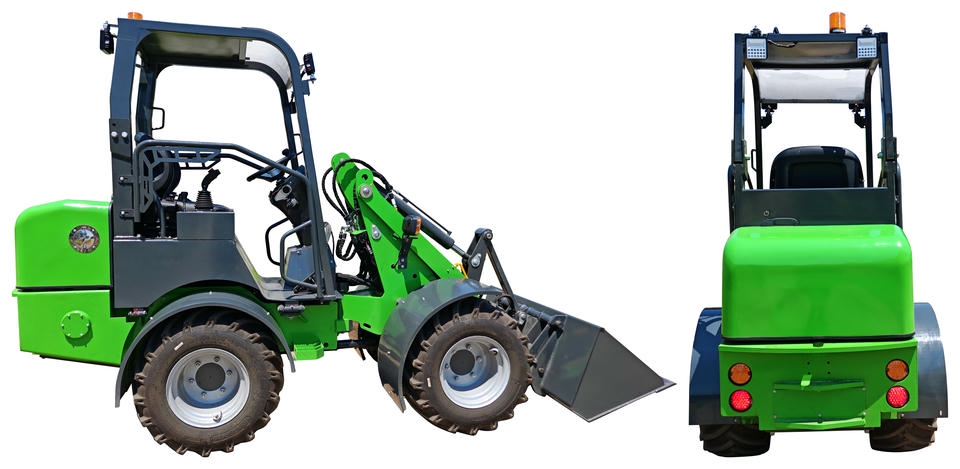

electric loader


Electric loader

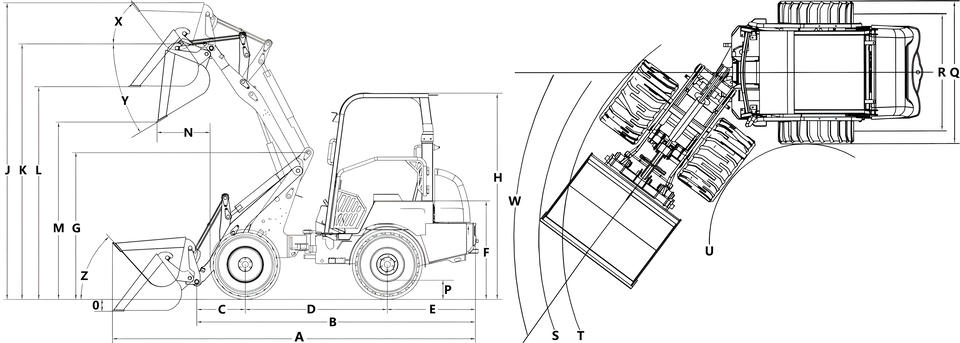

COMPACT ELECTRIC LOADER   TECHNICAL SPECIFICATION
DIMENSIONSTotal LengthA3820 mm150.4 in
Total Length Without BucketB3090 mm121.7 in
Front OverhangC500 mm19.7 in
Wheel BaseD1500 mm59.1 in
Rear OverhangE1090 mm42.9 in
Seat HeightF1290 mm50.8 in
Height to Lifting Cylinder Hinge PinG1610 mm63.4 in
Height With Overhead GuardH2250 mm88.6 in
Overall Operating HeightJ3310 mm130.3 in
Height to Bucket Hinge PinK2800 mm110.2 in
Load-Over HeightL2610 mm102.8 in
Dumping HeightM2200 mm86.6 in
Dumping ReachN380 mm15 in
Digging DepthO100 mm3.9 in
Min.Ground ClearanceP240 mm9.4 in
Total WidthQ1300 mm51.2 in
Tread WidthR920 mm36.2 in
Max.RadiusS2640 mm103.9 in
Outer Edge RadiusT2300 mm90.6 in
Inner RadiusU1475 mm58.1 in
Articulation AngleW52°52°
Rollback Angle at Max.Lift HeightX52°52°
Dumping Angle at Max.Lift HeightY35°35°
Rollback Bucket Angle on GroundZ46°46°
WEIGHTSCurb   Weight
    (With Bucket,Hydraulic Oil)

2220 kg4894 lb
Rated Load
     (Wheel Loader Body Straight)

850 kg1874 lb
Rated Load
    (Wheel Loader Body Bent)

550 kg1213 lb
Tipping Weight
1100 kg2425 lb
HYDRAULIC SYSTEMWorking System Flow   Rate
40 L/min8.8 gpm(UK)
Working System Pressure
160 bar2321 psi
Boom Lifting Time
3.4s3.4s
Function of Levelling Automatically
Yes
CAPACITY &
    SPEED
Hydraulic Oil Tank   Capacity
28 L6.2 gal(UK)
Bucket Capacity
0.26 m³57.19 gal(UK)
Speed
15 km/h9.3 mph
BRAKE   & TYREBrake
Drum Brake
Tyre
35x15.5-15
ELECTRIC MOTORSTraveling Motor Power
18kW24.1 hp
Hydraulic Pump Motor Power
18kW24.1 hp
BATTERYBattery Type
Lithium Iron Phosphate   Battery
Capacity
76.8V 280AH
Battery Operating Temperature Range
-20℃-55℃
Working Time
5h-6h
CHARGERCharger Model
80V 130A
Weight
17kg37.5 lb
Charging Time (76.8V280Ah Battery)
2h-2.5h

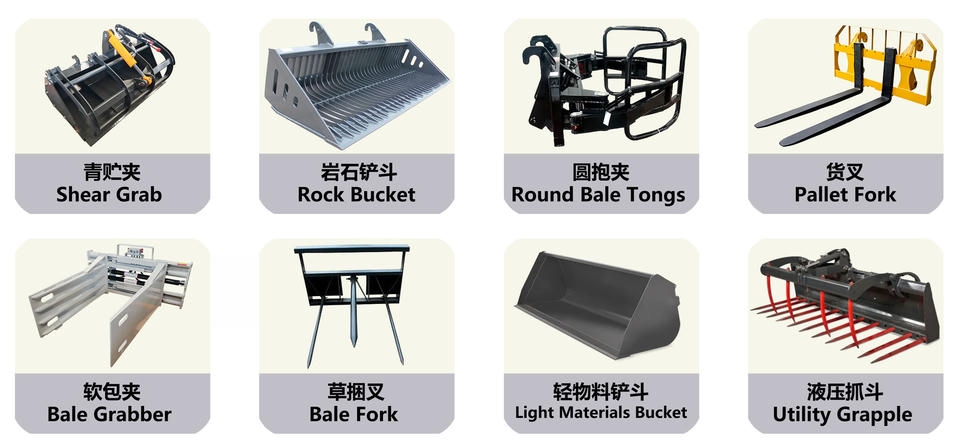

Attachments

loader attachments

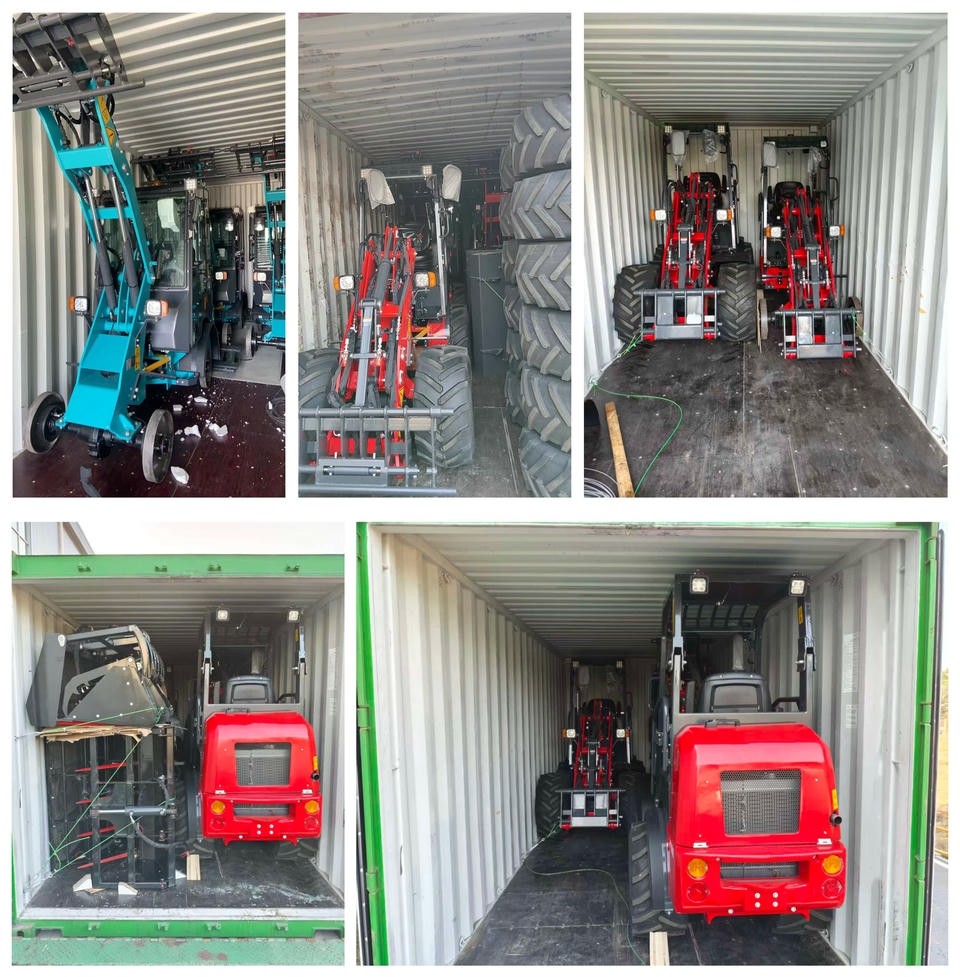

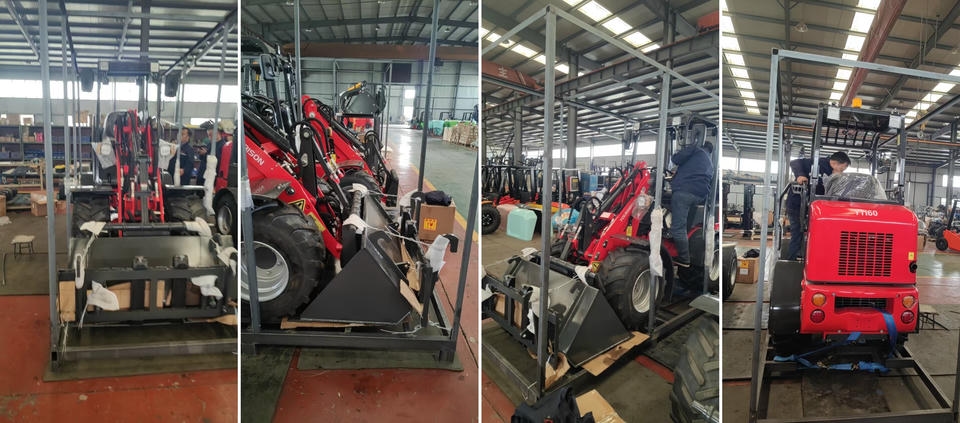

Packaging & Shipping

wheel loader shipping

wheel loader shipping


With over 20 years of experience in engineering machinery design and manufacturing, our company is equipped with a complete set of processing facilities. We specialize in a wide range of products, including diesel forklifts, electric forklifts, LPG forklifts, mini loaders, skid steer loaders, and loader attachments. Our equipment is widely applied in warehousing & logistics, municipal engineering, agriculture, animal husbandry, breeding farms, and landscaping infrastructure projects. We also provide integrated solutions for customized equipment development. Having exported to numerous countries and served thousands of clients, we warmly welcome you to visit our factory for business cooperation.

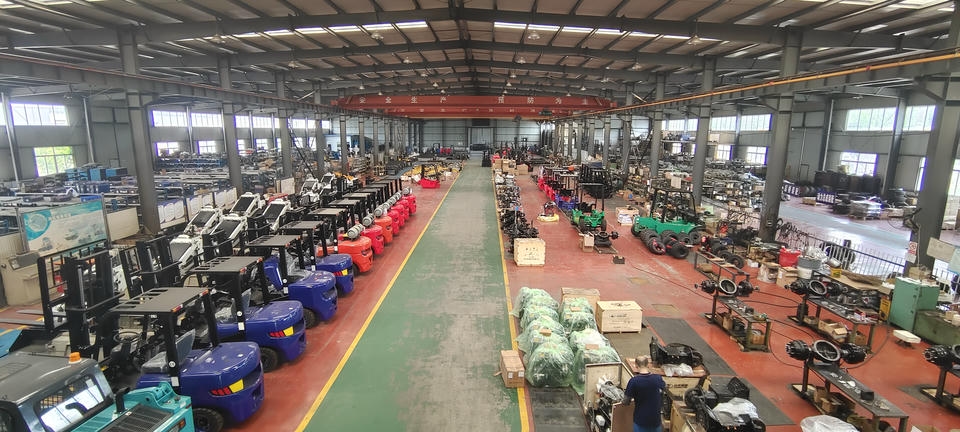

Factory


FAQ
1. Q: Do TIGLIFT compact loader comply with worldwide requirements and certifications?
A: Yes, All the TIGLIFT compact loader usually conform to worldwide first-class requirements and attain applicable certifications. This consists of CE certification, ISO certification, EPA certification and more.
2. Q: What's the delivery time?
A: Its depends on the order quantity,please check with our customer service,for less than 10 sets standard compact loader usually 20 days can delivery.
3. Q: What's the MOQ (minimum order quantity)? I want buy 1 set customized compact loader,is that OK? Is that possible to use my own LOGO?
A: No problem. We can do the customized forklift. ONE set also be accepted. You can use your own LOGO on the forklift. OEM can be accepted.
4. Q:How about the after service?
A: As we mentioned above,we will do our utmost to provide excellent service to every customer. That's also our TIGLIFT company business philosophy.
