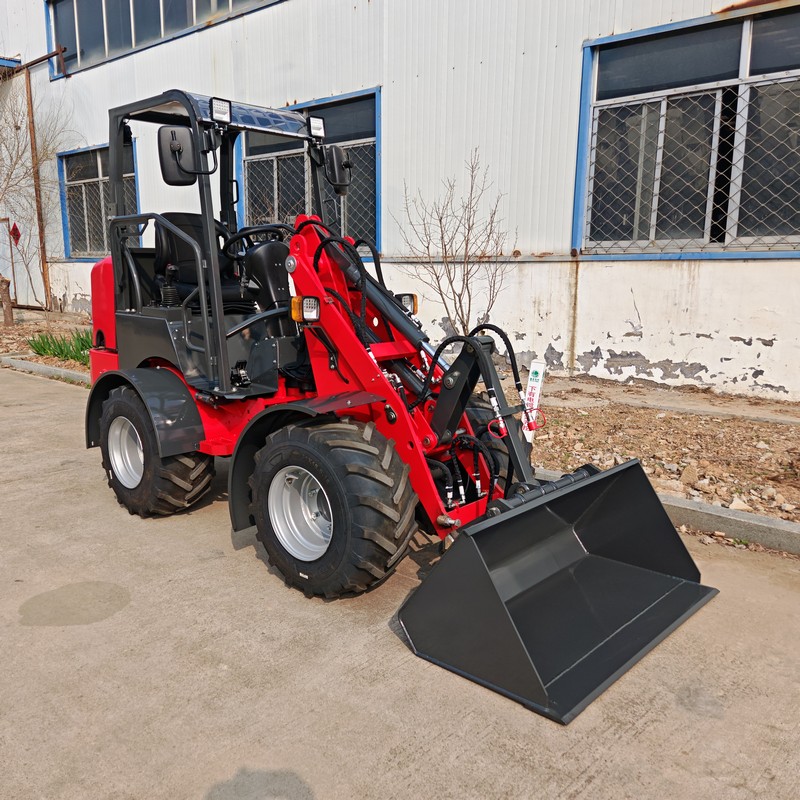

Compact Wheel Loader

1.Compact & Agile: Minimized turning radius, perfect for confined spaces.

2.Powerful & Efficient: EU Stage V diesel engine, delivering low fuel consumption.

3.Durable & Stable: Robust structural design ensures exceptional rigidity and longevity.

4.Versatile: Equipped with a quick coupler, compatible with a wide range of attachments.

5.All-Rounder: 4WD drivetrain designed for diverse working conditions.

6.User-Friendly Control: Intuitive joystick operation for efficient performance.

7.Comfortable & Easy Maintenance: Ergonomic cabin with easily accessible service points.

WhatsApp Contact Now E-Mail

Product Details

This small loader is specially designed for high efficiency and high flexibility. With its compact body structure, strong power, four-wheel drive and handle operation design, this equipment is perfectly suitable for narrow-space operations such as urban construction sites, breeding farms and factory warehouses.

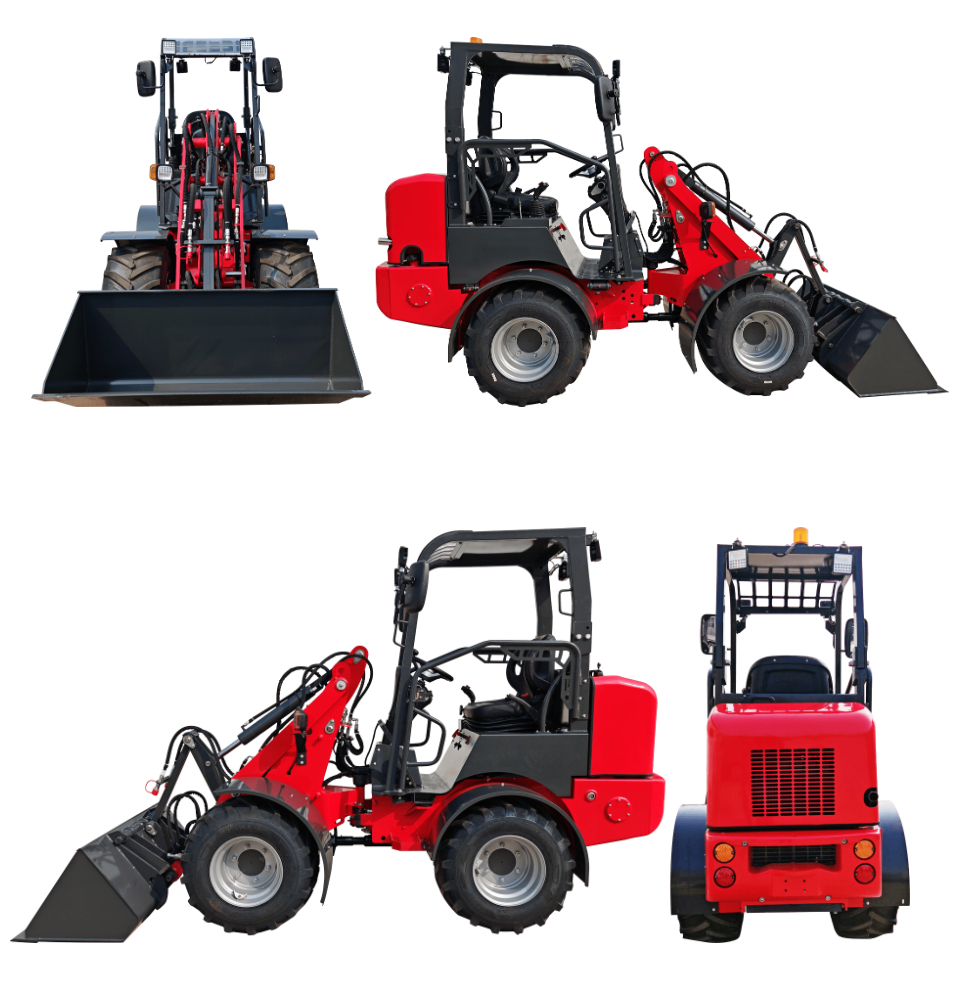

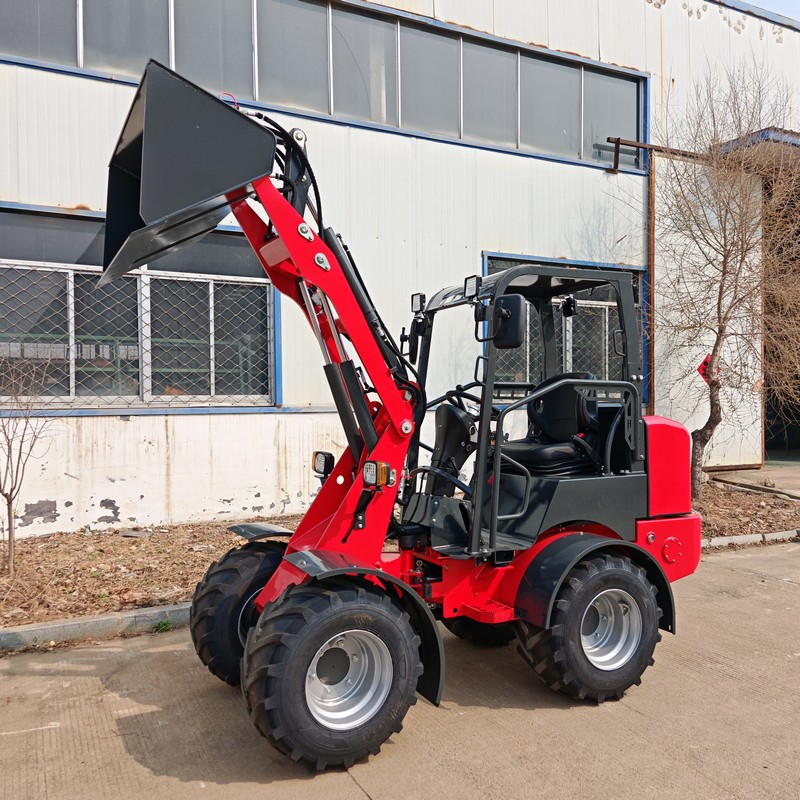

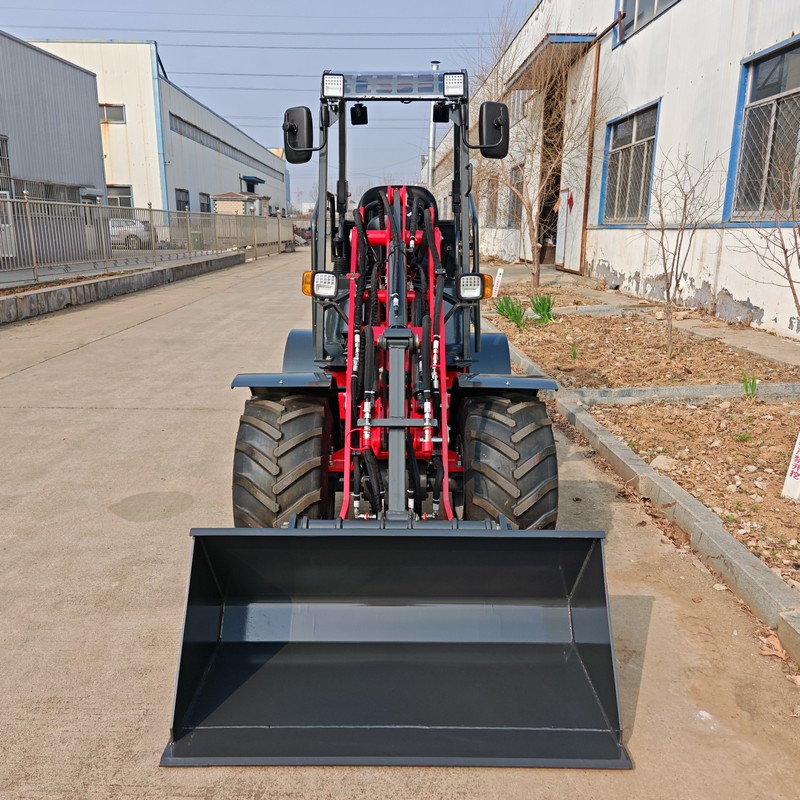

compact loader

Compact loader

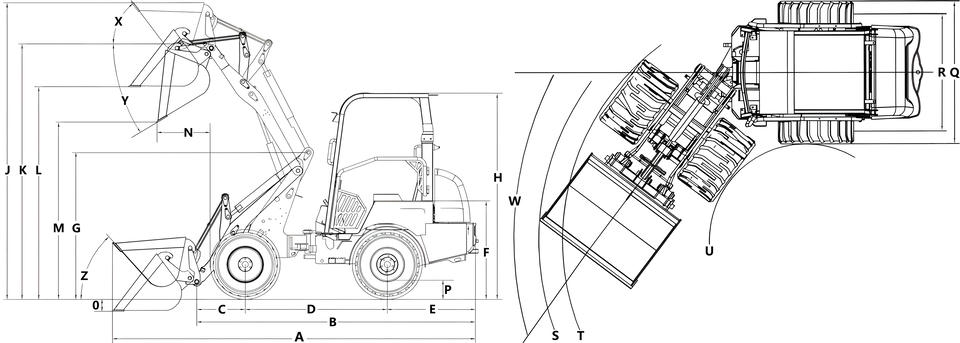

COMPACT LOADER TECHNICAL SPECIFICATION
DIMENSIONS	Total Length	A	3660 mm	144.1 in
	Total Length Without Bucket	B	3020 mm	118.9 in
	Front Overhang	C	520 mm	20.5 in
	Wheel Base	D	1500 mm	59 in
	Rear Overhang	E	1000 mm	39.4 in
	Seat Height	F	1130 mm	44.5 in
	Height to Lifting Cylinder Hinge Pin	G	1620 mm	63.8 in
	Height With Overhead Guard	H	2280 mm	89.8 in
	Overall Operating Height	J	2940 mm	115.8 in
	Height to Bucket Hinge Pin	K	2780 mm	109.5 in
	Load-Over Height	L	2610 mm	102.8 in
	Dumping Height	M	2220 mm	87.4 in
	Dumping Reach	N	340 mm	13.4 in
	Digging Depth	O	100 mm	3.9 in
	Min.Ground Clearance	P	220 mm	8.7 in
	Total Width	Q	1310 mm	51.6 in
	Tread Width	R	920 mm	36.2 in
	Max.Radius	S	2640 mm	103.9 in
	Outer Edge Radius	T	2300 mm	90.6 in
	Inner Radius	U	1475 mm	58.1 in
	Articulation Angle	W	52°	52°
	Rollback Angle at Max.Lift Height	X	52°	52°
	Dumping Angle at Max.Lift Height	Y	35°	35°
	Rollback Bucket Angle on Ground	Z	46°	46°
WEIGHTS	Curb Weight (With Bucket，Fuel，Hydraulic Oil)		2016 kg	4445 lb
	Rated Load (Wheel Loader Body Straight)		850 kg	1874 lb
	Rated Load (Wheel Loader Body Bent)		550 kg	1213 lb
	Tipping Weight		1100 kg	2425 lb
HYDRAULIC SYSTEM	Driving System Flow Rate		64 L/min	14 gpm(UK)
	Driving System Pressure		400 bar	5802 psi
	Working System Flow Rate		40 L/min	8.8 gpm(UK)
	Working System Pressure		160 bar	2321 psi
	Boom Lifting Time		3.4s	3.4s
	Function of Levelling Automatically		Yes
CAPACITY & SPEED & BUCKET	Fuel Tank Capacity		26 L	5.72 gal(UK)
	Hydraulic Oil Tank Capacity		40 L	8.8 gal(UK)
	Speed		20 km/h	12.4 mph
	Bucket		0.26 m³	57.19 gal(UK)
DRIVE SYSTEM	Type of Drive		Hydrostatic
DRIVE SYSTEM	Shift		Electric,Stepless
ELECTRIC SYSTEM	Operating Voltage		12V
	Battery		72Ah
	Generator		60A
BRAKE & TYRE	Operating Brake		Transmission Drum Brake
BRAKE & TYRE	Tyre		35x15.5-15
OPTION ENGINE (1)	Model		XINCHAI 3B11X51
	Type		Water Cooling
	No. of Cylinder		3
	Emission		Europe Stage V
	Displacement		1.123L	68.53 in³
	Power Output		18.5 kW/3000rpm
OPTION ENGINE (2)	Model		KUBOTA D1105-EF22
	Type		Water Cooling
	No. of Cylinder		3
	Emission		Europe Stage V
	Displacement		1.123L	68.53in³
	Power Output		( E4 ) 17.1 kW / 3000 rpm
OPTION ENGINE (3)	Model		KUBOTA V1505-EF01-CN4
	Type		Water Cooling
	No. of Cylinder		4
	Emission		Europe Stage V
	Displacement		1.498L	91.41 in³
	Power Output		18.2 kW/2300rpm

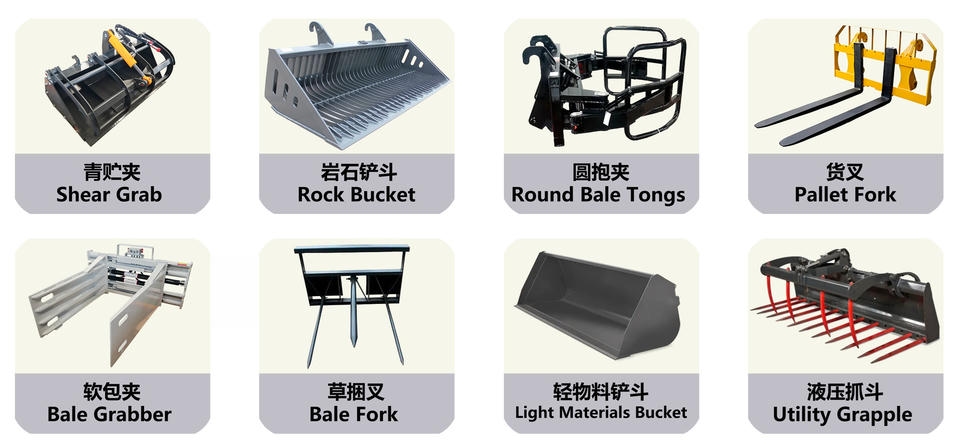

Attachments

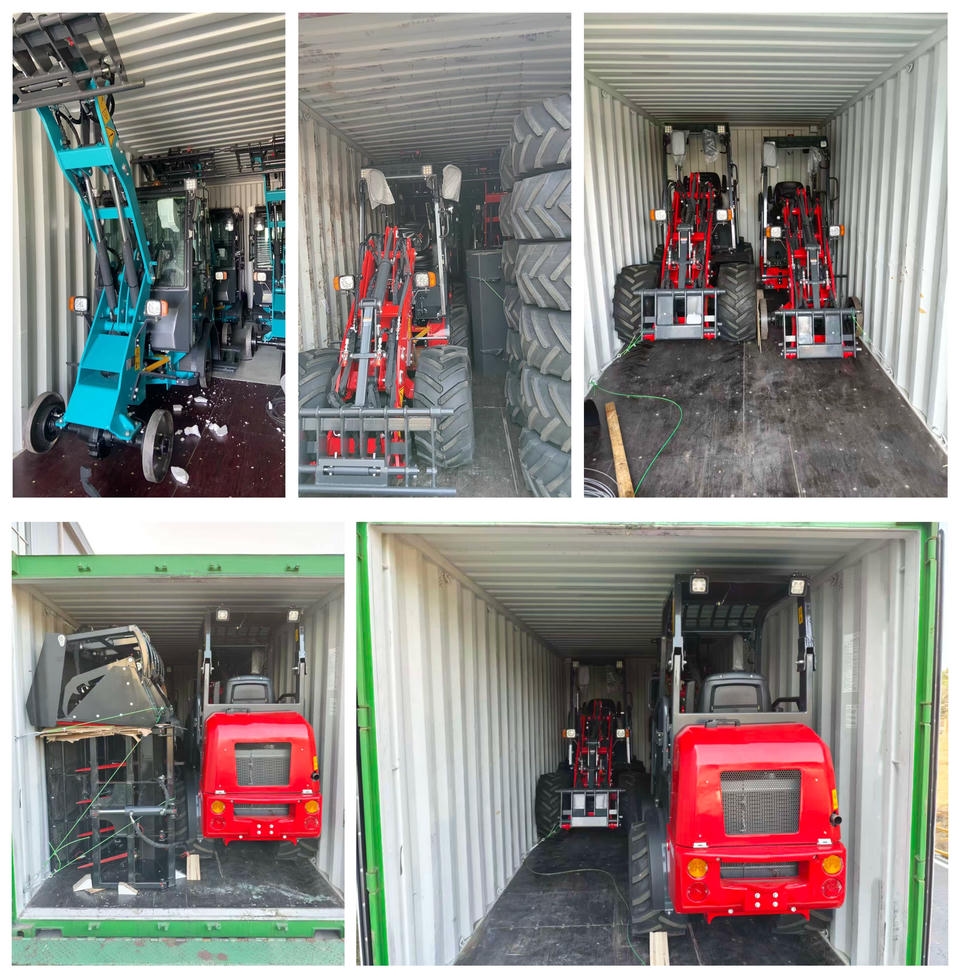

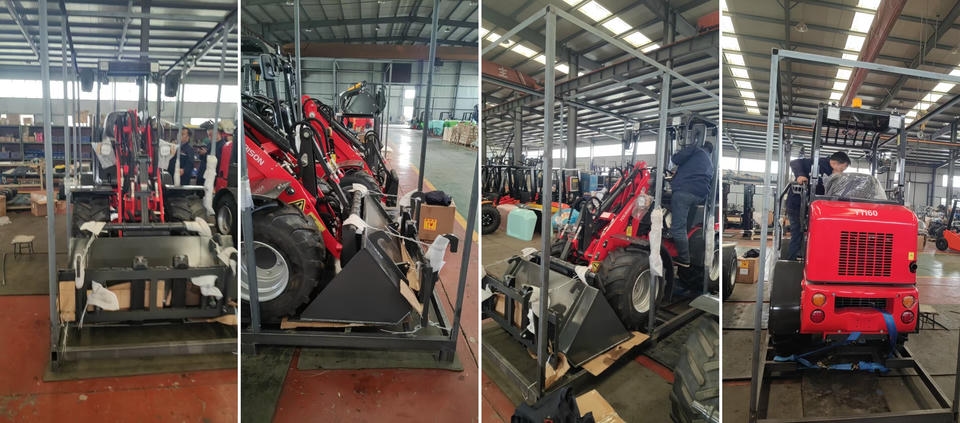

Packaging & Shipping

With over 20 years of experience in engineering machinery design and manufacturing, our company is equipped with a complete set of processing facilities. We specialize in a wide range of products, including diesel forklifts, electric forklifts, LPG forklifts, mini loaders, skid steer loaders, and loader attachments. Our equipment is widely applied in warehousing & logistics, municipal engineering, agriculture, animal husbandry, breeding farms, and landscaping infrastructure projects. We also provide integrated solutions for customized equipment development. Having exported to numerous countries and served thousands of clients, we warmly welcome you to visit our factory for business cooperation.

FAQ

1. Q: Do TIGLIFT compact loader comply with worldwide requirements and certifications?

A: Yes, All the TIGLIFT compact loader usually conform to worldwide first-class requirements and attain applicable certifications. This consists of CE certification, ISO certification, EPA certification and more.

2. Q: What's the delivery time?

A: Its depends on the order quantity,please check with our customer service,for less than 10 sets standard compact loader usually 20 days can delivery.

3. Q: What's the MOQ (minimum order quantity)? I want buy 1 set customized compact loader,is that OK? Is that possible to use my own LOGO?

A: No problem. We can do the customized forklift. ONE set also be accepted. You can use your own LOGO on the forklift. OEM can be accepted.

4. Q:How about the after service?

A: As we mentioned above,we will do our utmost to provide excellent service to every customer. That's also our TIGLIFT company business philosophy.
